SCIFIT PRO2 Manuel utilisateur

PRO2 SPORT Assembly Manual

PRO2®SPORT

Before using this product, read this manual and

follow all safety rules and operating instructions.

CONTACT PAGE

WAITING ON DECISION

SAFETY & MAINTENANCE INFORMATION

The purpose of the symbols seen below are to attract your attention to possible dangers during the assembly process. The

“Attention” symbol and special icons with its associated explanation deserves your careful consideration. The warning

does not by itself, eliminate any danger. The instructions given are not substitutes for proper accident prevention

measures.

Look for these symbols that will point out safety precautions or important information.

Read all instructions before assembling your SCIFIT exercise machine. Save this manual for future reference.

Close supervision is necessary when the exercise machine is being assembled near children or individuals with

disabilities. Establish a safety perimeter when assembling the machine.

ATTENTION

Two People Required

COMPONENT ACTION WHEN

ATTENTION

Contact your local waste management agency for

specic requirements concerning recycling and disposal

locations of batteries.

Upholstery Mild Soap and Water Daily

Chains Lightly Applied Chian Every 6 Months

Base Roller Track Damp Cloth Monthly

Battery Access “Console Test Mode” Monthly

MAINTENANCE

SAFETY & MAINTENANCE INFORMATION

Specifications

Main Body asseMBly

Upper cranks

lower cranks

console attachMent

Moving the Machine

3-6

6-8

9-11

TABLE OF CONTENTS

SCIFIT • Scientic Solutions for Fitness • SCIFIT • Scientic Solutions for Fitness • SCIFIT

SPECIFICATIONS

Weight: 223 lbs (101kg)

Length: 64 in. (163cm)

Height: 62 in. (158cm)

Width: 30 in. (77cm)

PRO2 SPORT

SCIFIT • Scientic Solutions for Fitness • SCIFIT • Scientic Solutions for Fitness • SCIFIT

MAIN BODY ASSEMBLY

Required Tools and Parts:

5/16” (8mm) Allen

Hex Bit

Two People Required

12” (30.5cm) Long

Center Punch

Torque Wrench set at

576 in/lbs (65 N/m)

12” (30.5cm) Ratchet

Drive Ext.

Cordless Drill

Phillips Bit

Screw, Socket, 3/8”x1” Washer, Flat, 3/8”Washer, Split, 3/8”

Screw, 10-32 x 1/2,

BLK

Washer, Cover, Plastic,

BLK

J K

Right Side Cover

Left Side Cover

SCIFIT • Scientic Solutions for Fitness • SCIFIT • Scientic Solutions for Fitness • SCIFIT

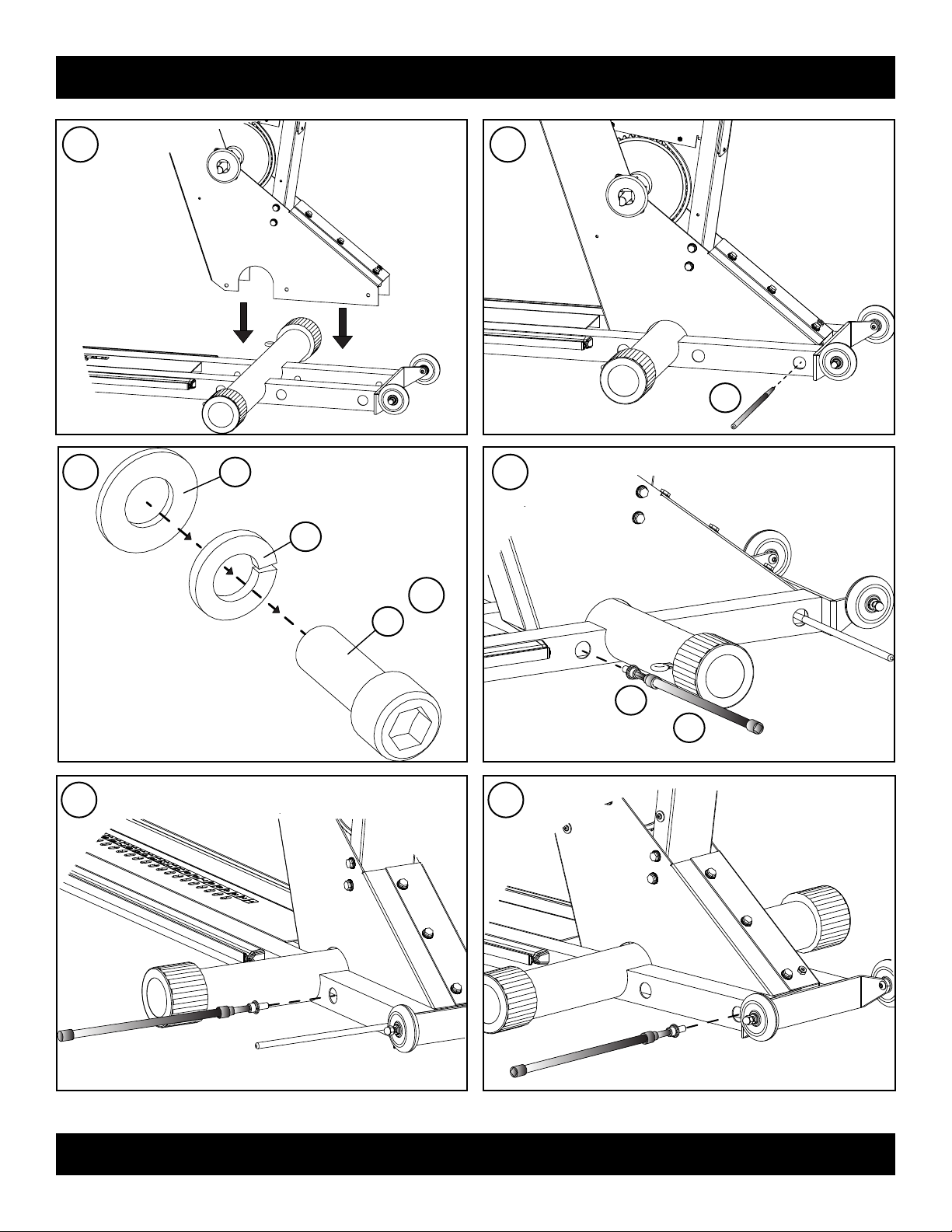

MAIN BODY ASSEMBLY

1 2

3 4

5 6

SCIFIT • Scientic Solutions for Fitness • SCIFIT • Scientic Solutions for Fitness • SCIFIT

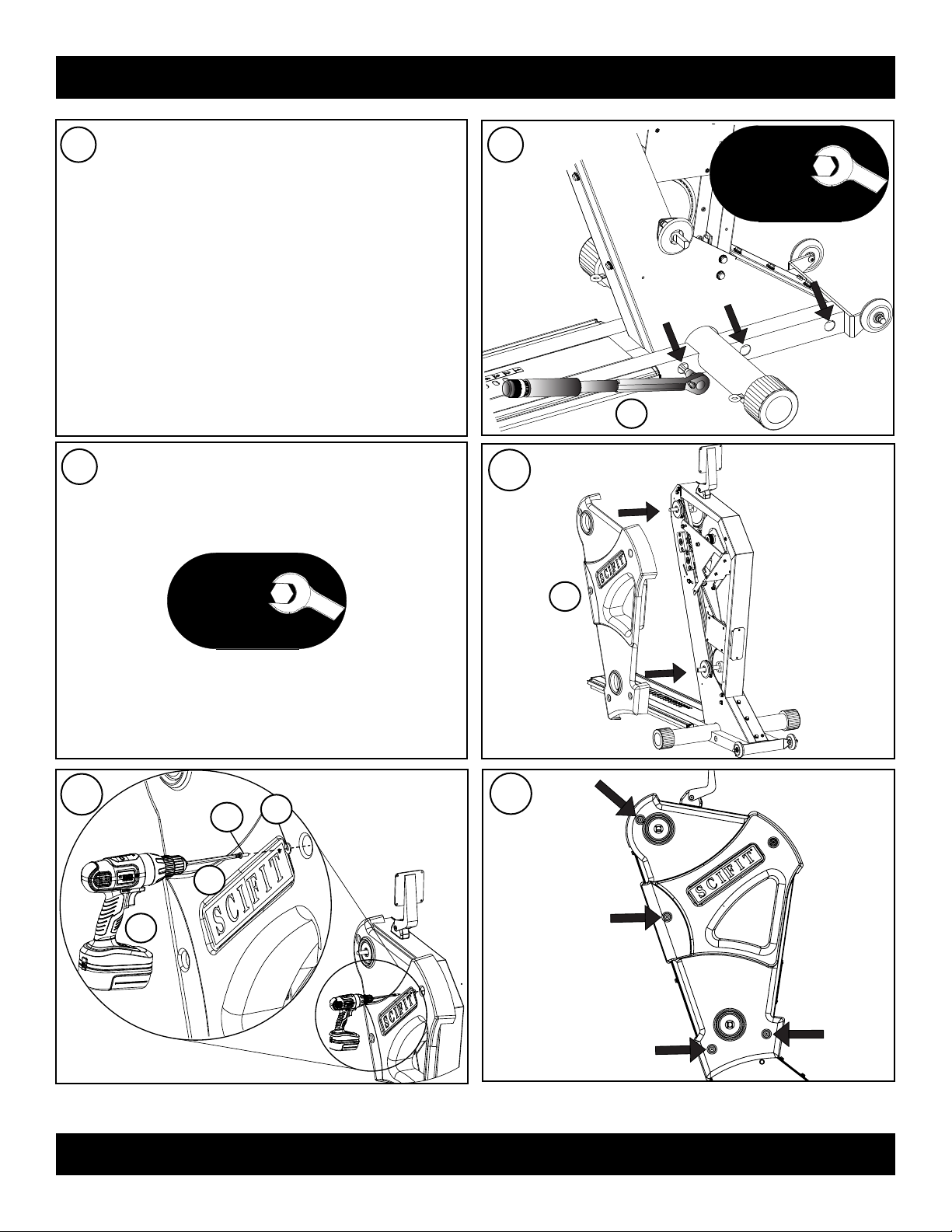

MAIN BODY ASSEMBLY

Repeat steps 2 thru 6 for the other side.

Repeat step 8 for the other side.

576 in/lbs

TORQUE

(65 N/m)

576 in/lbs

TORQUE

(65 N/m)

7 8

910

11 12

SCIFIT • Scientic Solutions for Fitness • SCIFIT • Scientic Solutions for Fitness • SCIFIT

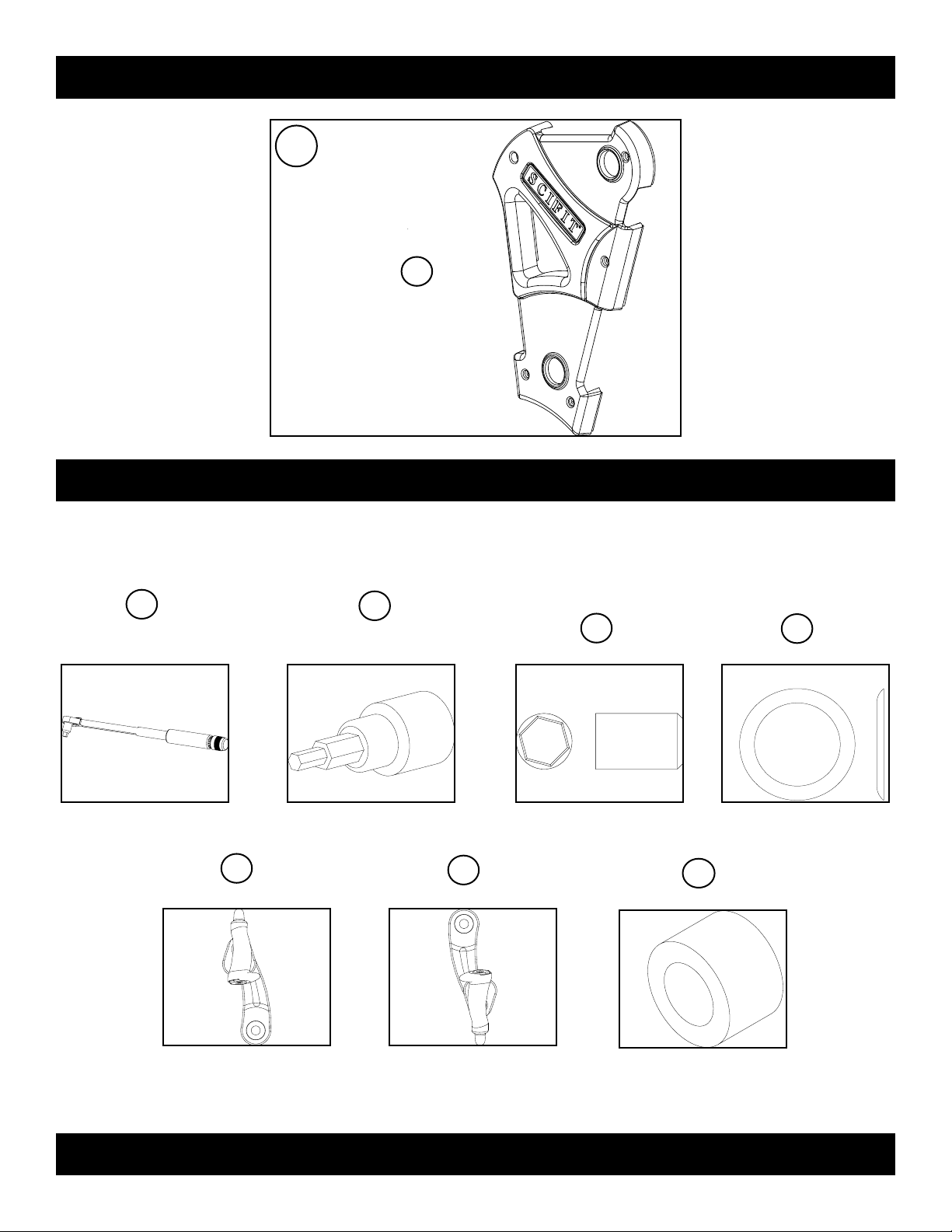

MAIN BODY ASSEMBLY

Repeat steps 10, 11 and 12

for the left side. M

Required Tools and Parts:

5/8-18 x 1 Set Screw

Right Upper Crank Shaft Spacer

Left Upper Crank

Domed Circle Decal

5/16” (8mm) Allen

Hex Bit

Torque Wrench set at

480 in/lbs (54 N/m)

UPPER CRANKS

SCIFIT • Scientic Solutions for Fitness • SCIFIT • Scientic Solutions for Fitness • SCIFIT

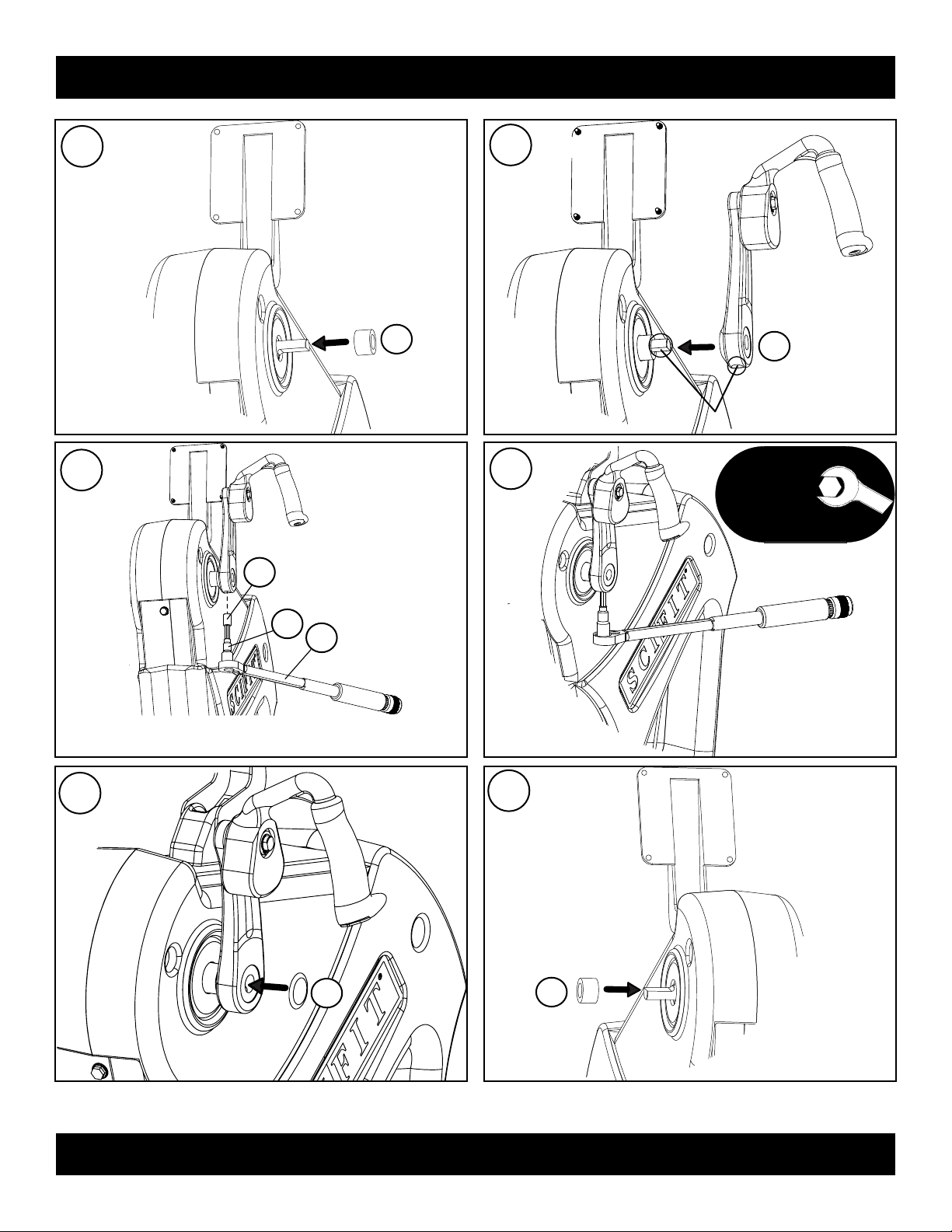

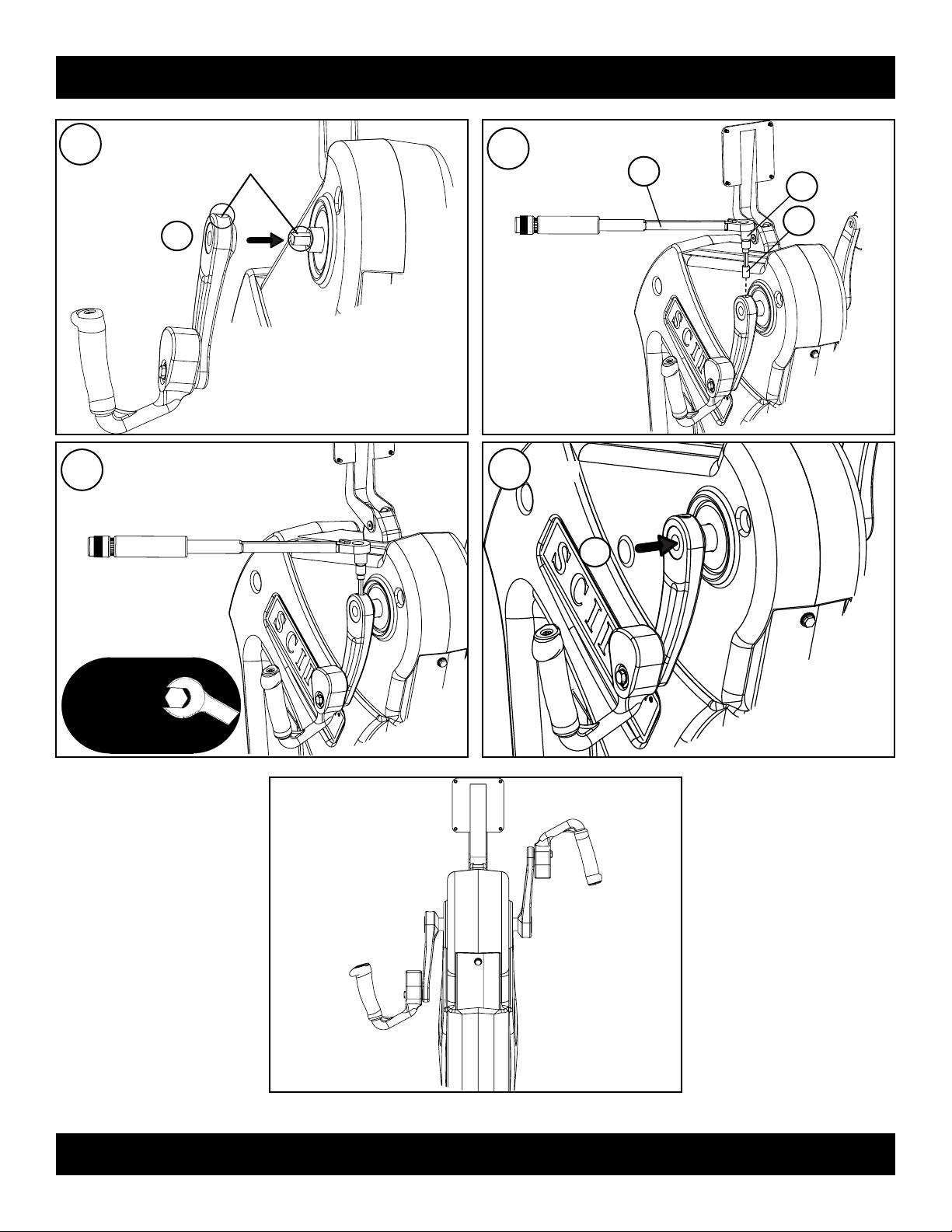

UPPER CRANKS

480 in/lbs

TORQUE

(54 N/m)

(RH)

1(RH)

(RH)

3(RH)

(RH)

(LH)

SCIFIT • Scientic Solutions for Fitness • SCIFIT • Scientic Solutions for Fitness • SCIFIT

UPPER CRANKS

480 in/lbs

TORQUE

(54 N/m)

(LH)

9(LH)

(LH)

OPERATOR VIEW

LH RH
