ASSEMBLY

MANUAL

Schwinn® SC5/SC7/SC Power

Core Health & Fitness

Page 1

SC5 / SC7 / SC Power Assembly Manual

Applies to: SC5 (9-7410) + SC7 (9-7400) + SC Power (9-7380)

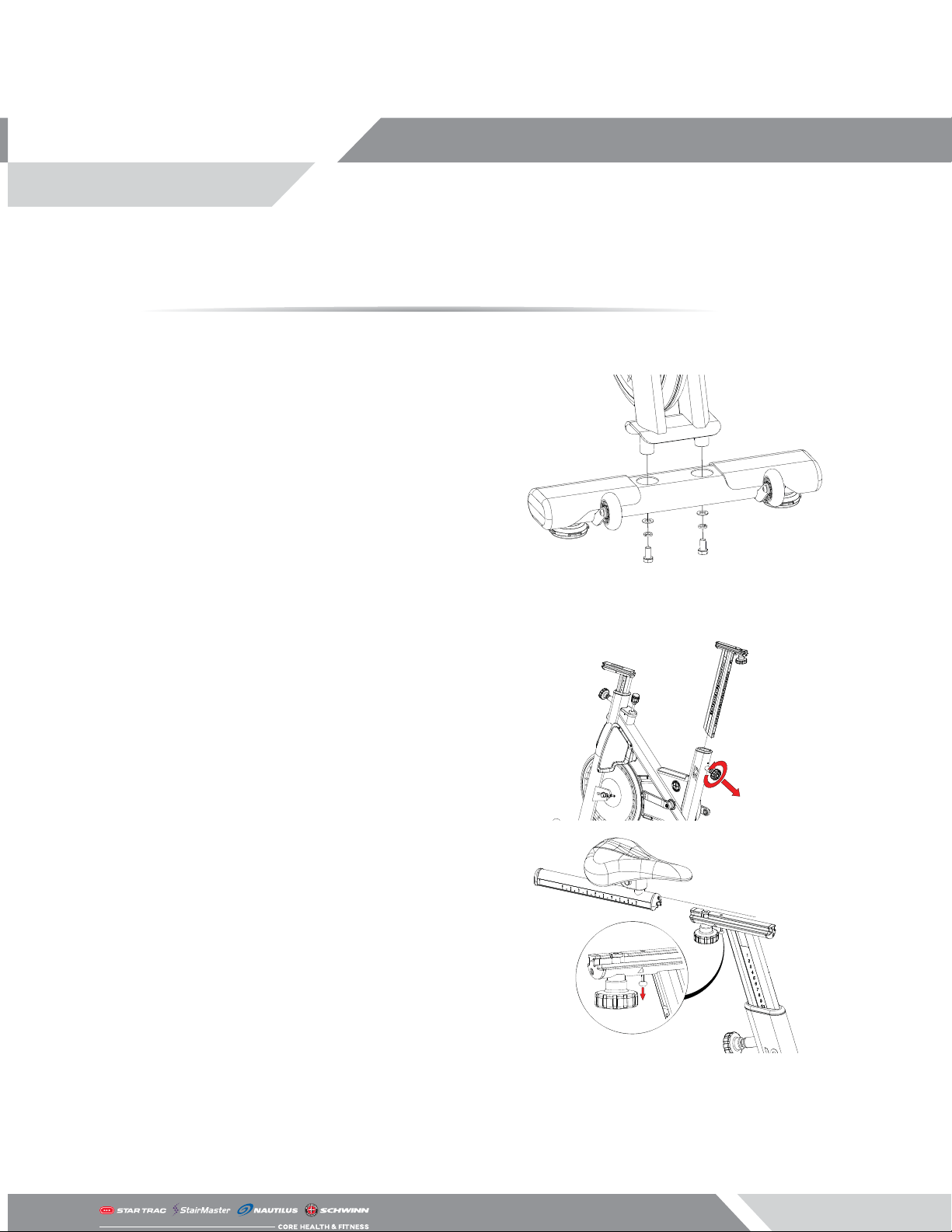

SC5 ASSEMBLY INSTRUCTIONS

1. Install the front stabilizer using two (2) pieces

each of the M10 x 25mm hex head screws, M10

split lock washers, and M10 washers. Repeat this

step to attach the rear stabilizer.

2. Install the seat post by loosening the height ad-

justment pop pin, then pulling outwards on the

pin while sliding the seat post into the frame.

3. Pull down on the seat slider locking pin then

slide the seat assembly onto the seat post in-

stalled in Step 2, tightening the fore/aft adjust-

ment knob to lock the seat slider into place.

NOTE: The fore/aft adjustment knob may need to be

loosened.

Page 2

4. Insert one (1) piece of the trapezoidal fore/aft

locking block into the handlebar post then slide

the handlebars onto the handlebar post. Once

the block is inside the handlebar post, use a 3mm

allen key to secure the end cap to the post using

one (1) M4 x 10mm screw.

5. Secure one (1) piece of the threaded collar knob

insert through the handlebars and into the trap-

ezoidal fore/aft locking nut using a 10mm allen

key. Next, slide one (1) piece of the M8 washer

onto the fore/aft adjustment knob then tighten

the fore/aft adjustment knob into the threaded

collar locking knob insert.

6. Install the user right side pedal into the crank

arm then use a torque wrench and a 8mm allen

socket to secure one (1) piece of the crank bolt

from the other side of the pedal, torquing to

33-37 ft-lbs (45-50 Nm). Repeat this step for the

rider left side pedal.

CAUTION: The pedal MUST be torqued to the above

specications otherwise a failure of the pedal may

occur.

Trapezoidal

Locking

Block

Fore/Aft

Adjustment

Knob

M8 Washer

Threaded Collar

Locking Knob

Insert

Page 3

SC7 ASSEMBLY INSTRUCTIONS

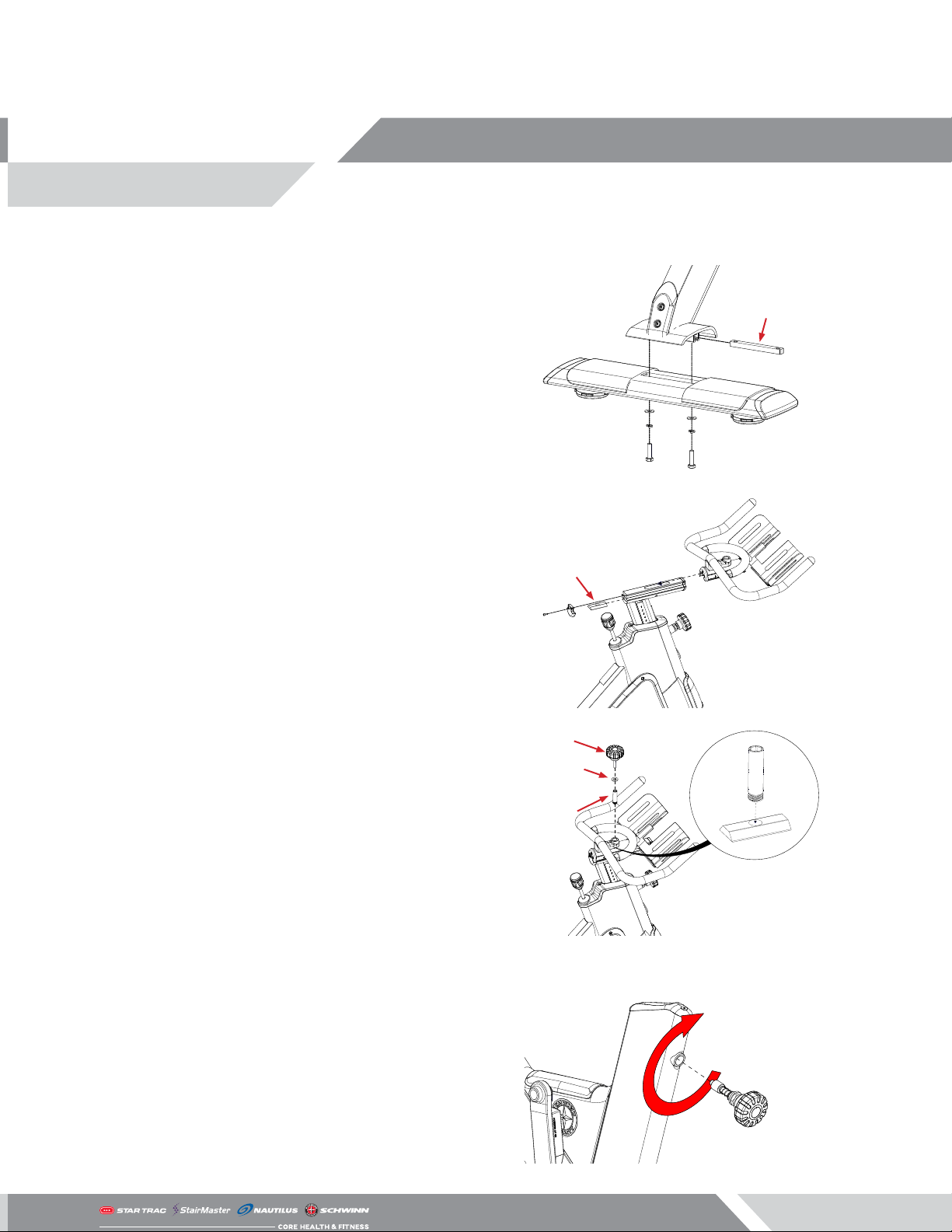

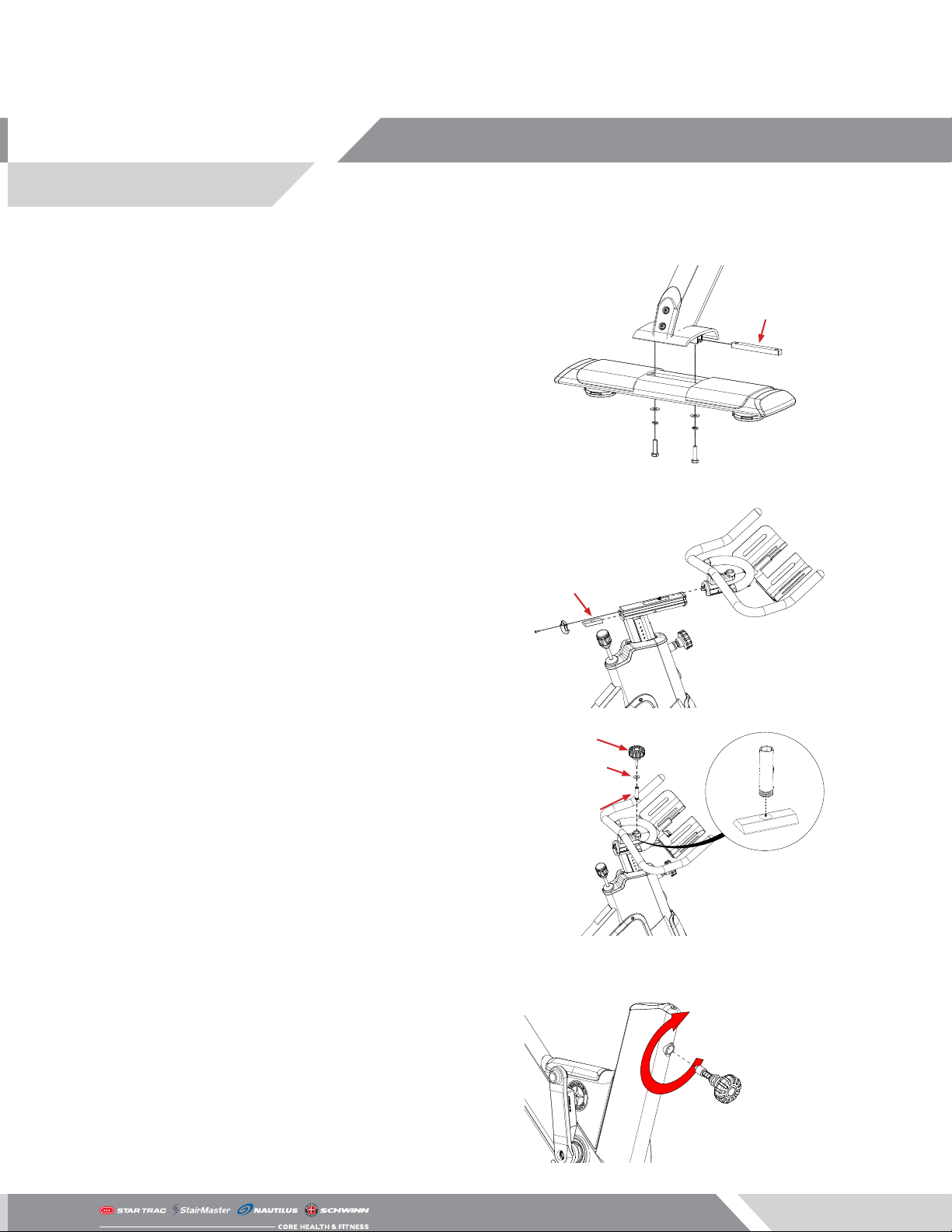

1. Slide the threaded stabilizer plate into the bike

frame then use a 13mm socket to secure the rear

stabilizer onto the frame using two (2) pieces

each of the M8 x 32mm bolts, M8 split lock wash-

ers, and M8 at washers. Repeat this step for the

front stabilizer.

2. Insert one (1) piece of the trapezoidal fore/aft

locking block into the handlebar post then slide

the handlebars onto the handlebar post. Once

the block is inside the handlebar post, use a 3mm

allen key to secure the end cap to the post using

one (1) M4 x 10mm screw.

3. Secure one (1) piece of the threaded collar knob

insert through the handlebars and into the trap-

ezoidal fore/aft locking nut using a 10mm allen

key. Next, slide one (1) piece of the M8 washer

onto the fore/aft adjustment knob then tighten

the fore/aft adjustment knob into the threaded

collar locking knob insert

4. Use a 21mm open-ended wrench to install the

seat post pop pin into the frame, turning clock-

wise to tighten.

Threaded

Stabilizer

Plate

Fore/Aft

Adjustment

Knob

M8 Washer

Threaded Collar

Locking Knob

Insert

Trapezoidal

Locking

Block

Page 4

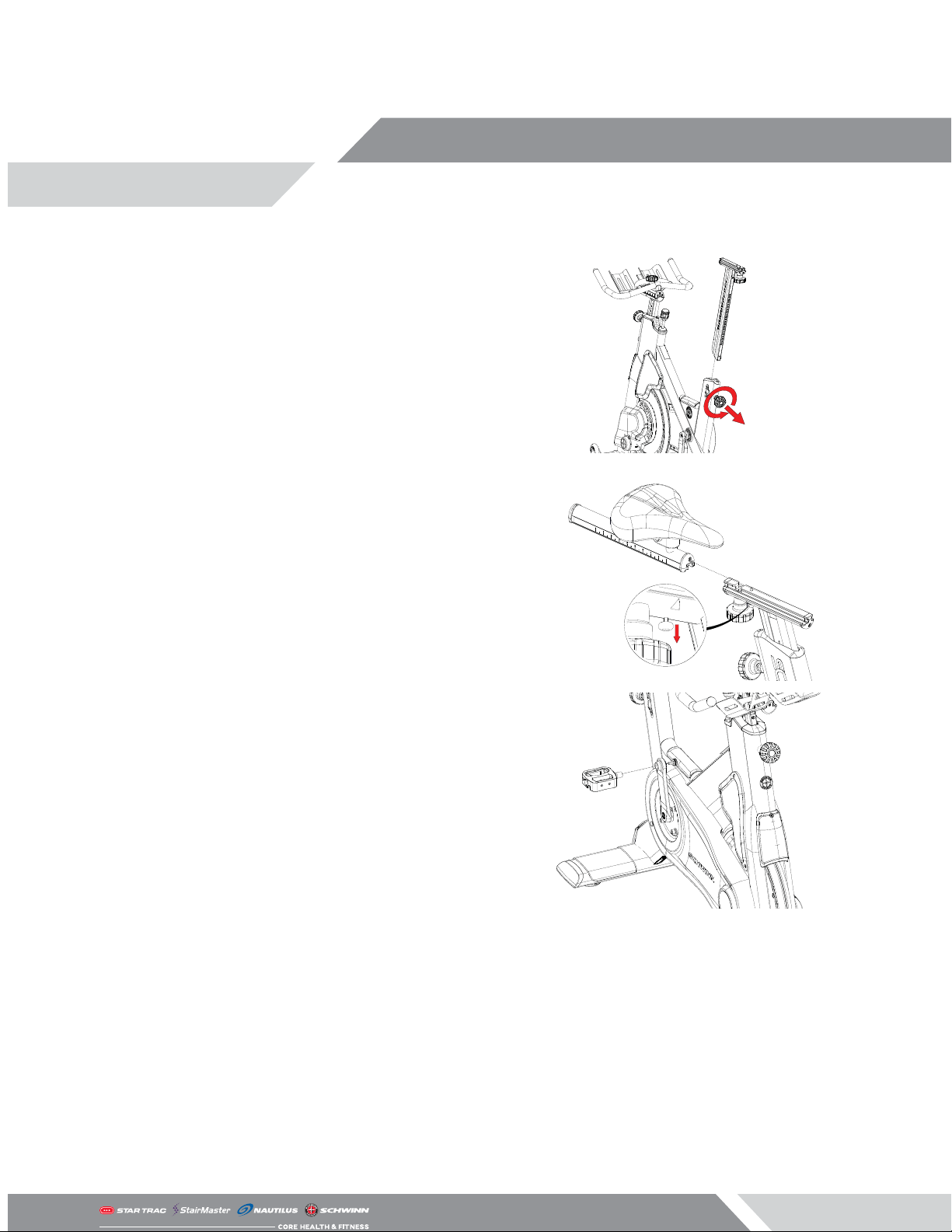

5. Slide the seat post into the frame by loosening

the seat post pop pin, then pulling outwards on

the pin while sliding the seat into the frame.

6. Pull down on the seat slider locking pin then

slide the seat assembly onto the seat post in-

stalled in Step 3, tightening the fore/aft adjust-

ment knob to lock the seat slider into place.

7. Install the pedal into the crank arm then use a

torque wrench and a 8mm allen socket to secure

one (1) piece of the crank bolt from the other

side of the pedal, torquing to 33-37 ft-lbs (45-50

Nm). Repeat this step for the rider left side pedal.

CAUTION: The pedal MUST be torqued to the above

specications otherwise a failure of the pedal may

occur.

Page 5

SC POWER ASSEMBLY INSTRUCTIONS

1. Slide the threaded stabilizer plate into the bike

frame then use a 13mm socket to secure the rear

stabilizer onto the frame using two (2) pieces

each of the M8 x 32mm bolts, M8 split lock wash-

ers, and M8 at washers. Repeat this step for the

front stabilizer.

2. Insert one (1) piece of the trapezoidal fore/aft

locking block into the handlebar post then slide

the handlebars onto the handlebar post. Once

the block is inside the handlebar post, use a 3mm

allen key to secure the end cap to the post using

one (1) M4 x 10mm screw.

3. Secure one (1) piece of the threaded collar knob

insert through the handlebars and into the trap-

ezoidal fore/aft locking nut using a 10mm allen

key. Next, slide one (1) piece of the M8 washer

onto the fore/aft adjustment knob then tighten

the fore/aft adjustment knob into the threaded

collar locking knob insert

4. Use a 21mm open-ended wrench to install the

seat post pop pin into the frame, turning clock-

wise to tighten.

Threaded

Stabilizer

Plate

Trapezoidal

Locking

Block

Fore/Aft

Adjustment

Knob

M8 Washer

Threaded Collar

Locking Knob

Insert

Page 6

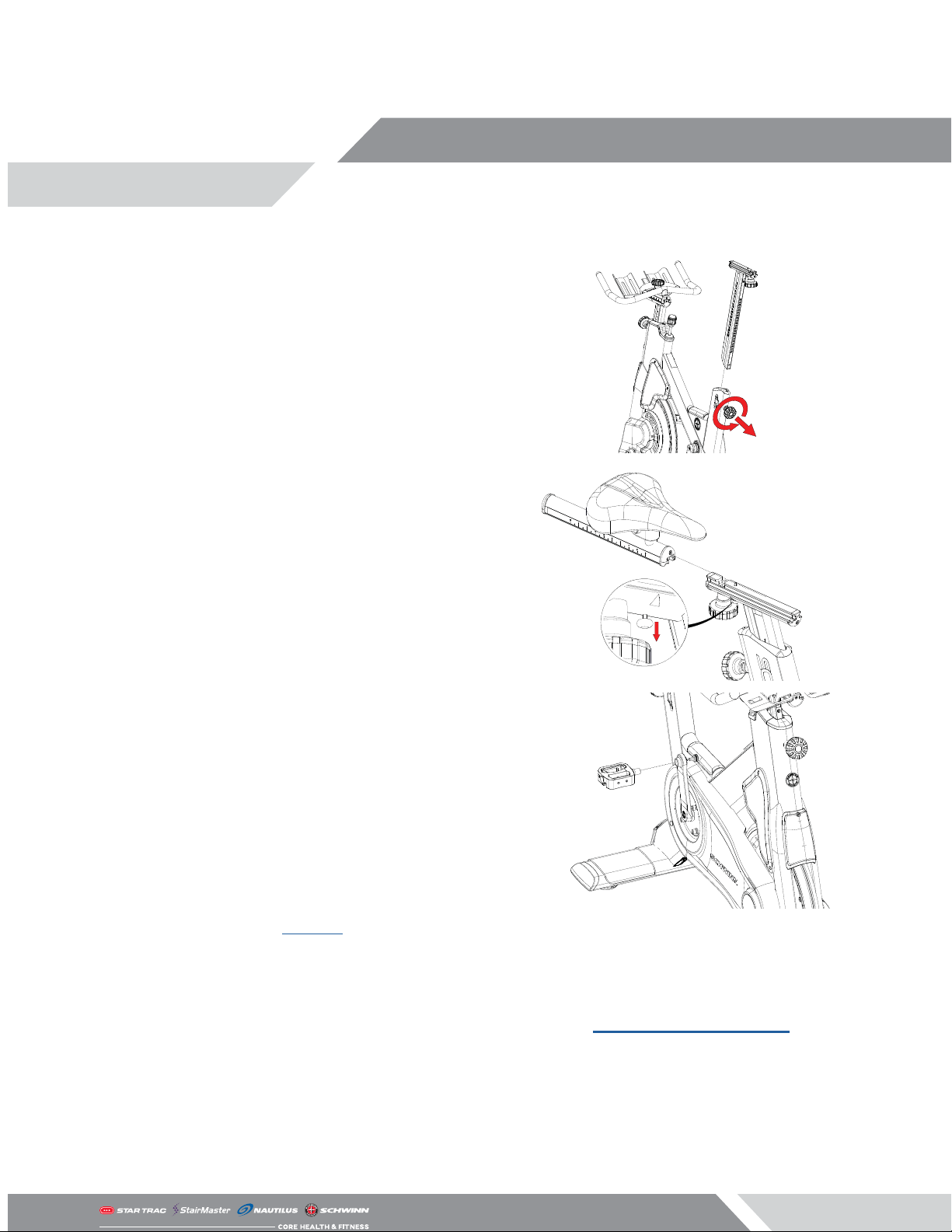

5. Slide the seat post into the frame by loosening

the height adjustment pop pin, then pulling

outwards on the pin while sliding the seat into

the frame.

6. Pull down on the seat slider locking pin then

slide the seat assembly onto the seat post in-

stalled in Step 3, tightening the fore/aft adjust-

ment knob to lock the seat slider into place.

7. Install the pedal into the crank arm then use a

torque wrench and a 8mm allen socket to secure

one (1) piece of the crank bolt from the other

side of the pedal, torquing to 33-37 ft-lbs (45-50

Nm). Repeat this step for the rider left side pedal.

CAUTION: The pedal MUST be torqued to the above

specications otherwise a failure of the pedal may

occur.

8. Refer to document 620-8594 “Echelon2G Assem-

bly Manual” contained within the Echelon2G box

to continue the installation of the SC Power.

620-8594
