Schwinn AD6 Manuel utilisateur

SCHWINN"

Manual en Espafiol LatinoAmericano:

http://www,schwinnfitness,com ASSEMBLY MANUAL / OWNER S MANUAL

Important Safety Instructions - Assembly 3

Safety Warning Labels /Serial Number 4

Specifications 5

Before Assembly 5

Parts 6

Hardware 7

Tools 7

Assembly 8

Moving the Machine 13

Leveling the Machine 13

Important Safety Instructions 14

Features 15

Console Features 16

Remote Heart Rate Monitor 17

Operations 18

Adjustments

Using the Machine

Locking the Fan Assembly /Storage

Power Up /Idle Mode

Initial Setup

Quick Start Program

Custom Time Workout

Pausing or Stopping

Results Mode

Console Service Mode

Maintenance

Replacing the Console Batteries

Maintenance Parts

Troubleshooting

Warranty

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number

Date of Purchase

To register your product warranty, go to: vcw_.SchwinnFitness.com/register

Or call 1 (800) 605-3369.

if you have questions or problems with your product, please call 1 (800) NAUTILUS (628-8458).

Nautilus, Inc., (800) NAUTILUS /(800) 628-8458, www.Nautituslnc.com - Customer Service: North America (800) 605-3369, csnls@

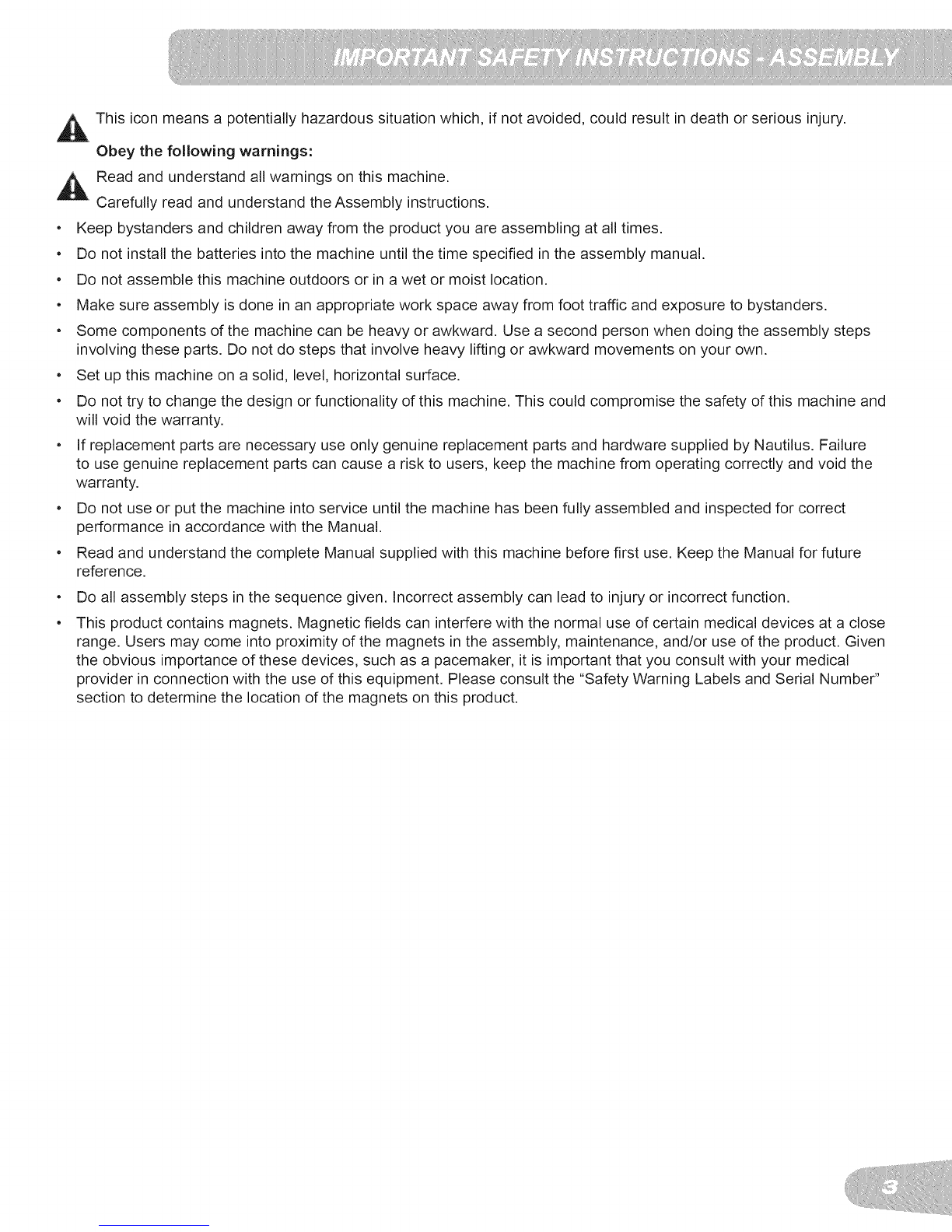

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Obey the following warnings:

Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions.

• Keep bystanders and children away from the product you are assembling at all times.

• Do not install the batteries into the machine until the time specified in the assembly manual.

• Do not assemble this machine outdoors or in a wet or moist location.

• Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.

• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps

involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.

• Set up this machine on a solid, level, horizontal surface.

• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and

will void the warranty.

• If replacement parts are necessary use only genuine replacement parts and hardware supplied by Nautilus. Failure

to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the

warranty.

• Do not use or put the machine into service until the machine has been fully assembled and inspected for correct

performance in accordance with the Manual.

• Read and understand the complete Manual supplied with this machine before first use. Keep the Manual for future

reference.

• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.

• This product contains magnets. Magnetic fields can interfere with the normal use of certain medical devices at a close

range. Users may come into proximity of the magnets in the assembly, maintenance, and/or use of the product. Given

the obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical

provider in connection with the use of this equipment. Please consult the "Safety Warning Labels and Serial Number"

section to determine the location of the magnets on this product.

• Keep children away.

• Not intended for use by anyone under

14 years of age.

• Prior to use, read and understand the

Owner's Manual.

• Injury or death is possible if Caution is

not used while using this machine.

• The maximum user weight for this

machine is 300 Ibs (136 kg).

• Replace any"Caution;' "Warning" or

"Danger" label that is illegible,

damaged, or removed.

• This machine is for home and commercial use.

• When put in a home, lock the machine

when not in operation.

• Supervision is required if equipment is

used in a commercial environment.

rMfg.Date Serial Number

MM/YYI AAAAAABBBPPPPPPLLCCCCCC1

°, C(:/

18225NE RiversideParkway,Portland,Or.97230

www.nautilus.com

Phone:1-8OO-NAUTILUS [_

Model:Schwinn®Airdyne®AD6

Rating:NA

Class:SA,HA.

MaximumUserWeight:3901b(136kg)

FitnessEquipment

Madein:China

NAU/FILUS _- 0000

, 004 6970 B j,

Machine Weight:

Power Requirements:

Operating Voltage:

Maximum User Weight:

115 Ibs. (52.2 kg)

2 AA Batteries

(not included)

1.0 - 3.3VDC

300 Ibs. (136 kg)

Regulatory Approvals: (( RoS

This product conforms to the applicable EN ISO 20957 international Standards for Stationary Training Equipment, Class S

DO NOT dispose of this product as refuse. This product is to be recycled. For information on the proper method of

disposal, contact a Nautilus Customer Service Representative. Contact information is available in the Contacts

section in this manual.

This product, its packaging, and components contain chemicals known to the State of California to cause cancer,

birth defects, or reproductive harm. This Notice is provided in accordance with California's Proposition 65. If you

would like additional information, please refer to our website at www.nautilus.com/prop65.

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a

hard, level surface. Allow a workout area of a minimum 73.7" (187.2 cm) x 97.7" (248.2 cm).

Basic Assembly Tips

Follow these basic points when you assemble your machine:

• Read and understand the "important Safety instructions" before assembly.

• Collect all the pieces necessary for each assembly step.

• Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclock-

wise) to loosen, unless instructed otherwise.

• When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.

• The assembly requires 2 people.

A decal has been applied to all right (" R ") and left (" L ") parts to assist

Item Qty Description Item

1 1 Frame 9

2 1 Console Support Bar 10

3 1 Console 11

4 1 Water Bottle Holder 12

5 1 Handlebar, Left 13

6 1 Seat 14

7 1 Seat Post 15

8 1 Stabilizer, Rear 16

with assembly.

Qty Description

1 Pedal Strap, Left

1 Pedal, Left

1 Foot Peg, Left

1 Stabilizer, Front

1 Foot Peg, Right

1 Pedal, Right

1 Pedal Strap, Right

1 Handlebar, Right

item

Qty Description

4 ButtonHeadHexScrew,M8xl.25x20

4 Washer,M8Lock

4 Washer,M8

item

Qty Description

4 Washer,M8Black

4 ButtonHeadHexScrew,M8x1.25x12

Black

Tools

included Not included

6 mm (recommended)

13 mm

15 mm

17 mm

2 AA size batteries (LR6)

1. Attach Stabilizers to Frame

Note: Hardware is pre-installed and not on the Hardware Card ( * ).

I ®

2. Attach Pedals and then Pedal Straps to Frame Assembly

Note: The Left Pedal is reverse=threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based from

a seated position on the bike. The Left Pedal has an "L', the Right Pedal an "R".

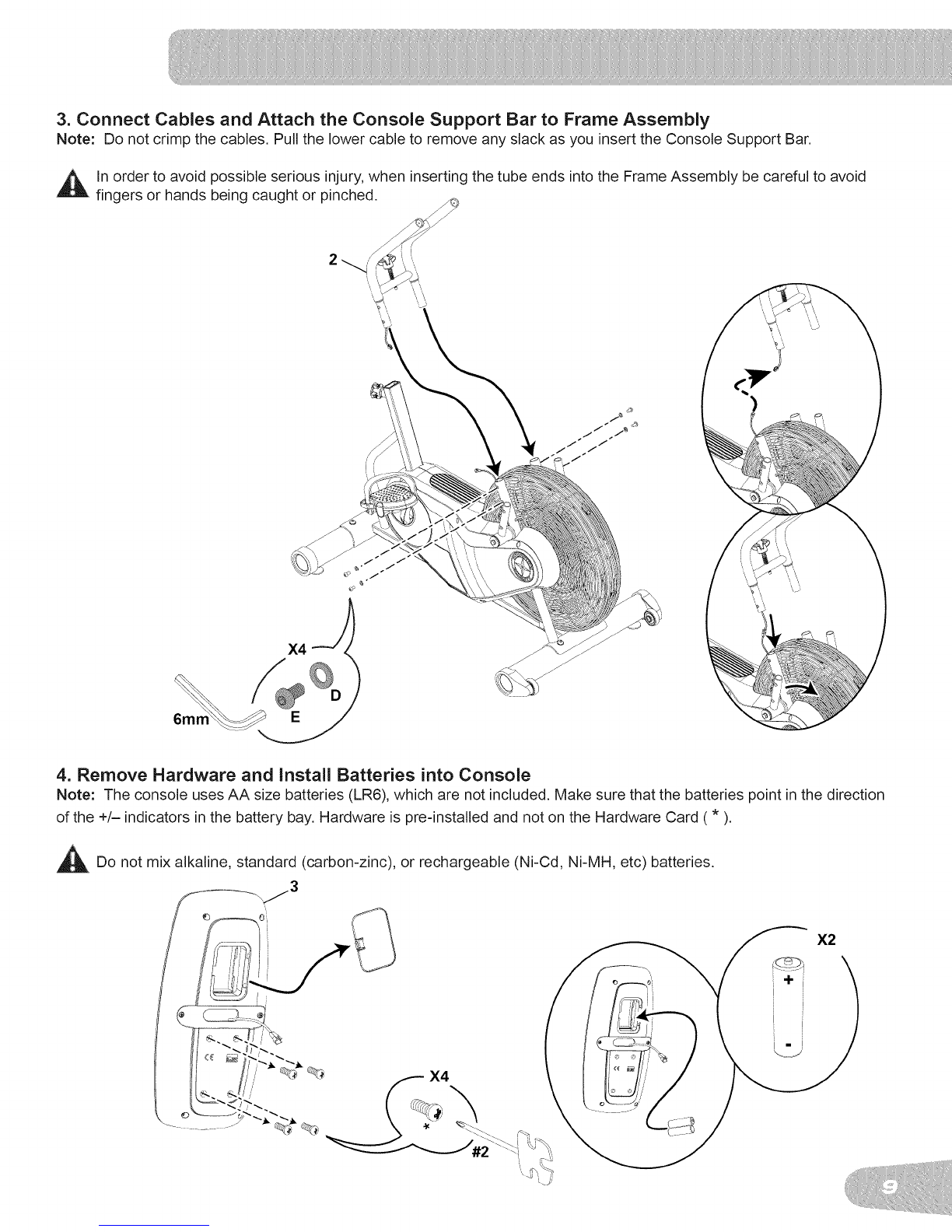

3. Connect Cables and Attach the Console Support Bar to Frame Assembly

Note: Do not crimp the cables, Pull the lower cable to remove any slack as you insert the Console Support Bar.

ln order to avoid possible serious injury, when inserting the tube ends into the Frame Assembly be careful to avoid

fingers or hands being caught or pinched.

4. Remove Hardware and Install Batteries into Console

Note: The console uses AA size batteries (LR6), which are not included. Make sure that the batteries point in the direction

of the +/- indicators in the battery bay. Hardware is pre-installed and not on the Hardware Card ( * ).

Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc) batteries.

5. Connect Cable and Attach the Console

Note: Do not crimp Console Cable,

6. Attach Water Bottle Holder to Frame Assembly

Note: Hardware is pre-instaled and not on the Hardware Card ( *),
