ASSEMBLY MANUAL / OWNER’S MANUAL

Manual en Español Latino Americano:

http://www.schwinnﬁtness.com

Important Safety Instructions - Assembly 3

Safety Warning Labels / Serial Number 4

Speciﬁcations 4

Parts 5

Tools 5

Hardware 6

Before Assembly 6

Assembly 7

Moving the Bike 19

Leveling the Bike 19

Important Safety Instructions 20

Features 21

Console Features 22

Remote Heart Rate Monitor 23

Operations 25

Adjustments 25

Quick Start / Manual Program 26

Workout Program Selection 26

Schwinn™Advantage User Setup Mode 27

Proﬁle Programs 29

Pausing or Stopping 30

Results/Cool Down Mode 31

User Statistics 31

Console Setup Mode 32

Maintenance 33

Troubleshooting 35

Warranty 37

TABLE Of CONTENTS

Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America (800) 605-3369,

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________

Date of Purchase ____________________

To register your product warranty , go to: www.SchwinnFitness.com/register

Or call 1 (800) 605–3369.

If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Obey the following warnings:

Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions.

• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.

• Donotconnectpowersupplytothemachineuntilinstructedtodoso.

• Donotassemblethismachineoutdoorsorinawetormoistlocation.

• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.

• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoingtheassemblysteps

involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.

• Setupthismachineonasolid,level,horizontalsurface.

• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethesafetyofthismachineandwill

void the warranty.

• Ifreplacementpartsarenecessary,useonlygenuineNautilus®replacementpartsandhardware.Failuretousegenuine

replacement parts can cause a risk to users, keep the machine from operating correctly and void the warranty.

• Donotuseuntilthemachinehasbeenfullyassembledandinspectedforcorrectperformanceinaccordancewiththe

Manual.

• DonotoperatethismachineuntilyoureadandunderstandthecompleteOwner’sManualprovidedonline.Keepthe

Owner’sManualforfuturereference.

• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrectfunction.

• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertainmedicaldevicesataclose

range.Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Giventhe

obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical provider

in connection with the use of this equipment. Please consult the “Safety Warning Labels and Serial Number” section to

determine the location of the magnets on this product.

IMpORTANT SAfETY INSTRUCTIONS

-ASSEMBLY

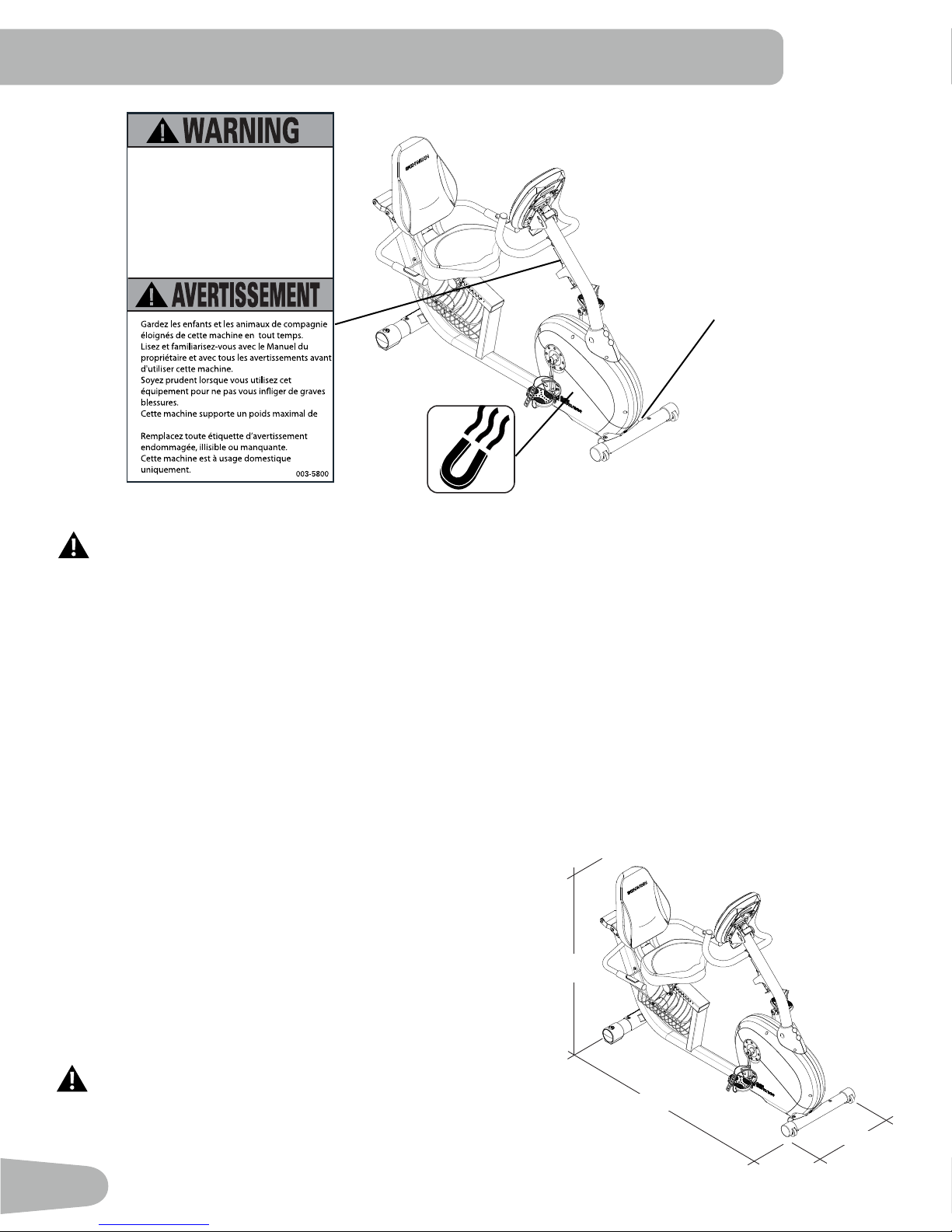

SAfETY WARNINg LABELS ANd SERIAL NUMBER /

SpECIfICATIONS

•

300lbs. (136kg).

Keep children away.

Prior to use, read and understand the

Owners Manual.

Injury or death is possible if Caution is not

used while using this machine.

The maximum user weight for this

machine is 300 lbs (136 Kg).

Replace any “Caution” “Warning” or

“Danger” label that is illegible, damaged,

or removed.

This machine is for home use only.

•

Maximum User Weight: 300 lbs. (136 kg)

Power Requirements:

Operational Voltage: 9VDC

Operating Current: 1.0 A

Regulatory Approvals:

AC Power Adapter: UL listed, CSA certiﬁed (or equivalent),

Rated 120V 60Hz Input, 9VDC, 1.0A Output.

Class 2 or LPS.

This product, its packaging, and components contain chemicals

known to the State of California to cause cancer, birth defects, or

reproductive harm. This Notice is provided in accordance with

California’sProposition65.Ifyouwouldlikeadditionalinformation,

please refer to our website at www.nautilus.com/prop65.

46”

(116.8 cm)

25” (63.5 cm)

63” (160 cm)

Serial number

FCC Compliance

Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe

user’sauthoritytooperatetheequipment.

The power supply complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that may

cause undesired operation.

Note: This power supply has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

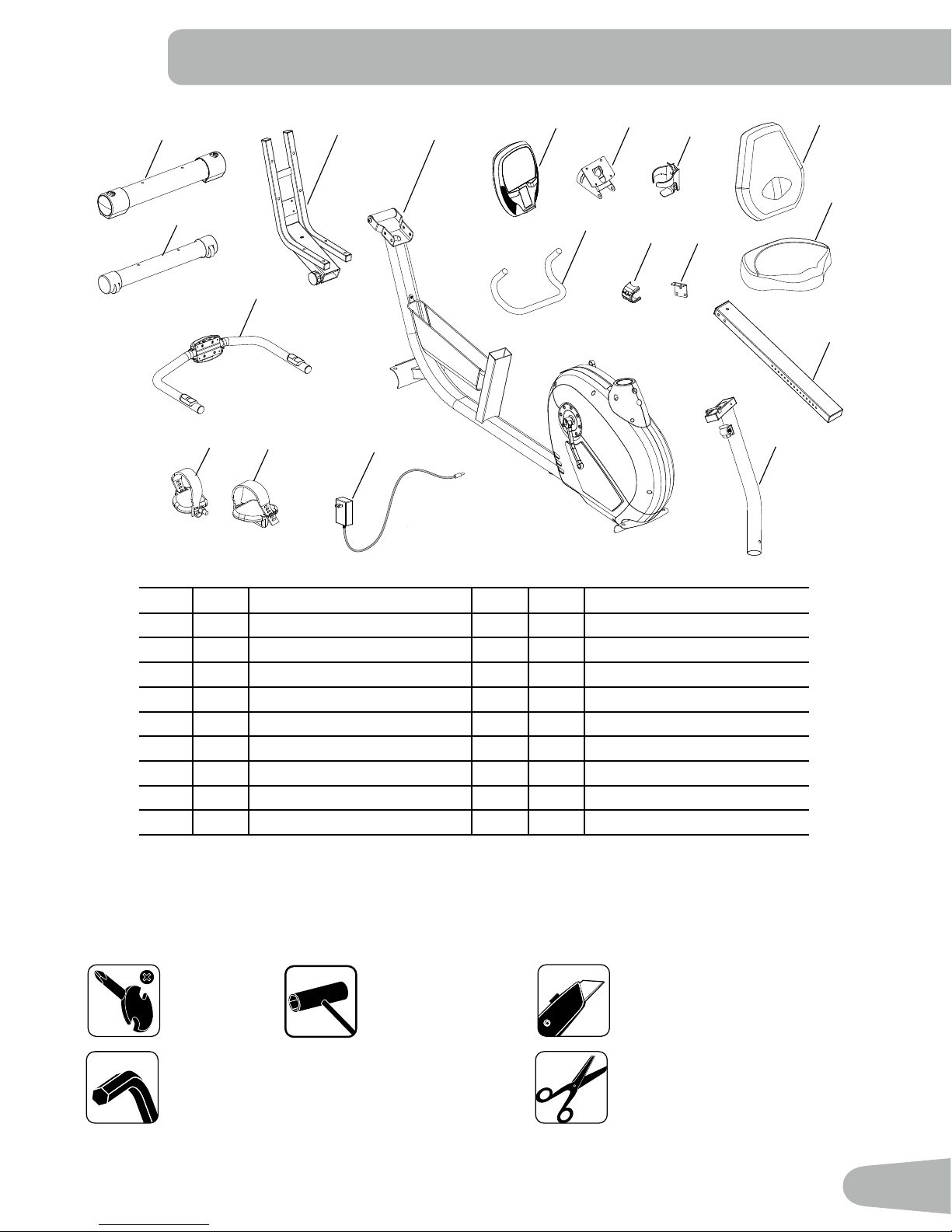

pARTS / TOOLS

Tools

Included Not Included

6 mm

(recommended)

34567

910

Item Qty Description Item Qty Description

1 1 Rear Stabilizer 10 1 Seat Rail Bracket

2 1 Front stabilizer 11 1 Seat Back

3 1 Seat Frame 12 1 Seat Bottom

4 1 Main Frame 13 1 Seat Rail

5 1 Console 14 1 Console Mast

6 1 Console Bracket 15 1 AC Adapter

7 1 Water Bottle Holder 16 1 Left Pedal

8 1 Upright Handlebar 17 1 Right Pedal

9 1 Handlebar Bracket 18 1 Side Handlebar

Note:MediaCableisintheConsolebox.

HARdWARE / BEfORE ASSEMBLY

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard,

levelsurface.Allowaworkoutareaofaminimum111”x73”(2.8mx1.9m).

Basic Assembly Tips

Follow these basic points when you assemble your machine:

• Read and understand the “Important Safety Instructions” before assembly.

• Collect all the pieces necessary for each assembly step.

• Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclock-

wise) to loosen, unless instructed otherwise.

• When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.

• The assembly requires 2 people.

Item Qty Description Item Qty Description

A 1 CarriageBolt,M8x85 H 1 HexBolt,M7x30

B 1 HexBolt,M8x85 I 4 Curved Washer, M8

C 1 ConsoleTiltAdjustmentKnob J 4 Cover

D 8 ButtonHeadHexScrew,M8x16 K 8ButtonHeadHexScrew,M8x45

E 1 Lock Nut, M8 L 1 Lock Washer, M7

F 4 HexScrew,M8x16 M 1 Flat Washer, M7

G14 Flat Washer, M8

A B C D E F G H I J

K L M

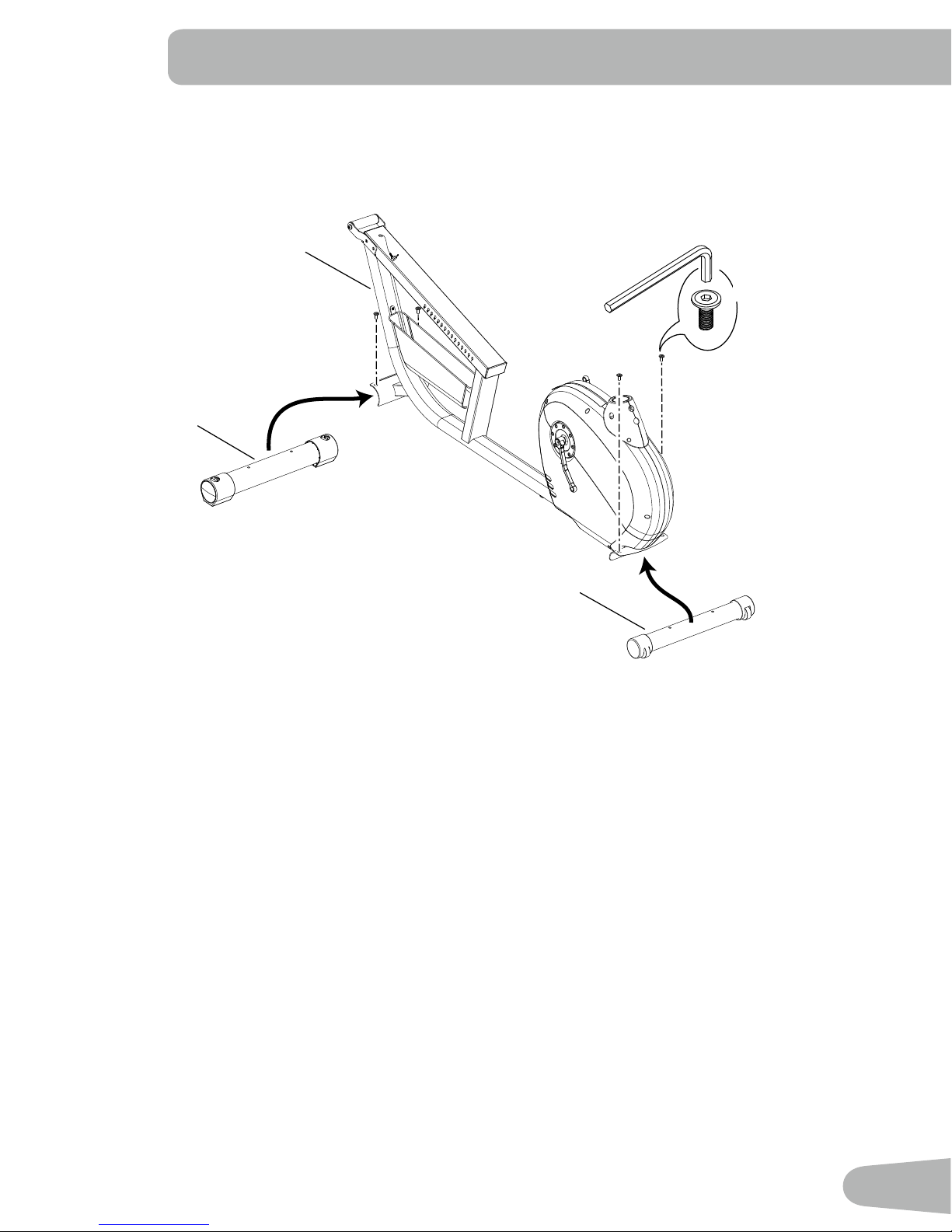

1. Attach Stabilizers to Frame

ASSEMBLY

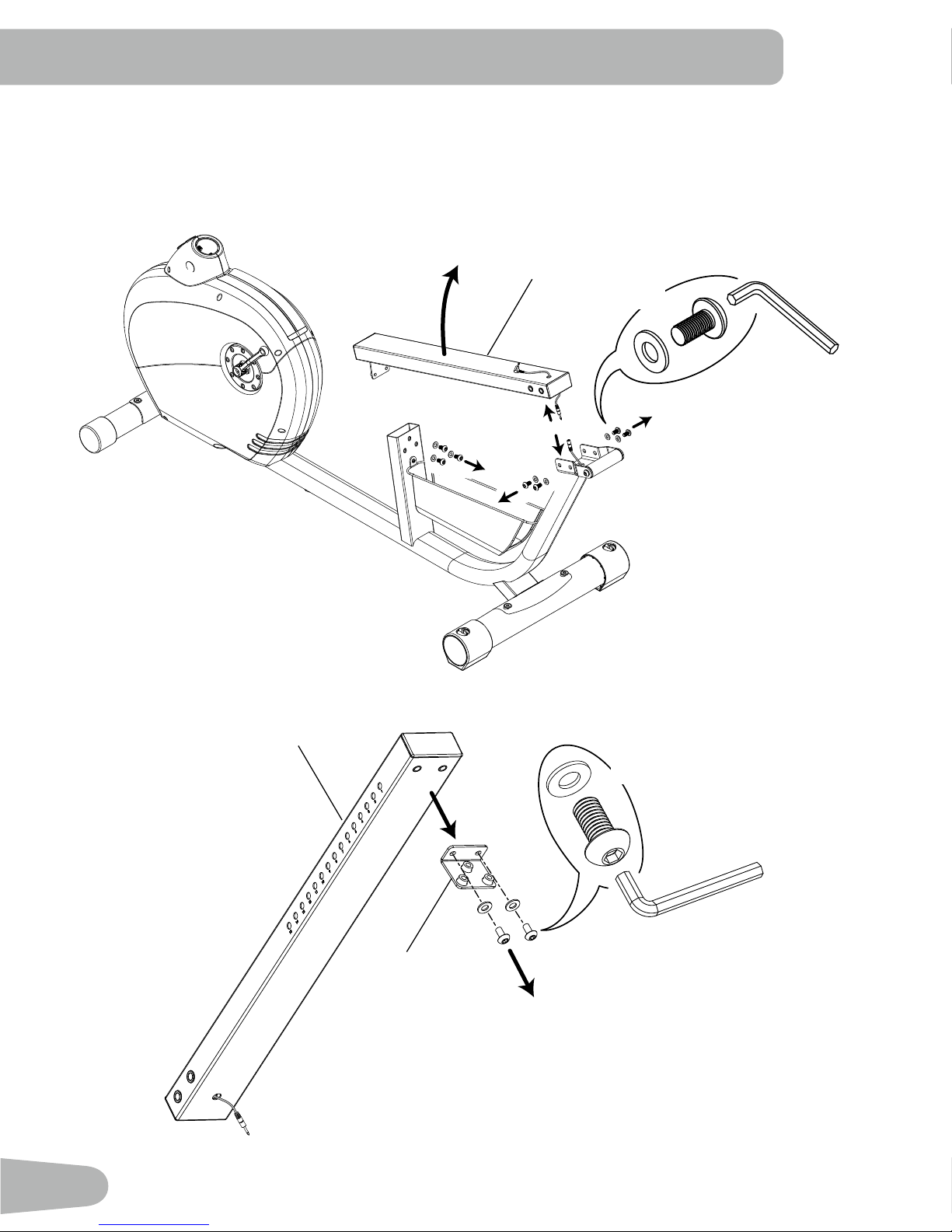

2. Prepare the Main Frame for Assembly

NOTICE: Disconnect the Heart Rate Cable. Make sure that the heart rate cable does not fall into the frame tube.

Hardware is not on hardware card.

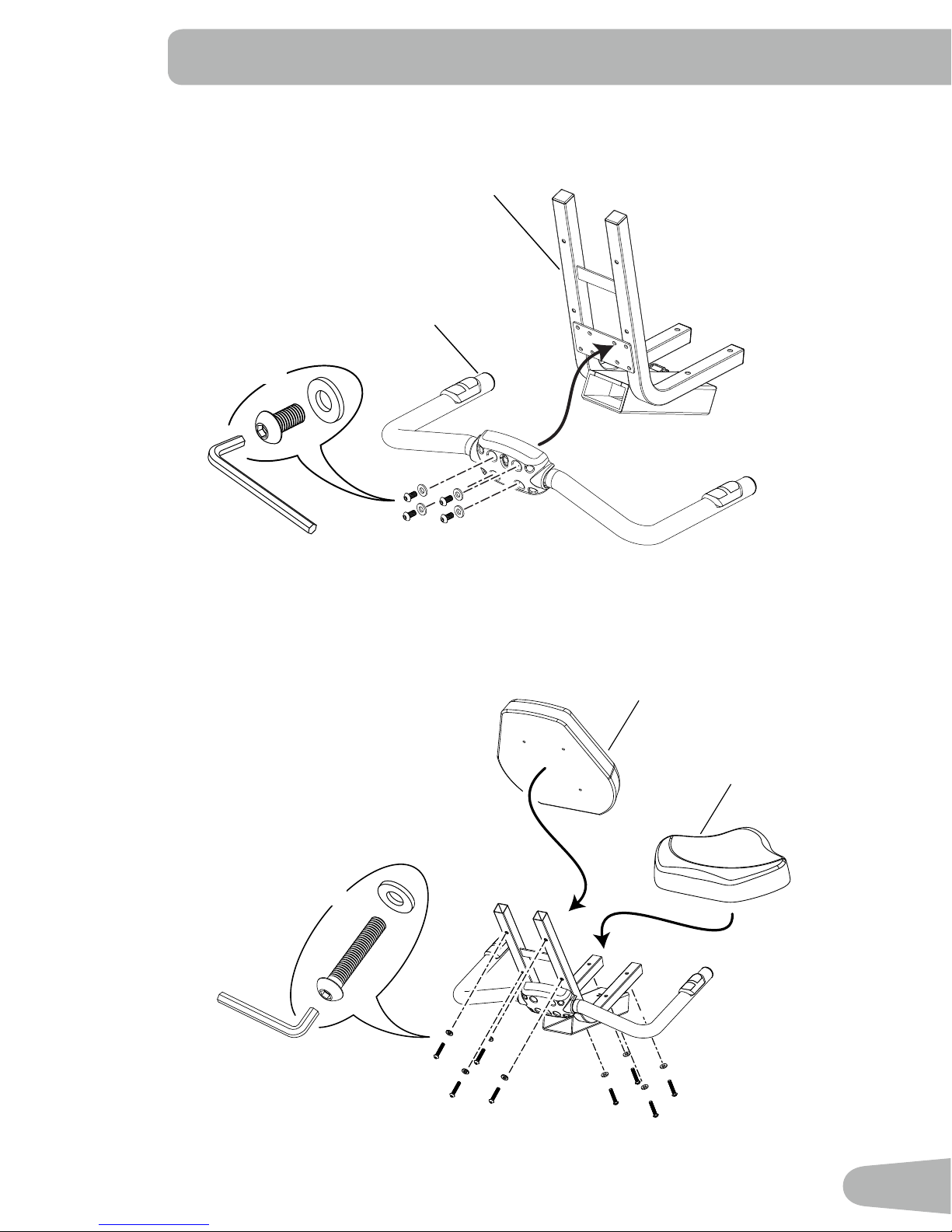

4. Attach Seat Pads to Seat Frame Assembly

3. Attach Side Handlebar to Seat Frame

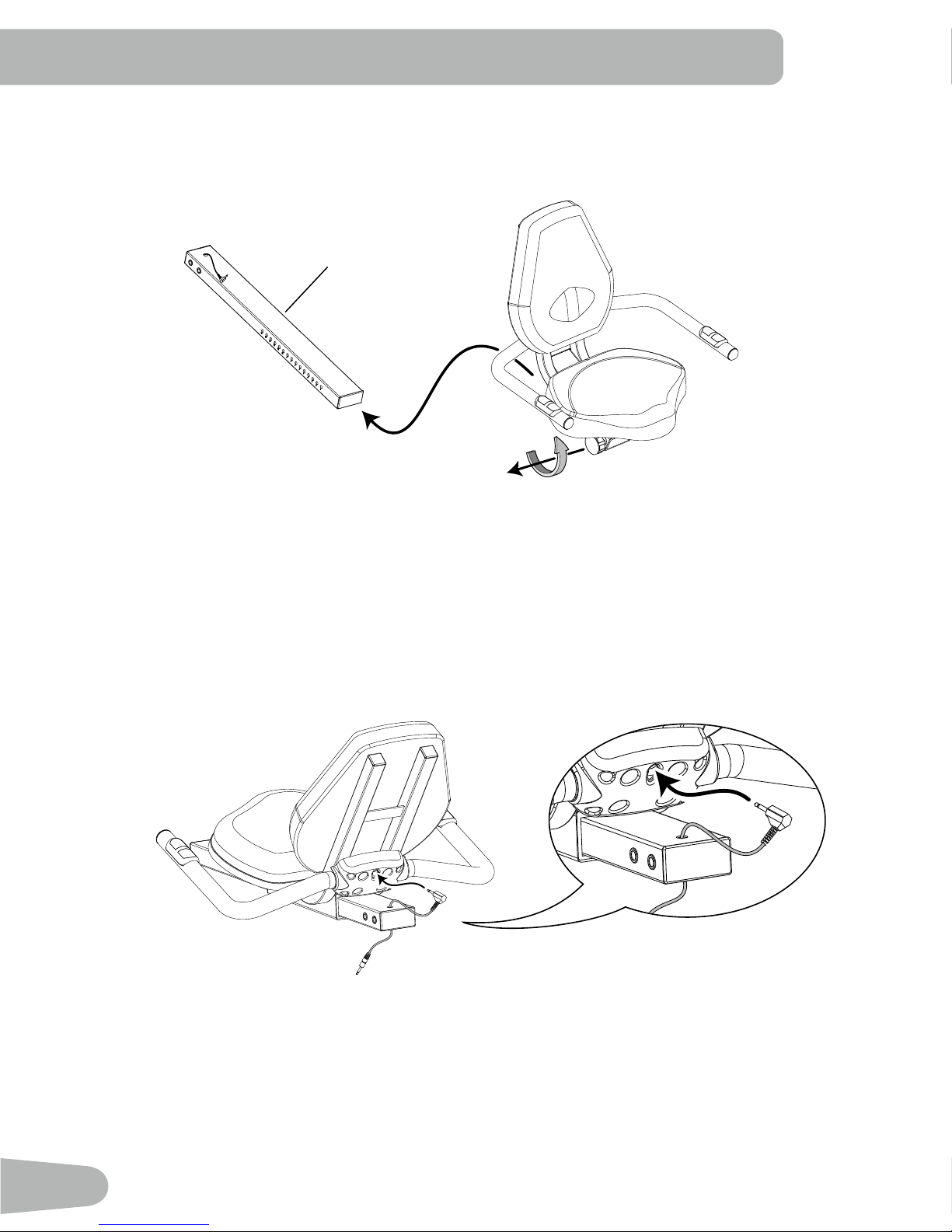

5. Slide Seat Assembly onto Seat Rail

NOTICE:DonotcrimptheHeartRateCable.LocktheAdjustmentKnobintooneoftheSeatRaillockingholes.

6. Connect Heart Rate Cable to Seat Assembly

NOTICE: Do not crimp the Heart Rate Cable.
