Schwinn AD2i Manuel utilisateur

ASSEMBLY MANUAL / OWNER’S MANUAL

Manual en Español Latino Americano:

http://www.schwinnﬁtness.com

Important Safety Instructions - Assembly 3

Safety Warning Labels / Serial Number 4

Speciﬁcations 5

Before Assembly 5

Parts 6

Hardware 7

Tools 7

Assembly 8

Leveling the Bike 14

Moving the Bike 14

Important Safety Instructions - Owner’s 15

Features 16

Console Features 17

Operations 19

Adjustments 19

Workout Mode 20

Pausing or Stopping 20

Service Mode 21

Maintenance 22

Replacing the Batteries 24

Troubleshooting 25

TABLE OF CONTENTS

Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America

(800) 605-3369, [email protected] | outside U.S. +01-360-859-5180, [email protected] |

trademark. Nautilus, Inc. (www.NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN®,

UNIVERSAL® and AIRDYNE® and respective logos. Other trademarks are the property of their respective

owners.

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________

Date of Purchase ____________________

To register your product warranty , go to: www.SchwinnFitness.com/register

Or call 1 (800) 605–3369.

If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).

!This icon means a potentially hazardous situation which, if not avoided, could result in death or

serious injury.

Obey the following warnings:

!Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions.

• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.

• Donotinstallthebatteriesintothemachineuntilthetimespeciedintheassemblymanual.

• Donotassemblethismachineoutdoorsorinawetormoistlocation.

• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposureto

bystanders.

• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoing

the assembly steps involving these parts. Do not do steps that involve heavy lifting or awkward

movements on your own.

• Setupthismachineonasolid,level,horizontalsurface.

• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethe

safety of this machine and will void the warranty.

• Ifreplacementpartsarenecessaryuseonlygenuinereplacementpartsandhardwaresuppliedby

Nautilus. Failure to use genuine replacement parts can cause a risk to users, keep the machine

from operating correctly and void the warranty.

• Donotuseuntilthemachinehasbeenfullyassembledandinspectedforcorrectperformancein

accordance with the Manual.

• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforerstuse.Keepthe

Manual for future reference.

• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrect

function.

• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertain

medicaldevicesatacloserange.Usersmaycomeintoproximityofthemagnetsintheassembly,

maintenance, and/or use of the product. Given the obvious importance of these devices, such

as a pacemaker, it is important that you consult with your medical provider in connection with the

useofthisequipment.Pleaseconsultthe“SafetyWarningLabelsandSerialNumber”sectionto

determine the location of the magnets on this product.

IMPORTANT SAFETY INSTRUCTIONS

— ASSEMBLY

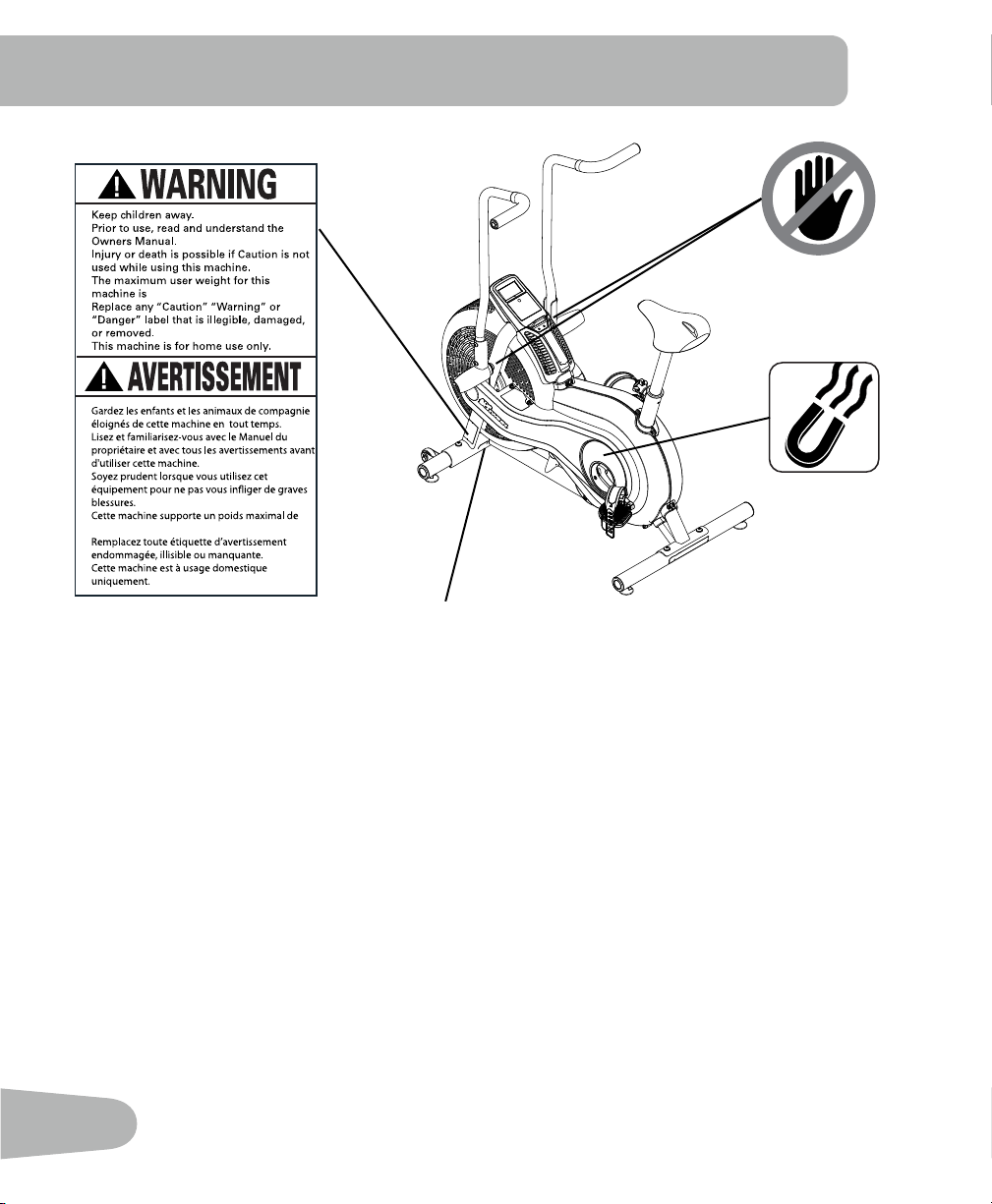

SAFETY WARNING LABELS AND

SERIAL NUMBER

•

250lbs. (113kg).

•

250lbs. (113kg).

Serial number

SPECIFICATIONS

50”

(127 cm)

25” (63.5 cm)

46” (117 cm)

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation,

thelocationmustbeonahard,levelsurface.Allowaworkoutareaofaminimum82”x61”

(2.1mx1.5m).

Basic Assembly Tips

Follow these basic points when you assemble your machine:

1.Readandunderstandthe“ImportantSafetyInstructions”beforeassembly.

2. Collect all the pieces necessary for each assembly step.

3. Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten,

and the left (counterclockwise) to loosen, unless instructed otherwise.

4. When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt

through the holes.

5.Theassemblyrequires2people.

Maximum User Weight: 250 lbs. (113 kg)

Power Requirements: 2 AA batteries (LR6)

Operational Voltage: 1.0 - 3.3VDC

!This product, its packaging, and components

contain chemicals known to the State of

California to cause cancer, birth defects, or

reproductive harm. This Notice is provided in

accordance with California’s Proposition 65. If

you would like additional information, please

refer to our web site at

www.nautilus.com/prop65.

Item Qty Description Item Qty Description

1 1 Main Frame 7 1 Foot Peg, Left

2 1 Front Stabilizer 8 1 Handlebar, Right

3 1 Rear Stabilizer 9 1 Handlebar, Left

4 1 Pedal, Right 10 1 Console

5 1 Pedal, Left 11 1 Seat

6 1 Foot Peg, Right 12 1 Seat Post

11 12

PARTS

Tools

Included Not Included

6 mm

Item Qty Description

A 8 ButtonHeadHexScrewM8x20

B 8 Curved Washer M8

C 8 Lock Washer M8

(recommended)

HARDWARE / TOOLS

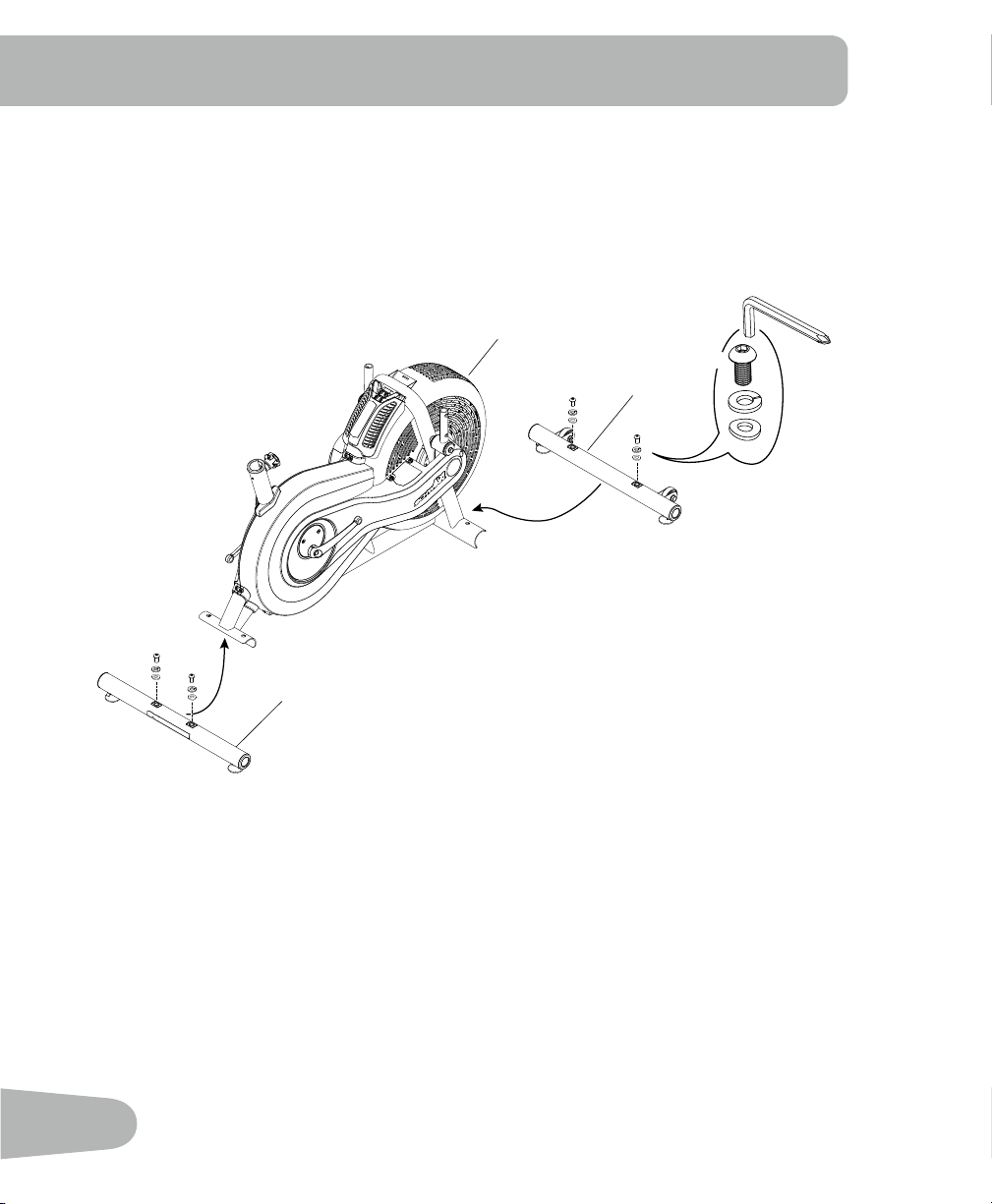

1. Attach Stabilizers to Frame Assembly

ASSEMBLY

6 mm

2. Attach Pedals

Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the

Bike. Orientation is based from a seated position on the bike. The Left Pedal has an

“L”,theRightPedalan“R”.

3. Attach Foot Pegs and Handlebar Arms

6 mm
