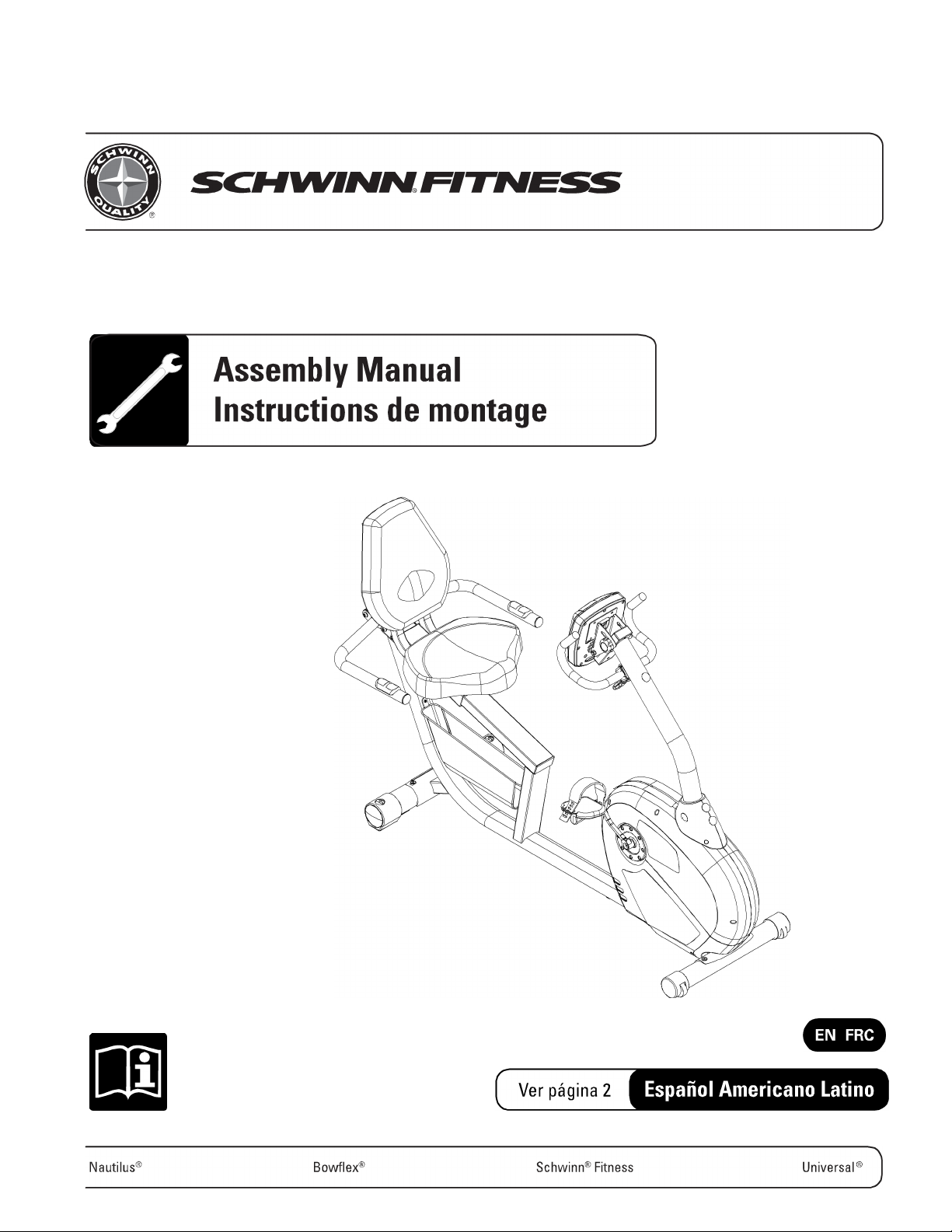

Schwinn 240 Manuel utilisateur

Schwinn® Schwinn®

Schwinn®240 240

240Recumbent Recumbent

RecumbentExercise Exercise

ExerciseBike Bike

Bike

003–3234.051812.D

ParaobtenerestemanualenEspañolLatinoAmericanovayaa:

http://www.schwinnfitness.com.

TableofContents

ImportantSafetyInstructions3Parts6

Specifications4Assembly7

BeforeAssembly4LevelYourBike24

ToolsRequired5Contacts26

Hardware5Instructionsdemontage27

2 2

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________

Date of Purchase ____________________

To register your product warranty , go to: www.schwinnﬁtness.com/register

Or call 1 (800) 605–3369.

If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).

ImportantSafetyInstructions

Thisiconmeansapotentiallyhazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.

Obeythefollowingwarnings:

Readandunderstandallwarningsonthismachine.

CarefullyreadandunderstandtheAssemblyManual.

• •

•Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.

• •

•Donotconnectpowersupplytothemachineuntilinstructedtodoso.

• •

•Donotassembleequipmentinawetordamplocation.

• •

•Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafficandexposuretobystanders.

• •

•Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoingtheassemblystepsinvolving

theseparts.Donotdostepsthatinvolveheavyliftingorawkwardmovementsonyourown.

• •

•Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethesafetyandcanvoidthewarranty.

• •

•IfreplacementpartsarenecessaryuseonlygenuineSchwinn®replacementpartsandhardwaresuppliedbyNautilus.

Failuretousegenuinereplacementpartscancausearisktousers,keepthemachinefromoperatingcorrectlyorvoid

thewarranty.

• •

•Donotuseorputthemachineintoserviceuntilthemachinehasbeenfullyassembledandinspectedforcorrect

performanceinaccordancewiththeOwner’sManual.

• •

•ReadandunderstandthecompleteOwner’sManualsuppliedwiththismachinebeforefirstuse.KeeptheOwner’sManual

forfuturereference.

• •

•Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjury.

3 3

• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertainmedicaldevicesatacloserange.

Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Giventheobvious

importance of these devices, such as a pacemaker, it is important that you consult with your medical provider in connection

withtheuseofthisequipment.Pleaseconsultthe“SafetyWarningLabelsandSerialNumber”sectiontodeterminethe

location of the magnets on this product.

Specifications

BeforeAssembly

Selecttheareawhereyouaregoingtosetupandoperateyourmachine.Forsafeoperation,thelocationmustbeonahard,level

surface.Allowaworkoutareaofminimum103”x65”(2.6mx1.7m).

Followthesebasicpointswhenyouassembleyourmachine:

1.Readandunderstandthe“ImportantSafetyInstructions”beforeassembly.

2.Collectallthepiecesnecessaryforeachassemblystep.

3.Usingtherecommendedwrenches,turntheboltsandnutstotheright(clockwise)totighten,andtheleft

(counterclockwise)toloosen,unlessinstructedotherwise.

4.Whenattaching2pieces,lightlyliftandlookthroughtheboltholestohelpinserttheboltthrough

theholes.

5.Theassemblyrequires2people.

4 4

Tools

IncludedNot Included

5mm

Hardware

ItemQtyDescriptionItemQtyDescription

A4M8x16HexScrew H1NarrowWasher

B8M8x45ButtonHeadHexScrew I23FlatWasher(9pre-installed)

C1M7x30HexBoltJ4ArcWasher

D17M8x16ButtonHeadHexScrew(9

pre-installed)

K1M8LockNut

E1M8x85HexBolt L-not used

F1M8x85CarriageBolt M1ConsoleAdjustmentKnob

G1LockWasherN4Cover

5 5

A B C D E F G H I J K M N

Parts

ItemQtyDescriptionItemQtyDescription

11RearStabilizer111SeatBack

21FrontStabilizer121SeatBottom

31SeatFrame131SeatRail

41MainFrame141ConsoleMast

51Console151PowerCord

61ConsoleBracket161LeftPedal

71WaterBottleHolder171RightPedal

8–notused181UprightHandlebar

91HandlebarBracket191SideHandlebar

101SeatRailBracket

6 6

3456

7910

Assembly

1. Attach Stabilizers to Main Frame

2. Prepare the Main Frame for Assembly

NOTICE: Disconnect the Heart Rate Cable. Make sure that the Heart Rate Cable does not fall into the frame tube.

3.AttachSideHandlebarstoSeatFrame

9 9

4.AttachSeatPadstoSeatFrameAssembly

10 10
