Schwinn NAUTILUS A20 Manuel utilisateur
ASSEMBLY MANUAL / OWNER’S MANUAL
Manual en Español Latino Americano:
http://www.schwinnfitness.com
2
Important Safety Instructions - Assembly 3
Safety Warning Labels / Serial Number 4
Specifications 4
Before Assembly 5
Parts 6
Hardware 7
Tools 7
Assembly 8
Leveling the Bike 14
Moving the Bike 14
Important Safety Instructions - Owner’s 15
Features 16
Console Features 17
Contact Heart Rate (CHR) 18
Operations 20
Adjustments 20
Quick Start / Manual Program 20
Profile Programs 21
Pausing or Stopping 21
Results 21
Changing Unit Measures
(English Imperial/Metric) 21
Maintenance 22
Troubleshooting 25
Warranty 27
Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America (800) 605-3369,
[email protected] | outside U.S. +01-360-859-5180, [email protected] | Printed in China | © 2013 Nautilus, Inc.
TABLE Of CONTENTS
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty , go to: www.SchwinnFitness.com/register
Or call 1 (800) 605–3369.
If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458)
Or go to: www.SchwinnFitness.com
3
IMpORTANT SAfETY INSTRUCTIONS
— ASSEMBLY
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obey the following warnings:
Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.
• Donotconnectpowersupplytothemachineuntilinstructedtodoso.
• Donotassemblethismachineoutdoorsorinawetormoistlocation.
• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoingtheassemblysteps
involvingtheseparts.Donotdostepsthatinvolveheavyliftingorawkwardmovementsonyourown.
• Setupthismachineonasolid,level,horizontalsurface.
• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethesafetyofthismachine
and will void the warranty.
• Ifreplacementpartsarenecessary,useonlygenuineNautilus®replacement parts and hardware. Failure to use
genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the
warranty.
• Donotuseuntilthemachinehasbeenfullyassembledandinspectedforcorrectperformanceinaccordancewiththe
Manual.
• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforerstuse.KeeptheManualforfuture
reference.
• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrectfunction.
• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertainmedicaldevicesataclose
range.Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Given
the obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical
provider in connection with the use of this equipment. Please consult the “Safety Warning Labels and Serial Number”
section to determine the location of the magnets on this product.
4

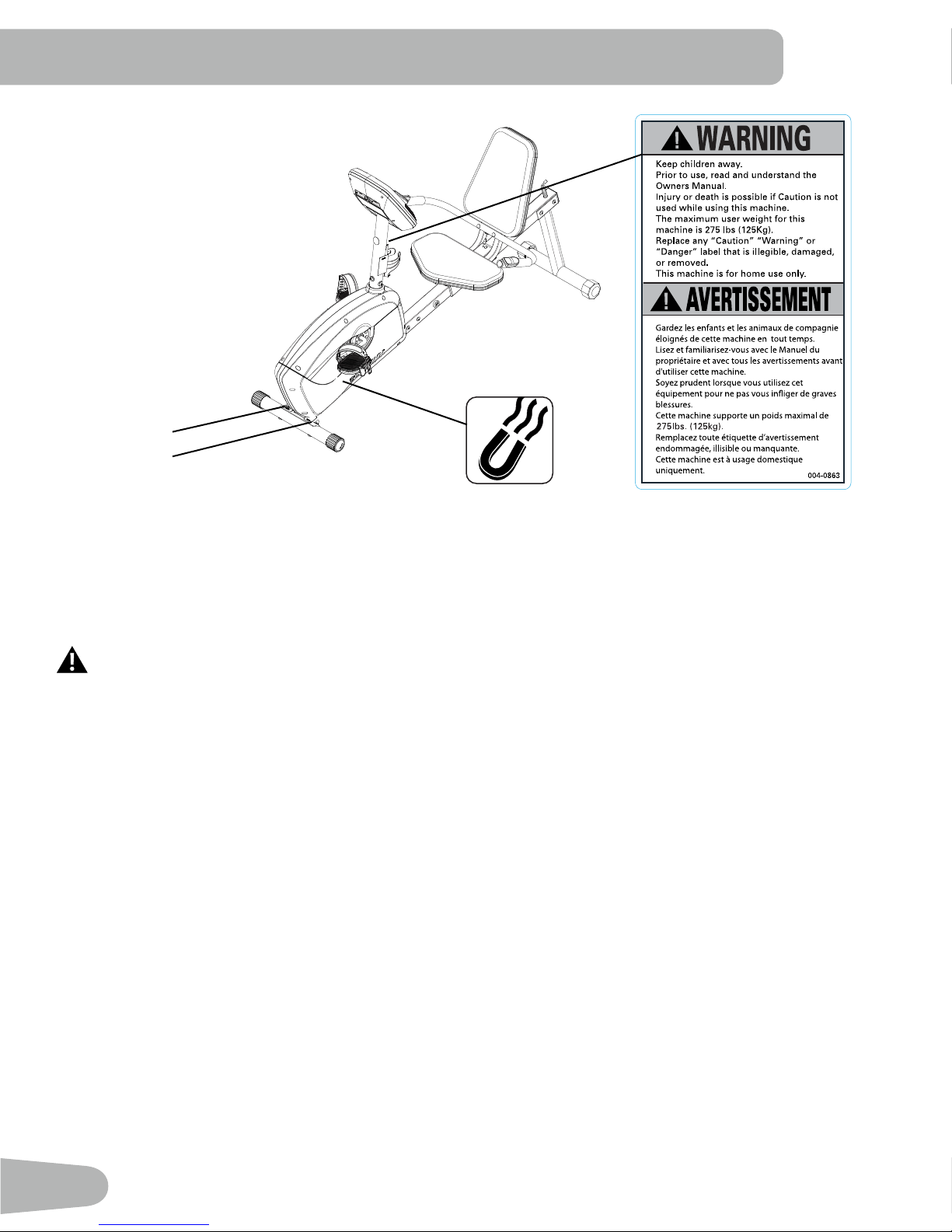

SAfETY WARNINg LABELS ANd SERIAL NUMBER
FCC Compliance
Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe
user’s authority to operate the equipment.
The power supply complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This power supply has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
•
•
•
•
•
•
•
•
•
•
•
•
Serial number
Product
specification
5

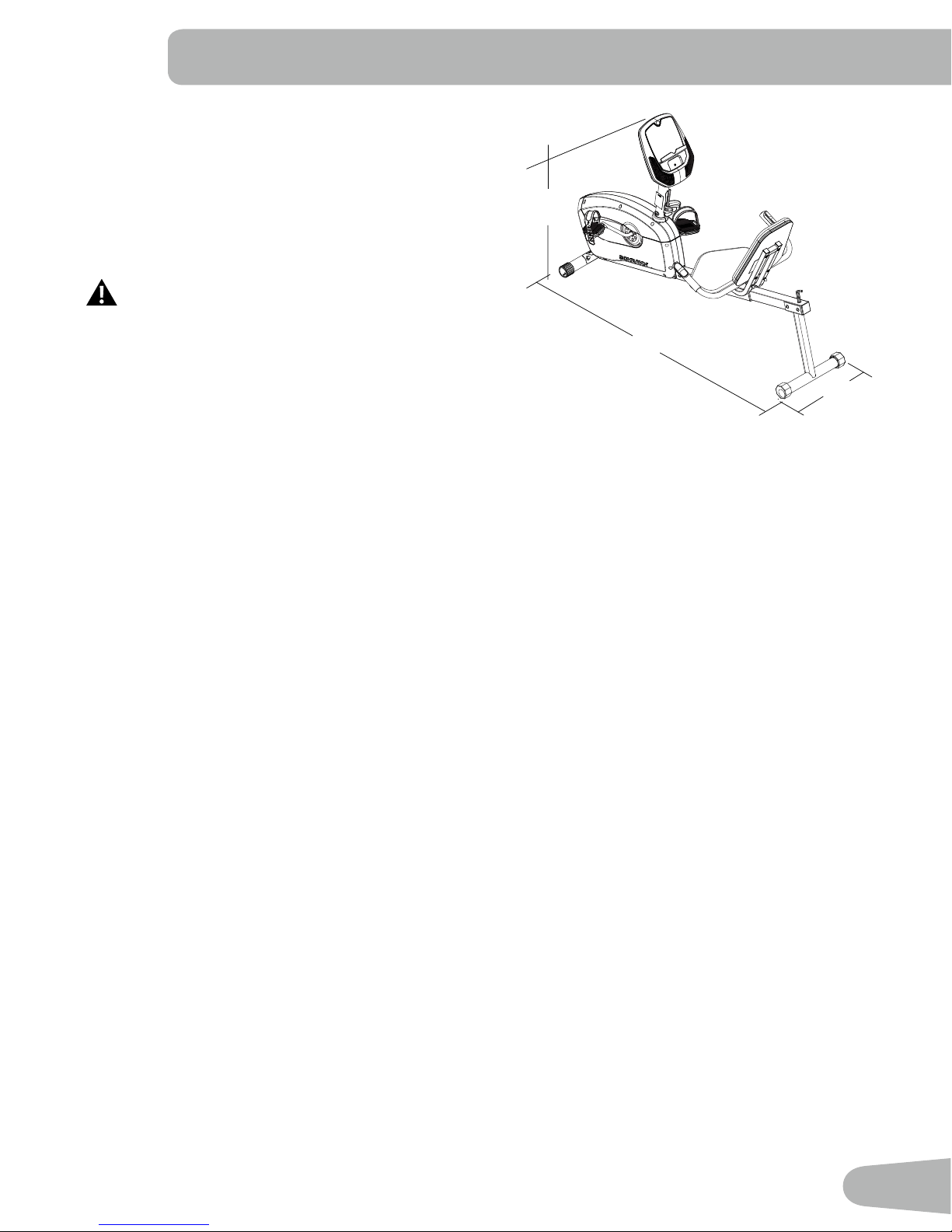

SpECIfICATIONS
61” (155cm)
19” (47cm)
40.5”
(103cm)
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard,levelsurface.Allowaworkoutareaofaminimum100”x58”(2.54mx1.47m).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
1. Read and understand the “Important Safety Instructions” before assembly.
2. Collect all the pieces necessary for each assembly step.
3. Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counter-
clockwise) to loosen, unless instructed otherwise.
4. When attaching 2 pieces, gently lift and look through the bolt holes to help insert the bolt through the holes.
5. The assembly can require 2 people.
Maximum User Weight: 275 lbs. (125 kg)
Power Requirements:4DBatteries(LR20)–notincluded
OperationalVoltage:6VDC
Regulatory Approvals:
Optional AC Power Adapter: UL listed, CSA certified (or
equivalent),Rated120V60HzInput,9VDC,500mAOutput.
Class 2 or LPS.
This product, its packaging, and components contain
chemicals known to the State of California to cause
cancer, birth defects, or reproductive harm. This Notice
is provided in accordance with California’s Proposition
65. If you would like additional information, please refer
to our website at www.nautilus.com/prop65.
6
1
2
3
4
5
67
8
9
10
11 (L)
12 (R)
13
14

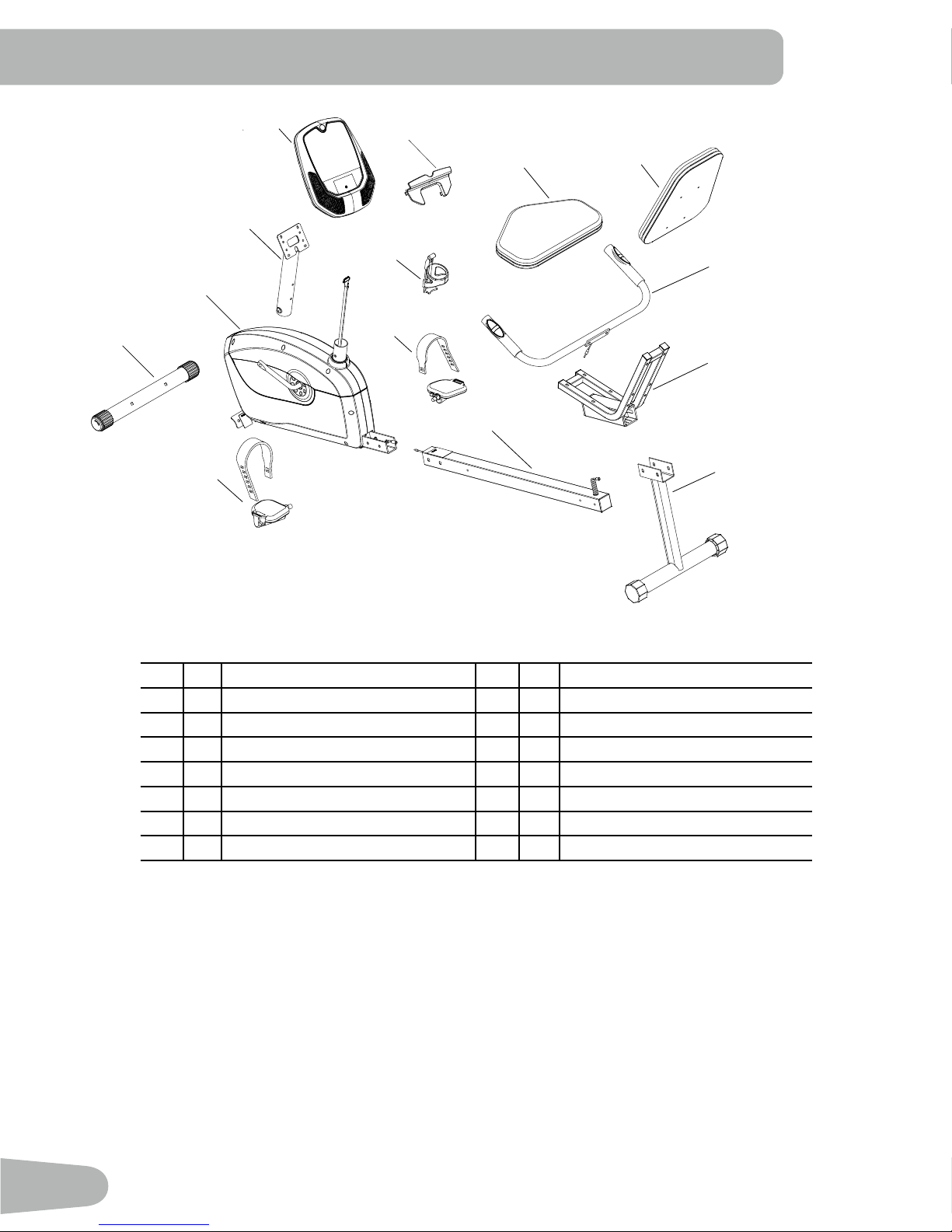

pARTS
Item Qty Description Item Qty Description
1 1 Main Frame 8 1 Side Handlebars
2 1 Front Stabilizer 9 1 Console Mast
3 1 Rear Stabilizer 10 1 Console
4 1 Seat Rail 11 1 Left Pedal (L)
5 1 Seat Bracket Assembly 12 1 Right Pedal (R)
6 1 Seat Bottom 13 1 Water Bottle Holder
7 1 Seat Back 14 1 Media Tray
Note: Media Cable is attached to the Console.
7

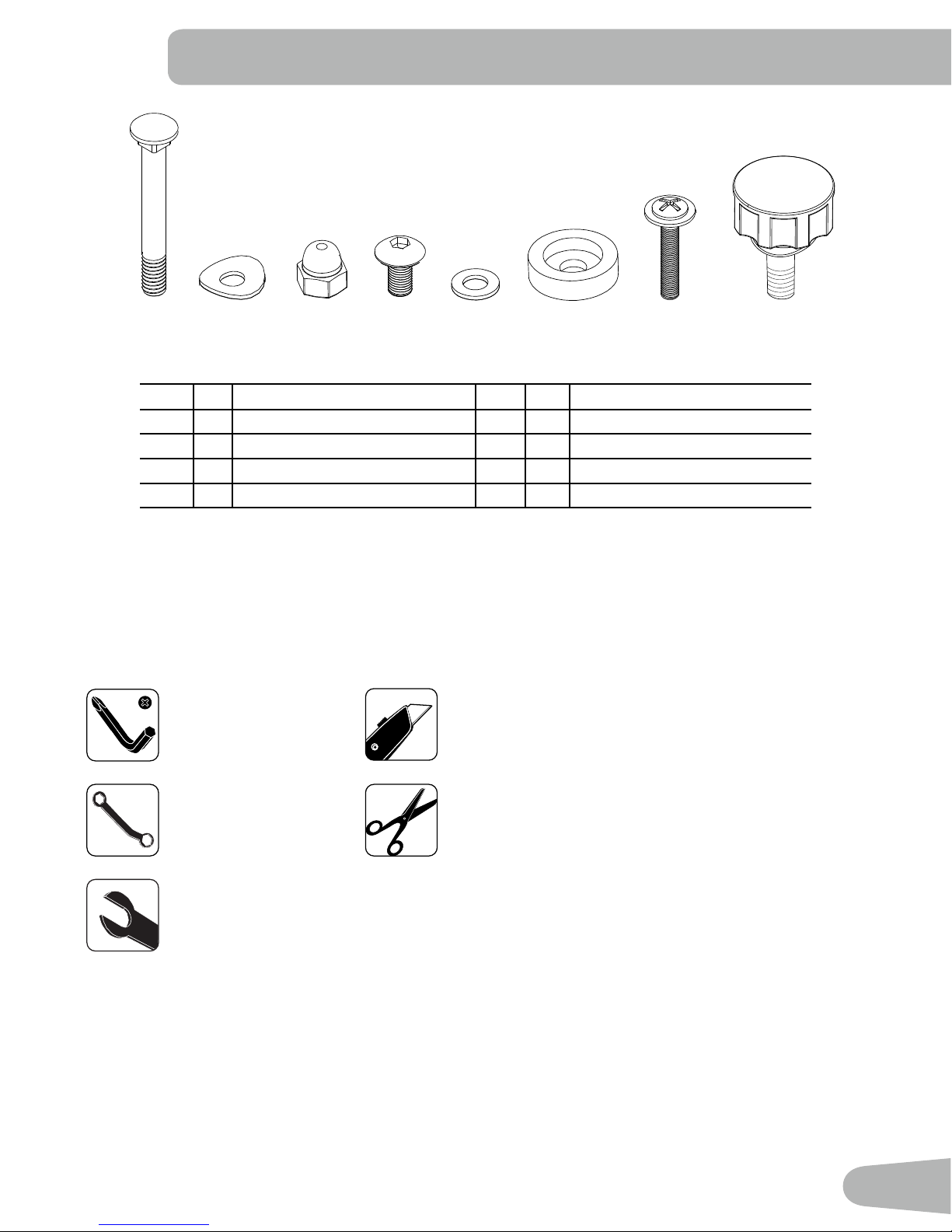

Tools
Included Not Included
6 mm/#2
Item Qty Description Item Qty Description
A 4 CarriageBoltM8x65 E 12 Flat Washer M8
B 5 Arc Washer M8 F 2 Rubber Limit Pad
C 4 Acorn Nut M8 G8PhillipsHeadScrewM6x35
D12 HexScrewM8x15 H 1 AdjustmentKnob
A B C D E F G H
(recommended)
HARdWARE / TOOLS
13mm/17mm
15mm
8

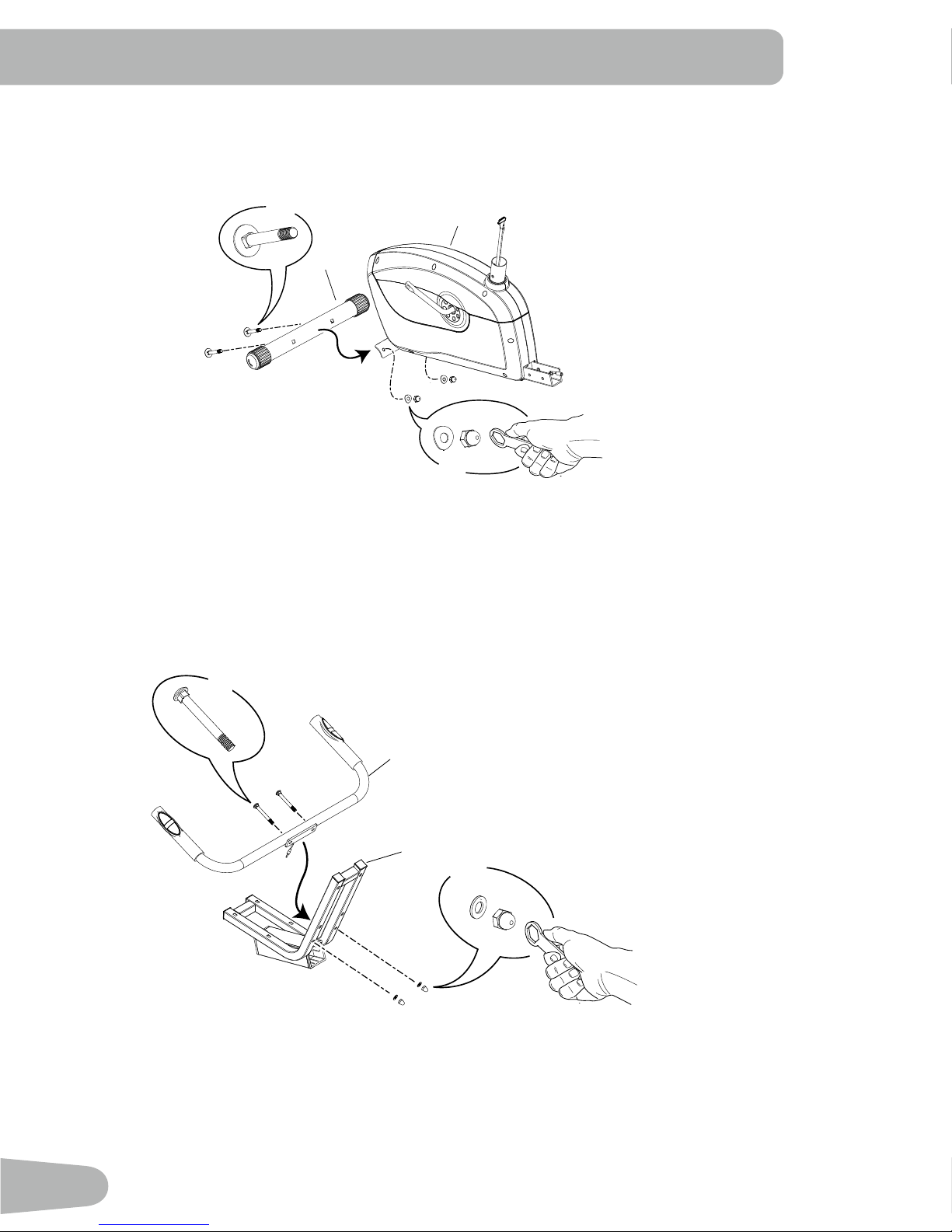

1. Attach Front Stabilizer to Main Unit
2. Install Handlebar to Seat Bracket
NOTICE: DonotcrimpHeartRate(HR)CablefromHandlebar.
ASSEMBLY
A
X2
2
C
B
X2
1
5
8
A
C
E
X2
X2
9

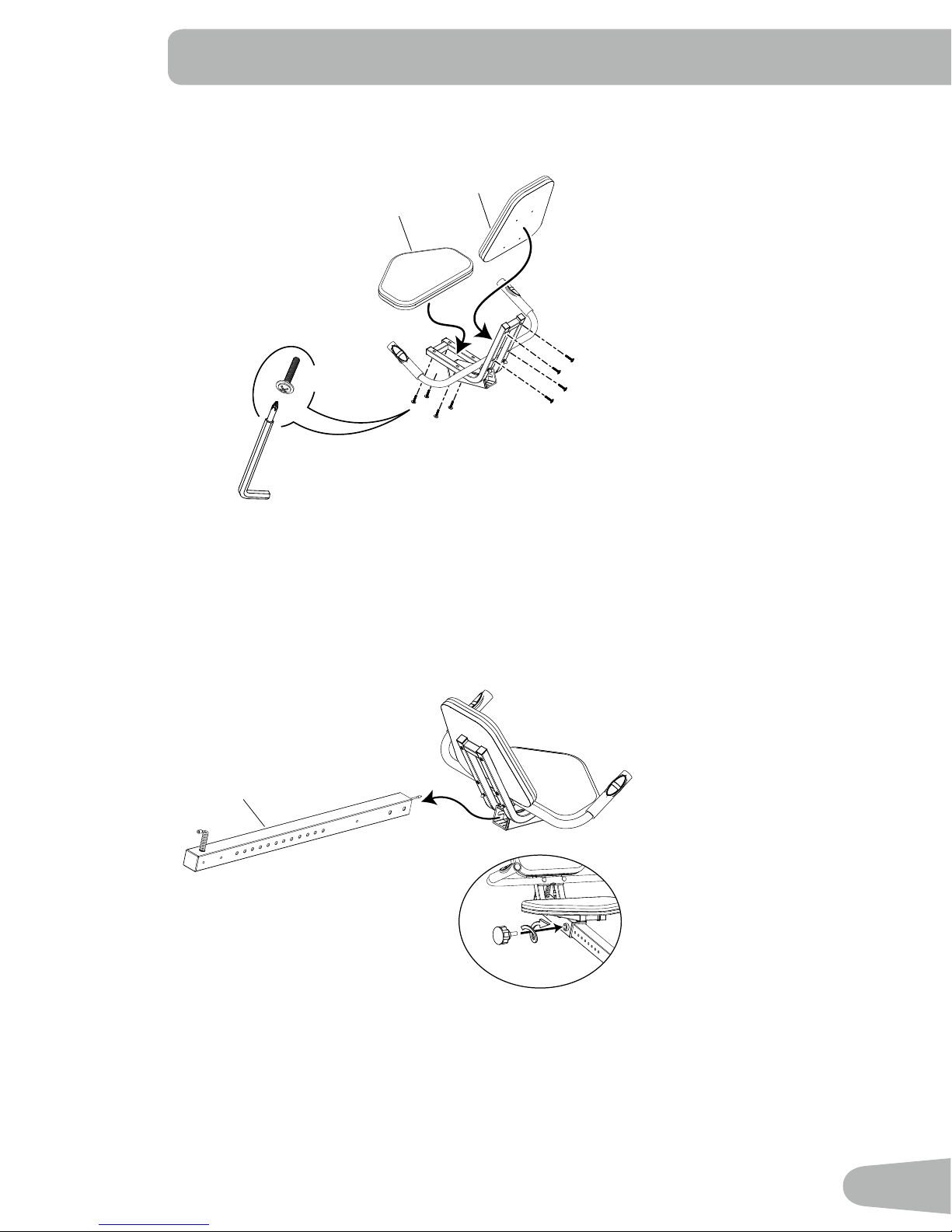

3. Attach Seat Bottom and Seat Back to Seat Bracket
NOTICE: DonotcrimpHeartRate(HR)Cable.
6
7
GX8
4. Slide Seat Assembly onto Seat Rail
NOTICE:Donotcrimpcables.
H
4
10

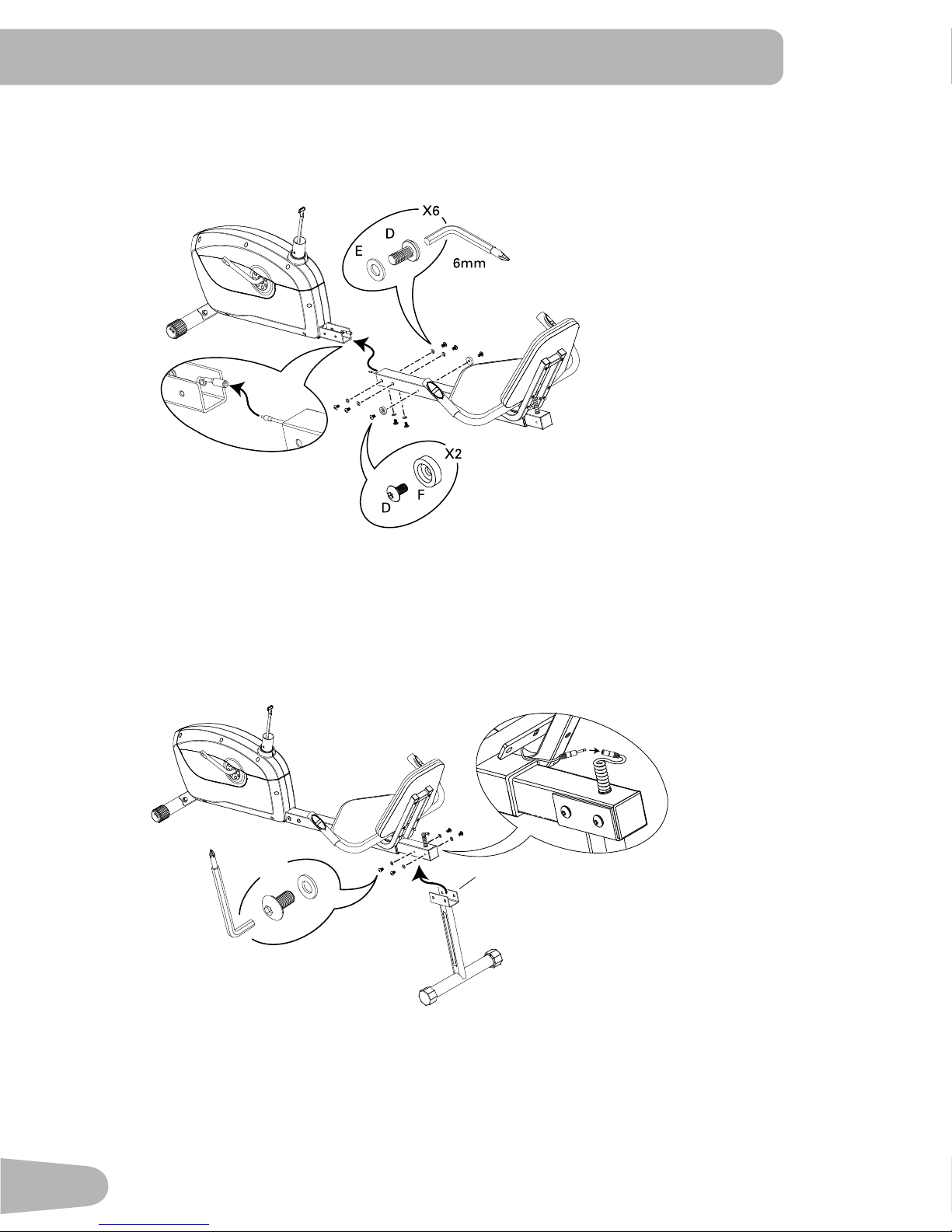

5. Install Seat Rail Assembly to Main Assembly
NOTICE:ConnectHeartRate(HR)cablesfromSeatRailandMainUnit.Donotcrimpcables.
6. Attach Rear Stabilizer to Seat Rail
NOTICE:ConnectHeartRate(HR)cablesfromSeatRailandHandlebar.Donotcrimpcables.
X4
E
D
6mm
3
