ASSEMBLY MANUAL / OWNER’S MANUAL
Manual en Español Latino Americano:
http://www.schwinnfitness.com
2
Important Safety Instructions - Assembly 3
Safety Warning Labels / Serial Number 4
Specifications 4
Before Assembly 5
Parts 6
Hardware 7
Tools 7
Assembly 8
Leveling the Bike 13
Moving the Bike 13
Important Safety Instructions - Owner’s 14
Features 15
Console Features 16
Contact Heart Rate (CHR) 17
Operations 19
Adjustments 19
Quick Start / Manual Program 19
Profile Programs 20
Pausing or Stopping 20
Results 20
Changing Unit Measures
(English Imperial/Metric) 20
Maintenance 21
Troubleshooting 24
Warranty 27
Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America (800) 605-3369,
TABLE Of CONTENTS
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty , go to: www.SchwinnFitness.com/register
Or call 1 (800) 605–3369.
If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458)
Or go to: www.SchwinnFitness.com
3
IMpORTANT SAfETY INSTRUCTIONS
— ASSEMBLY
!This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obey the following warnings:
!Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.
• Donotconnectpowersupplytothemachineuntilinstructedtodoso.
• Donotassemblethismachineoutdoorsorinawetormoistlocation.
• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoingtheassemblysteps
involvingtheseparts.Donotdostepsthatinvolveheavyliftingorawkwardmovementsonyourown.
• Setupthismachineonasolid,level,horizontalsurface.
• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethesafetyofthismachine
and will void the warranty.
• Ifreplacementpartsarenecessary,useonlygenuineNautilus®replacement parts and hardware. Failure to use
genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the
warranty.
• Donotuseuntilthemachinehasbeenfullyassembledandinspectedforcorrectperformanceinaccordancewiththe
Manual.
• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforerstuse.KeeptheManualforfuture
reference.
• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrectfunction.
• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertainmedicaldevicesataclose
range.Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Given
the obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical
provider in connection with the use of this equipment. Please consult the “Safety Warning Labels and Serial Number”
section to determine the location of the magnets on this product.
4

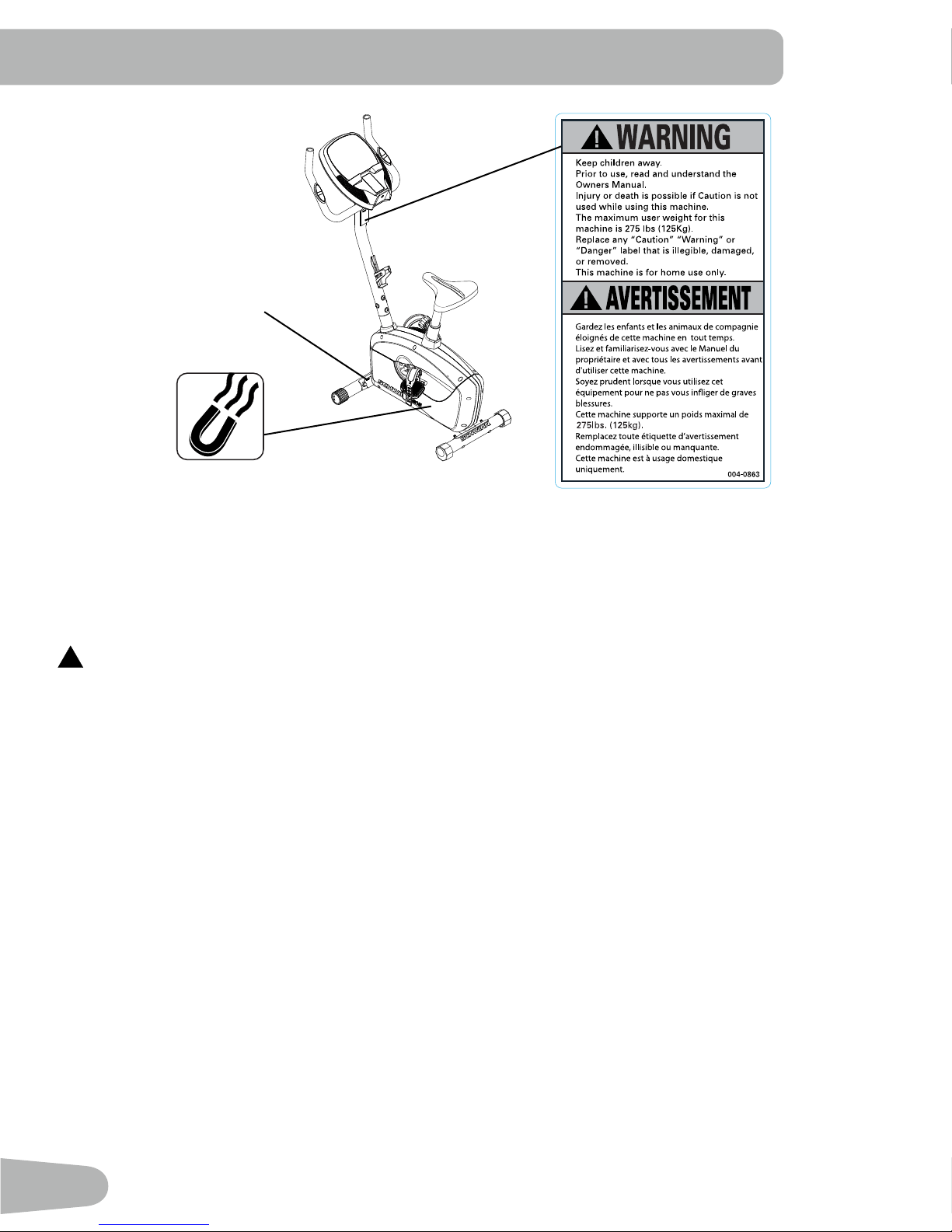

SAfETY WARNINg LABELS ANd SERIAL NUMBER
FCC Compliance
!Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe
user’s authority to operate the equipment.
The power supply complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This power supply has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
•
•
•
•
•
•
•
•
•
•
•
•
Serial number
5
SpECIfICATIONS
27.5” (67cm) 19” (48cm)
50” (126cm)
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard,levelsurface.Allowaworkoutareaofaminimum67”x56”(1.7mx1.42m).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
1. Read and understand the “Important Safety Instructions” before assembly.
2. Collect all the pieces necessary for each assembly step.
3. Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counter-
clockwise) to loosen, unless instructed otherwise.
4. When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.
5. The assembly can require 2 people.
Maximum User Weight: 275 lbs. (125 kg)
Power Requirements:4DBatteries(LR20)–notincluded
OperationalVoltage:6VDC
Regulatory Approvals:
Optional AC Power Adapter: UL listed, CSA certified (or
equivalent),Rated120V60HzInput,9VDC,500mAOutput.
Class 2 or LPS.
!This product, its packaging, and components contain
chemicals known to the State of California to cause
cancer, birth defects, or reproductive harm. This Notice
is provided in accordance with California’s Proposition
65. If you would like additional information, please refer
to our website at www.nautilus.com/prop65.
6
Item Qty Description Item Qty Description
1 1 Main Frame 7 1 Console Mast (with pre-installed Handlebar Bracket)
2 1 Front Stabilizer 8 1 Console
3 1 Rear Stabilizer 9 1 Handlebars
4 1 Seat Post 10 1 Left Pedal (L)
5 1 AdjustmentKnob(pre-installed) 11 1 Right Pedal (R)
6 1 Seat 12 1 Water Bottle Holder
Note:MediaCableisintheConsolebox.
1
5
8
9
6
2
3
4
10 (L)
11 (R)
12
7
pARTS
7
Tools
Included Not Included
6 mm

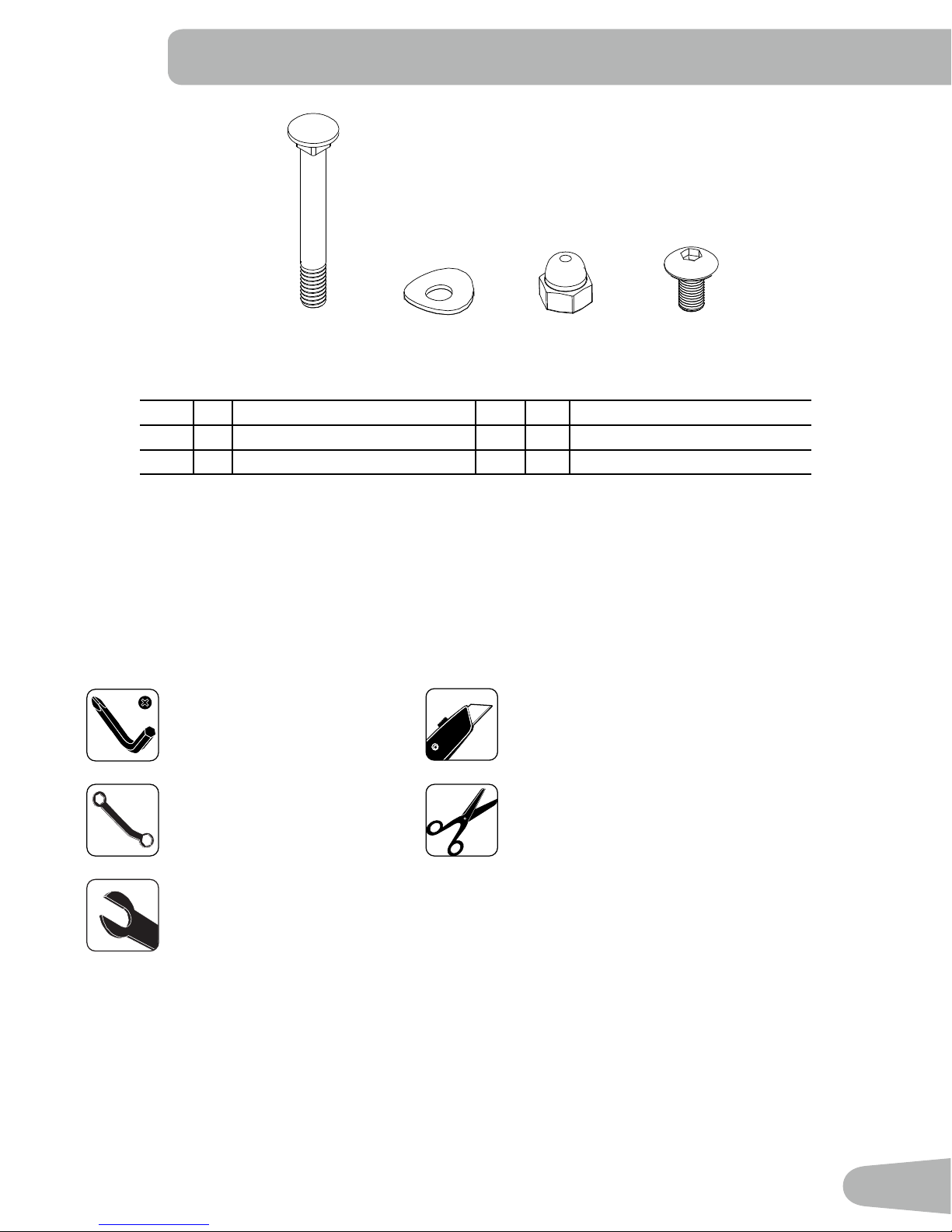

Item Qty Description Item Qty Description
A 4 CarriageBoltM8x65 C 4 Acorn Nut M8
B 8 Arc Washer M8 D4HexScrewM8x15
A B C D
(recommended)
HARdWARE / TOOLS
13mm/17mm
15 mm
8

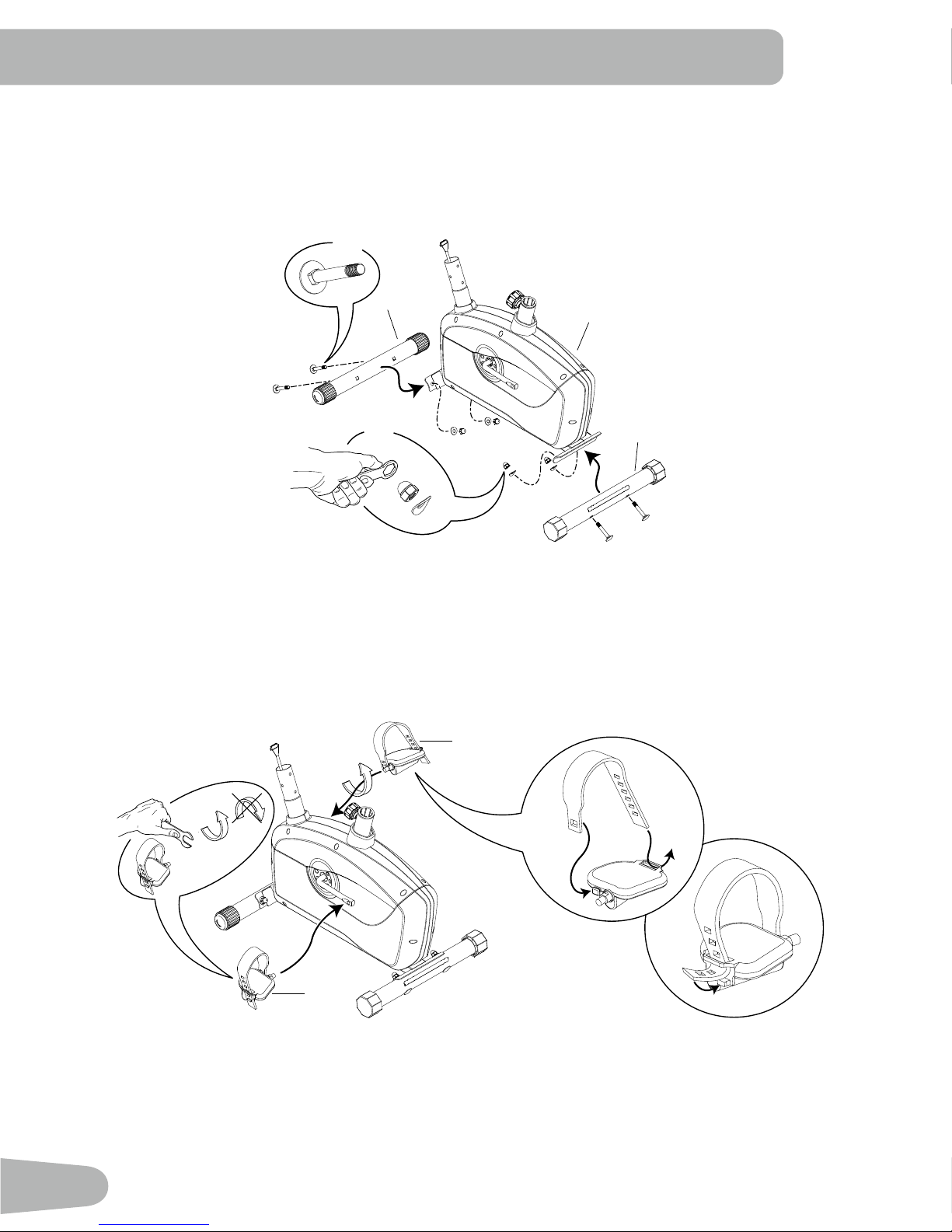

1. Attach Stabilizers to Main Frame
Note: Make sure the Schwinn®decal on the Rear Stabilizer faces outward from the machine.
2. Install Pedals
Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is
based from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”.
ASSEMBLY
X4
A2
1
3
C
B
X4
10 (L)
11 (R)
9

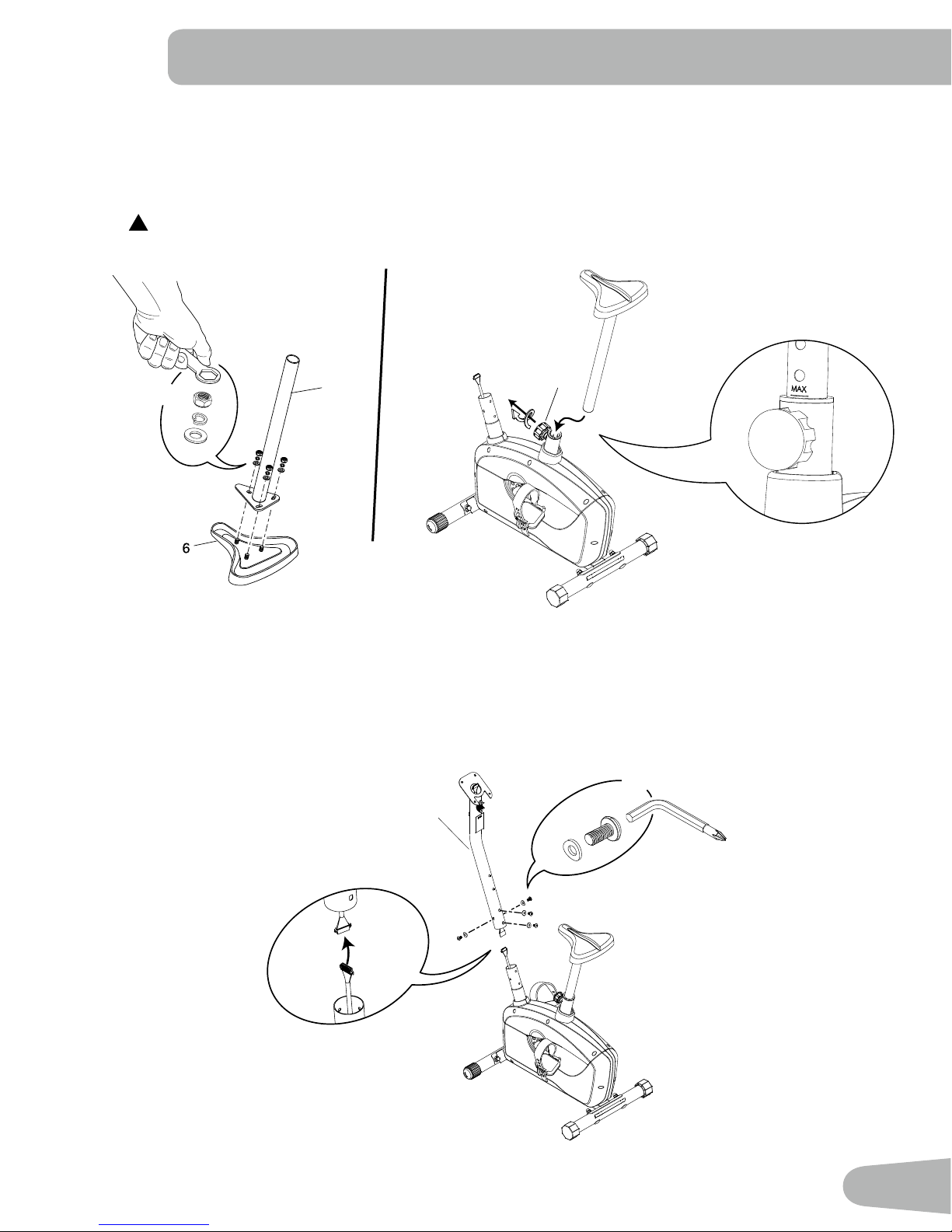

3. Attach Seat to Seat Post and Frame
Note: Hardware is pre-installed on Seat and not on Hardware Card.
NOTICE: TheAdjustmentKnobispre-installedontheMainFrame.MakesuretheAdjustmentKnobengagestheSeat
Post.
!DonotsettheSeatPostpositionhigherthanthestopmark(MAX)onthetube.
5
4
X3
4. Install Console Mast on Main Assembly
NOTICE:Aligntheclipsonthecableconnectorsandmakesuretheconnectorslock.DonotcrimpConsoleCable.
X4
B
D
6mm
7
10

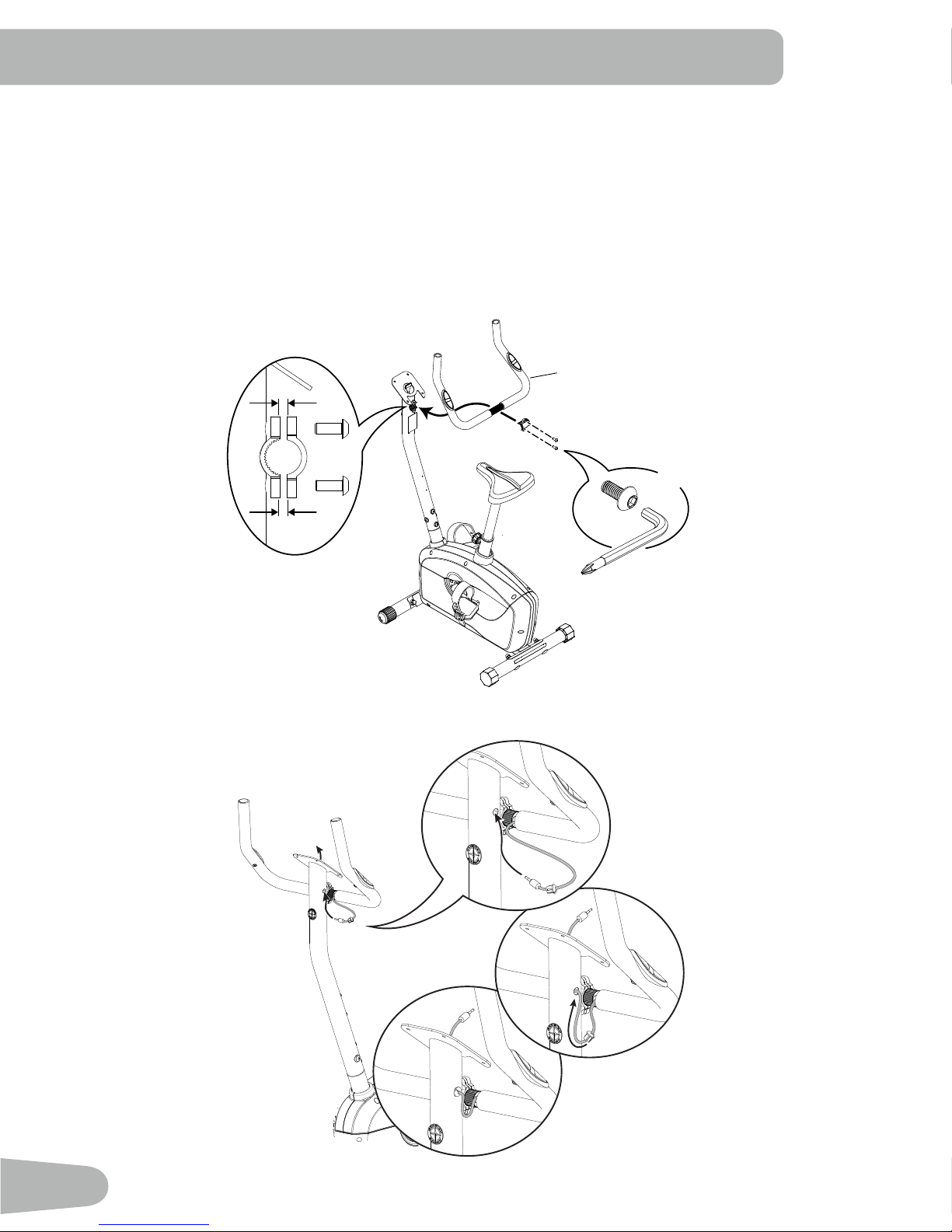

5. Install Handlebars on Console Mast
Note: Hardware is pre-installed on Console Mast and not on Hardware Card.
NOTICE: Make sure the Handlebar Bracket has an equal distance between the two ends of the bracket and the
bracket mount on the Console Mast.
Donotcrimpthecables.RoutetheHRcablethroughthesideholeinthemasttothetopofthemast.Push
the grommet on the cable into the hole to keep the HR cable in position.
X2
6mm
9
=
=
