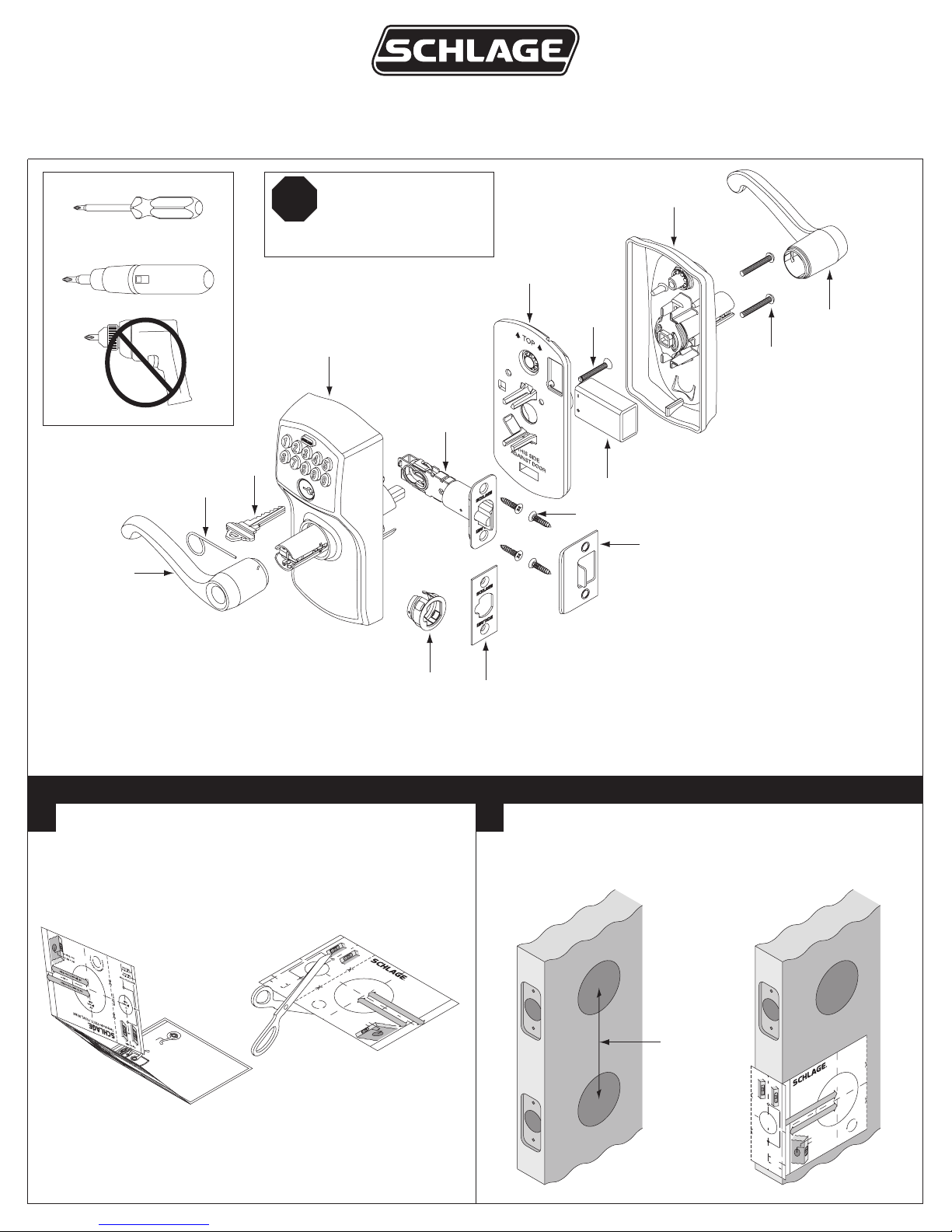

Install Lock

Remove Template From Booklet

A. Outside Knob/Lever

B. Pin Wrench

C. Key

D. Keypad Assembly

E. Latch

F. Latch/Strike Screws

G. Strike

H. Inside Mounting Plate

J. Mounting Plate Screw

K. Inside Thumbturn Assembly

L. Mounting Screws

M.Inside Knob/Lever

N. 9V Battery

P. Drive-in Faceplate

Q. Square-corner Faceplate

Tools for Installation

A. Key

1. Turnson the backlight.

2. Indicates lockstatus (programming

mode, low battery,etc.)and success

or failure ofan operation.

3.Conﬁ

rms a menu entryduring

programming (see page 8).

4.Used to exit programming or to clear

an incorrect entry.

B. Keypad

1.Used to unlockthe lockbyenteringa

validfour-digituser code.

2. Usedto program the lock.

(See page 8.)

C.Key Override (See page 11.)

Usedto unlockthe lock in the following

situations:

1.L

ockhas failedelectronically.

2. Batteryis dead.

3.U

ser code is not known.

D.Outside Knob/Lever

To minimize damage from vandalism,

the outside knob/leverrotates but does

not retract latch evenwhen lockis

locked.

E.Inside Knob/Lever

The inside knob/lever is always

unlockedforimmediate exit.

FE575 Features

A. Key

B. Keypad

C. KeyOverride

D.OutsideKnob/Lever

E. Inside Knob/Lever

2³⁄₈”(60 mm) To DoorEdge

CUT HERE

2³⁄₄”(70mm) To DoorEdge

1⁵⁄₈"

For 1³⁄₈"

ThickDoor

For 1³⁄₄"

ThickDoor

⁷⁄₈”

(22 mm)

Hole

emplate for FE575, FE595,BE365

For Use With

2¹⁄₈”

(54mm)

Hole

Match to Door Edge Door Edge

2³⁄₈” or 2³⁄₄”

Installation Instructions

FE595

P515-548

Check Door Holes

Note: If door holes do not match template, visit

www.schlage.com for door drilling instructions.

5¹⁄₂”

Minimum

emplate for FE575, FE595, BE365

2³⁄₈”(60 mm) To Door Edge

2³⁄₄” (7 0 mm) To DoorEdge

2¹⁄₈”

(54 mm)

Hole

2³⁄₈” or 2³⁄₄”

Door Edge

For 1³⁄₈"

Thick Door

For 1³⁄₄"

Thick Door

1⁵⁄₈"

⁷⁄₈”

(22 mm)

Hole

For Use With

Match to Door Edge

CUT HERE

Keep the programming

booklet with you while

installing lock. Without

the user codes, you can

get locked out.

STOP

Install Keypad Assembly

IMPORTANT: Cable must slide under latch.

Bevel

Jamb

Use

Move to Step 5

For For

Use Use

For

Wood Block

(Not included)

Actual Size

Install Latch

IMPORTANT: Latch bevel must face door jamb.

Bevel

Choose Deadbolt Faceplate

Install Inside Mounting Plate

IMPORTANT: Pull excess wire through mounting plate.

Install Battery and Connect Cables

IMPORTANT: Cable must be routed and tucked as shown.

Tu c k C a bl e

Printed in U.S.A.

P515-548 Rev. 6/06 CD

Install Inside Thumbturn Assembly

Note: Lock should be straight on door before tightening

screws.

If Needed, Install Knobs/Levers

If Needed, Change Levers

Install Strike onto Door Jamb

Correct

Actual Size

Match

Flat Sides

Actual Size

Tip Pointing Down

Incorrect
