Install Guide

Schlage AD300, AD400

Document

Document Details

Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401

[email protected]

All specifications are subject to change without notice

V1.0 (20211008)

(V1.0 first published 20211008)

Firmware

Firmware version can be verified on

Verkada Command command.verkada.com.

Introduction

Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401

[email protected]

All specifications are subject to change without notice

Schlage AD integration into Verkada system.

See separate install guide(s) for hardware installation:

AD400

https://us.allegion.com/content/dam/allegion-us-2/web-documents-2/Us

erGuide/Schlage_AD-400_and_AD-401_Networked_Wireless_Lock_User_

Guide_104387.pdf

AD300

https://us.allegion.com/content/dam/allegion-us-2/web-documents-2/Us

erGuide/Schlage_AD-300_and_AD-301_Networked_Hardwired_Lock_User

_Guide_-_English_106415.pdf

Background

The Schlage AD series of locks come in two major variants, the AD400 wireless lockset and the

AD300 wired lockset. The AD400 wireless lock connects to the Verkada AC41 through a wireless

bridge called the PIM 400-485. The AD300 wired locks connect directly to the AC41. Both solutions

communicate with the AC41 over RS485 via the aux RS485 port on the AC41 (the last cassette).

What's the difference between the AD400 and the AD300?

The AD series of locks has the AD400 wireless lockset and the AD300 wired lock set. They act the

same to the end user. The only difference is the AD300 wires directly to the AC41 via RS485 and the

AD400 connects to the AC41 through a wireless bridge called the PIM-400-485. The configuration

process in Command is identical with the exception of selecting Wireless - AD400 or Wired-AD300

in Command when adding the locks.

Introduction

Common use cases

Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401

[email protected]

All specifications are subject to change without notice

Many schools, universities, medical facilities and multi-tenant units use wireless locks to secure

doors that are operated with low frequency

Schools/Campuses

Classroom doors, Offices, Break rooms

Universities/Medical Facilities

Dorm Rooms, Lecture Halls, Offices, Laboratories

In multi-tenant

Officeses, Supply closets

These verticals use wireless locks because they do not require expensive wiring to be run

through walls and allow much more flexibility. They are also much more cost effective than

wired doors. This integration allows us to work with existing customers with AD300 and AD400

wireless locks.

Important notes

Tips to help you do your best:

●Read all of the Allegion documentation for the AD400 and PIM400

●Verkada support will NOT troubleshoot or RMA Allegion hardware!

●Wireless locks are wireless products so wireless range is always a concern, please

ensure that the PIM 400-485 is placed within range of all the connected locks.

Installation

Installation Order of Operation

Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401

[email protected]

All specifications are subject to change without notice

PIM 400-485

The PIM 400-485 is the wireless bridge used for

the AD400 series of locks. It should be

programmed before you add any Schlage

doors in Command..

1. The Schlage Utility Software connects to

the PIM 400-485. using the SUS cable.

Connect the Schlage SUS cable to the

phone using USB C.

2. Connect the PIM 400-485 to the power

supply and connect the SUS-A cable to

the phone and the PIM.

3. Launch the Schlage Utility Software app.

1. Install and configure the PIM 400-485

2. Install and configure the lock

3. Configure the AC41

Items Required*

Tips to help you do your best:

1. Schlage Utility Software (SUS) cable

2. SUS phone or SUS device with the SUS app installed

3. PIM 400-485

4. AD400 and AD300 Locks

5. AD300

*Will vary depending on install case. Please reach out to your Allegion ESE for assistance.

Installation

PIM-400-485 Cont.

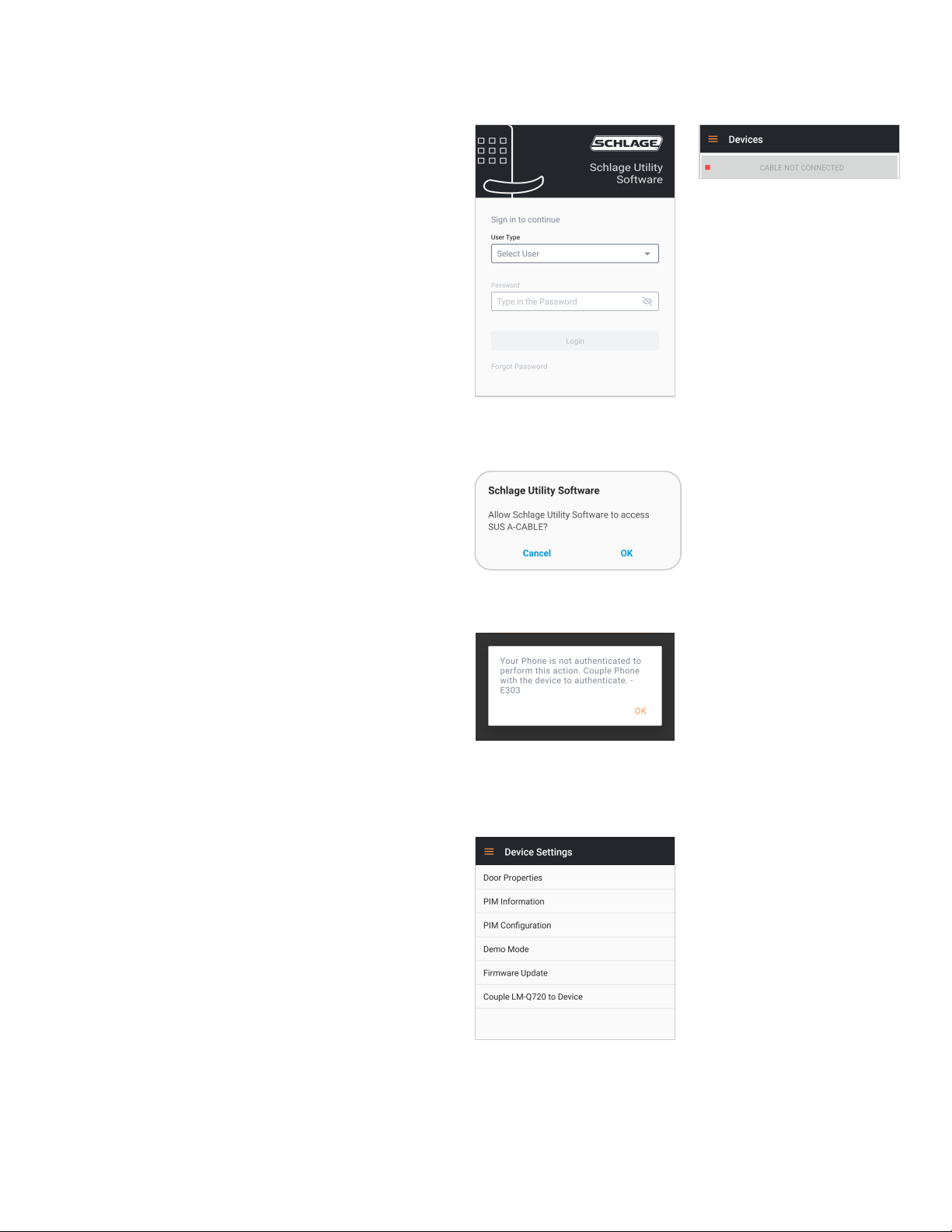

4. The Schlage Utility Software app

will ask you to login. Use:

User type: manager

Password: verkada

If you login to the SUS app and

the SUS-A cable is not connected,

you will get a screen that says

“Cable not connected”.

5. Upon connecting the SUS-A cable

the Android operating system will

ask if you “Allow Schlage Utility

Software to access SUS

A-CABLE?”. Select “OK”.

6. When you connect the PIM to the

phone you will need to couple it.

This means that the PIM is

programmed to communicate

with the specific programming

phone. You can only couple a PIM

to one phone. If you try to do

anything when the PIM isn't

coupled, you'll get an

authentication error.

You can couple the PIM by placing it into

coupling mode by pressing and holding

the LINK1 button and then pressing the

LINK2 button three times. Next, click

“Couple [PHONE_NAME] to Device”

Please note:

●[PHONE_NAME] in the above

example is a placeholder. Yours

will be different.

If the PIM is already coupled to a device,

these steps won’t work and you'll have to

do a factory reset.

Installation

PIM-400-485 Cont.

Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401

[email protected]

All specifications are subject to change without notice

If the coupling is successful, you will see a

message at the bottom.

Now that you've coupled the PIM to the SUS

phone, you can start programming it.

PIM 400-485 Programming

Tap into Device Configuration.

Let's define the PIM addresses. There are three fields that need to be defined. They are:

●RS485 Address - This is the address of the PIM in relation to the AC41.

●Low Door - this is the first door address belonging to the PIM.

●High Door - This is the address of the last door to be controlled by the PIM. It should

be four more than the Low Door number. For example if your Low Door is 251, your

High Door Must be 254.

RS485 Address Tap on the zero

next to RS485 address to define

the address of the PIM unit.

Low Door This is the first RS485 bus

address of the first lock.

High Door Recommended: Never

use pim address 0, because

every time a new pim is added it

is assigned address 0 by default

so it will cause collisions.

Verkada's AC41 supports any combination of wireless locks (via the PIM 400-485) hub and wired

AD300 locks, up to four per AC41. When connecting multiple RS485 devices, connect each of the

data pins (A and B) in parallel to each other and to the AC41's AUX RS485 bus.

Please note that that the Verkada integration limits each PIM to 4 wireless locks.

If using multiple Schlage devices, such as a PIM hub and an AD300, wire the data pins in parallel

to each other. They are addressed so the AC41 knows which one it's talking to.

Installation

PIM 400-485 Programming Cont.

Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401

[email protected]

All specifications are subject to change without notice

Installation

AD400

Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401

[email protected]

All specifications are subject to change without notice

Setting up the AD400 with the AC41 requires several steps:

1. Mount the hardware and configure the lock

2. Configure the PIM module (you should have done this before installing the AD400)

3. Setup in Command

AD400 Lock Installation

Most of the time the locksmith or

contractor will be doing this part following

the included instructions. The AD400

requires more holes to be bored into the

door for it to function. This is because it

has a built in DPI sensor and has extra

holes for wires to pass through.

For hardware installation instructions,

please see:

Schlage AD Series Cylindrical

Installation Instructions

https://us.allegion.com/content/dam/allegion-us-2/web-

documents-2/InstallInstructions/Schlage_AD-Series_for_

Cylindrical_Installation_Instructions_102104.pdf

Note:

●The cables are fragile and should

be handled carefully.

●If the lid isn't screwed on tight

enough, the tamper switch will

repeatedly and randomly throw

errors.

●You will need to get your own wire

to connect the AD400 to the PIM.

Standard shielded low voltage

cable will be fine. 22/4 , 22/6, or 18/4

should all work flawlessly.

Installation

AD400 Lock Programming

Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401

[email protected]

All specifications are subject to change without notice

All AD400 locks need to be given an address. This is done using the Schlage Utility Software

(SUS,) which is a free Android app (there is no iOS app).

To configure the AD400, you first start by linking it to the PIM. The first step is to couple the PIM to

the phone to enable it to program itself.

1. The Schlage Utility Software connects to the

lock using the SUS cable. Connect the Schlage

SUS cable to the phone using USB C.

2. The SUS cable connects the AD lock via a USB

A host connection. The AD has a hidden USB

port under a rubber cover on the bottom of

the unsecured side of the door.

3. A connected SUS cable.

Now that the cable is connected you can put the AD

lock into communication mode by pressing and

holding the # key on ADs that have a keypad or the

Schlage button on readers that don't have a keypad.

Couple the device by selecting Couple

[PHONE_NAME] to Device. This will fail if the device is

not in coupling mode.

Please note: If a device is already coupled to a

different SUS phone, you will need to reset it

completely to couple it.

The next step is to pair the AD400 to the PIM device.

With the SUS cable plugged into the PIM, NOT the

AD400, select device configuration, then link.

Successful coupling Failed coupling

Select the door address you

would like to link an AD400.
