BUILT UNDER LARDER

User manual

SLS E136W0M

ВСТРАИВАЕМЫЙ

холодильник

Руководство пользователя

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -2-

Index

BEFORE USING THE APPLIANCE ..........................................3

General warnings ....................................................................3

Old and out-of-order fridges ....................................................5

Safety warnings.......................................................................5

Installing and operating your fridge .........................................6

Before using your fridge ..........................................................6

HOW TO OPERATE THE APPLIANCE .....................................7

Thermostat setting ..................................................................7

FOOD STORAGE IN THE APPLIANCE ....................................7

CLEANING AND MAINTENANCE.............................................8

Defrosting................................................................................9

Replacing the light bulb...........................................................9

TRANSPORTATION AND CHANGING OF INSTALLATION

POSITION .................................................................................10

BEFORE CALLING YOUR AFTER SALES SERVICE.............10

Tips for saving energy ............................................................11

THE PARTS OF THE APPLIANCE AND THE

COMPARTMENTS ....................................................................12

Installation instructions...........................................................13

The operating instructions apply to several models. Dierences may therefore occur.

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -3-

BEFORE USING THE APPLIANCE

PART 1.

General warnings

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those

recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the

type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the

appliance, it must be xed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant (this information

will be provided on the label of the cooler) you should take care

during transportation and installation to prevent the cooler

elements from being damaged. R600a is an environmentally

friendly and natural gas, but it is explosive. In the event of a

leak due to damage of the cooler elements, move your fridge

away from open ames or heat sources and ventilate the

room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the

cooler gas circuit.

• Do not store explosive substances such as aerosol cans with

a ammable propellant in this appliance.

• This appliance is intended to be used in household and

domestic applications such as:

- sta󰀨 kitchen areas in shops, o󰀩ces and other working

environments.

- farm houses and by clients in hotels, motels and other

residential type environments.

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -4-

- bed and breakfast type environments;

- catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be

replaced by the manufacturer, a service agent or similarly

qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power

cable of your refrigerator. This plug should be used with

a specially grounded socket of 16 amperes. If there is no

such socket in your house, please have one installed by an

authorised electrician.

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without

supervision.

• If the supply cord is damaged, it must be replaced by the

manufacturer, an authorised service agent or similar qualied

persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding

2000 m.

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -5-

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because

children may get trapped inside it and may cause an accident.

• •Old fridges and freezers may contain isolation material and refrigerant with CFC or

HFC. Therefore, take care not to harm environment when you are discarding your old

fridges.

Please ask your municipal authority about the disposal of the WEEE reuse,

recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance.

We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual

in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic

environments and for the specied purposes. It is not suitable for commercial or

common use. Such use will cause the guarantee of the appliance to be cancelled and

our company will not be responsible for losses incurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing

food. It is not suitable for commercial or common use and/or for storing substances

except for food. Our company is not responsible for losses to be incurred in the contrary

case.

Safety warnings

• Do not connect your fridge to the mains electricity supply using an extension lead.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play

with the appliance or let them hang o󰀨 the door.

• Never touch the power cord/plug with wet hands as this could cause a

short circuit or electric shock.

• Do not place explosive or ammable material in your fridge. Place

drinks with high alcohol content vertically in the fridge and make sure

that their tops are tightly closed.

• Do not cover the body or top of fridge with lace. This a󰀨ects the performance

of your fridge.

• Secure any accessories in the fridge during transportation to prevent damage

to the accessories.

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -6-

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge may have a smell when it is operated for the rst time. This is normal and

the smell will fade away when your fridge starts to cool.

• Before connecting your Fridge Freezer, ensure that the information on the data plate

(voltage and connected load) matches that of the mains electricity supply. If in doubt,

consult a qualied electrician.

• Insert the plug into a socket with an e󰀩cient ground connection. If the socket has no

ground contact or the plug does not match, we recommend that you consult a qualied

electrician for assistance.

• The appliance must be connected with a properly installed fused socket. Power supply

(AC) and voltage at the operating point must match with the details on the name plate

of the appliance (name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge where it will not be exposed to direct sunlight.

• Your fridge should never be used outdoors or exposed to rain.

• Your appliance should be at least 50 cm away from stoves, gas ovens and heater

cores, and at least 5 cm away from electrical ovens.

• When your fridge is placed next to a deep freezer, there should be

at least 2 cm between them to prevent humidity forming on the outer

surface.

• Do not place heavy items on the appliance.

• Clean the appliance thoroughly, especially the interior, before use (see

Cleaning and Maintenance).

• The installation procedure into the kitchen unit is given in the Installation Manual. This

product is intended to be used in proper kitchen units only.

• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon

of sodium bicarbonate, then rinse with clean water and dry.

Place all parts in the fridge after cleaning.

Before using your fridge

• When using your fridge for the rst time, or after transportation, keep it

in an upright position for at least 3 hours before plugging into the mains.

This allows e󰀩cient operation and prevents damage to the compressor.

• Your fridge may have a smell when it is operated for the rst time. This

is normal and the smell will fade away when your fridge starts to cool.

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -7-

FOOD STORAGE IN THE APPLIANCE

PART 3.

The fridge is used for storing fresh food for few days.

• Do not place food in direct contact with the rear wall of the refrigerator. Leave some

space around food to allow the circulation of air.

• Do not place hot food or evaporating liquid in the refrigerator.

• Always make sure food is wrapped or stored in closed containers.

• To reduce humidity and avoid formation of frost, never place liquids in unsealed

containers in the refrigerator.

• We recommend that you loosely wrap meat and store it on the glass shelf just above the

vegetable bin, where the air is cooler.

• Store fruit and vegetable items loose in the crisper containers.

• To prevent the cold air escaping, try not to open the door too often, and not leave the

door open for a long time.

HOW TO OPERATE THE APPLIANCE

PART 2.

Thermostat setting

The thermostat automatically regulates the inside temperature of the refrigerator. By rotating

the knob from position 1 to 5, colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond position 1. It will stop your appliance from

working.

• For short-term storage of food in the fridge, you can set the knob between minimum and

medium positions (1-3).

• For long-term storage of food in the fridge, you can set knob to the medium position (3-4)

• Note that: the ambient temperature, temperature of freshly stored food and how often

the door is opened, a󰀨ects the temperature in the fridge. If required, change the

temperature setting.

• When you rst switch on the appliance, you should ideally try to run it without any food

in for 24 hours and not open the door. If you need to use it straight away, try not to put a

large quantity of food inside.

• If the unit is switched o󰀨 or unplugged, you must allow at least 5 minutes before restarting

in order not to damage the compressor.

• The larders (coolers) do not have a freezer compartment but can cool up to 4 - 6 °C.

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -8-

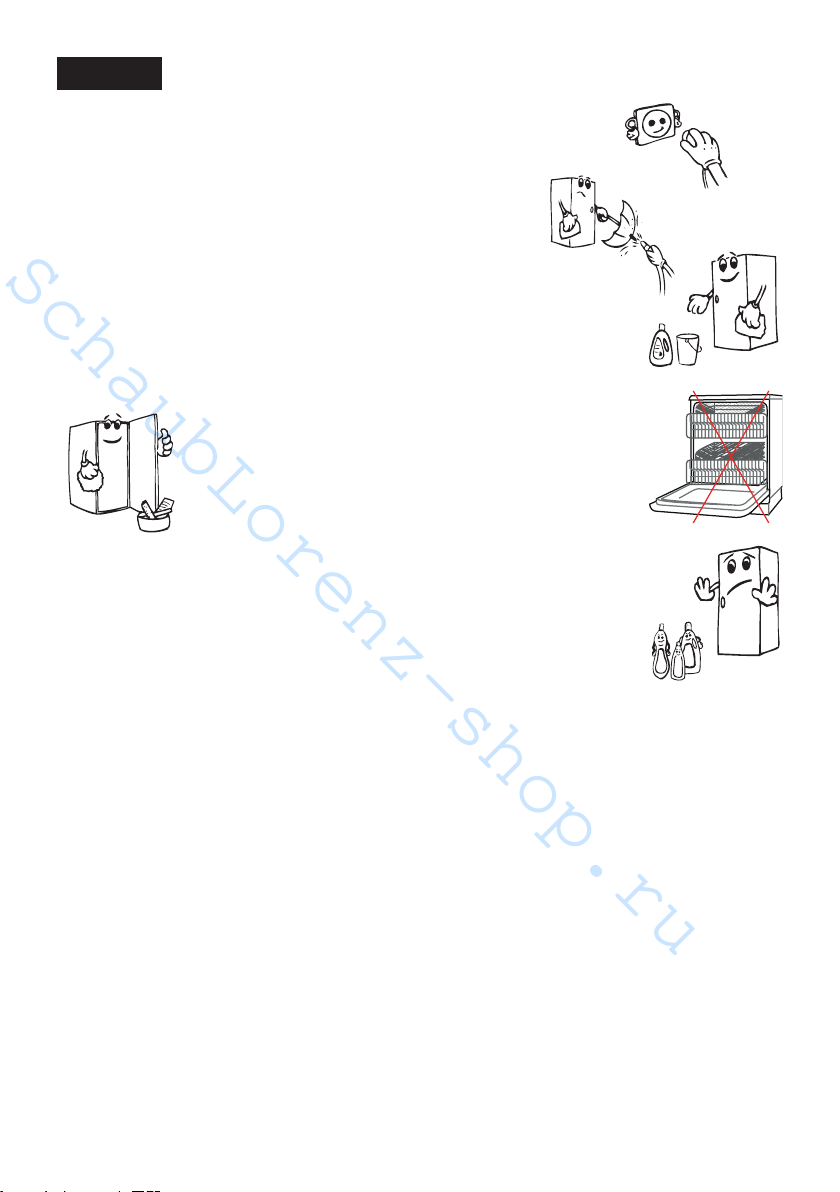

CLEANING AND MAINTENANCE

• Disconnect the unit from the power supply before cleaning.

• Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp

housing and other electrical components.

• The refrigerator should be cleaned periodically using a solution of

bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and

water Do not clean them in the dishwasher.

• Do not use abrasive products, detergents or soaps. After washing,

rinse with clean water and dry carefully. When you have nished

cleaning, reconnect the plugto the mains supply with dry hands.

THE POWER SUPPLY MUST BE DISCONNECTED.

PART 4.

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -9-

Replacing the light bulb

When replacing the bulb of the fridge;

1. Unplug the unit from the power supply,

2. Press the hook in front of the light cover as in Figure 1 and remove the light cover,

3. Change the present light bulb with a new one of not more than 15 W.

4. Replace the light cover and after waiting 5 minutes plug the unit.

Figure 1 Figure 2

Replacing LED Lighting

If your fridge has LED lighting contact the help desk as this should be changed by authorized

personnel only.

Defrosting

• Defrosting occurs automatically in the fridge during operation; the water is collected by

the evaporation tray and evaporates automatically.

• The evaporation tray and the water drain hole should be cleaned periodically with the

defrost drain plug to prevent the water from collecting at the bottom of the fridge instead

of owing out.

• You can also clean the drain hole by pouring ½ glass of water down it.

SchaubLorenz−shop.ruSchaubLorenz−shop.ru

EN -10-

PART 5.

BEFORE CALLING YOUR AFTER SALES SERVICEPART 6.

If your fridge is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if:

• There is a power failure.

• The mains plug is not plugged in properly, or is loose.

• The thermostat setting is on position “ “.

• The socket is defective. To check this, plug in another appliance that you know is working

into the same socket.

The appliance performs poorly,

Check if:

• You have overloaded the appliance.

• The door is not closed properly.

• There are not enough ventilation ducts in the kitchen unit as mentioned in the installation

manual.

If there is noise:

The cooling gas which circulates in the fridge circuit may make a slight noise (bubbling

sound) even when the compressor is not running. Do not worry, this is quite normal. If you

hear di󰀨erent sounds, check if:

• The appliance is installed rmly as described in the installation manual.

• Objects on the appliance are vibrating.

Transportation and changing of Installation position

• The original packages and foamed polystyrene (PS) can be retained if required.

• During transportation, the appliance should be secured with a wide string or a strong

rope. The instructions written on the corrugated box must be followed while transporting.

• Before transporting or changing the

installation position, all the moving objects

(ie,shelves,crisper…) should be taken out or

xed with bands in order to prevent them from

getting damaged.

Carry your fridge in the upright position.

TRANSPORTATION AND CHANGING OF

INSTALLATION POSITION

Table des matières

Langues :

Autres manuels Schaub Lorenz Réfrigérateur

Schaub Lorenz

Schaub Lorenz SLS E136W0M Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUS435X3M Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUS335C2 Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUS435X3E Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLU S230W3M Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL 300 B CB Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUE235W4 Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL 210 C DD Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUS335S2 Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL 210 B Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUE235W4 Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL SE310WE Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUS335G2 Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUS256W3M Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL 250 B Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL SE311WE Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SVCB315 Manuel utilisateur

Schaub Lorenz

Schaub Lorenz R14454 Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLU S379G4E Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL300B CB Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL 300 Series Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLUE235W5 Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SLU S262W4M Manuel utilisateur

Schaub Lorenz

Schaub Lorenz SL SE312WE Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
