BUILT UNDER LARDER
User manual
SLS E136W0M
ВСТРАИВАЕМЫЙ
холодильник
Руководство пользователя
EN -2-
Index
BEFORE USING THE APPLIANCE ..........................................3
General warnings ....................................................................3
Old and out-of-order fridges ....................................................5
Safety warnings.......................................................................5
Installing and operating your fridge .........................................6
Before using your fridge ..........................................................6
HOW TO OPERATE THE APPLIANCE .....................................7
Thermostat setting ..................................................................7
FOOD STORAGE IN THE APPLIANCE ....................................7
CLEANING AND MAINTENANCE.............................................8
Defrosting................................................................................9
Replacing the light bulb...........................................................9
TRANSPORTATION AND CHANGING OF INSTALLATION
POSITION .................................................................................10
BEFORE CALLING YOUR AFTER SALES SERVICE.............10
Tips for saving energy ............................................................11
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS ....................................................................12
Installation instructions...........................................................13
The operating instructions apply to several models. Dierences may therefore occur.
EN -3-
BEFORE USING THE APPLIANCEPART 1.
General warnings
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the
appliance, it must be xed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant (this information
will be provided on the label of the cooler) you should take care
during transportation and installation to prevent the cooler
elements from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In the event of a
leak due to damage of the cooler elements, move your fridge
away from open ames or heat sources and ventilate the
room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
• This appliance is intended to be used in household and
domestic applications such as:
- sta kitchen areas in shops, oces and other working
environments.
- farm houses and by clients in hotels, motels and other
residential type environments.
EN -4-
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with
a specially grounded socket of 16 amperes. If there is no
such socket in your house, please have one installed by an
authorised electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualied
persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.
EN -5-
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• •Old fridges and freezers may contain isolation material and refrigerant with CFC or
HFC. Therefore, take care not to harm environment when you are discarding your old
fridges.
Please ask your municipal authority about the disposal of the WEEE reuse,
recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled and
our company will not be responsible for losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
food. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for losses to be incurred in the contrary
case.
Safety warnings
• Do not connect your fridge to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to play
with the appliance or let them hang o the door.
• Never touch the power cord/plug with wet hands as this could cause a
short circuit or electric shock.
• Do not place explosive or ammable material in your fridge. Place
drinks with high alcohol content vertically in the fridge and make sure
that their tops are tightly closed.
• Do not cover the body or top of fridge with lace. This aects the performance
of your fridge.
• Secure any accessories in the fridge during transportation to prevent damage
to the accessories.
EN -6-
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• The operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge may have a smell when it is operated for the rst time. This is normal and
the smell will fade away when your fridge starts to cool.
• Before connecting your Fridge Freezer, ensure that the information on the data plate
(voltage and connected load) matches that of the mains electricity supply. If in doubt,
consult a qualied electrician.
• Insert the plug into a socket with an ecient ground connection. If the socket has no
ground contact or the plug does not match, we recommend that you consult a qualied
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power supply
(AC) and voltage at the operating point must match with the details on the name plate
of the appliance (name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct sunlight.
• Your fridge should never be used outdoors or exposed to rain.
• Your appliance should be at least 50 cm away from stoves, gas ovens and heater
cores, and at least 5 cm away from electrical ovens.
• When your fridge is placed next to a deep freezer, there should be
at least 2 cm between them to prevent humidity forming on the outer
surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially the interior, before use (see
Cleaning and Maintenance).
• The installation procedure into the kitchen unit is given in the Installation Manual. This
product is intended to be used in proper kitchen units only.
• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon
of sodium bicarbonate, then rinse with clean water and dry.
Place all parts in the fridge after cleaning.
Before using your fridge
• When using your fridge for the rst time, or after transportation, keep it
in an upright position for at least 3 hours before plugging into the mains.
This allows ecient operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the rst time. This
is normal and the smell will fade away when your fridge starts to cool.
EN -7-
FOOD STORAGE IN THE APPLIANCEPART 3.
The fridge is used for storing fresh food for few days.
• Do not place food in direct contact with the rear wall of the refrigerator. Leave some
space around food to allow the circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
• Always make sure food is wrapped or stored in closed containers.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed
containers in the refrigerator.
• We recommend that you loosely wrap meat and store it on the glass shelf just above the
vegetable bin, where the air is cooler.
• Store fruit and vegetable items loose in the crisper containers.
• To prevent the cold air escaping, try not to open the door too often, and not leave the
door open for a long time.
HOW TO OPERATE THE APPLIANCEPART 2.

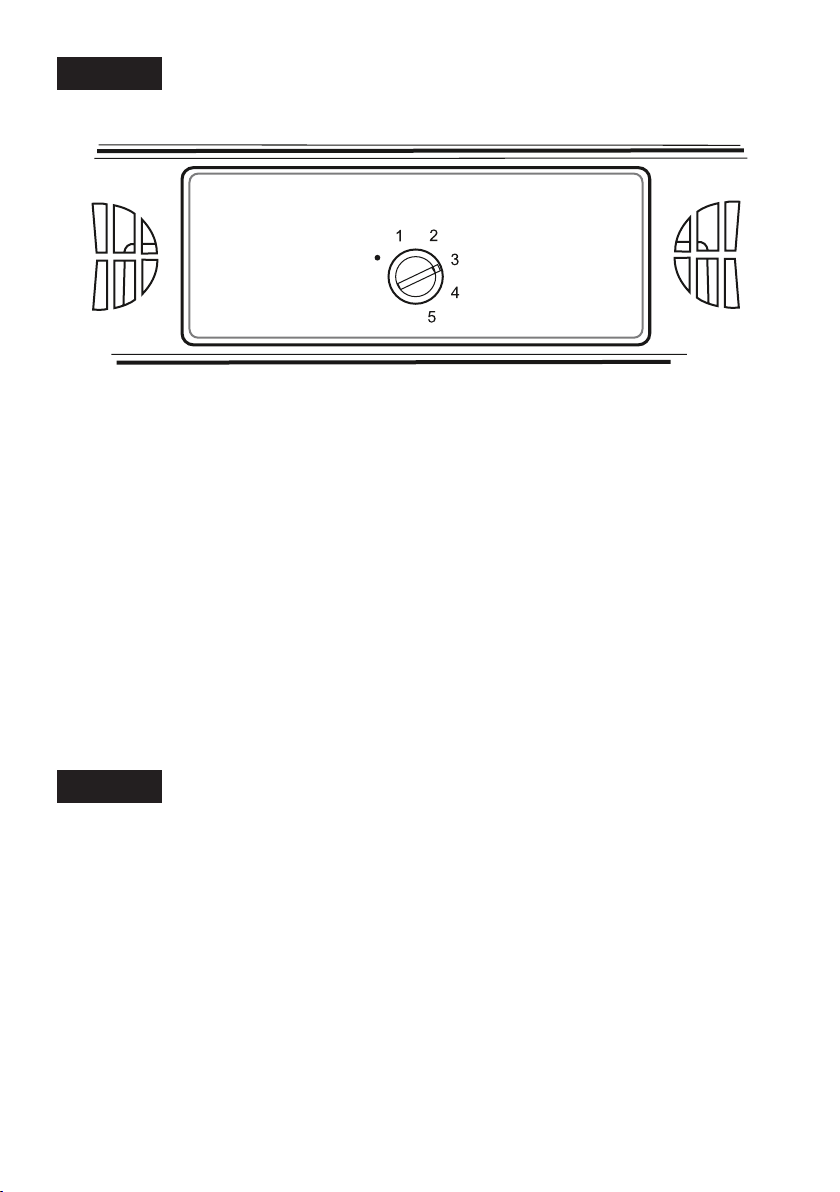

Thermostat setting
The thermostat automatically regulates the inside temperature of the refrigerator. By rotating
the knob from position 1 to 5, colder temperatures can be obtained.
Important note: Do not try to rotate knob beyond position 1. It will stop your appliance from
working.
• For short-term storage of food in the fridge, you can set the knob between minimum and
medium positions (1-3).
• For long-term storage of food in the fridge, you can set knob to the medium position (3-4)
• Note that: the ambient temperature, temperature of freshly stored food and how often
the door is opened, aects the temperature in the fridge. If required, change the
temperature setting.
• When you rst switch on the appliance, you should ideally try to run it without any food
in for 24 hours and not open the door. If you need to use it straight away, try not to put a
large quantity of food inside.
• If the unit is switched o or unplugged, you must allow at least 5 minutes before restarting
in order not to damage the compressor.
• The larders (coolers) do not have a freezer compartment but can cool up to 4 - 6 °C.
EN -8-
CLEANING AND MAINTENANCE
• Disconnect the unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• Make sure that no water enters the lamp
housing and other electrical components.
• The refrigerator should be cleaned periodically using a solution of
bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and
water Do not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After washing,
rinse with clean water and dry carefully. When you have nished
cleaning, reconnect the plugto the mains supply with dry hands.
THE POWER SUPPLY MUST BE DISCONNECTED.
PART 4.
EN -9-
Replacing the light bulb
When replacing the bulb of the fridge;
1. Unplug the unit from the power supply,
2. Press the hook in front of the light cover as in Figure 1 and remove the light cover,
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.
Figure 1 Figure 2
Replacing LED Lighting
If your fridge has LED lighting contact the help desk as this should be changed by authorized
personnel only.
Defrosting
• Defrosting occurs automatically in the fridge during operation; the water is collected by
the evaporation tray and evaporates automatically.
• The evaporation tray and the water drain hole should be cleaned periodically with the
defrost drain plug to prevent the water from collecting at the bottom of the fridge instead
of owing out.
• You can also clean the drain hole by pouring ½ glass of water down it.
EN -10-
PART 5.
BEFORE CALLING YOUR AFTER SALES SERVICEPART 6.
If your fridge is not working properly, it may be a minor problem, therefore check the following.
The appliance does not operate,
Check if:
• There is a power failure.
• The mains plug is not plugged in properly, or is loose.
• The thermostat setting is on position “ “.
• The socket is defective. To check this, plug in another appliance that you know is working
into the same socket.
The appliance performs poorly,
Check if:
• You have overloaded the appliance.
• The door is not closed properly.
• There are not enough ventilation ducts in the kitchen unit as mentioned in the installation
manual.
If there is noise:
The cooling gas which circulates in the fridge circuit may make a slight noise (bubbling
sound) even when the compressor is not running. Do not worry, this is quite normal. If you
hear dierent sounds, check if:
• The appliance is installed rmly as described in the installation manual.
• Objects on the appliance are vibrating.
Transportation and changing of Installation position
• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong
rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the
installation position, all the moving objects
(ie,shelves,crisper…) should be taken out or
xed with bands in order to prevent them from
getting damaged.
Carry your fridge in the upright position.
TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Table des matières
Langues :
Autres manuels Schaub Lorenz Réfrigérateur
Schaub Lorenz
Schaub Lorenz SL 300 Series Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SL SE310WE Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SL SE311WE Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLUS435X3E Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLUS335S2 Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLU S262W4M Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLUS256W3M Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLUE235W4 Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SL 210 B Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLUE235W5 Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SL 300 B CB Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLUS335C2 Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLUE235W4 Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SL 210 C DD Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SL300B CB Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLU S379G4E Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SL SE312WE Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SVCB315 Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLS E136W0M Manuel utilisateur
Schaub Lorenz
Schaub Lorenz SLUS435X3M Manuel utilisateur
