Operating Manual
Always read this operating manual before using the PMSA!
PMSA
Single paper sheet moisture analyser
for measuring the moisture content of a single sheet
of paper
Moisture meter
Version 2.1
PMSA Operating Manual
Page 2

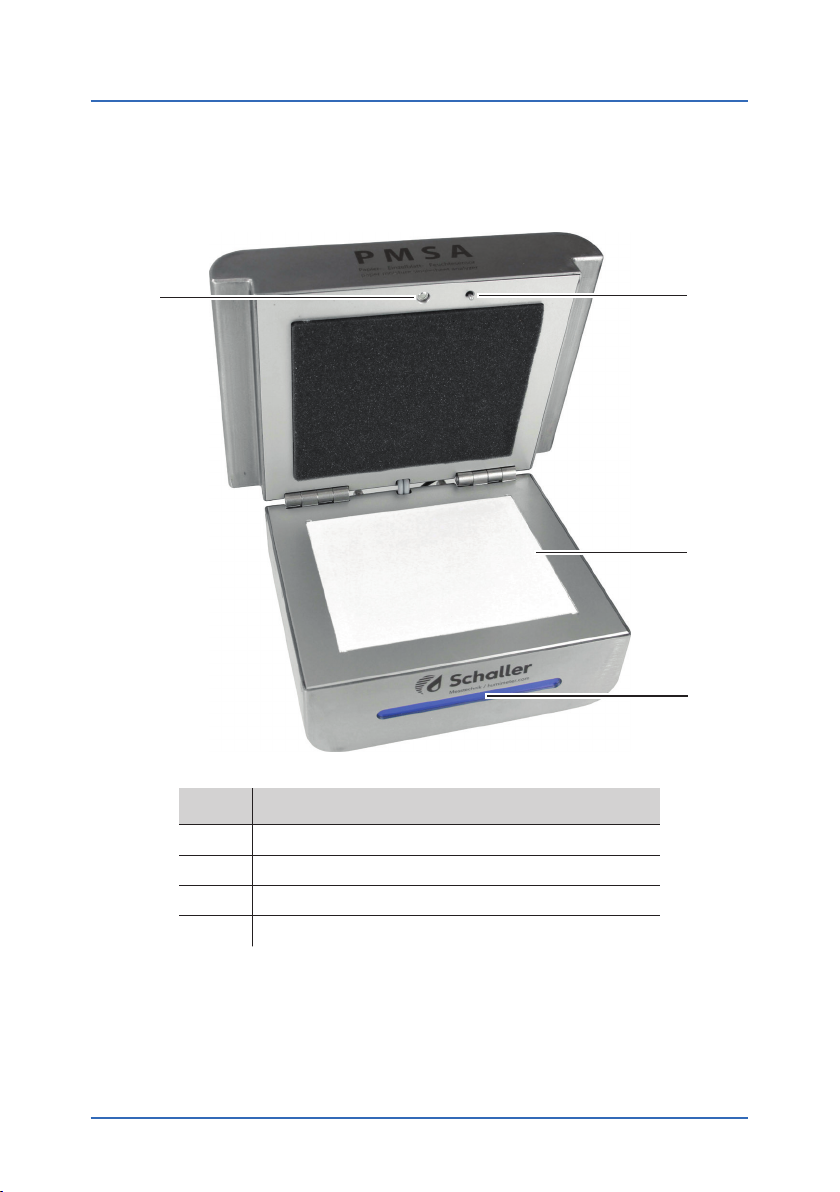

Your PSMA at a glance
The main unit
No Name
1 Lid push button
2 Sensor plate
3 LED status bar
4 IR temperature sensor
2
3
41
Page 3

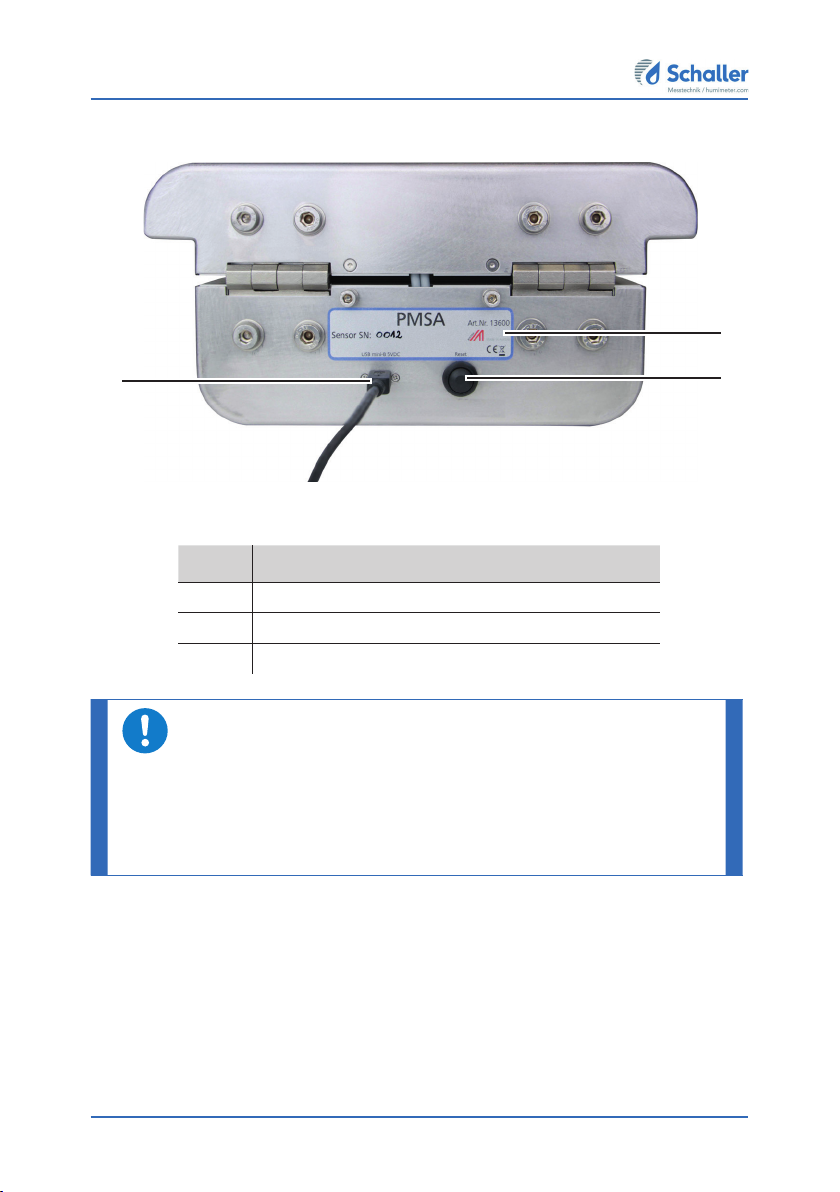

The rear of the main unit
No Name
1 Identification plate
2 Reset button
3 USB port
ATTENTION
Sensitive sensor plate
The white sensor surface consists of a thin ceramic plate. This plate may be
destroyed by mechanical pressure!
►Take care of the sensitive sensor surface during cleaning!
2
3
1
PMSA Operating Manual
Page 4
Table of contents
Your PSMA at a glance ����������������������������������������������������������������� 2
The main unit ..........................................................................................................2
The rear of the main unit .........................................................................................3
1� Introduction �������������������������������������������������������������������� 6
1.1 Information about this operating manual ................................................6
1.2 Limitation of liability ................................................................................ 6
1.3 Symbols used in this manual ...................................................................7
1.4 Customer service ....................................................................................7
2� For your safety ���������������������������������������������������������������� 8
2.1 Proper use ..............................................................................................8
2.2 Improper use ..........................................................................................8
2.3 User qualications ................................................................................... 8
2.4 General safety information ...................................................................... 9
2.5 Warranty ................................................................................................ 9
3� On receipt of your device �������������������������������������������� 10
3.1 Taking the device out of its packaging ...................................................10
3.2 Making sure that all of the components have been included .................10
4� Setting up ���������������������������������������������������������������������� 11
4.1 Setting up the PC software ...................................................................11
4.2 Setting up the device ............................................................................11
4.3 Setting the COM Port ...........................................................................12
5� The measuring process ������������������������������������������������� 12
6� Product types ���������������������������������������������������������������� 14
6.1 Selecting the product type ....................................................................15
6.2 How moisture content is dened .......................................................... 15
7� Database / Archive ������������������������������������������������������� 16
7.1 Filter .....................................................................................................16
Page 5
7.1.1 Filter by date .........................................................................................16
7.1.2 Filter by keyword ..................................................................................17
7.2 Additional database functions ...............................................................18
7.2.1 Deleting measurements ........................................................................ 18
7.2.2 Edit measurements ...............................................................................18
7.2.3 Printing measurements ......................................................................... 18
7.2.4 Exporting measurements ....................................................................... 18
8. Conguringthedevice������������������������������������������������� 19
8.1 Sensor settings ...................................................................................... 19
8.1.1 Deactivating the "Measurement Valid" window ....................................19
8.1.2 Updating the PMSA Firmware ...............................................................19
8.1.3 Entering the Admin password ...............................................................20
8.2 Product types ........................................................................................20
8.3 Selecting a language .............................................................................21
9� Cleaning and maintenance ������������������������������������������ 21
9.1 Resetting the hardware/device .............................................................. 21
9.2 Care instructions ...................................................................................21
9.3 Cleaning the device ..............................................................................22
10� Faults ����������������������������������������������������������������������������� 23
11� Storage and disposal ���������������������������������������������������� 24
11.1 Storing the device .................................................................................24
11.2 Disposing of the device .........................................................................24
12� Device information ������������������������������������������������������� 25
12.1 EC declaration of conformity ................................................................. 25
12.2 Technical data .......................................................................................29
13� Notes ����������������������������������������������������������������������������� 30
PMSA Operating Manual
Page 6
1. Introduction
1.1 Information about this operating manual
This operating manual is designed to enable you to use the PMSA safely and effec-
tively. It is part of the device, has to be stored nearby and must be easily accessible to
users at all times.
All users are required to carefully read and make sure that they have understood this
operating manual before using the PMSA. All of the safety and operating instructions
detailed in this manual have to be observed to ensure the safety of the device.
1.2 Limitation of liability
All of the information and instructions provided in this operating manual have been
compiled on the basis of the current standards and regulations, the state of the art,
and the extensive expertise and experience of Schaller Messtechnik GmbH.
Schaller Messtechnik GmbH does not accept any liability for damage associated with
the following, which also voids the warranty:
• Non-observance of this operating manual
• Improper use
• Inadequately qualified users
• Unauthorised modifications
• Technical changes
• Use of unapproved spare parts
This fast measuring procedure can be affected by a range of different factors. For this
reason, we recommend periodically checking the device’s measurements with a stan-
dardised oven-drying method.
We, as the manufacturer, do not accept any liability for any incorrect measurements
and associated consequential damage.
Page 7
1.3 Symbols used in this manual
All of the safety information provided in this manual is shown with a corresponding
symbol.
CAUTION
It is essential to observe this warning. Non-compliance can lead to injury.
ATTENTION
It is essential to observe this warning. Non-compliance can lead to damage to
property or equipment.
iInformation
This symbol indicates important information that enables users to use the de-
vice more efficiently and cost effectively.
1.4 Customer service
For technical advice, please contact our customer service department at:
Schaller Messtechnik GmbH
Max-Schaller-Straße 99
A - 8181 St.Ruprecht an der Raab
Telephone: +43 (0)3178 28899
Fax: +43 (0)3178 28899 - 901
E-Mail: info@humimeter.com
Internet: www.humimeter.com
© Schaller Messtechnik GmbH 2022
PMSA Operating Manual
Page 8
2. For your safety
The device complies with the following European directives:
• Restriction of Hazardous Substances in Electrical and Electronic Equipment
(RoHS)
• Electromagnetic compatibility (EMC)
The device corresponds to state-of-the-art technology. However, it is still associated
with a number of residual hazards.
These hazards can be avoided through strict observance of our safety information.
2.1 Proper use
• Easy to use device for quickly measuring the water content of single sheets of
paper
• The device must only be used for taking measurements on the products defined
in the following sections of this manual (see 6. Product types).
2.2 Improper use
• The device must not be used in ATEX.
• Corrugated board cannot be measured.
• Papers and cardboard that have been carbon (graphite) blackened.
• Papers and cardboard with metallic coatings
• The device is not waterproof and must be protected from water and fine dust.
2.3 User qualifications
The device should only be handled by persons who are expected to carry out the work
reliably. Persons whose reactions are influenced, by drugs, alcohol or medication, are
not permitted to use the device.
Persons who use this device must have read and understood the user manual and fol-
low its instructions.
Page 9
2.4 General safety information
Follow the safety instructions below to avoid personal injury and material damage:
• If you notice loose parts or damage on the device contact your distributor.
All of the device’s technical features have been inspected and tested before delivery.
Every device has a serial number. Do not remove the tag with the serial number.
2.5 Warranty
The warranty does not apply to:
• Damage resulting from non-observance of the operating manual
• Damage resulting from third-party interventions
• Products that have been used improperly or modified without authorisation
• Products with missing or damaged warranty seals
• Damage resulting from force majeure, natural disasters, etc.
• Damage from improper cleaning
PMSA Operating Manual
Page 10
3. On receipt of your device
3.1 Taking the device out of its packaging
• Take the device out of its packaging.
• Next, make sure that it is not damaged and that no parts are missing.
ATTENTION
Sensitive sensor plate
The white sensor surface consists of a thin ceramic plate. This plate may be
destroyed by mechanical pressure!
►Take care of the sensitive sensor surface during cleaning!
3.2 Making sure that all of the components have been included
Make sure that all of the components have been included by checking the package
contents against the following list:
• PMSA
• USB mini B cable
• USB stick with software
• Operating manual
Optional accessories:
• Paper grammage precision scale
• Laboratory analysis for creation of calibration curve
