Saxby Lighting Atlantis Post Manuel

Commissioning

Instruction leaflet

Atlantis Post

70847 & 70848

www.saxbylighting.com

For your safety, always switch off the supply before changing lightbulbs, or cleaning. Live Voltages may be present in

this unit even when turned of or when completely disconnected.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities

exist. Check with your Local Authority or retailer for recycling advice.

Recycling advice

Safety information

Saxby Lighting Ltd. BH23 3PE

Do not use solvents or abrasive cleaners as these could

damage the finish.

In some cases, surface corrosion may arise after

installation. This is normally caused by tiny iron particles

left behind after the brushing process when finishing.

In normal circumstances, stainless steel is very resistant

to corrosion. It does however require maintenance to

preserve the high quality appearance. Wash the product

with warm soapy water, removing all surface deposits.

Rinse with clean water and with a soft cloth, wipe dry.

Then with a soft cloth soaked with a protective oil, wipe

all over.

If the product is subject to extreme environmental

conditions such as marine locations, industrial pollution

and acid rain these maintenance procedures should

be carried out around four times a year. For severe

corrosion, non-abrasive cream cleaners or proprietary

stainless steel cleaners should be used to remove the

corrosion. Wash and dry as detailed above. Then with a

soft cloth soaked with a protective oil, wipe all over.

Do not clean the units with a pressure washer.

- Fit the product over the fixing bolts, re-fit the plastic

washers (B) and then the dome nuts (A). Use a

suitable spanner to securely tighten the product to

the mounting surface.

- Replace fuse or circuit breaker and switch on. Your

light is now ready for use.

Iss.1 27052016

Fitting/replacing bulbs

• Whenchangingabulb,alwaysswitchoffatthe

mains and allow the bulb to cool before handling.

Dispose of used bulbs carefully. Do not exceed the

wattage stated or use a different shape bulb from that

indicated on the fitting.

1. Unscrew the bezel

2. Remove the old bulb by turning anti-clockwise.

3. Insert new bulb.

4. Replace the bezel ensuring that it is tightly secured.

• You have correctly identified the wires.

• The connections are tight.

• No loose strands have been left out of the connection block.

Check that...

Care & Cleaning

Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and

satisfactory operation of this product. Please retain these instructions for future reference.

Warning

This light fitting is Class 1 and must be connected to

an Earth circuit

Please read these instructions carefully before

commencing any work.

This unit must be fitted by a competent and qualified

electrician.

Install in accordance with IEE Wiring regulations and

current Building Regulations.

To prevent electrocution switch off at mains supply

before installing or maintaining this fitting. Ensure

other persons cannot restore the electrical supply

without your knowledge. If you are in any doubt,

please consult a qualified electrician.

This light fitting should be connected to a circuit with a

30mA RCD fitted.

If replacing an existing fitting, make a careful note of

the connections.

Always use the correct type and wattage bulb. Using

the incorrect wattage bulb will damage the bulb and

ballast.

When changing a bulb, always switch off at the mains

and allow the old bulb to cool down before handling.

Dispose of used bulbs carefully and responsibly.

Waste electrical products should not be disposed of

with household waste. Please recycle where facilities

exist. Check with your local authority or retailer for

recycling advice.

This product is rated at IP65.

This product is not suitable for dimming.

This product is not suitable for location in or near a

marine or sea environment.

The entire unit gets hot whilst on for a period of time.

Specification

Voltage: 240V 50Hz a.c.

Lamp: 2 x 35W GU10 halogen

IP rating: 65

Layout

Installation

Wiring

• Planthedesiredlayoutofthisfittingcarefully,

ensuring the cables will reach the distance between

the junction box and the light fitting.

• Thisproductisdesignedfordomesticandlight

industrial use. It should not be used to support other

objects or used as a replacement for concrete or

metal pillars.

• Avoidlocatinganycablesinpositionsthatwould

cause a hazard. Position cables and outdoor rated

junction boxes (not supplied) away from areas

where they may be at risk from being cut, trapped or

damaged.

• WerecommendthatyouuseH05RN-Fspecification

cable (not supplied) which is an outdoor grade,

rubber sheathed cable. The mains supply cable must

have a minimum cross sectional area of 1.0mm².

Existing fittings must be completely removed before

installation of a new product. Before removing the

existing fitting, carefully note the position of each set

of wires.

- Using base plate as a template, mark the fixing holes

onto the mounting surface.

- Drill holes to the necessary size and depth - taking

care not to damage any concealed pipes or wiring

below the mounting surface.

- This product comes complete with expanding

bolt type fixings (C) which are suitable for use on

most surfaces, however alternative fixings may be

required.

- Push the fixing bolts into the mounting holes.

Having correctly identified the wiring from

your existing light fitting, pull the wire through

the bottom of the fitting and connect to the

connection block inside the product in the

following way:

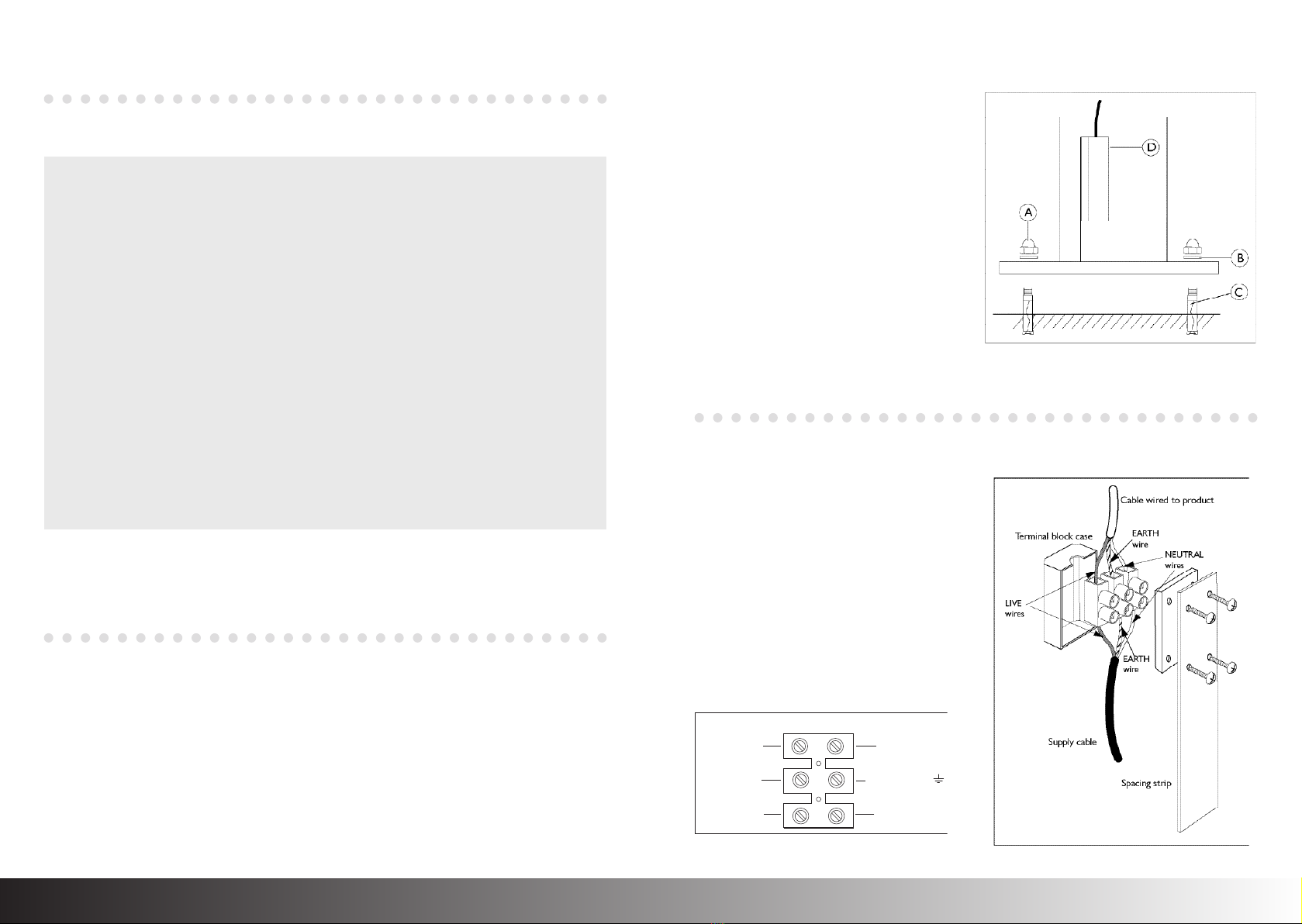

• See Diagram 2. Pull spacing strip from

inside of tube.

• Unscrew the 4 screws which attach the

black box to the spacing strip. Open

the terminal block case and pull out the

terminal block. Wire as detailed below.

• Push terminal block back into the black box

and refit the terminal block cover.

NEUTRAL

EARTH

SWITCHED LIVE

BLUE (N)

BROWN (L)

GREEN/YELLOW

SUPPLY LIGHT FITTING
