Savant SAV-LMP-0300 Guide de référence rapide

45 Perseverance Way, Hyannis, MA 02601

Savant.com | 508.683.2500

Savant Pro Lamp Control

SAV-LMP-0300

Deployment Guide

Document Number:

009-1388-01

Document Date:

August 2016

Document Supports:

da Vinci 8.0

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

Important Safety Information

Before installing, configuring, and operating Savant® equipment and other vendor equipment, Savant recommends

that each dealer, installer, etc. access and read all the required technical documentation. Savant technical

documentation can be located by visiting the Savant Community. Vendor documentation is supplied with the

equipment.

Read and understand all safety instructions, cautions, and warnings in this document and the labels on the equipment.

Safety Classifications in this Document

Note:

Provides special information for installing, configuring, and operating the equipment.

IMPORTANT!

Provides information critical to installing, configuring, and operating the equipment.

CAUTION!

Provides special information on avoiding situations that may cause damage to equipment.

WARNING!

Provides special information on avoiding situations that may cause physical danger to the

installer, end user, etc.

Electric Shock Prevention

ELECTRIC SHOCK! The source power poses an electric shock hazard that has the potential to cause serious injury to

installers and end users.

ELECTRICAL DISCONNECT: The source power outlet and power supply input power sockets should be easily

accessible to disconnect power in the event of an electrical hazard or malfunction.

Weight Injury Prevention

WEIGHT INJURY! Installing some of the Savant equipment requires two installers to ensure safe handling during

installation. Failure to use two installers may result in injury.

Safety Statements

Follow all of the safety instructions listed below and apply where applicable. Additional safety information will

be included where applicable.

1. Read these instructions.

2. Keep these instructions

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide

blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

9. Plug into a surge protected outlet or receptacle.

10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

11. To completely disconnect this equipment from the AC mains, unplug from the outlet or receptacle.

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

Contents

To access the link to the topics in this document, click the topic page.

Important Safety Information .........................................................................................................2!

1.!Introduction.....................................................................................................................................4!

2.!Deployment Steps......................................................................................................................... 5!

3.!Lamp Control Overview.............................................................................................................. 6!

4.!Connections.....................................................................................................................................7!

5.!Provisioning to the Network - SmartConnect....................................................................9!

5.1!Required Items for Network Configuration................................................................................................9!

5.2!SSID Guidelines .....................................................................................................................................................9!

5.3!Provisioning Steps – SmartConnect..............................................................................................................10!

6.!Understanding Bindings .............................................................................................................12!

7.!RacePoint Blueprint® Configuration - Bind through SmartConnect..........................13!

7.1!Enable Controller Functionality on the Host .............................................................................................13!

7.2!Configure Blueprint to Access Lighting/Keypad Manager..................................................................13!

7.3!Lighting/Keypad Manager Basics..................................................................................................................14!

7.4!Lighting/Keypad Manager - Add Lamp Control ......................................................................................14!

7.5!Lighting/Keypad Manager – Load Scenes (Optional) ...........................................................................15!

7.6!Populate/Update the Lighting Data Table .................................................................................................17!

7.7!Upload Configuration..........................................................................................................................................18!

7.8!Bind Lamp Control Using SmartConnect....................................................................................................19!

7.9!Unbind Process .....................................................................................................................................................21!

7.10!Export Configuration File..................................................................................................................................22!

8.!RacePoint Blueprint® Configuration - Bind through Lighting Manager....................23!

8.1!Enable Controller Functionality on the Host .............................................................................................23!

8.2!Configure Blueprint to Access Lighting/Keypad Manager..................................................................23!

8.3!Lighting/Keypad Manager Basics..................................................................................................................24!

8.4!Lighting/Keypad Manager - Add Lamp Control ......................................................................................24!

8.5!Lighting/Keypad Manager – Load Scenes (Optional) ...........................................................................25!

8.6!Lighting/Keypad Manager – Establish Bindings ......................................................................................27!

8.7!Populate/Update the Lighting Data Table .................................................................................................29!

8.8!Upload Configuration..........................................................................................................................................30!

Appendix A: Network Requirements ...........................................................................................32!

Appendix B: Provision to the Network – Web UI....................................................................33!

Appendix C: Firmware Info..............................................................................................................35!

Appendix D: Additional Procedures.............................................................................................36!

Configure Lamp Control to Function as a Switch ............................................................................................36!

Important Notice..................................................................................................................................37!

FCC Regulatory .................................................................................................................................... 38!

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

1. Introduction

This Deployment Guide will guide the installer through the process of installing, configuring, and adding a Savant

Lamp Control (SAV-LMP-0300) to a Savant Control system.

Before You Begin

Read through this document in its entirety and ensure that the following required items are available:

Savant Lamp Control (SAV-LMP-0300) ...............................................................................................................................

Savant Smart or Pro Host licensed in Savant Control system running da Vinci 8.0 or higher ........................

Savant Development Environment (SDE) MacBook®.......................................................................................................

(with RacePoint Blueprint® da Vinci 8.0 or higher installed)

Smart Connect Application (v1.5 or higher) installed on an iOS device...................................................................

Network meeting Savant Requirements ...............................................................................................................................

(See Appendix A: Network Requirements)

SSID and Passphrase for the Wi-Fi® Router or Switch.....................................................................................................

Optional: Unique ID (UID) of the Lamp Control ................................................................................................................

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

2. Deployment Steps

Follow these steps to successfully deploy the Savant Lamp Control. This page can be used as a checklist to

record which steps have been completed.

Review the Lamp Control connections and controls ...............................................................................................

See Lamp Control Overview

Connect hardware..................................................................................................................................................................

See Connections

Provision Lamp Control onto network using SmartConnect ................................................................................

See Provision to the Network - SmartConnect

Add Lamp Control to a Blueprint configuration and Bind.....................................................................................

See

RacePoint Blueprint Configuration – Bind through SmartConnect

-or-

RacePoint Blueprint Configuration – Bind through Lighting Manager

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

3. Lamp Control Overview

The Lamp Control is powered when plugged it into any overcurrent protected 120V AC outlet and will remotely

control the load/light plugged into its output receptacle.

The Lamp Control supports the following bulb types:

Incandescent/ Halogen

250W max / 5W min

Dimmable CFL

100W max / 5W min

Dimmable LED

100W max / 5W min

Do not use with Electronic Low Voltage (ELV) or Magnetic

Low Voltage (MLV) loads.

IMPORTANT NOTE! Do not use CFL or LED bulbs listed as Not for use with dimmers.

Refer to the Lamp Control Quick Start Guide (009-1406-xx) for this product located on the Savant Community

for Box Contents and Specifications.

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

4. Connections

Prior to configuring the Lamp Control into RacePoint Blueprint, it can be connected and tested to verify the

lamp can be toggled on and off.

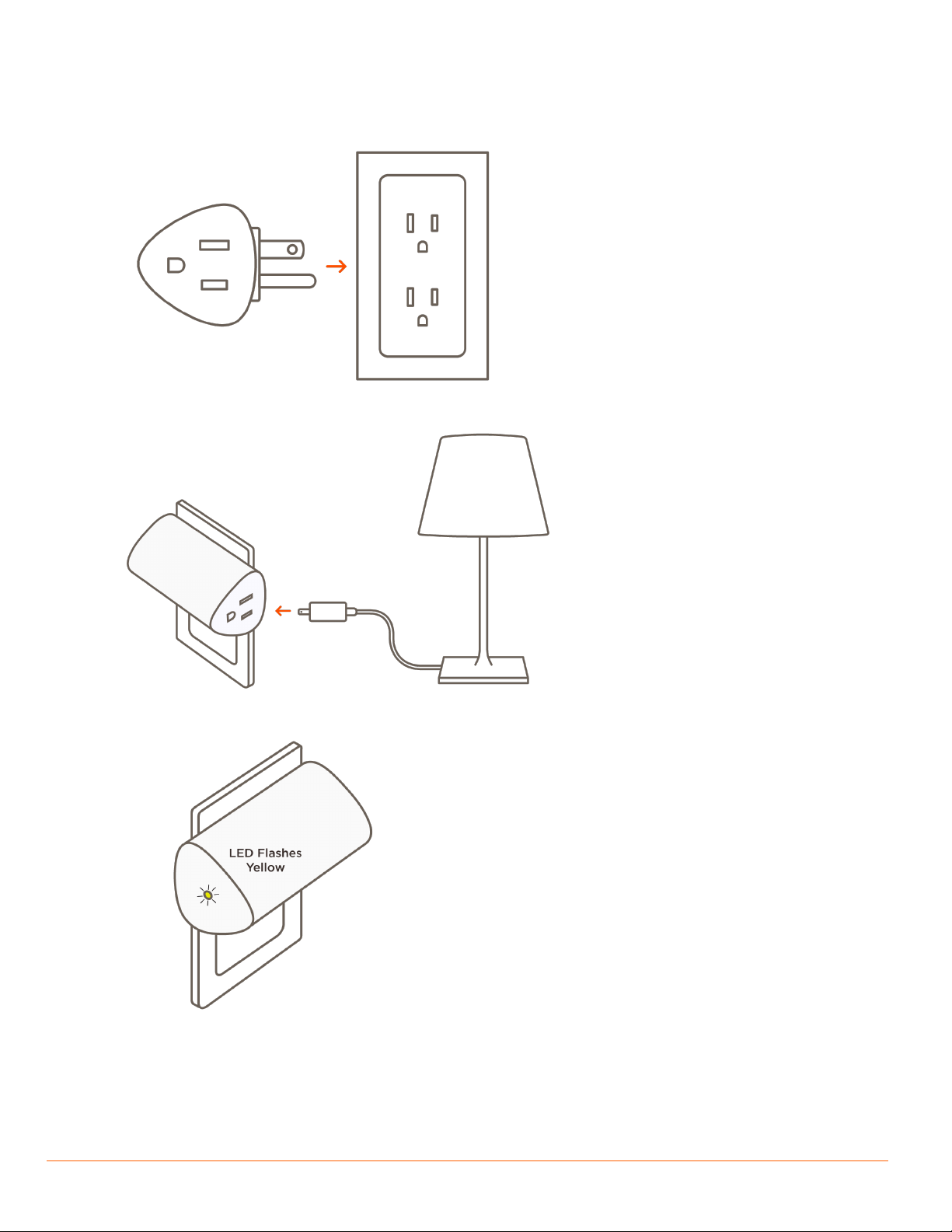

1. Plug the Lamp Control directly into an overcurrent protected 120V AC receptacle/outlet.

2. Plug the cord from a lamp into the receptacle on the Lamp Control. Turn the Lamp Switch to the On

position.

3. Verify the LED on the side of the Lamp control is blinking yellow (factory default setting). See Blinks Once

(Yellow) in the LED Status section below.

Blinking yellow indicates the Lamp Control is in Access Point

Provisioning Mode. This is how the Lamp Control is configured

when leaving the factory. If it is not blinking yellow, press and

hold the reset button for 5 seconds until the LED blinks red then

release. See Rapid Blink (red).

4. Press and release the reset button positioned on the bottom of the Lamp Control. Verify the lamp/load

toggles On and Off. The Lamp Control is now ready to be provisioned.

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

LED Status

Before provisioning the Lamp Control, refer to the table below for info on the Status LED and Reset button.

The table below shows the various states the Lamp Control can get into.

State LED

Off: No Power.

On Solid (Green): Connected to the network and bound to the configuration running on the

Savant Control System Host.

On Solid (Yellow): Lamp Control is booting after being reset.

On Solid (Red): Error Mode caused by an over current condition. When this occurs, unplug the

Lamp Control, wait ten seconds and plug back in. This will reset the error condition.

If an error condition occurs, check that the load does not exceed the specifications shown

in section 3 above.

Blinks Once (Yellow): In Access Point Provisioning Mode and ready to be provisioned to the

local network.

Blinks Once (Green): Provisioned and communicating with the local network. Not currently

communicating with the Savant Control System Host (Not bound to the Host).

Rapid Blink (Red): The reset button was held down for at least five seconds. When button is

released, the rapid blink will stop and the Lamp Control will reset into Access Point Provisioning

Mode.

Rapid Blink (Yellow): When activating the locate feature, the LED will blink yellow as shown

below. Refer to the TIP in the Provisioning Steps – SmartConnect section.

Blinking Yellow/Green: Firmware is updating

Reset Button

Positioned on the bottom of the Lamp Control.

Press and Hold:

While powered On, press and hold for five seconds until the Status LED begins blinking red, then

release (See Rapid Blink (Red)). After the Lamp Control resets, it will be set to Access Point

Provisioning Mode.

Press and Release:

Press and release the reset button to toggle the load on and off (provisioned or not).

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

5. Provisioning to the Network - SmartConnect

Prior to adding the Lamp Control into a configuration in RacePoint Blueprint, the Lamp Control must first be

provisioned to the local network. To do this, Savant offers the SmartConnect Application, which is available for

download from the iTunes App store. The SmartConnect application makes it simple to provision the Lamp

Control to the network as well as a host of other tasks. Using SmartConnect is described in this section.

If however, the SmartConnect Application is not available, the Lamp Control can also be provisioned using the

embedded Web UI. To provision using the embedded Web UI, refer to Appendix B: Provisioning – Web UI.

The next few steps describe how to provision using the Smart Connect application.

IMPORTANT NOTES!

−SmartConnect version 1.5 or higher.

−Bluetooth version 4.0 or higher.

5.1 Required Items for Network Configuration

The following items are required to provision the Lamp Control to the network using the Smart Connect

application.

iOS Device with SmartConnect (v1.5 or higher) App installed.....................................................................

Lamp Control ...................................................................................................................................................................

SSID and Passphrase for the Wireless router or switch..................................................................................

Network meeting the Savant Network Requirements ...................................................................................

(See Appendix A: Network Requirements)

5.2 SSID Guidelines

Savant Wi-Fi products can connect to a wireless network that meets the following SSID guidelines.

Maximum SSID Length:

32 characters

Maximum Passphrase Length:

WPA/WPA2: 8-50 characters

WEP: 10-26 characters

Wireless Standard:

802.11 b/g/n 2.4 GHz

Supported SSID and Passphrase Special Characters

Savant Lamp Control Deployment Guide

009-1388-01 | 160810

5.3 Provisioning Steps – SmartConnect

Provisioning the Lamp Control using the SmartConnect application (v1.5 or higher) is described below.

1. Refer to the Connections section above for initial setup and testing information. If the Lamp Control

is already set up, skip that section and proceed to step 2 below.

2. By default, a new Lamp Control is set at the factory to be in Access Point Provisioning Mode. See

Blinks Once (Yellow). If it is, skip this step and proceed to step 3 below. If the Lamp Control is in

some other state than Access Point Provisioning Mode follow the bulleted steps below to set it to

this mode.

•Insert a pointed object such as a paper clip into

the reset button pinhole. Press and hold the

reset button for five seconds until LED blinks

red, then release.

•After the reset, the LED will switch to solid

yellow while the Lamp Controller boots.

•After approximately 5-10 seconds, the LED on

the side of the Lamp Control starts blinking

yellow once per second indicating it is in Access

Point Provisioning Mode and ready to be

provisioned to the local network.

Refer to the LED Status section for LED state info.

3. On the iOS device (iPad®, iPhone® etc.), open the SmartConnect Application .

4. Locate the Lamp Control in the Devices on Bluetooth section of SmartConnect.

5. Tap the Lamp Control from the Devices on Bluetooth dialog window.

TIP! If there are multiple Lamp Controls offered in

SmartConnect and the UID of the Lamp Control is

unknown, SmartConnect can be used to locate

the Lamp Control. To do this, tap one of the

Lamp Control devices offered under the Devices

on Bluetooth heading. The Status LED on the side

of the Lamp Control device will begin to blink

rapidly (yellow) for 5-7 seconds and if there is a

lamp connected, the lamp will flash 5-7 times with

the LED. If this is not the intended Lamp Control,

tap Cancel in the Pick a Network window that

opens. Continue till the Lamp Control you would

like to provision is located.

6. In the Pick a Network dialog window that opens, tap the Join Other Network… selection (image not

shown).

7. In the Other Network dialog window that opens (shown below), enter the following:

Name – Enter SSID of the network.

Security - Tap Choose in the Security field and

select the security configured in the local network.

Password - Enter Password to the local network

TIP!

Tap the Use Current Network SSID field to

auto populate the Name field with the SSID

of the local network.

8. Tap Join when complete.

Autres manuels pour SAV-LMP-0300

Table des matières

Autres manuels Savant Éclairage extérieur

Savant

Savant CLEDA199LD1 Manuel utilisateur

Manuels Éclairage extérieur populaires d'autres marques

Sealey

Sealey LED37 Manuel utilisateur

nordlux

nordlux VEJERS Guide de l'utilisateur

SImx

SImx ELITE LED LHTC637 Manuel utilisateur

GEV

GEV CAROLINE 10833 Manuel utilisateur

NEBO

NEBO NEB-LSP-0020 Manuel utilisateur

WE-EF

WE-EF PFL540 LED Manuel utilisateur

Lindby

Lindby 9949029 Manuel utilisateur

HEPER

HEPER DOGO Side LW6048.585-US Instructions d'installation et d'utilisation

HEPER

HEPER LW8034.003-US Instructions d'installation et d'utilisation

Maretti

Maretti VIBE S 14.6080.04.A Manuel utilisateur

BEGA

BEGA 84 253 Manuel

HEPER

HEPER MINIMO Instructions d'installation et d'utilisation

LIGMAN

LIGMAN BAMBOO 3 Manuel utilisateur

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Manuel utilisateur

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Manuel utilisateur

urban ambiance

urban ambiance UQL1273 Manuel utilisateur

TotalPond

TotalPond 52238 Manuel utilisateur

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Manuel utilisateur
