SATO TH2 Series Manuel utilisateur

RS\Mktg\InstGuides\OOB\Mar11

Help & Service for your SATO Printer 2

Setting up your Printer 3

The Keypad 6

Loading the Label Roll 7

Using the Dispenser 9

Label Formats 11

Printing Labels 13

Charging the Battery 15

Cleaning Procedures 16

THE SATO TH2 RETAIL

LABEL PRINTER

USER GUIDE

Your SATO TH2 printer will immediately provide professional labels with the

simplest of operation.

Being designed using the most up-to-date technology, the printer is fully

future-proofed and can be programmed to take care of any labelling require-

ments that your business may need.

If you should wish to upgrade your printer a number of enhancements are

available:

High Capacity Rechargeable Battery

The High-capacity rechargeable battery makes the TH2 fully portable and can

print up to 5,000 labels without re-charging. The battery can be fully recharged

in the printer in about 6 hours or even faster when using the optional charging

unit.

Barcode Scanner

Adding a Barcode Scanner enables you to scan an existing product barcode and

produce a new label without manual entry of the product details.

Anti-Microbial Keypad Cover

The casing of your TH2 is manufactured from anti-microbial material which dis-

courages the growth of bacteria. A keypad cover with the same properties can

be added to prevent ingress of food and dust into the keypad.

Automatic Calculations

Automatic calculation of percentage reductions can be added as well as

Best Before date printing and product database options . Indeed, The TH” can

be programmed to perform almost any business function. Please do not hesi-

tate to contact us with your requirements.

About your SATO Retail Printer

Assistance for your SATO Printer

You should find that your SATO printer is straightforward to operate. However, if

you should experience any difficulty, please contact our Helpdesk for assistance:

Call: 01255 252828

e-mail: techsup[email protected]om

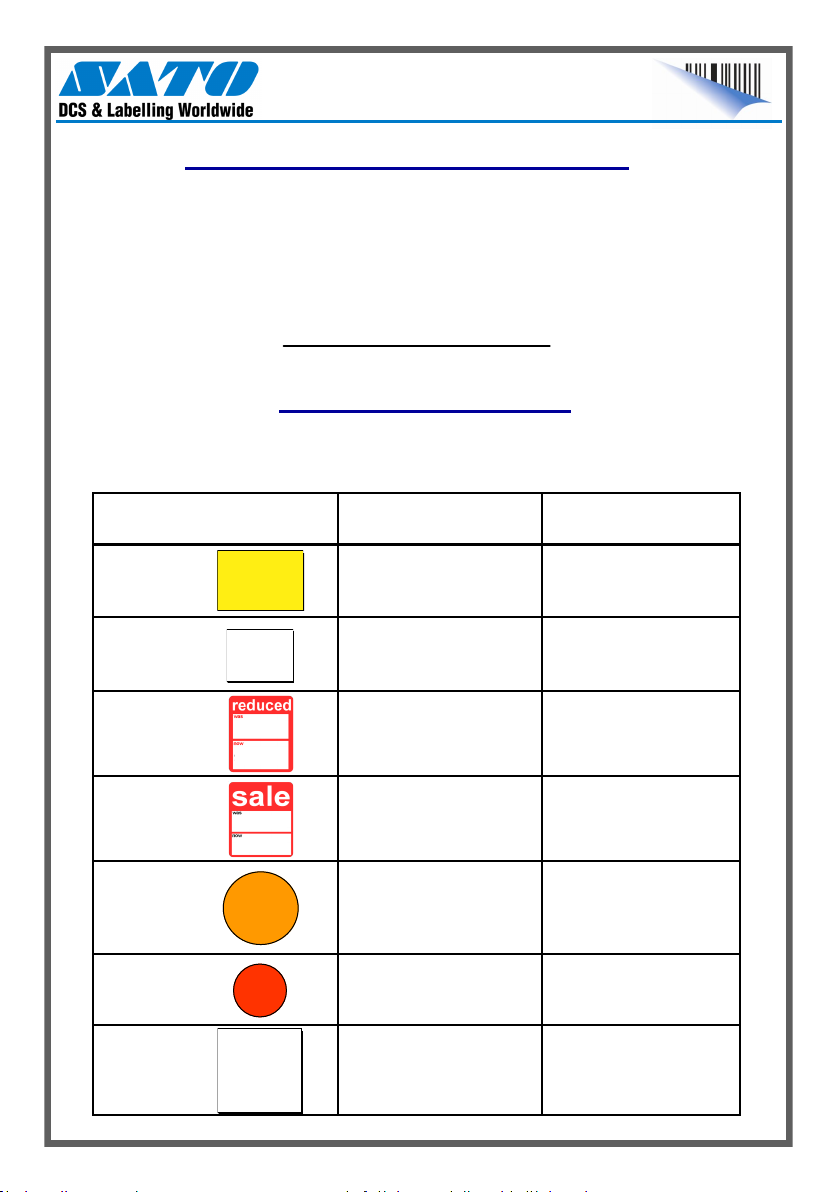

Ordering more labels

The high quality TH2 labels are manufactured by SATO in the UK and have been

especially developed to give the best results in the TH2 printer. These labels are

relied upon by many household name stores in UK retail.

Label Type Size SATO Product

Code

Yellow 45 X 34.925mm

P70011017451

Permanent Adhesive

White 32x 25.4mm P70010101601

Peel adhesive

Red & White

Reduced 28 x 33mm P70010109921

Peel adhesive

Red & White

Sale 28 x 33mm P70010109961

Peel adhesive

Orange

40mm circular P70011014331

Peel adhesive

Red

23mm circular

P70010144861

Peel adhesive

White 45 X 47.625mm

P70010101571

Peel adhesive

Setting up your SATO Printer (1)

Inside the box:

- TH2 Retail Label Printer

- Quick Guide

- Mains AC Adaptor

- Mains Cable

LCD Display

Battery Cover

Top Cover

Open Latch

Label Out

Dispenser

Label Out

Top cover

Carrying Handle

Scanner

Connector cover

Battery

Charge LED

DC Input

from Power

Adaptor

Dispenser

Sensor

Print head

Print head cover

Media compartment

Label roll guides

Platen Roller

Dispenser plate

Dispenser frame

Printer Parts

Power connector

Cover Open Parts

Setting up your SATO Printer (2)

Mains Power Cable

AC Adaptor

Power Connection

1. Plug the Mains Power Cable into the AC

Adaptor

2. Plug the DC Output plug into it’s socket at the

rear of the printer.

THIS PLUG ONLY FITS ONE WAY ROUND! The flat

area of the plastic plug should be upwards.

3. Plug the Mains Power Cable into the

Mains supply socket.

Flat of the

plug to top!

AC Adaptor

DC input

connector

Notes:

The Printer Keypad

Power

Power On:

Power Off:

Menu/Page Up

Menu:

Up 1 level:

Delete

Select Dispense Mode

Pause/Feed

In Print Mode:

Feed Mode:

Select Alphanumerics

Full Stop/Space

Loading the Label Roll

1. Push the handle fully back. Press the Cover

Open Latch (1) and lift up the cover (2).

Ensure that the cover is in the “up” position.

Media

Guides 2. Adjust the spacing of the Media Guides to

the widest position.

3. Place the new label roll into the Media

Compartment. Labels upwards.

Adjust the Media Guides inwards until the

Guides press lightly against the roll.

SELECT THE TYPE OF LABEL THAT YOU WISH

TO PRINT AND INSTALL INTO THE PRINTER

AS FOLLOWS:

5. Close the top cover until it clicks into

position.

Power

Feed

4. Position the edges of the labels under the

Label Guides and pull the end of the roll out

of the front of the printer.

6. Press the Power key for 1 second if the

printer is turned off.

Press <Enter> then the <Feed> key to feed

and align the first label.

Using the Label Dispenser

This feature will print and dispense a single label. As soon as the label is removed the

printer will issue the next label. This procedure will set up the printer for dispenser

use.

2. Open the printer Top Cover.

Place two fingers at the top of the Dispenser

Cover and pull forward to release the cover.

3. Fit the label roll into the printer and remove

the first few labels from the backing paper.

Position the edges of the roll underneath the

two label guides.

Label

Guides

1. SWITCH TO THE DISPENSE MODE:

- Press the <F1> key.

- Select 2. Profile and press <Enter>.

- Select 1. Dispense and Press <Enter> to

return to the Format menu .

- The printer is now set to Label dispensing

Dispenser

Cover
