Sapphire Audio FS-FP5V Manuel utilisateur

User’s Manual

AMD FP5 SOC SFF Mainboard

FS-FP5V

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.0

March 1 , 2019

~ ii ~

Federal Communications Commission (FCC) Statement

This device has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of FCC Rules These limits are designed to

provide reasonable protection against harmful interference in a residential

installation This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with instructions contained

in this manual, may cause harmful interference to radio and television

communications However, there is no guarantee that interference will not occur

in a particular installation

If this product does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the product into an outlet on a circuit different from that to which

the receiver is connected

Consult the dealer or an experienced radio/TV technician for help



Note1: Connecting this device to peripheral devices that do not comply

with Class B requirements, or using an unshielded peripheral data

cable, could also result in harmful interference to radio or television

reception



Note2: The user is cautioned that any changes or modifications not

expressly approved by the party responsible for compliance could

void the user’s authority to operate this product



Note3: To ensure that the use of this product does not contribute to

interference, it is necessary to use shielded I/O cables

CE: Radiation of EN 55022 & Immunity of EN 55024

~ iii ~

aste Electrical and Electronic Equipment ( EEE) Statement

To protect the global environment, this product must be sent to separate collection

facilities for recovery and recycling.

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Collect such

waste separately for special treatment.

Manufacturer

Sapphire Technology Limited

Unit 909- 9 9, 9/F., Tower 2 Grand Central Plaza

38 Shatin Rural Committee Road

Shatin, Hong Kong

~ iv ~

Table of Contents

Chapter 1 Introduction ................................................................................ 1

1-1 Mainboard Specifications ................................................................... 1

1-2 Mainboard Layout .............................................................................. 4

1-3 Mainboard Dimension ........................................................................ 6

Chapter 2 Installation .................................................................................. 8

2-1 Installing System Memory .................................................................. 8

Memory Configuration ........................................................................ 8

Memory Installation ............................................................................ 8

2-2 Installing Expansion Cards ................................................................ 9

M.2 E-Key Slot ................................................................................... 9

M.2 M-Key Slot ................................................................................. 10

2-3 Connecting Cables and Jumper Settings ..........................................11

4-pin 12V~19V ATX Power Connector ..............................................11

SATA3 Connector ..............................................................................11

SATA Power Header ..........................................................................11

Front Panel Header .......................................................................... 12

COM Header .................................................................................... 13

GPIO Header ................................................................................... 13

Case Open Header .......................................................................... 13

SMBus Header ................................................................................. 14

Fan Headers .................................................................................... 14

RS422/RS232/RS485 Mode Select Jumper ..................................... 14

Slew Speed Select Jumper .............................................................. 15

Auto Power ON Jumper ................................................................... 15

Clear CMOS Jumper ........................................................................ 15

2-4 LED Status Indicators ...................................................................... 16

Chapter 3 Configuring the BIOS ............................................................... 17

3-1 Select Boot Device .......................................................................... 17

~ v ~

3-2 Enter BIOS Setup ............................................................................ 17

3-3 Main Menu ....................................................................................... 19

3-4 Advanced Menu ............................................................................... 20

AMD CBS ......................................................................................... 20

AMD PBS ......................................................................................... 24

Realtek PCIe GBE Family Controller (MAC:DC:9C:52:08:12:68) ..... 25

Realtek PCIe GBE Family Controller (MAC:DC:9C:52:08:12:69) ..... 26

Trusted Computing ........................................................................... 26

AMD fTPM Configuration ................................................................. 27

ACPI Settings ................................................................................... 27

SATA Configuration .......................................................................... 29

F81803 Super IO Configuration ....................................................... 29

Hardware Monitor ............................................................................. 30

RTC Wake Settings .......................................................................... 32

CPU Configuration ........................................................................... 33

Network Stack Configuration ............................................................ 34

CSM Configuration ........................................................................... 36

MVMe Configuration ........................................................................ 37

USB Configuration ........................................................................... 38

3-5 Chipset Menu ................................................................................... 40

South Bridge .................................................................................... 40

North Bridge ..................................................................................... 41

3-6 Security Menu .................................................................................. 42

3-7 Boot Menu ....................................................................................... 43

3-8 Save & Exit Menu ............................................................................ 44

Chapter 4 Driver Installation ..................................................................... 45

4-1 Driver Install ..................................................................................... 45

~ ~

Chapter 1 Introduction

1-1 Mainboard Specifications

APU

AMD

V-Series V1000 family APU for FP5 package with Zen core

Graphics

AMD

Radeon Vega 11 graphics

Supports four independent displays with DisplayPort

Port Supported resolution

DisplayPort 4096x2160@60Hz

System Memory

Two 260-pin DDR4 SDRAM SO-DIMM sockets

Supports 1 2V DDR4-2133/2400/2666/2933/3200 DIMMs with dual channel

architecture

* The memory speed will be depend on CPU specification

Supports 4GB, 8GB and 16GB DDR4 SO-DIMMs up to maximum 32GB

Expansion Slots



One M 2 Slot E-key for Wifi/BT card

One M 2 Slot M-key for SSD device supporting SATA and PCIe interface

USB Ports

Three USB 2 0 ports supporting transfer speed up to 480Mbps

One USB3 1 Type C port supporting transfer speed up to 10Gbps

(USB functions only, DisplayPort Alternate mode is not supported)

Supports wake-up from S3 and S4 modes

SATA Ports

One SATA3 port with 6Gb/s data transfer rate

Supports AHCI (Advanced Host Controller Interface)

~ 2 ~

Onboard LAN

Two Gigabit Ethernet from Realtek

RTL8111G Gigabit controller

Onboard TPM

Supports TPM2 0 from Infineon SLB9670

Onboard Audio

Supports 2-channel High-Definition audio from Realtek ALC262 codec

Onboard Fintek F81803U LPC bus I/O controller

Supports Hardware Monitor for fan speed monitoring, CPU and system

temperature

Back Panel /O Ports

2 x RJ45 LAN ports

2 x USB2 0 ports

4 x DisplayPorts

1 x DC-in 12V~19V 90W Jack, dimension: 5 5x2 5mm

Front Panel /O Ports

1 x USB2 0 port

1 x USB3 1 Type C port

1 x Line-Out port

1 x Mic-In port

nternal /O Connectors

1 x DC-in 4-pin Power connector

1 x SATA3 header

1 x SATA Power header

1 x Front Panel header

1 x COM header

1 x GPIO header

1 x Case Open header

~ 3 ~

1 x SMBus header

1 x 4-pin CPU Fan header

1 x 3-pin SYSTEM Fan header

RS232 / RS422 / RS485 mode select jumper

Auto Power ON jumper

Clear CMOS jumper

B OS

64Mb SPI Flash with AMI based BIOS

Supports ACPI (Advanced Configuration and Power Interface)

Onboard jumper to clear the CMOS data

Dimensions

Size: 147 3mm×139 7mm

Operating systems

Supports Windows 10 and Ubuntu 16 04

Environmental

Power Requirement: Power adapter of 12V~19V DC OUT, ~90W, 5 5/2 5mm

power jack

Operating Temperature: 0°C~50°C (32°F~122°F)

Storage Temperature: -20°C~80°C (-4°F~176°F)

Relative Humidity: 10%~90%

~ 4 ~

1-2 Mainboard Layout

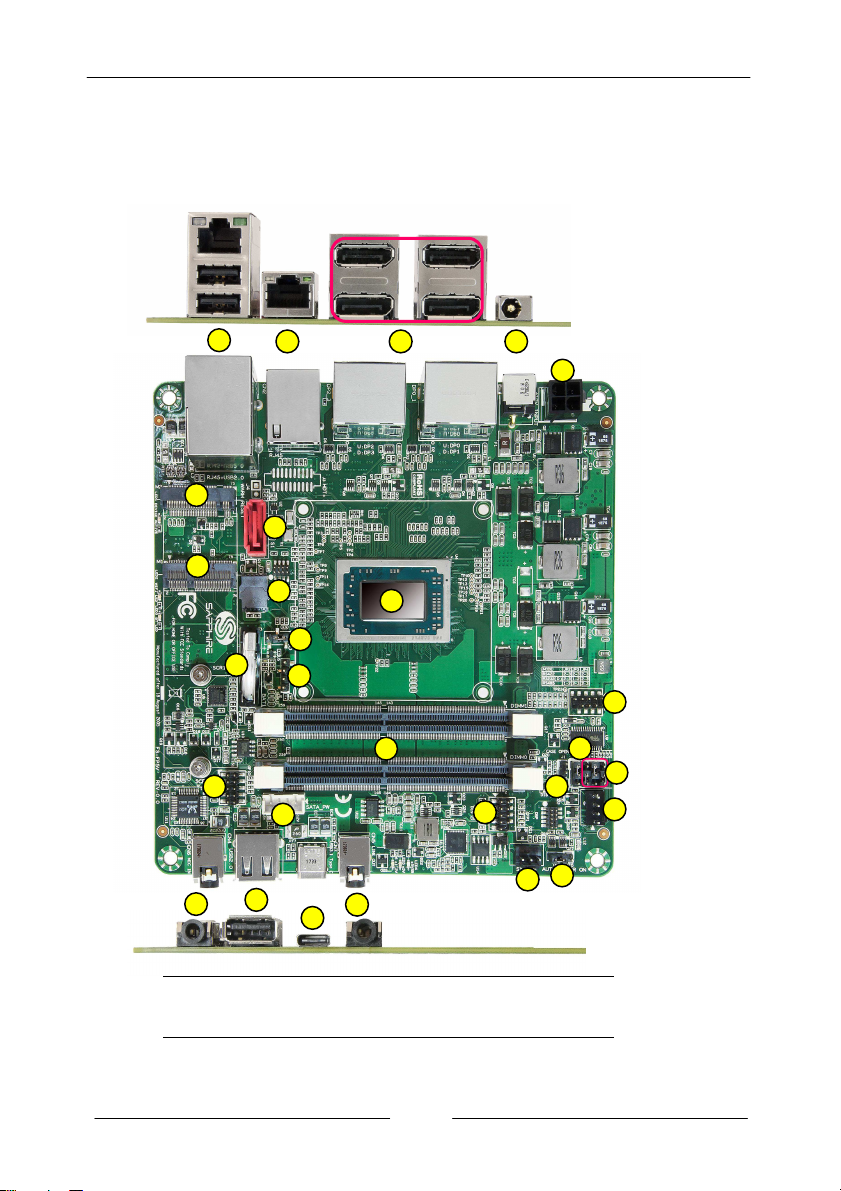

The following figure shows the location of components on the mainboard

See page 5 for component description

See next page for details.

Note:

Picture is for reference only, actual board may be slightly different.

~ 5 ~

Item

Component description Item

Component description

1 AMD FP5 APU 15 SATA Power Header, 2.50mm pitch

2 DDR4 SO-DIMM *2 16 GPIO Header, 2.00mm pitch

3 M.2 E-Key slot for Wifi/BT card

17 Front Panel Header, 2.00mm pitch

4 M.2 M-key for SSD device 18 COM Header, 2.00mm pitch

5 4-pin 2V ~ 9V ATX Power

Connector 19 CPU Fan Header, 2.54mm pitch

6 DC-in 2V ~ 9V Jack 20 SYSTEM Fan Header, 2.54mm pitch

7 Display Port *4 21 RS232/422/485 Mode Select Jumper

for COM , 2.54mm pitch

8 RJ45 LAN Port 22 Slew Speed Select Jumper, 2.54mm

pitch

9 RJ45 LAN + USB2.0 Port 23 Case Open Header, 2.54mm pitch

10 Line-Out Port 24 SMBus Header, 2.54mm pitch

11 USB3. Type C Port 25 Auto Power ON Jumper, 2.54mm

pitch

12 USB2.0 Port 26 Clear CMOS Jumper, 2.54mm pitch

13 Mic-In Port 27 BIOS

14 SATA3 Connector 28 Mainboard Battery

Table des matières

Autres manuels Sapphire Audio Carte mère

Sapphire Audio

Sapphire Audio IPC-AM3DD785G Manuel utilisateur

Sapphire Audio

Sapphire Audio PE-AM2RS740G2 Instructions d'installation

Sapphire Audio

Sapphire Audio FS-FP6 Manuel utilisateur

Sapphire Audio

Sapphire Audio PURE CROSSFIRE II PC-I7RD400 Manuel utilisateur

Sapphire Audio

Sapphire Audio AMD 890GX Manuel utilisateur

Sapphire Audio

Sapphire Audio Pure Platinum Z77 Manuel utilisateur

Sapphire Audio

Sapphire Audio PURE CrossFireX 890GX Manuel utilisateur

Sapphire Audio

Sapphire Audio Pure Innovation 760G Manuel utilisateur

Sapphire Audio

Sapphire Audio PE-AM2RS690V2 Manuel utilisateur

Sapphire Audio

Sapphire Audio Pure Black 990FX Manuel utilisateur

Sapphire Audio

Sapphire Audio PC-AM2RX780 Manuel utilisateur

Sapphire Audio

Sapphire Audio Pure Black X79N Manuel utilisateur

Sapphire Audio

Sapphire Audio PI-A9RX480 Manuel utilisateur

Sapphire Audio

Sapphire Audio PE-AM2RS740G Manuel utilisateur

Sapphire Audio

Sapphire Audio IPC-AM4-SA Manuel utilisateur

Sapphire Audio

Sapphire Audio Pure Platinum H67 Manuel utilisateur

Sapphire Audio

Sapphire Audio PB-CI7S41X58 Manuel utilisateur

Sapphire Audio

Sapphire Audio AMD E350 Series Manuel utilisateur

Sapphire Audio

Sapphire Audio Pure Platinum A75 Manuel utilisateur

Sapphire Audio

Sapphire Audio PC-AM2RD790 Manuel utilisateur

Sapphire Audio

Sapphire Audio Pure Fusion Mini E350 Manuel utilisateur

Sapphire Audio

Sapphire Audio PP-I7RS400 PURE PERFORMANCE II Manuel utilisateur

Sapphire Audio

Sapphire Audio IPC-FP6 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
