INSTALLATION MANUAL

Color CCD Camera

THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED

SERVICE PERSON AND SHOULD CONFORM TO ALL LOCAL

CODES.

Please read this manual before installing and using this unit, and always follow the instructions

in it for proper use. Please also read the separate INSTRUCTION MANUAL before using the unit

for proper use.

This unit can be installed on the ceiling or wall.

When installing, first remove the built-in camera

from the unit.

bWhen routing the cables on ceiling or wall

surfaces:

Loosen the conduit hole cover fixing screw (A)

on the back of the camera unit base with the

hexagonal wrench (small), open the cover (B),

and pass the connection cables through the

conduit hole.

Since the conduit hole cover is not

waterproof-finished, always be sure to

seal the cover entirely by puttying, for

example, upon completion of installation.

Ceiling Installed (see page 1)

Wall Installed (see page 3)

(In-ceiling routing)

(Surface routing)

(In-wall routing) (Surface routing)

Important

• Be careful when opening holes for installing

the unit. Work with the power and video

cables pulled out for easy installation.

• Make sure to properly perform waterproofing

for the ceiling or wall where you are installing

the unit.

• Make sure that the surface in the installation

location has no unevenness and is strong

enough to bear the total weight of the unit.

• Install this unit in an environment where the

temperature range stays between -10°C

and +50°C (no condensation allowed).

• As a precaution against static electricity

damage, touch a nearby metal object (door

knob, etc.) to dissipate static electricity in

your body before touching this unit.

VDC-DP7585P

EnglishFrançaisDeutsch中文简体

L5BH2_XE(INSTALLATION).book 0 ページ２００６年６月３０日　金曜日　午後６時３４分

Installing on the Ceiling

1Loosen the four screws (A) using the

hexagonal wrench (large) and open the

dome cover.

2Unplug all the pin connector cables from

the circuit board.

3Lift and turn the camera unit in the

arrowed directions so that the two

screws (B) become visible.

4Pull out the sliding plate (D) in the

arrowed direction while pushing the

spring (C) indicated with a blue sticker

in the arrowed direction.

The camera unit is released.

1Attach the cushioning sheet (E) to the

back of the camera unit base (F), open a

cable hole in the cushioning sheet, and

pass the cables through the cable hole.

2Position the arrow (2) on the inner side

of the camera unit base (F) in the

direction of the lens.

The arrow is located roughly in the center of

the panning range.

3Set the camera unit base (F) on the

ceiling and secure it by tightening

suitable screws and washers (G)

through the screw holes (4 places).

•Length: 35 mm or more

•Diameter: 3.5 to 5.0 mm

•Height of screw head: 5 mm or less

(washer included)

1. Remove the camera unit

2. Install the camera unit base

Make sure to tighten the screws properly.

Using screws of sizes other than

specified may cause the unit to fall.

L5BH2_XE(INSTALLATION).book 1 ページ２００６年６月３０日　金曜日　午後６時３４分

1Connect the cables from the ceiling.

Push the excess of connected cables into

the ceiling.

For details on the connections, see page 5.

2Check that the spring (H) on the base

chassis looks as shown in the figure

below.

3Mount the camera unit using the two

base screws (J).

4Push the sliding plate (K) in the arrowed

direction until it clicks, then connect the

pin connector cables from the camera

unit base to the circuit board.

bSet up the camera remotely (see page 7).

bCheck the settings screen or camera

angle on a portable monitor (see page 7).

1Adjust the angle of view by moving the

lens unit manually.

Make the arrow (AA) beside the lens point

upwards (the video image will be upside

down if pointing downwards).

2Shape the flat cable on the back of the

lens unit.

1Hook the cable on the back of the clamp

as shown in the figure.

2Pull the cable in the arrowed direction

until the sag is gone.

Fold over the excess cable until there is no

more sag and insert it into the holder slits.

3. Mount the camera unit

4. Adjust/Check the video image

from the camera

Adjusting the lens position

and shaping the flat cable

Vertical or horizontal smear (streak

noise) may appear if the camera faces

an extremely bright light source. If so,

change the lighting angle while checking

the quality of the image on the monitor.

180°

330°

90°

L5BH2_XE(INSTALLATION).book 2 ページ２００６年６月３０日　金曜日　午後６時３４分

Installing on the Ceiling

1Align the logo on the dome cover with

the mark (L) on either side of the camera

unit base so that the lens is close to the

camera window (M).

2Loosen the screws (N) in the inner side

of the dome cover and shift the dome

liner (P) until the lens is completely

visible from the camera window.

3Secure the dome cover by tightening the

screws (R) (4 places) firmly using the

hexagonal wrench (large).

5. Install the dome cover

Installing on the Wall

See “Installing on the Ceiling” (see page 1).

1Attach the cushioning sheet (A) to the

back of the camera unit base (B), open a

cable hole in the cushioning sheet, and

pass the cables through the cable hole.

2Set the camera unit base (B) on the wall

so that its tightening screws (C) are

perfectly horizontal, then tighten them

securely with washers (4 places).

•Length: 35 mm or more

•Diameter: 3.5 to 5.0 mm

•Height of screw head: 5 mm or less

(washer included)

1. Remove the camera unit

2. Install the camera unit base

L5BH2_XE(INSTALLATION).book 3 ページ２００６年６月３０日　金曜日　午後６時３４分

1Connect the cables from the wall.

Push the excess of connected cables into the wall.

For details on the connections, see page 5.

2Check that the spring (D) on the base

chassis looks as shown in the figure

below.

3Mount the camera unit using the two

base screws (E).

4Push the sliding plate (F) in the arrowed

direction until it clicks, then connect the

pin connector cables from the camera

unit base to the circuit board.

bSet up the camera remotely (see page 7).

bCheck the settings screen or camera

angle on a portable monitor (see page 7).

If the image is upside down, correct the

orientation by turning down the lens unit,

rotating it 180 degrees, and then turning it up

in the arrowed directions.

See “Adjusting the lens position and

shaping the flat cable” on page 2.

See “Installing on the Ceiling” (see page 3).

3. Mount the camera unit

4. Adjust/Check the video image

from the camera

• The video image will be upside down

if the arrow (AA) beside the lens

points downwards.

• Be careful not to damage the flat

cable when rotating the lens unit.

5. Install the dome cover

L5BH2_XE(INSTALLATION).book 4 ページ２００６年６月３０日　金曜日　午後６時３４分

GND

–

RED

BLACK

WHITE

YELLOW

PURPLE

ORANGE

BLUE

GRAY

GND

DAY/NIGHT

ALARM IN

TELE

WIDE

COMMON

DC12 AC24

–

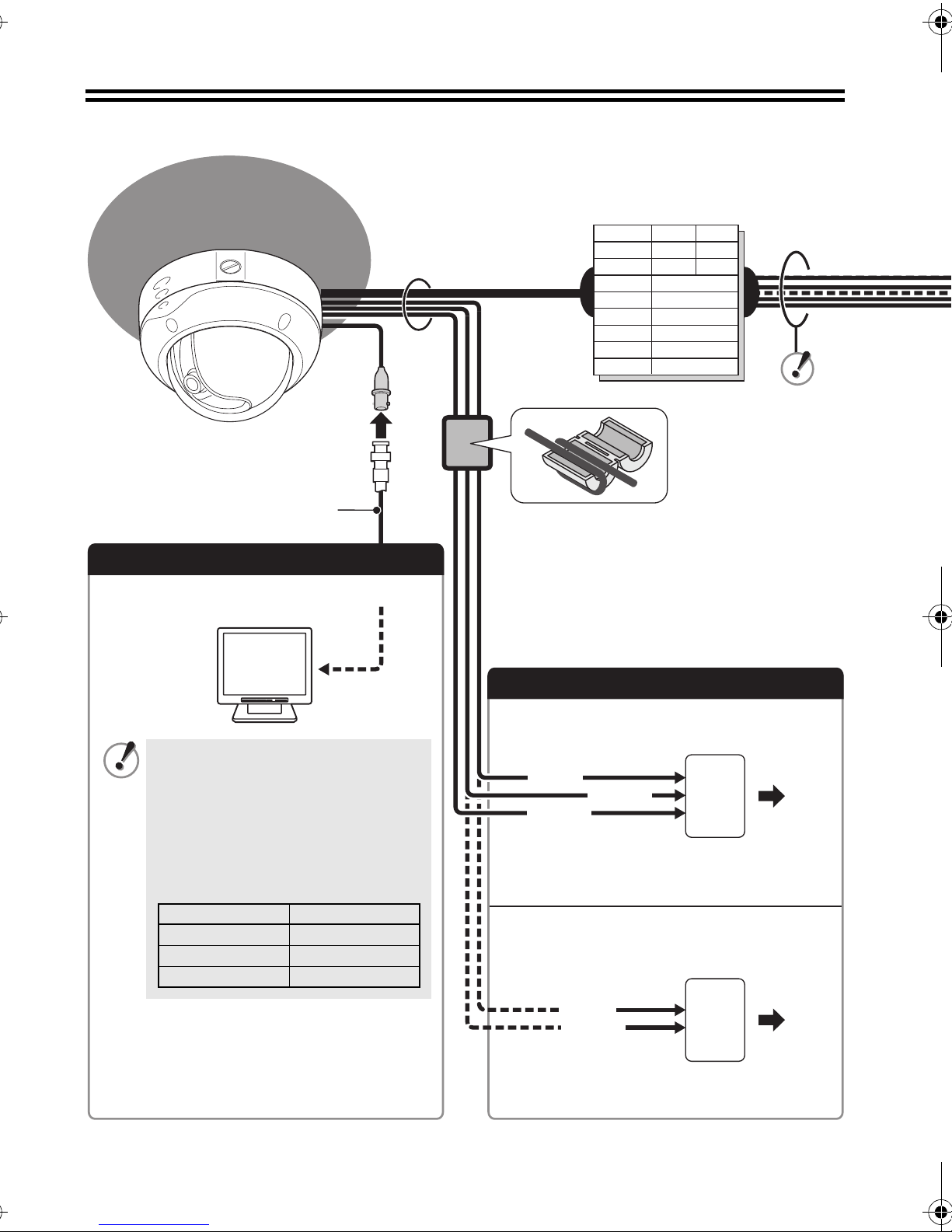

Connections

BNC type

RG-6U, 300 m max.

For the connection, use a RG-6U coaxial

cable.

Monitor Connection

bWith AC 24 V

Power Supply Connection

• Using different cables from those

specified here may attenuate the

video and/or sync signals and

interfere with correct transmission.

• RG-59U coaxial cables can be

used when distance between

devices is short, but not in duct or

aerial routing.

Cable type Length

RG-59U (3C-2V) 150 m max.

RG-6U (5C-2V) 300 m max.

RG-11U (7C-2V) 350 m max.

bWith DC 12 V

Check that +/- polarity is correct.

(RED)

(BLACK)

(WHITE)

For the connections, use cables thicker than

18 AWG.

(RED)

(BLACK)

To prevent electromagnetic

interference

• On the cable for power supply

Be sure to attach the supplied clamping

core to the cables as illustrated.

For the connections, use cables thicker than

18 AWG.

Do not connect the power cord until all other connections have been completed.

L5BH2_XE(INSTALLATION).book 5 ページ２００６年６月３０日　金曜日　午後６時３４分

SYNC

BLC

IRIS

WHITE BALANCE

AGC GAIN

GAMMA

SHUTTER

APERTURE

·DAY/NIGHT

OPTION

PRESET

INT

OFF

SET y

ATW

NORM

0.45

HIGH

COLORy

SET y

OFF

END

OPTION

TITLE

PRIVACY MASK

PASSWORD

·ALARM

LANGUAGE

OFF

SET y

SYNC

BLC

IRIS

WHITE BALANCE

AGC GAIN

GAMMA

SHUTTER

APERTURE

DAY/NIGHT

·OPTION

PRESET

INT

OFF

SET y

ATW

NORM

0.45

HIGH

AUTO y

SET y

OFF

END

For details, see “Specifying Alarm Input” in

the INSTRUCTION MANUAL.

The video image can be fixed to be color or

black-and-white using an external switch.

For details, see “Adjusting DAY/NIGHT

Function” in the INSTRUCTION MANUAL.

Color or Black-and-White Setting

(GRAY)

(PURPLE) Alarm

input signal

Alarm Signal Input

(GRAY)

(BLUE)

Open: Color

Closed: Black-and-White

(GRAY)

(YELLOW)

• Make sure that COLOR is selected.

All connection cables should be 24 AWG or higher with a maximum length of no

more than 600 m.

(ORANGE)

For customers using the option board

(heater: VA-50H)

For this unit, the main board (A) is

sufficient to raise the temperature. Always

be sure to remove the sub board (B).

It is used to make wide angle/telescoping

adjustments.

Connection for Zoom Input

Zoom Input Signal

TELE WIDE

L5BH2_XE(INSTALLATION).book 6 ページ２００６年６月３０日　金曜日　午後６時３４分

Adjusting the Camera

bSetting up the camera remotely

Use of the separately ordered Camera Control Unit (VAC-70) is recommended for setting and adjustment of

this camera. Advanced settings are possible from the main menu. For details, see the instruction manual for

the Camera Control Unit

bInstallation accessories

Do not forget to disconnect the Camera Control Unit once you have finished setting/adjustment.

Checking the settings screen or camera angle on a portable monitor

(These checks are unnecessary when using the separately

ordered Camera Control Unit (VAC-70).)

Connect the MONITOR OUT pin and the GND pin on the circuit

board to a monitor using an alligator clip cable. Do not forget to

remove the cable after you have finished checking.

A dedicated MONITOR OUT connector is provided for portable

monitors.

bTo check the settings screen and make changes

1) Hold down the SET button (1) for over a second.

The main menu appears.

2) Select a menu by pressing the Select button (2) up and

down.

3) Select the setting item and value by pressing the Select

button left and right.

bTo check the zoom position and make changes

Press the Select button left and right during live mode

(with no menu displayed).

You can set the zoom (wide: d, tele: c).

VIDEO OUT CAMERA DC IN 3V

Ð+

VAC-70

Video in

BNC type

RG-6U coaxial cable

300 m max.

DOWN

LEFT

RIGHT

SET

GND

MONITOR

OUT

1Hexagonal wrench

(large, small)

2Cushioning sheet 3Clamping core

L5BH2_XE(INSTALLATION).book 7 ページ２００６年６月３０日　金曜日　午後６時３４分

Autres manuels pour VDC-DP7585P

Table des matières

Autres manuels Sanyo Caméra de sécurité

Sanyo

Sanyo vcb-3400p Manuel utilisateur

Sanyo

Sanyo VCB-3454 Manuel utilisateur

Sanyo

Sanyo VCC-6674 Manuel utilisateur

Sanyo

Sanyo VCC-ZM300PA Manuel utilisateur

Sanyo

Sanyo VCC-9624 Manuel utilisateur

Sanyo

Sanyo VCC-6584DN - CCTV Camera Manuel utilisateur

Sanyo

Sanyo VCC-9250P Manuel utilisateur

Sanyo

Sanyo VDC-DP7585P Manuel utilisateur

Sanyo

Sanyo VCC-HD2300 - Full HD 1080p Network Camera Manuel utilisateur

Sanyo

Sanyo VCB-3384 - 1/3" B/W CCD Camera Manuel utilisateur

Sanyo

Sanyo VCB-3524 Manuel utilisateur

Sanyo

Sanyo VCC-XZ400P Manuel utilisateur

Sanyo

Sanyo VCC-P7574N - 1/4" Color CCD Indoor Mini Dome... Manuel utilisateur

Sanyo

Sanyo VCC-HD2100 - Full HD 1080p Network Camera Manuel utilisateur

Sanyo

Sanyo VCC-N6695P Manuel utilisateur

Sanyo

Sanyo VCB-3424 Manuel utilisateur

Sanyo

Sanyo VCC-4344 - 1/4" CCD High Performance Day/Night... Manuel utilisateur

Sanyo

Sanyo VCB-3442P Manuel utilisateur

Sanyo

Sanyo VCC-9800 Manuel utilisateur

Sanyo

Sanyo VCC-HD2500 - Full HD 1080p Network Camera Manuel utilisateur

Sanyo

Sanyo VC-0450 Manuel utilisateur

Sanyo

Sanyo VCC-5884E - 1/3" Color CCD DSP High-Resolution... Manuel utilisateur

Sanyo

Sanyo VCC-5884EA - 1/3" Color CCD DSP High-Resolution... Manuel utilisateur

Sanyo

Sanyo VCC-ZM500P Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
