SUMMARY MANUAL

Side B

Megapixel Camera

VDC-HD3500P/HD3500

VDC-HD3300P/HD3300

VDC-HD3100P/HD3100

VCC-HD3500/HD3300

THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED

SERVICE PERSON AND SHOULD CONFORM TO ALL LOCAL

CODES.

Please read this instruction manual carefully in order to ensure correct installation.

In addition, be sure to read carefully the electronic manual (INSTRUCTION MANUAL)

contained in the supplied CD-ROM to ensure correct operation of the camera.

EnglishFrançaisEspañolDeutschЁ᭛ㅔԧ日本語

Table of Contents

Name and Function of Each Component .................................................................2

Lens Adjustment....................................................................................................... 3

Network Settings ...................................................................................................... 5

Specifications ........................................................................................................... 7

Copyright Notice ....................................................................................................... 9

Accessories

①Video Cable

②Cushioning Sheet

③Hexagonal Wrench

④Pattern Sheet

⑤CD-ROM

■

Check your operating environment.

To operate the camera via network operation, you must meet the following operating

requirements.

•: IBM PC/AT compatible

Operating system

•: Windows XP Professional/Windows Vista

CPU

•: Core2Duo E6700 2.66 GHz or higher

Memory

•: Windows XP: 1GB or more

Windows Vista: 2GB or more

Network interface

•: 10Base-T/100Base-TX (RJ-45 connector)

Display card

•: 1920×1200 pixels or higher

Graphics chip

•: ATI RADEON HD2600 series or higher

nVIDIA GeForce 8600 series or higher

nVIDIA Quadro FX550 series or higher

Web browser

•: Internet Explorer Ver. 6.0 SP2 or higher,

or Internet Explorer Ver. 7.0

■

⑥Connector ⑦Clamping Core

To prevent electromagnetic

interference

VDC-HD3500P

You can automatically set up the IP address of the camera.

This software application is useful when two or more cameras are connected to the

network.

Download “AUTO IP SETUP” software application from the supplied CD-ROM.

■

Name and Function of Each Component

Top Face

②

③④

⑤

⑥

①

⑥

①Dome cover

②Monitor Output Socket

③Inner cover

④SD Card Slot (VDC-HD3500P/HD3500)

⑤LED lamp (VDC-HD3500P/HD3500)

The power indicator blinks to indicate the following camera statuses.

Recording to SD memory card stopped

Firmware update in progress

An SD memory card error occurred (Fast blink)

⑥Operation Buttons

Restarting camera: Press the RESET button.

OPTION SETTINGS (CAMERA REBOOT)

Restoring factory default settings: Press the NEAR and SET buttons

simultaneously.

OPTION SETTINGS (FACTORY DEFULT)

Resetting login password (for default users only): Press the FAR and SET

buttons simultaneously.

Adjusting focus/Adjusting iris

Page 3, “Lens Adjustment” section or the CAMERA SETTINGS (FOCUS

ASSIST/IRIS SETTING) section on the electronic manual.

Inverting video of wall-mounted camera: Press the REVERSE button.

Viewing Firmware Version:

“Viewing Firmware Version” section or the OPTION SETTINGS (FIRMWARE

UPDATE) section on the electronic manual.

■

•

Focus can be electrically adjusted. For high-resolution megapixel images, the focus

assist function is useful to obtain a precise focus because otherwise it is extremely

difficult.

The focus must be readjusted if the camera has lost focus due

to difference in the subject distance or ambient temperature, the

deterioration of the lens and installation environment, and the like that

have been caused over the years.

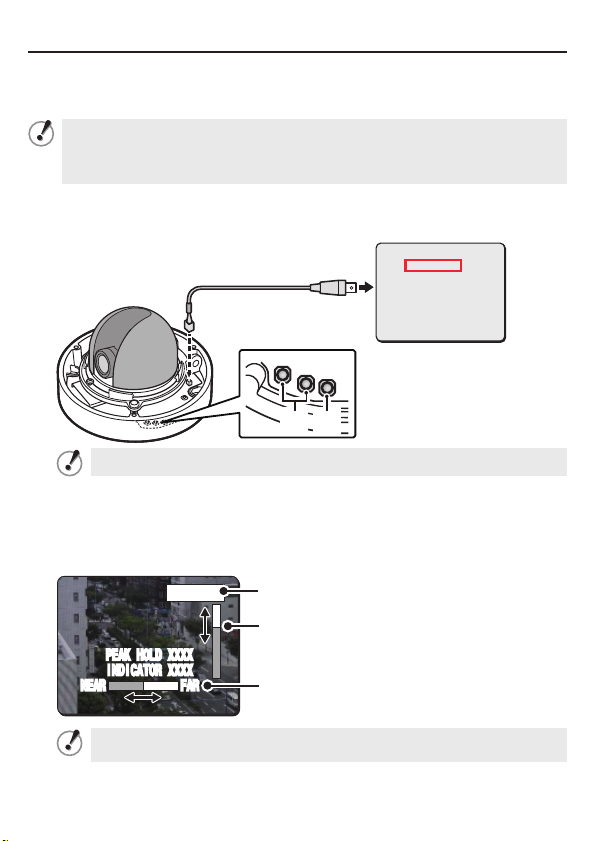

󱳛Press the SET button for 2 seconds or more.

The monitor now shows the SELECT MENU screen.

NEAR FAR SET

SELECT MENU

FOCUS ASSIST

IRIS

FIRMWARE VERSION

NEAR UP

FAR DOWN

SET SELECT

󱳝󱳛

On the SELECT MENU screen, all information is displayed in English.

󱳝Select [FOCUS ASSIST] using the NEAR/FAR button and press the SET

button.

The monitor now shows the focus adjustment screen.

󱳟Adjust the lens orientation, and adjust the angle of view with the zoom ring

and the focus with the operation buttons.

FOCUSING

PEAK HOLD XXXX

INDICATOR XXXX

NEAR FAR

FOCUSING

PEAK HOLD XXXX

INDICATOR XXXX

NEAR FAR

󱤨

󱤩

󱤪

PEAK HOLD: Shows the value of the maximum focus level.

INDICATOR: Shows the value of the current focus level.

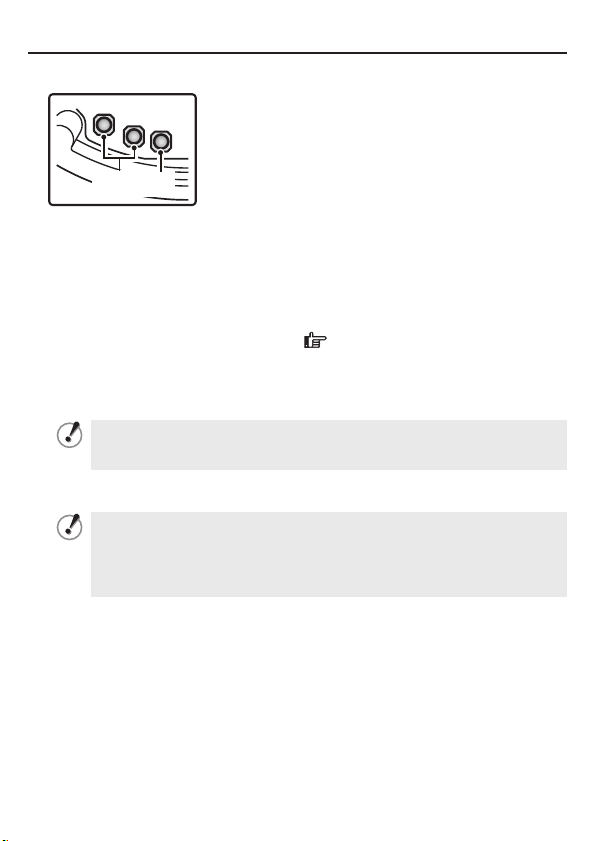

Lens Adjustment

Adjusting focus

NEAR

FAR

SET

󱳛󱳟󱳝

󱳛Roughly focus the subject using NEAR/FAR buttons.

Make adjustment while watching the monitor.

󱳝Press the SET button.

The camera automatically focuses on the subject. Note that the color of the status

indicator 󱤨“FOCUSING” turns from black to orange.

The status indicator 󱤨changes to “ERROR” when the subject cannot

automatically come into focus.

In this case, manually adjust the focus. ( Electronic manual)

󱳟Press the NEAR/FAR button to adjust the focus.

Make adjustment so that the FA bar gauge 󱤩indicates the highest level.

When the subject comes into focus, the color of the status indicator 󱤨

“FOCUSING” changes from black to orange.

Pressing the buttons moves the FB bar gauge 󱤪.

The position changes step by step each time the button is pressed

and continuously at a high speed when the button is held down.

󱳡Press the SET button for 2 seconds or more.

The focus adjustment screen will close.

The focus adjustment screen will also close automatically if left idle

for 5 minutes or more.

VDC-HD3500P/HD3500/HD3300P/HD3300:

If video is out of focus in either color or black-and-white mode,

adjust the focus in respective modes.

•

■

Network Settings

Preparing Your Computer for Network Operation

󱳛Check your operating environment. ( Page 1)

󱳝Connect the camera to the network to which your PC is also connected.

󱳟Configue the network information on your PC.

Configure information such as the IP address of your PC.

󱳡Install the “H.264 Plug-in” from the supplied CD-ROM onto your PC.

You are now ready to monitor the surveillance video in the H.264 format.

󱳣Start Internet Explorer.

The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet

Explorer Ver.7.0.

󱳥Access the camera from your Web browser.

From your Web browser (Internet Explorer), access the camera and log into the

system as an “admin” user (administrator).

󱳧In the address bar, type the IP address of the camera and press [Enter] key.

When you access the camera, the login screen appears.

If this is the first access to the camera, in the Address bar, enter the default IP

address as follows.

If you set [SSL] to “ON”, before the IP address, type “https://” (instead

of “http://”).

Attempts to access the camera using the default IP address will fail if

that address is already being used by another device in the network.

If so, change the IP address of the existing device before accessing

the camera.

󱳩Type your user name and password and click [OK].

The language selection screen appears.

If this is the first access to the camera, log in as an admin user

(administrator) using the following default authentication information.

User name: admin

Password: admin

•

󱳫Click the button corresponding to the language you want to use.

The live screen appears.

From the second login onwards, the live screen appears automatically by skipping

the language selection screen.

If this is the first access to the camera, configure the system clock on the CLOCK

SETTINGS screen.

Network Settings

Specifications

Camera■

Image pickup device 1/3" CMOS sensor

Effective pixels 16:9 1920 (H)×1080 (V), 4:3 2288 (H)×1712 (V)

Lowest image illumination 50IRE: 1.0 lx (at F1.2, color mode, high gain)

50IRE: 0.1 lx (at F1.2, black-and-white mode, high gain)

Video S/N ratio 50dB (when AGC is “OFF”)

Lens Built-in vari-forcal lens f=3 to 9 mm, F1.2 to 2.1

Focus adjustment Focus assist function

Iris control DC iris lens supported

Digital PTZ

(VDC-HD3500P/HD3500)

Enables electronic pan, tilt, and zoom operations on

clipped subject areas in VGA size.

Zoom magnification: max. 2X

Mirror H/V/HV/OFF

Privacy mask On/Off, max. 8 mask patterns

Motion sensor On (Motion masking/motion detection area setting, or

video analytics)/Off, face detection function supported

Language selection English, French, German, Spanish, Japanese

For further details on the specifications of the camera, refer to the electronic manual.

SD Recording (SD Memory Card) (VDC-HD3500P/HD3500)■

Recording mode Alarm recording, backup recording in event of a network

failure

For the recommended SD memory cards, visit our website.

http://www.sanyo-cctv.net/

I/O■

Video output Composite output

LAN 10BASE-T/100BASE-TX (RJ-45 connector)

Card slot

(VDC-HD3500P/HD3500)

1 (SDHC compliant, max. 32 GB supported)

Alarm input 2 (NO/NC), also serving as Day/Night switching terminal

Alarm output 2 (NO/NC, 16V, 150 mA, open collector)

Audio input/output

(VDC-HD3500P/HD3500)

Microphone input (3.5-mm mini jack)

Line output (3.5-mm mini jack)

Specifications

Network■

Image/video compression H.264/JPEG

Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180

(4:3) 1600×1200, 1280×960, 1024×768, 640×480,

320×240

Video size (JPEG) (16:9) 1920×1080, 1280×720, 1024×576, 640×360

(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768,

800×600, 640×480, 320×240

Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE,

SUPER FINE

BITRATE mode: User-specified bit rate

Interface 10BASE-T/100BASE-TX

Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP,

DDNS, RTP, RTSP, RTCP

Audio G.711 (Bidirectional)

Simultaneous access 20

Security BASIC authentication (ID/password), SSL, IP filtering

Others■

Waterproof standard IP66

Operating ambient

temperature/humidity

–10 to +50ºC/14 to 122ºF,

90% RH or less (no condensation)

Power source 12 to 15 V DC/24 V AC ± 10%, 50/60 Hz, PoE

Power consumption 6.8W (with heater turned on: 20 W) (VDC-HD3500P/

HD3500)

4.6W (with heater turned on: 18 W) (VDC-HD3300P/

HD3300, VDC-HD3100P/HD3100)

Dimensions φ146 × 94 mm/φ5.7 × 3.7 inch

Dome diameter: 114 mm/4.5 inch

Weight 800 g/28.2 oz. (VDC-HD3500P/HD3500)

700 g/24.7 oz. (VDC-HD3300P/HD3300, VDC-HD3100P/

HD3100)

Appearance and specifications are subject to change without prior notice or

obligations.

Approvals: IP66

This unit has been certified to IP66 standards when properly installed.

Ensure all openings in enclosure are sealed as per manufacturer’s instructions.

■

The instruction manual and the software are copyrighted by SANYO Electric Co., Ltd.

No materials contained in the manual and the software may, wholly or partially, be

copied, modified, reproduced, or distributed in any format without the prior permission

of the copyright holder.

Microsoft, Windows, ActiveX and Internet Explorer are registered trademarks or

trademarks of Microsoft Corporation in the United States and other countries.

The official name for “Windows” used in this manual is Microsoft®Windows®Operating

System.

In this manual, note that the word “Windows” refers to both “Microsoft®Windows®XP

Operating System” and “Microsoft®Windows®Vista Operating System”.

Intel and Pentium are registered trademarks or trademarks of Intel Corporation and its

subsidiaries in the United States and other countries.

IBM and IBM PC/AT are trademarks of International Business Machines Corporation.

All other brands and product names in this manual are the registered trademarks or

trademarks of their respective owners.

SDHC Logo is a trademark.

Notes on data storage

It is recommended that important data be copied to a separate medium.

In the following situations, it is possible that recorded data may be lost (destroyed).

Our company bears absolutely no responsibility for damages or profits loss due to

the loss of data.

•The medium (SD card or external hard disk) is not used correctly.

•The medium is not installed on the device correctly.

•The medium is subjected to electrical or mechanical shock.

•The card is removed or the power is turned off while the card is being accessed.

•The medium has reached the end of its service life.

License for Software Contained in CD-ROM

Please read carefully the terms and conditions contained in the license agreement

that appears on the screen during the software installation process. Provided that

you have agreed to all the terms and conditions therein, you may use the software

subject to the license agreement.

For information on the other products or services provided by third parties which

are introduced in the CD-ROM, please contact each supplier or manufacturer.

■

•

■

•

Autres manuels pour VDC-HD3100P

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sanyo Caméra de sécurité

Sanyo

Sanyo VCC-6594 Manuel utilisateur

Sanyo

Sanyo VCB-3385P Manuel utilisateur

Sanyo

Sanyo VCC-HD2100 - Full HD 1080p Network Camera Manuel utilisateur

Sanyo

Sanyo VCC-HD2300 - Full HD 1080p Network Camera Manuel utilisateur

Sanyo

Sanyo VCC-HD5400 Manuel utilisateur

Sanyo

Sanyo VDC-DP7584 - 1/4" Color CCD Vandal-Resistant Dome... Manuel utilisateur

Sanyo

Sanyo VCC-4372P Manuel utilisateur

Sanyo

Sanyo VCC-6584E - 1/3" Color CCD DSP High-Resolution... Manuel utilisateur

Sanyo

Sanyo VCC-9685VP Manuel utilisateur

Sanyo

Sanyo VCC-6574P Manuel utilisateur

Sanyo

Sanyo VCB-3454 Manuel utilisateur

Sanyo

Sanyo VCB-3385P Manuel utilisateur

Sanyo

Sanyo VCC-HD2300P Instructions de construction

Sanyo

Sanyo VCC-MC500 Manuel utilisateur

Sanyo

Sanyo VCC-4374 Manuel utilisateur

Sanyo

Sanyo VDC-DP7584S - 1/4" Color CCD Vandal-Resistant Dome... Manuel utilisateur

Sanyo

Sanyo VDC-D1184VA Manuel utilisateur

Sanyo

Sanyo VCC-9800 Manuel utilisateur

Sanyo

Sanyo VCC-9684VA - 1/4" Color CCD Indoor Mini Dome... Manuel utilisateur

Sanyo

Sanyo VCC-HD2500P Manuel utilisateur

Sanyo

Sanyo VCC-XV400 Manuel utilisateur

Sanyo

Sanyo VCC-4795P Guide de démarrage rapide

Sanyo

Sanyo VCC-HD5600 - Full HD 1080p Day/Night Pan-Tilt-Zoom... Manuel utilisateur

Sanyo

Sanyo VCC-5974 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
