Features of This Camera

Specifications

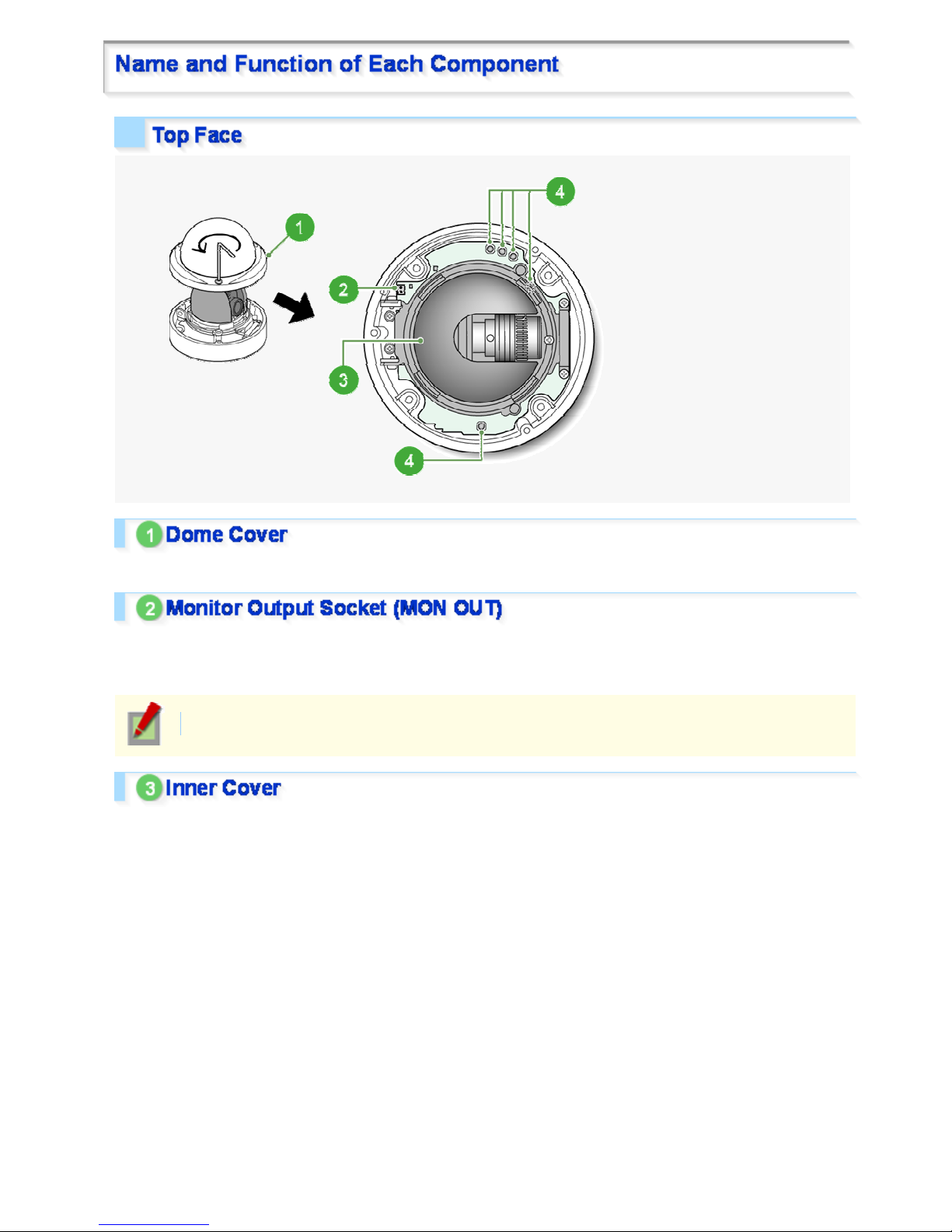

Name and Function of Each Component

Connections

Lens Installation

Lens Adjustment

Viewing Firmware Version

Introduction1

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most

advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you

can operate the camera via the network in an easy-to-use manner.

In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations

where there is no power outlet nearby.

The camera has 4-megapixel CMOS sensor that produces clear images at ultra-high resolution.

The camera can deliver full HD H.264 video throughout the network. Connecting a high-definition monitor to

your PC enables full high-definition video monitoring.

The camera supports both H.264 video and JPEG image compression formats, which you can choose from

depending on the network environment.

The camera offers the focus assist function that supports focus adjustment at megapixel image resolution,

allowing you to fine-tune the focus in optimal conditions in an easy manner.

The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the

construction of a high-level security system.

Installing associated software applications on your PC further extends the capabilities of your surveillance system.

Introduction 2

Image pickup device 1/3" CMOS sensor

Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 2288 (H) × 1712 (V)

Lowest image

illumination

50IRE: 1.0 lx (at F1.2, color mode, high gain)

50IRE: 0.06 lx (at F1.2, black-and-white mode, high gain)

Video S/N ratio 50dB (when AGC is “OFF”)

Lens Built-in varifocal lens f=3 to 9mm, F1.2 to 2.1

Adjusting focus Focus assist function

Day/Night function Auto, color, black-and-white, alarm input switching

( (VDC-HD3300P/VDC-HD3300 only))

White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,

fluorescent

Backlight compensation Multi-spot evaluative metering, center-weighted average metering, masking

Electronic sensitivity

boosting

Auto (32× max) or Off

Electronic shutter VDC-HD3300P/VDC-HD3100P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000,

1/4000, 1/10000D

VDC-HD3300/VDC-3100: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000,

1/10000

Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)

Iris control DC iris lens supported

Camera settings Selectable between 2 camera setting patterns

AGC gain Normal/Middle/High (Manual gain setting possible at Off)

Gamma correction 0.45, 1, Mode 1, Mode 2

Aperture compensation On/Off (Correction level adjustable)

VIVID COLOR EFFECT ON/OFF

DNR ON/OFF

Mirror H/V/HV/OFF

Privacy mask On/Off, max. 8 mask patterns

Motion sensor On (masking/detection area setting)/Off

Language selection English, French, German, Spanish, Japanese

Video output Composite output

LAN 10BASE-T/100BASE-TX (RJ-45 connector)

Alarm input 2 (NO/NC), also serve as Day/Night switch (VDC-HD3300P/VDC-HD3300 only)

Alarm output 2 (NO/NC, 16V, 150 mA, open collector)

Introduction 3

Image/video

compression

H.264/JPEG

Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180

(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240

Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360

(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240

Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE

BITRATE mode: User-specified bit rate

Interface 10BASE-T/100BASE-TX

Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP

Simultaneous access 20

Security BASIC authentication (ID/password), SSL, IP filtering

International Waterproof

and Dustproof Standard

IP66

Operating ambient

temperature/humidity

–10 to +50°C, 90% RH or less (no condensation)

Power source 12 to 15 VDC/24 VAC±10%, 50/60 Hz, PoE

Power consumption 4,6W, 18W (with heater turned on)

Weight 770 g

Dimensions

Approvals: IP66/CE

This unit has been certified to IP66 standards when properly installed.

Use only an IP66 certified enclosure or an electrical box.

Ensure all openings in enclosure are sealed as per manufacturer's instructions.

1Video cable

2Cushioning sheet

3Hexagonal wrench

4Connector

5Pattern sheet

6CD-ROM

Introduction 4

To remove the cover, remove the three screws using the supplied hex wrench.

Connecting the camera and monitor using the supplied cable enables you to perform focus and iris adjustments

while monitoring the live video.

For details, see the “Connections” section.

You can use crocodile clip connectors instead of the supplied cable.

This cover protects the lens assembly.

Introduction 5

These buttons allow you to perform the following operations.

These operations may be performed with the Web browser installed on your PC. For details, refer to the linked

information.

Operation Associated button and use Equivalent network operation screen

Restoring factory default

settings

Press the NEAR button ( 1) and the SET button

(3) simultaneously OPTION SETTINGS (FACTORY

DEFAULT)

Resetting login password Press the FAR button ( 2) and the SET button

(3) simultaneously USER SETTINGS

Adjusting focus For details, refer to the “Lens Adjustment”

section. CAMERA SETTINGS (FOCUS

ASSIST/IRIS SETTINGS)

Adjusting iris

Inverting video of wall-

mounted camera

Press the REVERSE button ( 4) Not supported via network operation

For details, see the “Installation

Manual”.

Restarting camera Press the RESET button ( 5) CAMERA SETTINGS (CAMERA

REBOOT)

Viewing Firmware Version For details, refer to the “Viewing Firmware

Version” section. OPTION SETTINGS (FIRMWARE

UPDATE)

Introduction 6

For the detailed procedures for connecting terminals and cables, refer to the “Connections” section.

Use these coupling holes to mount the camera to the separately-sold base bracket.

Use this socket to connect the camera to your PC to enable network operation.

Use this cable to connect a 24 VAC or 12 VDC power supply.

There is no power indicator on the camera.

Alarm input cable: Connect an external switch, infrared sensor, or other device to detect alarm conditions

such as the entry of an intruder.

Alarm output cable: Connect a buzzer, lamp, or other alarm device.

Introduction 7

Perform the following connections according to the installation environment and application of your camera.

AAlarm Cable Connection

BPower Connection

CNetwork Connection

DCamera Monitor Connection

Before attempting the following connections, be sure to turn off all components of your system.

Improper connection may cause smoke or failures. Before attempting to connect each system

component, carefully read the instruction manual that comes with it to familiarize yourself with the

correct connection procedure.

Alarm Input Terminal Connection

Connect an alarm switch, infrared sensor, or other device to detect alarm conditions to the alarm input cable.

ALARM IN1: Red

ALARM IN2: gray

Introduction 8

After connecting an alarm device, configure the input conditions for the corresponding alarm input

cable via network operation on the ALARM SETTINGS screen.

To use the alarm input cable as Day/Night switching signal path, follow the steps below.

( (This function is supported only by VDC-HD3300P/VDC-HD3300.))

Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the cable you want to use in [EXT

ALARM].

On the ALARM SETTINGS screen, in [POLARITY], select the signal polarity of the alarm input

terminal.

Connecting an external switch to ALARM IN1 allows you to set the system clock by operating the

switch. To set the system clock, configure the [CLOCK IN] setting on the CLOCK SETTINGS screen.

Alarm Output Terminal Connection

Connect a buzzer, lamp, or other alarm device to the alarm output cable.

ALARM OUT1: Orange

ALARM OUT2: Brown

After connecting an alarm device, configure the output conditions for the corresponding alarm output

cable via network operation on the ALARM SETTINGS screen.

Configuration of alarm output terminal is also possible via remote operation. For that, set [ALARM

OUT] to “REMOTE” on the ALARM SETTINGS (ALARM OUT) screen.

Connect the power terminals (24 VAC/12 VDC) of the camera to a power supply.

AConnection to 24 VAC power supply

Although the power terminals have no polarity, the earth grounding wire must be connected to the GND (earth

grounding) terminal.

BConnection to 12 VDC power supply

Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.

Incorrect polarity may cause damage to the camera.

Be sure to use an 18AWG or thicker wire power cable.

A voltage drop may occur depending on the thickness of the power cable. If you must use a long

power cable, determine the cable type by ensuring that the voltage at the 24-VAC/12-VDC terminals

is within the operating range of the camera.

When using PoE to power the camera, do not use the camera's power terminals.

This camera is designed so that you can use all of its functions via network operation.

By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and

operate it from the Web browser installed on your PC.

Introduction 9

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.

The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0.

About the internet connection

Port forwarding for the video port must be enabled on the broadband router.

For details on how to set port forwarding, please refer to your router's Instruction manual.

To connect two or more cameras, on the NETWORK SETTINGS screen, assign them with port

numbers that are different from that of the first camera.

Using PoE

This camera supports PoE (Power over Ethernet). This means that you can install the camera in locations where

there is no 24-VAC/12-VDC power outlet nearby.

When using PoE to power the camera, do not use the camera's power terminals.

Do not power the PoE hub or PoE power adapter until you finish connecting the camera.

AConnecting the PC and camera through a switching hub

You can use a PoE-compatible switching hub to extend the transmission distance.

For details on the extendable distance, please refer to the hub performance in the specifications, etc.

BConnecting the PC and camera through a switching hub and a power adapter

Introduction 10
