Sanyo VCC-HD5400 Manuel utilisateur

VCC-HD5400/HD5400P

Features of This Camera

Specifications

Target size and recording time

Connection and setting of this camera

Introductio

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most

advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you

can operate the camera via the network in an easy-to-use manner.

The camera supports bidirectional audio communications, enabling you to communicate with people at the

camera from your PC while monitoring the surveillance video, instead of just hearing sounds from the

camera.

In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations

where there is no power outlet nearby.

The camera has 2-megapixel CMOS sensor that produces clear images at ultra-high resolution.

Using multi-stream video transmission, it can simultaneously deliver up to four video/ima

e streams. Because

it allows video/image compression format, resolution, and other image conditions to be set as desired for

each stream, you can choose the optimal video/image for your application.

When connected to a high-definition monitor, the camera allows you to monitor the video in the full high-

definition format.

You can freely control camera lens orientation with your PC mouse.

With a 10× built-in optical zoom lens, the camera offers a zoom magnification of up to 160× in conjunction

with the electronic zoom function.

By installing an SD memory card or external hard disk (sold separately), surveillance video can be recorded

on the camera side.

The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the

construction of a high-level security system.

Installing associated software applications on your PC further extends the capabilities of your surveillance system.

H.264 Plug-in (supplied):Surveillance video can be viewed in H.264 format.

Auto IP Setup (supplied):This searches your local network for cameras and allows IP

addresses to be set at once.

Downloader (supplied):This downloads image data recorded on the camera to your PC.

DLViewer (supplied):This plays back image data that has been downloaded to your PC.

VA-SW3050Lite (supplied):This allows you to simultaneously monitor multiple camera video

images on a multi-view screen.

VA-SW3050Server/Client (sold

separately):This allows you to record and play back video images from the

camera on your PC that are distributed over the network.

Introductio

Image pickup device 1/2.5" CMOS sensor

Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 1600 (H) × 1200 (V)

Lowest image

illumination

50IRE: 2.0 lx (F1.8, in color mode with high gain)

50IRE: 0.1 lx (F1.8 in black-and-white mode with high gain)

Video S/N ratio 50 dB or higher (when AGC is 'OFF')

Lens Focal Length: f=6.3 - 63 mm

F number: F1.8 - 2.5

Optical zoom 10x, electronic zoom 16x (up to 160x when used in combination with

the optical zoom)

Rotational scope Pan: 360° endless pan

Tilt: –20 to +200°

Rotation speed Pan: Max. 350°/sec

Tilt: Max. 350°/sec (0.1° - 120°/sec for manual operation)

Preset position Max. 256

Auto mode Sequential, auto pan, tour, automatic return

Day/Night function Auto, color, black-and-white, alarm input switching

White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,

fluorescent

Backlight compensation Multi-spot evaluative metering, center-weighted evaluative metering, masking, face

detection

Electronic sensitivity

boosting

Auto (32× max) or Off

Electronic shutter VCC-HD5400P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

VCC-HD5400: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)

Iris AUTO/MANUAL (electronic iris: ON/OFF)

Camera settings Up to 8 patterns of monitoring conditions are configurable.

AGC gain Normal/Middle/High (Manual gain setting possible at Off)

Gamma correction 0.45, 1, Mode 1, Mode 2

Aperture compensation On/Off (Correction level adjustable)

VIVID COLOR EFFECT ON/OFF

DNR (digital noise

reduction)

ON/OFF

Image inversion Horizontal/Vertical/Horizontal and vertical/Off

Privacy mask ON/OFF, up to 32 positions

Motion sensor ON (detection area setting, video analytics)/OFF, face detection function

Auto pursuit ON/OFF

Sway compensation ON/OFF

Language selection English, French, German, Spanish, Japanese

Introductio

Video output HD Output: HDMI terminal (TYPE C)

Monitor output: BNC terminal (MONITOR OUT)

LAN 10BASE-T/100BASE-TX (RJ-45 connector)

EX-HDD Connector For connecting an external hard disk drive case

SD Card Slot 1 (SDHC compliant, max. 32 GB supported)

Alarm input 4 (NO/NC), also used for switching between day and night modes

Alarm output 2 (NO/NC, 16V, 150 mA, open collector)

Audio input/output Audio input (white: 3.5-mm mini jack)

Audio output (black: 3.5-mm mini jack)

Communication method RS-485

Protocol SSP, PELCO-D

Baud Rate 2400, 4800, 9600, 19200

Address 1 - 255 (sanyo SSP: 1 to 127)

SD memory card Normal recording, alarm recording, backup video recording in event of a network

failure, log information

External HDD Normal recording, alarm recording, backup video recording in event of a network

failure, log information

Image/video

compression

H.264/JPEG

Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180

(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240

Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360

(4:3) 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240

Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE

BITRATE mode: User-specified bit rate

Interface 10BASE-T/100BASE-TX

Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP

Audio G.711 (Bidirectional)

Simultaneous access 20

Security BASIC authentication (ID/password), SSL, IP filtering

Introductio

Operating ambient

temperature/humidity

–10 to +50°C/14 to 122°F

90% RH or less (no condensation)

Power source VCC-HD5400P:

12 to 15 VDC

24 VAC±10%, 50 Hz

PoE

VCC-HD5400:

12 to 15 VDC

24 VAC±10%, 60 Hz

PoE

Power consumption 21 W (PoE: 12.3 W)

Weight 1,350 g / 47.6 oz.

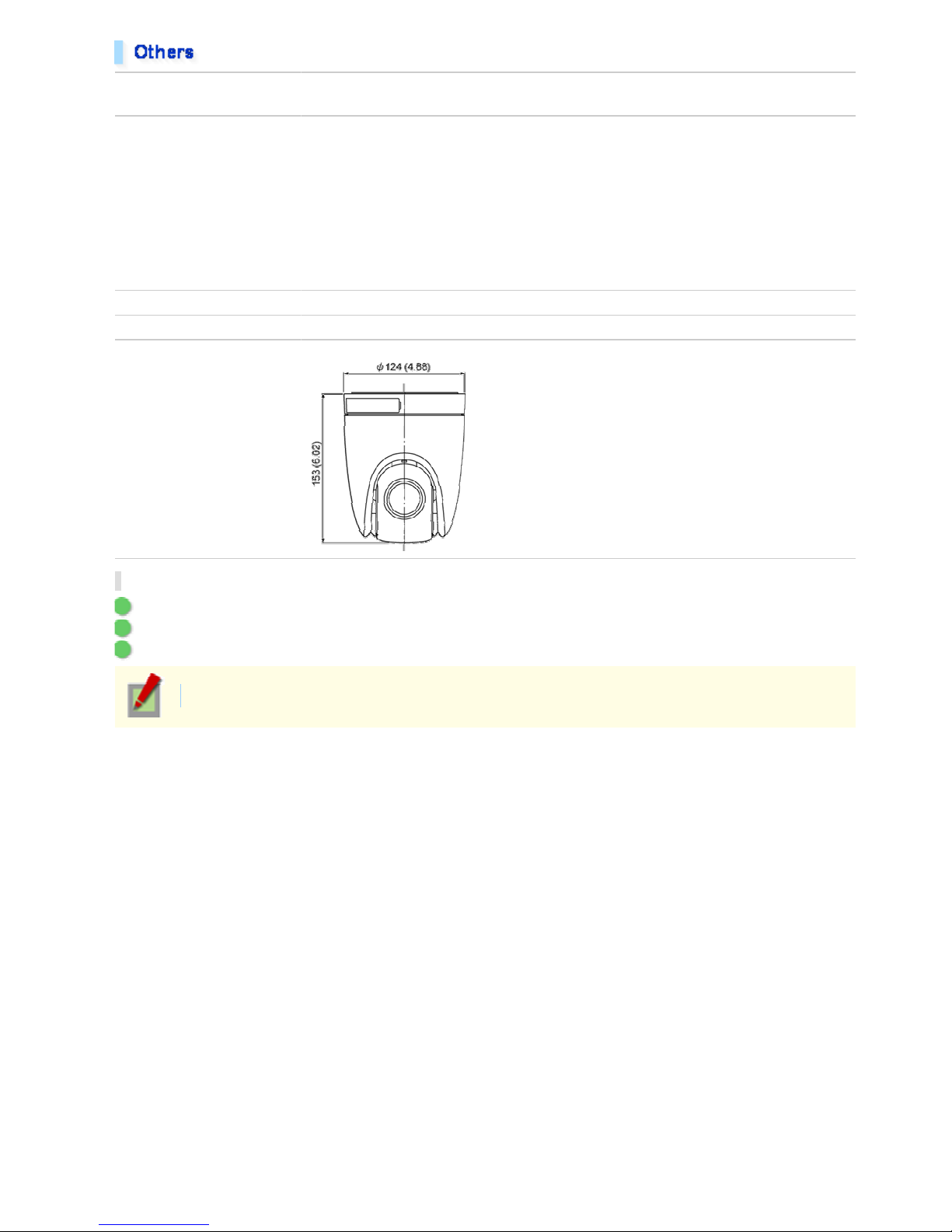

Dimensions Unit: mm (inch)

Accessories

1Mounting plate

2Hexagonal wrench

3Cable holder for wiring

Appearance and specifications are subject to change without prior notice or obligations.

Introductio

This table is displayed using a browser-specific function and therefore not displayed on the PDF

manual.

Refer to the table “Target size and recording time” in the electronic manual.

This table is displayed using a browser-specific function and therefore not displayed on the PDF

manual.

Refer to the table “Target size and recording time” in the electronic manual.

Introductio

For the cable type, see the “cable label” attached to the cable bundle.

For the detailed connection procedure, refer to the “Connections” section.

Connect this terminal to the power supply.

Alarm input cable: Connect an external switch, infrared sensor, or other device to detect alarm conditions

such as the entry of an intruder.

Alarm output cable: Connect a buzzer, lamp, or other alarm device.

By connecting a system controller (sold separately), the camera can be controlled remotely.

AAudio output terminal (black: 3.5-mm mini jack)

Use this jack to connect to the audio input jacks of a powered speaker system or a monitor.

BAudio input terminal (white: 3.5-mm mini jack)

Use this jack to connect an external microphone to listen to the sound while monitoring the live video, or

simultaneously record the video and sound.

Introductio

This jack supports 3.5-mm diameter monaural microphone plugs, or monaural line-level input plugs (the

left channel only for stereo plugs).

Connect this terminal to a monitor, etc. A live video will be displayed on the monitor once the camera is turned on.

You cannot output the video simultaneously from HD video output terminal (HDMI) and from monitor

output terminal (MONITOR OUT). When both terminals are used, the HD video output terminal takes

precedence.

To always use the same video terminal, change the [TERMINAL] settings on the VIDEO & AUDIO

SETTINGS (TV OUT) screen via network operation.

When the camera is turned on, the information on the firmware version and address is displayed on

the monitor.

The live video displayed on the monitor provides the current pan/tilt angle, zoom magnification and

preset position name (or the memory usage when the TOUR operation is set).

You can change the display position and other settings on the VIDEO & AUDIO SETTINGS (TV

OUT) screen via network operation.

If you wire on the ceiling surface, remove the wiring gutter cover.

If you have connected the controller to the camera, you must configure necessary settings.

For details, refer to the “Control/Address Settings” section.

AControl switch

Use this switch to configure the baud rate and protocol settings.

BAddress switch

Use this switch to configure the camera control address.

Use this socket to connect the camera to your PC to enable network operation.

To record video on an external hard disk drive, you must install a 2.5" hard disk (SATA) in the dedicated hard disk

case (VA-HDC4000) which is sold separately and then connect the case.

Introductio

The terminal outputs super-fine HD (High Definition) video signal. Use the terminal to connect a high-definition

monitor with HDMI interface.

To record live video on a SD memory card, open the cover as shown below and insert the card into the card slot

until you hear a click.

AFall-prevention screw

Use this screw and the supplied hexagonal wrench to secure the installed camera.

BSD Card Slot

CPower indicator

This indicator lights up when the camera is powered on.

When the camera is on, this indicator blinks to indicate the following camera statuses:

Deactivation of recording to SD memory card in progress

Firmware update in progress

An SD memory card error occurred (Fast blink)

DSD CARD button

Disable recording: The power indicator blinks when this button is pressed, and stays lit when the SD memory

card is prepared to be removed.

Enable recording: The power indicator blinks when this button is pressed, and stays lit when the SD memory

card is recognized.

Use this cable to hook the camera on the supplied mounting plate when installing the camera.

Perform the following connections according to the installation environment and application of your camera.

APower Connection

BNetwork Connection

CAlarm Cable Connection

DConnection of system controller

EInstalling Recording Media

Before attempting the following connections, be sure to turn off all components of your system.

Improper connection may cause smoke or failures. Before attempting to connect each system

component, carefully read the instruction manual that comes with it to familiarize yourself with the

correct connection procedure.

Introductio

Connect the power terminals (24 VAC/12 VDC) of the camera to a power supply.

1Connection to 24 VAC power supply

Although the power terminals have no polarity, the earth grounding wire must be connected to the GND (earth

grounding) terminal.

2Connection to 12 VDC power supply

Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.

Incorrect polarity may cause damage to the camera.

Be sure to use an 18AWG or thicker wire power cable.

If you must use a long power cable, determine the cable type by ensuring that the voltage at the 24-

VAC/12-VDC terminal is within the operating range of the camera.

If you are using PoE, do not use the camera's power terminals (24 VAC/12 VDC).

This camera is designed so that you can use all of its functions via network operation.

Introductio

Autres manuels pour VCC-HD5400

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sanyo Caméra de sécurité

Sanyo

Sanyo VDC-HD3300 - Full HD 1080p Vandal Dome... Manuel utilisateur

Sanyo

Sanyo VCB-3384 Manuel utilisateur

Sanyo

Sanyo VCC-4790P Manuel utilisateur

Sanyo

Sanyo VCC-P7575PA Pan-Focus Manuel utilisateur

Sanyo

Sanyo VCC-4374 Manuel utilisateur

Sanyo

Sanyo VCB-3412P Manuel utilisateur

Sanyo

Sanyo VCC-ZM400P Manuel utilisateur

Sanyo

Sanyo VCC-9624 Manuel utilisateur

Sanyo

Sanyo VCB-3572IRP Manuel utilisateur

Sanyo

Sanyo VCB-3312P Manuel utilisateur

Sanyo

Sanyo VCC-3912 Manuel utilisateur

Sanyo

Sanyo VDC-C1574VA - CCTV Camera Manuel utilisateur

Sanyo

Sanyo VCC-XZ200 - 1/4" CCD Weatherproof Day/Night Zoom... Manuel utilisateur

Sanyo

Sanyo VDC-HD3500P Manuel utilisateur

Sanyo

Sanyo VDC-DP7584S - 1/4" Color CCD Vandal-Resistant Dome... Manuel utilisateur

Sanyo

Sanyo VCC-5984 Manuel utilisateur

Sanyo

Sanyo VDC-C1024V Manuel utilisateur

Sanyo

Sanyo VCC-HD4000 - Network Camera Manuel utilisateur

Sanyo

Sanyo VCC-9600 Manuel utilisateur

Sanyo

Sanyo VCC-4312P Manuel utilisateur

Sanyo

Sanyo VCC-WB4000P Manuel utilisateur

Sanyo

Sanyo VCC-4344 - 1/4" CCD High Performance Day/Night... Manuel utilisateur

Sanyo

Sanyo VCC-MCH5600P Manuel utilisateur

Sanyo

Sanyo VDC-HD3100P/HD3100 Guide de l'utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
