Sanyo PLC-XF12N/NL Manuel utilisateur

Multimedia Projector

SERVICE MANUAL

PRODUCT CODE

(ME6AB) PLC-XF12N: 1 122 067 70

(ME6AN) PLC-XF12NL: 1 122 067 80

(PE6AB) PLC-XF12E: 1 122 072 50

(PE6AN) PLC-XF12EL: 1 122 072 60

(PE6CB) PLC-XF12B: 1 122 072 52

Original Version

REFERENCE NO. SM5110195

FILE NO.

Model No. PLC-XF12N/NL

(U.S.A., Canada)

PLC-XF12E/EL

(Europe, Asia)

PLC-XF12B

(U.K.)

Chassis No. ME6-XF12N00

ME6-XF12NL00

PLC-XF12NL/PLC-XF12EL:

These models do not provide the projection lens.

Service Ref. No. PLC-XF12E-00

PLC-XF12EL-00

PLC-XF12B-00

NOTE:

Match the Chassis No./Service Ref.No.on the unit’

back cover with the Chassis No./Service Ref.No.in

the Service Manual.

If the Original Version Service Manual Chassis

No./Service Ref. No. does not match the unit’s,

additional Service Literature is required.You must

refer to “Notices” to the Original Service Manual

prior to servicing the unit.

Give complete “Service Ref. No./Chassis No.” for

parts order or servicing, it is shown on the rating

sheet on the projector.

■Contents

■Safety instructions ________________________________________________3

■Specifications __________________________________________________ 4

■Adjustments after parts replacement ________________________________ 5

■Circuit protections ______________________________________________ 6-7

Fuse ______________________________________________________ 6

Thermal switch ______________________________________________ 6

Warning temperature and power failure protection____________________ 7

■Mechanical disassemblies ______________________________________ 8-15

■Optical unit disassemblies______________________________________ 16-20

■Lamp replacement ______________________________________________ 21

■LCD panel replacement __________________________________________ 22

■Electric adjustments __________________________________________ 23-35

●Service adjustment menu operation____________________________ 23

●Service adjustment data table______________________________ 24-29

●Circuit adjustments ______________________________________ 30-35

■Optical adjustments __________________________________________ 36-41

●Focus adjustment ______________________________________ 36-37

●Convergence adjustment ____________________________________ 38

●Contrast adjustment ________________________________________ 39

●Integrator lens adjustment __________________________________ 40

●Relay lens adjustment ______________________________________ 41

■Troubleshooting ______________________________________________ 42-46

●No Power______________________________________________ 42-44

●No Picture________________________________________________ 45

●No Sound ________________________________________________ 46

■CPU (IC801) port functions ____________________________________ 47-51

■Waveforms __________________________________________________ 52-53

■Cleaning ______________________________________________________ 54

■IC block diagrams ____________________________________________ 55-66

■Pins description of ICs, transistors, diodes____________________________ 67

■Parts description in schematic diagram ______________________________ 68

■Service parts lists __________________________________________ 69-110

●Electrical parts list ______________________________________ 69-103

●Mechanical parts list __________________________________ 104-110

■Circuit block diagram ____________________________________________ A1

■Power supply lines ______________________________________________ A2

■Schematic diagrams ________________________________________ A3-A10

■Printed wiring board diagrams ________________________________ A11-A15

WARNING:

The chassis of this projector is isolated (COLD) from AC line by using the converter transformer. Primary side of

the converter and lamp power supply unit circuit is connected to the AC line and it is hot, which hot circuit is iden-

tified with the line ( ) in the schematic diagram. For continued product safety and protection of personnel

injury, servicing should be made with qualified personnel.

The following precautions must be observed.

■Safety Instructions

SAFETY PRECAUTIONS

1: An isolation transformer should be connected in the

power line between the projector and the AC line

before any service is performed on the projector.

2: Comply with all caution and safety-related notes pro-

vided on the cabinet back, cabinet bottom, inside the

cabinet or on the chassis.

3: When replacing a chassis in the cabinet, always be

certain that all the protective devices are installed

properly, such as, control knobs, adjustment covers

or shields, barriers, etc.

DO NOT OPERATE THIS PROJECTOR WITHOUT

THE PROTECTIVE SHIELD IN POSITION AND

PROPERLY SECURED.

4: Before replacing the cabinet cover, thoroughly

inspect the inside of the cabinet to see that no stray

parts or tools have been left inside.

Before returning any projector to the customer, the

service personnel must be sure it is completely safe to

operate without danger of electric shock.

SERVICE PERSONNEL WARNING

Eye damage may result from directly viewing the light produced by the Lamp used in this equipment. Always turn

off Lamp before opening cover. The Ultraviolet radiation eye protection required during this servicing.

Never turn the power on without the lamp to avoid electric-shock or damage of the devices since the stabilizer

generates high voltages(15kV - 25kV) at its starts.

Since the lamp is very high temperature during units operation replacement of the lamp should be done at least

45 minutes after the power has been turned off, to allow the lamp cool-off.

PRODUCT SAFETY NOTICE

Product safety should be considered when a component replacement is made in any area of the projector.

Components indicated by mark in the parts list and the schematic diagram designate components in which

safety can be of special significance.It is, therefore, particularly recommended that the replacement of there parts

must be made by exactly the same parts.

DO NOT ATTEMPTTO SERVICING THE

REMOTE CONTROL UNIT.

Laser Beam may be leaked out when in disassemble

the Unit. As the Laser Beam used in this Remote con-

trol unit is harmful to the eyes.

LASER RADIATION

DO NOT STARE INTO BEAM

MAX. OUTPUT: 1mW

WAVE LENGTH: 660 ±20nm

CLASS II LASER PRODUCT

This product is complied with 21 CFR

part 1040.10

CAUTION LASER RADIATION

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

LASER-STRAHLING

NICHT IN DEN STRAHL BLICKEN

LASER KLASSE 2

IEC60825-1, Am. 1 1997

MAX OUTPUT ( ) : 1 mW

WAVE LENGTH ( ) : 660±20nm

Projector Type Multi-media Projector

Dimensions (W x H x D) 15.4” (390mm) x 9.6” (245mm) x 23.0” (585mm)

Net Weight 39.2 lbs (17.8kg)

LCD Panel System 1.8” TFT Active Matrix type x 3 panels

Number of Pixels 2,359,296 {786,432 (1024 x 768) x 3}

Color System 6 color system (PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N)

Scanning Frequency H-sync. 15 ~ 100kHz, V-sync. 50 ~ 120Hz

Projection Image Size (diagonal) Adjustable from 40” to 600”

Horizontal Resolution 800 TV lines

Projection Lens F2.0 ~ 2.3 lens with f75.7mm ~ 97.5mm Motor zoom and focus

Motor Lens Shift ± 760mm on 100” screen

Throw Distance 4.9’ (1.5m) ~ 80.7’ (24.6m)

Projection Lamp 440 watts type

AV Input Jacks BNC Type {Video/Y, C/Cb (B-Y), Cr (R-Y)} x 2 sets,

RCA Type (Audio R and L) x 2 sets and DIN 4 pin (S-Video) x 2 sets

Video Monitor Output Jack BNC Type {Video/Y, C/Cb (B-Y), Cr (R-Y)} x 1 set,

and DIN 4 pin (S-Video) x 1 set

Audio Monitor Output Jack RCA Type (R and L) x 1 set

Computer Input 1 Jack MDR20-pin Terminal (Digital), HDB15-pin Terminal (Analog), Multi-pole 12

pin (Control port) and USB port

Computer Input 2 Jack BNC Type (R, G, B, H and V), Multi-pole 12-pin (Control port) and USB port

Computer Audio Input Jack RCA Type (R and L) x 2 set

Computer Output Jack HDB15-pin Terminal

Computer Audio Output Jack RCA Type (R and L) x 1 set

Other Jacks Wired Remote Control Jack and Serial port (DB 9)

Built-in Speaker INT. SP. Stereo (R and L), 3watt RMS (T.H.D. 10%)

Image Elevation Adjustment Up to 4˚

Voltage and AC 100 ~ 120V (7.8A Max. Ampere), 50/60Hz (The U.S.A. and Canada)

Power Consumption AC 200 ~ 240V (3.6A Max. Ampere), 50/60Hz (Continental Europe and The U.K.)

Operating Temperature 41˚F ~ 95˚F (5˚C ~ 35˚C)

Storage Temperature 14˚F ~ 140˚F (-10˚C ~ 60˚C)

Remote Control Transmitters Wireless Remote Control with Laser Beam (Class II Laser)

Max. Output 1mW/Wave length 660 ±20nm, batteries (2) AA type.

Wireless/Wired Remote Control, batteries (2) AA type.

■Specifications

● : Adjustment necessary ❍ : Check necessary

■Adjustments after Parts Replacement

Focus Adjustment

R-Focus adjustment ●

G-Focus adjustment ●

B-Focus adjustment ●

Convergence Adjustment

R-Convergence adjustment ●●

B-Convergence adjustment ●●

Integrator Lens Adjustment ●

Relay Lens Adjustment ●

Contrast Adjustment

R-Contrast adjustment ●

G-Contrast adjustment ●

B-Contrast adjustment ●

Output Voltage Adjustment ❍

+6V Adjustment ❍

+15V Adjustment ❍

Fan Voltage Adjustment ❍

DVCO Adjustment ●

DC Adjustment ●

PSIG Adjustment ●

Offset Adjustment-[CG] ●

Pedestal Adjustment-[CG] ●

Gain Adjustment-[CG] ●

Pedestal Adjustment-[AV] ●

Gain Adjustment-[AV] ●

Video Adjustment-[CG] ●

Video Adjustment-[AV] ●

Common Center Adjustment ●

R-Common center adjustment ● ●

G-Common center adjustment ●●

B-Common center adjustment ●●

Offset Adjustment-[AV] ●

White Balance Adjustment-[CG] ●●● ●

White Balance Adjustment-[AV] ●●● ●

White Uniformity Adjustment ❍❍❍ ❍

Disassembly / Replaced Part

LCD Panel

RGBIntegrator

lens Relay

Lens Polarized glass

RGB Main

Board

Optical AdjustmentsElectrical Adjustments

Power

Board Sub

Power

Board Fan

Control

Board

-6-

■Circuit Protections

This projector is equipped with the following circuit protections to operate in safety. If the abnormality occurs inside

the projector, it will automatically turn off by operating one of the following protection circuits.

Fuse

The fuse is located inside the projector. When the Mains switch on the rear panel is turned on and the lamp indica-

tor does not illuminate, fuse may be open. Remove the AV board ass’y by following below and check the fuse.

It should be used the specified fuse as follows;

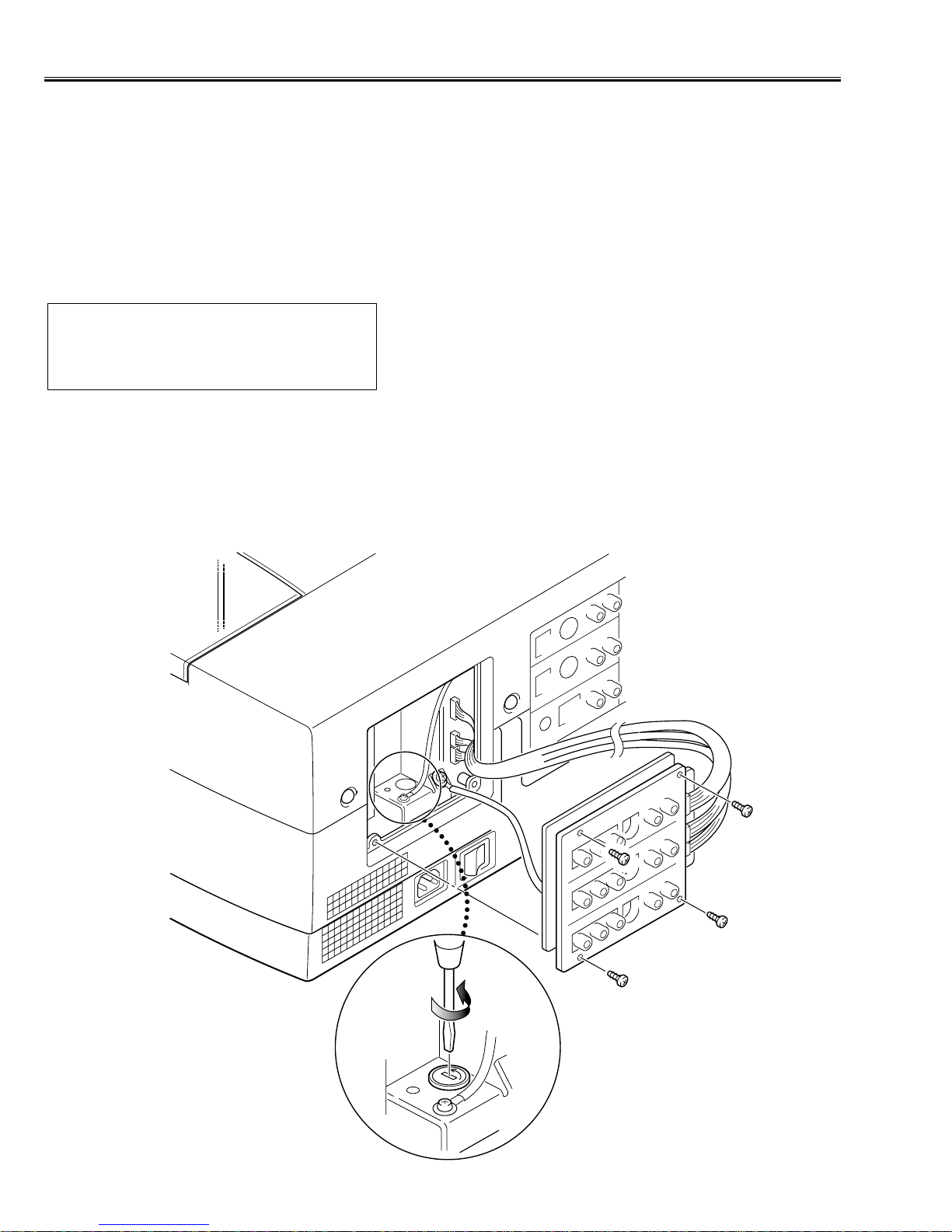

How to replace the fuse

1. Remove 4 screws and pull out the AV Jack board ass’y.

2. Insert slot screwdriver into a globe of the fuse holder, then push and turn the screwdriver in the arrow direction.

To install the fuse, take reversed step in the above.

Fuse Part No.: 423 025 1201

TYPE T8.0AH 250V FUSE

LITTLE FUSE INC.TYPE 215008

-7-

Circuit Protections

Warning temperature and power failure protection

The TEMP WARNING indicator flashes red and the projector will automatically turn off when the internal tempera-

ture of the projector exceeds the normal temperature or when stopping cooling fans or when the internal power sup-

ply lines are failed.

Check the following possible causes and wait until stopping the TEMP WARNING indicator flashing.

Possible causes

- Air filter is clogged with dust particles. Remove dust from the air filter by following instructions in the “Air filter care

and cleaning” below.

- Ventilation slots of the projector are blocked. In such an event, reposition the projector so that ventilation slots are

not obstructed.

- Check if projector is used at higher temperature place (Normal operating temperature is 5 to 35 ˚C)

If the TEMP WARNING indicator still continues to flash, there may be defects on cooling fans or power supply cir-

cuits. Please check fan operation and power supply lines referring to the “Power Supply Lines Chart”.

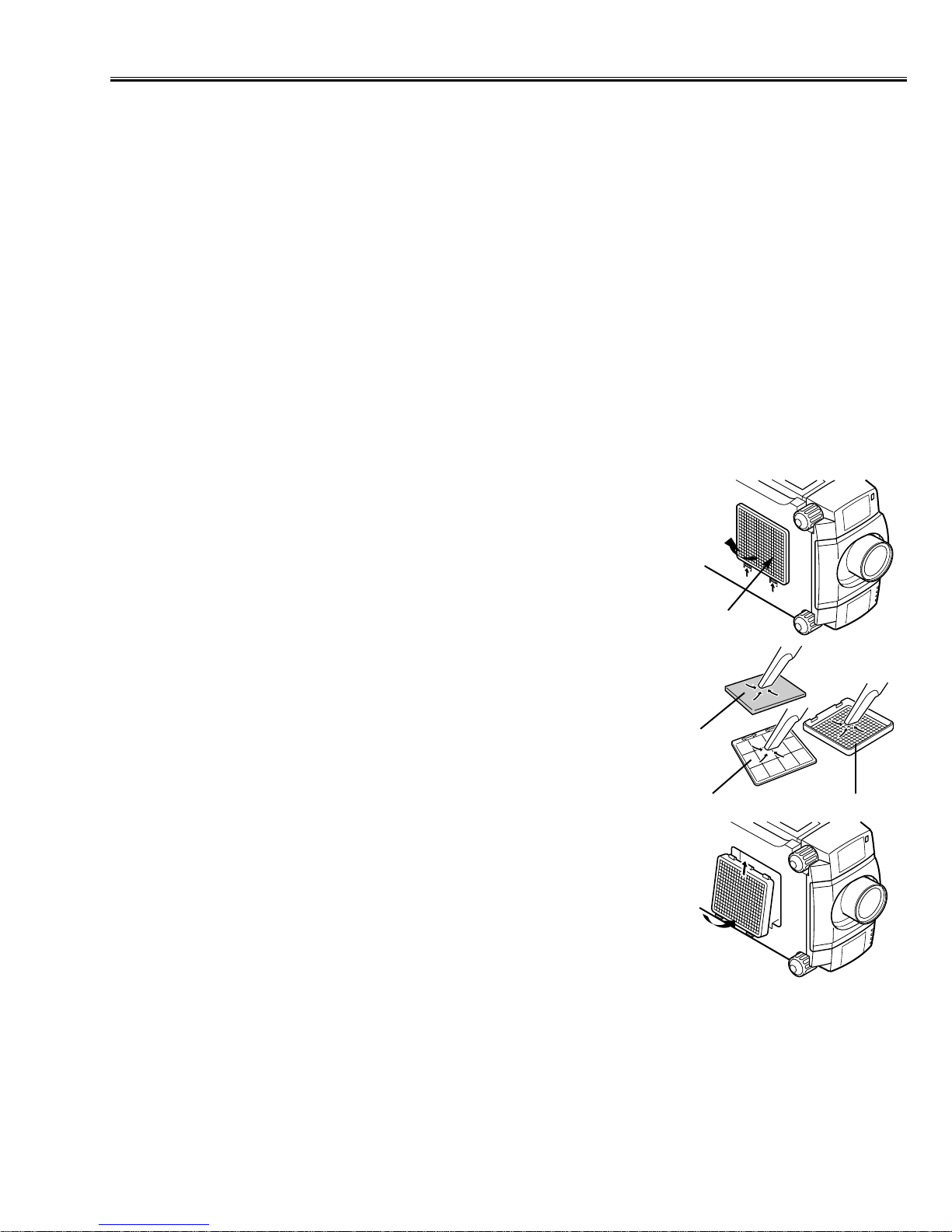

Air Filter care and cleaning

The removable air filter prevents dust from accumulation on the surface of

the projection lens and projection mirror. Should be the air filter become

clogged with dust particles, it will reduce the cooling fan’s effectiveness

and may result in internal heat build up and reduce the life of the projector.

To clean up the air filter, follow the cleaning procedure below:

1. Turn the MAINS ON/OFF switch to OFF, and disconnect the AC power

code from the AC outlet.

2. Remove the air filter cover.

Press the cover latch sideway and lift the cover.

3. Remove the air filter and sponge from the filter cover.

4. Clean the air filter with a vacuum cleaner.

5. Replace the air filter and sponge. Make sure that air filter cover is fully

inserted.

CAUTION:

Do not clean with water. Doing so may damage the air filter.

Do not operate the projector with air filter removed.

RECOMMENDATION

We recommend to avoid dusty, smoky place for operating the projector.

Using in dusty place may cause the picture of poor quality.

When using under the dusty or smoky conditions, dust may accumulate on

the LCD panel and lens inside it, and may resultantly be projected on the

screen together with the picture.

When the above symptoms are noticed, please clean up the LCD panel

and lens following to the “Cleaning Method”.

Air filter cover

Sponge

Air filter

-8-

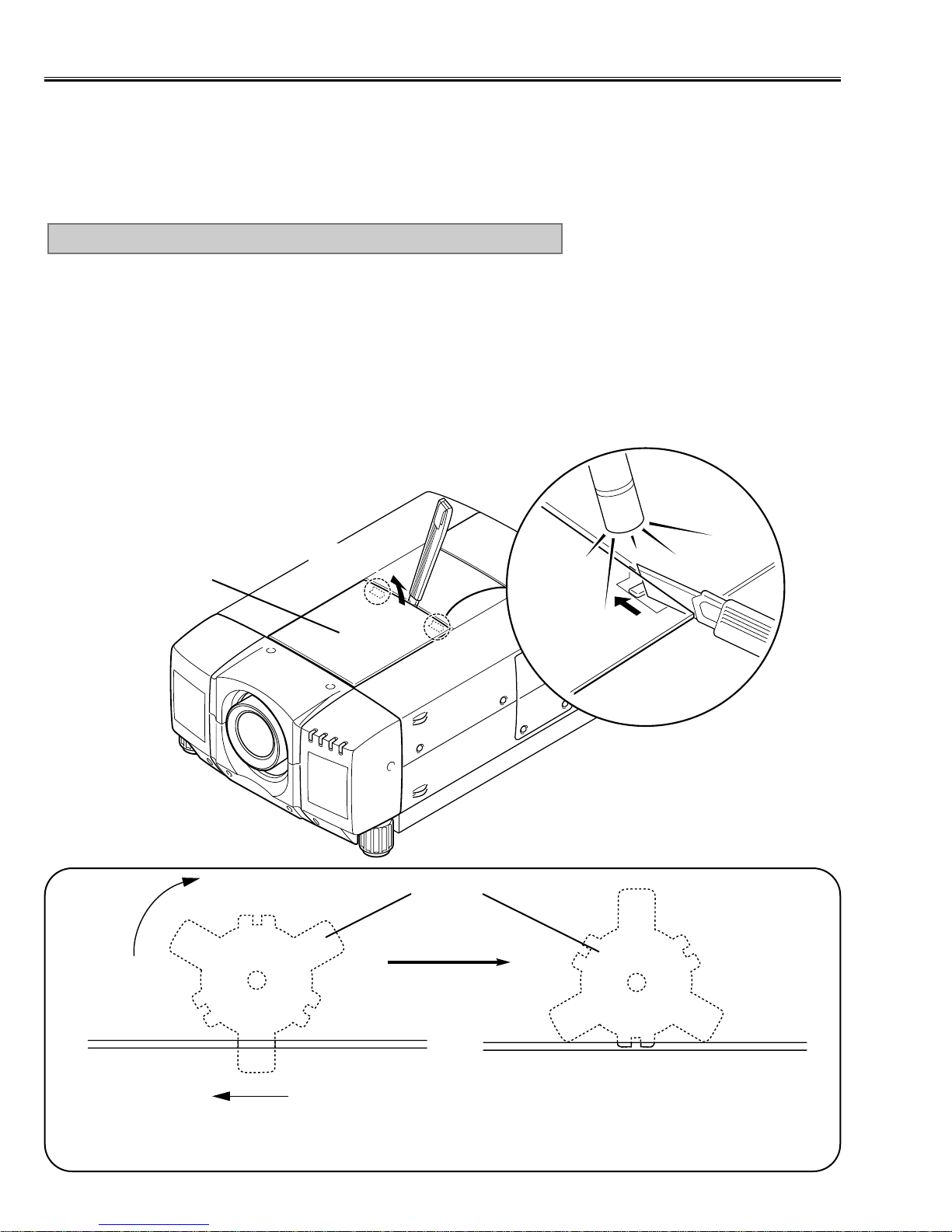

The cover top is fixed by the 2 lock levers A.When removing the top cover,

turn the lock lever to the released position as shown in Fig.1-3.

The pen-type light and thin flat tool (like cutter knife) will be required to

release the lock.

1) Confirm the position of the lock lever with the pen-light. Release the lock

lever A by sliding it laterally by using at the edge of the tool as shown in

Fig.1-1.

2) Release the other lock lever in the same way.

3) Lift the cover top to the upward by the tool as shown in Fig.1-2.

4) After lifting it, hold the cover top and pull it to the backward.

Note:

Be careful not to damage the cabinet finish when

removing it.

1. COVER TOP REMOVAL

■Mechanical Disassemblies

Mechanical disassemble should be made following procedures in numerical order.

Following steps show the basic procedures, therefore unnecessary step may be ignored.

Caution:

The parts and screws should be placed exactly the same position as the original otherwise it may cause loss of per-

formance and product safety.

Fig.1-2

Fig.1-3

Locked Released

Fig.1-1

Cover Top

Lock Lever

-9-

Mechanical Disassemblies

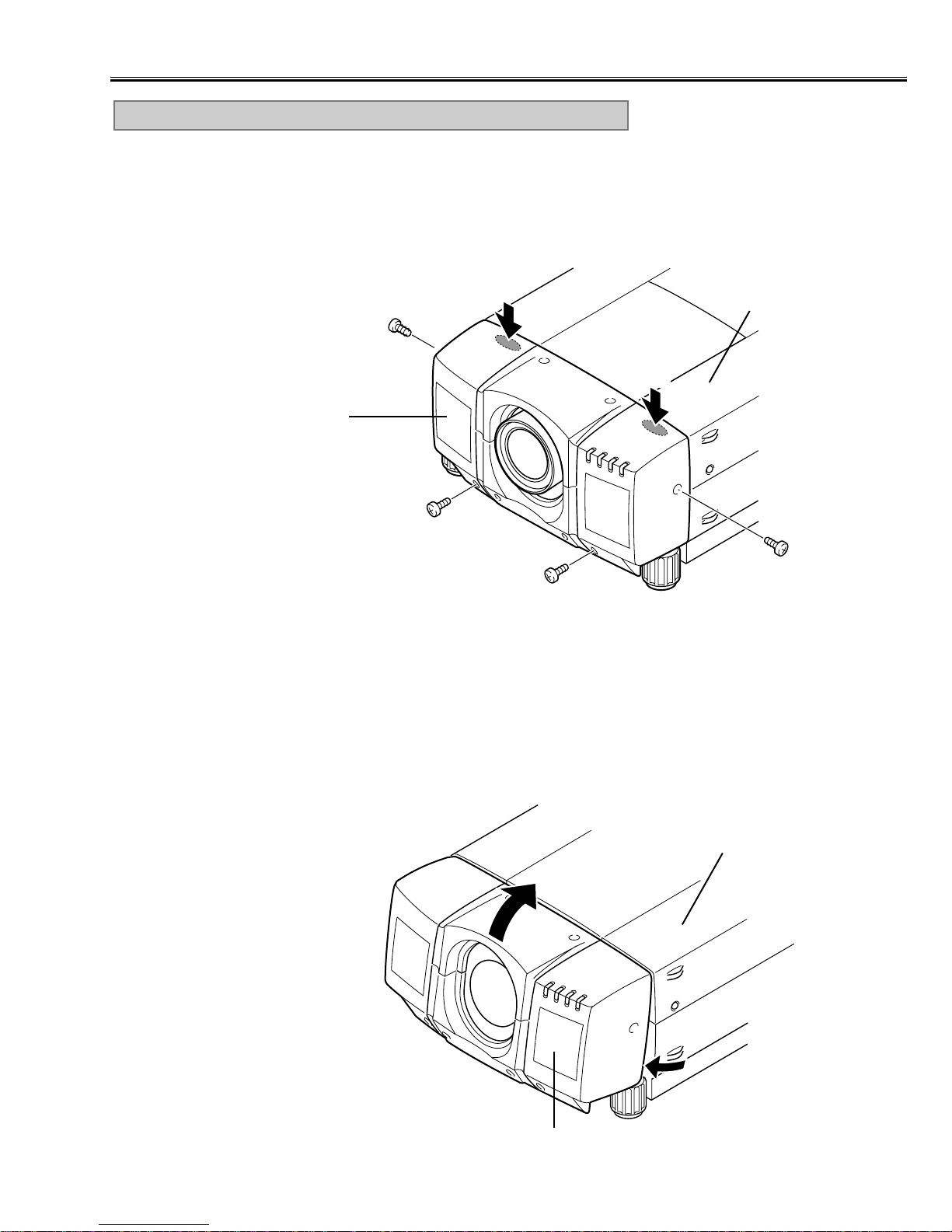

1) Remove 4 screws A on the cabinet front.

2) Push down the part B of the cabinet front by finger (slight bent cabinet

downward) and remove the engagement of it. See Fig.2-1.The front and

top cabinets are engaged with 4 hooks at the top and 3 hooks at the

lower part. See Fig.2-4 on next page for location of the hooks. Release

those hooks when separate the both cabinets.

2. CABINET FRONT REMOVAL

3) Pull the lower side of the cabinet front forward and remove it as shown in

Fig.2-2.

Lower part is engaged with the 3 hooks.Push the cabinet front downward

slightly and pull the lower forward.

Fig.2-1

Fig.2-2

Front Cabinet

Cabinet Top

Front Cabinet

Cabinet Top

-10-

Mechanical Disassemblies

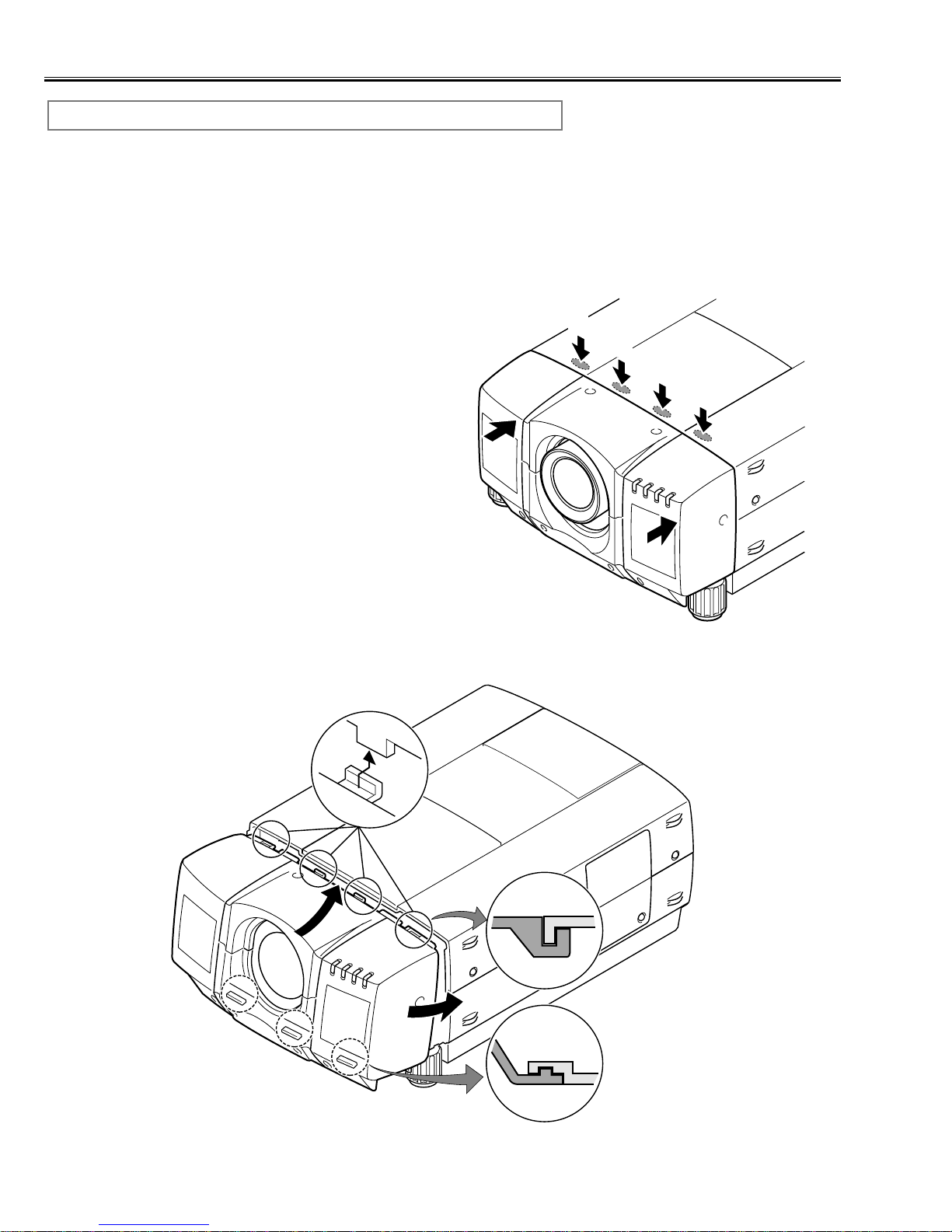

1) Front and top cabinets are engaged with 4 hooks at the

upper side and 3 hooks at lower side. See Fig.2-4. First

engage the upper side at each end of the cabinet front

with the cabinet top.

Then, push the lower of the cabinet in the direction of the

arrow and engage the lower part of cabinet front with the

lower part of cabinet top. See Fig.2-4.

It is not enough to engage the upper side of the cabinet

front with the upper side of the top cabinet. Follow the

next steps for engaging them completely.

2) See Fig.2-3. Slightly push the cabinet front backward

and pushing arrow points of the cabinet top until each

hooks are fitted.

Push the arrow point in the order if the number. Space

should not be obtained between the cabinet front and

the cabinet top. Engage both cabinets until no space

observed between both cabinets.

* CABINET FRONT MOUNTING

Fig.2-3

Fig.2-4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sanyo Projecteur

Sanyo

Sanyo PLC-XF30 Manuel utilisateur

Sanyo

Sanyo SW15 - PLC SVGA LCD Projector Manuel utilisateur

Sanyo

Sanyo PLC-XF46E Manuel utilisateur

Sanyo

Sanyo PLC-XU30 Manuel utilisateur

Sanyo

Sanyo SW15 - PLC SVGA LCD Projector Manuel utilisateur

Sanyo

Sanyo PLV-Z1 Manuel utilisateur

Sanyo

Sanyo PLC-XE33 Manuel utilisateur

Sanyo

Sanyo PLC--XP200L Manuel utilisateur

Sanyo

Sanyo PLC-WXU10N Manuel utilisateur

Sanyo

Sanyo PLC-ET30L Manuel utilisateur

Sanyo

Sanyo PLC-XD2200 Manuel utilisateur

Sanyo

Sanyo PLC-XW60 Manuel utilisateur

Sanyo

Sanyo PLC-XW55A Manuel utilisateur

Sanyo

Sanyo PLC-WM5500/L - 5500 Lumens Manuel utilisateur

Sanyo

Sanyo PDG-DSU21 Manuel utilisateur

Sanyo

Sanyo PDG-DHT100L - DLP Projector - HD 1080p Manuel utilisateur

Sanyo

Sanyo PLC-SW36 Manuel utilisateur

Sanyo

Sanyo PLC-XT11 Manuel utilisateur

Sanyo

Sanyo PLC-EF31N - SXGA LCD Projector Manuel utilisateur

Sanyo

Sanyo PLC-XC10 Manuel utilisateur

Sanyo

Sanyo PLC-XF1000 Manuel

Sanyo

Sanyo PLC-XW15 Manuel utilisateur

Sanyo

Sanyo PLV-Z2000 Manuel utilisateur

Sanyo

Sanyo PLC-SE10 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
