Multimedia Projector

SERVICE MANUAL

PRODUCT CODE

PLC-XC10 PLC-SC10

1 122 195 00 (MF7A) 1 122 197 00 (MG7A)

1 122 196 00 (PF7A) 1 122 198 00 (PG7A)

1 122 196 02 (PF7C) 1 122 198 02 (PG7C)

PLC-XU60 PLC-SU60

1 122 241 00 (MF7AA) 1 122 242 00 (MG7AA)

Original Version

REFERENCE NO. SM5110535-00

FILE NO.

Model No. PLC-XC10

PLC-SC10

PLC-XU60

PLC-SU60

U.S.A., Canada,

Europe, Asia, Africa

U.K.

Chassis No. MF7-XC1000

MF7-XU6000

MG7-SC1000

MG7-SU6000

NOTE: Match the Chassis No. on the unit’s

back cover with the Chassis No. in the

Service Manual.

If the Original Version Service

Manual Chassis No.does not match

the unit’s, additional Service

Literature is required.You must refer to

“Notices” to the Original Service

Manual prior to servicing the unit.

-2-
■ Contents
■ Safety Instructions ________________________________________________3
■ Specifications____________________________________________________4
■ Circuit Protections ________________________________________________5
● Fuse ____________________________________________________5
● Thermal switch ____________________________________________5
● Lamp cover switch __________________________________________5
● Warning temperature and power failure protection ________________6
■ Lamp Replacement ______________________________________________7
■ Mechanical Disassemblies__________________________________________8
■ Optical Parts Disassemblies ______________________________________15
■ Adjustments ____________________________________________________20
● Adjustments after Parts Replacement __________________________20
● Note on the Servicing ______________________________________20
■ Optical Adjustments______________________________________________21
■ Electrical Adjustments ____________________________________________25
● Service Adjustment Menu Operation____________________________25
● Circuit Adjustments ________________________________________26
● Test Points and Locations ____________________________________32
● Service Adjustment Data Table ________________________________33
■ Chassis Block Diagrams __________________________________________42
Chassis over view ____________________________________________42
Inputs & video signal processing stage____________________________43
LCD panel driving stage ______________________________________44
Audio signal processing circuit __________________________________45
System controls______________________________________________46
Power supply & protection circuit ________________________________47
Motor drive circuit ____________________________________________48
Principle of operation for Auto-Focus and Auto-Keystone Correction ____49
■ Troubleshooting ________________________________________________51
No Power __________________________________________________51
No Picture __________________________________________________52
Motor problems ______________________________________________54
No Sound __________________________________________________54
■ Control Port Functions ____________________________________________55
■ Cleaning ______________________________________________________62
■ IC Block Diagrams ____________________________________________63-68
■Service Parts List ____________________________________________69-102
Electrical Parts List ________________________________________69-96
Mechanical Parts List ______________________________________97-102
Drawings & Diagrams
■Parts description and reading in schematic diagram____________________ A2
■Schematic diagrams ________________________________________ A3-A10
■Printed wiring board diagrams ________________________________ A11-A14
■Pins description of ICs, transistors, diodes __________________________ A15

-3-

■Safety Instructions

WARNING:

The chassis of this projector is isolated (COLD) from AC line by using the converter transformer. Primary side of

the converter and lamp power supply unit circuit is connected to the AC line and it is hot, which hot circuit is iden-

tified with the line ( ) in the schematic diagram. For continued product safety and protection of personnel

injury, servicing should be made with qualified personnel.

The following precautions must be observed.

SAFETY PRECAUTIONS

1: An isolation transformer should be connected in the

power line between the projector and the AC line

before any service is performed on the projector.

2: Comply with all caution and safety-related notes pro-

vided on the cabinet back, cabinet bottom, inside the

cabinet or on the chassis.

3: When replacing a chassis in the cabinet, always be

certain that all the protective devices are installed

properly, such as, control knobs, adjustment covers

or shields, barriers, etc.

DO NOT OPERATE THIS PROJECTOR WITHOUT

THE PROTECTIVE SHIELD IN POSITION AND

PROPERLY SECURED.

4: Before replacing the cabinet cover, thoroughly

inspect the inside of the cabinet to see that no stray

parts or tools have been left inside.

Before returning any projector to the customer, the

service personnel must be sure it is completely safe to

operate without danger of electric shock.

SERVICE PERSONNEL WARNING

Eye damage may result from directly viewing the light produced by the Lamp used in this equipment. Always turn

off Lamp before opening cover. The Ultraviolet radiation eye protection required during this servicing.

Never turn the power on without the lamp to avoid electric-shock or damage of the devices since the stabilizer

generates high voltages(15kV - 25kV) at its starts.

Since the lamp is very high temperature during units operation replacement of the lamp should be done at least

45 minutes after the power has been turned off, to allow the lamp cool-off.

PRODUCT SAFETY NOTICE

Product safety should be considered when a component replacement is made in any area of the projector.

Components indicated by mark !in the parts list and the schematic diagram designate components in which

safety can be of special significance.It is, therefore, particularly recommended that the replacement of there parts

must be made by exactly the same parts.

DO NOT ATTEMPTTO SERVICING THE REMOTE CONTROL UNIT.

Laser Beam may be leaked out when in disassemble the Unit.As the Laser Beam used

in this Remote control unit is harmful to the eyes.

-4-

■Specifications

This symbol on the nameplate means the product is Listed by Underwriters

Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety stan-

dards against risk of fire, casualty and electrical hazards.

PLC-XC10/PLC-XU60

Owner’s Manual

AC Power Cord

Remote Control and Batteries

DVI-VGA Cable

USB Cable

Protective Dust Cover

Lens Cover

String for Lens Cover

0.99" TFT Active Matrix type, 3 panels

Multi-media Projector

12.8 lbs (5.8 kg)

15.35" x 4.4" x 10.79" (390mm x 112mm x 274mm)

(not including raised portions)

1,024 x 768 dots

2,359,296 (1,024 x 768 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz

Adjustable from 31” to 300”

1 speaker, ø1.1" (28mm)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Projector Type

Net Weight

Dimensions (W x H x D)

Panel Resolution

Number of Pixels

Color System

Scanning Frequency

Projection Image size (Diagonal)

Built-in Speaker

Operating Temperature

Storage Temperature

Accessories

LCD Panel System

●The specifications are subject to change without notice.

F 1.7 ~ 2.1 lens with f 33.6 mm ~ 43.2 mm with manual zoom and focus

4.3’ ~ 33.1’ (1.3 m ~ 10.1 m)

300 W

RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)

Projection Lens

Throw Distance

Projection Lamp

Video Input Jacks

RCA Type x 2 (R and L)

Audio Input Jacks

DVI-I Terminal (Digital/Analog) (HDCP compatible)

Mini Jack (stereo) x 2

Mini DIN 8 pin x 1

Mini Jack (stereo) x 1 (variable with volume)

1.0 W RMS

Computer Input 1 Terminal

Computer Audio Input Jacks (1 and 2)

Service Port Connector

Audio Output Jack

Internal Audio Amp

0˚ to 10.3˚

Feet Adjustment

Power Source : AA, UM3 or R06 Type x 2

Operating Range : 16.4’ (5m) / ±30˚

Dimensions : 2.0”(W) x 1.0”(H) x 7.1”(D) (50mm x 27mm x 181mm)

Net Weight : 0.34 lbs (154 g) (including batteries)

Laser Pointer : Class II Laser (Max. Output : 1mW / Wave length : 640

660nm)

Remote Control

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

High Definition TV Signal

USB Type A x 1 (for Security) and USB Type B x 1 (for Mouse control)

USB Connector

AC 100 ~ 120 V (5.0 A Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)

AC 200 ~ 240 V (2.5 A Max. Ampere), 50 / 60 Hz

(Continental Europe and The U.K.)

Voltage and

Power Consumption

Computer Input 2 / Monitor Output

Te rminal

(VGA) HDB 15 Terminal x 1 (switch to use this terminal)

●LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a

tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

●The On-Screen Menu and figures in this manual may differ slightly from the product.

PLC-SC10/PLC-SU60

Model No.

800 x 600 dots

1,440,000 (800 x 600 x 3 panels)

H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz

●Lamp cover switch

The lamp cover switch (SW902) cuts off the drive signal to the

lamp circuit when the lamp cover is removed or not closed com-

pletely. After opening the lamp cover for replacing the lamp ass’y,

place the lamp cover correctly otherwise the projector can not

turn on.

●Thermal switch

There is the thermal switch (SW905) inside of the projector to

detect the internal temperature rising abnormally. When the inter-

nal temperature reaches near 100˚C, it cuts off the AC main

power supply .

The thermal switch cannot be reset itself automatically even if the

internal temperature becomes normal. Reset the thermal switch

following to the below procedure.

How to reset the thermal switch

1. Remove the lamp cover.

2. Insert the sharp tool like a screwdriver into a hole on the cabi-

net

3. Press the reset button on the thermal switch with the screw-

driver.

CAUTION:

Before press the reset button, make sure that the AC cord must

be disconnected from the AC outlet.

This projector provides the following circuit protections to operate in safety. If the abnormality occurs inside the pro-

jector, it will automatically turn off by operating one of the following protection circuits.

●Fuse

A fuse is located inside of the projector.When the POWER indica-

tor is not lightning, the fuse may be opened. Check the fuse as fol-

lowing steps.

The fuse should be used with the following type;

Fuse replacing steps

1. Remove the cabinet top following to “Mechanical

Disassemblies”.

2. Replace the new one with the specified type.

FUSE PART NO. : 645 058 8181

TYPE 8A 250V FUSE

SKYGATE CO. LTD.TYPE SG-5013 008

-5-

Thermal switch (SW905)

Fuse

■Circuit Protections

Lamp cover switch (SW902)

-6-

Circuit Protections

●Warning temperature and power failure protection

The projector will be automatically turned off when the internal temperature of the projector is abnormally high, or

the cooling fans stop spinning, or the power supplies in the projector are failed.

- If the WARNING indicator is flashing, it may detect the abnormal temperature inside the projector. Check the fol-

lowing possible causes and wait until the WARNING indicator stops flashing, and then try to turn on the projector.

- If the WARNING indicator lights red, it may defect the cooling fans or power supply circuits. Check fans operation

and power supply lines referring to the chapter “Power supply & protection circuit” in the Chassis Block Diagram

section.

Possible causes

- Air filters are clogged with dust particles. Remove dust from the air filters by following instructions in the “Air filter

care and cleaning” below.

- Ventilation slots of the projector are blocked. In such an event, reposition the projector so that ventilation slots are

not obstructed.

- Check if projector is used at higher temperature place (Normal operating temperature is 5 to 35 ˚C or 41 to 95˚F)

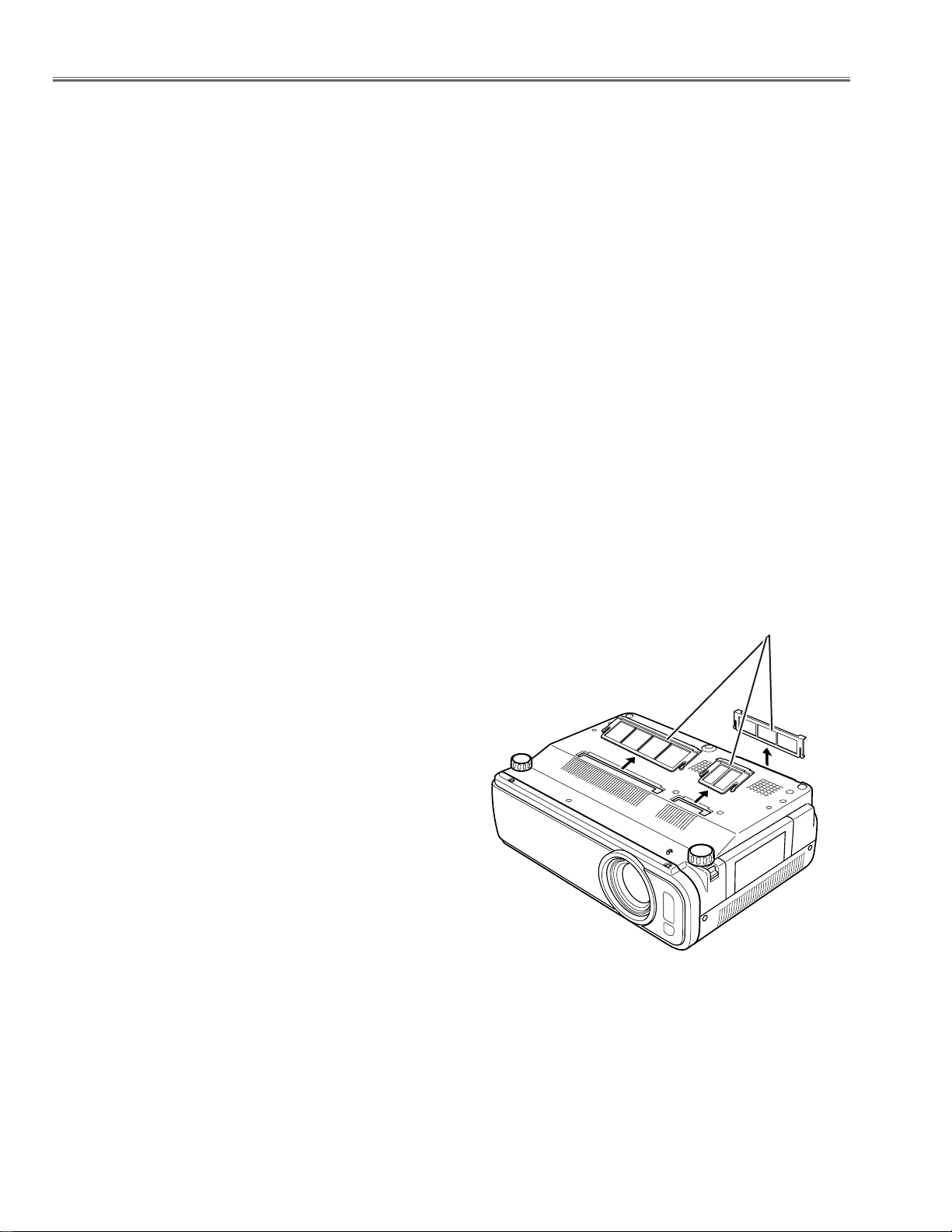

Air filter care and cleaning

The removable air filter prevents dust from accumulation on the surface of the projection lens and projection mirror.

Should the air filter become clogged with dust particles, it will reduce the cooling fan’s effectiveness and may result

in internal heat build up and reduce the life of the projector.

To clean up the air filters, follow the cleaning procedure

below:

1. Turn the power off, and disconnect the AC power cord

from the AC outlet.

2. Turn the projector up side down and remove air filters

by pulling the latches of it upward.

3. Clean the air filters with brush or wash out the dust and

particles.

4. Replace the air filters properly. Make sure that the air fil-

ters are fully inserted.

CAUTION:

Do not operate the projector with the air filters removed.

Dust may accumulate on the LCD panel and the projection

mirror degrading picture quality.

Do not put small parts into the air intake vents. It may result

in malfunction of the projector.

RECOMMENDATION

We recommend not to use the projector in dusty, smoky places. Using it in dusty place may cause the poor picture

quality.

When using under the dusty or smoky conditions, dust may accumulate on the LCD panel and lens inside it, and

may resultantly be projected on the screen together with the picture.

When the above symptoms are noticed, please clean up the LCD panel and lens following to the “Cleaning

Method”.

Air filter

-7-

■Lamp Replacement

WARNING:

- For continued safety, replace with a lamp assembly of the same

type.

- Allow the projector to cool for at least 45 minutes before you open

the lamp cover. The inside of the projector can become very hot.

- Do not drop the lamp module or touch the glass bulb! The glass can

shatter and cause injury.

Procedure

1Turn off the projector and disconnect the AC cord. Allow the projector

to cool for at least 45 minutes.

2Insert a coin into a groove of the lamp cover and press the driver and

lift up the lamp cover as shown in the figure.

3Loosen 2 screws and pull out the lamp assembly by grasping the

handle.

4Replace the lamp with a new one and tighten the 2 screws back into

position. Make sure that the lamp is set properly. Replace the lamp

cover.

5Connect the AC cord to the projector and turn on.

6Reset the Lamp Replace Counter, see below explanation.

Note:

- The projector cannot be turned-on with lamp cover removed,

because when the lamp cover is removed, the lamp cover switch is

also released to switch off the lamp circuit.

1Turn the projector on, press the MENU button and the

On-Screen Menu will appear. Press the Point

Left/Right button to move the red frame pointer to the

Setting Menu icon.

2Press the Point Down button to move the red frame

pointer to the Lamp counter reset item and then press

the SELECT button. The message "Lamp replace

counter Reset?" is displayed. Move the pointer to

[Yes] and then press the SELECT button.

3Another confirmation dialog box appears and select

[Yes] to reset the Lamp replace counter.

Recommendation

Should the air filter become clogged with dust particles,

it will reduce the cooling fan’s effectiveness and may

result in internal heat build up and short lamp life. We

recommend cleaning the air filter after the projection

lamp is replaced.

Refer to “Air Filter Cleaning”.

How to reset Lamp Replace Counter

ORDER REPLACEMENT LAMP

Type No.Service Parts No.

POA-LMP68 610 308 1786

Lamp

Lamp Cover

Screw Handle

The LAMP REPLACE indicator will light yellow when

the total lamp used time reaches 1500 hours.This is

to indicate that lamp replacement is required.

You can check the lamp used time following to the

below procedure.

1Press and hold the POWER ON-OFF button on the

projector for more than 20 seconds.

2 The projector used time and lamp used time will be

displayed on the screen briefly as follows.

Counter

Projector 1525H

Lamp 375H

Lamp used time

How to check Lamp used time

Projector used time

Fig.1-1

Screws Expression

(Type Diameter x Length) mm

T type M Type

-8-

1Remove 5 screws A(M3x8) and pull the Cabinet Top upward off.

zCabinet Top, FN901 removal

■Mechanical Disassemblies

Mechanical disassemble should be made following procedures in numerical order.

Following steps show the basic procedures, therefore unnecessary step may be ignored.

Caution:

The parts and screws should be placed exactly the same position as the original otherwise it may cause loss of

performance and product safety.

Lamp Cover removal

Insert a coin into a grove of the lamp cover and push the

drive in arrow direction and pull up the lamp cover upward

as shown in the figure below.

Fig.1-2

* Pay attention not to spoil the cab-

inet by turning the coin or driver.

* When the cabinet top or lamp cover is removed,

the lamp cover switch is turned off. When turning

on the projector for servicing or adjusting, it is

required to keep turning on the lamp cover switch.

Lamp Cover SW

-9-

Mechanical Disassemblies

1Remove 8 screws A (M3x6) and disconnect terminals on the Main Board.

2Remove the Main board upward off.

xMain Board removal

Main Board

Fig.2

1Remove 2 screws A (M3x6) and 1 screw B (M4x8)

and then pull the rear panel ass'y upward.

2Remove 5 screws C(T3x8) and remove the AV board,

remove 6 screws D (T3x8) and remove the COM

board.

cAV&COM Board removal

Fig.3

AV Board COM Board

1Remove 3 screws A(M3x6), 2 screws B(M3x8) and remove the cabinet

front ass'y.

2Remove 1 screw C(T3x8) and remove the RC Front board.

3Remove 3 screws D(T3x8) and remove the Passive sensor unit.

-10-

Mechanical Disassemblies

Fig.5

bCabinet Front removal

1Remove 3 screws A(T3x8) and pull the fan

& filter ass'y upward.

2Remove 4 screws B(T3x8) and remove the

Filter board.

3 Remove 1 screw C(T3x8) and remove the

Lamp Cover SW Board.

4Remove 4 screws D(T3x22) and remove the

fan "FN904" and cover.

5Remove 2 screws E(M3x4) and remove the

thermal switch "SW905".

Fig.4

vFans & Filter Board removal

FN904

Filter Board

Cover sw Board

DEE

SW905

RC Board

Passive sensor

Note:

After replacing the front panel or passive

sensor, the passive sensor offset adjust-

ment must be done otherwise the auto-

setup function does not operate properly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sanyo Projecteur

Sanyo

Sanyo WXU10 - PLC WXGA LCD Projector Manuel utilisateur

Sanyo

Sanyo PLC-XT25 Manuel utilisateur

Sanyo

Sanyo PLC-WXU30 Manuel d'installation

Sanyo

Sanyo PLC-EF1EA Manuel utilisateur

Sanyo

Sanyo PLC HF15000L Manuel utilisateur

Sanyo

Sanyo PLC-XP51 Manuel utilisateur

Sanyo

Sanyo PLC-XTC50L Manuel utilisateur

Sanyo

Sanyo PLC-SU20N Manuel utilisateur

Sanyo

Sanyo PLC-XU50 Manuel utilisateur

Sanyo

Sanyo PLC-XW250 - 2600 Lumens Manuel utilisateur

Sanyo

Sanyo PLC-XF30NL Manuel utilisateur

Sanyo

Sanyo PLC-WM5500/L - 5500 Lumens Manuel utilisateur

Sanyo

Sanyo PLC-EF10N - SXGA LCD Projector Manuel utilisateur

Sanyo

Sanyo SU30 - PLC SVGA LCD Projector Manuel utilisateur

Sanyo

Sanyo PLC-XU4000 Manuel utilisateur

Sanyo

Sanyo PLC-8800E Manuel utilisateur

Sanyo

Sanyo PLC-HP7000L Manuel utilisateur

Sanyo

Sanyo PLC-SW10 Manuel utilisateur

Sanyo

Sanyo PLC-WL2503 - 2500 Lumens Manuel utilisateur

Sanyo

Sanyo PDG-DWL100 - WXGA DLP Projector Manuel utilisateur

Sanyo

Sanyo PLC-XE33 Manuel utilisateur

Sanyo

Sanyo PLC-WR251 - True WXGA Projector Manuel utilisateur

Sanyo

Sanyo PLC-WXU700A Manuel utilisateur

Sanyo

Sanyo PLV-Z1X Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
