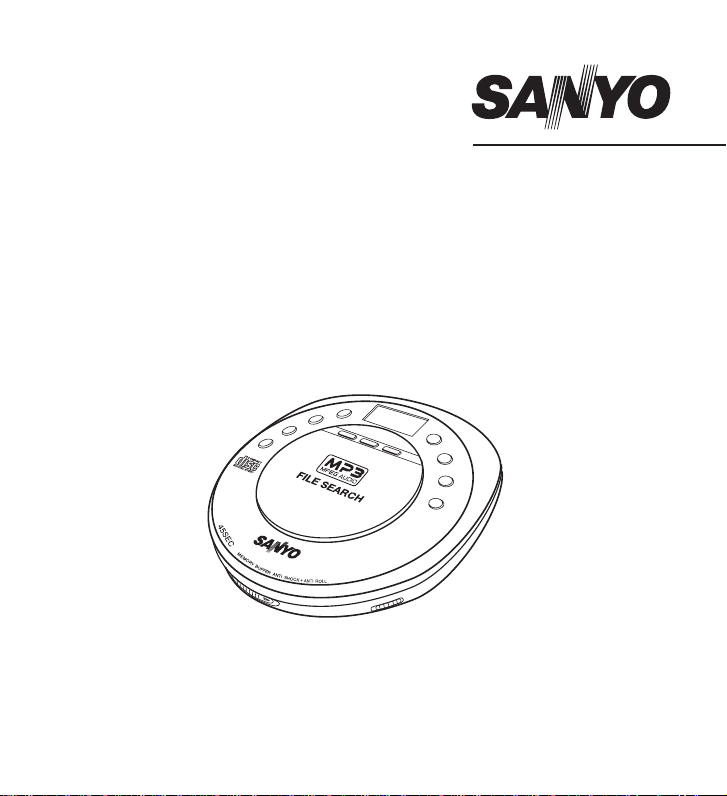

INSTRUCTION MANUAL CDP-MT500
Compact Disc Player with
MP3 Decoder
CDP-MT500/AU 6/24/04, 5:38 PM1
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
1
PRECAUTIONS
CAUTION
USE OF CONTROLS ORADJUSTMENT OR PERFORMANCE OF PRO-
CEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
THIS PRODUCT SHOULD NOTBEADJUSTED OR REPAIRED BYANY-
ONE EXCEPT QUALIFIED SERVICE PERSONNEL.
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITTAUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JASUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
CDP-MT500/AU 6/24/04, 5:38 PM2
2
• Do not use where there are extremes
of temperature (below 5°C or exceed-
ing 35°C).
• Sudden changes in the ambient tem-
perature may cause condensation to
form on the optical lens inside the unit.
If this happens, take out the disc, leave
the unit for about 1 hour, and then
proceed to operate.
• Do not insert pins, etc., inside the unit.
This unit is equipped with a safety
device which automatically turns the
laser beam off when the disc compart-
ment is opened. If a pin or other metal
object should get inside the unit, how-
ever, this safety device may be
deactivated.
• High volume levels can create poten-
tially dangerous situations by drown-
ing out surrounding sounds. Use cau-
tion when driving while operating the
unit, and obey all applicable laws.
Do not play your headset at a high
volume level. Hearing experts advise
against continuous extended play.
If you experience a ringing in your
ears, reduce the volume or discon-
tinue use.
• Do not use while bicycling, running or
operating a motorized vehicle.
• The rating label is located on the bot-
tom of the unit.
• The apparatus shall not be exposed to
dripping or splashing.
CDP-MT500/AU 6/24/04, 5:38 PM3
3
CONTROLS
1. Disc compartment
2. Function switch (FUNCTION)
3. Open switch (OPEN)
4. Hold switch (HOLD)
5. Bass expander switch (DBBS)
6. Volume control (VOLUME)
7. Headphones socket (PHONES)
8. Line output socket (LINE OUT)
9. Mode/bbutton (MODE/ b)
10. Resume/abutton (RESUME/ a)
11. Enter/Clear button (ENTER/CLEAR)
12. Programme/Memory button
(PROG/MEMORY)
13. Preset tuning down/ pbutton
(PRESET DOWN/ p)
14. Display
15. Anti roiling shock/Band select/Menu
button (ASR/BAND/MENU)
16. Preset tuning up/ obutton
(PRESET UP/ o)
17. Search/Skip/Tuning down button
(SKIP/TUN -/ f)
18. External DC socket (DC IN 4.5V)
19. Search/Skip/Tuning up button
(SKIP/TUN +/ e)
20. Power off function/Stop button
(POWER OFF/ n)
21. Power on function/Play/Pause button
(POWER ON/ i )
22. Battery compartment lid (back panel)
1
3
456
7
10
11
12
14 18 20
16
1513 17 19
82
22
21
9
CDP-MT500/AU 6/24/04, 5:38 PM4
4
The buttons on the remote control function in the same way as the corresponding buttons
on the unit.
1. Search/Skip/Tuning down button ( f)
2. Search/Skip/Tuning up button ( e)
3. Volume control (VOLUME)
4. Play/Pause button (PLAY/PAUSE ak)
5. Stop button (STOP n)
12 4 5
3
CDP-MT500/AU 6/24/04, 5:38 PM5
POWER SUPPLY
AC adaptor
Plug one end of the AC adaptor into the DC IN 4.5V socket, then plug the other end into an
AC outlet.
• Use only the supplied AC adaptor
• If the AC adaptor is connected. The power supply automatically switches to the AC
power source and the installed batteries are disconnected.
Alkaline batteries
Install two “ AA” batteries (not supplied) as shown below. Observe proper polarity.
Battery replacement
If the rechargeable battery or alkaline batteries are weak and discharged, “Low Battery”
appears on the display, then the power automatically turns off. If this occurs, replace the
alkaline batteries.
• Dispose of all used batteries safety and in accordance with all applicable laws.
Note:
When you are not going to use the unit for one month or more, take the batteries out of the
battery compartment.
5
CDP-MT500/AU 6/24/04, 5:38 PM6
6
REMOTE CONTROL AND HANDPHONES
CONNECTIONS
• Be sure to reduce the volume before connecting or disconnecting the headphones.
Connect the remote control/headphones or headphones to the PHONES socket.
or
CDP-MT500/AU 6/24/04, 5:38 PM7
7
This unit can play back the CD-R/RW that has recorded music data or MP3 files.
Before playing back Music CD or MP3 CD, please read the following.
• MP3 CD is the disc that standardized by ISO9660, its file name must include 3-digits
extension letters, “mp3”.
• The directory and file names of the MP3 CD must be corresponded to the ISO stan-
dardized files.
• Single-session disc can be played back.
• Some multi-session discs and mixed discs cannot be played back depending on the
recording condition.
• This unit can recognize up to 99 folders or 300 files per disc.
The CD with 99 folders or 300 files and over is not available to this unit.
And if CD has a long file name, this unit can’t recognize up to 300 files.
• This unit can recognize up to 8 directory trees per disc.
• MP3 CD may not be played in the recorded order.
• Music section in “CD Extra” can be played back, not Data section.
• Music files recorded by “Packet Writing” cannot be played back.
Notes on disc writing method
When you make MP3 CD by using your PC, set 44.1 kHz of sampling frequency.
There are three basic methods for writing to a CD: “Track-at-Once”, “Disc-at-Once”, and
“Packet Writing”.
Music files recorded by “Track-at-Once” or “Disc-at-Once” can be played back on this unit.
(Note: The unit cannot play back the music files added with “Track-at-Once”.)
Music files recorded by “Packet Writing” cannot be played back.
INFORMATION
CDP-MT500/AU 6/24/04, 5:38 PM8
8
MP3 CD directory sample:
Playback order: song01 xsong02 x… song14
Folder number 01
MP3 CD There is no MP3 file. The unit skips it.
song01.mp3
song02.mp3
song03.mp3
song04.mp3
song05.mp3
douc01.doc
song06.mp3
song07.mp3
song08.mp3
song09.mp3
song10.mp3
song11.mp3
song12.mp3
02 album02 03 album04
song13.mp3
song14.mp3
04 album03
CAUTION:
• Some MP3 CDs can not be played back depending on the recording conditions.
• The CD-R/RW that has no music data or non-MP3 files can not be played back.
• Do not make an empty folder. It may not work correctly.
01 album01
CDP-MT500/AU 6/24/04, 5:38 PM9
9
BEFORE OPERATION
Note:
• Press the MENU/ASR button to turn the anti rolling shock function off. “AS” disappears.
Press the button again to turn it on.
• Sound may skip or mute for a few seconds when you press the ASR button during
play.
• Playing may stop when the unit gets strong shock even when the anti rolling shock
function is on.
• When playing back MP3 CD, this function always works even if “AS” doesn’t appear.
(The function is not cancelled by pressing the ASR button.)
Anti rolling shock function
In the previous anti-shock function, when skips occurred while available memory runs out,
then the sound would suffer some interruption.
The new anti rolling shock function is designed to prevent skipping to the greatest extent
possible instead of supplementing the skipped portion of the sound.
This is achieved by expanding the memory capacity, and in addition full attention has been
given also to increasing the unit's signal reading capability.
Moreover, consideration has been given to eliminating the basic causes of skipping, both
from the standpoint of horizontal shock and vertical shock.
Use this function when listening during walk or playing in a car.
When the POWER ON/ ibutton is pressed first time, the anti rolling shock function turns
on automatically. “AS” blinks on the display. Then “AS” stop blinks when the buffer memory
is full of next 45 seconds music data.
CDP-MT500/AU 6/24/04, 5:38 PM10
