Sanus Systems VisionMount VMPL2 Manuel utilisateur

Sanus Systems 2221 Hwy 36 West, St Paul, MN 55113 USA •

USA Customer Service 1-800-359-5520 • www.sanus.com

VMPL2

Do not use this product for any purpose not explicitly speciﬁed by Sanus Systems.

Improper installation or use may cause personal injury and/or property damage. If

you do not understand these instructions, or if you have doubts about the safety of

the installation, contact Sanus Systems Customer Service. Sanus Systems is not liable

for injury or damage caused by incorrect installation or use.

CAUTION

This product contains small items that could be a choking hazard if swallowed.

Keep these items away from young children!

WARNING

Thank you for choosing the Sanus Systems Vision Mount wall mount. The Sanus Systems

VMPL2 wall mount is designed to support a monitor weighing up to 79 kg (175 lbs)

to a vertical wall either flat or at a fixed 5 degree tilt.Hardware for multiple mounting

configurations is included.

OPT

Hardware and procedures for multiple mounting configurations are included.

When you see this symbol, choose the correct configuration to suit your

needs. Not all hardware included will be used.

This product is not designed for use in steel stud walls or old cinder block walls. The

wall must be capable of supporting up to ﬁve times the weight of the monitor and

mount combined. If you are uncertain about the nature of your wall or its ability

to support the monitor, contact Sanus Systems Customer Service, or a qualiﬁed

contractor.

CAUTION

(6901-100135 <01>)

6901-100135 <01>

Supplied Parts and Hardware

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item

to your dealer; contact Sanus Systems Customer Service. Never use damaged parts!

3/16 in.

[04] x 4

[08] x 4

M8 x 16 mm

[19] x 8

M4 / M5

[02] x 1

[09] x 4

M4 x 30mm

[03] x 2

[10] x 4

[11] x 4

M6 x 35mm

[12] x 4

M8 x 40mm

[13] x 4

[17] x 4

M4 / M5

[14] x 4

[07] x 4

M6 x 12mm

[06] x 4

[05] x 4

[15] x 4

[16] x 4

[22] x 6 [23] x 6

[18] x 4

M6 / M8

[20] x 4

M6 / M8

[21] x 6

[24] x 4

[25] x 4

[01] x 1

1/2 in.

M4 x 12mm

M5 x 12mm

M5 x 30mm

6901-100135 <01>

1: Mount Monitor Brackets

Television, Curved Back or Obstruction

Television, Flat Back

[03]

[17, 18]

[19]

[13, 14,

15, 16]

[20, 21]

[09, 10,

11, 12]

[03]

[19, 20]

[05, 06,

07, 08]

[13, 14,

15, 16]

6901-100135 <01>

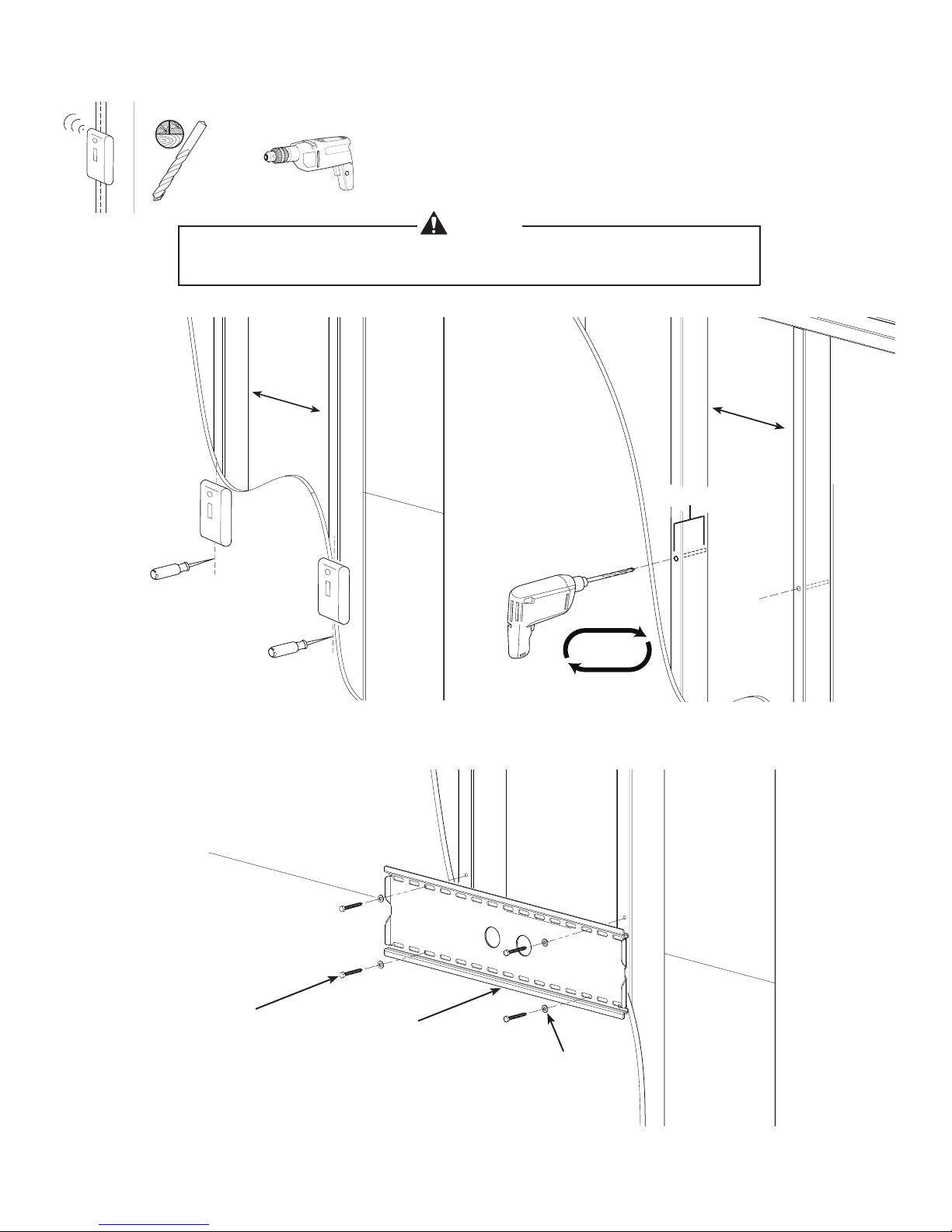

2: Mount the Wall Plate

Wood Stud

3/16 in.

Do not overtighten the Lag Bolts. Tighten Lag Bolts [21] only until the Lag Bolt

Washer [22] is pulled ﬁrmly against the Wall Plate [01].

CAUTION

12”- 24”

64 mm (2-1/2 in.)

12”- 24”

[01]

[21]

[22]

6901-100135 <01>

Brick, Solid concrete and Concrete Block Mounting

3: Choose Mounting Position

1/2 in.

”

6”

64 mm (2-1/2 in.)

To prevent property damage or personal injury, never drill into mortar between

blocks and make sure Concrete Anchor [23] is seated ﬂush with concrete surface.

The drywall or other covering may not exceed 16 mm (5/8 in.) in thickness.

CAUTION

OPT

[04]

[25]

[24]

[23]

[21]

[22]

6901-100135 <01>

4: Hang TV Onto Wall Plate

Insert Safety Bar

CSAV, Inc. and its afliated corporations and subsidiaries (collectively, “CSAV”), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein

covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to

change without notice or obligation of any kind. CSAV makes no representation of warranty, expressed or implied, regarding the information contained herein. CSAV assumes no responsibility for accuracy,

completeness or sufciency of the information contained in this document.

OPT

[02]
