Samsung SR8845 Manuel utilisateur

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service,

please register your product at

www.samsung.com/register

Robotic Vacuum Cleaner

User Manual

✻Before operating this unit, please read the instructions carefully.

✻For indoor use only.

English

SR8845

DJ68-00518G(SR8845)(EN)-0.0.indd 1 2010.2.9 2:50:44 PM

2_ Safety information

Safety information

CAUTION/WARNING SYMBOLS USED

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

NOTE

Explains terms to help users understand how use the product properly.

SAFETY INFORMATION

• Before operating the appliance, please read this manual thoroughly and retain

it for your reference.

• Because these following operating instructions cover various models, the

characteristics of your vacuum cleaner may differ slightly from those described

in this manual.

WARNING

DJ68-00518G(SR8845)(EN)-0.0.indd 2 2010.2.9 2:50:45 PM

Safety information _3

Safety information

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the

following:

READ ALL INSTRUCTIONS BEFORE USING YOUR ROBOTIC VACUUM CLEANER.

Unplug from outlet when not in use and before conducting maintenance.

WARNING: to reduce the risk of ﬁre, electric shock, or injury:

GENERAL

• Use only as described in this manual.

•

Do not operate the robotic vacuum cleaner or charger if it has been damaged in any way.

• If the cleaner is not working as it should, has been dropped, damaged, left outdoors,

or dropped in water, return it to a customer care center.

• Do not handle the charger or robotic vacuum cleaner with wet hands.

• Use only on dry, indoor surfaces.

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

BATTERY CHARGER

• Do not modify the polarized plug to t a non-polarized outlet or extension cord.

• Do not use outdoors or on wet surfaces.

• Unplug the charger from the outlet when not in use and before servicing.

• Use only the charger supplied by the manufacturer to recharge.

• Do not use with a damaged cord or plug.

• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord,

or pull the cord around sharp edges or corners. Keep the cord away from heated

surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not mutilate or incinerate batteries as they will explode at high temperatures.

• Do not attempt to open the charger. Repairs should only be carried out by a qualied

customer care centre.

• Do not expose the charger to high temperatures or allow moisture or humidity of any

kind to come into contact with the charger.

DJ68-00518G(SR8845)(EN)-0.0.indd 3 2010.2.9 2:50:45 PM

4_ Safety information

Safety information

SAFETY INFORMATION

PRODUCT FEATURES

TROUBLESHOOTING

ASSEMBLING THE CLEANER

OPERATING THE CLEANER

MAINTAIN TOOLS AND FILTER

PRODUCT SPECIFICATION

ROBOTIC VACUUM CLEANER

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.

• Do not use without a lter in place. When servicing the unit, never put ngers or other

objects into the fan chamber in case the unit accidentally turns on.

• Do not put any objects into openings. Do not use with any openings blocked; keep

openings free of dust, lint, hair, and anything that may reduce air ﬂow.

• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or

hot ashes.

• Do not use to pick up ammable or combustible liquids such as gasoline, nor use on

areas where they may be present.

• Do not use robotic vacuum cleaner in an enclosed space lled with vapours given off

by oil based paint, paint thinner, moth proong substances, ammable dust, or other

explosive or toxic vapours.

• Leaks from battery cells can occur under extreme usage or temperature conditions.

If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes,

ﬂush them immediately with clean water for a minimum of 10 minutes. Seek medical

attention.

Save these instructions!

This vacuum cleaner is intended for household use only.

FOR RESIDENTS OF THE UNITED KINGDOM ONLY

If your appliance is tted with a nonrewireable BS 1363 plug it must not be used unless a 13 amp

(ASTA approved to BS 1362) fuse is tted in the carrier contained in the plug. If for any reason the

plug is cut off, it must be disposed of, as it is an electric shock hazard should it be inserted into a

13 amp socket.

DJ68-00518G(SR8845)(EN)-0.0.indd 4 2010.2.9 2:50:45 PM

Contents _5

Contents

SAFETY INFORMATION

06 Power related

07 Before use

10 In use

11 Cleaning and maintenance

PRODUCT FEATURES

13 Product Features

TROUBLESHOOTING

40 Checklist before svc calls

42 Troubleshooting for Error Codes

ASSEMBLING THE CLEANER

15 Components

16 Name of each part

OPERATING THE CLEANER

20 Installing robotic vacuum cleaner

20 Installation order

20 Turning the power switch on or off

21 Installing the charger

22 Charging

23 About the battery

24 Installing the VIRTUAL GUARD

26 Using robotic vacuum cleaner

26 Starting/stopping cleaning

27 Recharging

28 Auto cleaning

29 Spot cleaning

30 Max cleaning

31 Manual cleaning

32 Edge Cleaning

33 Scheduled Cleaning

MAINTAIN TOOLS AND FILTER

34 Cleaning robotic vacuum cleaner

Please keep the cleaning and maintenance methods in mind

34 Cleaning the sensor window and the camera

35 Cleaning the dust bin and the Filter

36 Cleaning the power brush

38 Cleaning the edge-cleaning side rotating brush

39 Cleaning the driving wheel

PRODUCT SPECIFICATION

43 Product specication

DJ68-00518G(SR8845)(EN)-0.0.indd 5 2010.2.9 2:50:45 PM

6_ Safety information

Safety information

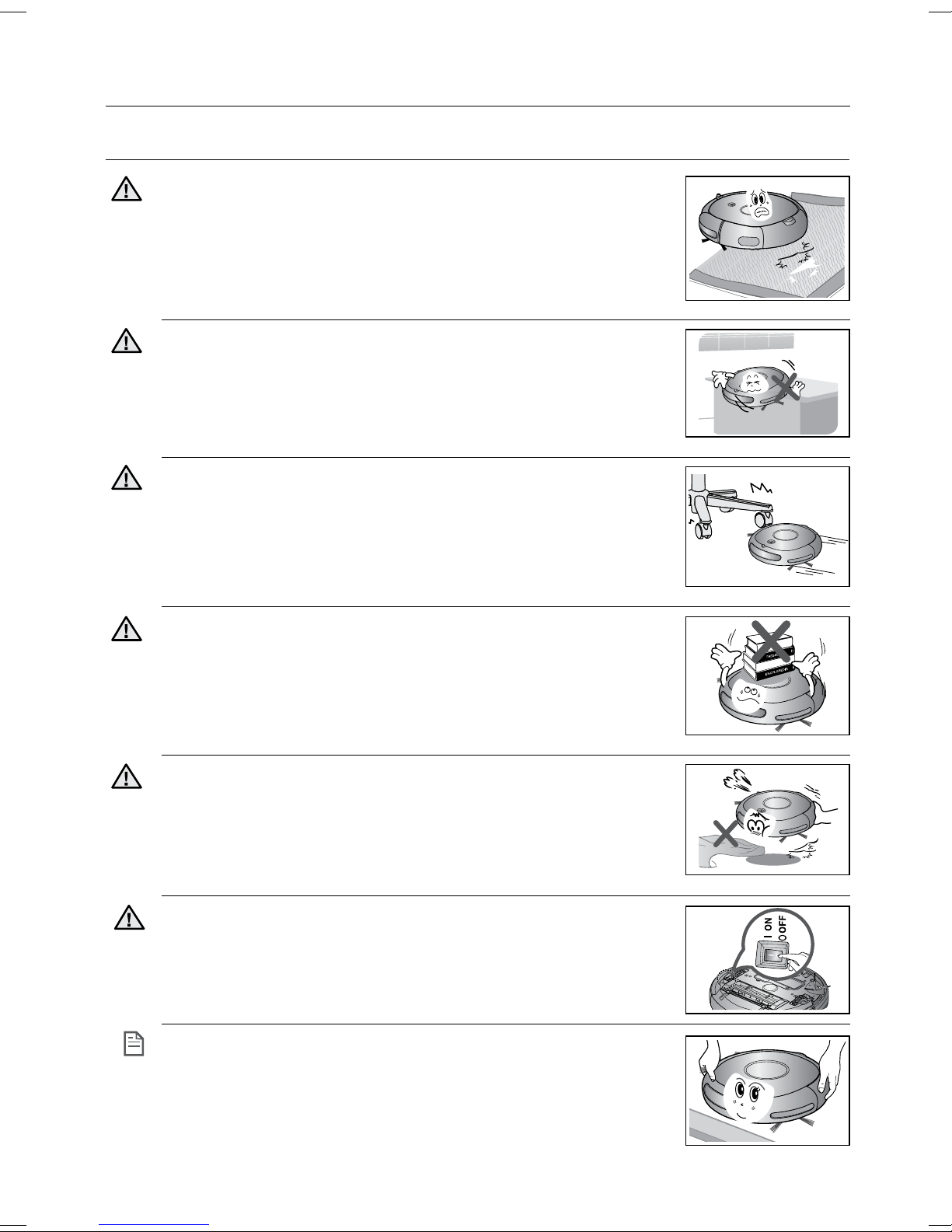

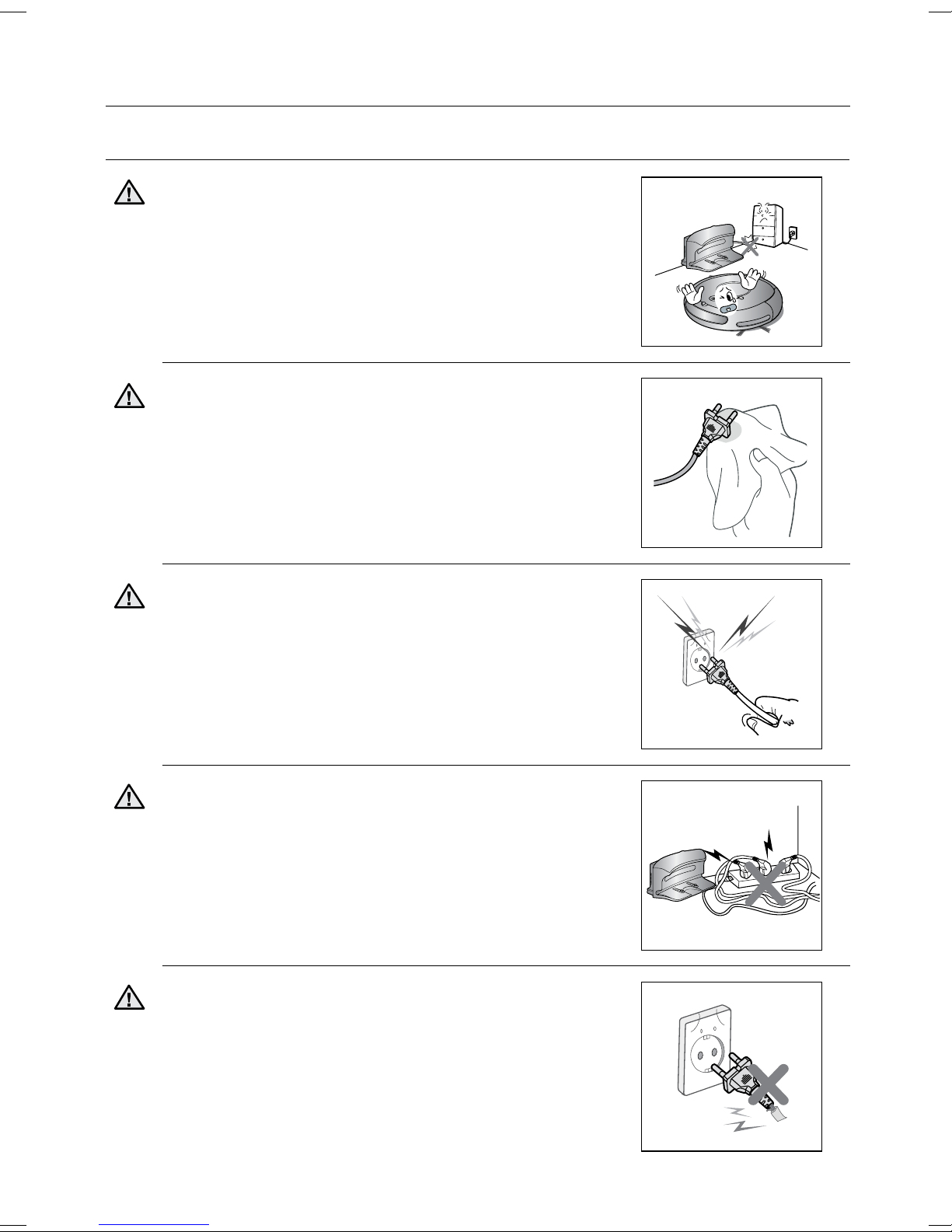

POWER RELATED

Do not bend the power cord forcefully or place a

heavy object on it that could break it.

- This may result in re or electric shock.

Do not use a damaged power cord, plug, or a loose

power outlet.

- This may result in re or electric shock.

Do not use multiple plugs in a single socket.

(Do not leave the cord lying exposed on the ﬂoor.)

- This may result in re or electric shock.

Do not pull the power plug by the cord or touch the

plug with wet hands.

- This may result in re or electric shock.

Make sure to remove any dust or water from the

power plug.

- Failing to do so may result in a malfunction or electric

shock.

WARNING

DJ68-00518G(SR8845)(EN)-0.0.indd 6 2010.2.9 2:50:47 PM

Safety information _7

Safety information

01 SAFETY INFORMATION

CAUTION

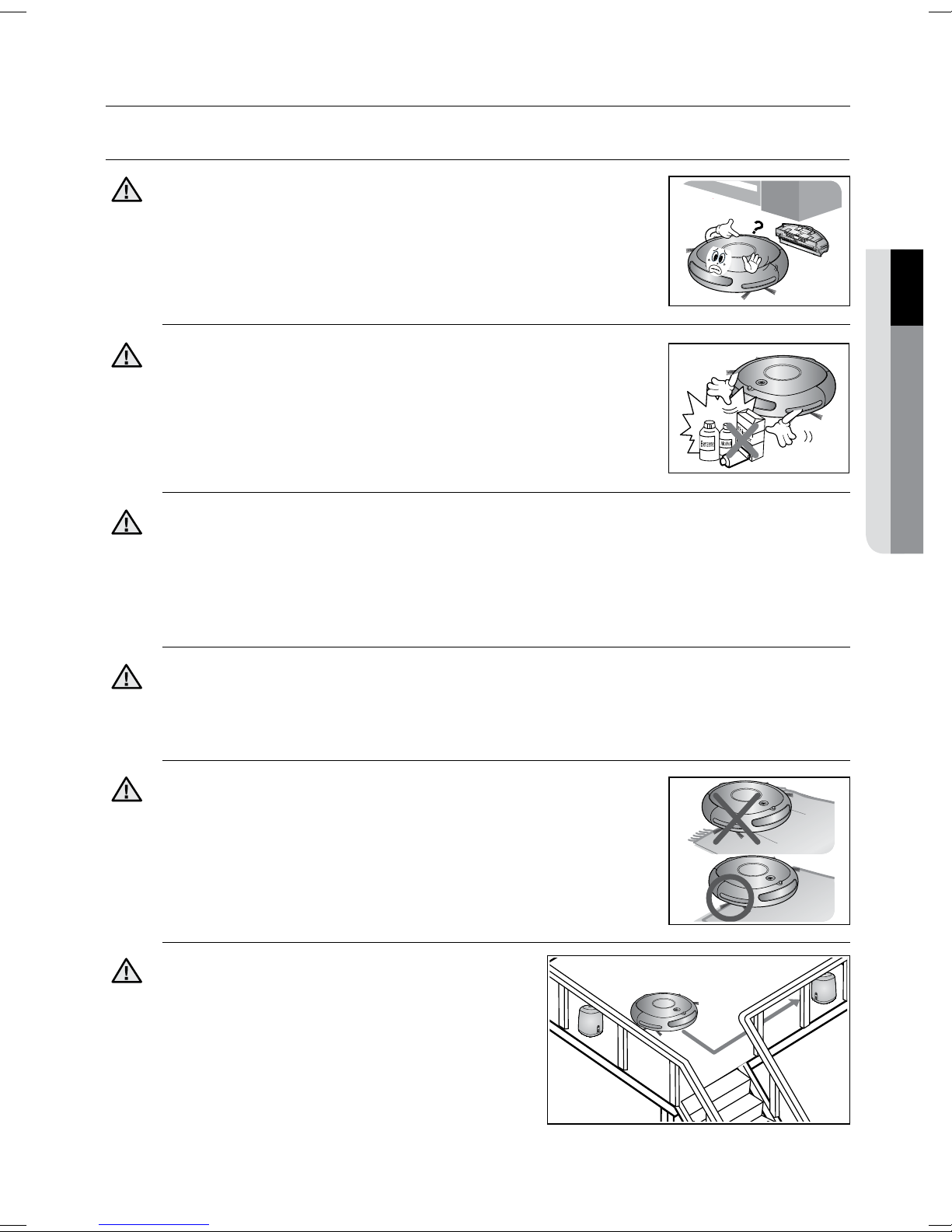

BEFORE USE

Before activating the robotic vacuum cleaner, make sure

that the dust bin is assembled.

- If the dust bin is not inserted, robotic vacuum cleaner will not

operate.

Never use robotic vacuum cleaner in locations with

combustible material such as:

- Locations with candles or desk lamps on the oor.

- Locations with unattended res (re or embers).

- Locations with gasoline, distilled alcohol, thinner, ashtrays

with burning cigarettes, etc.

Robotic vacuum cleaner is for domestic use only. Do not use it in the following

locations.

- Attics, basements, warehouses, industrial buildings, separate rooms distant from the

main building, locations exposed to wet or damp conditions such as bathrooms or

wash rooms, and narrow and highly situated locations such as tables or shelves. Critical

damage (abnormal operation and breakage) may occur when used in these locations.

Open all doors to clean all rooms.

- When a door is closed, the robotic vacuum cleaner will not be able to enter that room.

However, make sure to close the doors to the main entrance, the veranda and the

bathroom, and any other rooms where the robotic vacuum cleaner may fall to a lower ﬂoor.

For carpets with long tassels, fold the tassels under the

carpet.

- Unfolded tassels may result in critical damage to the carpet

and the machine itself, as they get caught in the driving wheel

or the power brush.

When the cliff sensor is polluted, the robotic

vacuum cleaner may be in danger of falling

down the stairs.

This may cause personal injury and critical

damage to the product.

To prevent risk, install the VIRTUAL GUARDs

(Fence Mode setting) in front of dagerous

areas. Clean the sensor window and camera.

DJ68-00518G(SR8845)(EN)-0.0.indd 7 2010.2.9 2:50:49 PM

8_ Safety information

Safety information

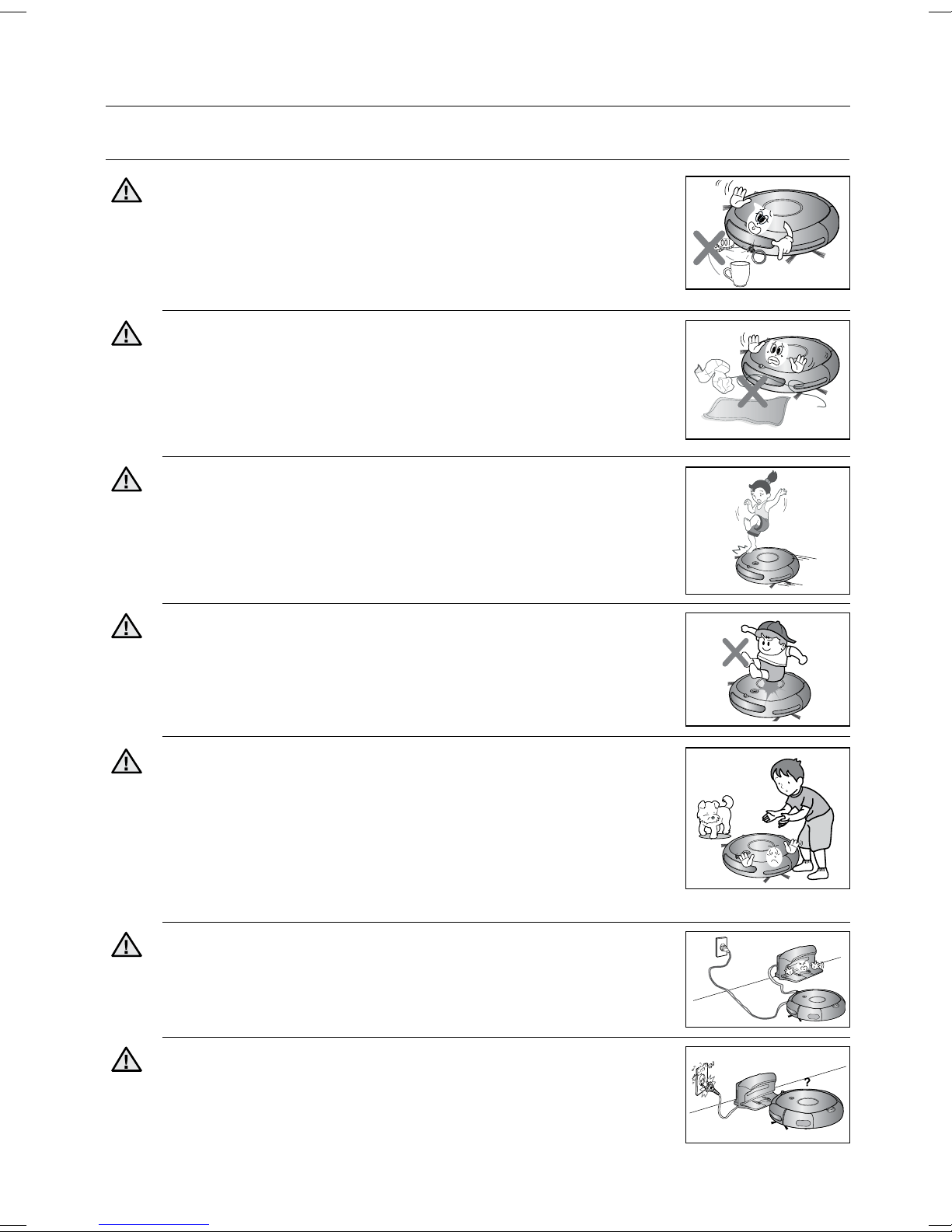

BEFORE USE

Remove objects scattered on the ﬂoor before cleaning.

Robotic vacuum cleaner is designed to detect obstacles 5cm away

from it.

- Bath towels, pads in front of bathrooms and sinks, entrances, utility

rooms, power cords, table cloths or belts can become entangled in

the driving wheel or power brush. This can cause objects to fall from

the table.

Remove small objects or brittle items from the area to be

cleaned in advance.

- Make sure to clear any objects before cleaning.

- Make sure to remove fragile items such as china, glass objects,

ﬂowerpots, etc.

- Robotic vacuum cleaner does not recognize coins, rings or other

valuable items such as jewelry.

Inform all family members (or relevant parties) to be cautious

before cleaning or when using the Scheduled Cleaning Mode.

- Robotic vacuum cleaner may run into children, causing them to fall.

Ensure that children do not step or sit on the robotic vacuum.

- Children may fall and injure themselves or critical damage may occur

to the product.

When a child or pet is left alone, make sure to turn off the

Power Switch of the robotic vacuum cleaner.

- Robotic vacuum cleaner may attract their attention.

- When the rotating wheel or brush catches ngers, feet, clothing or hair,

this may result in injury.

- If a child or pet is in the way of the robotic vacuum cleaner, it may be

identied as an obstacle and the area may not cleaned.

- When the Power Switch is turned off, it will cut off the power supply and

deactivate all functions.

When installing the charger station, do not leave the power

cord exposed on the ﬂoor.

- When the robotic vacuum cleaner automatically recharges or passes

by the charger station, it may drag the power cord around with it.

Always keep the power cord of the charger plugged into the

outlet.

- Although the robotic vacuum cleaner has a self-charging function, if

the power cord of the charger station is unplugged, it cannot charge

its battery automatically.

CAUTION

DJ68-00518G(SR8845)(EN)-0.0.indd 8 2010.2.9 2:50:52 PM

Safety information _9

Safety information

01 SAFETY INFORMATION

CAUTION

BEFORE USE

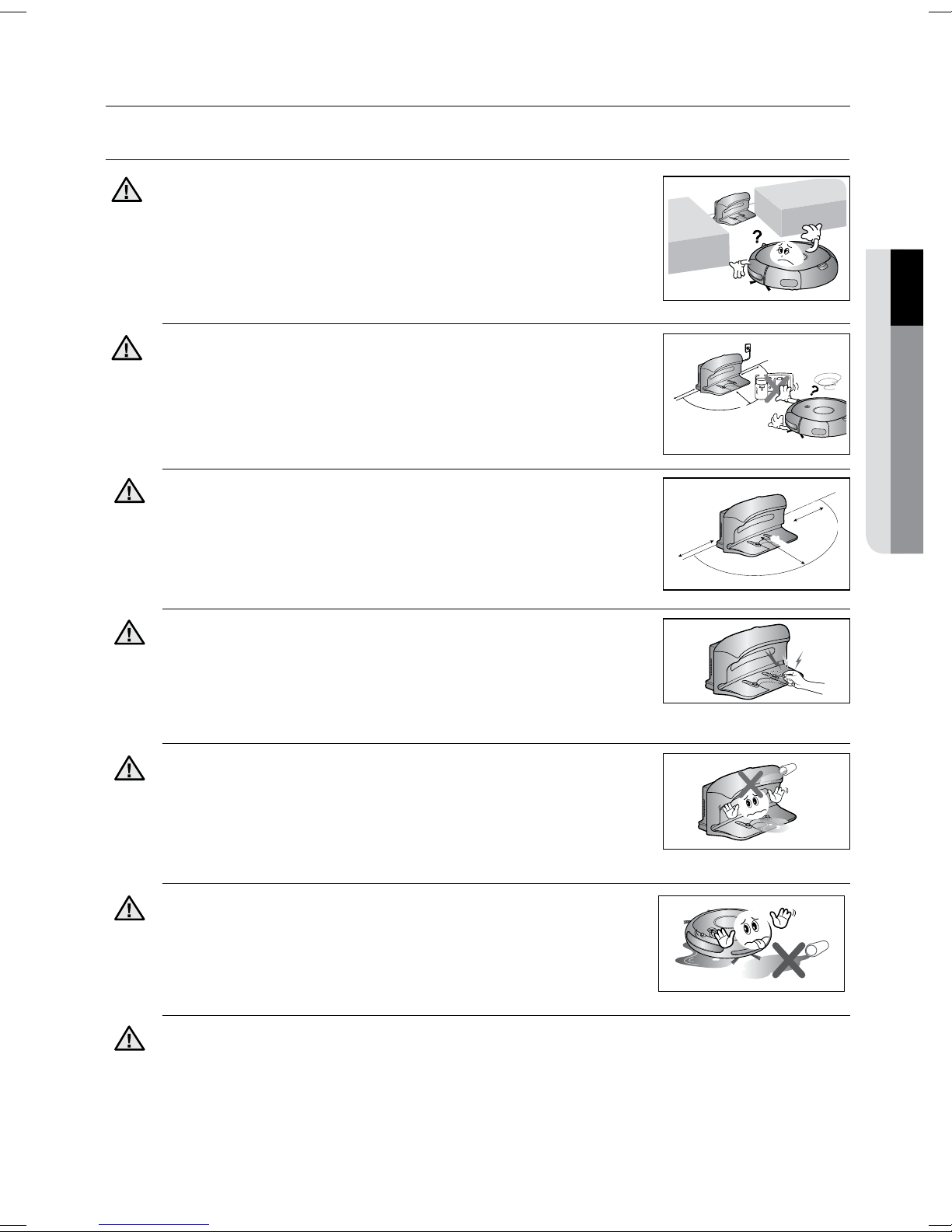

Install the charger in a location that can be easily accessed

by the robotic vacuum cleaner.

- If the charger is installed in a corner, this may cause extra

movements and may disturb the automatic recharging process.

Do not use the charger for other purposes.

- This may result in critical damage to the charger or cause a re.

WARNING

Make sure the robotic vacuum cleaner does not vacuum or

move over liquids such as water, oil or pet litter.

This may result in critical damage to the product.

Liquids may spread through the wheels resulting in contamination.

WARNING

Objects in front of the charger will prevent the robotic

vacuum cleaner from auto-charging itself.

- Clear the area.

CAUTION

There should be no obstacles 0.5 m to the left and right and

within 1 m of the front.

WARNING

Make sure that there is no trace of liquids on the charger

station.

- Failing to do so may result in re or electric shock.

WARNING

Do not short-circuit the charge pins with metal objects such

as chopsticks, screwdrivers, and etc.

- This will result in critical damage to the charger.

WARNING

about 0.5m

about 1m

about 0.5m

DJ68-00518G(SR8845)(EN)-0.0.indd 9 2010.2.9 2:51:0 PM

10_ Safety information

Safety information

NOTE

IN USE

You cannot use the robotic vacuum cleaner on thick carpets.

- This may result in problems with the robotic vacuum cleaner.

- This may result in damage to carpets.

Robotic vacuum cleaner may not be able to continue its

operation if it is stuck at the entrance or veranda doorsill.

- Robotic vacuum cleaner stops operating for safety reasons if it

cannot move for more than 5 minutes.

- To resume operating, turn the Power Switch off and then on again

after moving it to a location where it can continue cleaning.

If an unusual sound, smell or smoke is emitted from the robotic

vacuum cleaner, immediately turn off the Power Switch and call

the customer care center.

WARNING

Do not use the robotic vacuum cleaner on a table or other high

locations.

- This may result in damage when the unit accidentally drops.

CAUTION

Robotic vacuum cleaner may bump into furniture such as chair

legs, table legs, thin and long furniture, etc. while operating.

- For a quicker and cleaner performance, place the chairs on top of

the table.

Immediately remove any large pieces of

paper or plastic bags from the machine while cleaning.

- Using the machine for an extended period of time with its inlet port

obstructed may result in critical damage to the product.

Do not place any objects on top of the robotic vacuum cleaner.

- This may result in malfunction.

CAUTION

DJ68-00518G(SR8845)(EN)-0.0.indd 10 2010.2.9 2:51:9 PM

Autres manuels pour SR8845

Table des matières

Autres manuels Samsung Aspirateur

Samsung

Samsung VS20A95 Series Manuel utilisateur

Samsung

Samsung VCMA20CV Manuel utilisateur

Samsung

Samsung SC06H70 H Series Manuel utilisateur

Samsung

Samsung VS15T70 Series Manuel utilisateur

Samsung

Samsung Vacuum cleaner Manuel utilisateur

Samsung

Samsung SC88 series Manuel utilisateur

Samsung

Samsung VS60K6030KY Manuel utilisateur

Samsung

Samsung SC45 Series Manuel utilisateur

Samsung

Samsung SU12F40 SERIES Manuel utilisateur

Samsung

Samsung VAC9073BP Feuille d'instructions

Samsung

Samsung SC8790 Manuel utilisateur

Samsung

Samsung SR8850 Manuel utilisateur

Samsung

Samsung DJ68-00341G Manuel utilisateur

Samsung

Samsung SC21K51 Series Manuel utilisateur

Samsung

Samsung VS20C85 Series Manuel utilisateur

Samsung

Samsung SC6360 Manuel utilisateur

Samsung

Samsung Jet Bot VR30T80 Series Manuel utilisateur

Samsung

Samsung SC88 series Manuel utilisateur

Samsung

Samsung SR20H9050U Manuel utilisateur

Samsung

Samsung DJ68 Manuel utilisateur

Samsung

Samsung SC 9560 Manuel utilisateur

Samsung

Samsung POWERbot SR20J92 Series Manuel utilisateur

Samsung

Samsung SC5120 Manuel utilisateur

Samsung

Samsung SR8855 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
