Samsung GT-S5830B Manuel utilisateur
GSM TELEPHONE
GT-S5830B
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair_1/8
7. Level 2Repair
8. Level 3Repair_Rev 0.6 /1/8
9. Reference data
Notice
All functionality, features, specifications and
other product information provided in this
document including, but not limited to, the
benefits, design, pricing, components, perform
ance, availability, and capabiliti-es of the
product are subject to change without notice
or obligation. Samsung reserves the right to
make changes to this document and the
product described herein, at anytime, without
obligation on Samsung to provide notification
of such change.
This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 01. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)
SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
0403-001870 D600 TDZ5V6J
0404-001646 ZD505 PMEG4005EJ
0406-001286 ZD504 PESD5V0L5UV
0406-001446 ZD506,ZD507 RD1301
0407-001002 D400,D500 DAN222TL
0504-001138 Q601 DTA114EM
0505-002341 Q600 SI1013X-T1-GE3
0601-002846 LED500,LED501 19-217UTD/S759/TR8
0801-003265 U300 74AUP1G74GM
0801-003383 U301 74LVC1G00GM
1001-001645 U601 FSA9280AUMX
1108-000373 UME300 KAT007012B-BRTT
1201-003145 U102 RF7205
1201-003168 U200 SFMG1M0Q001
1201-003210 PAM100 SKY77554-21
1202-001068 U502 TC75S56FE
1203-005074 U600 AAT1146IJS-1.2-T1
1203-006025 U504 AAT1274IWO-T1
1203-006159 U104 AAT2146IJS-0.6-T1
1203-006346 U500 FT8010MPX
1203-006732 U400 MAX8899GEWZ-T
1203-006760 U503 KTD259EHD-TR
1205-003297 U103 RTR6285
1205-004076 U202 AR6003G-AC2B-R
1205-004113 U201 BCM20780C0KUBG
1205-004180 UCP300 MSM7227-1-SCREEN
1209-002023 C524 BMA222
1209-002030 U604 MMC3280MS
1404-001221 TH300 NCP15WB473J04RC
1405-001298 V500,V501,V603,ZD500 LXES15AAA1-075
1405-001298 ZD501,ZD502,ZD503 LXES15AAA1-075
1405-001298 ZD600 LXES15AAA1-075
2007-000137 R325,R513,R515,R517 RC1005J202CS
2007-000138 R102,R111,R112,R322 RC1005J101CS
2007-000138 R326,R608 RC1005J101CS
2007-000140 R113,R303,R512 RC1005J102CS
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
2007-000141 R304,R305,R306,R307 RC1005J222CS
2007-000141 R311,R312,R313,R314 RC1005J222CS
2007-000144 R400 RC1005J512CS
2007-000148 R308,R502,R600,R604 RC1005J103CS
2007-000148 R615,R622 RC1005J103CS
2007-000149 R607 RC1005J123CS
2007-000151 R623,R624 RC1005J153CS
2007-000157 R610,R611,R612,R613 RC1005J473CS
2007-000157 R614 RC1005J473CS
2007-000162 R300,R302,R315,R319 RC1005J104CS
2007-000162 R320,R324,R327,R410 RC1005J104CS
2007-000162 R508,R526,R527,R528 RC1005J104CS
2007-000165 R518 RC1005J204CS
2007-000166 R121 RC1005J304CS
2007-000168 R616 RC1005J474CS
2007-000170 R509 RC1005J105CS
2007-000172 R603 RC1005J100CS
2007-001295 R405,R406 RC1005J390CS
2007-001298 R329,R401 RC1005J510CS
2007-001301 R110 MCR01MZP5J680
2007-001325 R129 RC1005J332CS
2007-001333 R521 MCR01MZP5J183
2007-001339 R609 RC1005J184CS
2007-002796 R511,R514 MCR01MZP5J511
2007-002965 R525 RK73K1ETP150J
2007-002970 R500,R501 MCR01MZP5J560
2007-003004 R106 TSR16GJ131V
2007-003013 R128 MCR01MZP5J242
2007-003015 R605,R606 MCR01MZP5J2R2
2007-003030 R105 RC1005J910CS
2007-007107 R407 RC1005F1003CS
2007-007132 R204 RC1005F153CS
2007-007139 R309,R310 MCR01MZP5F4702
2007-007309 R109 MCR01MZP5F1202
2007-007334 R402 RC1005F2003CS
2007-007468 R409 RK73H1ETP1213F
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
2007-007480 R408 RK73H1ETP1303F
2007-007573 R403 RK73H1ETP3303F
2007-007589 R122 RK73H1ETP6802F
2007-007875 R529 RK73H1ETP1603F
2007-008298 R301 RC1005F49R9CS
2007-008766 R323,R621 ERJ2RKF6041X
2007-008812 R404 RC1005F2153CS
2007-009794 R205 RK73H1HTTC6191F
2203-000233 C174,C181,C182,C214 GRP1555C1H101J
2203-000233 C237,C329,C435 GRP1555C1H101J
2203-000254 C106,C113,C162,C204 GRP155R71C103K
2203-000278 C151,C200,C203,C209 GRP1555C1H100D
2203-000278 C229,C515 GRP1555C1H100D
2203-000330 C236 GRP1555C1H120J
2203-000359 C503,C505,C603 GRP1555C1H151JD01E
2203-000438 C102,C112,C163,C217 GRP155R71H102K
2203-000489 C136,C138,C328 GRP155R71H222K
2203-000550 C433,C434 GRP1555C1H200JZ01E
2203-000585 C428,C517,C518 GRP155R71H221KD01E
2203-000627 C159,C161,C173 GRM1555C1H220J
2203-000696 C321 GRP1555C1H2R0C
2203-000812 C103,C114,C142,C152 GRP1555C1H330J
2203-000812 C154,C158,C208,C210 GRP1555C1H330J
2203-000812 C211,C212,C219,C220 GRP1555C1H330J
2203-000812 C323,C615 GRP1555C1H330J
2203-000995 C330,C429,C610,C611 GRP1555C1H470J
2203-001017 C168,C177 GRP1555C1H4R0C
2203-001153 C139,C141 GRP1555C1H680J
2203-001385 C132,C134 GRP1555C1H1R5CZ01E
2203-001405 C406,C407 04023G223ZAT2A
2203-002668 C116 C1005CG1H0R5BT
2203-002677 C135,C238 CL05CR75BB5NNNC
2203-005057 C184,C516,L125 GRP1555C1H8R2CZ01E
2203-005249 C534 GRM188R71H104K
2203-005382 C167,C233,C235 GRP1555C1H6R0BZ01E
2203-005393 C176 GRP1555C1H5R0BZ01E
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
2203-005480 C324 GRP155R71A333KA01E
2203-005806 C117 GRP033R71C102KD01E
2203-006048 C101,C157,C160,C172 GRM155R71A104K
2203-006048 C205,C206,C223,C225 GRM155R71A104K
2203-006048 C226,C228,C231,C232 GRM155R71A104K
2203-006048 C242,C300,C301,C303 GRM155R71A104K
2203-006048 C306,C308,C309,C311 GRM155R71A104K
2203-006048 C312,C313,C314,C315 GRM155R71A104K
2203-006048 C318,C322,C325,C326 GRM155R71A104K
2203-006048 C327,C331,C332,C436 GRM155R71A104K
2203-006048 C437,C442,C443,C501 GRM155R71A104K
2203-006048 C508,C511,C512,C519 GRM155R71A104K
2203-006048 C522,C525,C526,C529 GRM155R71A104K
2203-006123 C218 GRM0335C1E5R6CD01D
2203-006137 C533 CL05B223KONC
2203-006187 C130,C131 GRM0335C1E3R9B
2203-006201 C241 GRM188R60J225KE01D
2203-006208 C165,C500,C612 CM105X5R475M06AT
2203-006260 C400 GRM155R61A224KE19E
2203-006348 C617 CV105X5R105K25AT
2203-006399 C201,C202,C215,C216 GRM155R60J105KE19D
2203-006399 C222,C302,C304,C305 GRM155R60J105KE19D
2203-006399 C307,C317,C319,C320 GRM155R60J105KE19D
2203-006399 C408,C409,C416,C417 GRM155R60J105KE19D
2203-006399 C418,C419,C423,C424 GRM155R60J105KE19D
2203-006399 C425,C426,C427,C430 GRM155R60J105KE19D
2203-006399 C432,C445,C502,C601 GRM155R60J105KE19D
2203-006399 C604,C605,C608,C609 GRM155R60J105KE19D
2203-006399 C621,C625,C632 GRM155R60J105KE19D
2203-006423 C169 GRM33X5R104K6.3
2203-006474 C509 GRM21BR60J226ME
2203-006562 C431,C444 CV05X5R105K10AH
2203-006707 C125,C127 GRM0335C1E4R7C
2203-006824 C137,C164,C401,C402 CV105X5R475K10AT
2203-006824 C403,C404,C405,C420 CV105X5R475K10AT
2203-006824 C438,C439,C440,C441 CV105X5R475K10AT
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
2203-006824 C527,C530,C613 CV105X5R475K10AT
2203-006842 C234 CL05C471JB5NNNC
2203-006846 C122,C124 ECJZEC1E2R0B
2203-006979 C171 CL03B103KP3NNNC
2203-007240 C310,C316,C506 CL10A226MQ8NRNE
2203-007271 C207,C221,C224,C227 CL05A225KP5NSNC
2203-007271 C230,C240,C410,C411 CL05A225KP5NSNC
2203-007271 C412,C413,C414,C415 CL05A225KP5NSNC
2203-007271 C421,C422,C623,C624 CL05A225KP5NSNC
2203-007279 C118,C535 CV105X5R106M10AT
2203-007317 C170 CV05X5R475M06AH
2203-007449 C606,C607 CV03X5R105M06AH-SAM
2203-007701 C523,C614 QV105X5R106M10AT
2409-001172 BAT400 SM3R3703-R01
2703-001729 L112,L130 LL1005-FH1N8S
2703-001747 L101,L120,L207 LL1005-FH4N7S
2703-001750 L118 LL1005-FH2N2S
2703-002170 L134 CIH05T6N8JNC
2703-002176 L108,L128 CIH05T2N7SNC
2703-002198 L117,L126 CIH05T10NJNC
2703-002200 C129,L110 CIH05T18NJNC
2703-002204 L300 CIH05T22NJNC
2703-002205 C133,L132 CIH05T3N9KNC
2703-002207 L121 CIH05T3N3SNC
2703-002208 L114 CIH05T2N2SNC
2703-002267 L123,L202 CIH05T4N7SNC
2703-002268 L105,L127 CIH05T8N2JNC
2703-002308 L129,L205,L500 CIH05T68NJNC
2703-002309 L515,L516 CIH05T82NJNC
2703-002314 L208 CIH05T47NJNC
2703-002365 R104 CIH05T1N2SNC
2703-002544 L119 LQW15AN8N2H00D
2703-002793 L107,L109 LQP03TN5N6J00D
2703-002795 L102,L103,L104 LQP03TN22NG00D
2703-002861 L508 LPF3010T-100M
2703-002958 L106 CIH03T56NJNC
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
2703-003347 L512 CIG22L1R0MNE
2703-003685 L124,L600 CIG21L4R7MNE
2703-003686 L400,L401,L402,L403 CIG21L2R2MNE
2801-004909 OSC400 EXS00A-MU00031
2801-005045 OSC200 CXC6X260000GHVRE00
2809-001366 OSC100 1XTV19200AEB
2901-001424 F600,F601,F602,F603 AVRC-14S-03Q-030-100R
2901-001424 F604,F605,F606 AVRC-14S-03Q-030-100R
2904-001658 F103 SFDG50AQ101
2904-001702 F104 SFHG40YQ101
2904-001889 F100 SFRM81DY102
2904-001920 F101 SFRG42MY002
2910-000068 DUF100 SAYFP836MCA0F00
2910-000099 DUF101 SFXG50PD502
2911-000158 F200 LMFEFAGB-C05
3301-001438 L204 BLM15BB750SN1D
3301-001659 L200,L201,L510 BLM15AG601SN1
3301-001756 L100 BLM15HG102SN1D
3301-001789 L601 BLM15EG121SN1D
3301-001885 L501,L502,L503,L504 BLM15HD182SN1D
3301-001885 L505,L507,L509 BLM15HD182SN1D
3301-002037 L513,L514 BLM18KG601SN1
3705-001731 RFS100 KMS-560-002-BEF
3709-001456 SIM600 500-6P-2.7X
3709-001575 CD600 SCHA4B0301
3710-002632 HDC602 AXT410164AW1
3711-005550 HDC500 AXK8L10125SJ
3711-006856 HDC601 14-5801-050-002-829
3711-007107 HDC600 AXE630124AW1
3711-007533 BTC600 202-03000-00347
3712-001326 ANT201 HM01-AR0145
3712-001348 ANT500,ANT501 HJ-ICT-05Y
3712-001361 ANT200 HJ-ICT-02Y
3722-003065 IFC600 HY07-AB0721
GH59-08444A LED502 CHP-C4040-200-PB2016
GH80-03320A R108,R118,R200 PB-SHORT-1005
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
0403-001870 D600 TDZ5V6J
0404-001646 ZD505 PMEG4005EJ
0406-001286 ZD504 PESD5V0L5UV
0406-001446 ZD506,ZD507 RD1301
0407-001002 D400,D500 DAN222TL
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
SAMSUNG Proprietary-Contents may change without notice
8. Level 3Repair
8-1
This Document can not be used without Samsung's authorization

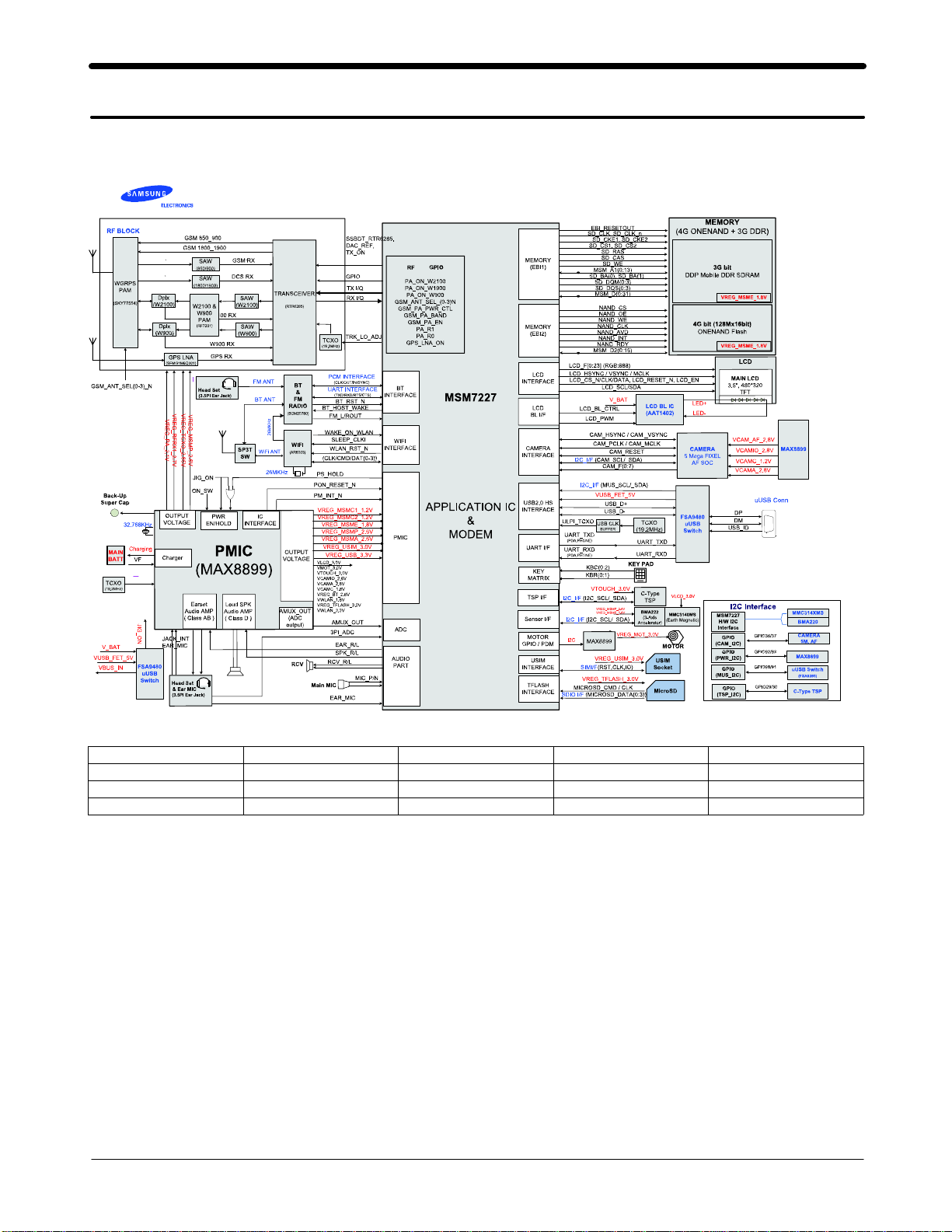

8-1.Block Diagram
Model /3
GBand W1 W2 W5 W8
S5830 OXXO
S5830L XOOX
S5830B OXOX
S5830
W1 W8
↓↓
S5830B
W1 W5
↓↓
S5830L
W2 W5
Autres manuels pour GT-S5830B
1
Autres manuels Samsung Téléphone
Samsung
Samsung OfficeServ 7000iDCS Manuel utilisateur
Samsung
Samsung Instinct SPH-M800 Manuel utilisateur
Samsung
Samsung GT-B2710 Manuel utilisateur
Samsung
Samsung SGH-F480I Manuel utilisateur
Samsung
Samsung SGH-D600 Manuel utilisateur
Samsung
Samsung SGH SGH X105 Manuel utilisateur
Samsung
Samsung SMT-i5243 Manuel utilisateur
Samsung
Samsung SPH-m230 Manuel utilisateur
Samsung
Samsung SM-T311 Manuel utilisateur
Samsung
Samsung SCH-X601 Manuel utilisateur
Samsung
Samsung OfficeServ 7030 Manuel utilisateur
Samsung
Samsung SCH-A512 Manuel utilisateur
Samsung
Samsung Digital keyset Manuel utilisateur
Samsung
Samsung SM-A047M Manuel utilisateur
Samsung
Samsung GT-I9500 Manuel utilisateur
Samsung
Samsung Prostar DCS Manuel utilisateur
Samsung
Samsung SMT-i5243 Manuel utilisateur
Samsung
Samsung GT-I8700 Manuel utilisateur
Samsung
Samsung GT-E1200Y Manuel utilisateur
Samsung
Samsung SCH-670 Manuel utilisateur
