Samsung SCC-C7413N Manuel utilisateur

SCC-C7413N

imagine the possibilities

Thanks you for purchasing this Samsung product.

To receive a more complete service, please visit

our website

www.samsungsecurity.com

Smart Dome Camera

User Manual

Z6809123701A-NA_SCC-C7413N-ENG-11 1 2010-1-20 14:49:39

2_ overview

overview

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of

electric shock is present within this unit.

This symbol indicates that there are important operating and

maintenance instructions in the literature accompanying this unit.

WARNING

To reduce the risk of ﬁre or electric shock, do not expose this appliance to rain or

moisture.

To prevent injury, this apparatus must be securely attached to the ﬂoor/wall in

accordance with the installation instructions.

Use only the 24V, 60Hz AC adaptor for power supply. Use an adaptor over 3A when

the heater works.

WARNING

Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet.

Using any other adapter could cause ﬁre, electrical shock, or damage to the

product.

Incorrectly connecting the power supply or replacing battery may cause explosion,

ﬁre, electric shock, or damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may

cause abnormal heat generation or ﬁre.

Securely plug the power cord into the power receptacle. Insecure connection may

cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly. The fall of camera may

cause personal injury.



Z6809123701A-NA_SCC-C7413N-ENG-12 2 2010-1-20 14:49:39

English _3

English

Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or

containers ﬁlled with water on top of the camera. Doing so may cause personal

injury due to ﬁre, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre

or electric shock.

If any unusual smells or smoke come from the unit, stop using the product. In such

case, immediately disconnect the power source and contact the service center.

Continued use in such a condition may cause ﬁre or electric shock.

If this product fails to operate normally, contact the nearest service center. Never

disassemble or modify this product in any way. (SAMSUNG is not liable for

problems caused by unauthorized modiﬁcations or attempted repair.)

When cleaning, do not spray water directly onto parts of the product. Doing so may

cause ﬁre or electric shock

Do not expose the product to the direct airﬂow from an air conditioner.

Otherwise, it may cause moisture condensation inside the Clear Dome due to

temperature difference between internal and external of the dome camera.

If you install this product in a low-temp area such as inside a cold store, you must

seal up the wiring pipe with silicon, so that the external air can not ﬂow inside the

housing.

Otherwise, external high, humid air may ﬂow inside the housing, pooling moisture

or vapor inside the product due to a difference between internal and external

temperature.

10.

11.

12.

Z6809123701A-NA_SCC-C7413N-ENG-13 3 2010-1-20 14:49:39

overview

4_ overview

CAUTION

Do not drop objects on the product or apply strong blows to it. Keep away from a

location subject to excessive vibration or magnetic interference.

Do not install in a location subject to high temperature (over 50°C), low temperature

(below -50°C), or high humidity. Doing so may cause ﬁre or electric shock.

If you want to relocate the already installed product, be sure to turn off the power

and then move or reinstall it.

Remove the power plug from the outlet when there is a lighting storm. Neglecting

to do so may cause ﬁre or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause ﬁre.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as

this may damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with

liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at

any time.

When the unit is stored in high humidity environment, moisture may occur inside

the cover dome of the Housing. Before installation, please open the cover dome

and wipe off all moisture with a soft dry cloth.

10.

Z6809123701A-NA_SCC-C7413N-ENG-14 4 2010-1-20 14:49:39

English _5

English

FCC STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions :

1) This device may not cause harmful interference, and

2) This device must accept any interference received including interference that may

cause undesired operation.

Caution

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated

in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian

Interference.-Causing Equipment Regulations of ICES-003.

Z6809123701A-NA_SCC-C7413N-ENG-15 5 2010-1-20 14:49:39

overview

6_ overview

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Do not install near any heat sources such as radiators, heat registers, or other

apparatus (including ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third prong

is provided for your safety. If the provided plug does not ﬁt into your outlet, consult

an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table speciﬁed

by the manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused

for long periods of time.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the

apparatus has been damaged in any way, such as powersupply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus

10.

11.

12.

13.

14.

Z6809123701A-NA_SCC-C7413N-ENG-16 6 2010-1-20 14:49:40

English _7

English

CONTENTS

OVERVIEW

6Important Safety Instructions

7Contents

8Features

8What’s Included

9At a Glance

INSTALLATION &

CONNECTION

10 Optional Accessories for

Installation

12 Precautions

12 Preparation

13 Installation

16 Initial Setup

19 Connecting with other Device

SETUP

22 How to use the Keyboard

Controller

23 Main Menu

24 Proﬁle

26 Camera Set

35 Intelligent Video

36 Privacy Zone

37 Preset

39 Auto Set

43 Zone Set

44 Alarm Set

46 Clock Set

46 Other Set

48 Communication

48 System Info

49 Language

APPENDIX

50 Shortcut Keys

51 Speciﬁcations

53 Product Appearance

Z6809123701A-NA_SCC-C7413N-ENG-17 7 2010-1-20 14:49:41

overview

8_ overview

FEATURES

With the state-of-the-art digital signal processing technology, full digital image

processing and special algorithm of 600-line high resolution implemented

High performance surveillance camera, equipped with x25 zoom lens and digital

zoom IC, enabling monitoring up to 400 times

DAY/NIGHT to improve the sensitivity by automatic conversion into the black and

white mode at night or in the environment with low illumination

White Balance to control the brightness to the illumination

Backlight Compensation under spotlight or utmost bright illumination

Auto Focus to automatically adjust the focus to the subject movement

Privacy zone to hide a speciﬁc area for personal privacy

PAN/TILT for precise control at high speed

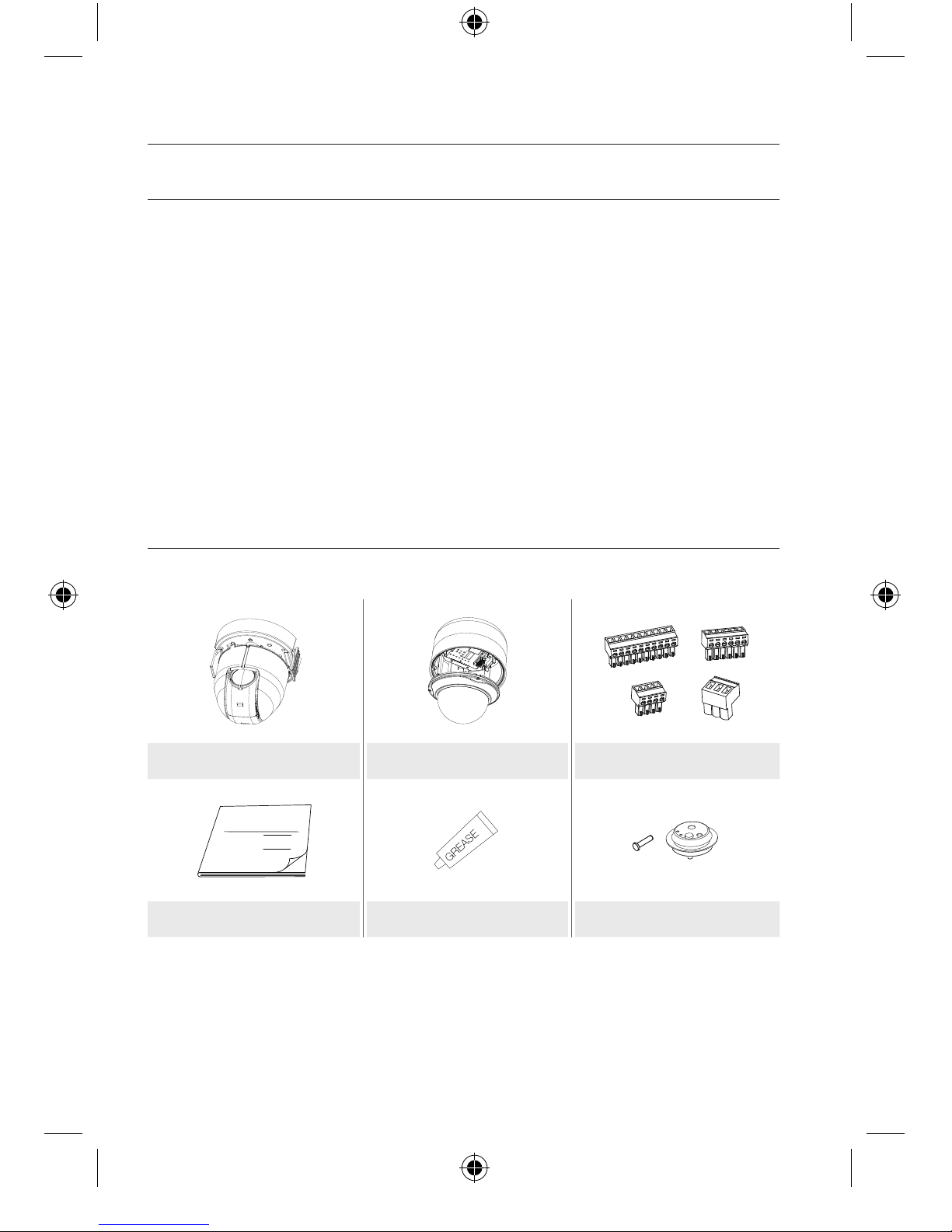

WHAT’S INCLUDED

Please check if your camera and accessories are all included in the product package.

Camera Housing Connectors

User Manual

User Manual Grease Pin & Bush



Z6809123701A-NA_SCC-C7413N-ENG-18 8 2010-1-20 14:49:44

English _9

English

AT A GLANCE

CAMERA

FRAME SET

Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you

have applied ethanol.

M

LENS

HOOK

ALARM IN

ALARM OUT

RS-485

POWER

INPUT

Z6809123701A-NA_SCC-C7413N-ENG-19 9 2010-1-20 14:49:55

10_ installation & connection

installation & connection

OPTIONAL ACCESSORIES FOR INSTALLATION

For your easier installation, you can purchase appropriate optional accessories available.

WALL MOUNT ADAPTOR (SCX-300WM)

This is a wall mount adaptor, used for wall-

mounted installation of SMART DOME

CAMEA units.

CEILING MOUNT ADAPTOR (SCX-300CM)

This is a ceiling mount adaptor, used for

installation of SMART DOME CAMEA units on

a concrete ceiling.

POLE MOUNT ADAPTOR (SCX-300PM)

This is an adaptor for WALL MOUNT

ADAPTOR (SCX-300WM) installation on a

pole whose diameter is bigger than 80mm.

Z6809123701A-NA_SCC-C7413N-ENG-110 10 2010-1-20 14:49:56

Table des matières

Autres manuels Samsung Caméra de sécurité

Samsung

Samsung SND-5080 Manuel utilisateur

Samsung

Samsung SCC-B9371 Manuel utilisateur

Samsung

Samsung SCC-C4305(P) Manuel utilisateur

Samsung

Samsung SID-462 Manuel utilisateur

Samsung

Samsung SCC-C6455N Manuel utilisateur

Samsung

Samsung SDC-7340BC Manuel utilisateur

Samsung

Samsung SCV-2080R Series Manuel utilisateur

Samsung

Samsung SND-5084R Manuel utilisateur

Samsung

Samsung SVD-4120AW Manuel utilisateur

Samsung

Samsung SCP-3120 Manuel utilisateur

Samsung

Samsung SIR-60 Manuel utilisateur

Samsung

Samsung SCC-B5331 Manuel utilisateur

Samsung

Samsung SCB-3021 Manuel utilisateur

Samsung

Samsung SCB-2000 Manuel utilisateur

Samsung

Samsung BW-4302 Series Manuel utilisateur

Samsung

Samsung SCB-3000 Manuel utilisateur

Samsung

Samsung iPolis SND-3082 Manuel utilisateur

Samsung

Samsung SNB-6004 Manuel utilisateur

Samsung

Samsung iPolis SND-3082 Manuel utilisateur

Samsung

Samsung SCZ-2430 Manuel utilisateur

Samsung

Samsung SNC-B2315 Manuel utilisateur

Samsung

Samsung SCC-B2303(P) Manuel utilisateur

Samsung

Samsung SID-46C Manuel utilisateur

Samsung

Samsung SCV-5082 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
