Combi Dome Camera

SCC-641(P)

Owner s Instructions

"Chapter 1 SCC-641(P) Overview" includes a brief introduction of the

SCC-641(P), part names and functions, and Switching Settings.

"Chapter2 SCC-641(P) Installation" explains the installation procedures of the

SCC-641(P) and provides preparation and installation environment

requirements.

"Chapter 3 Setup Menu Overview" presents the structure of the Setup menu

for the SCC-641(P) including a detailed explanation of the functions

performed in each submenu.

"Appendix A SCC-641(P) Product Specifications" contains product

specifications of the SCC-641(P) in itemized categories.

Before Usage

This is a basic instruction manual for the SCC-641(P) user. It contains all the

instructions needed to use the SCC-641(P) from a simple introduction of the

control locations and functions of the SCC-641(P) to installation methods in the

set up menu.

We recommend all users of the SCC-641(P) from the advanced user who has

used similar cameras before to the general user to read the instruction manual

before using.

The most frequently used feature in the SCC-641(P) would be the SCC-641(P)

Setup Menu.

The SCC-641(P) Setup Menu is explained in detailed in "Chapter 3 Setup

Menu Overview".

The instructional manual is best used when read from beginning to end, but for

users wanting to read only the part they need here are the Chapter summaries.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interface in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient of relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

- Consult the dealer or an experienced radio TV technician for help.

Approval of Standards

MEMO

- SHUTTER 3-10

- AGC 3-11

- WHITE BAL 3-12

- SPECIAL 3-14

- AUTO FOCUS 3-15

- D-ZOOM 3-15

- EXIT 3-15

PRESET 3-16

AUTO MODE 3-18

- AUTO PAN 3-18

- PATTERN 3-20

ALARM SET 3-21

OTHER SET 3-23

Product specifications

Table of contents "

Before Usage 1-1

Chapter 1 SCC-641(P) Overview 1-5

SCC-641(P) Introduction 1-6

SCC-641(P) Location of Controls 1-7

Locations of Controls - Front 1-7

Locations of Controls - Back 1-8

ADATER CONNECTION 1-9

INITIAL SETTING ...................................................1-10

Setting RS-422A/RS-485 Termination 1-11

SWITCH SETTING 1-12

Chapter 2 SCC-641(P) Installations 2-1

Checking Package Contents 2-2

Precautions for Installation and Usage 2-3

Preparing the Cable 2-5

Connecting the Cable 2-6

SCC-641(P) Installation 2-7

Chapter 3 Setup Menu Overview 3-1

Contents of Setup Menu 3-2

General Structure of CAMERA Block Menu 3-5

- CAMERA ID 3-5

- V-SYNC 3-6

- ZOOM SPEED 3-6

- MOTION DET 3-7

- EXIT 3-8

VIDEO SET MENU 3-9

- IRIS 3-9

SCC-641(P) Introduction

The SCC-641(P) is the best performing zoom lens integrated surveillance

camera. It can be used with CCTV in banks or companies to provide high

level of security.

The SCC-641(P) is a high quality surveillance camera using x22 zoom lens

and digital zoom IC, it can catch clear images up to 220 times.

The SCC-641(P) has Low light function that enables it to take shots in the

environment where there is almost no light, White Balance function that

corrects the picture natural depending on the background lights, Back light

Compensation function that enables objects to be seen clearly even under

bright-background lighting conditions and Auto Focus function that enables it

to focus according to the movement of the object. It is a multifunction camera

that has all the important functions of other surveillance cameras.

The SCC-641(P) uses an Alarm function for alert situations and moving

camera in the direction you want, ZOOM-IN and ZOOM-OUT functions can

be remote controlled.

Chapter 1 SCC-641(P) Overview

In this chapter we will briefly introduce the SCC-641(P) and

show main functions, locations of control and Switch Setting.

BACK

Locations of Control

FRONT

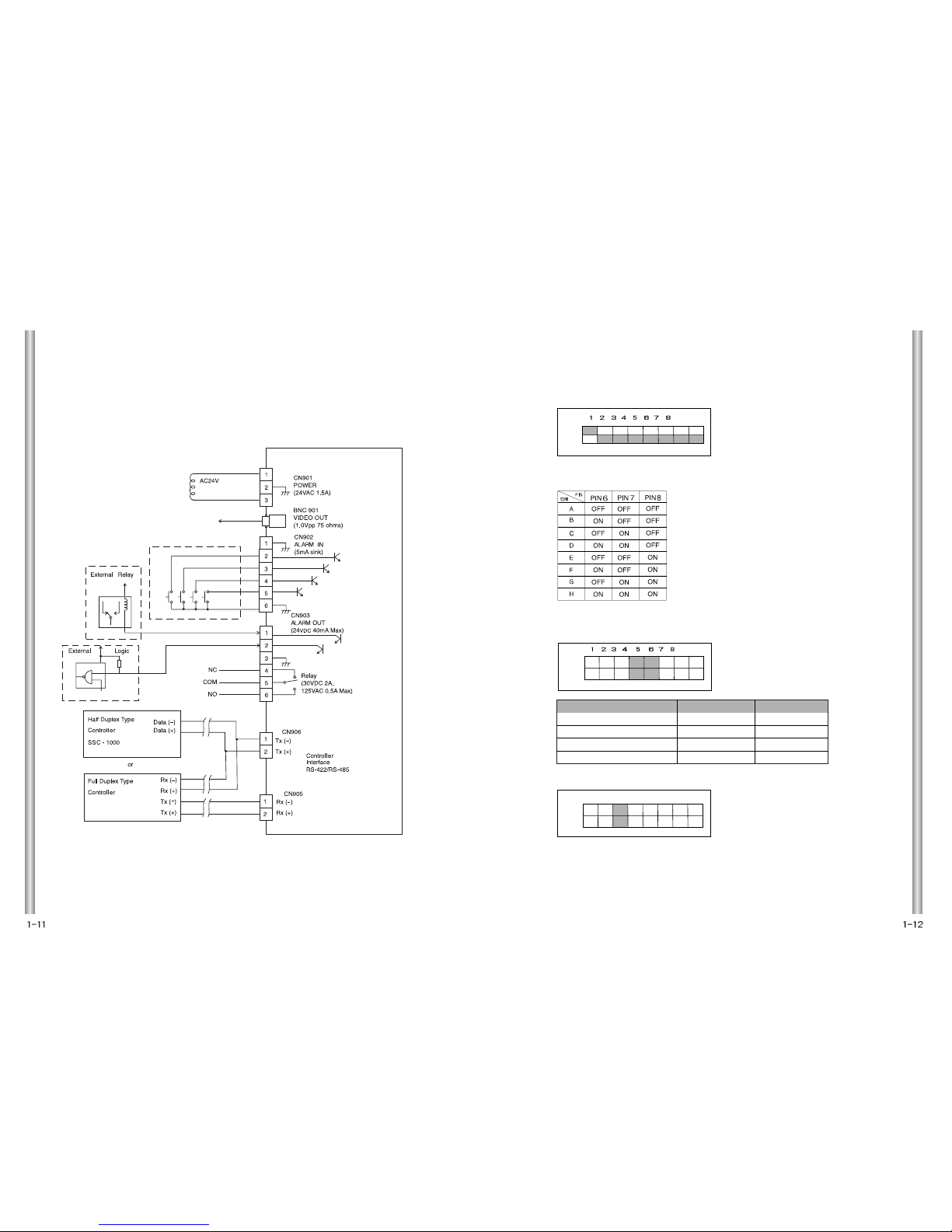

INITIAL SETTING

CAMERA ADDRESS SETUP

Dip Switch setting is same as the following example:

EX) CAMERA ADDR: When it's number 1, set as follows.

Setting communication Protocol.

Use number 6~8 PIN of SW501 to set communication Protocol.

Setting BAUD RATE

Use number 4 and 5 of SW501 to set BAUD RATE.

Setting HALF or FULL DUPLEX

HALF or FULL DUPLEX is communication method with System Controller.

Use number 3 PIN of SW 501.

" ON " : FULL DUPLEX.

" OFF " : HALF DUPLEX. (SSC-1000)

ON

OFF

SW500

ON

OFF

SW501

BAUD RATE

4800 BPS

9600 BPS

19200 BPS

38400 BPS

PIN 4

ON

OFF

ON

OFF

PIN 5

ON

OFF

1 2 3 4 5 6 7 8

ON

OFF

SW501

A :SAMSUNG(SSC-1000)

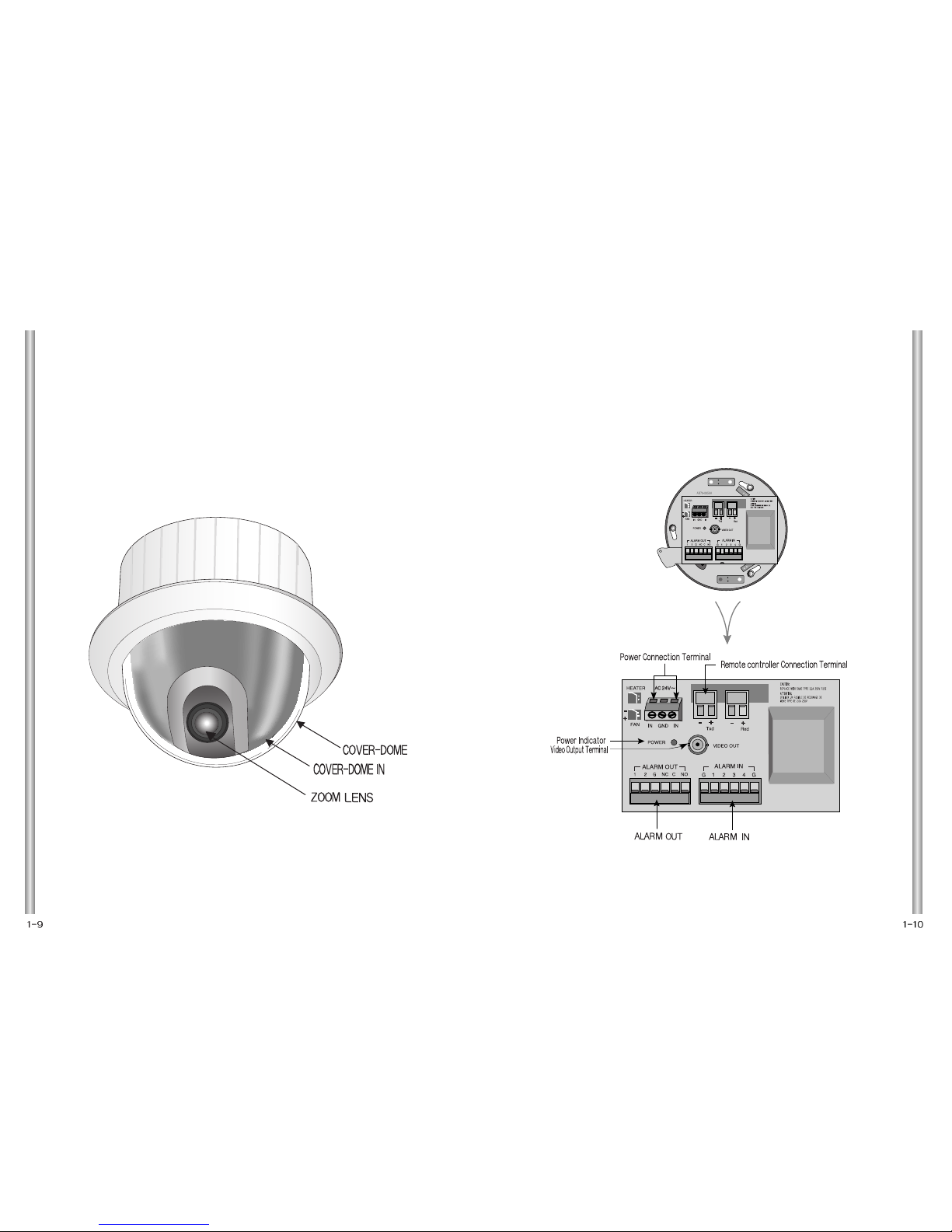

ADAPTER CONNECTION

SCC-641(P) Adapter BOARD

SWITCH SETTING

Receiver Address

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

SW500-1

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

SW500-2

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

SW500-3

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

SW500-4

OFF

ON

OFF

ON

OFF

ON

OFF

SW500-5

OFF

ON

OFF

ON

SW500-6

OFF

ON

SW500-7

OFF

SW500-8

OFF

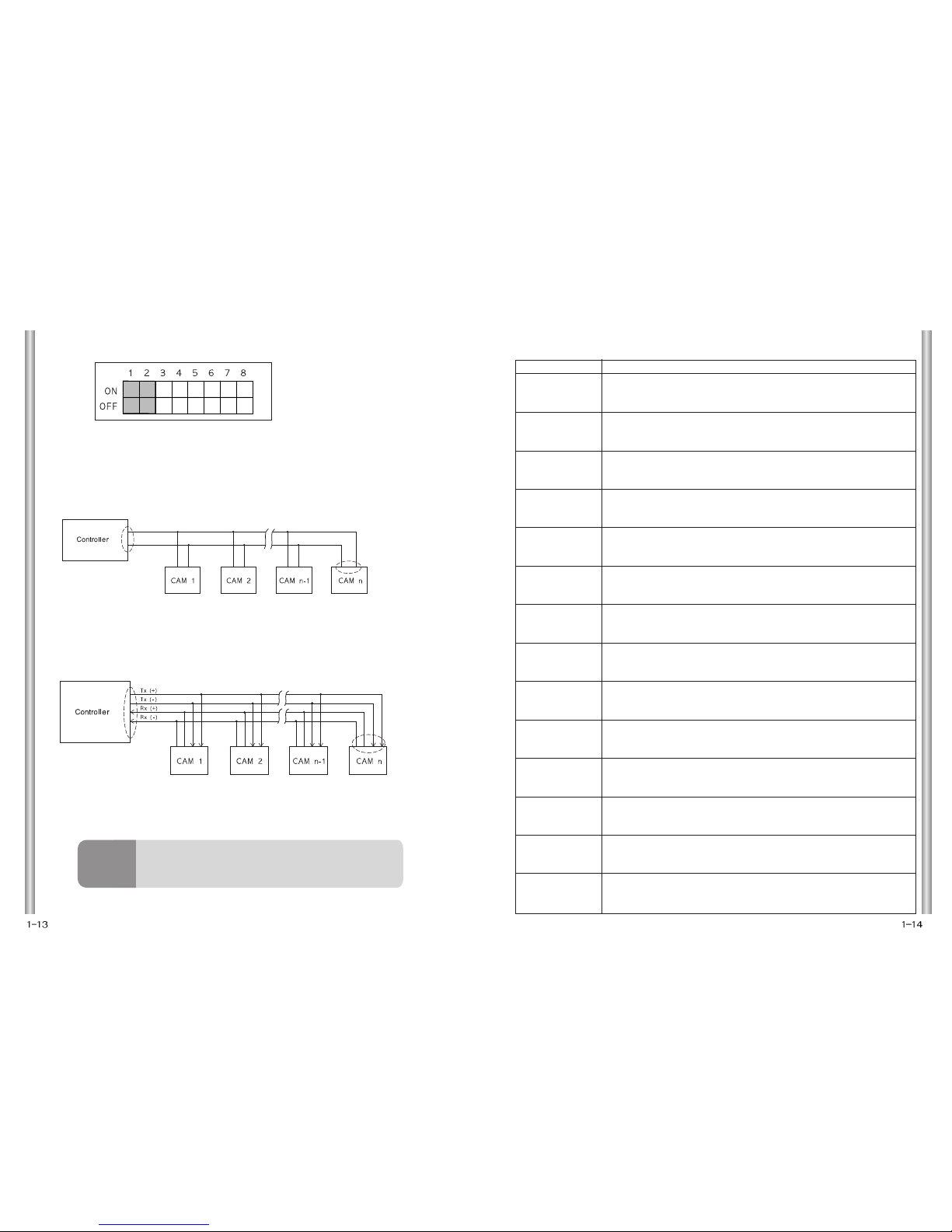

Setting RS-422A/RS-485 termination

As it is shown in the structure map, when Controller and RS-422A/RS-485 is connected it

should be terminated according to the Cable feature of impedance on the each end of

the transmitting line to transfer the signals in long distance by controlling the reflection of

the signals to the lowest.

<RS-485 Half Duplex Organization>

n < 128

Termination

SW1-ON

Division

Termination: using numbers 1 and 2 PIN, turn to ON and it will be terminated.

<RS-422A/RS-485 Full Duplex Organization>

Division

SW1-ON

SW2-ON

n < 128

CAUTION

If more than one camera is set of same address, Communication

error can be occurred.

Receiver Address

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170
