Samsung SR-21NME Manuel utilisateur

REFRIGERATOR CONTENTS

1.Safety precautions and warnings

2.Product specifications

3.Electrical part specifications & standard

4.Product dimension

5. Identifying and disassembling the parts

6.Schematic diagram of coolant gas circulation

7. Circuit diagram

8. Packing dimensin

9. Schematic siagram of cold air flow

10. Troubleshooting method

11. Exploded view & part list

Model: SR-21NME/21WME

SR-24NME/24WME

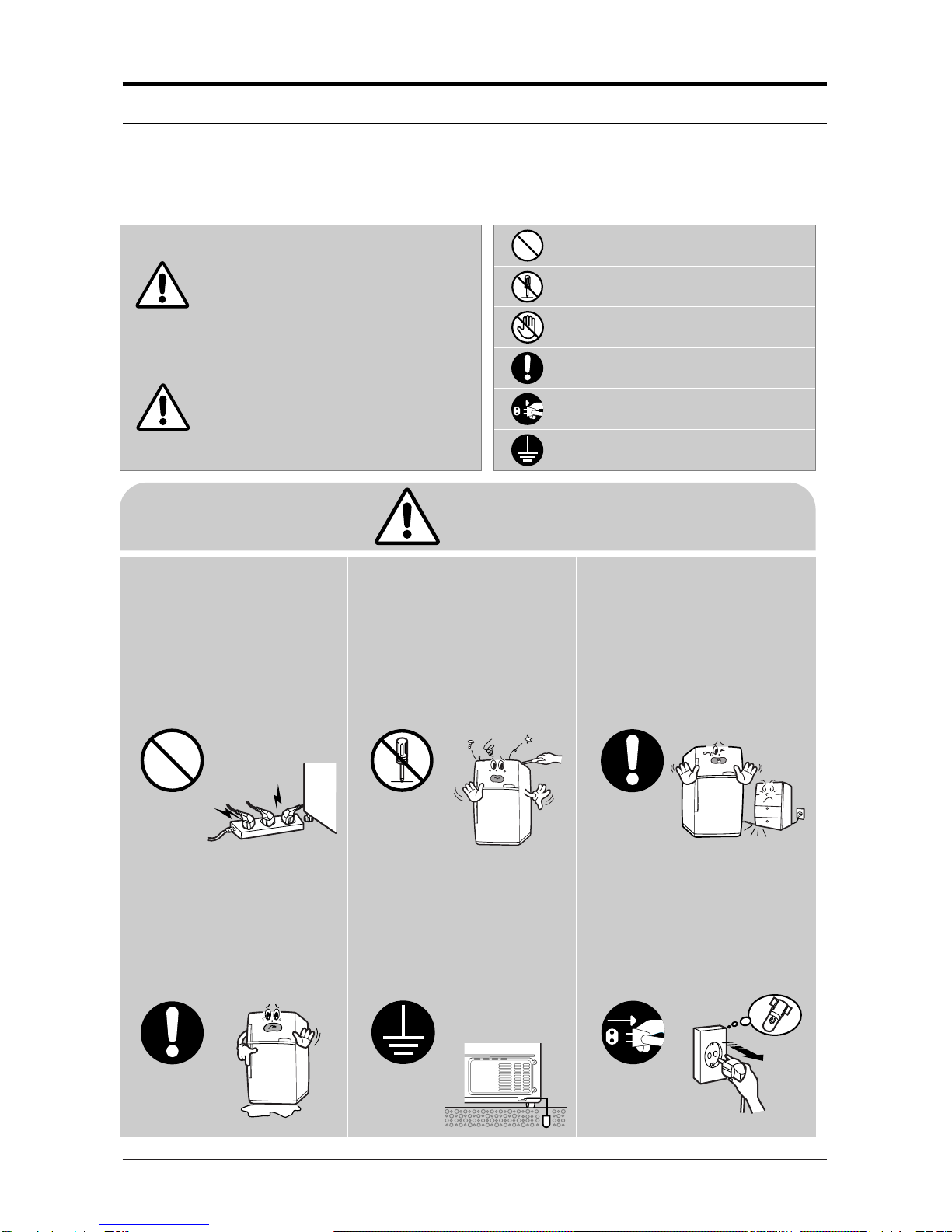

1.Safety precautions and warnings

－2－

SR-21/24 NME(WME)

Read all instructions before using this appliance in risk of accident order to avoid

or property damage.

Warning

Caution

Description of symbolsWarning/Caution

This symbol is intended to

alert the user to the posslble

death or injury.

This symbol is intended to

alert the user to the posslble

injury or damage

In dicates prohibition

Do not disassemble

Do not contant

Adhere the instruction strictly

Unplug from the electrical outlet

Earth the appliance to avoid the risk of

an electric shock

Do not plug multiple electyical

appliances into the same outlet.

●This may cause abnormal heating or

fire hazard

Do not attempt to make repairs

yourself

●

This could lead to fire hazard or

abnormal operation causing severe

personal injury.

Make sure the power cord is not

crushed or damaged.

●

Repair immediately all power cords or

outlets that have become frayed or

otherwise damaged.

Check the operating environment.

●

Do not install the refrigerator in a

humid(with condensation)location or

on an unstable surface.

Do not attempt to make repairs

yourself.

●

This could lead to fire hazard or

abnormal operation causing severe

personal injury.

Make sure the power cord is not

crushed or damaged.

●

Repair immediately all power cords

or outlets that have become frayed

or otherwise damaged.

Prohibition Do not

disassemble

Earth Unplug

－3－

SR-21/24 NME(WME)

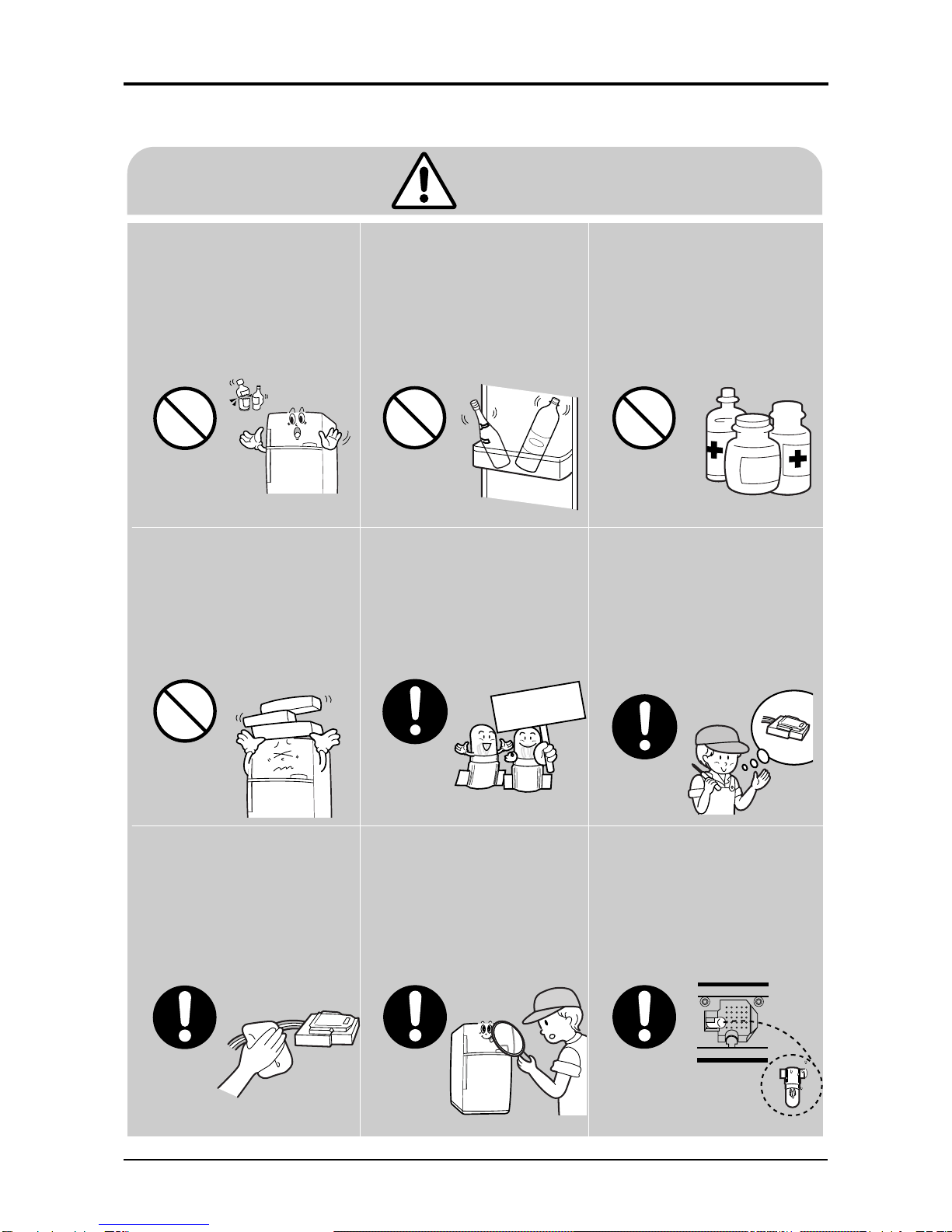

Caution

Do not store bottled food or

drinks in the freezing

compartment.

●Bottles may explode causing

personal injury.

Do not store food in an unstable

manner.

●Opening the door may trigger loose

items to slip and cause injury.

Do not store anything other

than food in the refrigerator.

●Medical supplies which need to be

under strict not be stored in the

refrigerator.

Do not put anything on top of

the refrigerator.

●

Opening or closing the door may

trigger loose items to slip and

cause injury.

When replacing electric

comporents, be sure to use rates

comporents.

●

Check the model, rated voltage, rated

current, operating temperature etc. of

the component.

When servicing the refrigera-tor,

completely remove dust or

foreign substances from the

housing,electric conne-ctions

and etc.

●

This can proect against the risk of fire

hazard caused by tracking and short

circuit.

When servicing the refrigerator,

completely remove dust or foreign

substances from the housing,

electric connections and etc.

●

This can protect against the risk of fire

hazard caused by tracking and short

circuit.

After serving the refrigerator, be

sure to check the components are

reassembled in a correct manner.

●

The serviced unit should be

reassembled and returned to its

original assembly state.

Check the electrical parts for the

trace of moisture penetration.

●

When the trace of moisture pentration

is detected, replace the part or dry

insulation tapping.

Prohibition

Prohibition Prohibition

Reted

components

2.Product Specifcations

－4－

SR-21/24 NME(WME)

ITEM

Model name

Type

Power source

STANDARD

Net capacity

(it/cu.ft)

Net dimension

(mm)

Freezer

Refrigerator

Total

Width

Depth

Height

Net weight (kg)

Refrigerant

Temperature control

Defrosting

Foam insulation Cabinet

Door

Liner / Door panel

Accessory parts

Door

storage

inside

storage

interior Lamp(H/M)

Angle adjustment

SR-21NME/24WME

2-Door Freezer/Refrigerator

AC 115V/60HZ, 127V/60Hz

220V/50~60Hz, 230~240V/50Hz

D-134a(130gr)

Dial(Thermostat)

Automatic(Start-Finish by Timer)

R-141b

ABS

1(Refrigerator)

2Legs(Front)

2 Guard-freezer

1 Guard-egg

1 Guard-variety

2 Guard-bottle

2 Guard-freezer

1 Guard-egg

1 Guard-variety

2 Guard-bottle

1 Base-tray ice(H)

1 Case-tray ice, assy(H)

1 Tray-ice cube

1 Shelf0freezer, sub(H)

1 Cover-vegetable

1 Tray-vegetable

2 Shelf-refrigerator(H)

1 Tray-chilled room(H)

1 Cover-chilled room(H)

1 Shelf-freezer wire(L)

1 Tray-ice,b(L)

1 Shelf-ref wire(L)

52(1.8)

133(4.7)

182(6.5)

545

589

1453 1553

52(1.8)

133(4.7)

182(6.5)

SR-24NME,24WME

3. Electrical part specification & standard

－5－

SR-21/24 NME(WME)

ITEM

Model

Power source

Compressor

STANDARD

Model

Starting type

Oil charge

Freezer

Refrigerator

Bimetal

(ON/OFF)

Thermal fuse

Type

Cycle

Time

Model

Resistance

Thermostat

Defrost-thermo

Defrost-timer

Starting-relay

Over load

protector

Capacitor

Model

Close temp

Open temp

Running

Starting

Motor-fan

Heater-defrost

Lamp

Door-switch

Earth screw

Evaporator

Condenser

Dryer

Capillary tube

SR-21NME, 21WME / SR-24NME, 24WME

R.S.C.R

FREOL α-15c / 200cc

Split fin type

Forced & natual convection

Molecular sieve

I.D 0.75 x 3400 (mm)

8032

D705-E9C

115V/60HZ

SD152C-L1W2

C.S.R

Type

Oper. temp

Regularity

Oper. temp.

TMDE714F1

4TM427

PHBYY-53

4TM265

PHBYY-53

61±9℃

125±5℃

912X32E100MQ16APE2

33Ω±20%

4TM222

PHBYY-53

AC250V / 5A

ON:-5±3℃/OFF:12±3℃

AC 250V / 10A

72±4℃

TMD706SC1

6Hr 35min

13min 40s

912X32E100MQ16APE3(60Hz)

40Ω±20%

220V/50~60HZ

SD162H-L1U2

230~240V/50HZ

SD162Q-L1U2

125㎌/ 100VAC

8㎌/ 250VAC

IS3210SMF6D

130W/93Ω

110V / 15W

130W406.9Ω

220V/15W

130W443Ω

240V/15W

SSD-5 250V/0.5A

BSBN(Brass screw)

3.5㎌/350VAC

IS3210SNF7A

4.Product Dimension

－6－

SR-21/24 NME(WME)

1071.0

500.0

9.5

366.5

545.0

59.5

51.0

545.0

77.5

MODEL

SR-21NME, 21WME

SR-24NME, 24WME

1453

1553

874.5

974.5

Remark

5.Identifying and dissembling the parts

－7－

SR-21/24 NME(WME)

To remove shelves in the

freezing compartment

●First remove the icemaking

molds. Tilt the shell up at front,

then lift it up pull it out of the tracks.

To remove shelves in the

chilled compartment

●Lift up the cover, push the cover to

the right until the mounting hook

disengages, then disengage the

other mounting hook and pull out the

cover.

●Pull the shelf forward until it stops.

Then lift it up and pull it out.

To remove door bins

●While pushing the bin to the left, left

it up to disengage.

To remove shelves in the

refrigerating compartment

●Hold the shelf by the front and pull

it forward of the rack.

To remove storage

drawers and covers

●Lift up to remove the cover. Pull

the drawer out then lifting it up.

6. Schematic diagram of coolant circulation

－8－

SR-21/24 NME(WME)

COMPRESSOR →CLUSTER PIPE →HOT PIPE →DRYER →CAPILLARY TUBE

→EVAPORATOR →ACCUMULATOR →SUCTION PIPE →COMPRESSOR

PIPE-CLUSTER,B

PIPE-CLUSTER,A

DRYERA

ACCUMULATORB

EVAPORATOR

HOT-PIPE

SUCTION

PIPEA

COMPRESSOR

CAPILLARY TUBE

7.Circuit diagram

－9－

SR-21/24 NME(WME)

7-1. SR-21/24NME

F.M

YEL

WHT

BRN BRN RED PNK

ORG

S/BLU

S/BLU BLU

P.T.C RELAY

F-THERMOSTAT

THERMO FUSE

FAN MOTOR

COMPRESSOR

DEFROST

TIMER DEFROST

HEATER

OVERLOAD

PROTECTOR

BIMETAL

THERMO

RUNNING

CONDENSER

GRY

GRY - GRAY

RED - RED

BRN - BROWN

YEL - YELLOW

PNK - PINK

BLK - BLACK

WHT - WHITE

BLU - BLUE

S/BLU - SKY BLUE

RED

R/LAMP

W/BLK

DOOR-S/W

7-2. SR-21/24WME

F.M

YEL

WHT

MOTOR-PLMP

WATER-DISPENSER

MICRD-S/W

LED

BRN BRN RED

RED RED

BLK GRY

PNK

ORG

S/BLU

S/BLU BLU

P.T.C RELAY

F-THERMOSTAT POWER-PCB

THERMO FUSE

FAN MOTOR

COMPRESSOR

DEFROST

TIMER DEFROST

HEATER

OVERLOAD

PROTECTOR

BIMETAL

THERMO

RUNNING

CONDENSER

GRY

GRY - GRAY

RED - RED

BRN - BROWN

YEL - YELLOW

PNK - PINK

BLK - BLACK

WHT - WHITE

BLU - BLUE

S/BLU - SKY BLUE

RED

R/LAMP

W/BLK

DOOR-S/W

8.Packing dimension

－10－

SR-21/24 NME(WME)

MODEL

SR-21NME, 21WME

SR-24NME, 24WME

636

596

1581

1681

Remark
