Samsung SCX-5315F Manuel utilisateur

DIGITAL LASER MFP

SCX-5315F Series

SCX-5315F

SCX-5115

1. Precautions

2. Speciﬁcations

3. Disassembly

4.Troubleshooting

5. ExplodedViews and Parts List

6. Block Diagram

7. Connection Diagram

DIGITAL LASER MFP CONTENTS

SERVICE MANUAL

Speciﬁcation

Samsung Electronics 2-1

2. Speciﬁcation

Speciﬁcations are correct at the time of printing. Product speciﬁcations are subject to change without notice.

See below for product speciﬁcations.

2-1 General Speciﬁcations

* Sound Pressure Level, ISO 7779

Item Description

Type of Unit Desktop

Operation System Win95/98/ME/ NT /2000/XP

Duplex Printing Yes(Default)

Interface IEEE1284(ECP)

USB(without HUB mode)

CPU 120 MHz(ARM946ES)

Emulation PCL6

Warming up Time 30 Sec (Stand-By), 25˚C

Absolute Storage Condition Temperature : -20°C ~ 40°C, Humidity : 10% RH ~ 95% RH

Operating Condition Temperature : 10˚C ~ 32˚C, Humidity : 20% RH ~ 80 % RH

Recommended Operating Condition Temperature : 16°C ~ 30°C, Humidity : 30% RH ~ 70% RH

Dimension(W X D X H) 560 X 433 X 459 mm

Weight About 22.5 Kg(with CRU)

* Acoustic Noise Less than 56/50 dB(Copy/Printing mode)

Power Rating AC 100VAC ~ 127VAC ± 15 %, 50/60Hz ± 3Hz

AC 220VAC ~ 240VAC ± 15 % , 50/60Hz ± 3Hz

Power Consumption Avg. 320Wh

Power Save Consumption Avg. 35Wh

Recommended System Requirement Pentium IV 1.2 Ghz, 128 MB RAM, 220MB(Hard Disk)

Minimum System Requirement Pentium II 400Mhz, 64 MB RAM, 120MB(Hard Disk)

LCD 16 characters X 2 lines

Memory 4 Mbyte for ﬂash Memory , 16 Mbyte for SDRAM

Speciﬁcation

Samsung Electronics2-2

2-2 Printer Speciﬁcations

* Print speed will be affected by Operating System used, computing performance, application software,

connecting method, media type, media size and job complexity.

2-3 Facsimile Speciﬁcation(SCX-5315F Only)

Item Description

Printing Method Laser Scanning Unit + Electro Photography

*Speed Single Side : Up to 15 PPM

(Letter Size, 5% Character Pattern)

Duplex : Up to 7.5 IPM(Images/Min) (Letter Size, 5% Character Pattern)

Source of Light LSU(Laser Scanning Unit)

Duplex Printing Yes(Default)

Resolution(Horizontal XVertical) Up to 1200 x 1200 DPI effective output

Feed Method Cassette Type , By Pass Tray,

ADF(Automatic Document Feeder)

Feed Direction FISO(Front-In Side-Out)

Paper Capacity(Input) Cassette : 550 Sheets

By Pass Tray : 100 Sheets(based on 75g/ß

≥

, 20lb)

Paper Capacity(Output) Face Down : 250 Sheets

Effective Print Width 203 ± 1mm (8 inch)

Item Description

Standard Recommendation ITU-T Group3(ITU : International Telecommunications Union)

Application Circuit PSTN or behind PABX

(PSTN : Public Switched Telephone Network.

PABX : Private Automatic Branch Exchange)

Data coding(Compression) MH/MR/MMR/JPEG(Transmission)

Modem speed 33600 /14400/12000/9600/7200/4800/2400 bps

Transmission Speed Approximately 3 sec(33,600 bps)

Effective Scanning Width 8.2 inches(208 mm)

Halftone 256 Levels

Paper Capacity(Input) ADF(Automatic Document Feeder) : 30Sheets(75g/ß

≥

)

FAX Mode Standard /Fine/Super Fine/Halftone

Memory 4MB

Speciﬁcation

Samsung Electronics 2-3

2-4 Scanner Speciﬁcation

* Speed will be affected by Operating System used, computing performance, application software, connecting

method, media type, media size and job complexity.

2-5 Copy Speciﬁcation

NOTE :

(1) Speed claims based on the test chart : Letter size.

SDMP : Single Document Multiple Printout

MDSP : Multiple Document Single Printout

• Speed will be affected by Operating System used, computing performance, application software,

connecting method, media type, media size and job complexity.

Item Description

Type Flatbed(with ADF)

*Speed Mono : Up to 1.2 msec/line, Color : Up to 2.5 msec/line

Device Color CCD(Charge Coupled Device) Module

Interface IEEE1284(ECP Support)

USB(without HUB Mode)

Compatibility TWAIN Standard , WIA

Optical Resolution(H X V) Up to 600 x 600 DPI effective output

Interpolation Resolution Max. 4800 dpi

Halftone 256 Levels

Effective Scan width 8.2 inches(208 mm)

Item Description

Mode B/W

Quality Text/Photo/Mixed

Mono Copy Speed

(1)

Platen(SDMP) : Up to 12 cpm in A4 size, IDC 5% pattern

ADF (SDMP) : Up to 12 cpm in A4 size, IDC 5% pattern

ADF (MDSP) :Text/mixed : Approx.7 cpm in A4 size, IDC 5% pattern

: Photo :Approx. 3 cpm in A4 size, IDC 5% pattern

Optical Resolution (H x V) Up to 600 x 600 DPI effective output

Multi Copy 99 pages

Maximum Original Size Legal

Maximum Page Size Legal

Paper Type Selection Plain , Legal , Cardstock , Transparency

Zoom Range Platen : 25 ~ 400%(1% Step)

ADF : 25~100 %(1% Step)

Speciﬁcation

Samsung Electronics2-4

2-6Telephone Speciﬁcation(SCX-5315F Only)

2-7 Consumables

Item Description

Speed Dial 80EA

Tone/Pulse Tone only user modeTone/Pulse selectable in tech mode.

Item Description

Type Separate type

(Toner Cartridge / Drum Cartridge)

Life Toner Cartridge Up to 6,000 sheets

( 5% coverage pattern, simplex normal mode )

Drum Cartridge Up to 15,000 sheets

(simplex normal mode )

T I D I

This service manual is also provided on the web,

the ITSELF system Samsung Electronics Co., Ltd.

“http://itself.sec.samsung.co.kr”

Printed in Korea.

VERSION NO. : 1.00 CODE : JC-0086A

This Service Manual is a property of Samsung Electronics

Co.,Ltd. Any unauthorized use of Manual can be punished

under applicable International and/or domestic law.

Disassembly and Reassembly

Samsung Electronics 3-1

3. Disassembly and Reassembly

3-1 General Precautions on Disassembly

When you disassemble and reassemble components, you must use extreme caution.

The close proximity of cables to moving parts makes proper routing a must.If components are removed, any

cables disturbed by the procedure must be restored as close as possible to their original positions.Before

removing any component from the machine, note the cable routing that will be affected.

Whenever servicing the machine, you must carry out the following :

1. Check to verify that documents are not stored in memory.

2. Unplug the power cord.

3. Use a ﬂat and clean surface.

4. Replace only with authorized components.

5. Take care when removing plastic component-do not force.

6. Make sure all components are in their proper position.

3-2 Rear Cover

1. Remove the six screws securing the Rear Cover.

2. Separate the rear cover from the base frame

and Scanner Ass'y.

Disassembly and Reassembly

3-2 Samsung Electronics

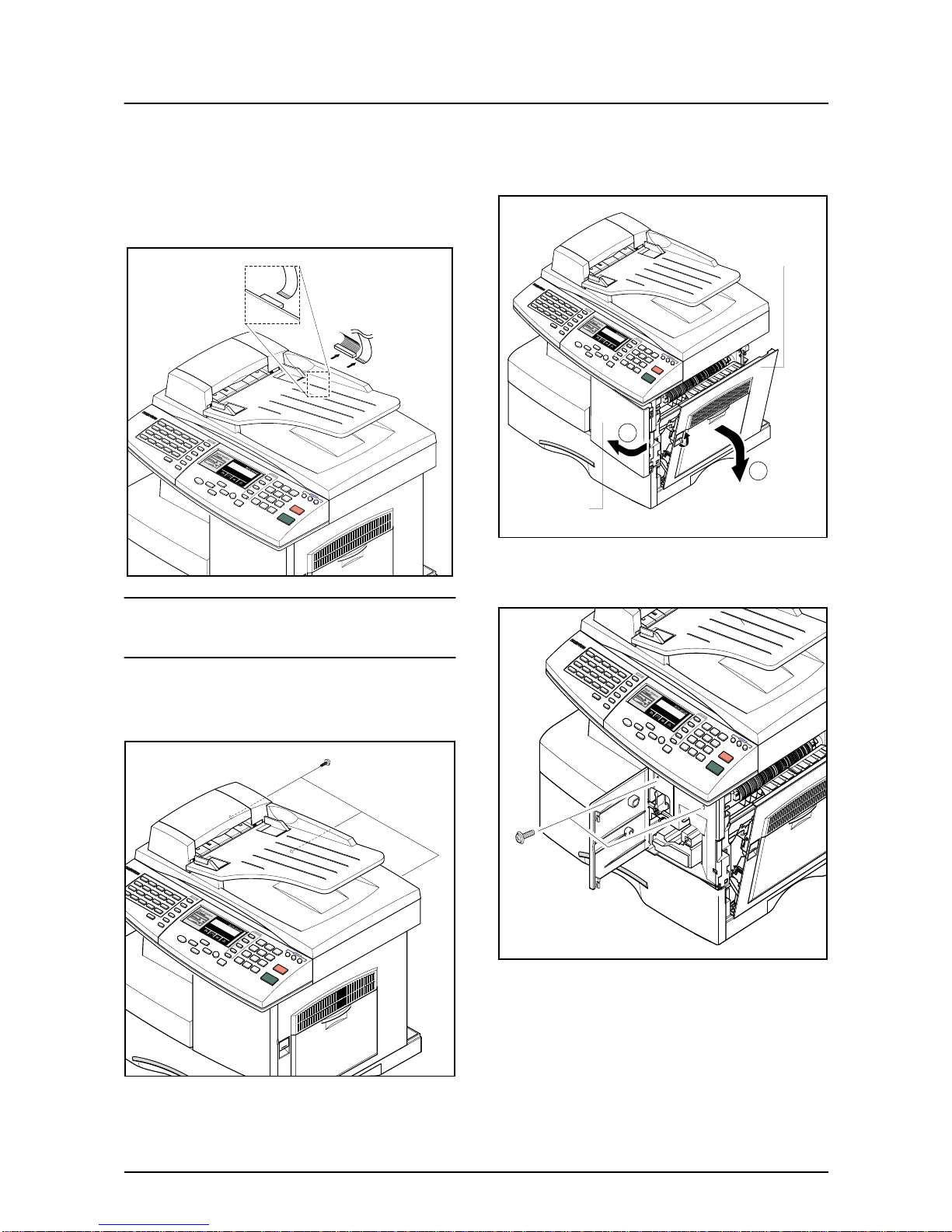

3-3 Scanner Ass'y

1. Before you remove the Scanner Ass'y, you

should remove:

- Rear Cover (see page 3-1)

2.Take out the Shield Main Upper.Unplug the one

connector and CCD cable.

Notice :

To avoid damage to the CCD cable connector ensure that

you pull the cable out carefully. Pull in line with the con-

nector not at an angle.

3. Remove the three screws, as shown below.

4. Open the Side Cover assembly ﬁrst to open the

Front cover. In the other words, close the front

cover ﬁrst to assembly it.

5. Remove two screws.

Side CoverAss’y

Front Cover

Disassembly and Reassembly

Samsung Electronics 3-3

6. Pull up the Scanner Ass'y in the direction of

arrow.

7. Remove the connector from the Platen Ass'y.

8. Open the ADF Ass’y in the direction of arrow.

Pull the ADF Ass'y upward and remove it.

9. Remove the three screws securing the Platen

Ass'y.

Disassembly and Reassembly

3-4 Samsung Electronics

10. Pull the OPE Ass'y and unplug the one connector.

11. Remove the ﬁve screws securing the Platen Ass'y.

12. Unlatch the Scan Upper Ass'y securing the

glass and remove it.

Notice :

When dismantling the Scan Assy ensure your work area

is clean. Dirt or dust on the scan head can lead to a deg-

radation in scanned image quality.

13. Remove the two scews and pull the Dummy

Upper Ass’y.

Dummy Upper Ass’y
