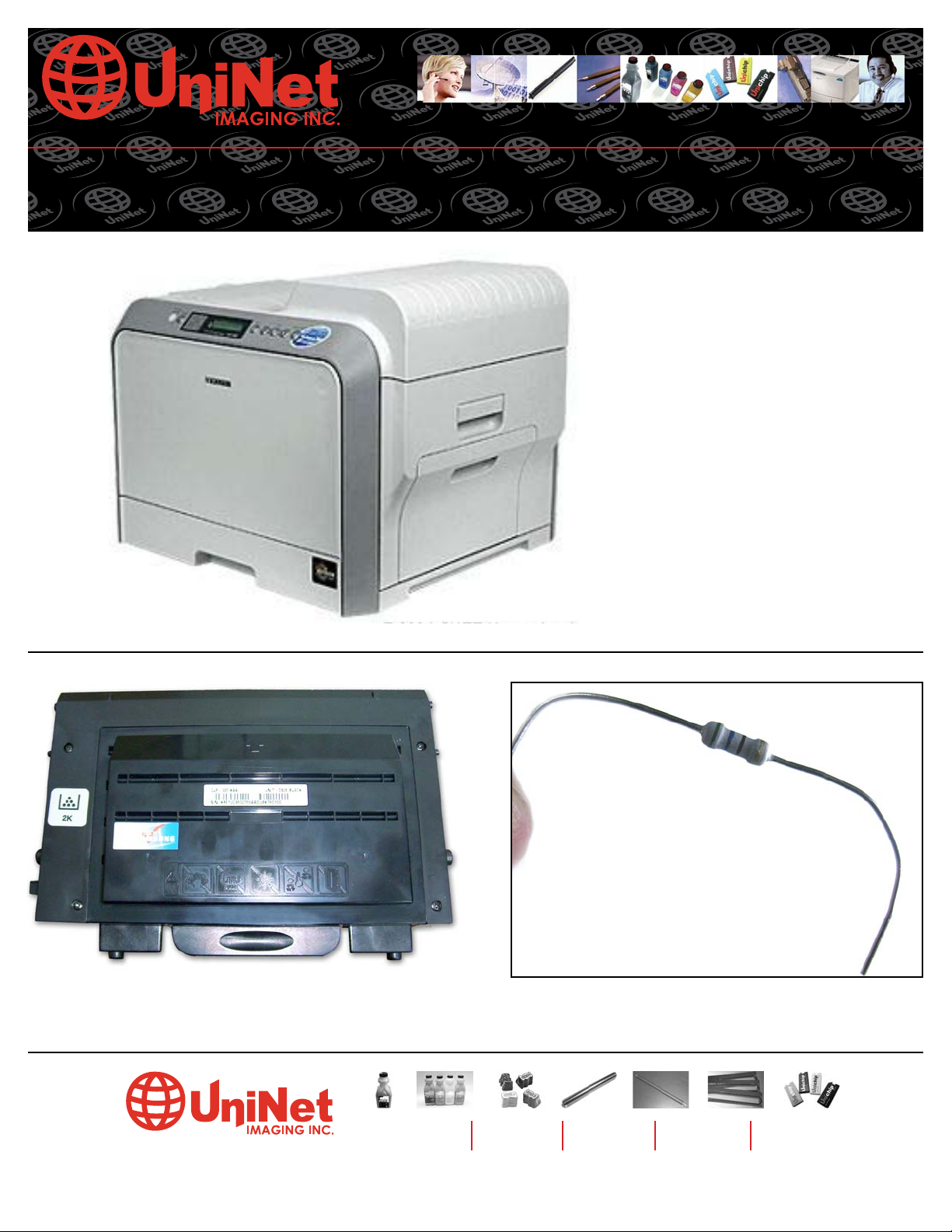

SAMSUNG CLP 500 - CARTRIDGE REMANUFACTURING INSTRUCTIONS

INCLUDING CARTRIDGE RESET SYSTEM FUSE INSTRUCTIONS

TONER CARTRIDGE

PAGE 2

CARTRIDGE RESET SYSTEM INSTRUCTIONS

PAGE 4

SAMSUNG CLP 500

COLOR LASER PRINTER

11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]

Uninet Imaging does not guarantee or warrant downloaded information.

USA

+310-280-9620

+310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

www.uninetimaging.com

UNINET IMAGING INC. •SAMSUNG CLP 500 REMANUFACTURING INSTRUCTIONS

1. Remove the outer shell by first removing FIVE screws: FOUR

screws are located on the top of the cartridge as shown.

3. Remove the cover as shown. You will notice a small adhesive

holding it in place, but it will not be affected if the cover is

removed.

2. The FIFTH screw is located on the gear-side of the cartridge.

After removing the screws, unlock the bottom side of the shell by

pushing in the TABS shown using a flat-head screw driver.

REMOVING THE DEVELOPER ROLLER

4. Using a small flat-head screwdriver, remove the locking metal

CLIP located at each end of the developer roller axle. This clip

holds the axle gear in place. Push the clip out away from the axle

as shown.

NOTES:

11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]

Uninet Imaging does not guarantee or warrant downloaded information.

USA

+310-280-9620

+310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

www.uninetimaging.com

TABS

UNINET IMAGING INC. •SAMSUNG CLP 500 REMANUFACTURING INSTRUCTIONS

5. Slide the developer roller gear off as shown.

7. Using a small flat-head screwdriver, push out the metal wash-

er-like ring that holds the axle in place near the toner fill plug

area. The other side should remain in place.

6. Remove the locking metal clip and gear from the opposite end

of the axle in the same manner as in Step 4 and 5.

8. Slip the developer roller outward then slide it away toward the

side of the cartridge.

11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]

Uninet Imaging does not guarantee or warrant downloaded information.

USA

+310-280-9620

+310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

www.uninetimaging.com

NOTES:

UNINET IMAGING INC. •SAMSUNG CLP 500 REMANUFACTURING INSTRUCTIONS

9. Remove the toner fill plug to begin the cleaning process. Use

a vacuum on easy areas making sure there is nothing that will

vent. Use air pressure for hard-to-reach and sensitive areas.

10. After thoroughly cleaning the cartridge and installing clean

components, you are now ready to install your after-market toner.

11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]

Uninet Imaging does not guarantee or warrant downloaded information.

USA

+310-280-9620

+310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

www.uninetimaging.com

NOTES:

REPLACING THE CARTRIDGE RESET SYSTEM FUSE

Samsung CLP 500, 550 Smartchip BK/C/M/Y Fuse

(Uninet part #8172)

NOTE: Electrical soldering is required for this section.

11. Locate the CONTACT ASSEMBLY on the gearless side of the

cartridge. Using a small flat-head screwdriver, carefully pry loose

the cartridge contacts assembly as shown.

UNINET IMAGING INC. •SAMSUNG CLP 500 REMANUFACTURING INSTRUCTIONS

12. Locate the FUSE that is soldered to the two outer contact

tabs.

14. Use the solder iron to smooth out any solder material remain-

ing on the outer contact tabs.

13. Use pliers to hold the FUSE while applying the heated solder

iron to the tab connected to it as shown. Carefully remove the

wire as the solder melts. Repeat the same on the other tab. DO

NOT OVERHEAT the tab as this may cause the housing to melt.

15. Solder the CARTRIDGE RESET SYSTEM FUSE onto the outer

contact tabs as shown. You can solder any side to either contact

as the tabs are not specific. Be careful not to overheat the tabs.

11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]

Uninet Imaging does not guarantee or warrant downloaded information.

USA

+310-280-9620

+310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

www.uninetimaging.com

Remove

NOTES:

UNINET IMAGING INC. •SAMSUNG CLP 500 REMANUFACTURING INSTRUCTIONS

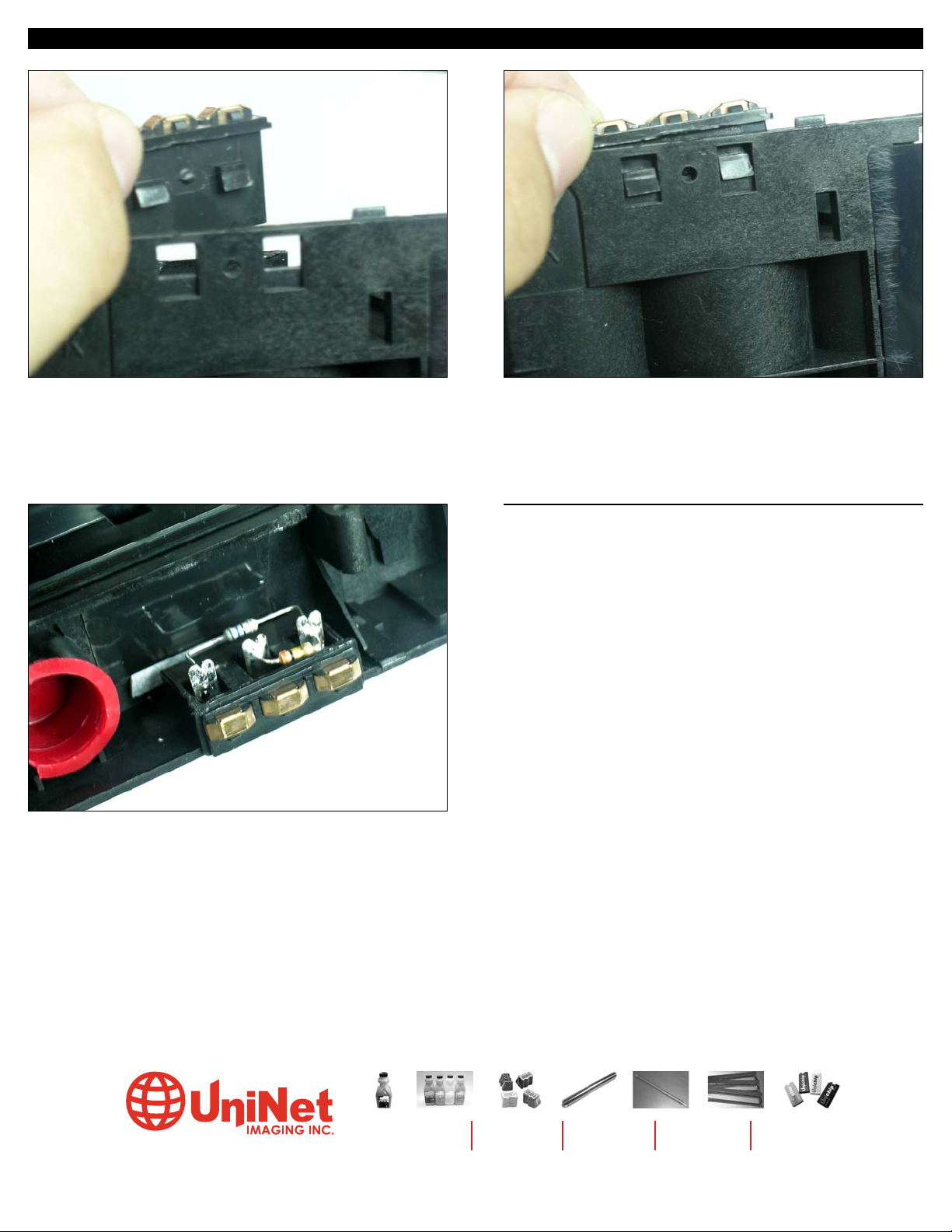

16. Insert the completed assembly back into the cartridge by lin-

ing up the tabs with the holes shown.

TESTING THE CARTRIDGE

18. Make sure the printer is turned OFF before installing and

testing the cartridge.

17. With the tabs in place, the assembly is now locked.

11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • [email protected]

Uninet Imaging does not guarantee or warrant downloaded information.

USA

+310-280-9620

+310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

www.uninetimaging.com

NOTES:
