Alignment and Adjustments

Samsung Electronics 2-1

2. Alignment and Adjustments

2-1 Service Mode

2-1-1 SERVICE MODE Entry Method (General Transmitter)

■ For the General Transmitter

1. Turn the power off and set to stand-by mode.

2. Press the buttons of the transmitter in this order; Info-Menu-Mute-Power or Mute-1-8-Power

to turn the set on.

3. The set turns on and enters service mode.

* If you fail to enter service mode, repeat steps 1 and 2 above.

2-1-2 Initial DISPLAY State of SERVICE MODE

2-1-2(A) OSD DISPLAY

2-1-2(B) Button Operations in SERVICE MODE

1. VSP9437-1 9. CXA2101

2. VSP9437-2 10. LOGIC

3. FLI2300 11. TP LOG-ASI

4. ASI500-1 12. Option

5. ASI500-2 13. CheckSum 0000

6. DNIe 14. Reset

7. AD9888

8. CXA2151

Release : 2003-07-12 T_NEW63MWW_1001

UP/DOWN Key

LEFT/RIGHT Key

Displays all menus

Cursor move to select items

Enable to increase and decrease the data of the selected items

SERVICE MAIN

Alignment and Adjustments

2-2 Samsung Electronics

2-1-3 Factory Data Initial Value

VSP943 7- 1 ( V IDEO )

V PEAKING 16

HPLL SPEED 00

RGB/YUV CONTRAST 41

RGB/YUV BRIGHTNESS 248

YUV SATCB 26

YUV SATCR 26

PAL B/G 01

PAL D/K 01

PAL I 01

SECAM B/G 27

SECAM D/K 27

SECAM L'/L 27

NTSC M 01

NTSC 4. 43 27

PAL 60 27

PAL M/N 01

PAL 01

SECAM 27

NTSC 01

NTSC 4. 43 27

PAL 60 27

NR 01

VSP9 43 7 - 2

V PEAKING 16

HPLL SPEED 01

PAL 01

SECAM 27

NTSC 01

PAL AV 01

SECAM AV 27

NTSC AV 01

F L I230 0

Y DELAY 05

C DELAY 12

CONTRAST 95

BRIG HTNESS 18 5

SATURATION 11 0

ASI500 I ( VIDEO / PC,DVI )

R CONTRAST 32/30

G CONTRAST 32/30

B CONTRAST 32/30

R BRIGHTNESS 00

G BRIGHTNESS 00

B BRIGHTNESS 00

TEXT ALPHA 01

TEXT THRESHOLD 07

FILT ER ML 00

FILT ER MR 00

FILT ER FR 00

FILT ER MC 16

FILT ER UC 00

FILT ER LC 00

FILTER YPASS 00

R GAMMA 32

G GAMMA 32

B GAMMA 32

H POSITION 00

V POSITION 00

HSIZE 00

VSIZE 00

OVERSCAN R 50

OVERSCAN G 50

OVERSCAN B 50

ASI 500 II

PIP R CONTRAST 32

PIP G CONTRAST 32

PIP B CONTRAST 32

PIP R BRIG HTNESS 00

PIP G BRIG HTNESS 00

PIP B BRIG HTNESS 00

PIP FILTER IC 00

PIP FILTER ML 00

PIP FILTER MR 00

PIP FILTER UC 00

Alignment and Adjustments

Samsung Electronics 2-3

CXA210 1

PICT URE 16

HUE 31

COLOR 16

BRIG HT 61

SHARPNESS 28

R-DRIVE 04

G-DRIVE 04

B-DRIVE 04

R-CUTOFF 32

G-CUTOFF 32

B-CUTOFF 32

SUB-BRIGHT 35

CR-OFFSET1 07

CB-OFFSET1 07

SUB-CONT 12

SUB-COL 08

SUB-HUE 08

R-Y/ R 13

R-Y/ B 15

G-Y/ R 12

G-Y/ B 04

DNIe (VIDEO / PC, DVI) AD9888 (VIDEO / COMP/ PC)

R GAIN 127/190/127

127/213/127

127/206/127

54/79/54

54/34/54

54/75/54

GGAIN

BGAIN

R, CR OFFSET

G, Y OFFSET

B, CB OFFSET

VIDE O PATH PC

AUTO COLOR OFF

CXA2151

GAIN SEL 01

CB GAIN 07

CR GAIN 07

YGAIN 01

HFREQ 00

BRIGHT OFFSET

CONTRA OFFSET

SCALE MAX Y

SCALE MIN Y

TH HPF

TH EDGE

NR SEL

CE UPPER

CE CUTOFF

CE GAIN

DCE GAIN

SKIN ON

CTI GAIN

DE NOISE GAIN

Attachment

04/05

220/240

64/75

190/96

00/08

08/10

TH CORING

PATT SEL

NOISE TH3

H CONT

V CONT

BLACK GAIN

WHITE GAIN

WTE GAIN

CTE GAIN

H SHARP GAIN

V SHARP GAIN

SHARPNESS

CLK DLY

H POSI

100

375

300

176

127/48

100

Alignment and Adjustments

2-4 Samsung Electronics

LOGIC (PDP DRIVER)

R DRIVE

G DRIVE

B DRIVE

R CUTOFF

G CUTOFF

B CUTOFF

GAMMA 01

GTS SET 01

ERD MODE 01

RANDOM NOISE 01

DIFF FI LTER 01

APC 01

APC SET 00

APC VALUE 127

ACTIVE V POS 12

ACTIVE H POS 19

V SYNC POS 03

H SYNC POS 32

V SYNC WIDTH 02

H SYNC WIDTH 12

TP LOG- ASI (TEST PAT LOGIC /SCALER)

LOG PATTERN 00

LOG HIGH LEVEL 00

LOG LOW LEVEL 00

ASI COLORBAR 00

OPTI ON

PIXEL SHIF T V

SHIFT TEST OFF

PIXEL NMBER 04

SHIFT LINE 04

SHIFT TIME 04

RGB DNIe OFF

DNIe DEMO OFF

DNIe THROUGH OFF

VIDEO MUTE 00

1366x768 ON

MDC ENABLE ON

LAST MEMORY ON

IC W/B Data

Video ,S-VHS Component PC DVI

SNI Bright

Contrast

Logic

RGain

GGain

BGain

RCutoff

GCutoff

BCutoff

ITEM

Attachment

■

247

145

130

120

232

252

125

130

105

243

125

130

105

243

125

130

254

Alignment and Adjustments

Samsung Electronics 2-5

Alignment and Adjustments

2-2 WHITE Balance Coordinates

2-2-1 White Balance Adjustment

1. W/B Adjustment is required for the following four modes: DVI → DTV → PC → CVBS(VIDEO)

→ CVBS(VIDEO PIP)

2. Adjustment Method (DVI, DTV, PC : VG828, CVBS : Adjust RF signals to match the

Toshiba pattern (in-house signal)

!Adjust the target set by adjusting the panel logic and the video DNIe adjustment register in

is the full digital path.

@For DTV adjustment, adjust the adjustment register of ad9888 to align the DTV signal

to the DNIe and logic panel value which was fixed with a DVI adjustment so that they are

in effect considered to be the same signals. (At this time, do not adjust the gain of

AD9888 → the Highlight W/B does not need to be adjusted since its deviation falls

within valid distribution range.)

#PC adjustment is same as DTV adjustment. (The offset can be applied to the values

obtained through DTV adjustment. However, additional adjustment is required for

Y, Cb, and Cr of DTV since PC processes R, G, and B signals.)

$cvbs adjustment is performed with the Toshiba pattern (in-house signal) and differs

from the VG828 signals in the above three modes. Hence, it should be performed with

the same method of !DVI adjustment.

% Finally, activate PIP in video mode, and repeat W/B adjustment.

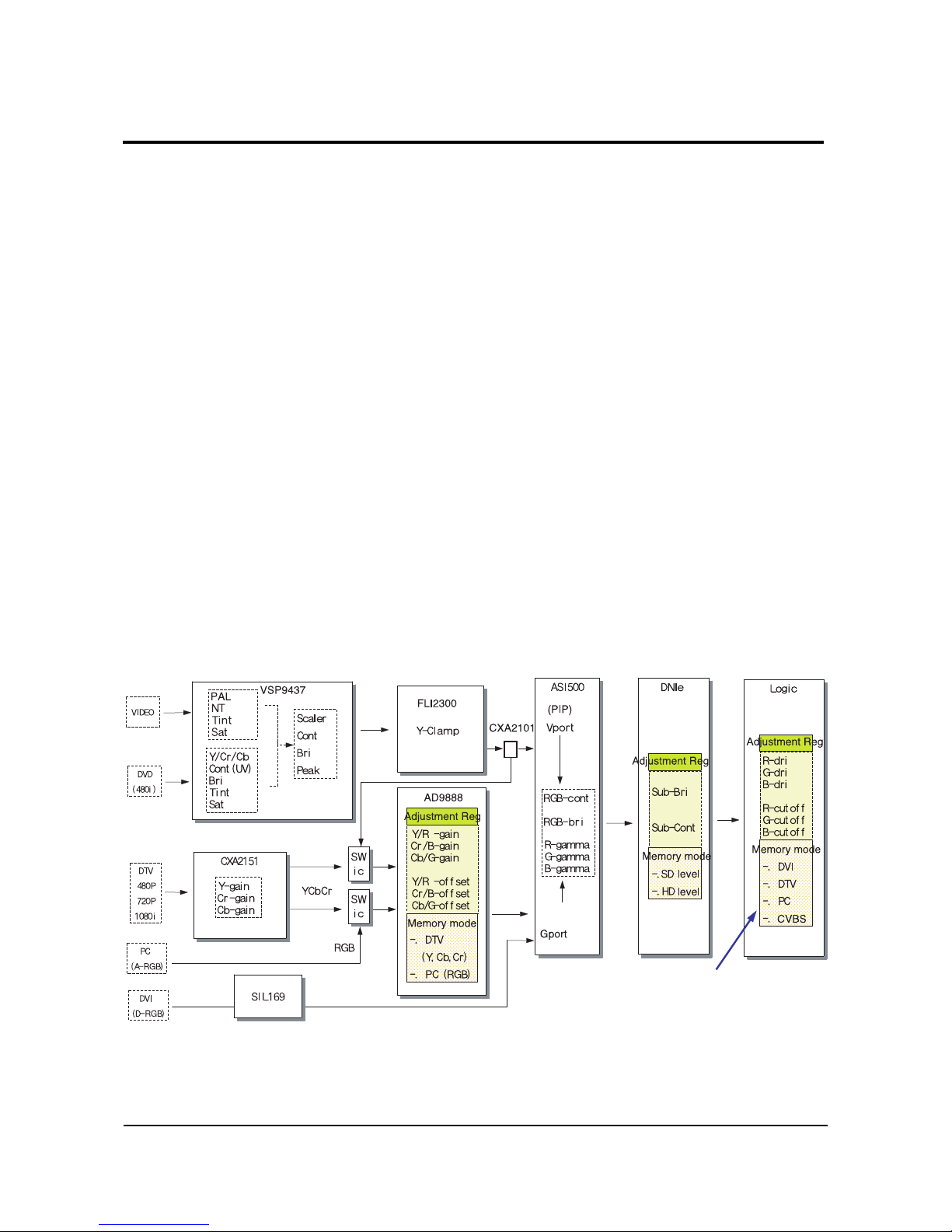

❈Thus, Micom saves the W/B data separately for each memory mode of the block

(See the block diagram given below) during W/B adjustment.

Micom can memorize the four modes

separately. However, under the current

adjustment guidelines, DTV and PC are

memorized with the same value during

DVI adjustment and CVBS is memorized

with a separate value.

Alignment and Adjustments

2-6 Samsung Electronics

2-2-2 White Balance Coordinates by Mode

DVI DTV COMPONENT

(480P, 720P,1080i)PC VIDEO

H/L

x285 285 285 280

y295

295 295 295

Y(fL) 31.5 20.0 31.5

L/L

x285 285 285 285

y295 295 295 300

Y(fL) 0.8 0.9 0.8 0.9

PedestalLevel Low Light

measure point High Light

measure point

Pattern Used in Adjustment : 10 Steps Grayscalepattern

Alignment and Adjustments

Samsung Electronics 2-7

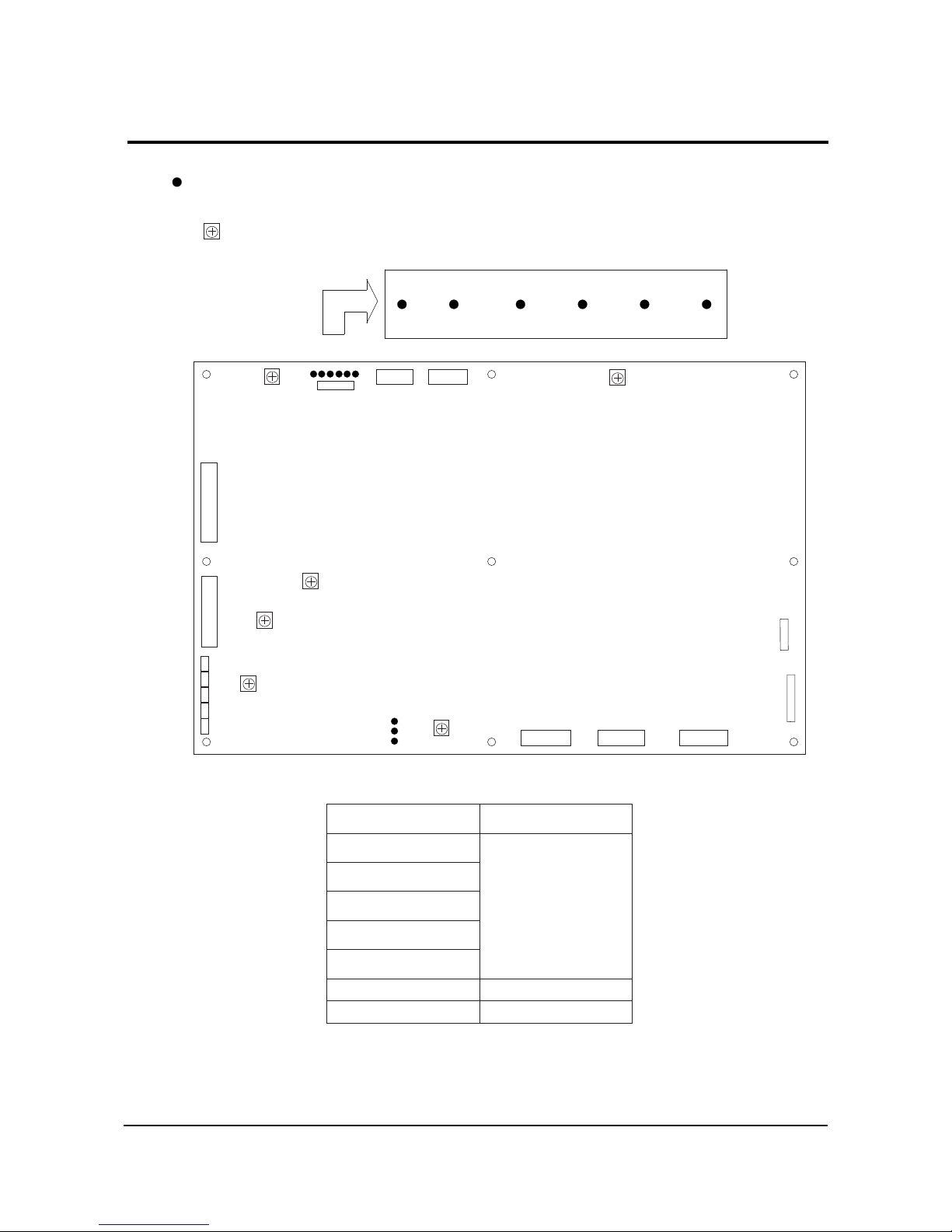

2-3 Voltage Adjustment

Tuning the variable resistor(VR) adjusts voltage

T:TestPoint

VR : Variable Resistor

SMPS-DC

CN830

CN852B

CN851B

CN801

CN803CN802

VR8540

VR8601

CN805

CN804

VR8580

VSET

VR8560

VSCAN VR8491

D5V

VR8501

CN806 CN811

Test Point

VSET VSCAN VE VA VS

OUTPUT Voltage

VSCAN

See the labels

attached on the

base chassis.

VSET

D5V +5V

A6V +6V

D5V

A6V

2-8 Samsung Electronics
