Samsung SyncMaster P2370 Manuel utilisateur

SyncMaster P2270HD,P2370HD

LCD TV MONITOR

quick start guide

Installing the Product 2-1

2 Installing the Product

2-1 Package Contents

• Unpack the product and check if all of the following contents have been included.

• Store the packaging box in case you need to move the product at a later stage.

The cleaning cloth is supplied with black high-glossy models only.

CONTENTS

Quick Setup Guide Product Warranty

(Not available in all locations)

User Manual D-Sub Cable

Power Cord Batteries (AAA X 2) Stand Connector Stand

Remote Control Stereo Cable Cleaning Cloth

SOLD SEPARATELY

DVI Cable DVI Cable

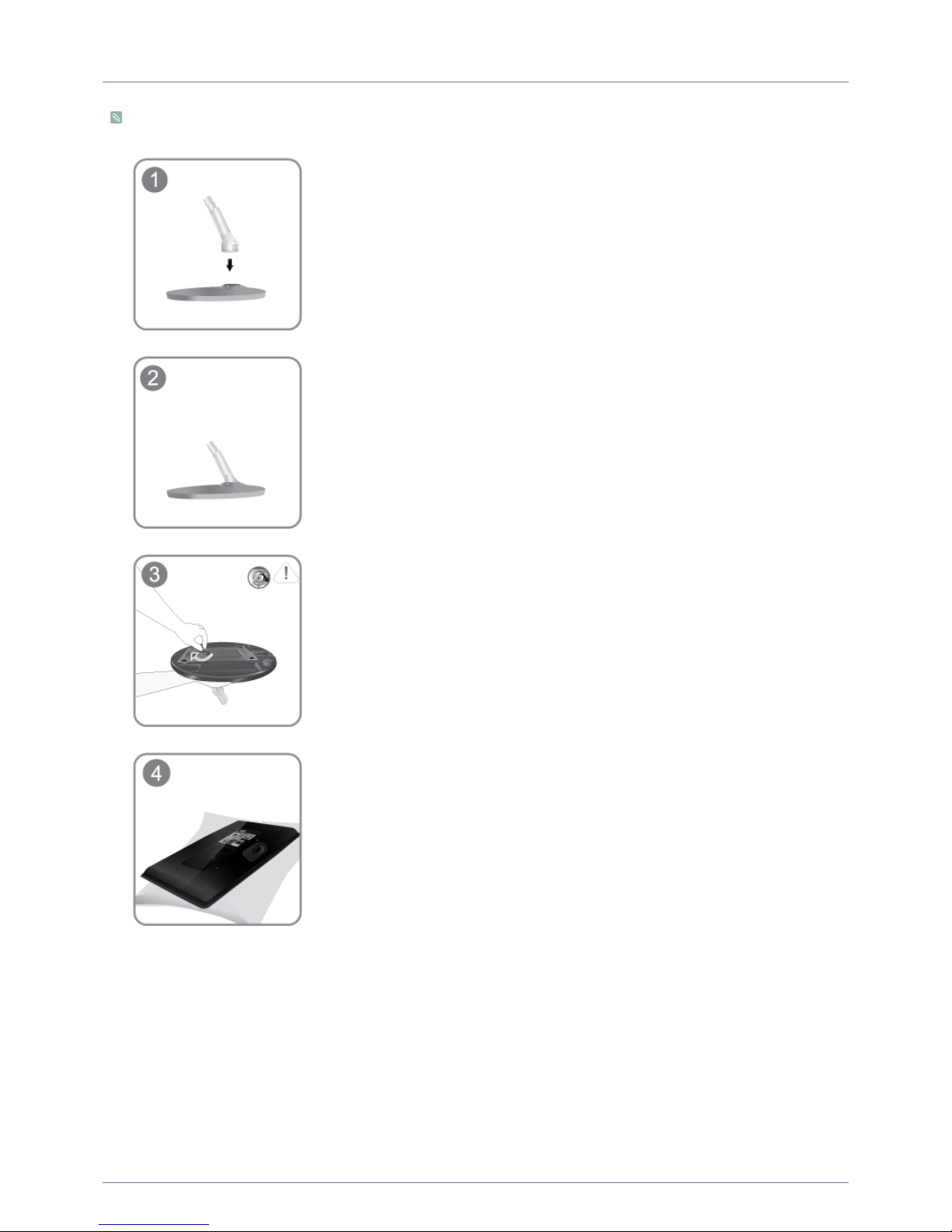

2-2 Installing the Product

2-2 Installing the Stand

Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.

Insert the Stand Connector into the Stand Base in the direction shown by the figure.

Check if the Stand Connector is firmly connected.

Turn the connecting screw at the bottom of the stand fully so that it is completely fixed.

Place a soft cloth over the table to protect the product and place the product onto the

cloth face down.

Installing the Product 2-2

Hold the main body of the product with your hand as shown by the figure.

Push the assembled stand into the main body in the direction of the arrow as shown in

the figure.

- Caution

Do not lift the product holding only the stand

2-3 Installing the Product

2-3 Removing the Stand

Before removing the stand, place the product down on a flat and stable surface so that the screen faces downwards.

Place a soft cloth over the table to protect the product and place the product face down.

Hold the main body of the product with your hand as shown by the figure.

Pull the stand in the direction of the arrow as shown in the figure to separate it.

Turn the connecting screw at the bottom of the stand to separate it.

Take the Stand Connector out of the Stand by pulling it in the direction of the arrow as

shown in the figure.

Installing the Product 2-4

2-4 Attaching a Wall Mount/Desktop Stand

Attaching a Wall Mount/Desktop Stand(not supplied)

This product provides a stand mount of 75 mm x 75 mm (2.95 x 2.95 inches) that complies with the VESA specifications.

1. Turn the product off and unplug the power cord from the wall outlet.

2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product face down.

3. Remove the screw from the stand and separate the stand.

4. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand,

wall mount stand or another stand) and firmly fix the stand by fastening the screw.

• If you use screws that are longer than the standard specifications, the inside of the product may be damaged.

• For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ

depending on the corresponding specifications.

• Avoid using screws that are incompatible with the standard VESA specifications and avoid assembling them using

excessive force.

This may result in damage to the product or injury due to the product falling. Samsung shall not be held liable for any

damage or injury.

• Samsung shall not be held liable for any damage to the product or injury caused by using a stand that is not compatible

with the specifications or due to an installation not performed by an authorized installation engineer.

• When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm (3.93 inches) of

space from the wall.

• Use the wall mount according to the international specifications.

A.Wall/Desktop Stand Mount

B.Wall mount kit/desktop stand (not supplied)

2-5 Installing the Product

2-5 Connecting to a Computer

1. Connect the product to a PC depending on the video output supported by the PC.

The connecting part may differ depending on the product model.

When the graphics card provides a D-Sub <analog> output

• Connect the [PC IN] port of the product to the [D-Sub] port of the PC with the D-Sub cable.

When the graphics card provides a DVI <digital> output

Installing the Product 2-5

• Connect the [DVI-D IN] port of the product to the DVI port of the PC with the DVI cable.

2. Connect the [ HDMI/PC/DVI-D AUDIO IN] port on the rear side of the monitor to the sound card of the PC.

3. Connect one end of the power cord to the [ POWER ] port of the product and connect the other end of the power cord to the

110V or 220V wall outlet.

(The input voltage is switched automatically.)

2-5 Installing the Product

• You may enjoy clear and quality sound from the computer sound card using the monitor's speakers. (You don't need to

install separate speakers for your computer.)

• You may get a blank screen depending on the type of video card you are using if you connect the D-sub and DVI cables

simultaneously to one computer.

• If you connect your monitor properly using the DVI connector but get a blank or fuzzy screen, check to see if the monitor

status is set to analog. Press [ ] button to have the monitor double-check the input signal source.

Installing the Product 2-6

2-6 Using it as a TV

You may view television programs on the monitor if it is connected to an antenna or cable/satellite system without installing any

separate TV reception hardware or software on your computer.

1. Connect the cable/satellite or TV antenna cable to the [ANT IN] port on the rear side of the monitor.

• When using an indoor antenna/cable/satellite terminal:

Check the antenna terminal on the wall and then connect the antenna/cable/satellite TV cable.

• When using an outdoor antenna:

When using an outdoor antenna, we strongly suggest using a qualified technician to install it.

2. When the connections are completed, connect the TV power.

3. When the product is turned on for the first time after it was purchased, the initial setup operations (<Plug&Play>) begin.

• Be careful that the coaxial cable is not bent when connecting it to the antenna input terminal [ANT IN].
