Samsung SyncMaster 400EXn Manuel utilisateur

400EX(n) 460EX(n) 550EX(n)

LCD DISPLAY

quick start guide

Introduction

Package Contents

Note

Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Note

This stand is not for the Floor Standing Type.

Checking the Contents of the Package

Remove the lock from the package box, as shown in the figure above.

Lift up the package box by

holding the grooves on

both sides of the package

box.

Check the contents of the

package.

Remove the Styrofoam

and vinyl cover.

Note

•After unpacking the package, make sure to check the contents of the package.

• Make sure to keep the package box for transporting the product in the future.

• After unpacking, you may use the lower part of the package box as a temporary stand for

product test or operation check.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

MagicInfo Software CD,

MagicInfo Manual CD

(Applicable to the EXn

model only)

Cables

Power Cord D-Sub Cable

Others

Remote Control

(BP59-00138A)

Batteries (AAA X 2)

(Not available in all loca-

tions)

HOLDER-WIRE 2EA

(BN61-05373A)

Introduction

Sold separately

LAN Cable USB Cable

(Applicable to the EXn

model only)

RGB to BNC Cable

RGB to Component Cable

RGB to AV Cable

Network Box

(Applicable to the EX mod-

el only)

Wall Mount KIT

Your LCD Display

Front

SOURCE button

Switches from PC mode to Video mode. Selects the input source that an

external device is connected to.

[PC] →[AV] →[Component] →[HDMI] →[MagicInfo]

Note

For an EX model,

•MagicInfo can only be enabled when a network box is connected.

• The HDMI port and network box cannot be connected at the same time.

Introduction

(Power) button

Use this button for turning the LCD Display on and off.

Brightness Sensor

Automatically detects the surrounding brightness.

Power indicator

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under

Setup. The LCD Display's configuration at the back may vary slightly depending on the model.

Introduction

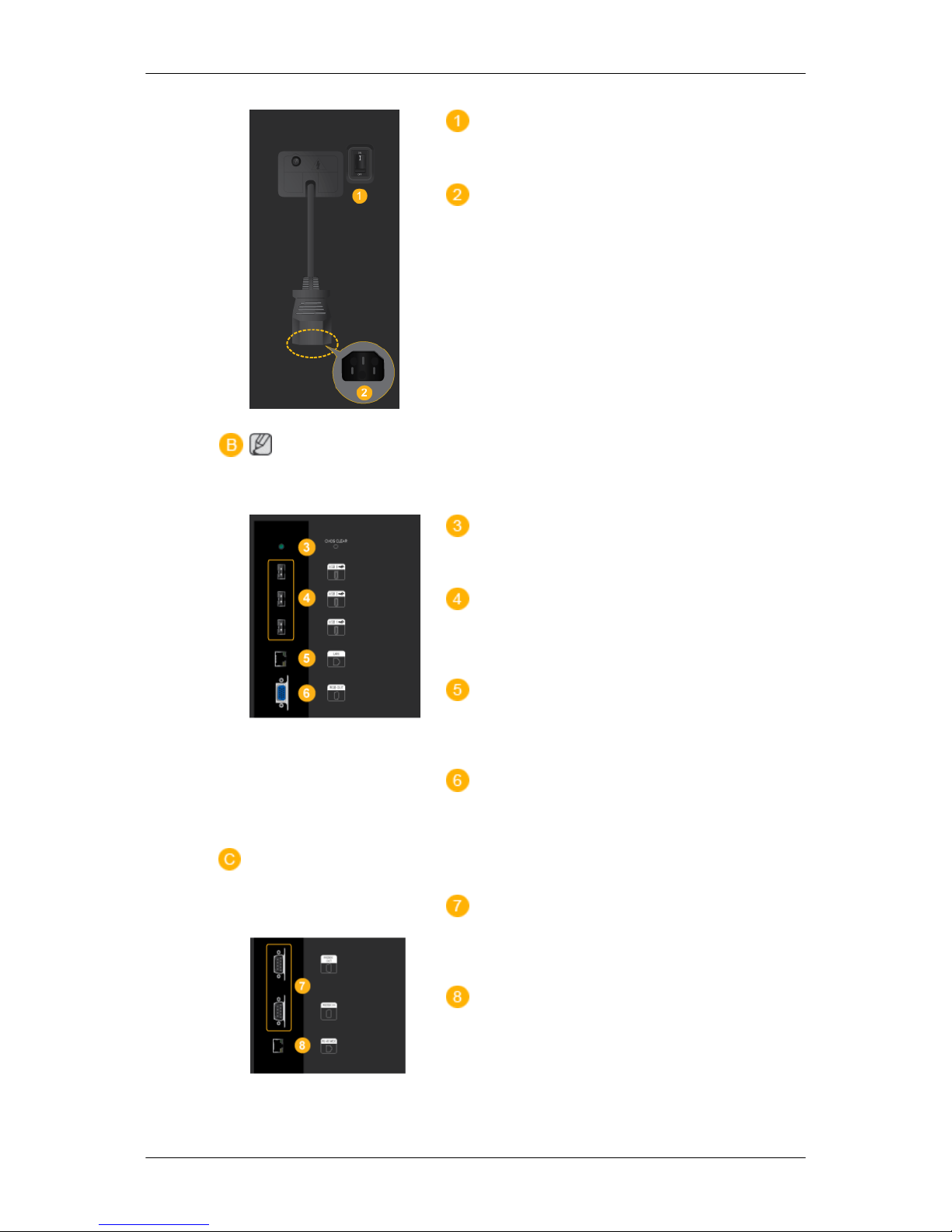

POWER S/W ON [

│

] / OFF

Switches the LCD Display On/Off.

POWER

The power cord plugs into the LCD Display

and the wall outlet.

Note

Applicable to the EXn

model only.

CMOS CLEAR

Resets MagicInfo.

USB 1 / 2 / 3 (USB Connection Terminal )

Keyboard / Mouse, Mass Storage Device

Compatible.

LAN (LAN Connection Terminal)

Connects to a LAN cable to allow Internet or

network access in MagicInfo mode.

RGB OUT

MagicInfo video output port

RS232C OUT / IN (RS232C Serial

PORT)

MDC(Multiple Display Control) Program Port

RJ 45 MDC (MDC PORT)

MDC(Multiple Display Control) Program Port

Introduction

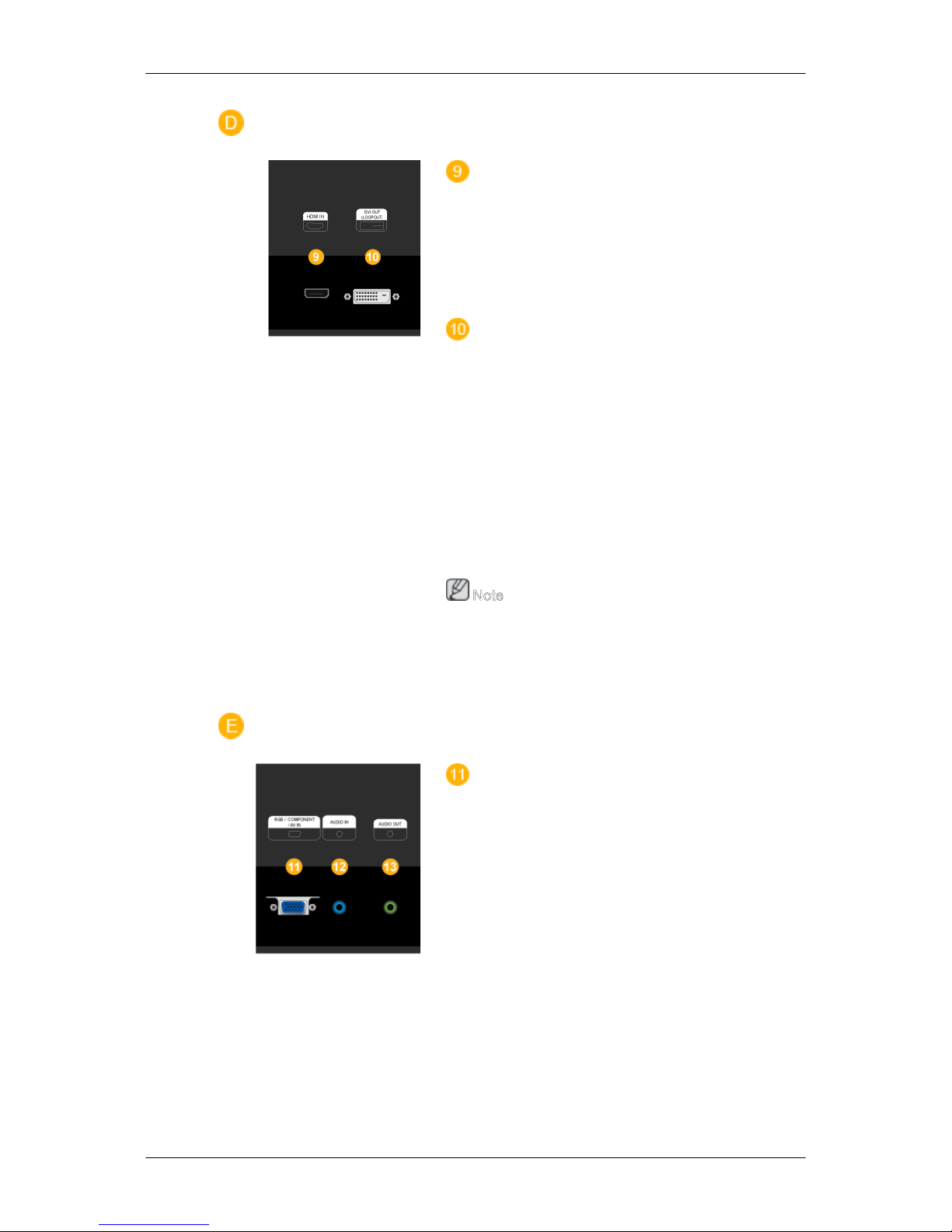

HDMI IN

• Connect the HDMI terminal at the back of

your LCD Display to the HDMI terminal of

your digital output device using a HDMI

cable.

• Up to HDMI 1.0 can be supported.

DVI OUT(LOOPOUT)

•Connect a monitor to another monitor

through a DVI, DVI to HDMI cable.

• Connect the [DVI OUT(LOOPOUT)] port

on the monitor to the [HDMI IN] port on

the other monitor using the DVI to HDMI

cable.

• HDMI and network signals sent via the

[DVI OUT(LOOPOUT)] port are dis-

played on the second display which has

the DVI IN port.

Note

A maximum of 6 monitors can be connected

to DVI-Loopout. However, up to 10 monitors

can be connected in Full HD mode

depending on the type of cable or signal

equipment connected.

RGB / COMPONENT / AV IN

•Connect the [RGB/COMPONENT/AV IN]

port of the product to the RGB port of the

PC using the D-SUB cable.

• Connect the [RGB / COMPONENT / AV

IN] port on the monitor to the Component

port on the external device using the RGB

to Component cable.

• Connect the [RGB / COMPONENT / AV

IN] port on the monitor to the BNC port on

the PC using the RGB to BNC cable.

• Connect the [RGB / COMPONENT / AV

IN] port on the monitor to the AV port on

the external device using the RGB to AV

cable.

Introduction

AUDIO IN

Connect the [AUDIO IN] port on the monitor

to the audio output port on the PC or on the

external device using an audio cable.

AUDIO OUT

Connect a headphone or an External speak-

er.

Note

The [AUDIO OUT] port is only supported for

460EX(n) and 550EX(n) models.

Kensington Lock

A Kensington Lock is an anti-theft device that

enables users to lock the product so that they

can safely use it in public locations. Since the

shape and usage of the locking device may

differ depending on the model and the man-

ufacturer, refer to the User Manual supplied

with the locking device for more information.

Note

You must purchase the Kensington Lock

separately.

To lock the product, follow these

steps:

1. Wrap the Kensington lock cable around

a large, stationary object such as a desk

or chair.

2. Slide the end of the cable with the lock

attached through the looped end of the

Kensington lock cable.

3. Insert the locking device into the Ken-

sington slot on the Monitor ( ).

4. Lock the lock ( ).

Note

•These are general instructions. For exact

instructions, see the User Manual sup-

plied with the locking device.

Introduction

• You can purchase the locking device

from an electronics store, an online shop,

or our service center.

Note

See Connecting Cables for further information regarding cable connections.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the LCD Display , causing a malfunction due to interference with the frequen-

cy.

POWER

OFF

Number Buttons

DEL / GUIDE button

+ VOL -

SOURCE

D.MENU

TOOLS

Up-Down Left-Right buttons

INFO

COLOR BUTTONS

TTX/MIX

MTS/DUAL

ENTER/PRE-CH

MUTE

CH/P

RETURN

EXIT

MagicInfo

1. POWER Turns the product On.

2. OFF Turns the product Off.

3. Number Buttons Used to enter the password during the OSD adjustment or

to use MagicInfo.

Press to change the channel.

Introduction

4. DEL / GUIDE but-

ton

The "-" button is used to select Digital channels.

Electronic Program Guide (EPG) display.

- This function does not work for this LCD Display.

5. + VOL - Adjusts the audio volume.

6. SOURCE Selects a connected external input source or MagicInfo

mode.

Press the button to change the input signal SOURCE.

Changing the SOURCE is only allowed for external devices

that are connected to the LCD Display at the time.

7. D.MENU DTV menu display

- This function does not work for this LCD Display.

8. TOOLS Use to quickly select frequently used functions.

- This function does not work for this LCD Display.

9. Up-Down Left-Right but-

tons

Moves from one menu item to another horizontally, vertically

or adjusts selected menu values.

10. INFO Current picture information is displayed on the upper left

corner of the screen.

11. COLOR BUTTONS Press to add or delete channels and to store channels to the

favorite channel list in the “Channel List” menu.

- This function does not work for this LCD Display.

12. TTX/MIX TV channels provide written information services via tele-

text.

- Teletext Buttons

- This function does not work for this LCD Display.

13. MTS/DUAL

MTS-

You can select MTS (Multichannel Television Stereo) mode.

Audio Type MTS/S_Mode Default

FM Stereo Mono Mono Manual

Change

Stereo Mono ↔ Stereo

SAP Mono ↔ SAP Mono

DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM

MONO/NICAM STEREO can be operated depending on the

broadcasting type by using the DUAL button on the remote

control while watching TV.

Introduction
