Samsung S27B971D Manuel utilisateur

User manual

S27B970D / S27B971D

The color and the appearance may differ depending on the product, and the specications are subject to

change without prior notice to improve the performance.

BN46-00318A-04

Table of

Contents

Chapter. 1

BEFORE USING THE

PRODUCT

5 Copyright

6 Securing the Installation Space

6 Safety Precautions

6 Symbols

7 Cleaning

7 Electricity and Safety

8 Installation and Safety

9 Operation and Safety

12 Correct posture to use the product

Chapter. 2

PREPARATION

13 Checking the Contents

13 Removing the Packaging

14 Checking the Components

15 Parts

15 Front Buttons

16 Rear View

17 Side View

17 Adjusting the Product Tilt

18 Adjusting the Product Height

Chapter. 3

USING NCE (NATURAL

COLOR EXPERT)

19 What is Monitor Calibration?

19 Compatible Types of Calibrators

20 What is NCE (Natural Color Expert)?

20 NCE Program Installation/Uninstallation

21 Starting NCE (Natural Color Expert)

21 Connecting the Calibrator

21 Features of the NCE Program

21 Layout and Menu Items on the NCE

Home Screen

22 Layout and Menu Items on the Uniformity

Screen

23 Overview and Functions of the Verication

Screen

23 Starting Calibration

Chapter. 4

USING MHL

28 MHL (Mobile High-Denition Link)

28 Using MHL

29 Disabling MHL

Chapter. 5

CONNECTING AND USING A

SOURCE DEVICE

30 Checklist before Connecting to

Source Devices

30 Pre-connection Checkpoints

30 Connecting the Power

31 Connecting and Using a PC

31 Connecting to a PC

33 Driver Installation

34 Setting Optimum Resolution

34 Changing the Resolution Using a PC

36 Connecting to a Video Device

Chapter. 6

SCREEN SETUP

37 Dynamic Contrast

37 Changing the Dynamic Contrast Setting

37 Brightness

37 Conguring Brightness

38 Contrast

38 Conguring Contrast

38 Sharpness

38 Conguring Sharpness

39 Response Time

39 Conguring Response Time

39 HDMI Black Level

39 Conguring HDMI Black Level

Chapter. 7

CONFIGURING THE TINT

SETTINGS

40 Color Mode

40 Conguring Color Mode

41 Red

41 Conguring Red

41 Green

41 Conguring Green

42 Blue

42 Conguring Blue

42 Color Temp.

42 Conguring Color Temp.

43 Gamma

43 Conguring Gamma

Chapter. 8

RESIZING OR RELOCATING

THE SCREEN

44 Image Size

44 Conguring Image Size

45 H-Position

45 Conguring H-Position

45 V-Position

45 Conguring V-Position

46 Menu H-Position

46 Conguring Menu H-Position

46 Menu V-Position

46 Conguring Menu V-Position

Chapter. 9

SETUP AND RESET

47 Eco Saving

47 Conguring Eco Saving

47 Menu Transparency

47 Conguring Menu Transparency

48 Language

48 Conguring Language

48 PC/AV Mode

48 Conguring PC/AV Mode

49 Auto Source

49 Conguring Auto Source

49 Display Time

49 Conguring Display Time

50 Key Repeat Time

50 Conguring Key Repeat Time

50 Off Timer On/Off

50 Conguring Off Timer On/Off

51 Off Timer Setting

51 Conguring Off Timer Setting

51 Reset

51 Restoring the default settings (Reset)

Chapter. 10

INFORMATION MENU AND

OTHERS

52 INFORMATION

52 Viewing information (INFORMATION)

52 Conguring Color Mode in the Initial

Screen

53 Conguring Volume in the Initial

Screen

54 Conguring Brightness and Contrast

in the Initial Screen

Chapter. 11

INSTALLING THE

SOFTWARE

55 MultiScreen

55 Installing the Software

55 Removing the Software

Chapter. 12

TROUBLESHOOTING GUIDE

56 Requirements Before Contacting

Samsung Customer Service Center

56 Testing the Product

56 Checking the Resolution and Frequency

56 Check the following.

58 Q & A

Chapter. 13

SPECIFICATIONS

59 General

60 PowerSaver

60 Preset Timing Modes

Chapter. 14

APPENDIX

62 Contact SAMSUNG WORLD WIDE

66 Responsibility for the Pay Service

(Cost to Customers)

67 Correct Disposal

68 Terminology

68 OSD(On Screen Display)

68 Gamma

68 Grey scale

68 Scanning rate

68 Horizontal Frequency

68 Vertical Frequency

68 Resolution

68 Plug & Play

68 MHL (Mobile High-Denition Link)

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Microsoft® and Windows are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Ownership of all other trademarks is attributed to their due owner.

• An administration fee may be charged if either.

◦ (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

◦ (b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or

home visit is carried out.

Before Using the Product

Chapter. 1

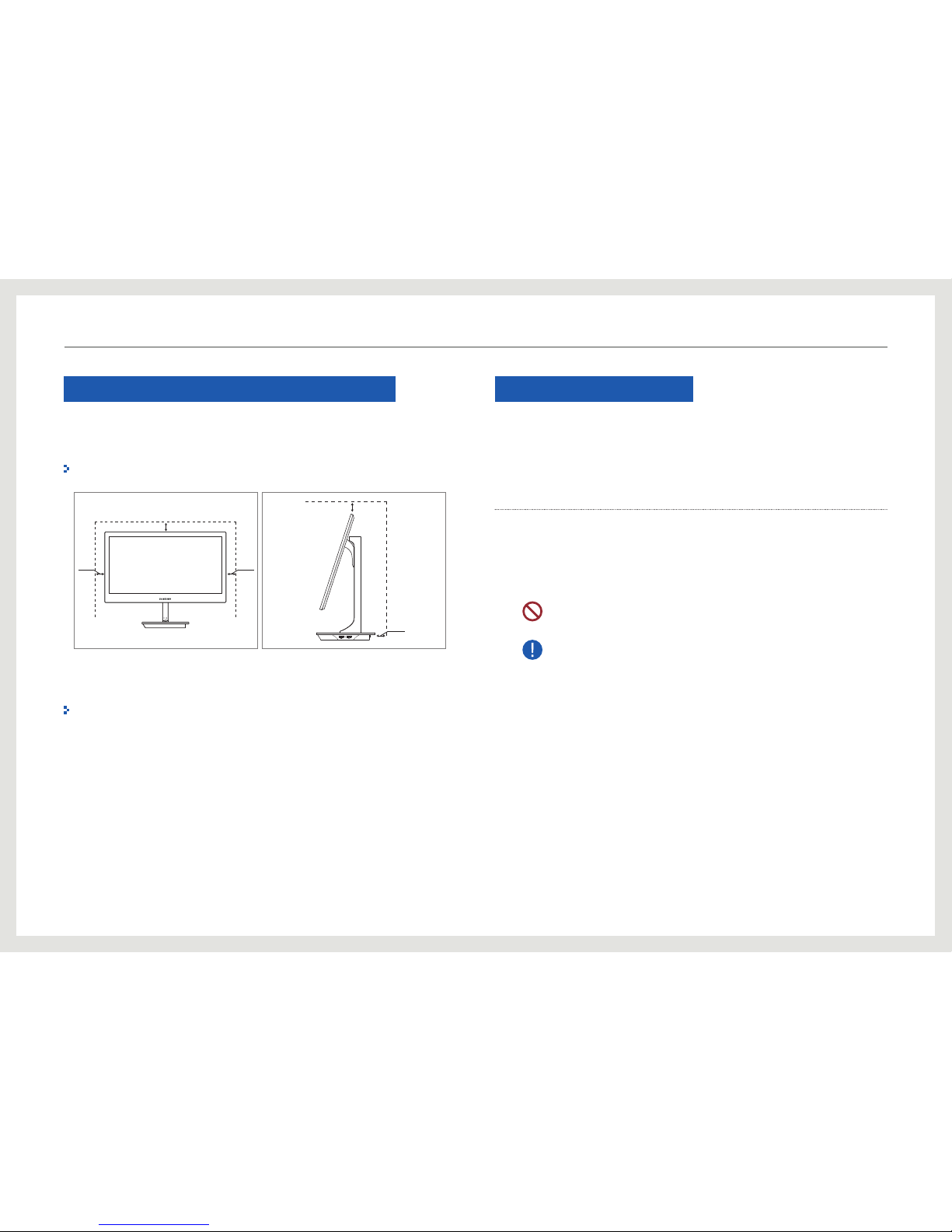

Securing the Installation Space

Ensure some space around the product for ventilation. An internal temperature rise may cause

re and damage the product. Be sure to allow the amount of space as shown below or greater

when installing the product.

The exterior may differ depending on the product.

10 cm

10 cm 10 cm

10 cm

Precautions for storage

High-glossy models can develop white stains on the surface if an ultrasonic wave humidier is

used nearby.

Contact your nearest Samsung Customer Service Center if you want to clean the inside of

the product (Service fee will be charged.)

Safety Precautions

Caution

Do not open the cover. You may suffer an electric shock. The components inside this

product must not be repaired by home users. Contact a technician for repair.

Symbols

Warning A serious or fatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are not

followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

Before Using the Product

Cleaning

The following images are for reference only. Real-life situations may differ from what is

shown in the images.

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1. Power off the product.

2. Remove the power cable from the product.

NOTE

Hold the power cable by the plug and do not touch the cable with wet hands.

Otherwise, an electric shock may result.

3. Wipe the product screen using a clean, soft and dry cloth.

-Do not use detergents that contain alcohol, solvent or surface-active

agents.

-Do not spray water or detergent directly on the product.

4. To clean the exterior of the product, use a moist soft cloth and wring

thoroughly before wiping the exterior.

5. After cleaning the product, connect the power cable to the product.

6. Power on the product to use it.

Electricity and Safety

The following images are for reference only. Real-life situations may differ from what is

shown in the images.

Warning

Do not use a damaged power cable or plug, or a loose power socket.

-An electric shock or re may result.

Do not use multiple products with a single power socket.

-Otherwise, the socket may cause a re.

Do not touch the power cable with wet hands.

Otherwise, an electric shock may result.

Insert the power cable all the way in so it is not loose.

-An unsecure connection may cause a re.

Be sure to plug the power cable into a grounded power socket. (type 1

insulated devices only).

-An electric shock or injury may result.

Before Using the Product

Do not bend or pull the power cable with force. Also, do not place a heavy

object on the power cable.

-Damage to the cord may result in a re or electric shock.

Do not place the power cable or product near heat sources.

-A re or electric shock may result.

Clean any dust around the pins of the power cable or the power outlet

using a dry cloth.

-A re may result.

Caution

Do not disconnect the power cable while the product is being used.

-The product may become damaged by an electric shock.

Only use the power cable provided with your product by Samsung. Do not

use the power cord with other products.

-A re or electric shock may result.

Keep the power socket where the power cable is connected unobstructed.

-In the event of a problem with the product, you must disconnect the

power cable to cut the power supply to the product.

Hold the plug when disconnecting the power cable from the power socket.

-A re or electric shock may result.

Installation and Safety

The following images are for reference only. Real-life situations may differ from what is

shown in the images.

Warning

DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP

OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.

-A re may resullt.

Do not install the product in poorly ventilated spaces such as a bookcase or

closet.

-An increased internal temperature may cause a re.

Keep the plastic packaging out of the reach of children.

-Children may suffocate.

Do not install the product on an unstable or vibrating surface (insecure

shelf, sloped surface, etc.)

-The product may fall and become damaged and/or cause an injury.

-Using the product in an area with excess vibration may damage the

product or cause a re.

Do not install the product in a vehicle or a place exposed to dust, moisture

(water drips, etc.), oil, or smoke.

-A re or electric shock may result.

Do not expose the product to direct sunlight, heat, or a hot object such as a

stove.

The product lifespan may be reduced or a re may result.

Before Using the Product

Do not install the product within the reach of young children.

The product may fall and injure children.

Edible oil, such as soybean oil, can damage or deform the product. Do not

install the product in a kitchen or near a kitchen counter.

Caution

Do not drop the product while moving.

-Product failure or personal injury may result.

Do not set down the product on its front.

-The screen may become damaged.

When installing the product on a cabinet or shelf, make sure that the

bottom edge of the front of the product is not protruding.

-The product may fall and break or cause a personal injury.

-Install the product only on cabinets or shelves of the right size.

Set down the product gently

-Product failure or personal injury may result.

SAMSUNG

Installing the product in an unusual place (a place exposed to a lot of ne

particles, chemical substances or extreme temperatures, or an airport

or train station where the product should operate continuously for an

extended period of time) may seriously affect its performance.

-Be sure to consult Samsung Customer Service Center if you want to

install the product at such a place.

Operation and Safety

The following images are for reference only. Real-life situations may differ from what is

shown in the images.

Warning

There is a high voltage inside the product. Never disassemble, repair or

modify the product yourself.

-A re or electric shock may result.

-Contact Samsung Customer Service Center for repairs.

Before moving the product, turn off the power switch and disconnect the

power cable and all other connected cables.

-Damage to the cord may result in a re or electric shock.

If the product generates abnormal sounds, a burning smell or smoke,

disconnect the power cable immediately and contact Samsung Customer

Service Center.

-An electric shock or re may result.

Do not let children hang from the product or climb on top of it.

-Children may become injured or seriously harmed.

Before Using the Product

If the product is dropped or the outer case is damaged, turn off the power

switch and disconnect the power cable. Then contact Samsung Customer

Service Center.

-Continued use can result in a re or electric shock.

Do not leave heavy objects or items that children like (toys, sweets, etc.)

on top of the product.

-The product or heavy objects may fall as children try to reach for the

toys or sweets resulting in a serious injury.

If there is a thunderstorm or lightning strike, turn off the power and

disconnect the power cable.

-A re or electric shock may result.

Do not drop objects on the product or apply impact.

-A re or electric shock may result.

Do not pull on the product holding only the power cable or any other cable.

-Product failure, an electric shock or re may result from a damaged

cable.

GAS

If a gas leakage is found, do not touch the product or power cable. Also,

ventilate the area immediately.

-Sparks can cause an explosion or re.

Do not lift or move the product by pulling the power cable or any cable.

-Product failure, an electric shock or re may result from a damaged

cable.

Do not use or keep combustible spray or an inammable substance near

the product.

-An explosion or re may result.

Ensure the vents are not blocked by tablecloths or curtains.

-An increased internal temperature may cause a re.

100

Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects

that burn easily (paper, matches, etc) into the product (via the vent or

input/output ports, etc).

-Be sure to power off the product and disconnect the power cable when

water or other foreign substances have entered the product. Then

contact Samsung Customer Service Center.

-Product failure, an electric shock or re may result.

Do not place objects containing liquid (vases, pots, bottles, etc) or metallic

objects on top of the product.

-Be sure to power off the product and disconnect the power cable when

water or other foreign substances have entered the product. Then

contact Samsung Customer Service Center.

-Product failure, an electric shock or re may result.

Before Using the Product

Autres manuels pour S27B971D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Moniteur

Samsung

Samsung C27R50 Series Manuel utilisateur

Samsung

Samsung SyncMaster 550DX Manuel utilisateur

Samsung

Samsung 720N - SyncMaster - 17" LCD Monitor Manuel utilisateur

Samsung

Samsung SyncMaster 700TSn Manuel utilisateur

Samsung

Samsung C22F392FH series Manuel utilisateur

Samsung

Samsung SyncMaster S27A750D Manuel utilisateur

Samsung

Samsung SyncMaster 570V TFT Manuel utilisateur

Samsung

Samsung SyncMaster 520DX Manuel utilisateur

Samsung

Samsung SyncMaster 226UX Manuel utilisateur

Samsung

Samsung C27JG50QQ Series Manuel utilisateur

Samsung

Samsung 2.008031020191e16 Manuel utilisateur

Samsung

Samsung ME95C Manuel utilisateur

Samsung

Samsung SyncMaster 151D Manuel utilisateur

Samsung

Samsung SyncMaster BX2250 Manuel utilisateur

Samsung

Samsung SYNCMASTER 700DX-2 Manuel utilisateur

Samsung

Samsung SyncMaster S22A650S Manuel utilisateur

Samsung

Samsung SyncMaster TS190W Manuel utilisateur

Samsung

Samsung SMT-171N Manuel utilisateur

Samsung

Samsung SyncMaster 7 Series Manuel utilisateur

Samsung

Samsung 320MP-2 - SyncMaster - 32" LCD Flat Panel... Manuel utilisateur

Samsung

Samsung SyncMaster 2243QW Manuel utilisateur

Samsung

Samsung S3C6410 Manuel utilisateur

Samsung

Samsung SyncMaster P2450H Guide de l'utilisateur

Samsung

Samsung SyncMaster 400TXn Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
