Samsung SyncMaster 610b Manuel utilisateur

SyncMaster 610b

Color Monitor

Owner’s

Instructions

610bMonitor 7/21/98 3:35 PM Page i

3Safety Instructions

1Before connecting the AC power cord

to an outlet, make sure the voltage

designation on your monitor corre-

sponds to the local electrical supply.

2Never insert anything metallic into the

monitor openings. Doing so may cre-

ate the danger of electric shock.

3To avoid electric shock, never touch

the inside of the monitor. Only a quali-

fied technician should open the moni-

tor’s case.

4Never use your monitor if the power

cord has been damaged. Do not allow

anything to rest on the power cord,

and keep the cord away from areas

where people can trip over it.

5Be sure to hold the plug, not the cord,

when disconnecting the monitor from

an electric socket.

6Openings in the monitor cabinet are

provided for ventilation. To prevent

overheating, these openings should

not be blocked or covered. Also,

avoid using the monitor on a bed,

sofa, rug, or other soft surface. Doing

so may block the ventilation openings

in the bottom of the cabinet. If you put

the monitor in a bookcase or some

other enclosed space, be sure to pro-

vide adequate ventilation.

7Put your monitor in a location with

low humidity and a minimum of dust.

8Do not expose the monitor to rain or

use it near water (in kitchens, near

swimming pools, etc.). If the monitor

accidentally gets wet, unplug it and

contact an authorized dealer immedi-

ately. You can clean the monitor with

a damp cloth when necessary, but be

sure to unplug the monitor first.

9Place the monitor on a solid surface

and treat it carefully. The screen is

made of glass and can be damaged if

dropped, hit or scratched.

10 Locate your monitor near an easily

accessible AC outlet.

11 If your monitor does not operate nor-

mally – in particular, if there are any

unusual sounds or smells coming

from it – unplug it immediately and

contact an authorized dealer or ser-

vice center.

12 High temperatures can cause prob-

lems. Don’t use your monitor in direct

sunlight, and keep it away from

heaters, stoves, fireplaces, and other

sources of heat.

13 Unplug the monitor when it is going to

be left unused for an extended period

of time.

14 Unplug your monitor from the AC out-

let before any service.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

610bMonitor 7/21/98 3:35 PM Page ii

Table of Contents

Safety Instructions..................................................................................................................i

Your New Monitor..................................................................................................................2

Connecting Your Monitor................................................................................................................2

Front Panel........................................................................................................................................3

Direct Access Buttons....................................................................................................................3

Operation.................................................................................................................................4

On-screen Menu System................................................................................................................4

Monitor Function Control................................................................................................................5

Brightness ..........................................................................................................................5

Contrast ..............................................................................................................................5

Horizontal Position ...........................................................................................................5

Vertical Position ................................................................................................................5

Horizontal Size...................................................................................................................5

Vertical Size........................................................................................................................5

Pincushion..........................................................................................................................5

Display Timing....................................................................................................................5

Advanced Features...........................................................................................................6

Color Temperature......................................................................................................6

Language.....................................................................................................................6

Half tone.......................................................................................................................6

Moire...................................................................................................................................6

Degauss..............................................................................................................................6

Recall...................................................................................................................................6

Geometry.............................................................................................................................6

Pinbalance...................................................................................................................6

Parallelogram..............................................................................................................6

Rotation........................................................................................................................6

V-linearity.....................................................................................................................6

Trapezoid.............................................................................................................................6

Troubleshooting......................................................................................................................7

PowerSaver.............................................................................................................................7

Specifications.........................................................................................................................8

Display Modes........................................................................................................................8

Index.........................................................................................................................................9

Regulation Information.........................................................................................................iii

610bMonitor 7/21/98 3:35 PM Page 1

3Your New Monitor

1Turn off your computer and unplug the

power cord.

2Video port

Connect the signal cable (with an

adapter if necessary) to the video port

on the back of your computer, video

board, video card, or graphics card.

3Signal cable

Connect the end of the signal cable to

your computer’s video port. If you are

using a Macintosh computer, connect

the cable to a Macintosh adapter, and

set the pins on your adapter (adapter

not included). An IBM-compatible

computer does not need an adapter.

4Power port

Connect the power cord for your

monitor to the power port on the back

of the monitor.

5Power cords

Plug the power cord for the monitor

and the power cord for your computer

into a nearby outlet.

6Turn on your computer and monitor. If

your monitor displays an image,

installation is complete.

ToinstallthemonitordriveronyourPC:

1. Insert the provided diskette into the A drive.

2. Double click the “install.exe” file.

Connecting Your Monitor

Please make sure the following items are included with your monitor. If any items are miss-

ing, contact your dealer.

This manual

Power cord

Monitor & stand

Warranty card

(not available in all locations)

Driver installation diskette

610bMonitor 7/21/98 3:35 PM Page 2

Your New Monitor

Direct Access Buttons

Most of the adjustments you make to your monitor will be accessed through the on-screen

menu described in the next section. The Contrast and Brightness features can also be

accessed with the touch of a button on the front of your monitor.

1 With the menu off, press the or button on the front of your monitor. The but-

ton accesses the Brightness feature. The button accesses the Contrast feature.

2 Push the button to increase or the button to decrease the value of a selection.

3 Press the menu button twice to exit the on-screen menu.

134

1Menu button

Opens and closes the on-screemenu.

Also used to move between menus

when using the on-screen menu sys-

tem.

2The –/+ buttons

These buttons allow you to select and

adjust items using the on-screemenu.

When adjusting an item using the on-

screen menu, the ( _) button lowers

the value of the selected function.

The ( + ) button raises the value of the

selected function.

These buttons are also direct access

buttons for the Contrast and

Brightness feature controls. (See the

section on Direct Access Buttons).

3The button

This button is used with the on-screen

menu system to select a highlighted

function for adjustment.

Also used to move between menus

when using the on-screen menu sys-

tem.

4Power button

Turns the monitor on and off.

The power indicator light glows green

during normal operation.

Front Panel

610bMonitor 7/21/98 3:36 PM Page 3

Operation

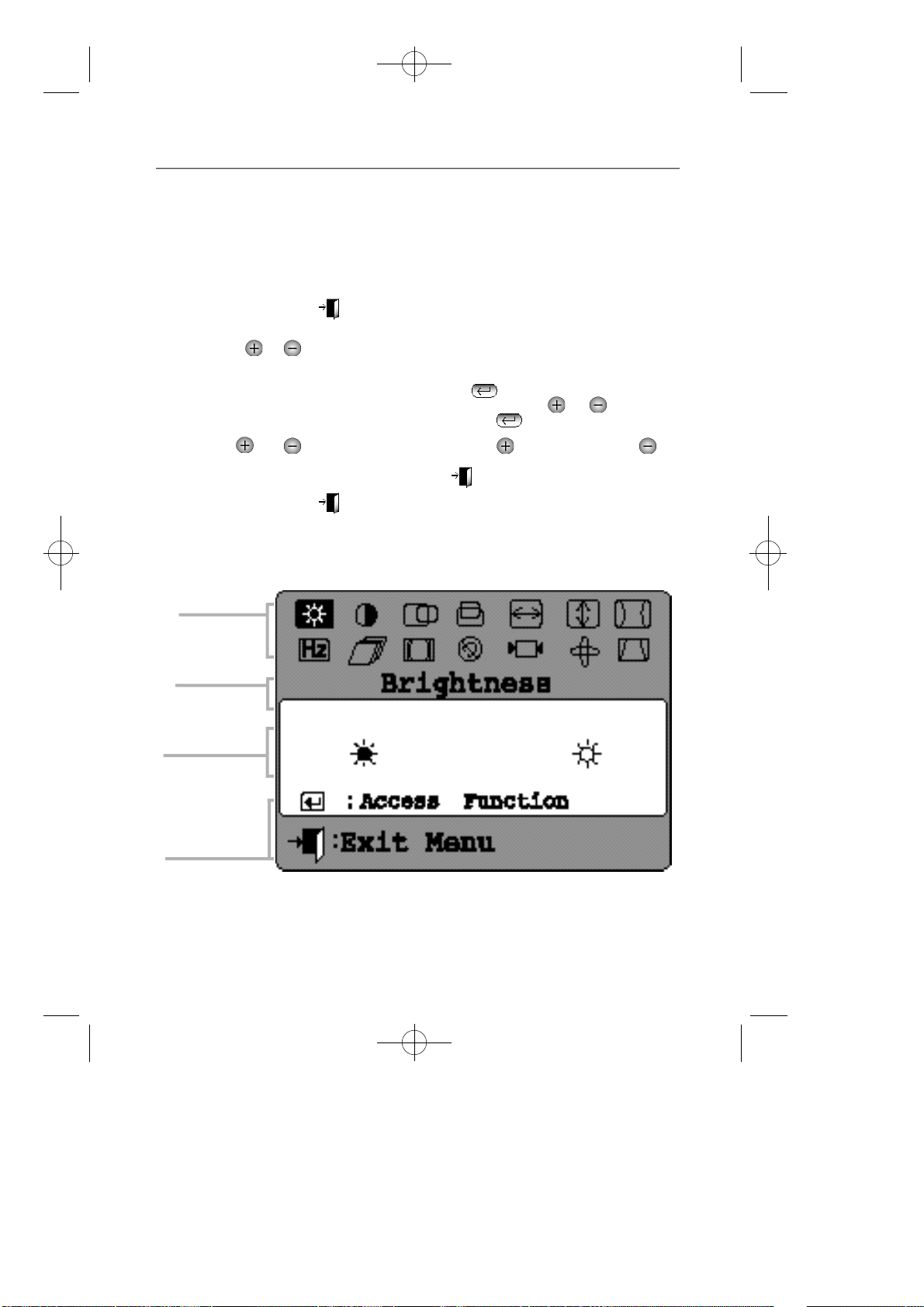

On-screen Menu System

Your monitor has an on-screen menu system, accessed by the buttons on the front of your

monitor, that allows you to adjust characteristics of the screen image. Display changes are

indicated by on-screen adjustment icons. Some functions have sub-menus.

1 Push the menu button to display the main menu.

Function icons are arranged across the top of the on-screen menu.

2 Push the or button to move through the icons.

The name of the active function will appear below the rows of function icons.

3 To select a function or open a sub-menu, push the button. The screen will dis-

play the options for adjustment. If there is a sub-menu, use the or button to

highlight the feature you want to adjust, then push the button to select it.

4 Use the and buttons to make adjustments. The increases values, the

decreases values. On-screen calibration numbers show the effect of your adjustment.

If you are in a sub-menu, use the menu button to return to the previous menu.

5Push the menu button to exit and save your changes.

Function icons

Adjustment icons

Active function

Function selection

and

Menu navigation

610bMonitor 7/21/98 3:36 PM Page 4

Operation

Brightness

Background brightness of screen.

-decreases brightness

+increases brightness

Contrast

Contrast of screen image.

-decreases contrast

+increases contrast

Horizontal Position

Horizontal screen position.

- moves the screen left

+ moves screen right

Vertical Position

Vertical screen position.

-moves screen down

+moves screen up

Horizontal Size

Horizontal screen size.

- decreases size

+increases size

Vertical Size

Vertical screen size.

-decreases size

+increases size

Pincushion

Straightnessof verticaledges.

-curves image inward

+ curves image outward

Display Timing

Monitordisplaysettings.

-factory timing

+ user timing

Icon Monitor Function Control On-screen Adjustment

610bMonitor 7/21/98 3:36 PM Page 5

Advanced Features

Color temperature

-9300k more blue

+6500k more red

Language

- , + scroll through on-screen

language options.

Half tone

-off

+on

Moire

Correct for on-screen moire pattern.

-horizontal moire

+vertical moire

Degauss

Removes color distortion caused by

magnetic fields. Do not use more than

once in 30 minutes.

Recall

Returns monitor to original settings.

- no

+ yes

Geometry

Pinbalance

-curves vertical lines to left

+curves vertical lines to right

Parallelogram

-skews screen image left

+skews screen image right

Rotation

-rotates entire screen right

+rotates entire screen left

V-linearity

-compresses image at top of screen

+compresses image at bottom of screen

Trapezoid

Widthoftopandbottomofscreen.

-widens top of screen

+ widens bottom of screen

Icon Monitor Function Control On-screen Adjustment

Operation

610bMonitor 7/21/98 3:36 PM Page 6

Troubleshooting

PowerSaver

Before calling for service, check the information in this section to see if you can solve the

problem yourself. If you do need assistance, please call the phone number on the warranty

card, the phone number on the back cover of this manual, or contact your dealer.

There is no screen image.

• Check to see that both the monitor and the computer are plugged in and turned on.

“Check Signal Cable” appears.

• Check the signal cable connection between the computer and the monitor.

The screen image is too light or too dark.

• Adjust the brightness or contrast settings.

The screen image is too large or too small.

• Adjust the size settings.

The colors are distorted with dark or shadowed areas.

• Activate the degauss feature.

• Adjust the color temperature.

The power indicator light is blinking green.

• The monitor is using its power management system.

You need the monitor driver software.

• You can download the driver from the internet at http : //www.sec.samsung.co.kr .

This monitor has a built-in power management system called PowerSaver. This system

saves energy by switching your monitor into a low-power mode when it has not been used

for a certain amount of time. The monitor automatically returns to normal operation when

you move the computer's mouse or press a key on the keyboard. For energy conservation,

turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

The PowerSaver system operates with a VESA DPMS compliant video card installed in your

computer. Use a software utility installed on your computer to set up this feature.

Power Saving function mode EPA/NUTEK

State Normal Standby mode Suspend mode Power-off Mode

Operation Position A1 Position A2

Power Green Green Blinking Green Blinking Green Blinking

Indicator (0.5 sec interval) (0.5 sec interval) (1 sec interval)

Power 15W (nominal) Less than 15W Less than 5W

Consumption 80W (maximum)

70W (nominal)

NOTE: This monitor is EPA ENERGY STAR®compliant and NUTEK compliant when used

with a computer equipped with VESADPMS functionality.

610bMonitor 7/21/98 3:36 PM Page 7

Models: Sync Master 610b

•16” (40 cm) conventional type (38 cm viewable)

•90° deflection •0.28mm dot pitch

•Silica Coated with anti-electrostatic propertie

•Medium-short persistence phosphor

•Horizontal: 30-70 kHz

•Vertical: 50 Hz-160 Hz

•Unlimited

•1280 dots • 1024 lines

•Horizontal: 290.0 ± 4 mm

•Vertical: 217.5 ± 4 mm

•Analog: .7Vpp positive at 75 ohms

•Separate Sync: TTL level, positive or negative

• 110 MHz

•AC 100-240 Volt ± 10%, 60 Hz/50 Hz ± 3 Hz

•80 watt maximum

•Unit: 395x425x401.4mm/14.8kg

•Carton: 513x548x 527.0mm/16.8kg

•Operating temperature: 32°-104°F (0°-40°C)

•Humidity: 10%-80%

•Storage temperature: -4°-113°F (-20°-45°C)

•Humidity: 5%-95%

Display Mode Horizontal Vertical Pixel Sync

Frequency Frequency Clock Polarity

(kHz) (Hz) (MHz) (H/V)

IBM, VGA2, 720 x 400 31.469 70.087 28.322 – / +

IBM, VGA3, 640 x 480 31.469 59.940 25.175 – / –

VESA, 640 x 480 37.500 75.000 31.500 – / –

VESA, 640 x 480 43.269 85.008 36.000 – / –

VESA, 800 x 600 46.875 75.000 49.500 + / +

VESA, 800 x 600 53.674 85.061 56.250 + / +

VESA, 1024 x 768 60.023 75.029 78.750 + / +

VESA, 1024 x 768 68.677 84.997 94.500 + / +

3Specifications

Specifications

Picture Tube

Synchronization

Display Color

Maximum Resolution

Active Display

Input Signal, Terminated

Maximum Pixel Clock

Power Supply

Power Consumption

Dimensions/Weight

(WxDxH)

Environmental

Considerations

Design and specifications are subject to change without notice.

Display Modes

610bMonitor 7/21/98 3:36 PM Page 8

Table des matières

Autres manuels Samsung Moniteur

Samsung

Samsung SyncMaster 550v Manuel utilisateur

Samsung

Samsung SyncMaster 711LT Manuel utilisateur

Samsung

Samsung SyncMaster 400TSn Manuel utilisateur

Samsung

Samsung 570DX - SyncMaster - 57" LCD Flat Panel... Manuel utilisateur

Samsung

Samsung PD22EO Manuel utilisateur

Samsung

Samsung SyncMaster Magic P2770H Manuel utilisateur

Samsung

Samsung C32G7 T Series Manuel utilisateur

Samsung

Samsung SyncMaster 731B, 931B, 731BF, 931BF Manuel utilisateur

Samsung

Samsung S27B971D Manuel utilisateur

Samsung

Samsung LS26KIEEFV/XAA Manuel utilisateur

Samsung

Samsung SyncMaster 750ST Manuel utilisateur

Samsung

Samsung SyncMaster 700p Plus Manuel utilisateur

Samsung

Samsung HPN5039 - 50" Plasma TV Manuel utilisateur

Samsung

Samsung 215TW - SyncMaster - 21" LCD Monitor Manuel utilisateur

Samsung

Samsung PL-42Q91HDP Manuel utilisateur

Samsung

Samsung S24A400UJ Series Manuel utilisateur

Samsung

Samsung SYNCMASTER 700DX-2 Manuel utilisateur

Samsung

Samsung U28R550U Manuel utilisateur

Samsung

Samsung 22T35 Series Manuel utilisateur

Samsung

Samsung SyncMaster S24B420BW Manuel utilisateur

Samsung

Samsung SyncMaster 930ND Manuel utilisateur

Samsung

Samsung SyncMaster S24C450DW Manuel utilisateur

Samsung

Samsung LS32AM500NU Manuel utilisateur

Samsung

Samsung SyncMaster S23B550V Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
