Samsung SHS-1321 Manuel utilisateur

Product Features

The door can be opened with a RF card.

The door can be opened with a transit RF card. Up to 20 cards be registered.

The door can also be opened with a password.

Once the user’s password is registered, the door can be opened without a key by entering the

registered password.

The door does not have to be locked manually.

Using the automatic lock function, the door is automatically locked when it closes, eliminating the

need to lock it manually.

The double-locking function adds security.

The double-locking function adds security by preventing the door from being opened from outside

at night or at times when extra security is needed.

Pranks played by children and juveniles can be prevented.

When an unregistered card or key tag is used, or when an invalid password is entered 5 or more

times consecutively, an alarm sound is generated and power to the lock is automatically cut off for

three minutes.

The built-in fire detection function helps occupants escape

in case of fire.

When the inside temperature rises to a certain level due to fire, an alarm is generated and the door

is opened automatically.

Contents

Product Features 1

Safety Cautions 3

Notes before Operation 6

Product Components 6

Outer Body Parts 7

Inner Body Parts 8

Replacing the Batteries 9

Using the Emergency Battery 10

Basic Functions 11

Initialization (Password, Card, Key Tag) 11

Password Change 12

Card and Key Tag Registration 14

Deleting the Card or Key Tag 16

Opening the Door from Outside with a Password 17

Opening the Door from Outside with a Card or Key Tag 18

Opening the Door from the Inside 19

Additional Functions 20

Multi-leveled Security Code Entry Mode Setting 20

Double Authorization Mode Setting 21

Automatic/Manual Locking Setting 22

Sound Setting and Releasing 23

Alarm Sound/Emergency Sound 24

Troubleshootings 28

Operation Summary 30

Product Specifications 32

Warranty 35

Safety Cautions

This section contains important information to ensure the user’s safety and prevent potential

damage to property. Please, read this section carefully and use the product accordingly.

Warning, Caution and Note Explained:

Warning

Information given under this heading is information the user must be aware of to

prevent physical harm.

Caution

Information given under this heading is information the user must be aware of to

prevent service problems or system damage.

Note

Information given under this heading provides additional information relating to

the text in this manual.

Descriptions of Symbols

General warning or caution

Prohibited activity

Recommended activity

Cautions during Installation

Cautions during Operation

The user shall not install or

repair the product without

authorization.

The manufacturer does not assume

responsibility for damage to the

product resulting from attempts to the

user to install or repair it without

authorization.

Do not use the excessive force or

sharp objects to push the lock

buttons, as this can damage

the product.

Make sure that no unauthorized

person has the access to the

password.

To minimize the risk of burglary, it is

recommended that you periodically

change the password.

Do not operate the product with

wet hands, and keep liquids such

as water or drinks away from the

product, or the product may

malfunction or be damaged.

Make sure that the door is

completely closed when going

outside. The manufacturer

does not assume the

responsibility for any harm

caused by engagement of

the lock on an improperly

closed door.

Do not install the product in the

place where the gap between

the door and the frame is 5mm

or more.

If the gap is too wide, the product may

not function properly.

Cautions during Repair or Maintenance

Replace all batteries immediately

after they run out of power, and

never mix new batteries with

used ones.

This can cause reduction of product life

or malfunction in the product.

Be sure to correctly match the

poles (+/-) when installing the

batteries. Install the batteries

with the correct poles (+/-).

Improperly installed batteries can

cause rupture or battery fluid leakage.

Do not use water, benzene or

alcohol when cleaning the

product, as these fluids can

cause product malfunction.

Use a soft and dry cloth instead.

Replace the batteries within 1 week

after the battery replacement alarm

sounds.

The product can stop operating

if the batteries are not replaced in time.

Notes before Operation

Product Components

The product components used may vary depending on the installation environment.

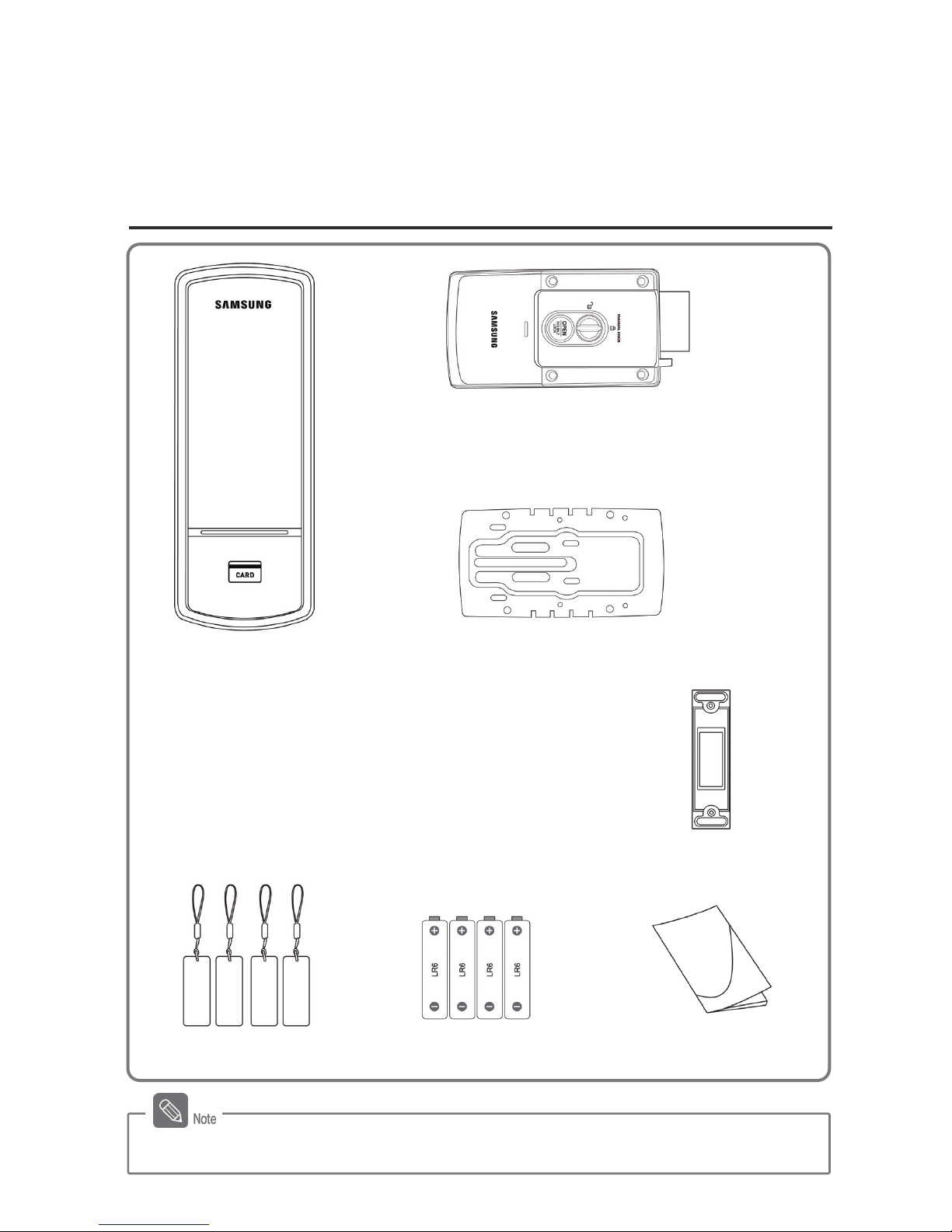

User Manual

'AA' Batteries (LR6)

Key Tag

Outer Body

Strike

ySupport Panel and Outer body Fastening Bolts

yStrike and Support Panel Fastening Bolts

yInner body Fastening Bolts

yOuter body Fastening (Rotating Prevention) Bolt

Inner Body

Support Panel

Outer Body Parts

No. Name Description

1Number Pad Enter numbers to register, change and delete a password. The door

can be opened by entering the registered password onto the

number pad.

2 LED Indicator It displays the operation status of the lock when it reads a card or it

operates.

3 Card Reader The Card Reader is used to recognize a card before opening the

door. Touch the number pad to operate the Card Reader.

4 Reset Switch Allows restart of the door lock when it does not respond to a

registered card or touches on the number pad.

5 External Power

Port

Power can be supplied from the emergency battery after the main

batteries have been completely discharged (9V battery).

Number Pad Unlighted

Number Pad

Number Pad Lighted

LED Indicator

Card Reader

Reset Switch

External Power Port

Inner Body Parts

No. Name Description

1 Registration

Button

This button is used to change the password and register a card or a

key tag.

2 OPEN/DOUBLE

LOCK Button

This button is used to unlock the door from the inside and to set the

double locking function. (It is also used to lock the door from indoor

in manual locking mode)

3 Manual Knob This is used to lock or unlock the door in case there is an emergency

or a circuit problem.

4 Deadbolt It fastens the door to the door frame.

5 Door Opening

Sensor

It monitors door opening and closing when the automatic locking

function is activated.

6 Automatic/

Manual

Locking Switch

This switch is used to switch between automatic locking and manual

locking. If it is set for automatic locking, the door is automatically

locked when closed. If it is set for manual locking, the door is not

automatically locked when closed.

7 Battery Cover The battery cover protects the batteries and the registration button.

Registration Button

OPEN/DOUBLE LOCK

Button

Manual Knob

Deadbolt

Door Opening Sensor

Automatic /Manual

Locking Switch

Battery Cover
