Samsung SHP-DP920 Manuel utilisateur

SHP-DP920

Samsung SDS Door Lock

User and Reference Guide

Ver1.0.0

Product Specifications

Item

Spec.

Size

Exterior Unit

87.5mm(W)×391.8mm(H)×64.5mm(D)

Interior Unit

88.5mm(W)×357.6mm(H)×69.3mm(D)

Voltage

4 AA Alkaline 1.5V Batteries (LR6) (6V)

Emergency Power Source

9V Battery(6LF22) (Separately sold)

Battery Life

10 Months (based on an average of 6 uses per day)

Support Card Standard

ISO14443A (Mifare® )

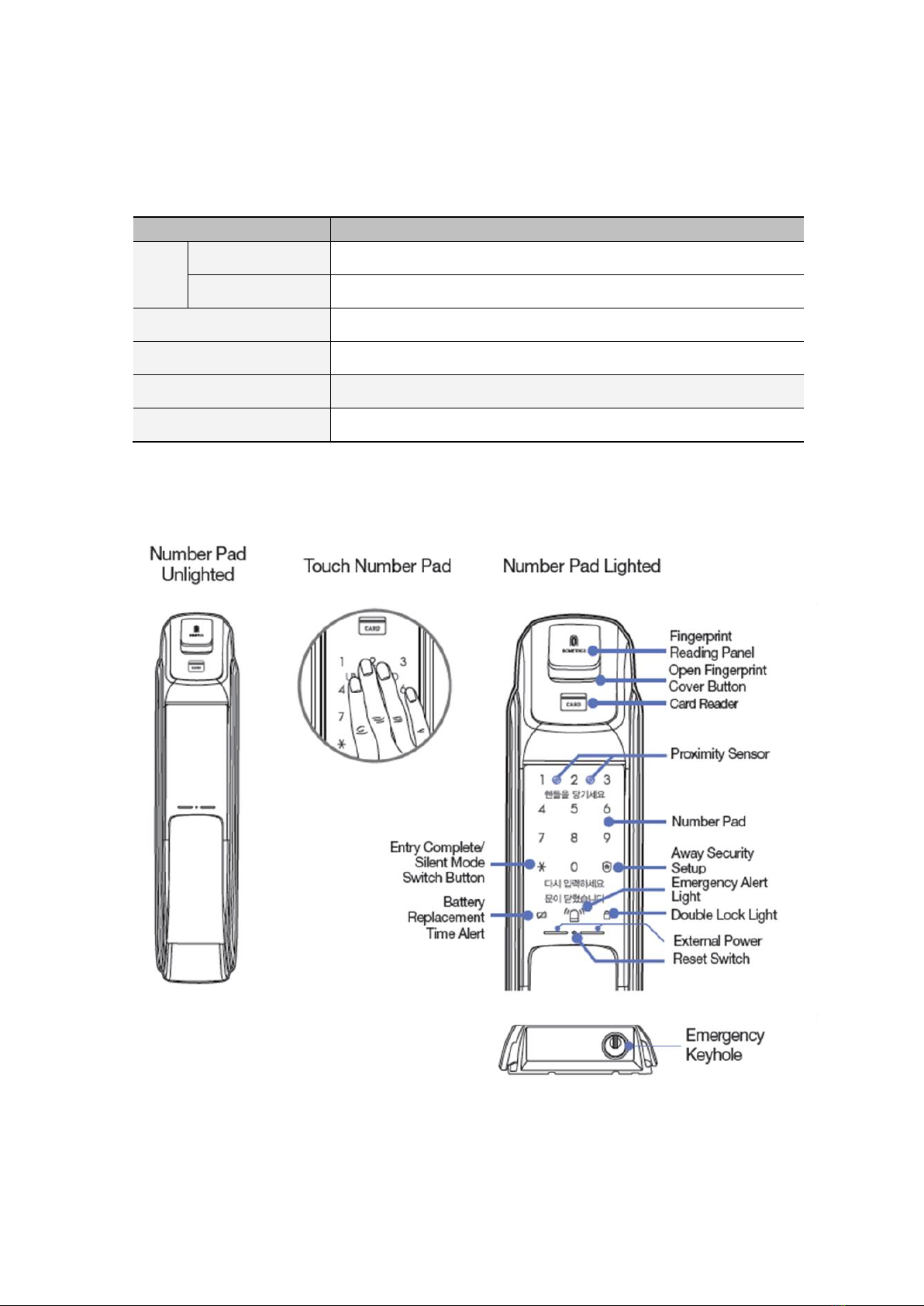

Exterior Parts

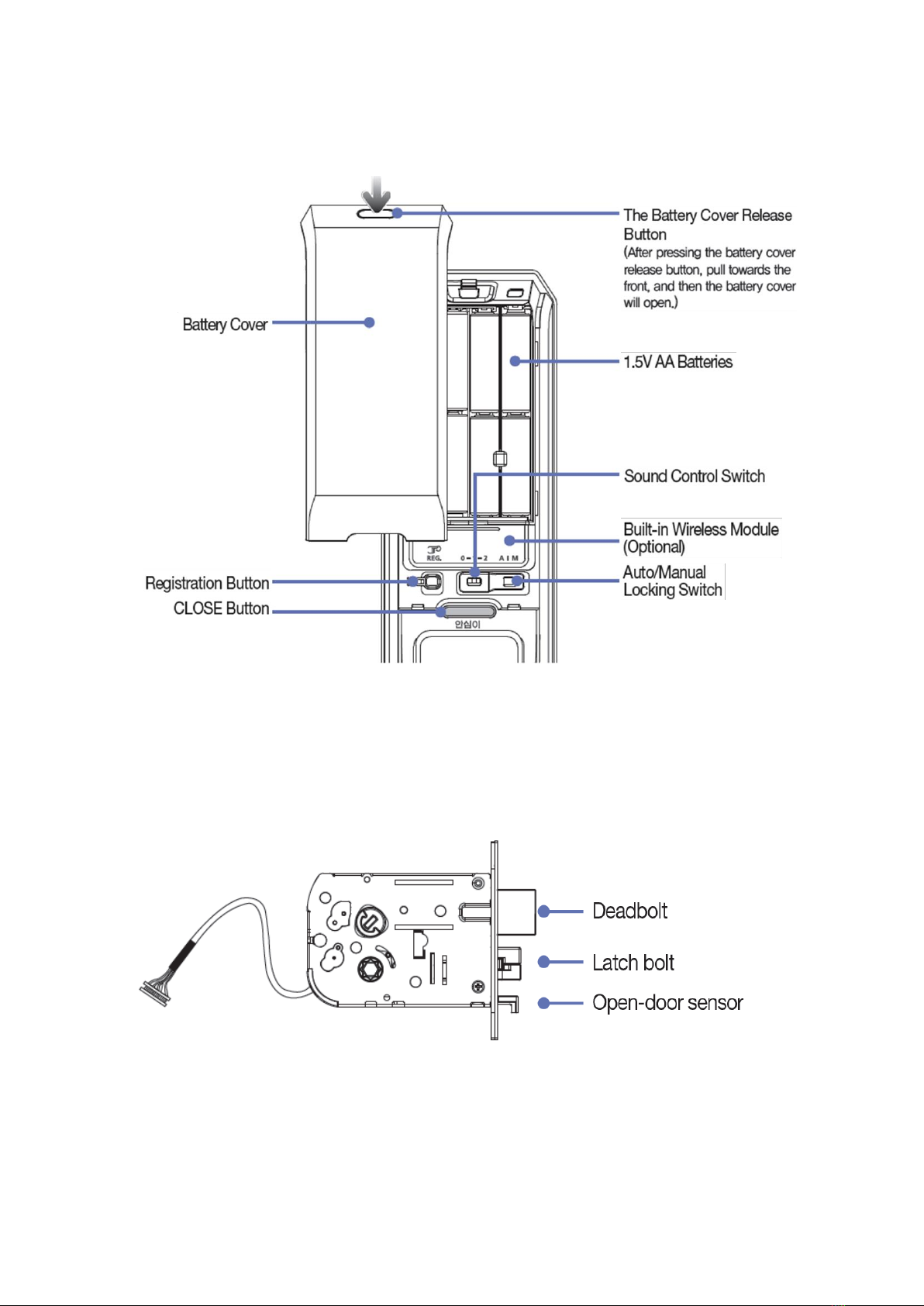

Interior Parts

Mortise

The Samsung SDS Z-Wave Door Lock is a security enabled Z-Wave Plus product that is able to use

encrypted Z-Wave Plus messages to communicate to other security enable Z-Wave Plus products.

The Samsung SDS Z-Wave Door Lock must be used in conjunction with a Security Enabled Z-Wave

Controller in other to fully utilize all implemented functions.

The Samsung SDS Z-Wave Door Lock can be included and operated in any Z-Wave network with

other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery

operated nodes within the network will act as repeaters regardless of vendor to increase reliability of

the network.

Z-Wave Specifications

Device Type : Door Lock –Keypad (SPECIFIC_TYPE_SECURE_KEYPAD_DOOR_LOCK)

Role Type : LSS (Listening Sleeping Slave)

Command Class Support/Control

Mandatory CC support :

Z-Wave plus info (MUST be place first in NIF) –(V2)

Manufacturer Specific (V2)

Security (V1)

Device Reset Locally (V1)

Battery (V1)

Power Level (V1)

Version (V2)

Door Lock (V2)

User Code (V1)

Association (V2)

Association Group Information (V1)

Recommended CC support

Notification (V4)

Configuration (V1)

Firmware update meta data (V2)

Schedule Entry Lock (V3)

Time Parameters (V1)

Time (V2)

Z-Wave plus info (V2)

- Z-Wave Plus Version : 02

- Role Type : LSS (Listening Sleeping Slave)

- Node Type : Z-Wave Plus Node

Manufacturer Specific (V2)

-Device ID Type : 01(Serial Number)

- Device ID Data Format : 01 (Binary)

- Device ID Data Length Indicator : 16

-Device ID : XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX

Version (V2)

- Z-Wave Protocol Library Type : 03

- Z-Wave Protocol Version : 04

- Z-Wave Protocol Sub Version : 05

- Firmware 0 Version : 01

- Firmware 0 Sub Version : 03

- Hardware Version : 01

Door Lock (V2)

- support Unsecure(0x00), Secure(0xFF)

Note : When using ‘Operation_Set’command, lock will execute ‘Unsecure(0x00)’then

perform ‘Auto Re-lock’if door is not open.

When using ‘Operation_Get’command, lock can response after executing

‘Operation_Set’command. (take about 2 seconds)

User Code (V1)

- Lock will accept maximum 130 pin codes that are 4-10 digits in length.

①Supported Users : 130

②User Type : Number, Card (Key Tag), Fingerprint, Bluetooth

⋅Card (Key Tag), Fingerprint, Bluetooth : Cannot be registered through Z-Wave

③ID Range

⋅Number : 1 ~ 130

⋅Card (Key Tag) : 1 ~ 20

⋅Bluetooth : 21 ~ 30

⋅Fingerprint : 31 ~ 130

Association (V2) & Association Group Information (V1)

- Lifeline between controller and SHP-DP920

- Supported command classes

: Battery report, Notification report, and Device Reset Locally notification

- Maximum supported node is 1EA

Notification (V4)

Notification Type

Event

Event Parameter

Access Control

(0x06)

Manual Lock Operation (0x01)

Manual Unlock Operation (0x02)

RF Lock Operation (0x03)

RF Unlock Operation (0x04)

Keypad Unlock Operation (0x06)

User ID

RF Not Fully Locked Operation (0x08)

Auto Lock Loced Operation (0x09)

Auto Lock Not Fully Operation (0x0A)

Lock Jammed (0x0B)

All user codes deleted (0x0C)

Single user code deleted (0x0D)

New user code added (0x0E)

New user code not added due to

duplicate code (0x0F)

New Program code Entered - Unique

code for lock configuration (0x12)

Home Security

(0x07)

Intrusion, Unkown Location (0x02)

Tampering, Invalid Code (0x04)

Motion Detection, Unknown Location

(0x08)

Emergency

(0x0A)

Contact Police (0x01)

Contact Fire Service (0x02)

Configuration (V1)

Name

Parameter

Number

Size

Value

Description

Security Function

0x01

1byte

0x00

0x01

0x02

0x03

0x04

0x05

Disable (Default)

Enable

System Disable1)

System Enable1)

Request for Enable1)

Fail1)

Privacy Mode

0x02

1byte

0x00

0x01

Disable (Default)

Enable

Registered User

0x03

1byte

1 ~130

The number of registered user codes.2)

Platform

0x0A

1byte

0x00

0x01

Common (Default)

Samsung SDS3)

1) This value can be used when the device is connected with platform of Samsung SDS.

This function is not related to Z-Wave CC.

- 0x02 : Command for disable which is set by platform of Samsung SDS.

After setting, if you try to get value of Security Function , '0x00' will be reported.

- 0x03 : Command for enable which is set by platform of Samsung SDS.

After setting, if you try to get value of Security Function, '0x01' will be reported.

- 0x04 : 'Request for Enable' command which is reported by Doorlock. This cannot be set.

(8th function in manual)

- 0x05 : If the request for 'Request for Enable' command is failed in platform,

this will be set by platform of Samsung SDS.

Value of Security Function is not changed by this command.

2) This parameter is supported to ‘Configuration Get Command’only.

3) This value set by platform after device connected with platform of Samsung SDS.

Firmware update meta data (V2)

-Manufacturer ID : 0x022E (Samsung SDS)

Schedule Entry Lock (V3)

- Supported the Number of Slots Week Day : 0

- Supported the Number of Slots Year Day : 0

- Supported the Number of Slots Daily Repeating : 130

Glossary

Device or Node

Devices and nodes are all terms to describe an individual Z-Wave device. These

are all interchangeable when setting up your Z-Wave network

Unsecure /

Unsecured

Unlock / Unlocked

Secure / Secured

Lock / Locked

Inclusion

Add a Z-Wave device to the network

Exclusion

Delete a Z-Wave device from the network

Z-Wave Network

A collection of Z-Wave devices is controlled by primary and secondary controllers

operating on the same system. A Z-Wave network has its own unique ID code so

that controllers not in the network cannot control the system.

Association

Association is used to organize nodes in different groups allowing the device to

identify the nodes by a group identifier. The groups can also be copied to other

devices.

Note : Pressing the [REG] button is only available while the door is open. (Deadbolt must be

unsecured.)

Basic Functions

1. Factory Reset

All registered Master/User data will be deleted, and Master PIN Code is set to ‘1234’. Also Z-

Wave Door Lock is being removed from a network.

①Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)

②Press the [*] button after pressing the [4560852580] button.

(Success : Ding dong dang, Fail : Ding dong Ding dong)

※Use this procedure only in the event that the network primary controller is missing or

otherwise inoperable.

2. Changing the Master PIN Code

You can enter only one Master PIN Code. If changing the Master PIN code, All User PIN

Codes are deleted.

①Press the [REG] button. (Ding dong)

②Enter the new Master PIN Code, and press the [*] button.(4~12digits) (Ding dong dang)

3. Registering a User Card

You can register up to 20 User Card. (Supproted ISO14443 AType)

To register multiple cards, lightly place another card to the card reader within 20 seconds

after registering the previous card. Also you can add card later after completing registration.

①Press the [REG] button. (Ding dong)

②Place the card to be registered on the card reader of the exterior body.(Ding dong dang)

③Place the card on the card reader for the addtional registration or press the [REG] button

to quit.

4. Registering a Fingerprint

You can register up to 100 fingerprints.

①Press the [REG] button. (Ding dong)

②When LED light on the Fingerprint Reading Panel is on, touch the panel with the

fingerprint to be registered. When a “ding” sound is heard and LED light goes off, then

remove the finger. (Must do it 3 times)

③To end the registration, please press the [REG] button on the inner body.

5. Registering a Bluetooth

①Press the [REG] button. (Ding dong)

②Enter the [88] + [*] (Ding dong)

③Enter the Password + [*] (Ding dong deng →Ding ding)

④Check a pairing number from Smart Door Lock App of smartphone.

(First, please install the Smart Door Lock app in the smart phone.)

⑤Enter a Pairing number + [*] (Ding dong deng)

6. Inclusion / Exclusion into(from) Z-Wave Network

6.1 Inclusion into Z-Wave Network

①Click [Add] icon in Z-Wave PC Conroller Program.

②Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)

③Press the [*] button after pressing the [00] button.

(Success : Ding dong dang, Fail : Ding dong Ding dong)

6.2 Exclusion from Z-Wave Network

After exclusion from Z-Wave Netwokr, it will no longer be remotely-controlled via the

controller.

①Click [Remove] icon in Z-Wave PC Conroller Program.

②Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)

③Press the [*] button after pressing the [00] button.
