Samsung XPR Series Manuel utilisateur

Outdoor LED Installation Manual

- XPR Series -

Standard Cabinet

LH080XPRZAS/PZ

Rev.0.9

Contents

Installation Precautions

1. Product Information

. Specification, Standard Cabinet, Package, Screen Configuration, Fan installation

2. Installation

. Overview, Unboxing, Accessary Assembly, Fan Assembly, Handling Cabinet, Mounting Cabinet,

Y8, Signal B’d Assembly, Cable Connections, Power Connections,

Waterproof/ Bezel Accessary Assembly

3. Accessory Kit

. Tools & Materials

4. Control Room Setting

. System configuration, System Matrix

Installation Precautions –Important Guidelines to Follow

•Precautions prior to Installation

- Ensure that all personnel at the site of installation wear personal protection equipment, such as safety helmets, safety

glasses, safety gloves and other appropriate safety equipment.

- Ensure that at least two persons work together to move or transport the product so as to ensure safety.

- Ensure that the power cord is not close to any heat sources. The cord sheath may melt and cause a fire or electric shock.

- Do not install the product in a confined space with poor ventilation. The internal temperature may increase and cause a

fire.

- Make sure you remove the power cord before transporting the product. Transporting the product with the cord connected

may cause a fire or electric shock.

- Make sure you ground the display screens before connecting the power source. Contacting a display that is not

grounded may result in death or severe injuries.

Installation Precautions –Important Guidelines to Follow

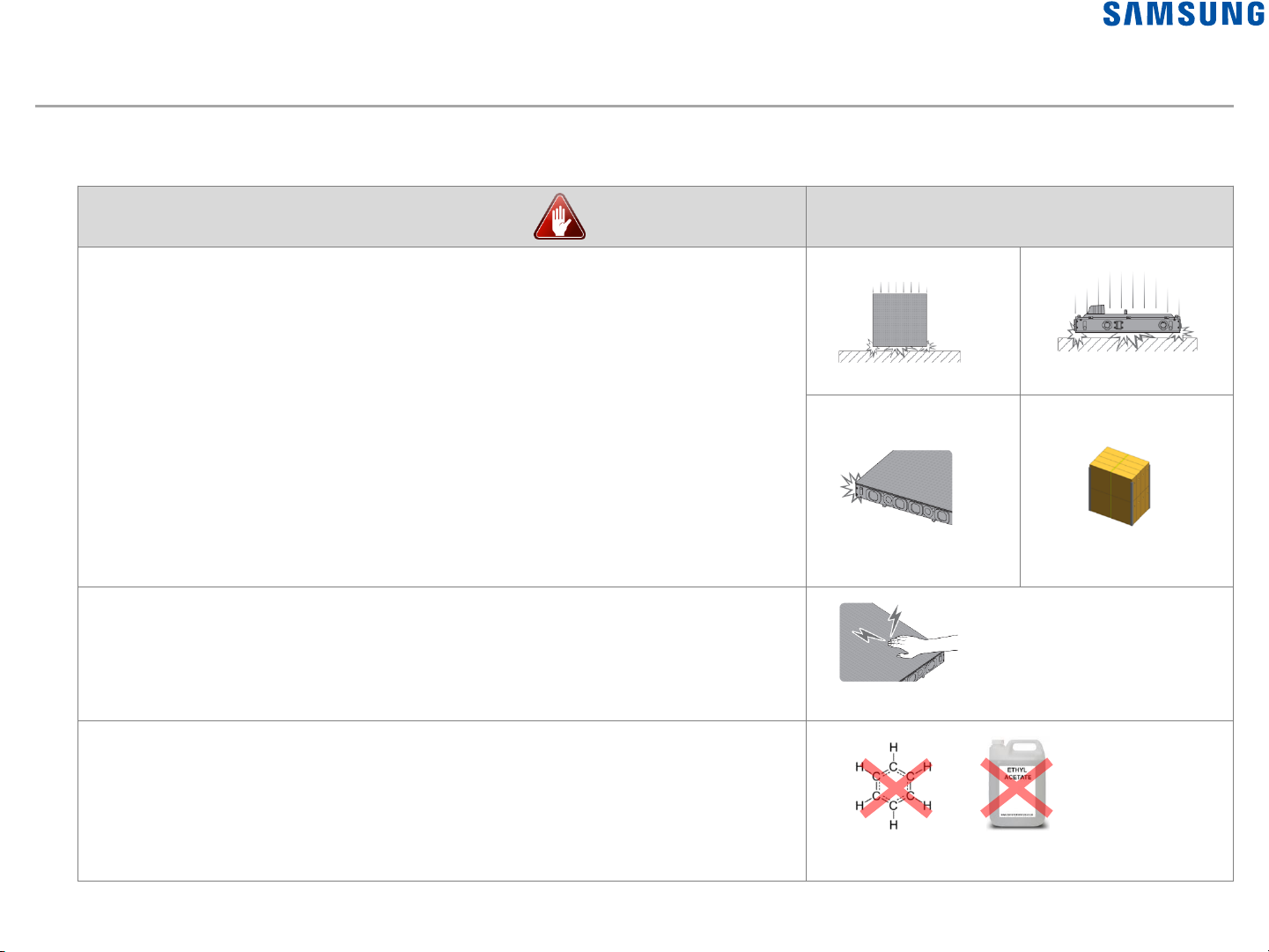

◇Installation precautions for prevention of damage to LED

Precautions Images

[Be careful to prevent external impact or dropping]

①

After removing the Cover-

Corner from the product prior to installation, exercise caution to

ensure that the LED surface is not exposed to physical impact and the product is not

dropped onto the floor.

②

Do not place the product on a vibrating object. Make sure the LED surface does not face

down onto the floor.

③

Exercise caution to ensure that the corners of the LED module are not damaged due to

contact with external factors.

④

Make sure the number of loaded rows does not exceed two.

①

②

③

④

[Be careful to prevent LED damage due to electric shock]

▶

Do not touch the LED surface with bare hands without wearing anti-static gloves.

[Be careful to prevent LED damage due to chemicals]

▶

Ensure that the product does not contact water, liquids containing alcohol, solvent or

surfactant, or chemicals such as wax, benzene, thinner, mosquitocide, air freshener,

lubricator or cleaning agent.

◇XPR-S Series

. CREE LED

1. Product Information: Specification

SPECIFICATIONS XPR-S

Pitch P6 P8 P10 P16TH

Diode CREE CLY6C CREE C4SMM

Max Brightness Nits 8000

Black Uniformity L10 +/- 0.15 (TBD)

Video Processing 24 Bit

Color Capacity 16 Bit

Color Temp 4,500 –9,000K

Refresh Rate (spec 4,800Hz) 7,680Hz 7,680Hz 7,680Hz 7,680Hz

Horizontal Viewing Angle 160

Vertical Viewing Angle

(Top/Bottom) +20 / -65

Contrast Ratio 8,000:1 ↑

Typ. Weight (Kg/sqm) 40 kg ↓

IP Rating (Front/Rear) IP67 / IP66

EMC Class A

Cabinet Material Aluminum

Service Front & Rear

◇XPR-E Series

. NS/XD LED

1. Product Information: Specification

SPECIFICATIONS XPR-E

Pitch P6 P8 P10 P16TH P20TH

Diode NS FM2727 XDL-305J

Max Brightness Nits 7000 7500

Black Uniformity L10 +/- 0.15 (TBD)

Video Processing 24 Bit

Color Capacity 16 Bit

Color Temp 4,500 –9,000K

Refresh Rate (spec 4,800Hz) 7,680Hz 7,680Hz 7,680Hz 7,680Hz 7,680Hz

Horizontal Viewing Angle 160

Vertical Viewing Angle

(Top/Bottom) +20 / -65

Contrast Ratio 8,000:1 ↑

Typ. Weight (Kg/sqm) 40 kg ↓

IP Rating (Front/Rear) IP67 / IP65

EMC Class A

Cabinet Material Aluminum

Service Front & Rear

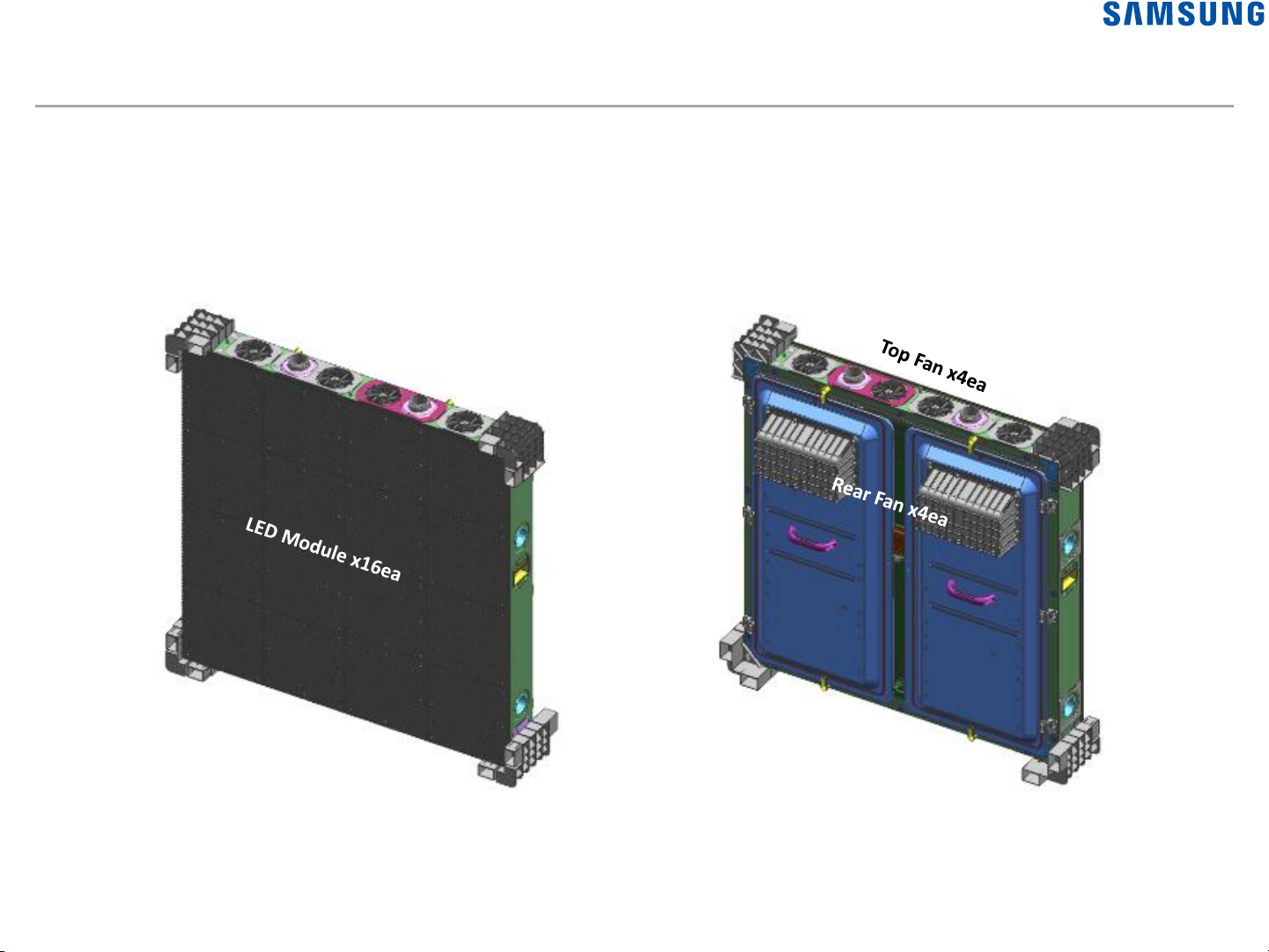

◇Standard Cabinet

- Outside

1. Product Information: Standard Cabinet

Front Rear

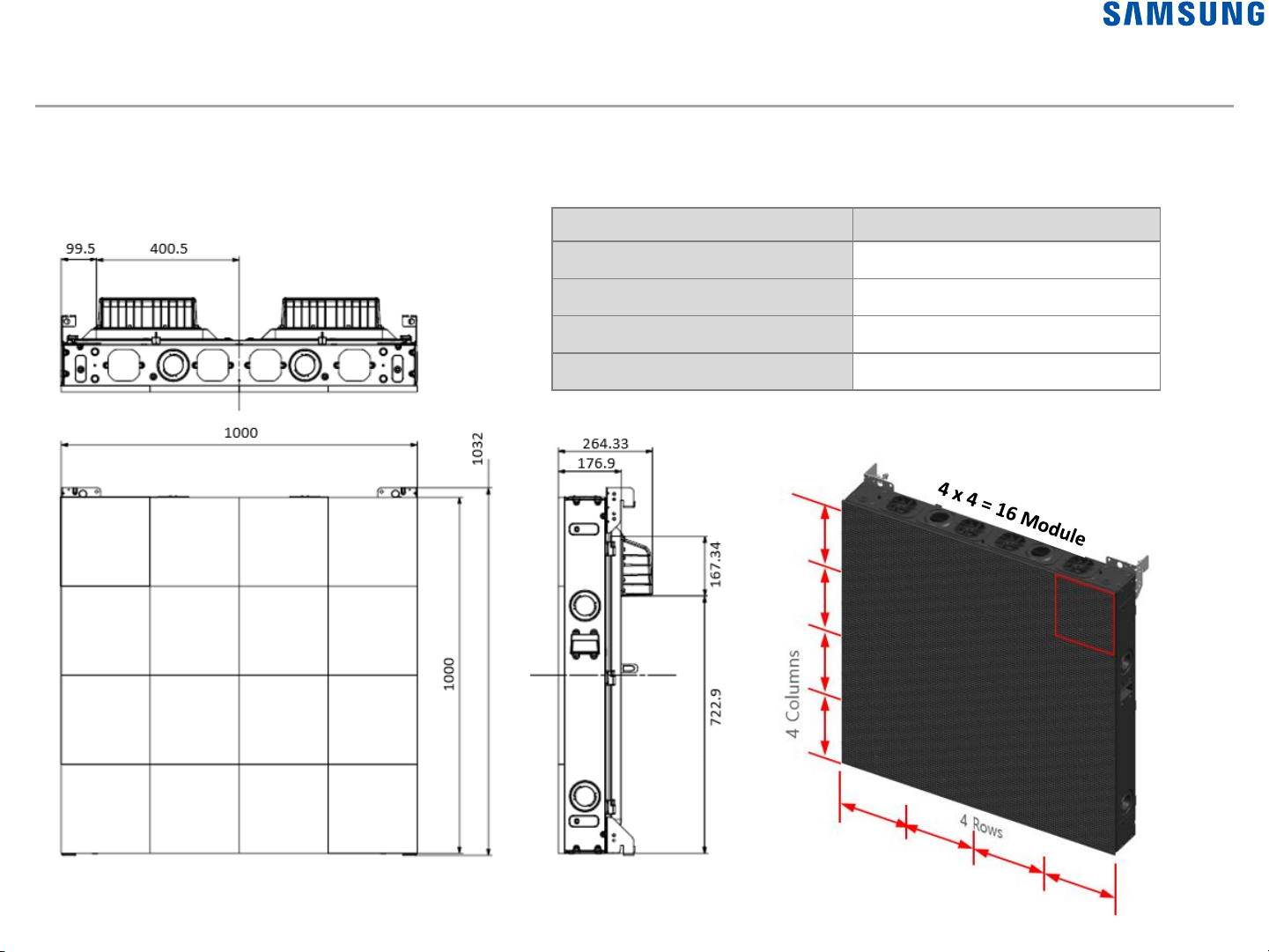

◇Standard Cabinet

- Product Size

1. Product Information: Standard Cabinet

Item Spec

Cabinet Size (W x H) 1000 mm x 1000 mm

Module Size (A x B) 250 mm x 250 mm

Set depth (D) 264.3 mm

Weight [kg] 38 kg

Y8 PDS

SMPS

◇Standard Cabinet (+ Y8)

- Product Inside

1. Product Information: Standard Cabinet

①

②

③

④ ⑤

⑥ ⑥

⑦

①

PDS

②

SMPS

③

AC Filter

④

Power In

⑤

Power Out

⑥

External Fan position

⑦

Y8 (1

Y8 for 1 block)

1. Product Information: Package

1265

1225

387

◇Outdoor Cabinet Box

- Read the label to make sure it is the right cabinet.

Read the information in the attached label to check

the Model Code and Project No.
