Samsung QM50R Manuel utilisateur

Samsung owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited. Trademarks other than Samsung are property of their respective owners.

QBR (QB43R QB49R QB50R QB55R QB65R QB75R QB85R QB98R)

QER (QE82R)

QMR (QM32R QM43R QM49R QM50R QM55R QM65R QM75R QM85R)

QMR-T (QM32R-T QM43R-T QM55R-T)

The colour and the appearance may differ depending on the product, and the content in the

manual is subject to change without prior notice to improve the performance.

Recommended hours of use per day for the QBR models (except for QB98R), QM32R-T, and QER

models is less than 16 hours.

If the product is used for longer than 16 hours a day, the warranty may be void.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e.,

where the user manual has not been read).

(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e.,

where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

Smart Signage User Manual (By Model)

This manual provides information about your Smart Signage including supported types and product specications per model.

Table of contents

Preparations

Checking the Components 3

Parts 4

QM32R/Q*43R/Q*49R/Q*50R/Q*55R/

Q*65R/Q*75R/Q*85R/QE82R/QM32R-T/

QM43R-T/QM55R-T 4

QB98R 5

Anti-theft Lock 6

Ports 7

Q*43R/Q*49R/Q*50R/Q*55R/Q*65R/

Q*75R/Q*85R/QE82R 7

QM32R 8

QB98R 9

QM32R-T 10

QM43R-T/QM55R-T 11

Control menu 12

Administrator menu (Supported models:

QMR-T) 13

Precautions when handling the panel 14

Before Installing the Product (Installation

Guide) 15

Tilting Angle and Rotation 15

Ventilation 15

Installing the Wall Mount 16

Preparing before installing Wall-Mount 16

Installing the Wall Mount 16

Wall Mount Kit Specifications (VESA) 17

Specifications

General 22

Preset Timing Modes 25

Appendix

Licence 26

Using a touchscreen monitor

(Supported models: QMR-T)

Touchscreen monitor 18

Read below before using the product 18

Connecting the touch overlay 18

Connecting the touchscreen monitor 19

Connecting to a PC 19

Connecting to a laptop or tablet PC 19

Configuring the touchscreen monitor

settings 20

Calibration 20

Preparations

Chapter 01

"Contact the vendor where you

purchased the product if any

components are missing.

"The appearance of the components

may differfrom the images shown.

"A stand is not provided with the

product. To install a stand, you can

purchase one separately.

"The RS232C adapter can be used to

connect to another monitor using the

D-SUB (9-pin) type RS232C cable.

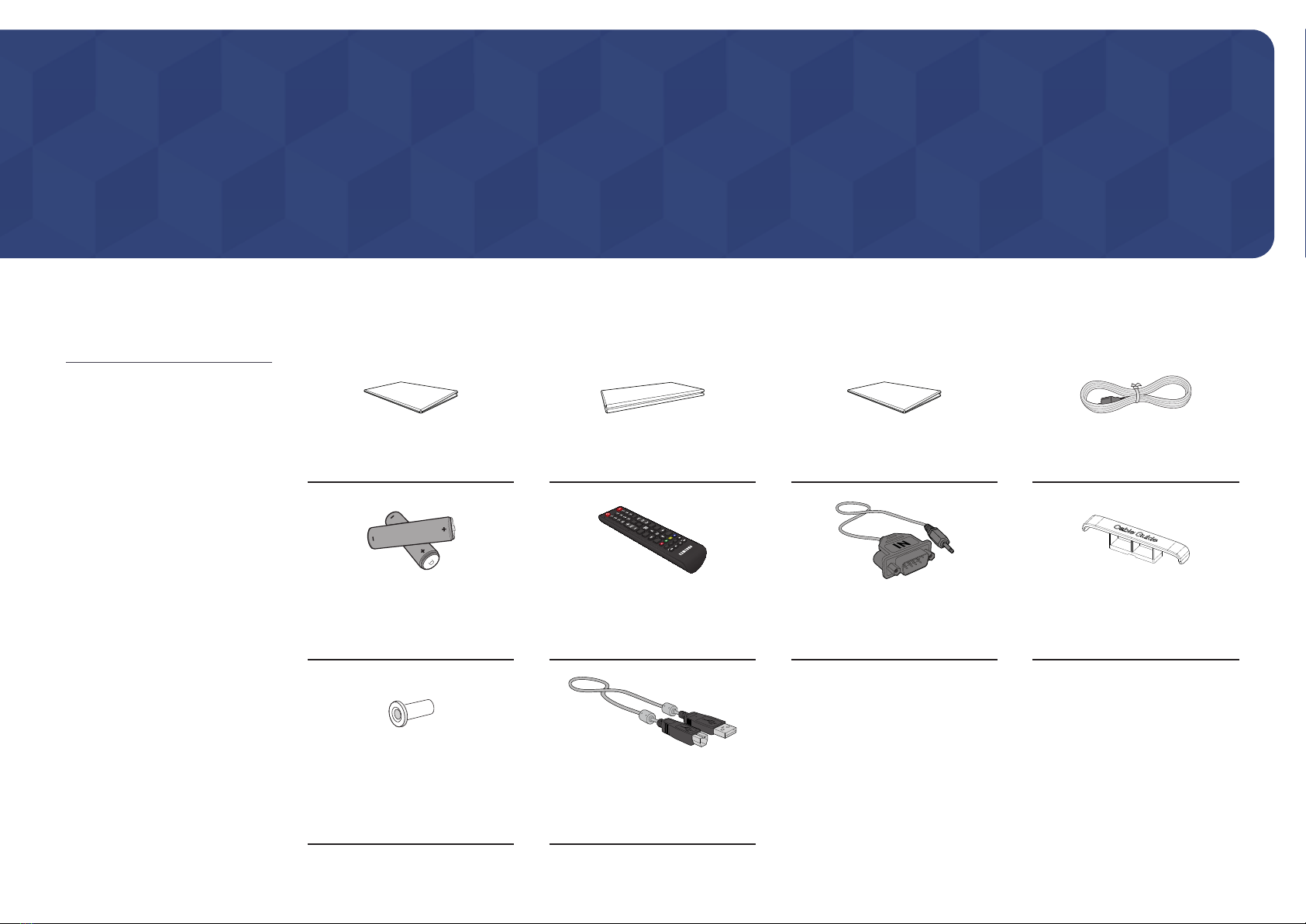

Checking the Components

Quick Setup Guide Warranty card

(Not available in some locations) Regulatory guide Power cord

Batteries (AAA x 2)

(Not available in some locations) Remote Control RS232C adapter

HOLDER-CABLE

(Supported models: Q*65R,

Q*75R, Q*85R, QB98R, QE82R)

Holder-Ring x 4

(Supported models: Q*43R,

Q*49R, Q*50R, Q*55R, Q*65R,

Q*75R, QM43R-T, QM55R-T)

TOUCH OUT cable x 2

(Supported models: QMR-T)

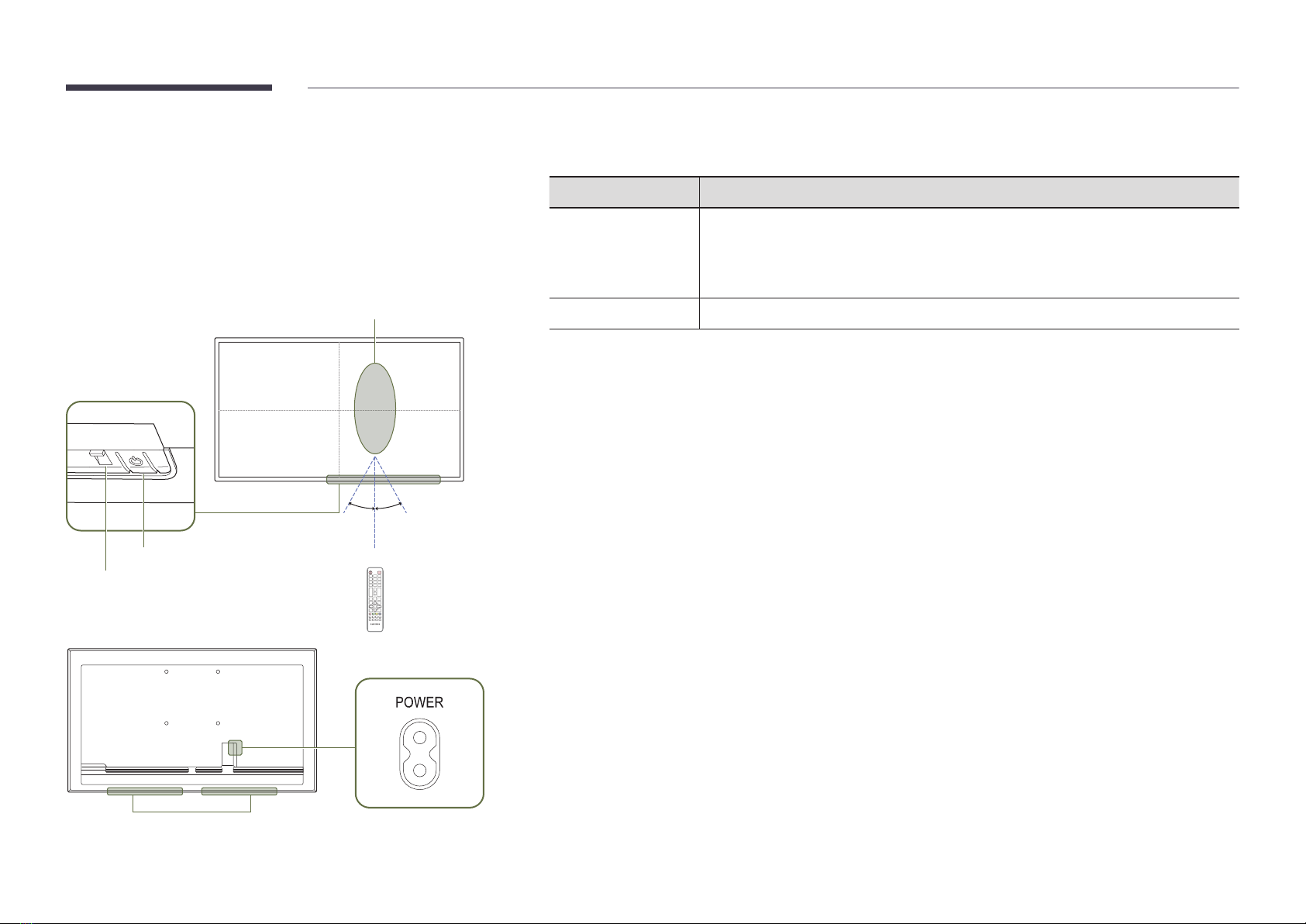

Parts

QM32R/Q*43R/Q*49R/Q*50R/Q*55R/

Q*65R/Q*75R/Q*85R/QE82R/QM32R-T/

QM43R-T/QM55R-T

2.5 m 2.5 m

30°

Power button

Power indicator

Remote sensor

4 m

Speaker

"The colour and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

Parts Description

Remote sensor

Press a button on the remote control pointing at the sensor on the front of the product

to perform the corresponding function.

"Using other display devices in the same space as the remote control of this product

can cause the other display devices to be inadvertently controlled.

Power button

Turns the product on or off.

Use the remote control within 2.5 m to 4 m from the sensor on the product at an angle of 30° from the left and

right.

"To enhance the IR receiver performance, connect an external IR cable (sold separately) to the IR IN port.

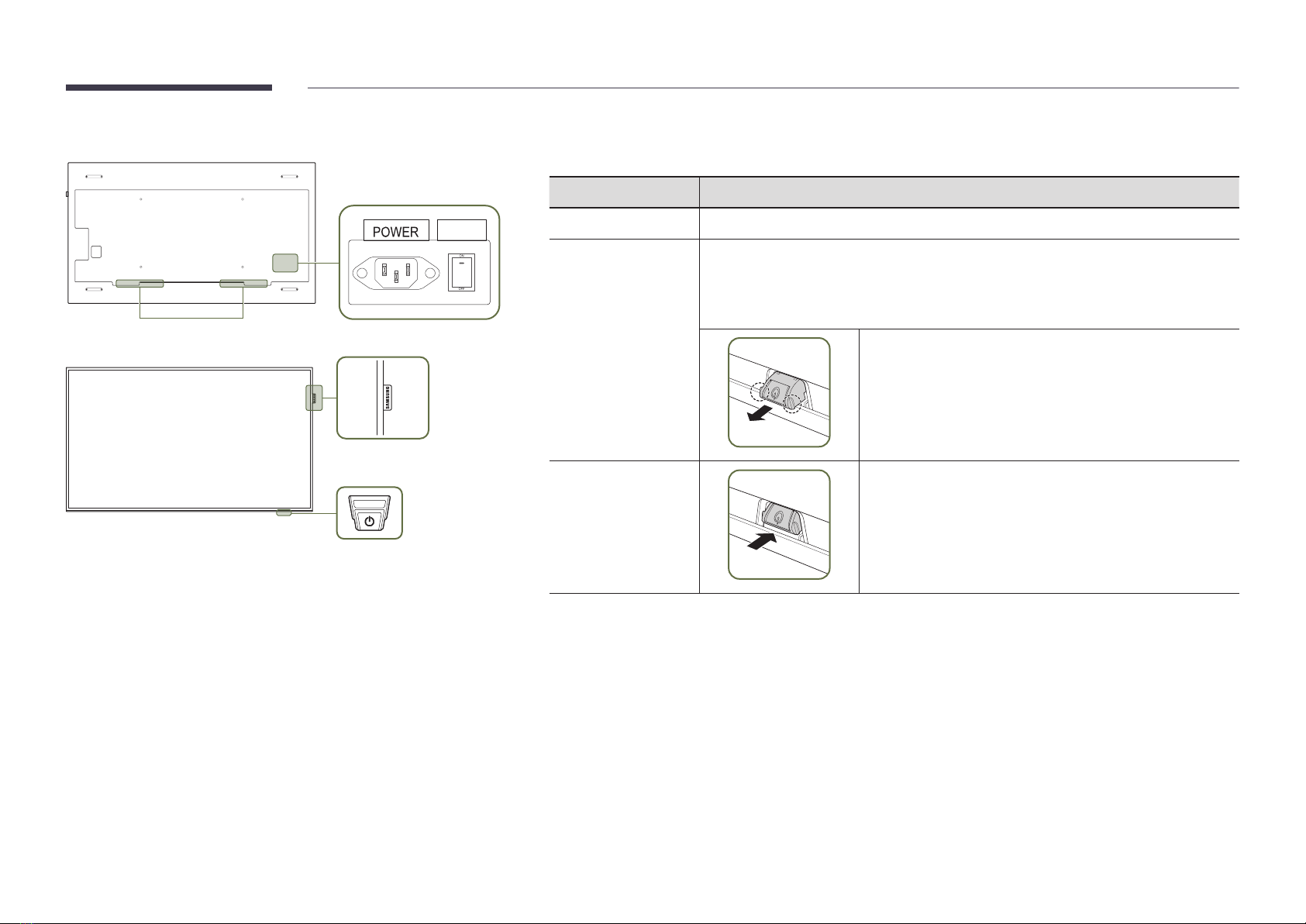

QB98R

ON/OFF

Speaker

Spacer logo

Remote sensor & Power button

"The colour and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

Parts Description

Spacer logo

Do not pull on the spacer logo using force. The logo may tear or break off.

Remote sensor

Press a button on the remote control pointing at the bottom of the product face to

perform the function. The remote control sensor is located on the bottom of the product.

"Using other display devices in the same space as the remote control of this product

can cause the other display devices to be inadvertently controlled.

To use remote/eco sensor, make sure the sliding power button

is protruding from the bottom of the product.

Power button

To use the power button, make sure the sliding power button

is not protruding from the bottom of the product.

Use the remote control within 7 m to 10 m from the sensor on the product at an angle of 30° from the left and right.

"To enhance the IR receiver performance, connect an external IR cable (sold separately) to the IR IN port.

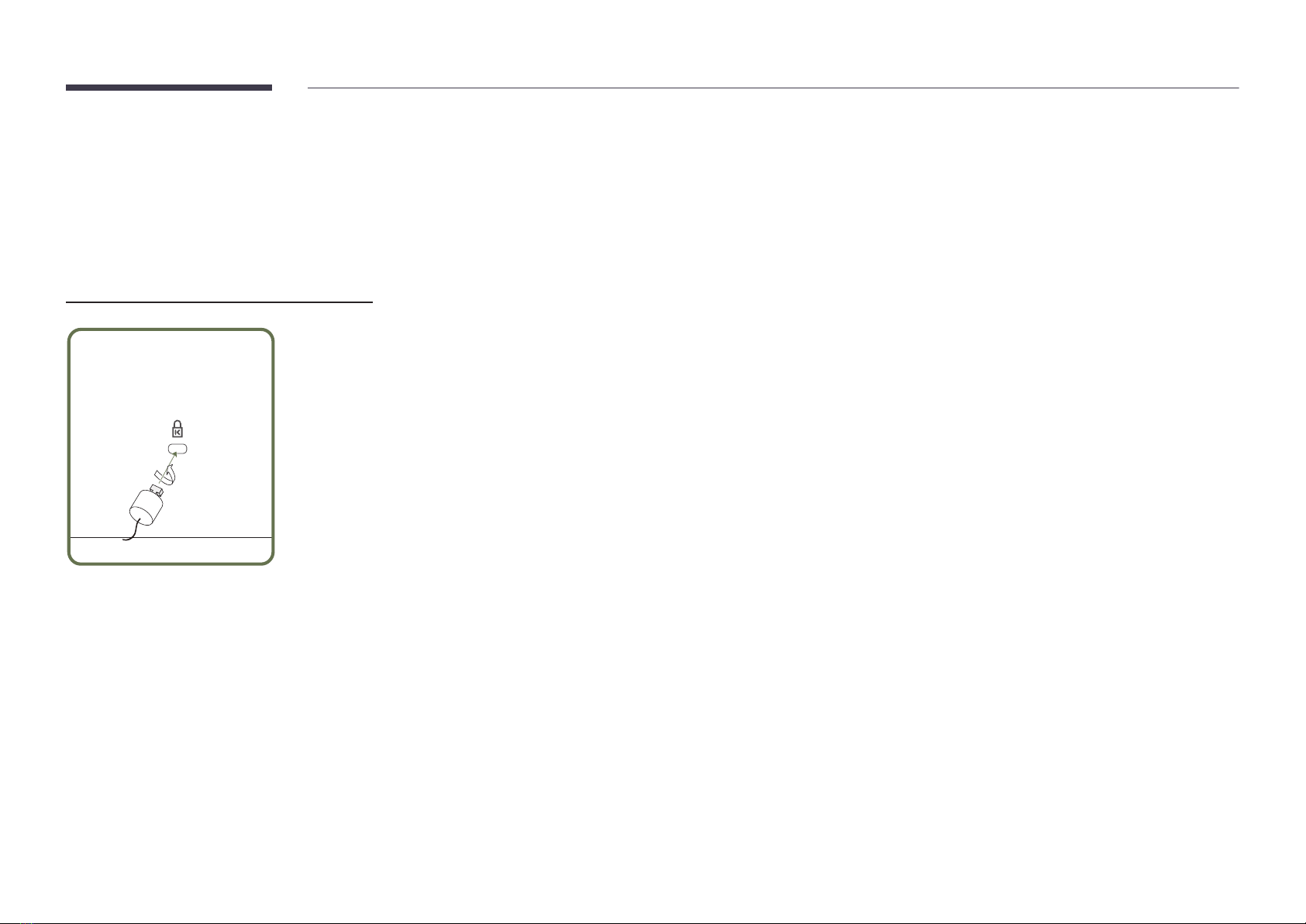

Anti-theft Lock

"An anti-theft lock allows you to use the product securely even in public places.

"The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.

"The following images are for reference only. Real-life situations may differ from what is shown in the images.

"Supported model: QB98R

To lock an anti-theft locking device:

Fix the cable of your anti-theft locking device to a heavy object such as a desk.

Put one end of the cable through the loop on the other end.

Insert the locking device into the anti-theft lock slot at the back of the product.

Lock the locking device.

– An anti-theft locking device can be purchased separately.

– Refer to the user guide provided with your anti-theft locking device for details.

– Anti-theft locking devices can be purchased at electronics retailers or online.

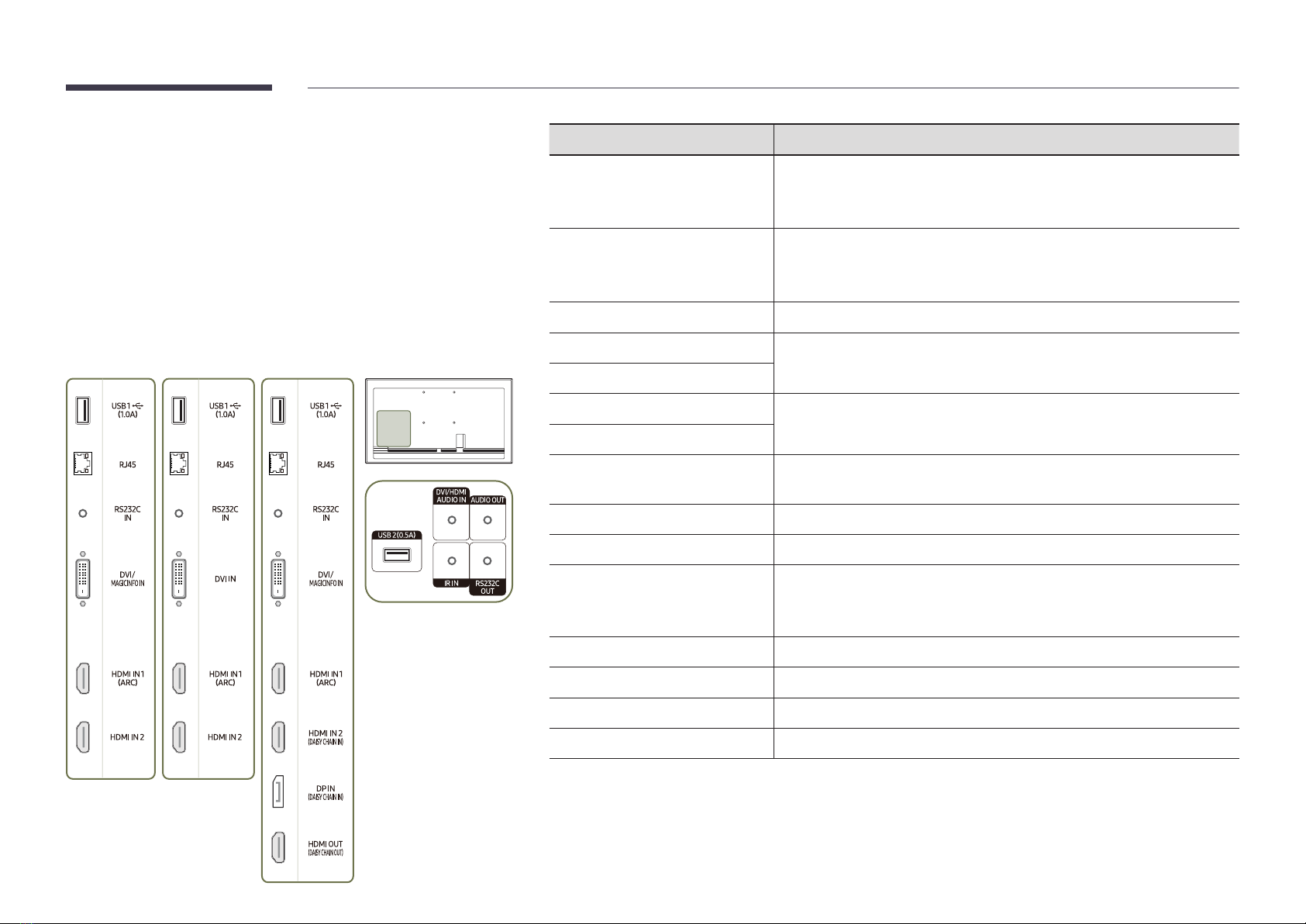

Ports

Q*43R/Q*49R/Q*50R/Q*55R/Q*65R/

Q*75R/Q*85R/QE82R

"The colour and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

QM43R / QM49R / QM50R /

QM55R / QM65R / QM75R /

QM85R

QE82R

QB43R / QB49R / QB50R /

QB55R / QB65R / QB75R /

QB85R

Port Description

USB 1 ¨(1.0A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

RJ45

Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

RS232C IN

Connects to MDC using an RS232C adapter.

DVI/MAGICINFO IN

DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.

MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo.

DVI IN

HDMI IN 1 (ARC)

Connects to a source device using a HDMI cable or HDMI-DVI cable.

HDMI IN 2

HDMI IN 2 (DAISY CHAIN IN)

•Connects to a source device using a HDMI cable or HDMI-DVI cable.

•Connects to another product using a HDMI cable.

DP IN (DAISY CHAIN IN)

Connects to a PC using a DP cable.

HDMI OUT (DAISY CHAIN OUT)

Connects to another product using a HDMI cable.

USB 2(0.5A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of

0.5A. If the maximum value is exceeded, USB ports may not work.

DVI/HDMI AUDIO IN

Receives sound from a source device via an audio cable.

AUDIO OUT

Outputs sound to an audio device via an audio cable.

IR IN

Connects to an external IR cable that receives signals from the remote control.

RS232C OUT

Connects to MDC using an RS232C adapter.

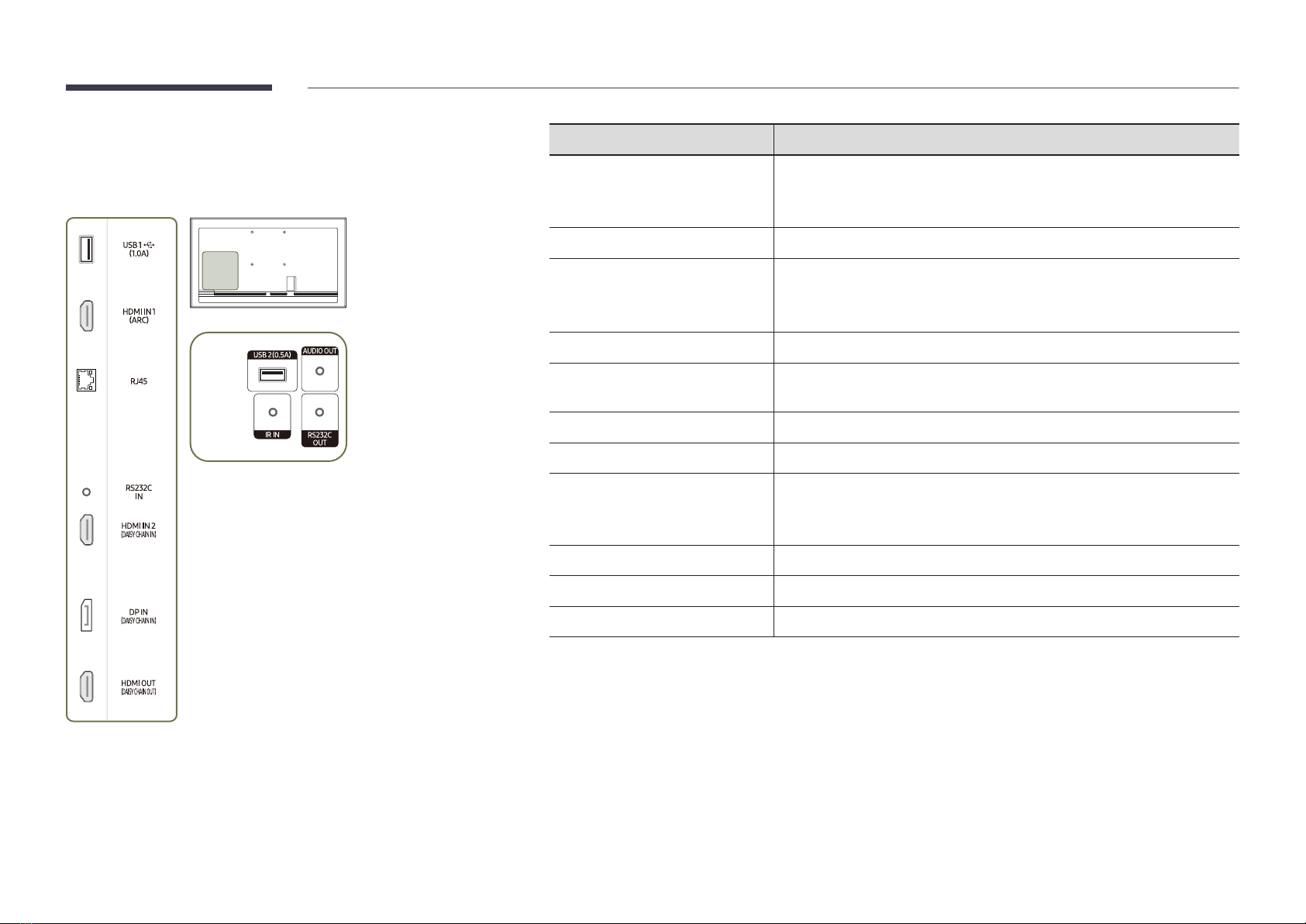

QM32R

"The colour and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

Port Description

USB 1 ¨(1.0A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

HDMI IN 1 (ARC)

Connects to a source device using a HDMI cable or HDMI-DVI cable.

RJ45

Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

RS232C IN

Connects to MDC using an RS232C adapter.

HDMI IN 2 (DAISY CHAIN IN)

•Connects to a source device using a HDMI cable or HDMI-DVI cable.

•Connects to another product using a HDMI cable.

DP IN (DAISY CHAIN IN)

Connects to a PC using a DP cable.

HDMI OUT (DAISY CHAIN OUT)

Connects to another product using a HDMI cable.

USB 2(0.5A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of

0.5A. If the maximum value is exceeded, USB ports may not work.

AUDIO OUT

Outputs sound to an audio device via an audio cable.

IR IN

Connects to an external IR cable that receives signals from the remote control.

RS232C OUT

Connects to MDC using an RS232C adapter.

QB98R

"The colour and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

Port Description

RJ45

Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

USB 1 ¨(1.0A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

DVI/MAGICINFO IN

DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.

MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo.

RS232C IN

Connects to MDC using an RS232C adapter.

RS232C OUT

Connects to MDC using an RS232C adapter.

DVI/HDMI AUDIO IN

Receives sound from a source device via an audio cable.

HDMI IN 1 (ARC)

Connects to a source device using a HDMI cable or HDMI-DVI cable.

HDMI IN 2 (DAISY CHAIN IN)

•Connects to a source device using a HDMI cable or HDMI-DVI cable.

•Connects to another product using a HDMI cable.

DP IN (DAISY CHAIN IN)

Connects to a PC using a DP cable.

HDMI OUT (DAISY CHAIN OUT)

Connects to another product using a HDMI cable.

USB 2(0.5A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of

0.5A. If the maximum value is exceeded, USB ports may not work.

AUDIO OUT

Outputs sound to an audio device via an audio cable.

IR IN

Connects to an external IR cable that receives signals from the remote control.

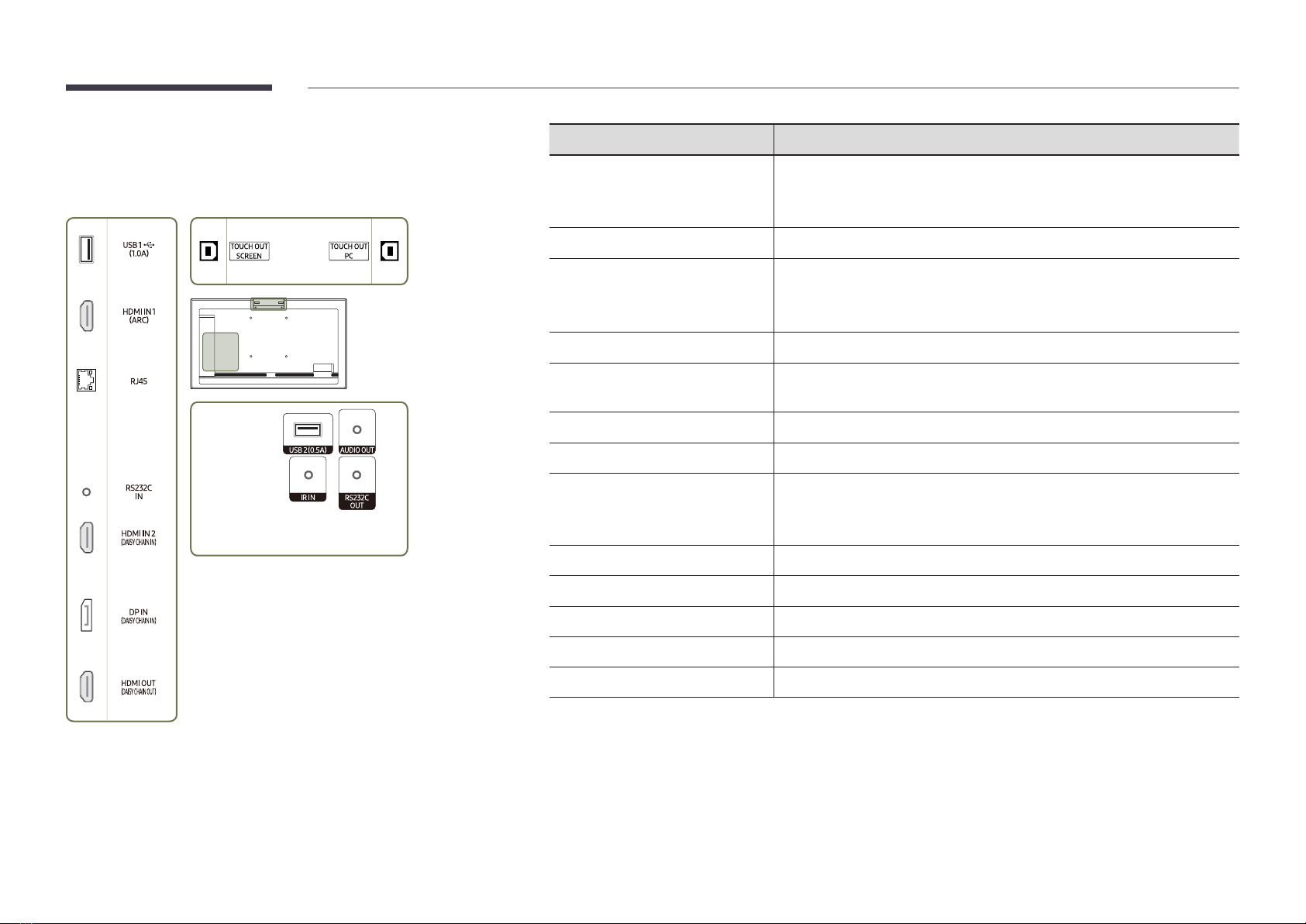

QM32R-T

"The colour and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

Port Description

USB 1 ¨(1.0A)

Connect to a USB memory device or TOUCH OUT cable.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

HDMI IN 1 (ARC)

Connects to a source device using a HDMI cable or HDMI-DVI cable.

RJ45

Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

RS232C IN

Connects to MDC using an RS232C adapter.

HDMI IN 2 (DAISY CHAIN IN)

•Connects to a source device using a HDMI cable or HDMI-DVI cable.

•Connects to another product using a HDMI cable.

DP IN (DAISY CHAIN IN)

Connects to a PC using a DP cable.

HDMI OUT (DAISY CHAIN OUT)

Connects to another product using a HDMI cable.

USB 2(0.5A)

Connect to a USB memory device or TOUCH OUT cable.

"The USB ports on the product accept a maximum constant current of

0.5A. If the maximum value is exceeded, USB ports may not work.

AUDIO OUT

Outputs sound to an audio device via an audio cable.

IR IN

Connects to an external IR cable that receives signals from the remote control.

RS232C OUT

Connects to MDC using an RS232C adapter.

TOUCH OUT SCREEN

Connect to a USB port on the product to use the touch function.

TOUCH OUT PC

Connect to a USB port on a PC to use the touch function.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Affichage numérique

Samsung

Samsung QBR Series Manuel utilisateur

Samsung

Samsung MD40C Manuel utilisateur

Samsung

Samsung DB22D-P Manuel utilisateur

Samsung

Samsung ED65E Manuel utilisateur

Samsung

Samsung SH37F Manuel utilisateur

Samsung

Samsung QM85D Manuel utilisateur

Samsung

Samsung SMART-Signage PM F Series Manuel utilisateur

Samsung

Samsung XA010J Manuel utilisateur

Samsung

Samsung IWJ Series Manuel utilisateur

Samsung

Samsung QBN Series Manuel utilisateur

Samsung

Samsung UD55C-B Manuel utilisateur

Samsung

Samsung SM460DXN Manuel utilisateur

Samsung

Samsung XA067T Manuel utilisateur

Samsung

Samsung XA160F Manuel utilisateur

Samsung

Samsung KM24A Manuel utilisateur

Samsung

Samsung QER Series Manuel utilisateur

Samsung

Samsung UD46E-A Manuel utilisateur

Samsung

Samsung OM32H Manuel utilisateur

Samsung

Samsung IL020F Manuel utilisateur

Samsung

Samsung ME32C Manuel utilisateur

Samsung

Samsung VH55B-E Manuel utilisateur

Samsung

Samsung QB24R-B Manuel utilisateur

Samsung

Samsung DB22D Manuel utilisateur

Samsung

Samsung SBB-IS08E Manuel utilisateur

Manuels Affichage numérique populaires d'autres marques

LG 72WS70MS-B Manuel utilisateur

SMART-AVI

SMART-AVI SIGNAGEPRO Manuel utilisateur

LG 65SM5D Manuel utilisateur

LG 55EW5TK-A.AUS Manuel utilisateur

KeyWest Technology

KeyWest Technology BREEZE Manuel utilisateur

XtendLan

XtendLan XL-DSP-183C Manuel utilisateur

LG 47VL10 Manuel utilisateur

LG WP400 Guide de démarrage rapide

Dynascan

Dynascan DS861LR4 Manuel utilisateur

Classic Exhibits

Classic Exhibits SEGUE DESIGNS MOD-1363 Manuel utilisateur

LG 22XE1J Manuel utilisateur

protech

protech KT-7290 Manuel utilisateur

WebDT

WebDT 515A Instructions de montage

LG 84TR3B Manuel utilisateur

LG 55EJ5D Guide de démarrage rapide

EVERI

EVERI Enrollment Kiosk Manuel utilisateur

LG 75XS4G Manuel utilisateur

LG 49UH7J Manuel utilisateur
