Samsung QBR-N Series Manuel utilisateur

Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are

property of their respective owners.

QBR (QB43R QB49R QB55R QB65R QB75R QB98R)

QBR-N (QB55R-N QB65R-N QB75R-N)

QER (QE82R)

QMR (QM43R QM49R QM55R QM65R QM75R)

The color and the appearance may differ depending on the product, and the content in the

manual is subject to change without prior notice to improve the performance.

Recommended hours of use per day for the QBR*(except for QB98R) and QER models is less

than 16 hours.

If the product is used for longer than 16 hours a day, the warranty may be void.

Smart Signage User Manual (By Model)

This manual provides information about your Smart Signage including supported types and product specications per model.

Table of contents

Preparations

Checking the Components 3

Parts 4

Q*43R/Q*49R/Q*55R*/Q*65R*/Q*75R*/

QE82R 4

QB98R 5

Anti-theft Lock 6

Ports 7

Q*43R/Q*49R/Q*55R*/Q*65R*/Q*75R*/

QE82R 7

QB98R 8

Control menu 9

Precautions when handling the panel 10

Before Installing the Product (Installation

Guide) 11

Tilting Angle and Rotation 11

Ventilation 11

Installing the Wall Mount 12

Preparing before installing Wall-Mount 12

Installing the Wall Mount 12

Wall Mount Kit Specifications (VESA) 13

Specifications

General 14

Preset Timing Modes 16

Appendix

License 17

Preparations

Chapter 01

"Contact the vendor where you

purchased the product if any

components are missing.

"The appearance of the components

may differ from the images shown.

"A stand is not provided with the

product. To install a stand, you can

purchase one separately.

"The RS232C adapter can be used to

connect to another monitor using the

D-SUB (9-pin) type RS232C cable.

Checking the Components

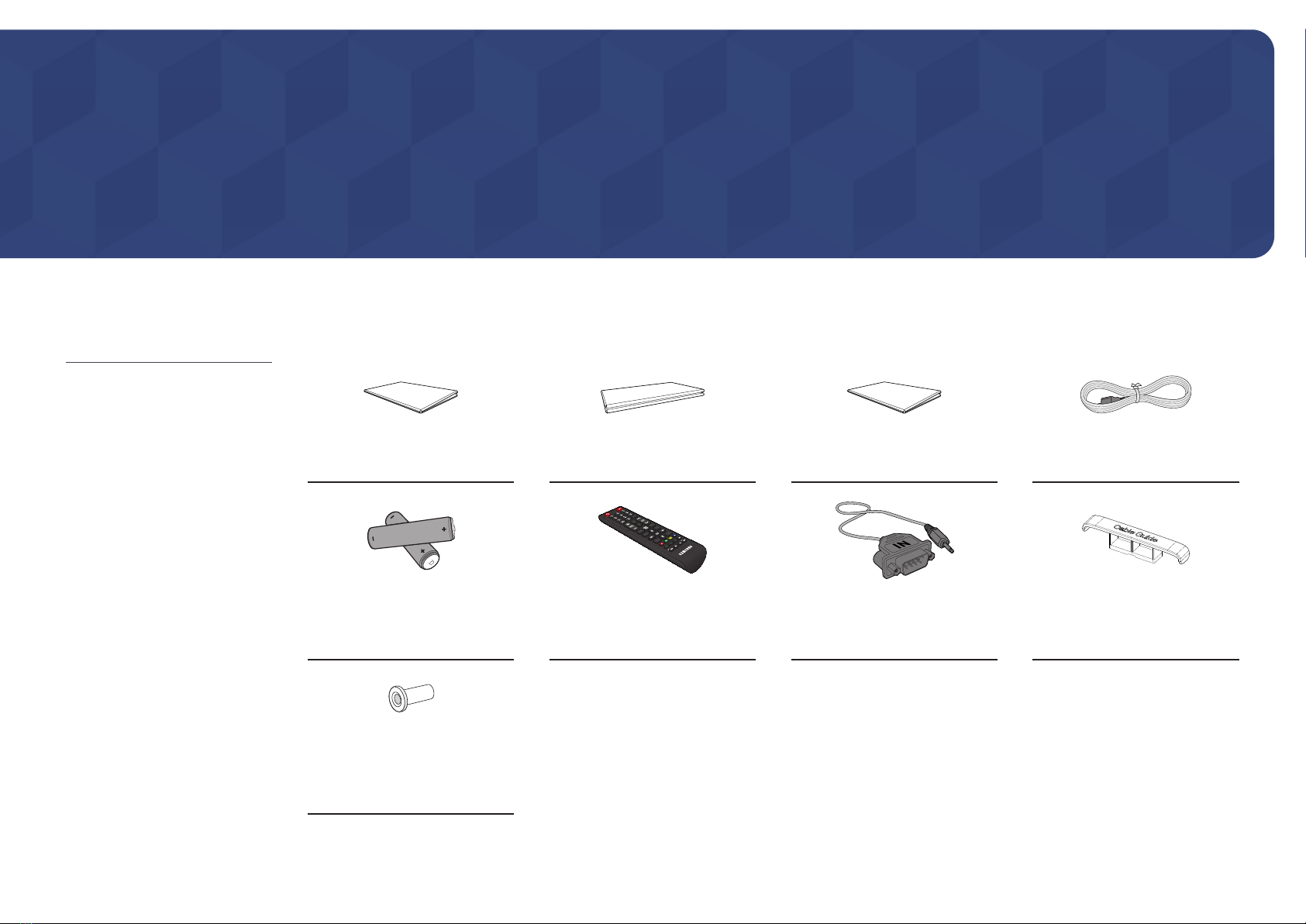

Quick Setup Guide Warranty card

(Not available in some locations) Regulatory guide Power cord

Batteries (AAA x 2)

(Not available in some locations) Remote Control RS232C(IN) adapter HOLDER-CABLE

(Supported models: Q*65R*,

Q*75R*, QB98R, QE82R)

Holder-Ring x 4

(Supported models: Q*43R,

Q*49R, Q*55R*, Q*65R*,

Q*75R*)

Parts

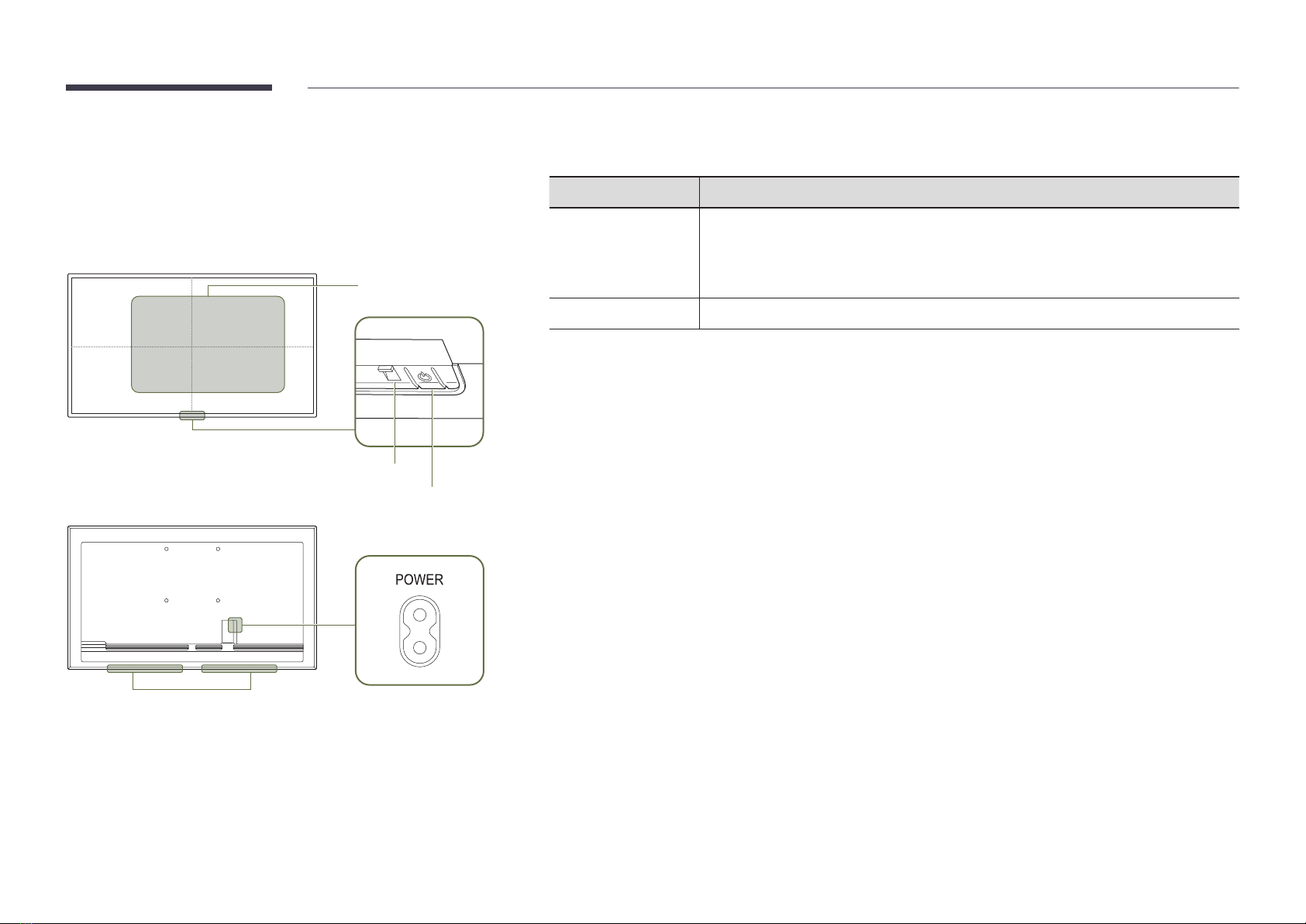

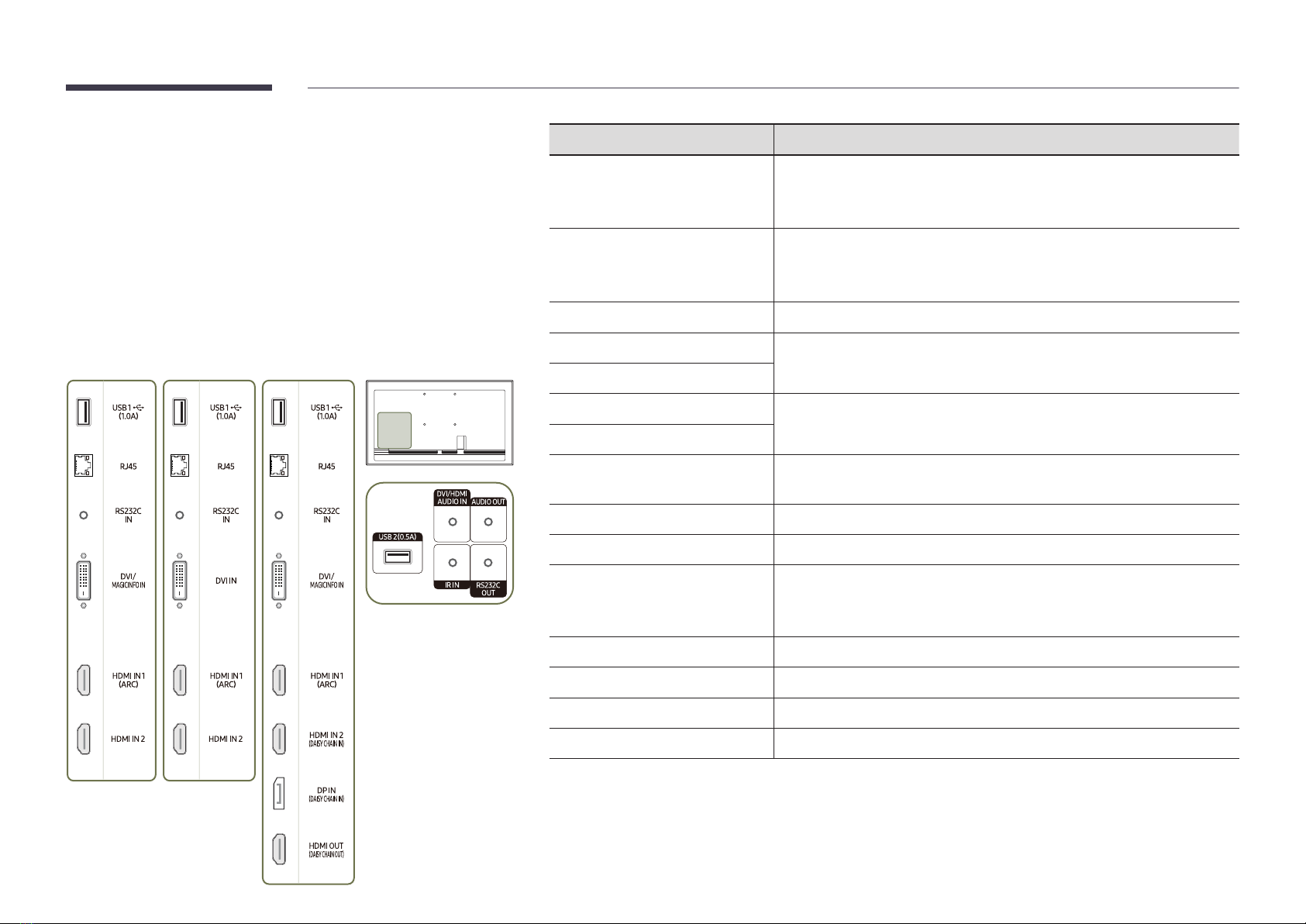

Q*43R/Q*49R/Q*55R*/Q*65R*/Q*75R*/

QE82R

Power button

Power indicator

Remote sensor

Speaker

"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice

to improve quality.

Parts Description

Remote sensor

Press a button on the remote control pointing at the sensor on the front of the product

to perform the corresponding function.

"Using other display devices in the same space as the remote control of this product

can cause the other display devices to be inadvertently controlled.

Power button

Turns the product on or off.

Use the remote control within 2.5 m to 4 m from the sensor on the product at an angle of 30° from the left and

right.

"Store used batteries out of reach of children and recycle.

"Do not use a new and used battery together. Replace both batteries at the same time.

"Remove batteries when the remote control is not to be used for an extended period of time.

"To enhance the IR receiver performance, connect an external IR cable (sold separately) to the IR IN port.

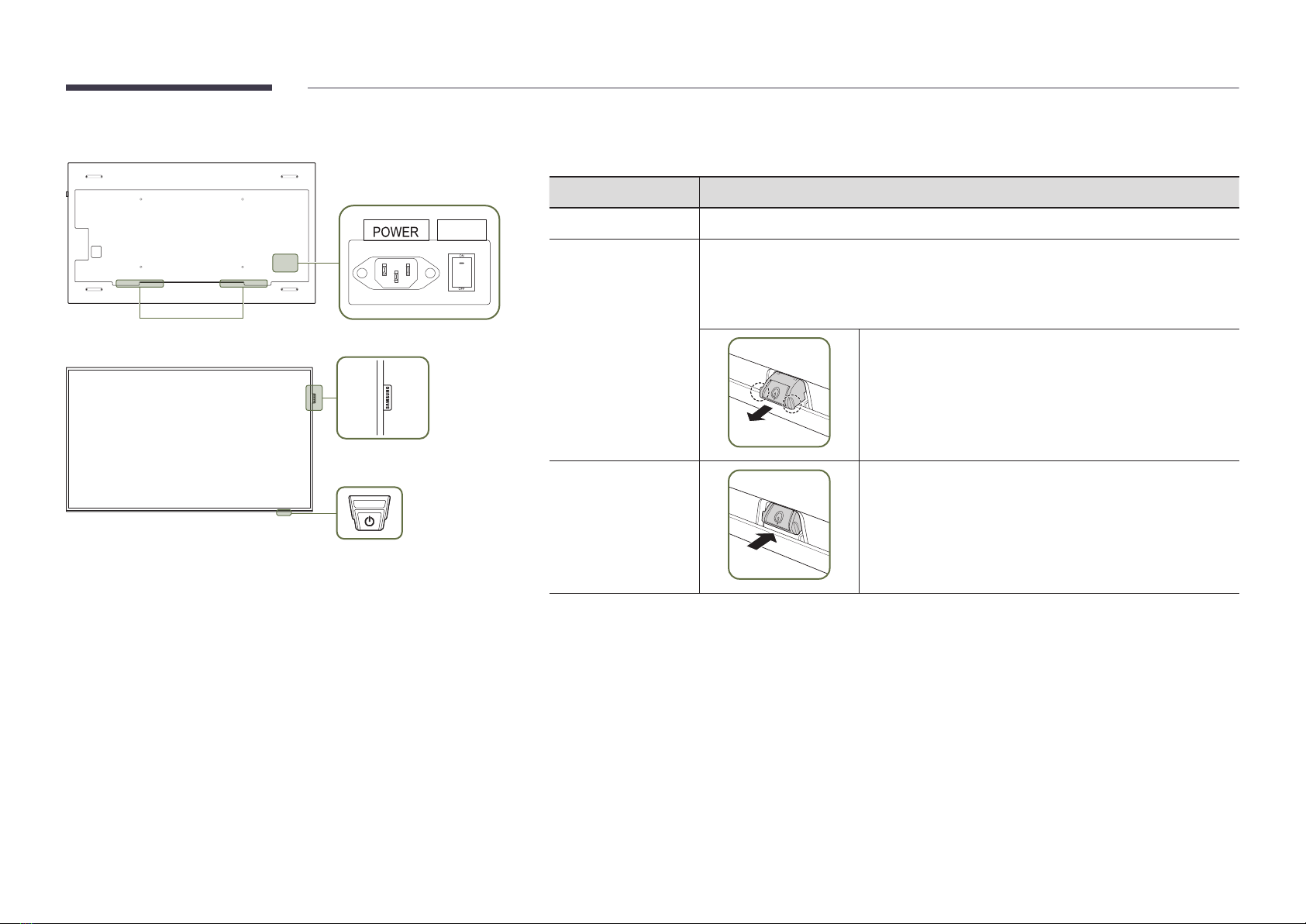

QB98R

ON/OFF

Speaker

Spacer logo

Remote sensor & Power button

"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice

to improve quality.

Parts Description

Spacer logo

Do not pull on the spacer logo using force. The logo may tear or break off.

Remote sensor

Press a button on the remote control pointing at the bottom of the product face to

perform the function. The remote control sensor is located on the bottom of the product.

"Using other display devices in the same space as the remote control of this product

can cause the other display devices to be inadvertently controlled.

To use remote/eco sensor, make sure the sliding power button

is protruding from the bottom of the product.

Power button

To use the power button, make sure the sliding power button

is not protruding from the bottom of the product.

Use the remote control within 7 m to 10 m from the sensor on the product at an angle of 30° from the left and right.

"Store used batteries out of reach of children and recycle.

"Do not use a new and used battery together. Replace both batteries at the same time.

"Remove batteries when the remote control is not to be used for an extended period of time.

"To enhance the IR receiver performance, connect an external IR cable (sold separately) to the IR IN port.

Anti-theft Lock

"An anti-theft lock allows you to use the product securely even in public places.

"The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.

"The following images are for reference only. Real-life situations may differ from what is shown in the images.

"Supported model : QB98R

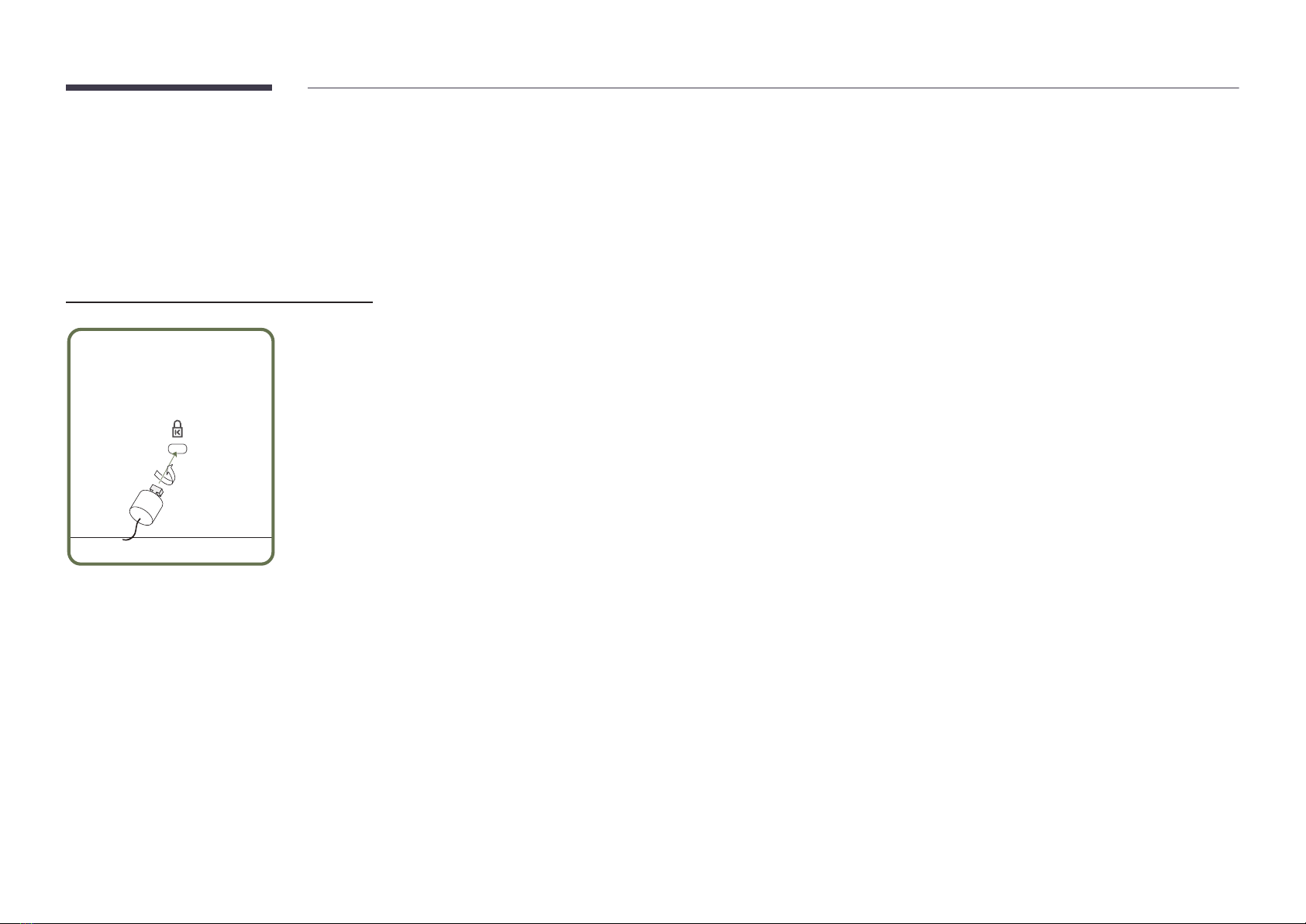

To lock an anti-theft locking device:

Fix the cable of your anti-theft locking device to a heavy object such as a desk.

Put one end of the cable through the loop on the other end.

Insert the locking device into the anti-theft lock slot at the back of the product.

Lock the locking device.

– An anti-theft locking device can be purchased separately.

– Refer to the user guide provided with your anti-theft locking device for details.

– Anti-theft locking devices can be purchased at electronics retailers or online.

Ports

Q*43R/Q*49R/Q*55R*/Q*65R*/Q*75R*/

QE82R

"The color and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

QB43R / QB49R /

QB55R / QB55R-N /

QB65R / QB65R-N /

QB75R / QB75R-N

QM43R / QM49R /

QM55R / QM65R /

QM75R

QE82R

Port Description

USB 1 ¨(1.0A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

RJ45

Connects to MDC using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

RS232C IN

Connects to MDC using an RS232C adapter.

DVI/MAGICINFO IN

DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.

MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo.

DVI IN

HDMI IN 1 (ARC)

Connects to a source device using a HDMI cable or HDMI-DVI cable.

HDMI IN 2

HDMI IN 2 (DAISY CHAIN IN)

•Connects to a source device using a HDMI cable or HDMI-DVI cable.

•Connects to another product using a HDMI cable.

DP IN (DAISY CHAIN IN)

Connects to a PC using a DP cable.

HDMI OUT (DAISY CHAIN OUT)

Connects to another product using a HDMI cable.

USB 2(0.5A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of

0.5A. If the maximum value is exceeded, USB ports may not work.

DVI/HDMI AUDIO IN

Receives sound from a source device via an audio cable.

AUDIO OUT

Outputs sound to an audio device via an audio cable.

IR IN

Connects to an external IR cable that receives signals from the remote control.

RS232C OUT

Connects to MDC using an RS232C adapter.

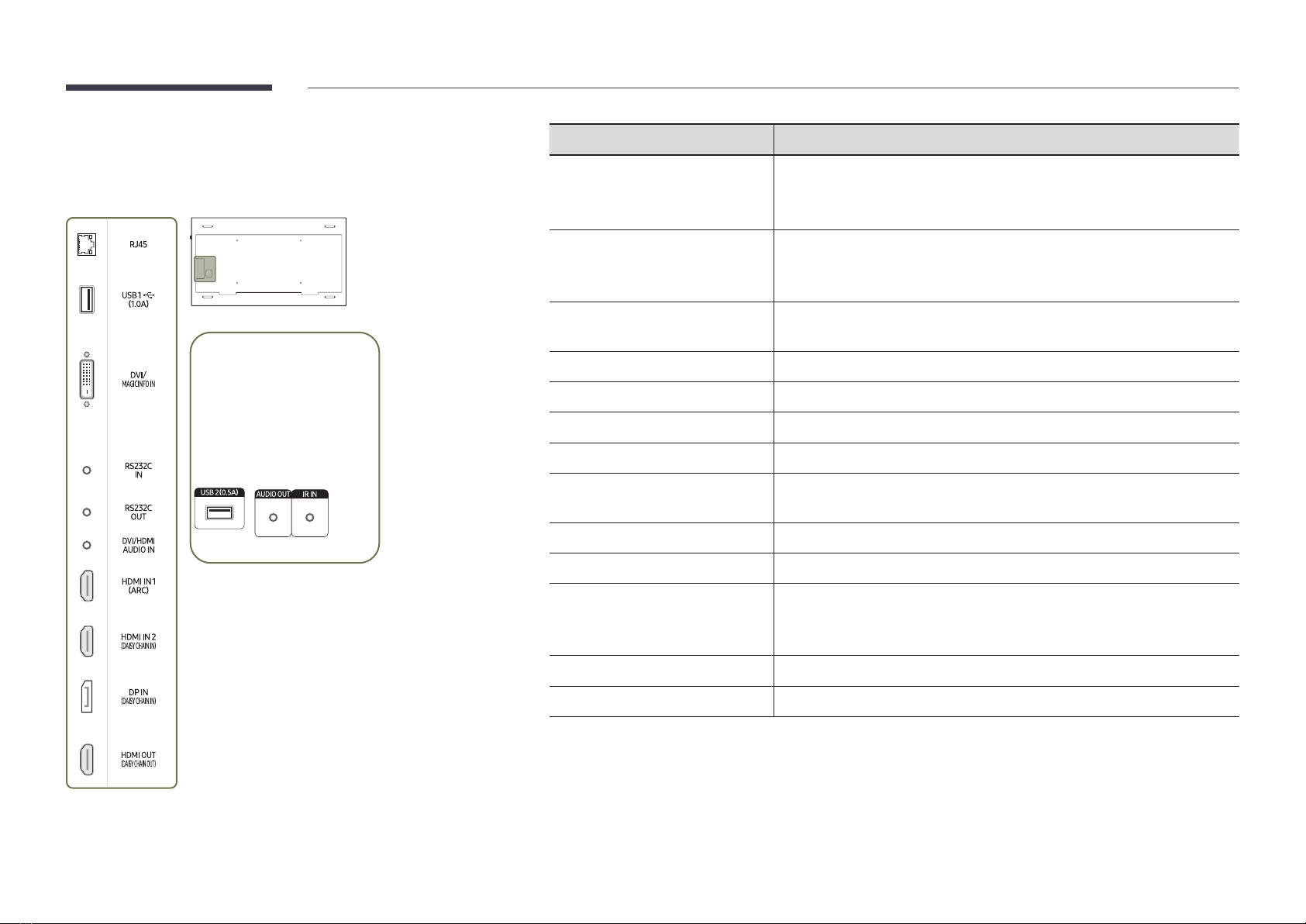

QB98R

"The color and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

Port Description

RJ45

Connects to MDC using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

USB 1 ¨(1.0A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

DVI/MAGICINFO IN

DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.

MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo.

RS232C IN

Connects to MDC using an RS232C adapter.

RS232C OUT

Connects to MDC using an RS232C adapter.

DVI/HDMI AUDIO IN

Receives sound from a source device via an audio cable.

HDMI IN 1 (ARC)

Connects to a source device using a HDMI cable or HDMI-DVI cable.

HDMI IN 2 (DAISY CHAIN IN)

•Connects to a source device using a HDMI cable or HDMI-DVI cable.

•Connects to another product using a HDMI cable.

DP IN (DAISY CHAIN IN)

Connects to a PC using a DP cable.

HDMI OUT (DAISY CHAIN OUT)

Connects to another product using a HDMI cable.

USB 2(0.5A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of

0.5A. If the maximum value is exceeded, USB ports may not work.

AUDIO OUT

Outputs sound to an audio device via an audio cable.

IR IN

Connects to an external IR cable that receives signals from the remote control.

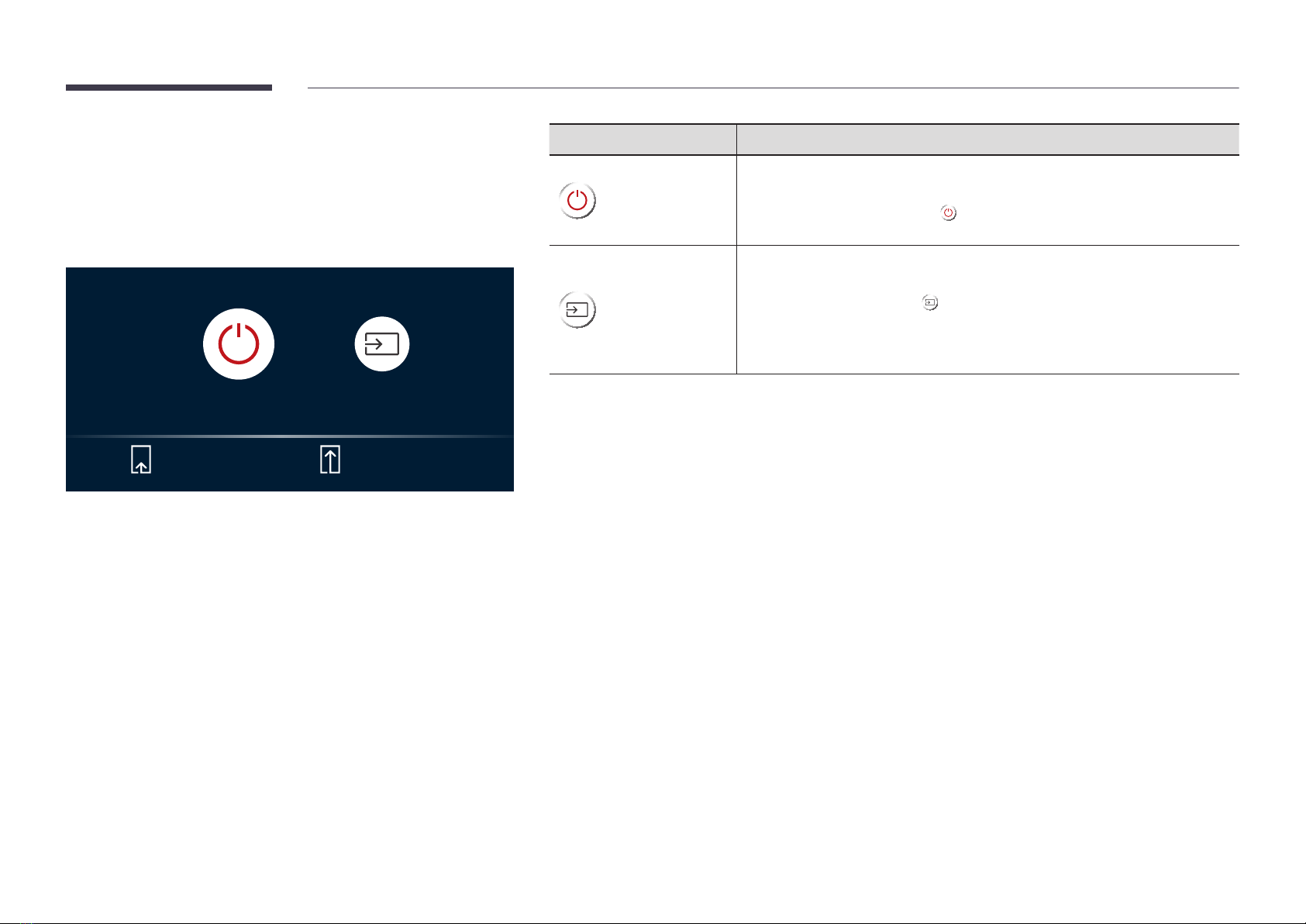

Control menu

"The power button(

) is located on the bottom of the product.

"If you press the power button on the product when the product is

turned on, the control menu will be displayed.

Power Off Source

Press: Move Press & Hold: Select

Items Description

Power Off

Power off the product.

•With the control menu screen displayed, briefly press the power button to

move the cursor to Power Off , and then press and hold the power button to

turn off the product.

Source

Select the connected input source.

•With the control menu screen displayed, briefly press the power button to

move the cursor to Source , and then press and hold the power button to

display the input source screen.

•With the input source screen displayed, press and hold the power button to

switch to the desired input source.

"The power button can only be used for Power Off and Source.

"To exit from the control menu screen, wait for 3 seconds or more without pressing the power button.

Precautions when handling the panel

"The color and the appearance may differ depending on the model.

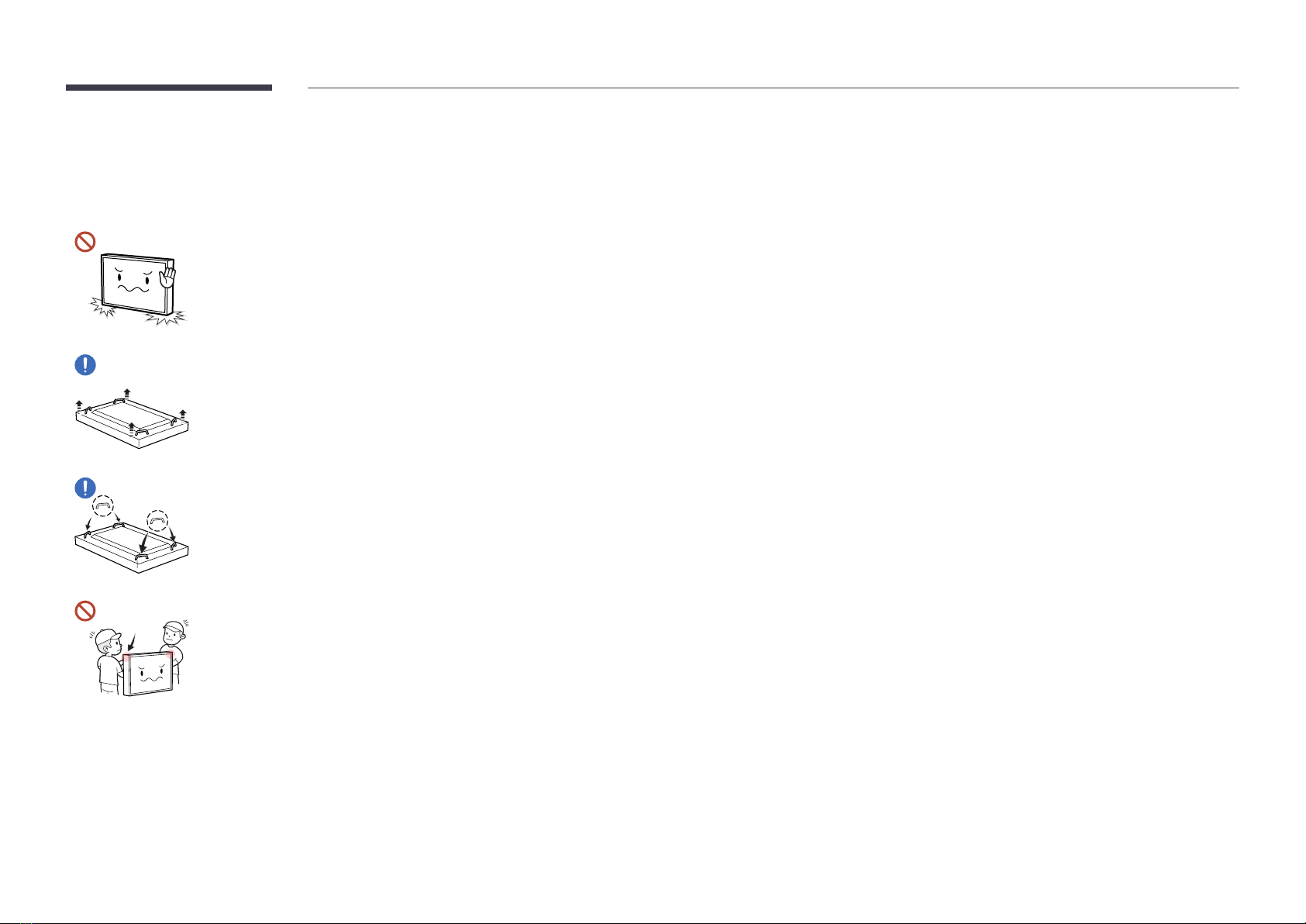

Do not stand the product as shown in the image. The panel is fragile

and can get damaged.

Lay the product down to handle it as shown in the image. (the

packaging can be used).

"Supported models: 85 inches or more

Ensure you use the handles on the back when moving the product.

"Supported models: 85 inches or more

15 mm

Do not hold or grasp any area of the product within 15 mm from the

front.
