Samsung QP82R-8K Manuel utilisateur

Samsung Electronics owns the copyright forthis manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks otherthan Samsung Electronics are

property of their respective owners.

QP82R-8K

The colour and the appearance may differ depending on the product, and the content in the

manual is subject to change without prior notice to improve the performance.

Recommended hours of use per day of this product is under16 hours.

If the product is used for longer than 16 hours a day, the warranty may be void.

Smart Signage User Manual (By Model)

This manual provides information about your Smart Signage including supported types and product specications per model.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e.,

where the user manual has not been read).

(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e.,

where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

Table of contents

Preparations

Checking the Components 3

Parts 4

Ports 5

One Connect 5

Connecting the product to the One Connect 6

Before Installing the Product (Installation

Guide) 7

Tilting Angle and Rotation 7

Ventilation 7

Installing the Wall Mount 8

Preparing before installing Wall-Mount 8

Installing the Wall Mount 8

Wall Mount Kit Specifications (VESA) 9

Attaching the Stand 10

Specifications

General 11

Preset Timing Modes 12

Appendix

Licence 13

Preparations

Chapter 01

"Contact the vendor where you

purchased the product if any

components are missing.

"The appearance of the components

may differ from the images shown.

"The RS232C adapter can be used to

connect to another monitor using the

D-SUB (9-pin) type RS232C cable.

"'One Invisible Connection' is

communicated as 'One Clear

Connection' in Australia and New

Zealand.

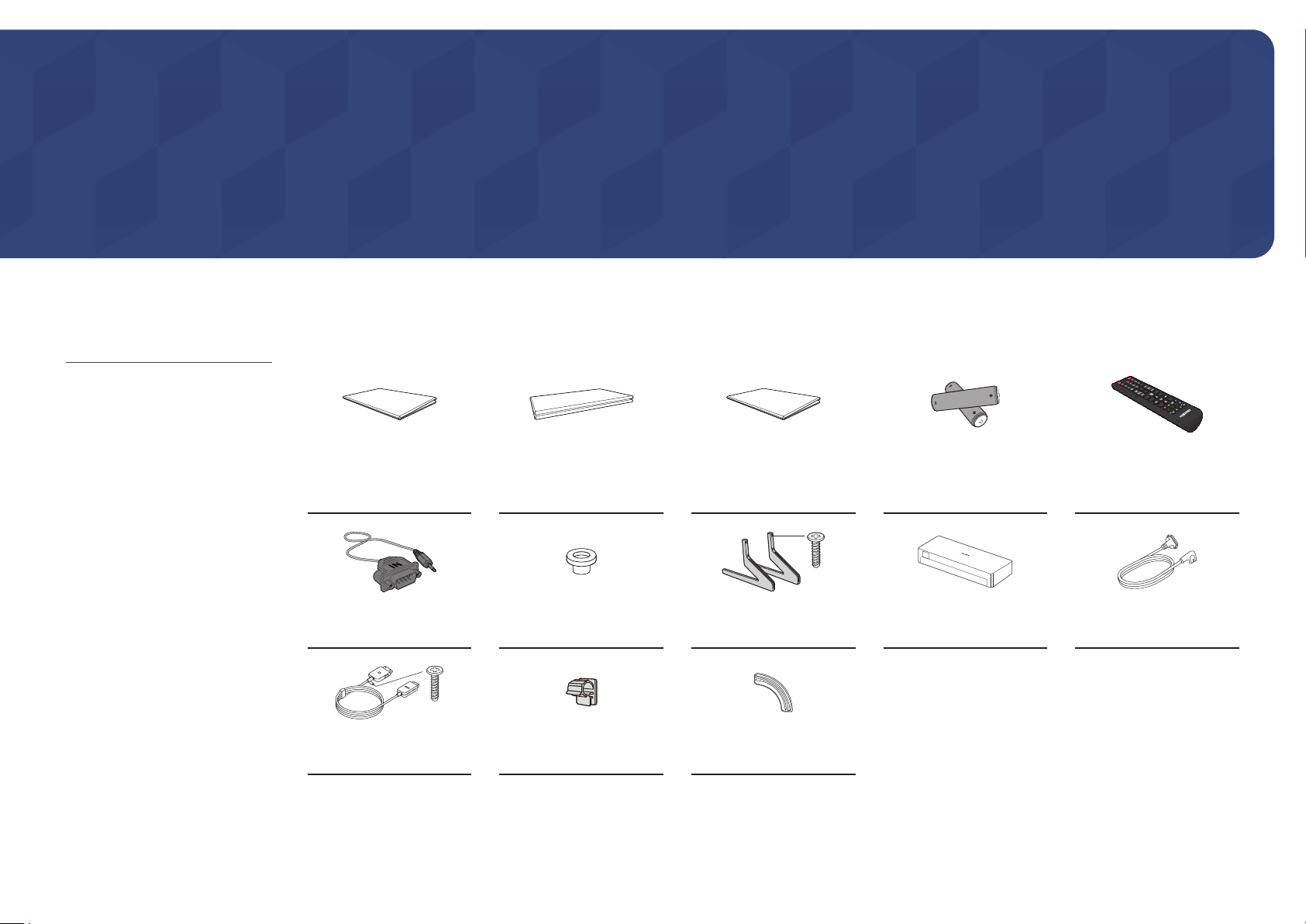

Checking the Components

Quick Setup Guide

Warranty card

(Not available in some

locations)

Regulatory guide

Batteries (AAA x 2)

(Not available in some

locations)

Remote Control

RS232C adapter Holder-Ring (For Wall

Mount) x 4

Stand / Screw (M4 x L14)

x 4 One Connect One Connect Power Cable

One Invisible Connection

/ Screw (M4 x L12) HOLDER-CABLE Bending Cover

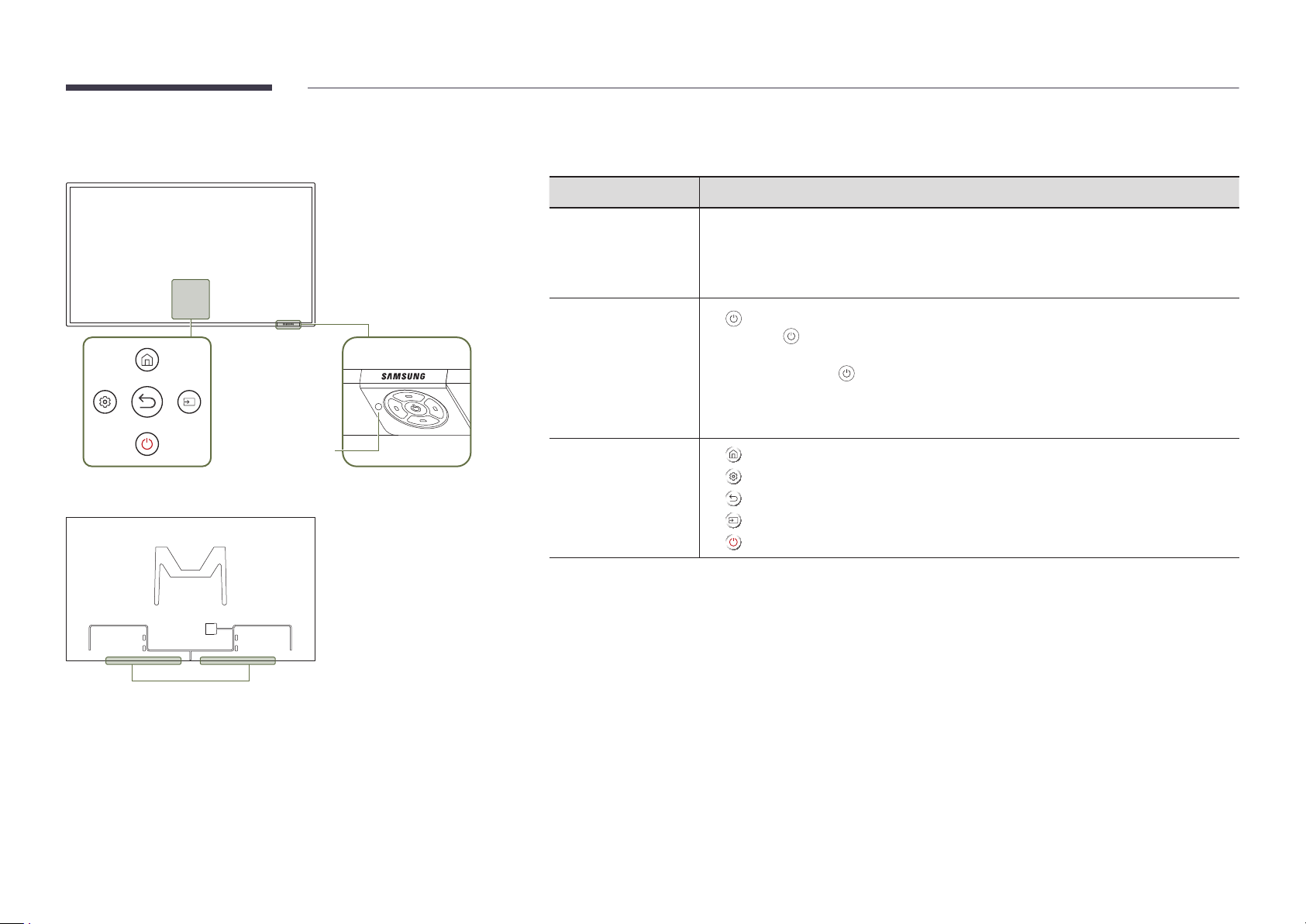

Parts

Control menu

Remote sensor & Control button

Power indicator

Speaker

"The colour and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

Parts Description

Remote sensor

Press a button on the remote control pointing at the bottom of the product face to

perform the function. The remote control sensor is located on the bottom of the product.

"Using other display devices in the same space as the remote control of this product

can cause the other display devices to be inadvertently controlled.

Control button

•button: Turns the product on.

– Press button: Display the Control menu. / Select or run a focused item on the

menu.

– Press and hold button: The running function is terminated.

•Up/Down/Left/Right Button: Move the menu.

•Left/Right Button: Changes the volume.

Control menu

•Home: Enter MagicInfo or URL Launcher mode.

•Settings: Display the OSD menu.

•Return: Exit the control menu.

•Source: Select the connected input source.

•Power off: Power off the product.

Use the remote control within 2.5 m to 4 m from the sensor on the product at an angle of 30° from the left and

right.

"Store used batteries out of reach of children and recycle.

"Do not use a new and used battery together. Replace both batteries at the same time.

"Remove batteries when the remote control is not to be used for an extended period of time.

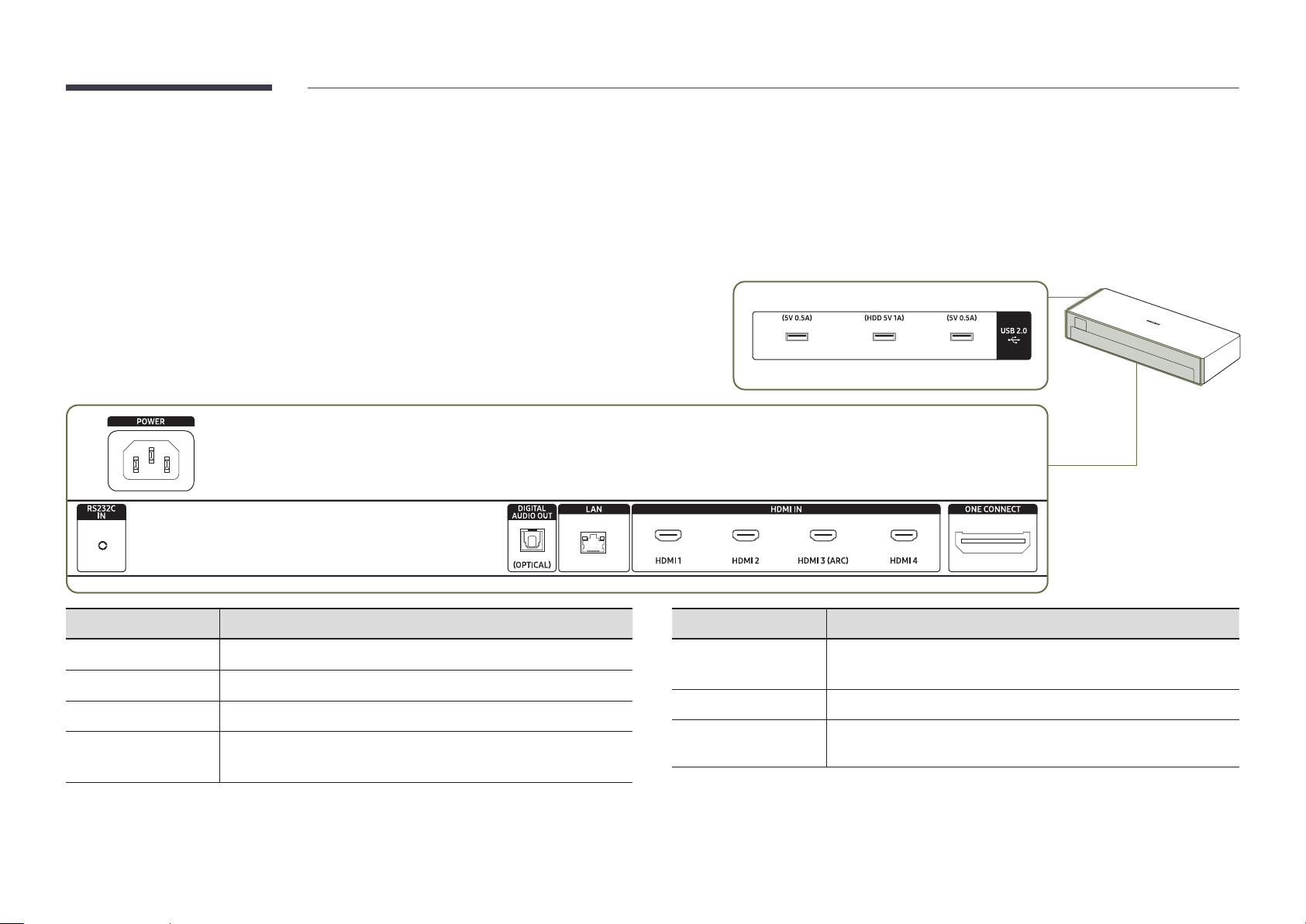

Ports

One Connect

"The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Port Description

USB 2.0 ¨

Connect to a USB memory device.

POWER

Connect the power cable.

RS232C IN

Connects to MDC using an RS232C adapter.

DIGITAL AUDIO OUT

(OPTICAL)

Connects to a audio device using the optical(digital) cable.

Port Description

LAN

•Connect to a network using the LAN cable. (10/100 Mbps)

•Connect to MDC using the LAN cable.

HDMI IN

Connects to a source device using a HDMI cable or HDMI-DVI cable.

ONE CONNECT

Use the provided One Invisible Connection to connect the product and

One Connect.

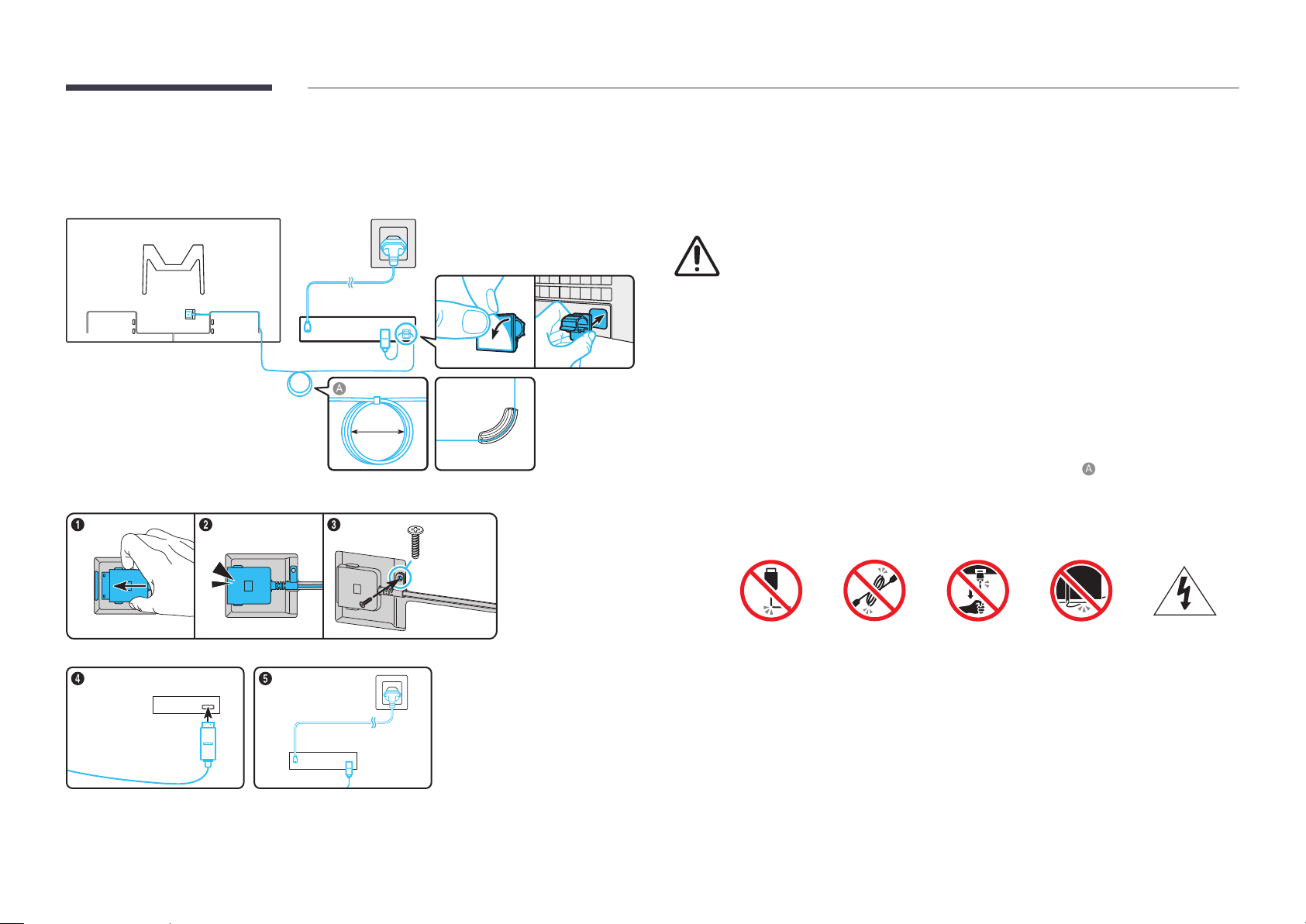

Connecting the product to the One Connect

One Connect

Bending Cover

10 cm

QP82R-8K

x 1

(M4 x L12)

One Connect

Connect the product and One Connect referring to the image.

Following the steps 1-4 in the image, use One Invisible Connection to connect the product

and One Connect.

Use the power cable to connect One Connect to a wall outlet as shown in step 5.

•Do not install the One Connect upside-down or standing upright on one of its

sides.

•When connecting the One Invisible Connection, use a Bending Cover to bend

the cable. The Bending Cover prevents the cable of the One Invisible Connection

from being bent at a 90 degree angle. Bending the cable at a 90 degree angle

can damage the cable.

•When connecting the One Invisible Connection, pay attention to the shapes and

sizes of its connectors so that they are connected correctly. Failure to do so may

cause product malfunction.

•When connecting the One Invisible Connection, be careful not to twist the

cable of the One Invisible Connection. Failure to do so may cause performance

degradation of the product or damage to the cable.

•When arranging the remaining cable, refer to the figure for the correct

arrangement.

•Take care not to subject the cable to any of the actions below. The One Invisible

Connection contains a power circuit. You could damage the cable and subject

yourself to an electric shock.

Bending Twisting Pulling Pressing on Electric shock

CLASS 1 LASER PRODUCT (One Invisible Connection)

•Caution - Invisible laser radiation when open. Do not stare into beam.

– Do not bend the One Invisible Connection cable excessively. Do not cut the

cable.

– Do not place heavy objects on the cable.

– Do not disassemble either of the cable connectors.

•Caution - Use of controls, adjustments, or the performance of procedures other

than those specified herein may result in hazardous radiation exposure.

Before Installing the Product (Installation

Guide)

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance

with the installation instructions.

•Ensure that an authorised installation company installs the wall mount.

•Otherwise, it may fall and cause personal injury.

•Make sure to install the specified wall mount.

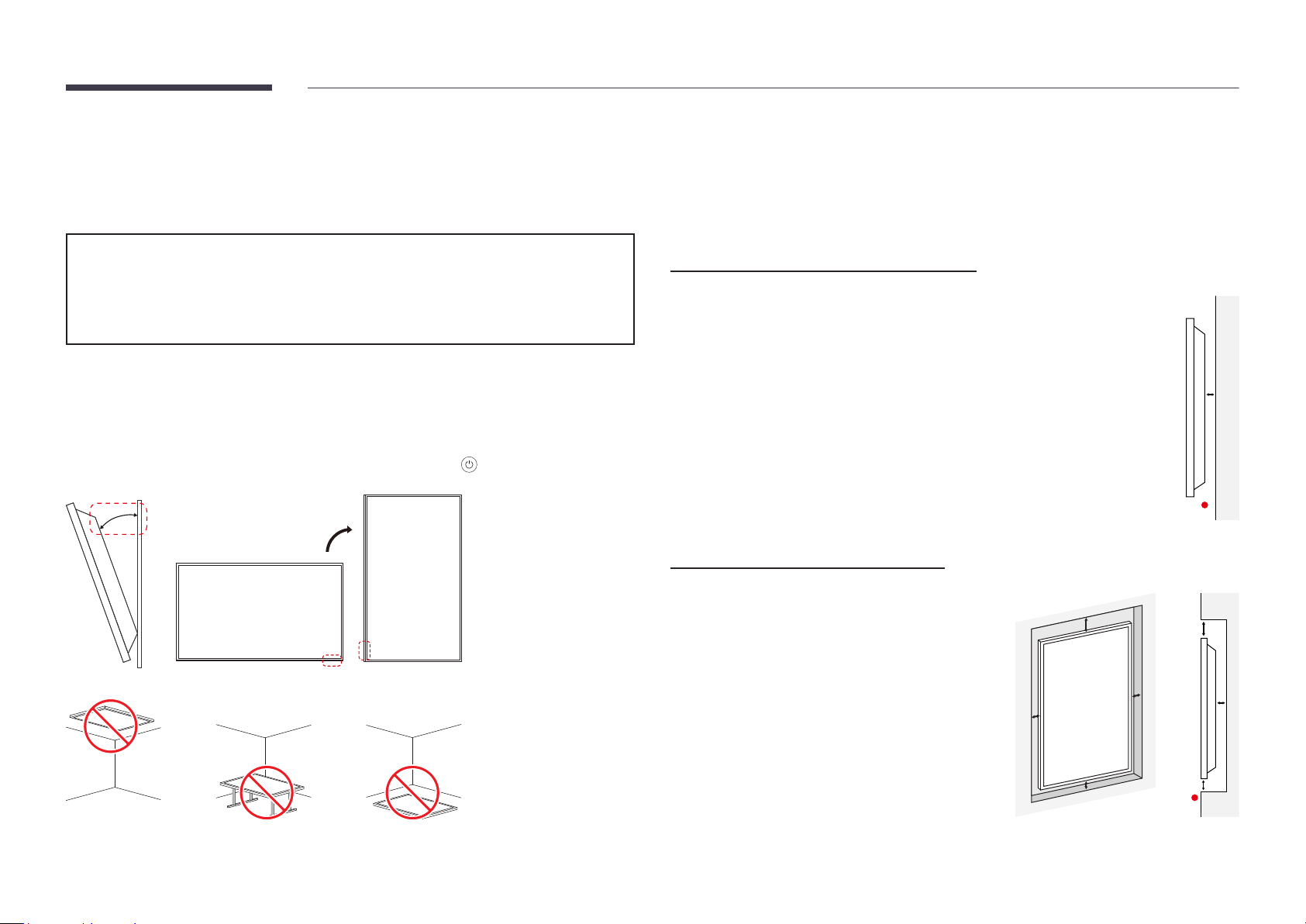

Tilting Angle and Rotation

"Contact Samsung Customer Service Centre for further details.

•The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.

•To use the product in Portrait mode, rotate clockwise until the button is positioned as

shown in the images below.

15°

"Do not use this model installed on a ceiling, floor, or table.

Ventilation

"Contact Samsung Customer Service Centre for further details.

"Do not install One Connect in an enclosed room. Ensure safe distance from other heat-

emitting products. Excessive internal temperatures may cause fire or product malfunction.

Installation on a PerpendicularWall

AMinimum 40 mm

BAmbient temperature: Under 35 °C

"When installing the product on a perpendicularwall, allow at least

40 mm of space between the product and wall surface forventilation

and ensure that the ambient temperature is kept below 35 °C.

Installation on an Indented Wall

AMinimum 40 mm

BMinimum 70 mm

CMinimum 50 mm

DMinimum 50 mm

EAmbient temperature: Under 35 °C

"When installing the product on an indented

wall, allow at least the space specified above

between the product and wall for ventilation

and ensure that the ambient temperature is

kept below 35 °C.

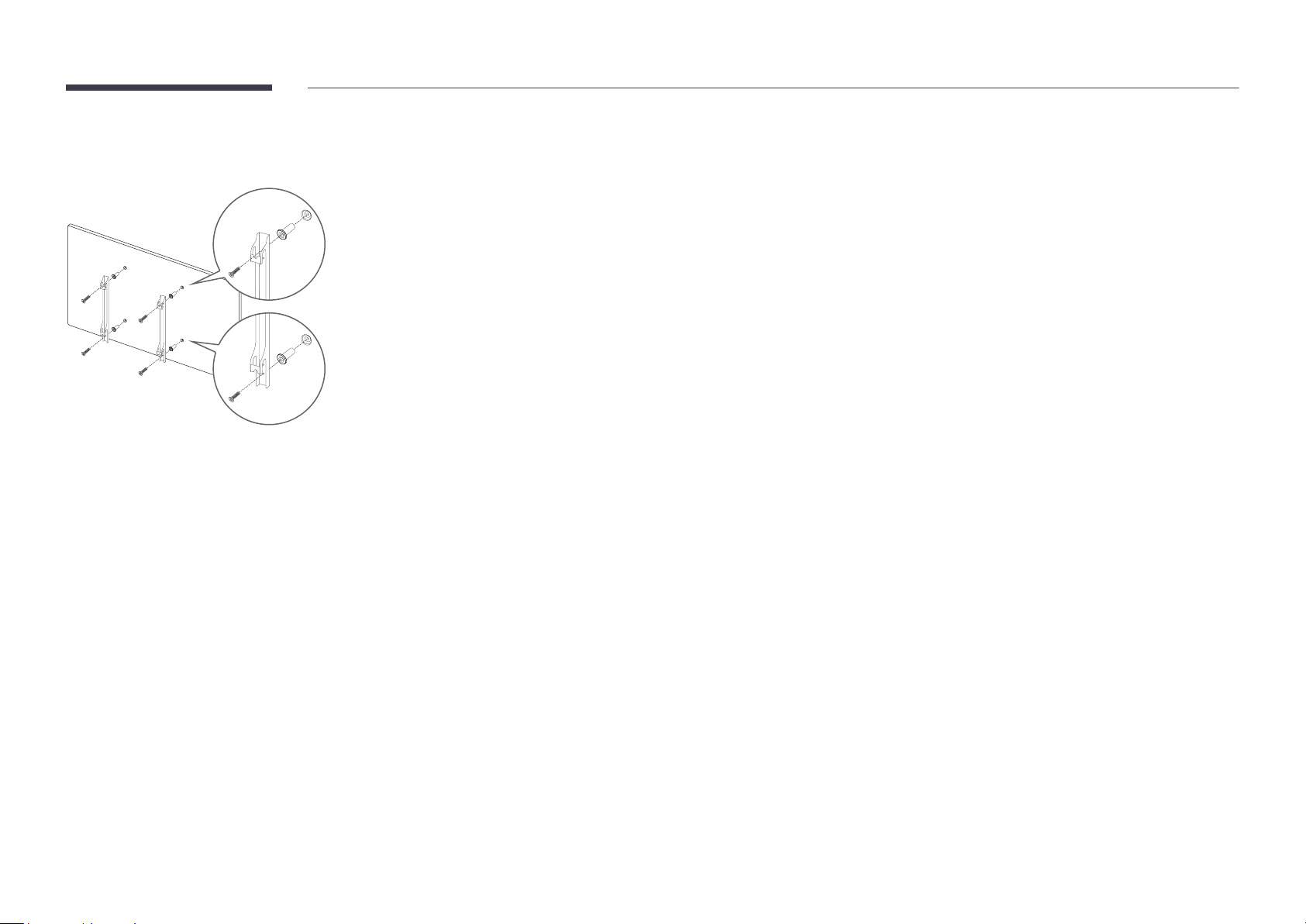

Installing the Wall Mount Preparing before installing Wall-Mount

To install a wall-mount from another manufacturer, use the Holder-Ring.

Installing the Wall Mount

•The wall mount kit (sold separately) allows you to mount the product on the wall.

•The provided image is only for reference. For detailed information on installing the wall mount, see instructions

provided with the wall mount.

•We recommend you contact a technician for assistance when installing the wall mount bracket.

•Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select

to install the wall mount on your own.

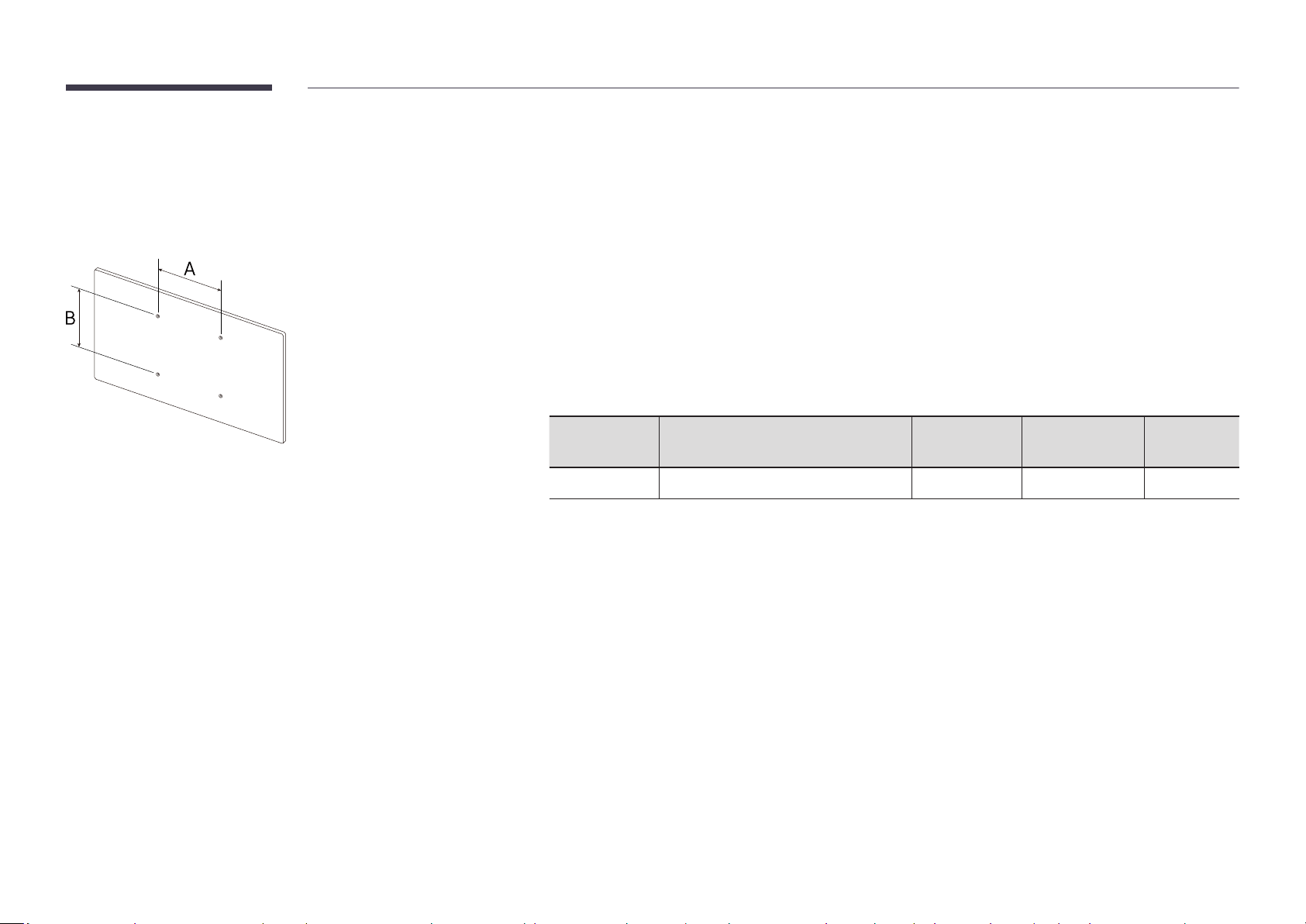

Wall Mount Kit Specications (VESA)

"Install your wall mount on a solid wall perpendicular to the floor. To

install the product on the other wall area, contact the nearest agency.

If you install the product on a slanted wall, it may fall and result in

severe personal injury.

•Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are

provided.

•Do not use screws that are longer than the standard length or do not comply with the VESA standard screw

specifications. Screws that are too long may cause damage to the inside of the product.

•Forwall mounts that do not comply with the VESA standard screw specifications, the length of the screws may

differ depending on the wall mount specifications.

•Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to

personal injury. Samsung is not liable for these kinds of accidents.

•Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is

used or the consumer fails to follow the product installation instructions.

•Do not mount the product at more than a 15 degree tilt.

•Always have at least two people mount the product on a wall. (Four or more people for the 82-inch size and

larger models.)

•Standard dimensions forwall mount kits are shown in the table below.

Model Name VESA screw hole specs (A * B) in

millimetres Screw Depth Standard Screw Quantity

QP82R-8K 600 x 400 19-21 M8 4

"Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric

shock.

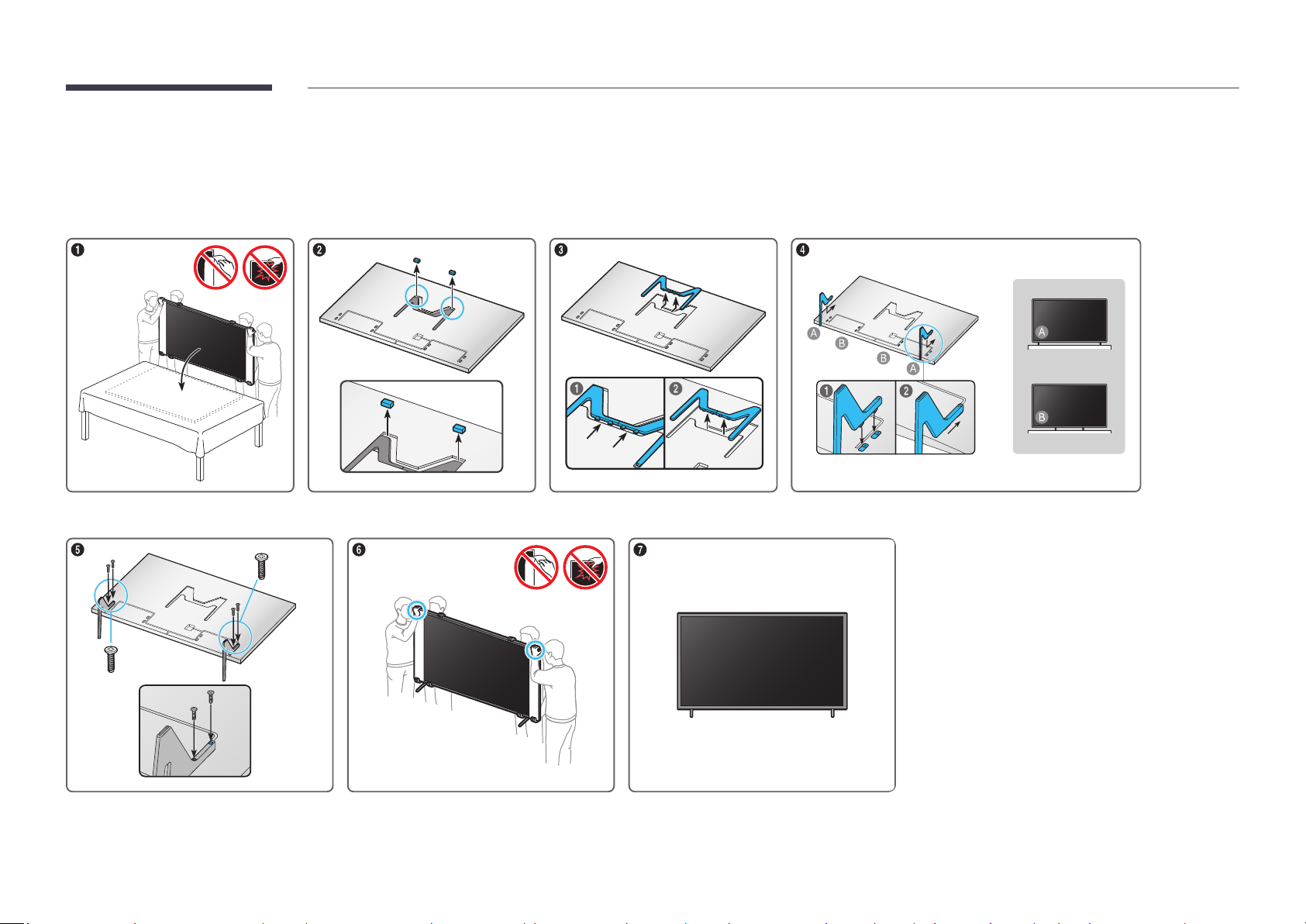

Attaching the Stand

•You may use the provided stand to install the product vertically.

•Follow the steps below to attach the stand to the product.

x 2

(M4 x L14)

x 2

(M4 x L14)
