Samsung OMN Series Manuel utilisateur
Smart Signage User Manual (By Model)
This manual provides information about your Smart Signage including supported types and product specications per model.
© Samsung Electronics
Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are
property of their respective owners.
OMN (OM46N OM55N)
OMN-D (OM55N-D)
The color and the appearance may differ depending on the product, and the content in the
manual is subject to change without prior notice to improve the performance.
Table of contents
Preparations
Checking the Components 3
Ports 4
OM46N/OM55N 4
OM55N-D 5
Anti-theft Lock 6
Before Installing the Product (Installation
Guide) 7
OM46N/OM55N 7
OM55N-D 8
Installing the Wall Mount 11
Installing the Wall Mount 11
Wall Mount Kit Specifications (VESA) 11
Specifications
General 12
Preset Timing Modes 13
Appendix
License 15
2
3
Preparations
Chapter 01
"Contact the vendor where you
purchased the product if any
components are missing.
"The appearance of the components
may differ from the images shown.
"A stand is not provided with the
product. To install a stand, you can
purchase one separately.
"Use either the back-side magnet or
the double-sided tape depending
on where you want to attach the
external ambient light sensor.
The warranty for adhesiveness of the
double-sided tape applies to rst-
time-use only.
"The external ambient light sensor is
marked with the label on the sensor
cable.

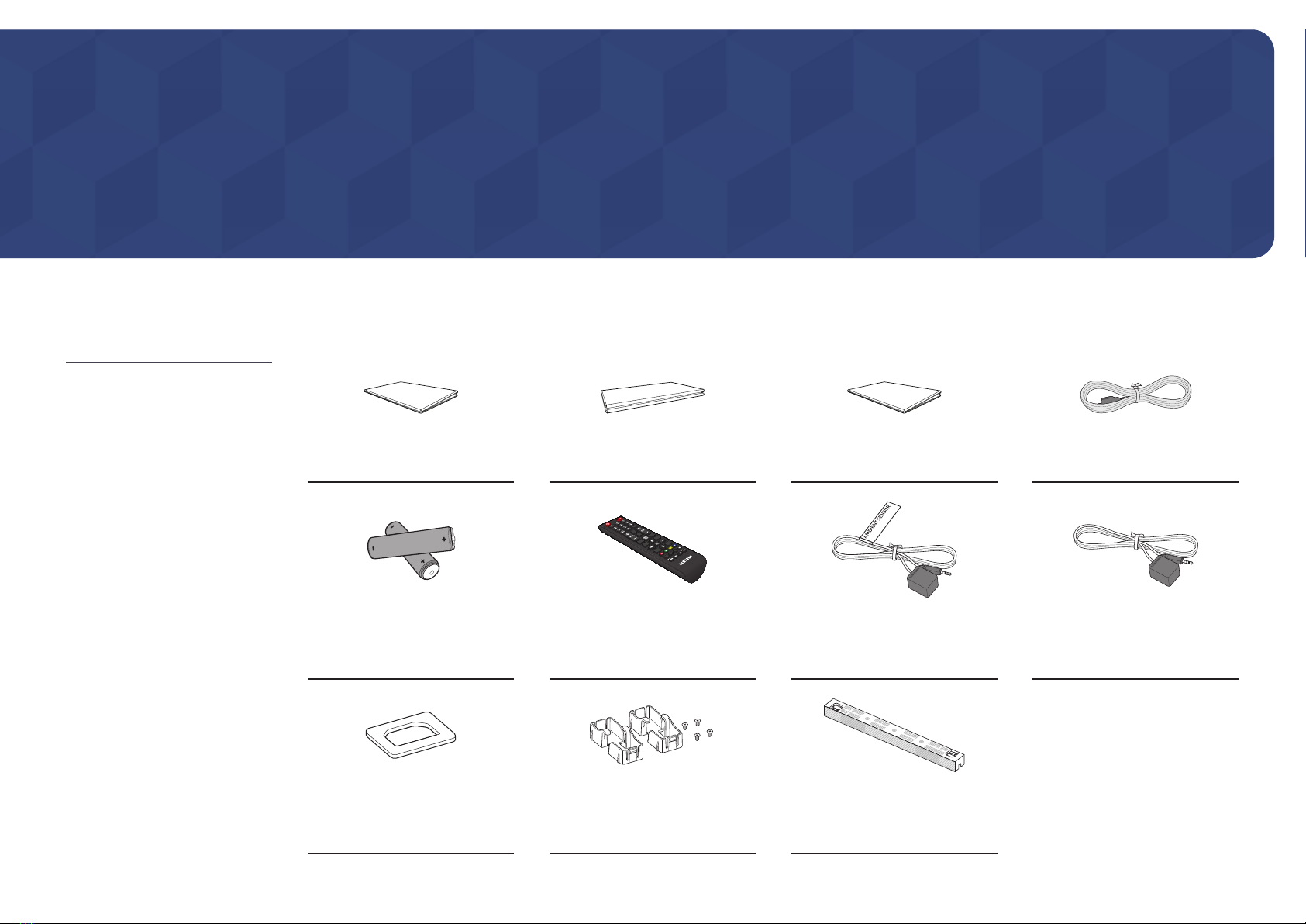

Checking the Components
Quick Setup Guide Warranty card
(Not available in some locations) Regulatory guide Power cord
Batteries (AAA x 2)
(Not available in some locations) Remote Control External ambient light sensor
External IR cable
(OM46N, OM55N x 1 / OM55N-D
x 2)
Power IN rubber
(Supported model: OM55N-D)
HOLDER-GUIDE x 2 / Screw (M3
x L6) x 4
(Supported model: OM55N-D)
Top cover
(Supported model: OM55N-D)
4
Ports
OM46N/OM55N
RS232C
OUT / IN
AUDIO OUT
IR IN
AMBIENT
SENSOR IN
USB
LAN OUT
LAN IN
HDMI 1 IN
HDMI 2 IN
DP IN
HDMI OUT
Stick the receiver of an external IR
cable to this location when the cable
is not used or the product is moved.
Air outlet
Air inlet
"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice
to improve quality.
Port Description
RS232C OUT
Connects to MDC using an RS232C adapter.
RS232C IN
AUDIO OUT
Outputs sound to an audio device via an audio cable.
IR IN
Connects to an external IR cable that receives signals from the remote control.
AMBIENT SENSOR IN
Used to supply power to the external sensor board and to receive signals from
the ambient light sensor.
USB ¨
Connect to a USB memory device.
LAN OUT
•Wired LAN connection port used to connect an external device such as a
laptop to connect to the Internet.
• Connects to MDC using a LAN cable. (10/100 Mbps)
LAN IN
Connects to MDC using a LAN cable. (10/100 Mbps)
HDMI 1 IN
Connects to a source device using a HDMI cable or HDMI-DVI cable.
HDMI 2 IN
DP IN
Connects to a PC using a DP cable.
HDMI OUT
Connects to another product using a HDMI cable.
5
OM55N-D
Air inlet
Air outlet
"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice
to improve quality.
"Install this product for indoors only. Install the display labeled OUTDOOR in the direction of the window.
Port Description
RS232C IN
Connects to MDC using an RS232C adapter.
IR IN
Connects to an external IR cable that receives signals from the remote control.
USB ¨
Connect to a USB memory device.
HDMI IN
Connects to a source device using a HDMI cable or HDMI-DVI cable.
LAN
•Wired LAN connection port used to connect an external device such as a
laptop to connect to the Internet.
• Connects to MDC using a LAN cable. (10/100 Mbps)
AMBIENT SENSOR IN
Used to supply power to the external sensor board and to receive signals from
the ambient light sensor.
Setting up Device ID
OM55N-D model has separate remote sensors on the front and back sides.
Depending on the distance from the remote control or other surrounding conditions, it is possible both front and
back displays respond to the remote control signal. You can assign IDs to displays (INDOOR: 1, OUTDOOR: 2) and
follow the steps below to restrict remote control to one selected display only.
"To reverse the remote controlled display after setting otherwise, first cancel the existing ID settings for the
INDOOR and OUTDOOR displays by pressing the UNSET button.
•To select the INDOOR display only
1) Position the remote control facing the INDOOR IR sensor and press SET → 1 → E on the control.
2) Position the remote control facing the OUTDOOR IR sensor and press SET → 1 → E on the control.
• To select the OUTDOOR display only
1) Position the remote control facing the INDOOR IR sensor and press SET → 2 → E on the control.
2) Position the remote control facing the OUTDOOR IR sensor and press SET → 2 → E on the control.
6
Anti-theft Lock
"An anti-theft lock allows you to use the product securely even in public places.
"The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.
"The following images are for reference only. Real-life situations may differ from what is shown in the images.
"Supported models: OM46N, OM55N
To lock an anti-theft locking device:
1
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2
Put one end of the cable through the loop on the other end.
3
Insert the locking device into the anti-theft lock slot at the back of the product.
4
Lock the locking device.
– An anti-theft locking device can be purchased separately.
– Refer to the user guide provided with your anti-theft locking device for details.
– Anti-theft locking devices can be purchased at electronics retailers or online.
7
Before Installing the Product (Installation
Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
• Ensure that an authorized installation company installs the wall mount.
• Otherwise, it may fall and cause personal injury.
• Make sure to install the specified wall mount.
OM46N/OM55N

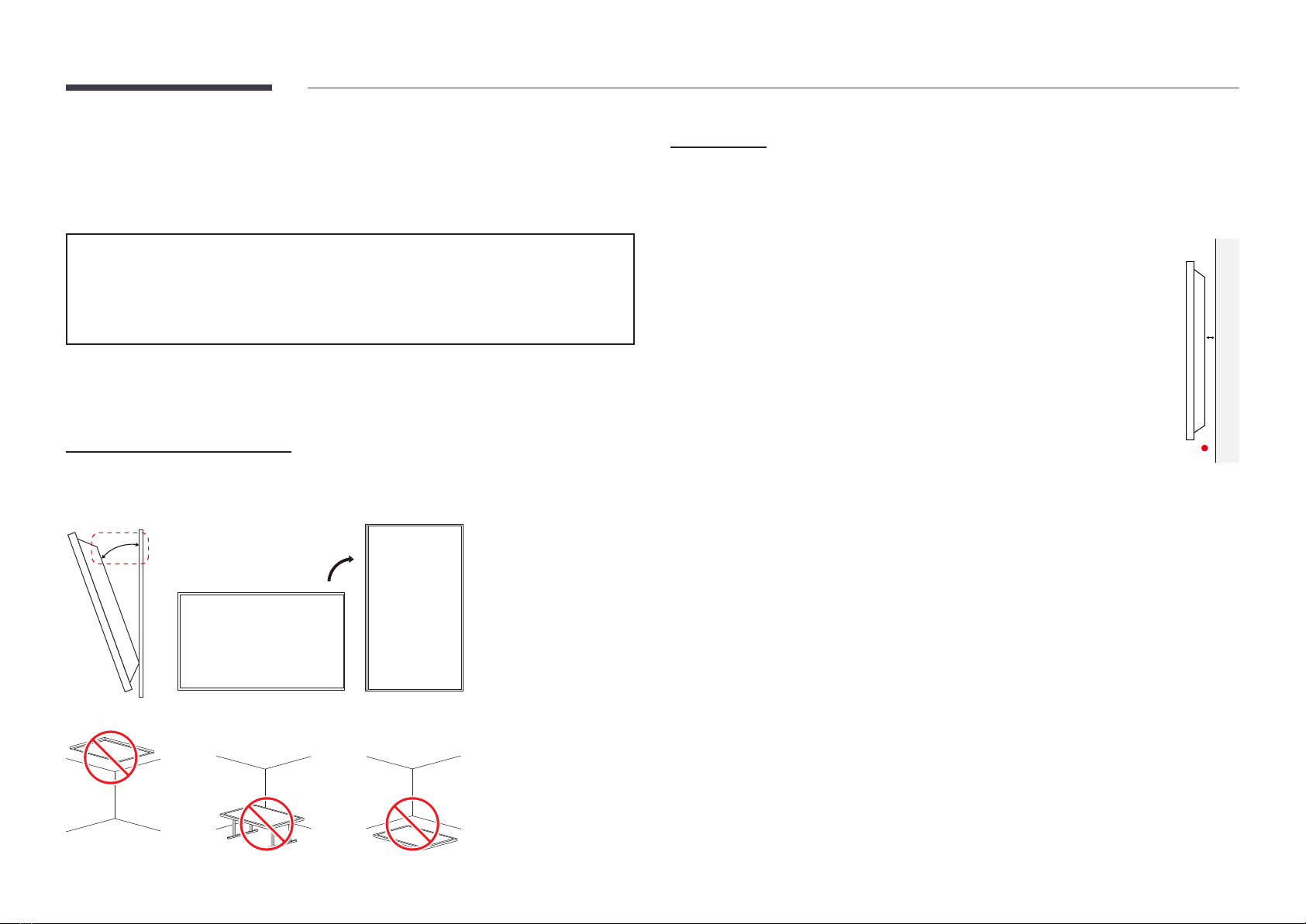

Tilting Angle and Rotation
"Contact Samsung Customer Service Center for further details.
•The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.
15°
"Do not use this model installed on a ceiling, floor, or table.
Ventilation
"Contact Samsung Customer Service Center for further details.
Installation on a PerpendicularWall
AMinimum 60 mm
B Ambient temperature: Under 30 °C
"When installing the product on a perpendicularwall, allow at least
60 mm of space between the product and wall surface for ventilation
and ensure that the ambient A temperature is kept below 30 °C.
A
B
8
OM55N-D
"Contact Samsung Customer Service Center for further details.
"Do not install this product near machinery that works with oil (e.g. gas stations). Oil mist
may cause fans to malfunction.
"Do not use in Landscape mode for this model.
Ventilation
"Do not block the ventilation openings on the top and bottom sides.
ADistance from the show-window > 100 mm
BDistance from the ceiling > 300 mm
CDistance from the floor > 100 mm
DOperation temperature range: 0~30 ℃ (under direct sunlight)
C
B
A
D
9

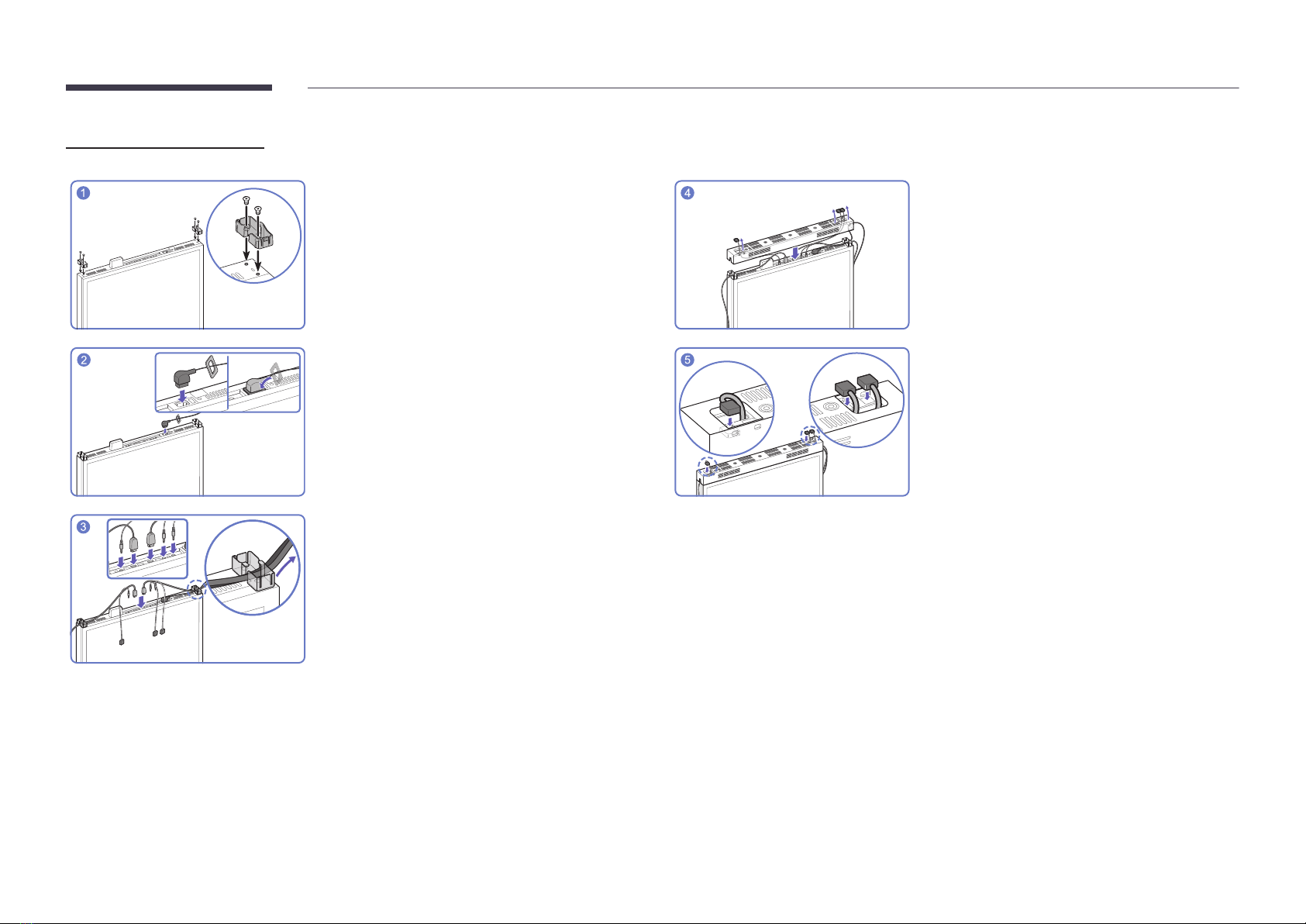

Installing the top cover
Install HOLDER-GUIDE x 2.
Insert the power cord into the power IN rubber and
connect the power cord.
Connect cables, e.g. external IR cable, power cord,
HDMI cable, and organize them as shown in the
image.
Place the top cover.
Securely position the external IR cable and the
external ambient light sensor at the specified
location.
10
Removing handles

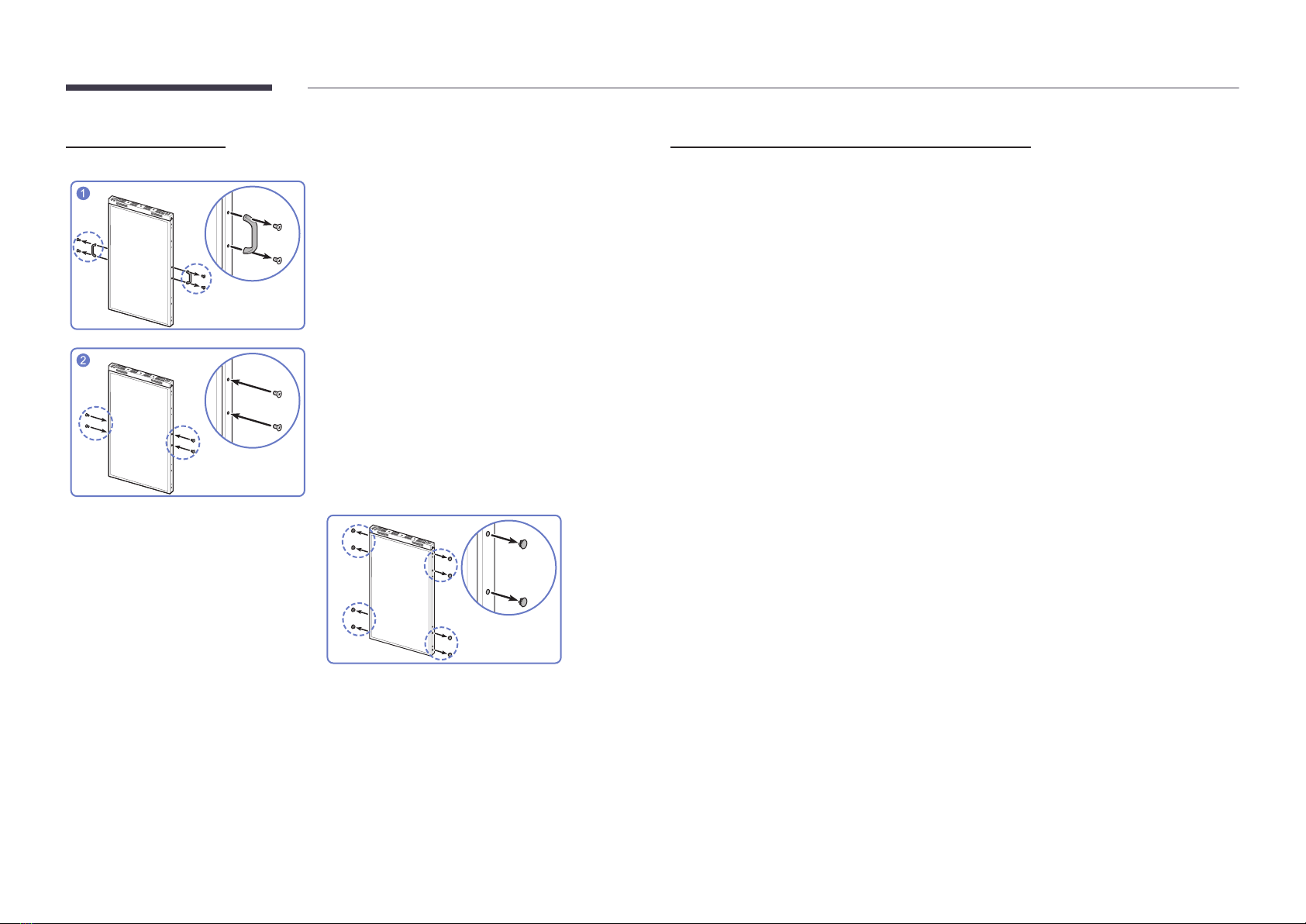

Remove the handles from both sides of the
product.
Place the screws back into the screw holes and
fasten them.
"Remove the screw caps found at the
marked locations before installing on
the ceiling or with the stand.
Precautions for enclosure unit installation
If you want to make additional enclosure surrounding OMN-D product, refer to the following
guides.
• There should be no glass in front and back of the Enclosure.
• Don’t block the top and bottom vents of OMN-D product.
• Open rate above 70% is recommended for Inlet/Outlet vent of Enclosure.
