Samsung QMR Series Manuel utilisateur
© Samsung Electronics
Samsung Electronics owns the copyright forthis manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks otherthan Samsung Electronics are
property of their respective owners.
QBR (QB43R QB49R QB55R QB65R QB75R QB98R)
QMR (QM43R QM49R QM55R QM65R QM75R)
The colour and the appearance may differ depending on the product, and the content in the
manual is subject to change without prior notice to improve the performance.
Recommended hours of use per day for the QBR models(except for QB98R) is less than 16 hours.
If the product is used for longer than 16 hours a day, the warranty may be void.
An administration fee may be charged in the following situations:
(a) An engineer is called out at your request, but it is found that the product has no defect (i.e.,
where the user manual has not been read).
(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e.,
where the user manual has not been read).
You will be informed of the administration fee amount before a technician visits.
Smart Signage User Manual (By Model)
This manual provides information about your Smart Signage including supported types and product specications per model.
Table of contents
Preparations
Checking the Components 3
Parts 4
Q*43R/Q*49R/Q*55R/Q*65R/Q*75R 4
QB98R 5
Anti-theft Lock 6
Ports 7
Q*43R/Q*49R/Q*55R/Q*65R/Q*75R 7
QB98R 8
Control menu 9
Precautions when handling the panel 10
Before Installing the Product (Installation
Guide) 11
Tilting Angle and Rotation 11
Ventilation 11
Installing the Wall Mount 12
Preparing before installing Wall-Mount 12
Installing the Wall Mount 12
Wall Mount Kit Specifications (VESA) 13
Specifications
General 14
Preset Timing Modes 16
Appendix
Licence 18
2
3
Preparations
Chapter 01
"Contact the vendor where you
purchased the product if any
components are missing.
"The appearance of the components
may differ from the images shown.
"A stand is not provided with the
product. To install a stand, you can
purchase one separately.
"The RS232C adapter can be used to
connect to another monitor using the
D-SUB (9-pin) type RS232C cable.
Checking the Components
Quick Setup Guide Warranty card
(Not available in some locations) Regulatory guide Power cord
Batteries (AAA x 2)
(Not available in some locations) Remote Control RS232C(IN) adapter
HOLDER-CABLE
(Supported models: Q*65R,
Q*75R, QB98R)
Holder-Ring x 4
(Supported models: Q*43R,
Q*49R, Q*55R, Q*65R, Q*75R)
4
Parts
Q*43R/Q*49R/Q*55R/Q*65R/Q*75R
Power button
Power indicator
Remote sensor
Speaker
"The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Parts Description
Remote sensor
Press a button on the remote control pointing at the sensor on the front of the product
to perform the corresponding function.
"Using other display devices in the same space as the remote control of this product
can cause the other display devices to be inadvertently controlled.
Power button
Turns the product on or off.
Use the remote control within 2.5 m to 4 m from the sensor on the product at an angle of 30° from the left and
right.
"Store used batteries out of reach of children and recycle.
"Do not use a new and used battery together. Replace both batteries at the same time.
"Remove batteries when the remote control is not to be used for an extended period of time.
"To enhance the IR receiver performance, connect an external IR cable (sold separately) to the IR IN port.
5

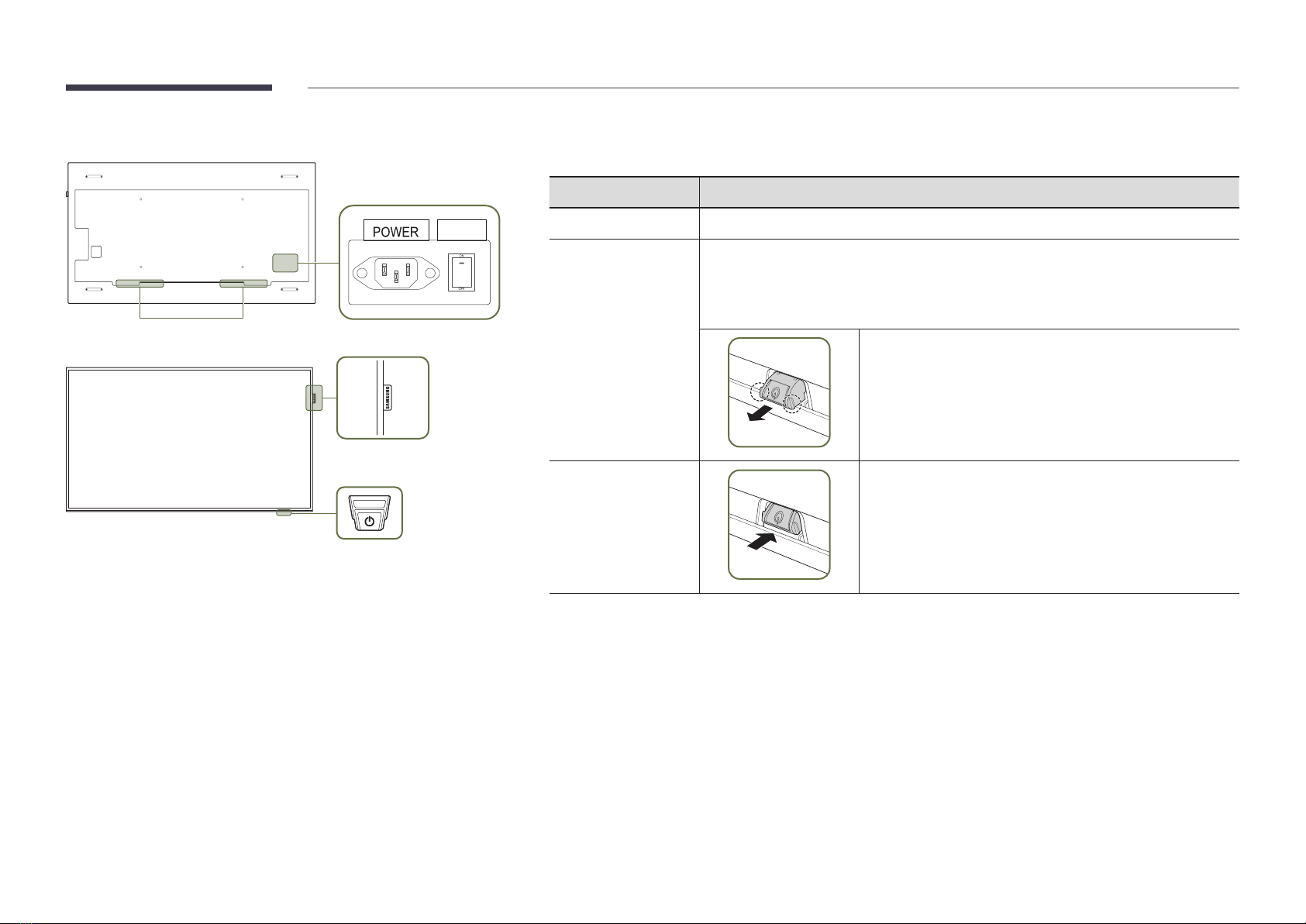

QB98R
ON/OFF
Speaker
Spacer logo
Remote sensor & Power button
"The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Parts Description
Spacer logo
Do not pull on the spacer logo using force. The logo may tear or break off.
Remote sensor
Press a button on the remote control pointing at the bottom of the product face to
perform the function. The remote control sensor is located on the bottom of the product.
"Using other display devices in the same space as the remote control of this product
can cause the other display devices to be inadvertently controlled.
To use remote/eco sensor, make sure the sliding power button
is protruding from the bottom of the product.
Power button
To use the power button, make sure the sliding power button
is not protruding from the bottom of the product.
Use the remote control within 7 m to 10 m from the sensor on the product at an angle of 30° from the left and right.
"Store used batteries out of reach of children and recycle.
"Do not use a new and used battery together. Replace both batteries at the same time.
"Remove batteries when the remote control is not to be used for an extended period of time.
"To enhance the IR receiver performance, connect an external IR cable (sold separately) to the IR IN port.
6
Anti-theft Lock
"An anti-theft lock allows you to use the product securely even in public places.
"The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.
"The following images are for reference only. Real-life situations may differ from what is shown in the images.
"Supported model : QB98R
To lock an anti-theft locking device:
1
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2
Put one end of the cable through the loop on the other end.
3
Insert the locking device into the anti-theft lock slot at the back of the product.
4
Lock the locking device.
– An anti-theft locking device can be purchased separately.
– Refer to the user guide provided with your anti-theft locking device for details.
– Anti-theft locking devices can be purchased at electronics retailers or online.
7

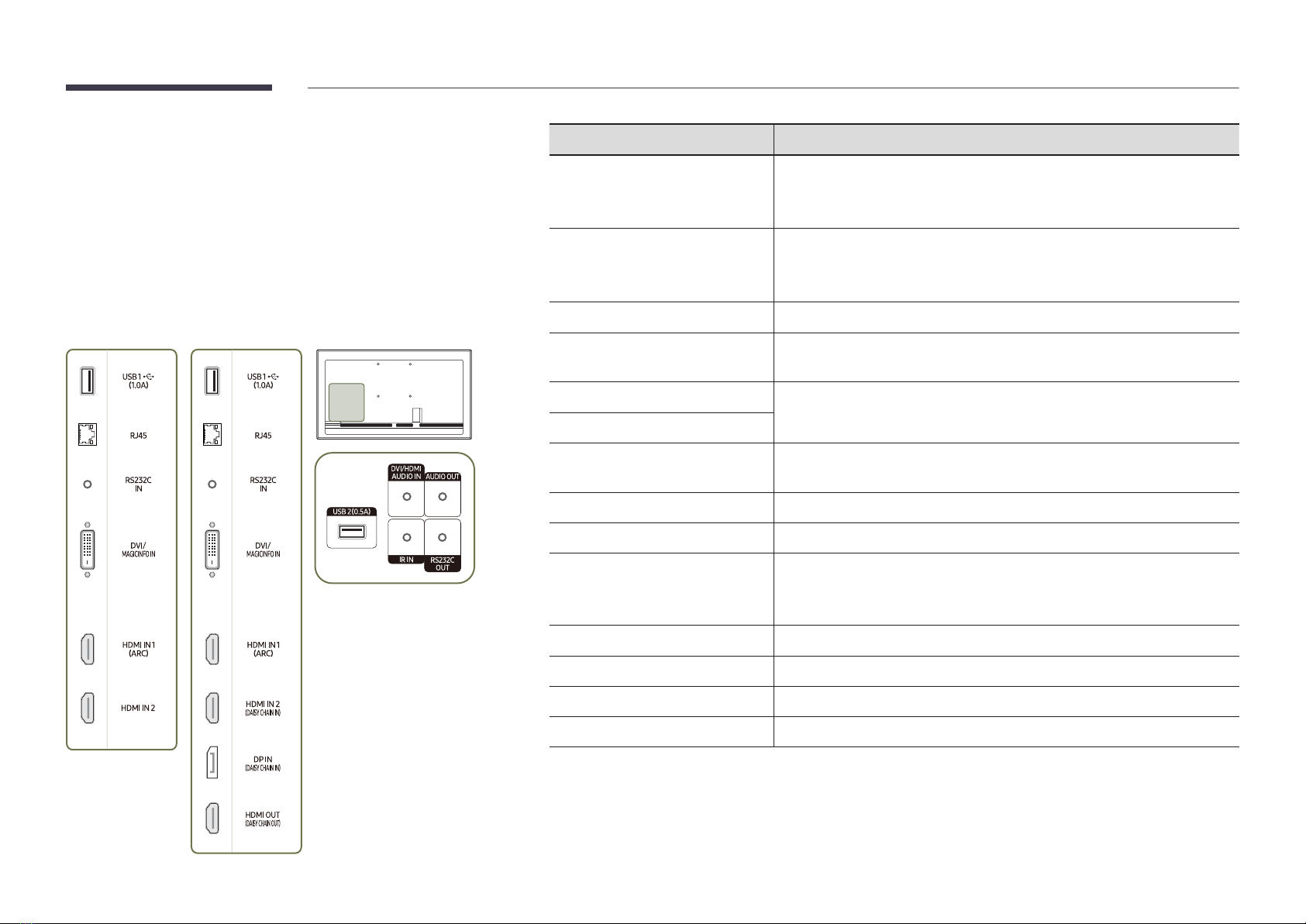

Ports
Q*43R/Q*49R/Q*55R/Q*65R/Q*75R
"The colour and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
QB43R / QB49R /
QB55R / QB65R /
QB75R
QM43R / QM49R /
QM55R / QM65R /
QM75R
Port Description
USB 1 ¨(1.0A)
Connect to a USB memory device.
"The USB ports on the product accept a maximum constant current of 1.0A.
If the maximum value is exceeded, USB ports may not work.
RJ45
Connects to MDC using a LAN cable. (10/100 Mbps)
"Use Cat7(*STP Type) cable for the connection.
*Shielded Twist Pair.
RS232C IN
Connects to MDC using an RS232C adapter.
DVI/MAGICINFO IN
DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.
MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo.
HDMI IN 1 (ARC)
Connects to a source device using a HDMI cable or HDMI-DVI cable.
HDMI IN 2
HDMI IN 2 (DAISY CHAIN IN)
•Connects to a source device using a HDMI cable or HDMI-DVI cable.
•Connects to another product using a HDMI cable.
DP IN (DAISY CHAIN IN)
Connects to a PC using a DP cable.
HDMI OUT (DAISY CHAIN OUT)
Connects to another product using a HDMI cable.
USB 2(0.5A)
Connect to a USB memory device.
"The USB ports on the product accept a maximum constant current of
0.5A. If the maximum value is exceeded, USB ports may not work.
DVI/HDMI AUDIO IN
Receives sound from a source device via an audio cable.
AUDIO OUT
Outputs sound to an audio device via an audio cable.
IR IN
Connects to an external IR cable that receives signals from the remote control.
RS232C OUT
Connects to MDC using an RS232C adapter.
8
QB98R
"The colour and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
Port Description
RJ45
Connects to MDC using a LAN cable. (10/100 Mbps)
"Use Cat7(*STP Type) cable for the connection.
*Shielded Twist Pair.
USB 1 ¨(1.0A)
Connect to a USB memory device.
"The USB ports on the product accept a maximum constant current of 1.0A.
If the maximum value is exceeded, USB ports may not work.
DVI/MAGICINFO IN
DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.
MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo.
RS232C IN
Connects to MDC using an RS232C adapter.
RS232C OUT
Connects to MDC using an RS232C adapter.
DVI/HDMI AUDIO IN
Receives sound from a source device via an audio cable.
HDMI IN 1 (ARC)
Connects to a source device using a HDMI cable or HDMI-DVI cable.
HDMI IN 2 (DAISY CHAIN IN)
•Connects to a source device using a HDMI cable or HDMI-DVI cable.
•Connects to another product using a HDMI cable.
DP IN (DAISY CHAIN IN)
Connects to a PC using a DP cable.
HDMI OUT (DAISY CHAIN OUT)
Connects to another product using a HDMI cable.
USB 2(0.5A)
Connect to a USB memory device.
"The USB ports on the product accept a maximum constant current of
0.5A. If the maximum value is exceeded, USB ports may not work.
AUDIO OUT
Outputs sound to an audio device via an audio cable.
IR IN
Connects to an external IR cable that receives signals from the remote control.
9
Control menu
"The power button(
«
) is located on the bottom of the product.
"If you press the power button on the product when the product is
turned on, the control menu will be displayed.
Power Off Source
Press: Move Press & Hold: Select
Items Description
Power Off
Power off the product.
•With the control menu screen displayed, briefly press the power button to
move the cursor to Power Off , and then press and hold the power button to
turn off the product.
Source
Select the connected input source.
•With the control menu screen displayed, briefly press the power button to
move the cursor to Source , and then press and hold the power button to
display the input source screen.
•With the input source screen displayed, press and hold the power button to
switch to the desired input source.
"The power button can only be used for Power Off and Source.
"To exit from the control menu screen, wait for 3 seconds or more without pressing the power button.
10
Precautions when handling the panel
"The colour and the appearance may differ depending on the model.
Do not stand the product as shown in the image. The panel is fragile
and can get damaged.
Lay the product down to handle it as shown in the image. (the
packaging can be used).
"Supported models: 85 inches or more
Ensure you use the handles on the back when moving the product.
"Supported models: 85 inches or more
15 mm
Do not hold or grasp any area of the product within 15 mm from the
front.
