Samsung SNC-B5395 Manuel utilisateur

SNC-B5395

user manual

ENG TUR CZE

imagine the possibilities

Thank you for purchasing this Samsung product. To receive

more complete service, please register your product at

www.samsung.com/global/register

Cover-SNC-B5395-ENG_02.indd 1 2008-07-14 오후 5:47:21

safety precautions

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)NO USER-SERVICEABLE PARTS

INSIDEREFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this

unit.

This symbol indicates that there are important operating and maintenance instructions in the literature

accompanying this unit.

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

• The camera is to be only connected to PoE networks without routing to the outside plant.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet.

Using any other adapter could cause fire, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,

electric shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause

abnormal heat generation or fire.

4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.

5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal

injury.

6. Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers

filled with water on top of the camera. Doing so may cause personal injury due to fire, electric

shock, or falling objects.

7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric

shock.

8. If any unusual smells or smoke come from the unit, stop using the product. In such case,

immediately disconnect the power source and contact the service center. Continued use in

such a condition may cause fire or electric shock.

EU-B5395-ENG_080714.indd 2 2008-07-14 오후 3:46:59

9. If this product fails to operate normally, contact the nearest service center. Never disassemble

or modify this product in any way. (SAMSUNG is not liable for problems caused by

unauthorized modifications or attempted repair.)

10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire

or electric shock.

CAUTION

1. Do not drop objects on the product or apply strong shock to it. Keep away from a location

subject to excessive vibration or magnetic interference.

2. Do not install in a location subject to high temperature (over 50°C), low temperature (below

-10°C), or high humidity. Doing so may cause fire or electric shock.

3. If you want to relocate the already installed product, be sure to turn off the power and then

move or reinstall it.

4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so

may cause fire or damage to the product.

5. Keep out of direct sunlight and heat radiation sources. It may cause fire.

6. Install it in a place with good ventilation.

7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may

damage the CCD image sensor.

8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.

9. The Mains plug is used as a disconnect device and shall stay readily operable at any time.

10. When using the camera outdoors, moisture may occur inside the camera due to temperature

difference between indoors and outdoors. For this reason, it is recommended to install the

camera indoors. For outdoor use, use the camera with built-in fan and heater.

EU-B5395-ENG_080714.indd 3 2008-07-14 오후 3:46:59

important safety instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

8.Do not install near any heat sources such as radiators, heat registers, or other apparatus

(including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong is provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with

the apparatus.

13.Unplug this apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

14.Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-

supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally,

or been dropped.

EU-B5395-ENG_080714.indd 4 2008-07-14 오후 3:46:59

Contents _01

contents

Preparation

Installation and Connection

Network Connection & Setup

Setting Static IP

Setting Dynamic IP

.40

03 Features

04 Precautions – Installation and Use

04 Recommended PC Specifications

04 Compatible IP Routers

05 Compatible PoE Switches

05 Checking the components in the package

06 Names of each part

08 Removing the cover

09 Setting switches

14 Installing camera

21 Connecting

27 Connecting the camera to an IP router with

the xDSL/Cable modem

30 Connecting the camera to an IP router with

local area networking

32 Connecting the camera directly to a DHCP-

based xDSL/Cable modem

34 Connecting the camera directly to local area

networking

35 Searching for the camera

36 Manual Network Setting

39 Automatic Network Setting

40 Dynamic IP Setting

41 Port Forwarding (Port Mapping) Setting

NA-B5395-ENG.indd 1 2008-07-14 오후 3:45:39

02_ Contents

Using the Camera

Setting Up

Appendix

42 Connecting to the camera

44 Installing ActiveX

46 Using the Viewer Screen

50 Using the Search Viewer Screen

55 Setting the camera

57 Basic Configuration

63 System Configuration

67 Layout Configuration

68 Event Configuration

75 Network Configuration

77 Troubleshooting

79 Specifications

NA-B5395-ENG.indd 2 2008-07-14 오후 3:45:39

Preparation _03

01 PREPARATION

FEATURES

Various Communication Protocol Support

This product supports various communication protocols such as ARP, HTTP and DHCP as well as

TCP/IP, UDP, SMTP for Email transmission and FTP protocol.

Monitoring Through Web Browser

Monitoring Through Web Browser This product enables watching a video through an Internet web

browser so that you can watch a video through the Internet as you can within the local network.

Automatic Local IP Setting Function

This function offers an easy way of configuring the network settings with a minimal key input for

those who are not familiar with it.

Alarm Function

If this product is connected with a motion sensor and the sensor detects a motion, a recorded

video clip is sent through the FTP/Email(SMTP) registered by the user or saved on the SDHC

memory card and a signal is sent to an alarm output port.

Motion Detection Function

If the user specifies a target area to monitor and the motion sensor detects a motion within that

area, a still image is sent to the FTP/Email(SMTP) server designated by the user or saved on the

SDHC memory card, and signals are sent to the alarm output terminal.

preparation

NA-B5395-ENG.indd 3 2008-07-14 오후 3:45:39

04_ Preparation

PRECAUTIONS – INSTALLATION AND USE

Do not disassemble your camera.

Always be cautious when handling your camera.

Do not subject the camera to impact or vibration and always be cautious of damaging the camera

due to neglectful storage and/or operation.

Do not install the camera at a location where it would become exposed to rain or humidity and do

not operate the camera in a wet environment.

Do not clean the camera’s main body using harsh abrasives or similar substances. If dirty, use a dry

piece of cloth to clean instead.

Install the camera in a shaded area or environment, protected from direct sunlight.

Direct sunlight exposure has a negative effect on the camera.

Do not bend or throw the SDHC memory card.

Do not store or use the SDHC memory card in a hot, humid, or dusty environment.

Protect the contacts of the SDHC memory card from foreign substance buildup.

If foreign substances have been built up on the contacts, remove using a soft piece of cloth.

When removing the SDHC memory card, disable SD Card Recording to protect against data loss

(refer to page 70 for instruction on disabling SD Card Recording).

Data cannot be stored on SDHC memory cards whose service life has expired.

Please purchase a new SDHC memory card if you experience this.

The manufacturer will not be held responsible for data loss incurred by the customer due to im-

proper use.

Using non-recommended PoE device may cause malfunction of either the camera or PoE device

itself. (Refer to page 5 for the compatible PoE Switch)

RECOMMENDED PC SPECIFICATIONS

CPU: Pentium4/2.4GHz or higher

Operating System: Windows XP(Service Pack2) / Windows Vista

Resolution: 1024X768 pixels or higher

RAM: 512MB or higher

Web Browser: Internet Explorer 6.0 or higher

Video Card: Radeon, Nvidia

Video Memory: 128MB

DirectX 8.1 or higher

COMPATIBLE IP ROUTERS

Linksys

D-Link

Netgear

󳫴

NA-B5395-ENG.indd 4 2008-07-14 오후 3:45:39

Preparation _05

01 PREPARATION

COMPATIBLE POE SWITCHES

Linksys SRW224G4P

D-Link DES-1316

SMC SMCPWR-INJ3

CHECKING THE COMPONENTS IN THE PACKAGE

Make sure that the following items are included in the package.

Camera

User's Manual

Test Monitor Cable

External Cable

Image Part name Standard Quantity Usage

PLASTIC ANCHOR HUD 5 4EA Attach each piece to screw connection

holes for strengthening connection

ASSY SCREW

MACHINE

BH M5 X L6.

(WHITE+O RING) 8EA Used for filling in the holes when installing

pipe and wall mount

ASSY SCREW

TAPPING

TH M4 X L30 (BLK+O

RING) 4EA Used when installing your camera on the

ceiling or wall

L-Wrench TROX T-20 1EA Used for assembling/ disassembling the

Dome cover

TEMPLATE 1EA Used for guiding the installation

Gasket-pipe hole T2.5 W56 1EA Used to make a wiring hole when installing

the camera on the ceiling or wall

Ferrite-Core ZCAT2132-1130-M-K 1EA Wrap the EMI suppression ferrite core with

the power adapter cord three times.

󳫴

NA-B5395-ENG.indd 5 2008-07-14 오후 3:45:41

06_ Preparation

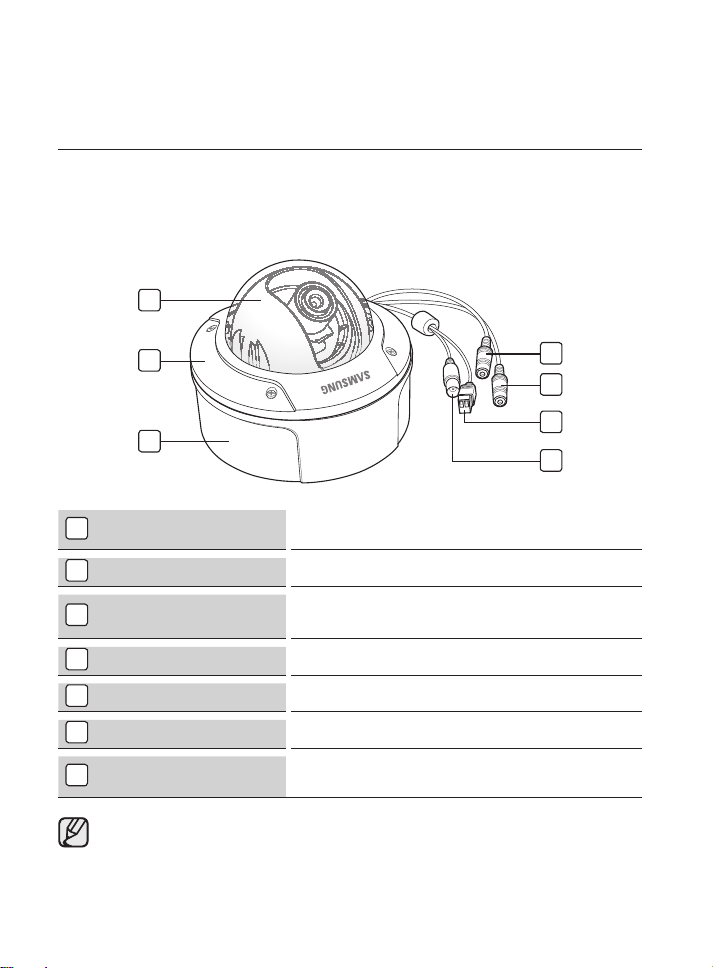

Front

Inner Cover Covers the main body to protect it.

Dome Cover Covers the inner cover, lens, and main body to protect them.

Main Body Includes a lens, a switch board, a PCB board, screws, and

such.

Audio Out For outgoing audio signals.

Audio In For incoming audio signals.

Power Port Connect the power cable to this port.

Video Out For outgoing video signals from the camera.

This port connects to the monitor’s video in port.

When the camera lens becomes dirty, softly clean it with a lens tissue or a cloth soaked in pure

ethanol.

󳫴

NAMES OF EACH PART

NA-B5395-ENG.indd 6 2008-07-14 오후 3:45:41

Autres manuels pour SNC-B5395

Table des matières

Langues :

Autres manuels Samsung Appareil photo numérique

Samsung

Samsung A402 - Digimax 4MP Digital Camera Manuel utilisateur

Samsung

Samsung ST50 Manuel utilisateur

Samsung

Samsung DIGIMAX A403 Manuel utilisateur

Samsung

Samsung SMARTCAMERA WB150 Manuel utilisateur

Samsung

Samsung Digimax V10 Manuel utilisateur

Samsung

Samsung DIGIMAX 350SE Manuel utilisateur

Samsung

Samsung EC-TL220ZBPRUS Manuel utilisateur

Samsung

Samsung NX mini Manuel utilisateur

Samsung

Samsung NV24 - HD Digital Camera Instructions de montage

Samsung

Samsung WB30F Guide de l'utilisateur

Samsung

Samsung TL34HD - Digital Camera - Compact Guide de l'utilisateur

Samsung

Samsung WB2000 Manuel d'instructions

Samsung

Samsung L310W Manuel utilisateur

Samsung

Samsung EK-GC100ZWAATT Manuel utilisateur

Samsung

Samsung NV9 Manuel d'instructions

Samsung

Samsung Vluu ST600 Manuel d'instructions

Samsung

Samsung p800 Manuel utilisateur

Samsung

Samsung TL34HD - Digital Camera - Compact Manuel utilisateur

Samsung

Samsung Digimax L80 Manuel utilisateur

Samsung

Samsung ES10 Manuel d'instructions

Samsung

Samsung SAMSUNG EX2F Guide de l'utilisateur

Samsung

Samsung DIGIMAX A55W Manuel utilisateur

Samsung

Samsung AD68-04709A Manuel d'instructions

Samsung

Samsung L830 - Digital Camera - Compact Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
