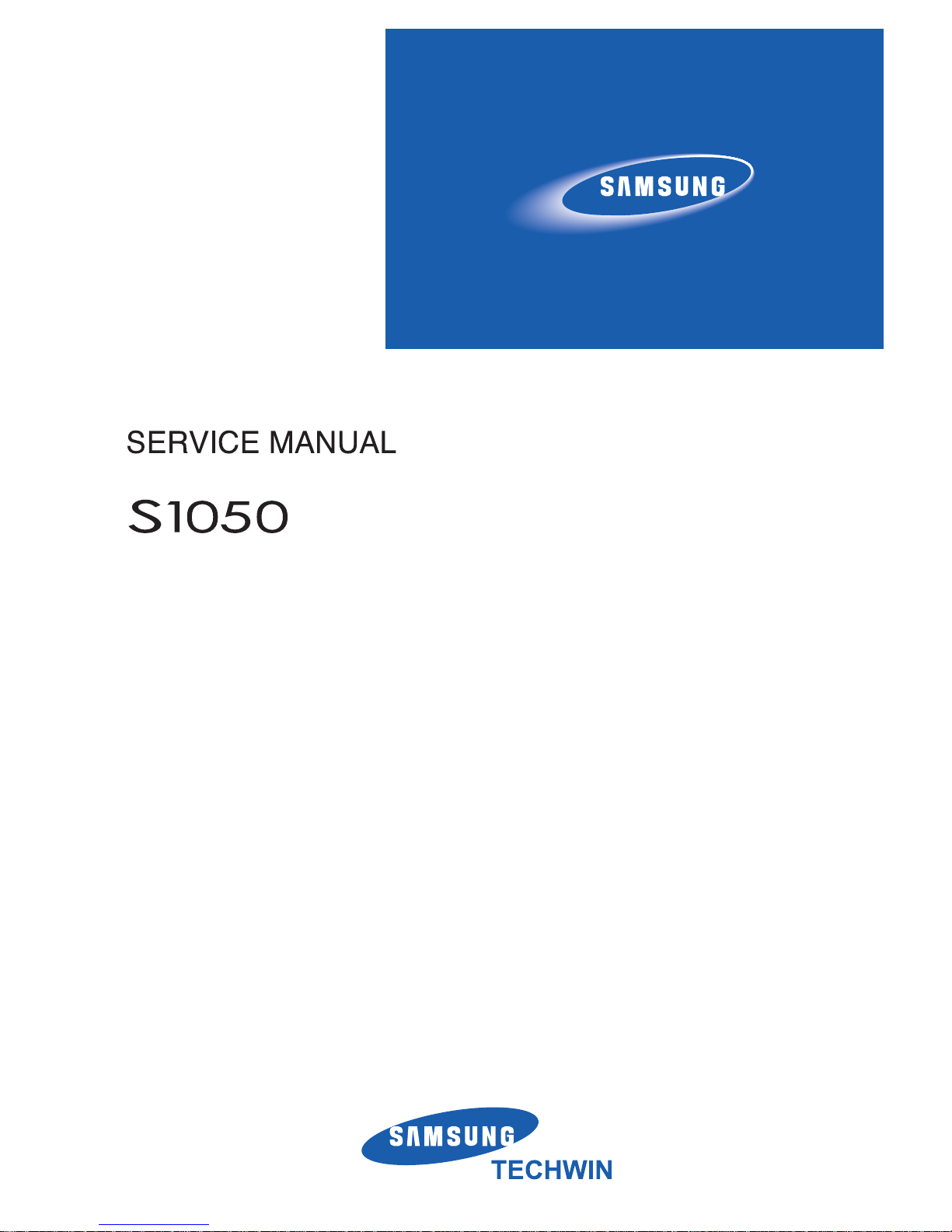

Samsung S1050 - Digital Camera - Compact Manuel utilisateur

CONTENTS

ⅠⅠ. SPECIFICATION

1. CAMERA SPECIFICATION ………………………………………………………………………………………4

2. SYSTEM REQUIREMENTS …………………………………………………………………………………… 7

3. TFT LCD PANEL MARK …………………………………………………………………………………………8

4. CONNECTION DIAGRAM ……………………………………………………………………………………… 11

5. IDENTIFICATION OF FEATURES ………………………………………………………………………………12

ⅡⅡ..

EXPLODED VIEW AND PARTS LIST

1. MAIN ASSEMBLY ……………………………………………………………………………………………… 14

2. BODY ASSEMBLY……………………………………………………………………………………………… 16

3. BARREL ASSEMBLY ………………………………………………………………………………………… 18

4. BARRIER ASSEMBLY ………………………………………………………………………………………… 22

5. STROBO ASSEMBLY…………………………………………………………………………………………… 24

6. FRONT COVER ASSEMBLY…………………………………………………………………………………… 26

7. REAR COVER ASSEMBLY …………………………………………………………………………………… 28

8. PACKING ITEM ………………………………………………………………………………………………… 30

ⅢⅢ. ADJUSTMENT

1. FIRMWARE……………………………………………………………………………………………………… 34

2. ADJUSTMENT ………………………………………………………………………………………………… 48

ⅣⅣ..

PATTERN DIAGRAM

1. PARTS ARRANGEMENT FOR EACH PCB ASS’Y

1) MAIN_TOP

…………………………………………………………………………………………………… 116

2) MAIN_BOTTOM

……………………………………………………………………………………………… 117

3) MAIN_CCD

…………………………………………………………………………………………………… 118

4) MAIN_MODE

………………………………………………………………………………………………… 119

5) STROBO

……………………………………………………………………………………………………… 120

ⅤⅤ..

CCIIRRCCUUIITT

DDIIAAGGRRAAMM

1) MAIN

………………………………………………………………………………………………………… 121

2) MAIN_DDR

…………………………………………………………………………………………………… 122

3) 3) MAIN_CCD(FEP)

…………………………………………………………………………………………… 123

4) MAIN_I/O LCD

………………………………………………………………………………………………… 124

5) MAIN_KEY

…………………………………………………………………………………………………… 125

6) MAIN_LENS(MOTOR)

………………………………………………………………………………………… 126

7) MAIN_POWER

………………………………………………………………………………………………… 127

8) MAIN_STROBO

……………………………………………………………………………………………… 128

9) CCD

…………………………………………………………………………………………………………… 129

10) MODE

………………………………………………………………………………………………………… 130

11) STROBO

……………………………………………………………………………………………………… 131

ⅥⅥ..

SERVICE INFORMATION

…………………………………………………………………………………132

Ⅰ.SPECIFICATION

1. CAMERA SPECIFICATION

Image Sensor - Type : 1/1.8" CCD

- Effective Pixel : Approx.10.1 Mega-pixel

- Total Pixel : Approx. 10.3 Mega-pixel

Lens - Focal Length : SHD Lens f = 7.8~39mm (35mm film equivalent : 38~190mm)

- F No. : Wide : 2.8~7.4

Tele : 4.5~11.7

- Digital Zoom :·Still Image mode : 1.0X ~ 5.0X

·Play mode : 1.0X ~ 14.3X (depends on image size)

LCD Monitor - 3.0" color TFT LCD (230,000 dots)

Focusing - Type : TTL auto focus (Multi AF, Center AF, Face Recognition AF)

- Range

Shutter - Shutter Speed : 1 ~ 1/2,000sec. (Manual : 16 ~ 1/2,000 sec.)

Exposure - Control : Program AE

- Metering : Multi, Spot, Center weighted, Face Recognition

- Compensation : ±2EV (1/3EV steps)

- ISO Equivalent : Auto, 80, 100, 200, 400, 800, 1600

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off

- Range : Wide : 0.2m ~ 3.0m, Tele : 0.4m ~ 2.5m (ISO AUTO)

- Recharging Time : Approx. 5 sec.

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

Color Effect - Normal, B&W, Sepia, Red, Green, Blue, Negative, User Set

White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom

Voice Recording - Voice Recording (max.10 hour)

- Voice Memo in Still Image (max. 10 sec.)

Date Imprinting - Date, Date & Time, Off (user selectable)

Wide Tele

Normal 80cm ~ Infinity 1.5m ~ Infinity

Macro 10cm ~ 80cm 50cm ~ 1.5m

Auto Macro 1cm~10cm (Wide Only)

Super Macro 10cm ~ Infinity 50cm ~ Infinity

Manual Focus 1cm ~ Infinity 50cm ~ Infinity

Ⅰ.SPECIFICATION

Shooting - Still Image :

·Modes : Auto, Program, A, S, M, ASR, Scene

·Scene : Night, Portrait, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight,

Fireworks, Beach & Snow

·Shooting : Single, Continuous, AEB, Wise Shot, Motion capture

·Self-timer : 2 sec.,10 sec., Double (10 sec., 2 sec.)

- Movie Clip :

·With Audio or without Audio (user selectable, recording time : memory capacity dependent)

※The maximum file size of continuous movie clip is 2GB.

·Size : 800X592, 720X480, 640X480, 320X240

※30 FPS cannot be used in 800x592 size.

·Frame rate : 30 fps, 20fps,15 fps

·Optical zoom: Max. 5X

·Movie Stabilizer

·Movie Editing (Embedded): Pause during recording, Still Image Capture, Time Trimming

Storage - Media :

·Internal memory : Approx.48MB flash memory

·External memory : SDHC / MMC / SD card (Up to 4GB Guaranteed)

- File Format :

·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0

·Movie Clip : AVI (MJPEG)

·Audio : WAV

- Image Size

- Capacity (256 MB MMC)

※These figures are measured under Samsung’s standard conditions and may vary depending

on shooting conditions and camera settings.

3072x23043648x2432 2048x1536 1024x7682592x1944

3648x20523648x2736

48 53 67 67 95 142 459

94 104 128 128 183 269 744

109 151 197 197 269 363 868

Ⅰ.SPECIFICATION

““E””

Button - Effect : Color, Image Adjust, Fun (Highlight, Composite, Photo Frame)

- Editing : Resize, Rotate, Color, Special Color, Image Adjust (Red eye fix, Brightness, Contrast,

Saturation, Add Noise), Fun (Cartoon, Highlight, Composite, Photo Frame, Sticker)

Image Play - Single image, Thumbnails, Slide show, Movie Clip

Interface - Digital output connector : USB 2.0 High Speed

- Audio : Mono

- Video output : NTSC, PAL (user selectable)

Power Source - Primary Battery : 2 x AA Alkaline

- Rechargeable battery (0ptional) : SNB-2512B KIT

(2 x AA 2500mAh Ni-MH Battery & Charger)

※Included battery may vary depending on sales region.

Dimensions (WxHxD)

- 104.5 x 64.2 x 25.5mm (excluding protrusions)

Weight - Approx. 205g (without batteries and card)

Operating Temperature

- 0 ~ 40°C

Operating Humidity

- 5 ~ 85%

Software - Digimax Master, Adobe Reader

Ⅰ.SPECIFICATION

For Windows For Macintosh

2. System Requirements

PC with processor better than Pentium II 450MHz

(Pentium 700MHz recommended)

Minimum 64MB RAM

200MB of available hard disk space

Windows 98SE/2000/ME/XP/Vista

USB port

CD-ROM drive

1024x768 pixels, 16bit color display compatible

monitor (24bit color display recommended)

MicroSoft DirectX 9.0C

Power Mac G3 or later

Mac OS 9.2 ~ 10.3

Minimum 64MB RAM

110MB of available hard-disk space

USB port

CD-ROM drive

3. LCD monitor indicator

Ⅰ.SPECIFICATION

■Recording mode

[Image & Full Status]

②

③

④

⑤

⑥

⑦

⑧

⑨ ⑩ ⑪

①   ⑳

⑫

⑬

⑭

⑮

⑯

⑰

⑱

⑲

No. Description Icons

2Aperture Value/ Shutter Speed F2.8, 1/30

3Face Recognition

4Flash

5 Self-timer

6Macro

7 Contrast

8 Sharpness

9 Auto focus frame

10 Camera shake warning

11 Date/ Time 2007/02/01 01:00 PM

12 Exposure compensation

13 White Balance

14 ISO

15 Continuous shot

16 Metering

17 Image quality

19 Battery

20 Optical/ Digital Zoom bar/ Digital Zoom rate

21 Voice memo/ Without Sound

Number of available shots remaining 6

Movie / Voice recording time 00:00:00

23 Card inserted indicator

Ⅰ.SPECIFICATION

Recording mode

18 Image size

No. Description Icon

1 Play mode icon

2 Voice Memo

3 Protect

4 DPOF

5Recording date 2007/02/01

6 Image size 3648X2736 ~ 256X192

7 Flash ON/OFF

8Shutter speed 16 ~ 1/2000

9Aperture value F2.8 ~ 11.7

10 ISO 80 ~ 1600

11 Battery

12 Folder name & File name 100-0031

13 Memory card indicator

Ⅰ.SPECIFICATION

■Play mode

ISO

FLASH

SIZE

DATE

F2.8

1/250

OFF

3648X2736

2007/02/01

②

①

③

④⑩

⑪

⑫⑬

⑨

⑧

⑥

⑤

⑦
