SIM (Serial Input Module)

MIM-B12

Air Conditioner

installation manual

imagine the possibilities

Thank you for purchasing this Samsung product.

This manual is made with 100% recycled paper.

KO EN ZH

DB98-26745A-04

SIM_MIM-B12_EN_IM_26745A-04.indd 11 2014-05-09 오후 5:31:43

E-2

Safety Precautions

Make sure to read the following safety precautions carefully before installation.

(Refer to the optional installation of the installation manual.)

The installation must be carried out by

a licensed installer or contact the service

center.



It could cause malfunction, water

leakage, electric shock or fire.

Install the unit in a place where it is

strong enough to hold the unit weight.



When installed in a place where it is

not strong enough to withhold the

product weight, the unit could fall

and damaged.

Do not attempt to repair or disassemble

the unit on your own.



Consult the qualified personnel or

service center when the unit is

needed to repair to avoid

malfunction, electric shock or fire.

Make sure to install the unit correctly in

accordance with the installation manual.



Incorrect installation of the unit

could cause electric shock or fire.

Make sure to use the power source with

separate wiring for installation.



It could cause fire or damaged.

Do not attempt to move the unit or

reinstall it on your own.



It could cause electric shock or fire.

Ensure that all electric works should be

done by an authorized installer and in

accordance with the local requirements

and the installation manual.



Incorrect installation of the unit could

cause malfunction, electric shock and

fire if unauthorized personnel install

the unit.

Consult the service center when

you need to dispose of the unit.

 This indicates the possibility of serious injury or death.

WARNING

 This indicates the possibility of serious injury or damage to

environments when operated incorrectly.

CAUTION

SIM_MIM-B12_EN_IM_26745A-04.indd 2 2014-05-09 오후 5:31:41

E-3

ENGLISH

Do not install the unit in a place where it

is exposed to inflammable gas leakage.



It could cause fire or explosion.

Do not install the unit near dangerous

places where it is exposed to machine

oil or steam.



It could cause the part damaged or

malfunction if you use the unit in a

place exposed to machine oil, steam

and sulfide gas.

Never spill any kind of liquid into the

unit.



It could cause electric shock or fire.

Make sure to avoid tension when

connecting the wires to the unit.



It could cause fire by disconnecting

the wires.

Install the unit in a place where the

temperature is between 0°C and 39°C

and not exposed to direct sunlight.



It could get electric shock or

malfunction of the unit.

Avoid installing the unit in a place

where acidity or alkali liquid or

distinctive spray is used.



It could cause electric shock or

malfunction of the unit.

Avoid putting the button of the unit in

contact with sharp-edged items.



It could cause electric shock or

accessories damaged.

Do not connect the wires to the terminal.



It could cause fire.

Make sure not to give shock other products when installing the unit in a place

such as hospital.



It could cause malfunction of the unit.

Safety Precautions

CAUTION

SIM_MIM-B12_EN_IM_26745A-04.indd 3 2014-05-09 오후 5:31:41

E-4

Installing the SIM (Serial Input Module)

SIM (Serial Input Module)

Accessories

Installation

Manual

 The SIM must be installed by a qualified installer.

 Make sure the main power is turned off before

installing the SIM.

 The wires must be installed according to the national

electrical wiring regulations.

Caution

SIM_MIM-B12_EN_IM_26745A-04.indd 4 2014-05-09 오후 5:31:41

E-5

ENGLISH

Installing the SIM (Serial Input Module)

SIM (Serial Input Module) Structure

Comm. (RS-485 power meter)

Power

Meter

Power

ELB

NFB

System A/C

Outdoor unit

1 Way

Cassette type

Duct type

4 Way

Cassette type

Split type

SIM

(Power meter I/M) DMS S-NET 3

Install indoors and inside of the distribution kit

Power meter, SIM(Power meter I/M), ELB or NFB should be

installed indoors and inside the distribution kit which is

proper to the electric equipment standard.

Caution

SIM_MIM-B12_EN_IM_26745A-04.indd 5 2014-05-09 오후 5:31:41

E-6

Installing the SIM (Serial Input Module)(Continued)

SIM (Serial Input Module) Structure

Unscrew the 4 screws on the SIM (Serial Input Module) to

open the cover.

Connect a DC 12V adaptor to the power terminal on the

SIM. The following adaptor should be used.

 The following adaptor should be purchased separately.

3Connect the power meter communication cables to the

terminals labeled CH1 to Ch8

on SIM.

 At most 8 power meters

can be connected to one SIM.

 Only selected RS-485 type

power meters from

the following suppliers can be used with SIM.

(Omni System, Korea Micronics, LS Industrial,

Hansuk Tech)

4Connect the C1, C2 communication cable from SIM to

the C1, C2 terminal on DMS.

5Reassemble the SIM.

Note At most 8 power meters of SIM can be connected to

one DMS.

Input Power 110V/220V

Input Frequency

50/60H

Rated Output

DC 12V±5% 1A

Connector Internal Diameter

1.1

±0.1

Connector External Diameter

3.5

±0.1

Power

cable

(DC 12V)

SIM I/M

communication

cable

Connect

to DMS

SIM_MIM-B12_EN_IM_26745A-04.indd 6 2014-05-09 오후 5:31:42

E-7

ENGLISH

Installing the SIM (Serial Input Module)(Continued)

Setting the SIM (Serial Input Module) address

Unscrew the 4 screws on the SIM (Serial Input Module) to

open the cover.

Use the rotary switch (DS01) on SIM to set the

communication address.

 The address of SIM can be set from 0 to 7.

 The default switch is set as '0'.

The address of SIM is set according to the switch setting

when powered on. If the rotary switch is adjusted after the

power is supplied, the adjusted address is not reflected.

To set the adjusted address for rotary switch, unplug the

power cable and plug it again.

Caution

Power

cable

(DC 12V)

SIM I/M

communication

cable

Connect

to DMS

SIM_MIM-B12_EN_IM_26745A-04.indd 7 2014-05-09 오후 5:31:42

E-8

Once tracking is completed, you can check the

information of the power meter value connected

to the channels using the K1 and K2 buttons.

Display Window

Installing the SIM (Serial Input Module)(Continued)

SIM (Serial Input Module) Startup Order

7-Segment LED display

 All on

SIM (Serial Input Module) address

 ex) 00

SIM (Serial Input Module) program version

 ex) version 12.3

The channel which is tracking is displayed.

 Displayed until tracking is complete

The power consumed by each channel is displayed

 ex) 456.7kW

 The following order is displayed when SIM is powered on.

SIM_MIM-B12_EN_IM_26745A-04.indd 8 2014-05-09 오후 5:31:42

E-9

ENGLISH

Installing the SIM (Serial Input Module)(Continued)



Reference

Reference Color Status

LED01 Red

Turns on when power is on

LED02 Yellow

Turns on when communicating with DMS

LED03 Green

Flickers when communicating with the power meter on CH1

LED04 Green

Flickers when communicating with the power meter on CH2

LED05 Green

Flickers when communicating with the power meter on CH3

LED06 Green

Flickers when communicating with the power meter on CH4

LED07 Green

Flickers when communicating with the power meter on CH5

LED08 Green

Flickers when communicating with the power meter on CH6

LED09 Green

Flickers when communicating with the power meter on CH7

LED10 Green

Flickers when communicating with the power meter on CH8



Buttons

Reference Status

Next channel (only connected channels are shown)

Previous channel (only connected channels are shown)

Reset

Not used

K6 Not used

K1K3K5

LED01 LED02 LED03 LED04 LED05 LED06 LED07 LED08 LED09 LED10

K2K4K6

DIS2 DIS3 DIS4

Power Cable

(DC12V)

SIM I/M

communication

cable

Connect to

DMS

Buttons

LED display

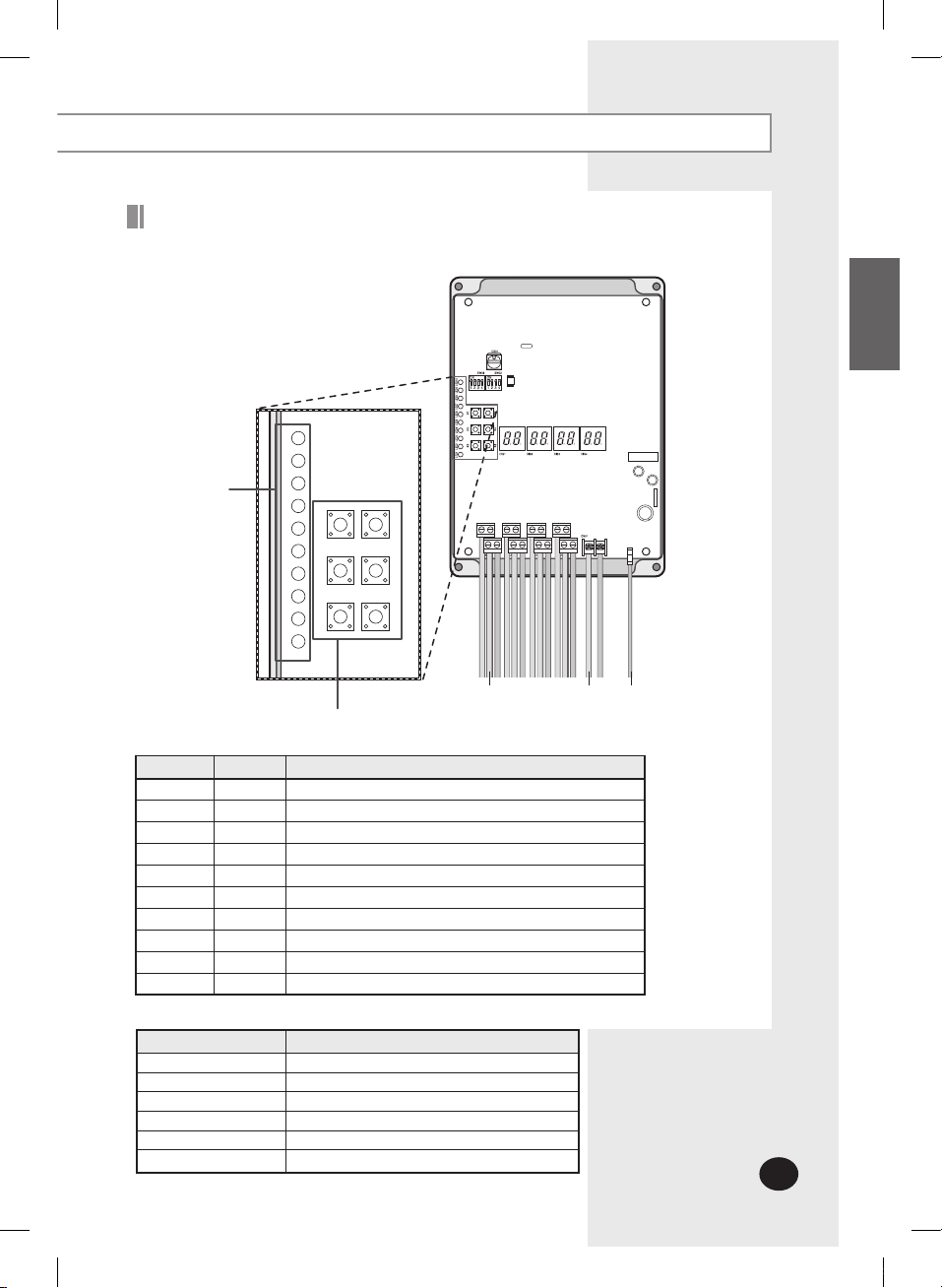

SIM (Serial Input Module) LED display and buttons

SIM_MIM-B12_EN_IM_26745A-04.indd 9 2014-05-09 오후 5:31:42
