Safety Precautions

The following safety precautions must be taken when using your air conditioner.

1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

3 Do NOT insert anything between the air flow blades, as the inner fan may become damaged and you may be

hurt. Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

6 Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service centre.

8 This device must be installed according to the national electrical rules.

9 Before disposing of the remote control it is necessary to remove batteries.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Max current is measured according to IEC standard for safety

and current is measured according to ISO standard for energy efficiency.

The manufacturer does not take any responsibility for any accidents that

occur because the air conditioner is not fixed firmly or installed securely,

during installing or using the product. In case you experience difficulty in

installation, you must use an installation specialist. An accident will occur

if the installation is not done as recommends in the installation guide.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-3

ENGLISH

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ 5 Way Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 10

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 13

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 16

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 17

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

◆

ECHNICAL SPECIFICATIONS

E-4

View of the Unit

The design and shape are subject to change according to the model.

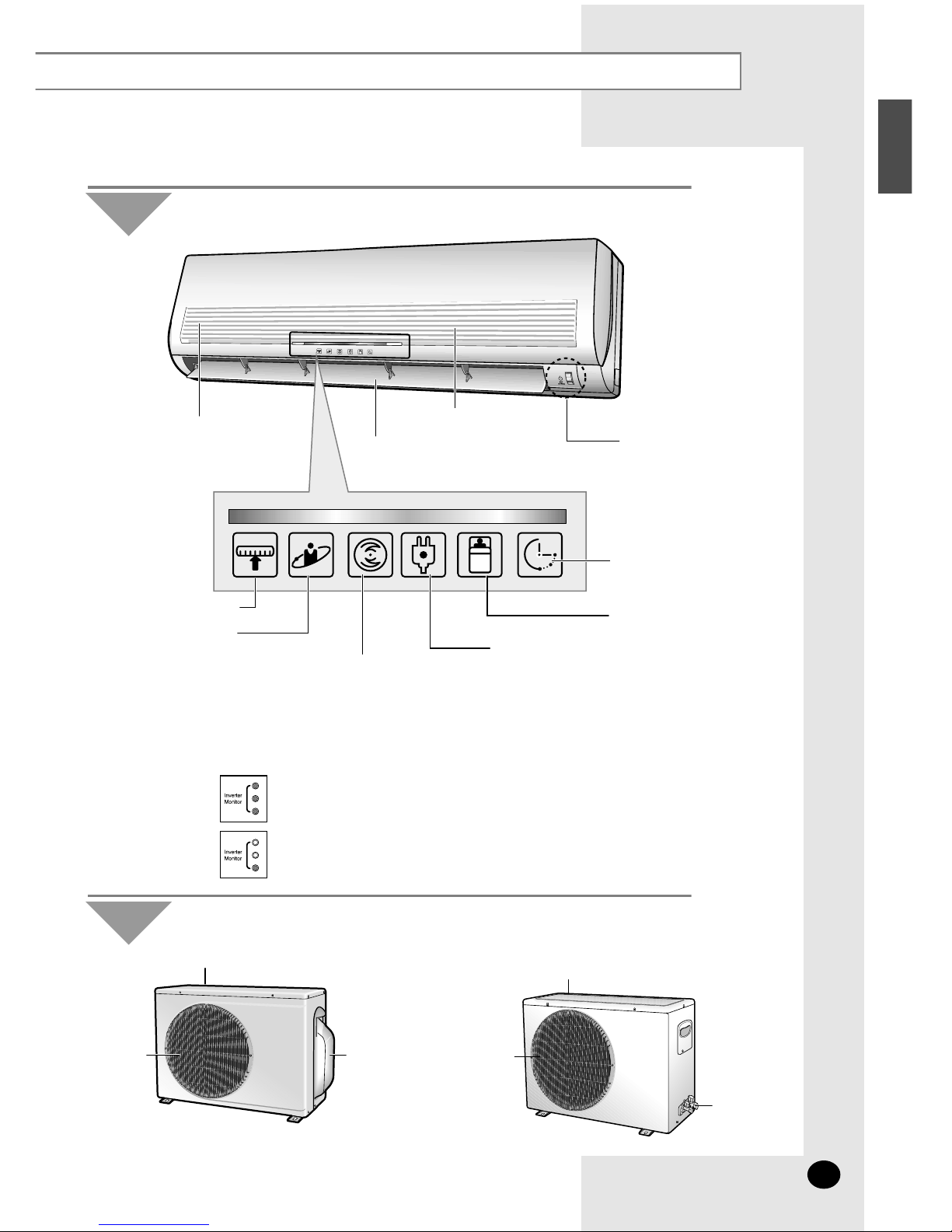

Indoor Unit

Air filter

(under the grille)Air flow blades (outlet) Air inlet

Timer indicator

STANDARD indicator

NATURE indicator

Inverter Power Monitor indicator

(Only the Inverter models)

POWER indicator

SILENCE indicator

Remote control sensor

SAVING indicator

On/Off & 5 Way

selection button

◆For details on the 5 Way, refer to page 9.

◆Inverter Power Monitor indicator(Only the inverter models) :

Following the condition of it's operation, Power Monitor indicator

would be allowed to increase or decrease.

- The first state of it's operation, the maximum

permissible dose of it's operation.

- The state of appropriate room

temperature.

NNoo

oott

ttee

E-5

ENGLISH

Air Inlet(Rear)

Air Outlet Connection

Valve

(Inside)

Air Inlet(Rear)

Air Outlet

Connection

Valve

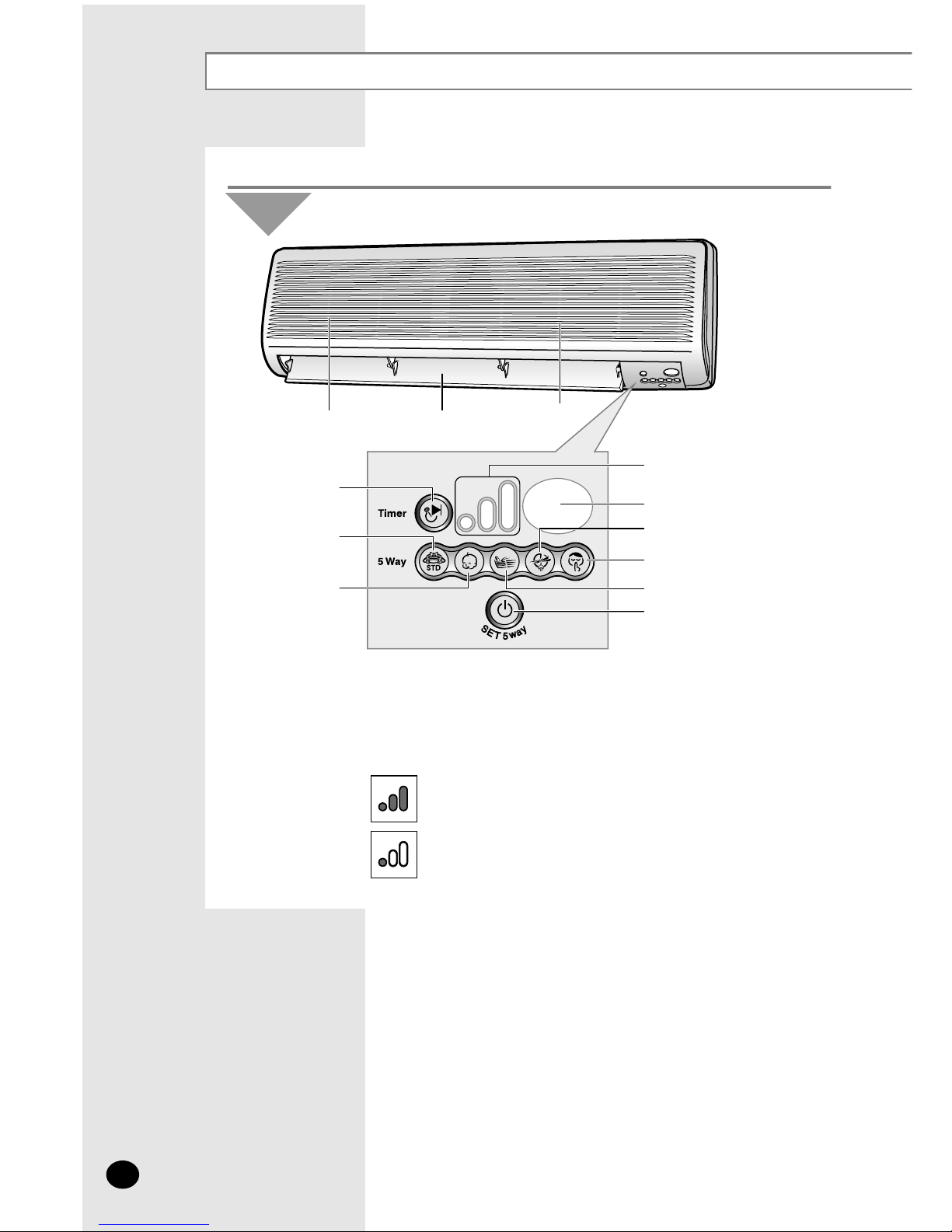

SH✴✴VCD / SH✴✴AC✴✴ / AQ(T)✴✴C✴R(M)✴✴

Indoor Unit

The design and shape are subject to change according to the model.

Outdoor Unit

◆For details on the 5 Way, refer to page 9.

◆Inverter Power Monitor indicator(Only the inverter models) :

Following the condition of it's operation, Power Monitor indicator

would be allowed to increase or decrease.

- The first state of it's operation, the maximum

permissible dose of it's operation.

- The state of appropriate room

temperature.

NNoo

oott

ttee

Air filter

(under the grille) Air flow blades (outlet)

Air Inlet

STANDARD indicator

NATURE indicator

POWER indicator

SILENCE indicator

TIMER indicator

SAVING indicator

On/Off & 5 Way

selection button/

Remote Control Sensor/

Inverter Power Monitor indicator

(Only the Inverter models)

E-6

Remote Control - Buttons and Display

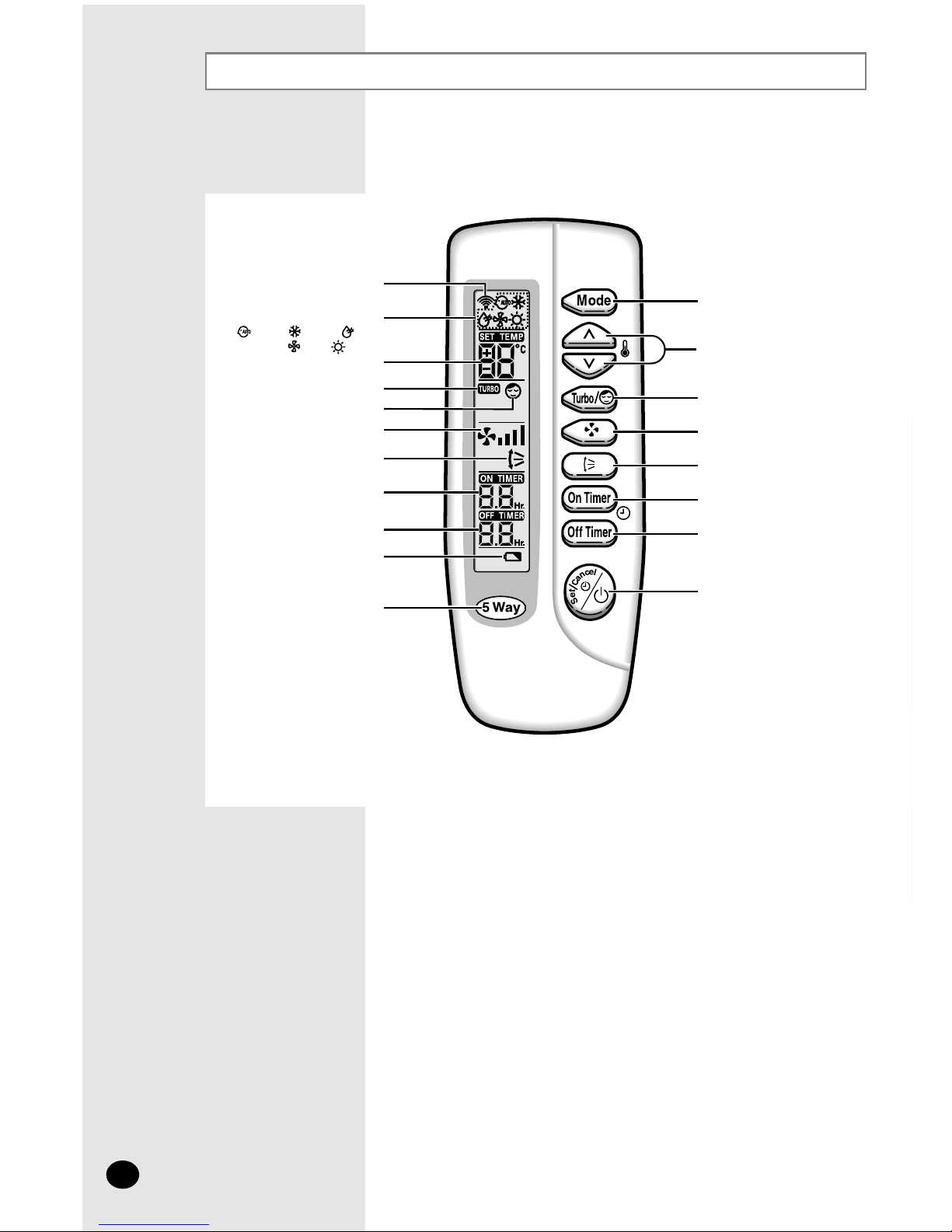

Operating mode

( AUTO, COOL, DRY,

FAN, HEAT)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN, HEAT)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

5 Way selection button

E-7

ENGLISH

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the installation book, you will find a series of

step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-8

Inserting the Remote Control Batteries

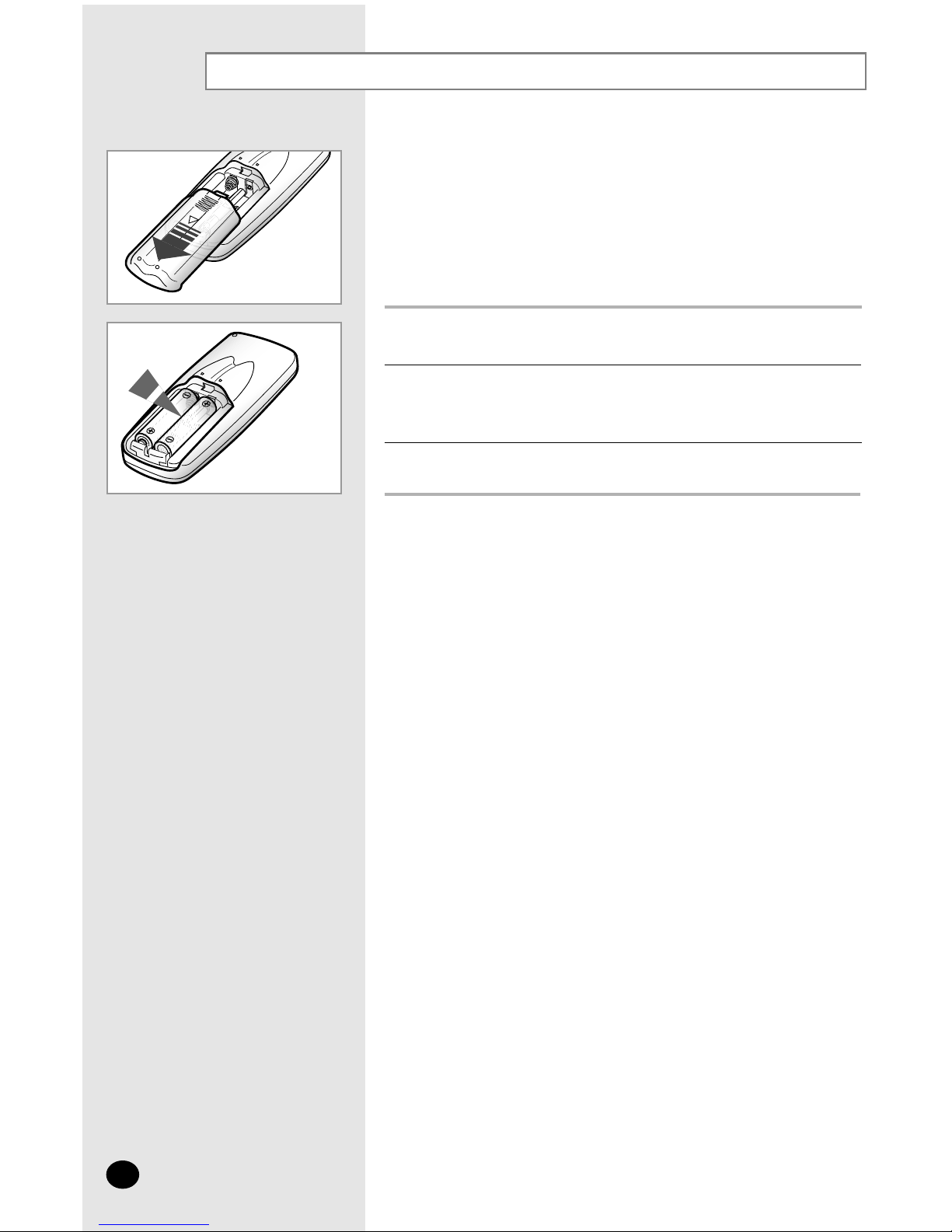

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-9

ENGLISH

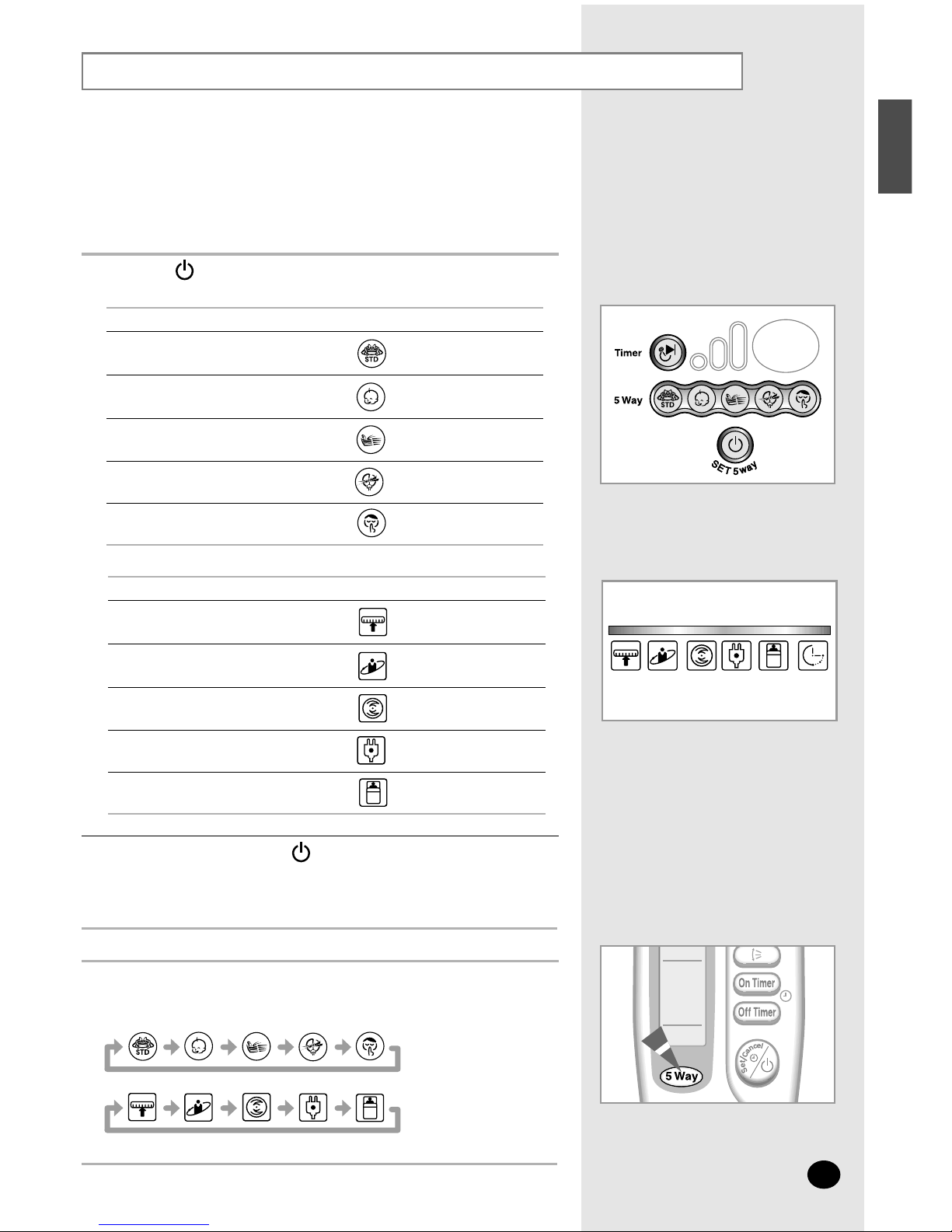

5 Way Function

Press the (ON/OFF) button one time and then select the desired

mode.

To stop the operating, press the (ON/OFF) button until all indicators turn off.

You can select the 5 Way function with operating mode of the air conditioner for

more comfortable circumstances. You can use the 5 Way function with the indoor

unit as well as the remote control. Thus, you can use this function

even though you have lost your remote control.

Using with the indoor unit

To select the 5 Way function with the remote control, press the 5 Way

button one or more times until the desired mode is selected.

◆Each time you press the 5 Way button:

Each 5 Way indicator on the indoor unit lights up in order.

Selecting with the Remote Control

Even if the air conditioner has been turned on via the ON/OFF

button on the unit, operations can still be controlled using the

remote control as usual.

NNoo

oott

ttee

To obtain a(n)...

Normal operating (STANDARD) mode

Then select...

(NATURE) mode

Reducing the uncomfortable

temperature gradually

(POWER) mode

High fan speed

(SAVING) mode

Compressor run time reduced

(SILENCE) mode

Fan speed reduces as the temperature

decreases

To obtain a(n)...

Normal operating (STANDARD) mode

Then select...

(NATURE) mode

Reducing the uncomfortable

temperature gradually

(POWER) mode

High fan speed

(SAVING) mode

Compressor run time reduced

(SILENCE) mode

Fan speed reduces as the temperature

decreases

SH✴✴VCD / SH✴✴AC✴✴ / AQ(T)✴✴C✴R(M)✴✴

E-10

Selecting the Automatic Operating Mode

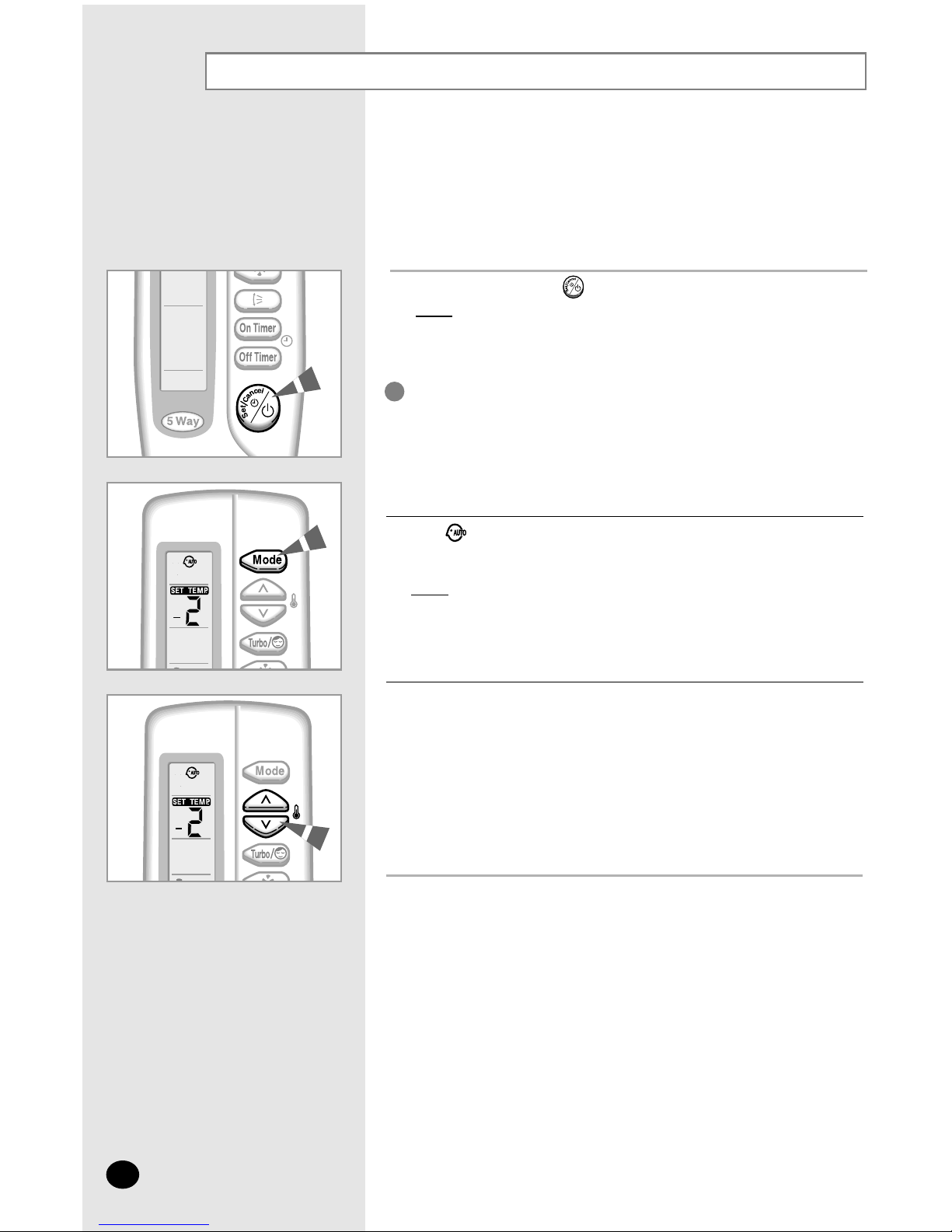

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the MODE button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The 5 Way indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

Auto Change Over Function (Only the Inverter Models)

◆

In the Automatic mode, the air conditioner selects one of

COOL, HEAT, DRY depending on the indoor and outdoor

temperatures. If the air conditioner has not been operated

for an hour, the air conditioner will take the current

temperatures again and it will restart operating in

the optimum mode.

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

Ce manuel convient aux modèles suivants

143

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung AW2492L Manuel utilisateur

Samsung

Samsung AW0700 Guide de configuration

Samsung

Samsung AVXTFH071EB Manuel utilisateur

Samsung

Samsung AR B HGAWK Series Manuel utilisateur

Samsung

Samsung SH07ZS2 Manuel utilisateur

Samsung

Samsung AJ NB1DEH Series Manuel utilisateur

Samsung

Samsung AM007FNTDCH Manuel utilisateur

Samsung

Samsung AC018JN4DCH/AA Manuel de service

Samsung

Samsung AC012MNADCH/AA Manuel utilisateur

Samsung

Samsung APC4082E Manuel utilisateur

Samsung

Samsung AC024BXUPCH Manuel utilisateur

Samsung

Samsung MH040FXA2B Manuel utilisateur

Samsung

Samsung AR KPFH Series Mode d’emploi

Samsung

Samsung AM028NN1DEH/TL Manuel utilisateur

Samsung

Samsung AM140JNPDKH Manuel utilisateur

Samsung

Samsung PC4NUC N Series Manuel utilisateur

Samsung

Samsung AF**FSSDA Series Manuel utilisateur

Samsung

Samsung Electronics DVM Series Manuel utilisateur

Samsung

Samsung AJ052RBNDEG/EU Manuel utilisateur

Samsung

Samsung AC024KN4DCH Manuel utilisateur

Samsung

Samsung AM280JNPDKH Manuel utilisateur

Samsung

Samsung AR09FSSYAWTNEU Manuel utilisateur

Samsung

Samsung MH18VP2-09 Manuel utilisateur

Samsung

Samsung AVMCH070EA4 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
