Contents

 PREPARING YOUR AIR CONDITIONER

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

View of the Indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8



RECOMMENDATIONS FOR USE



Adjusting the Air Flow Direction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9



Operating Recommendations

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10



Temperature and Humidity Ranges

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11



Cleaning Your Air Conditioner

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12



Solving Common Problems

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes

at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of

material resources.

Household users should contact either the retailer where they purchased this product, or their local government office,

for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

AVXTF_IB_E_27522-1.indd 2 2007-3-3 15:18:30

E-3

ENGLISH

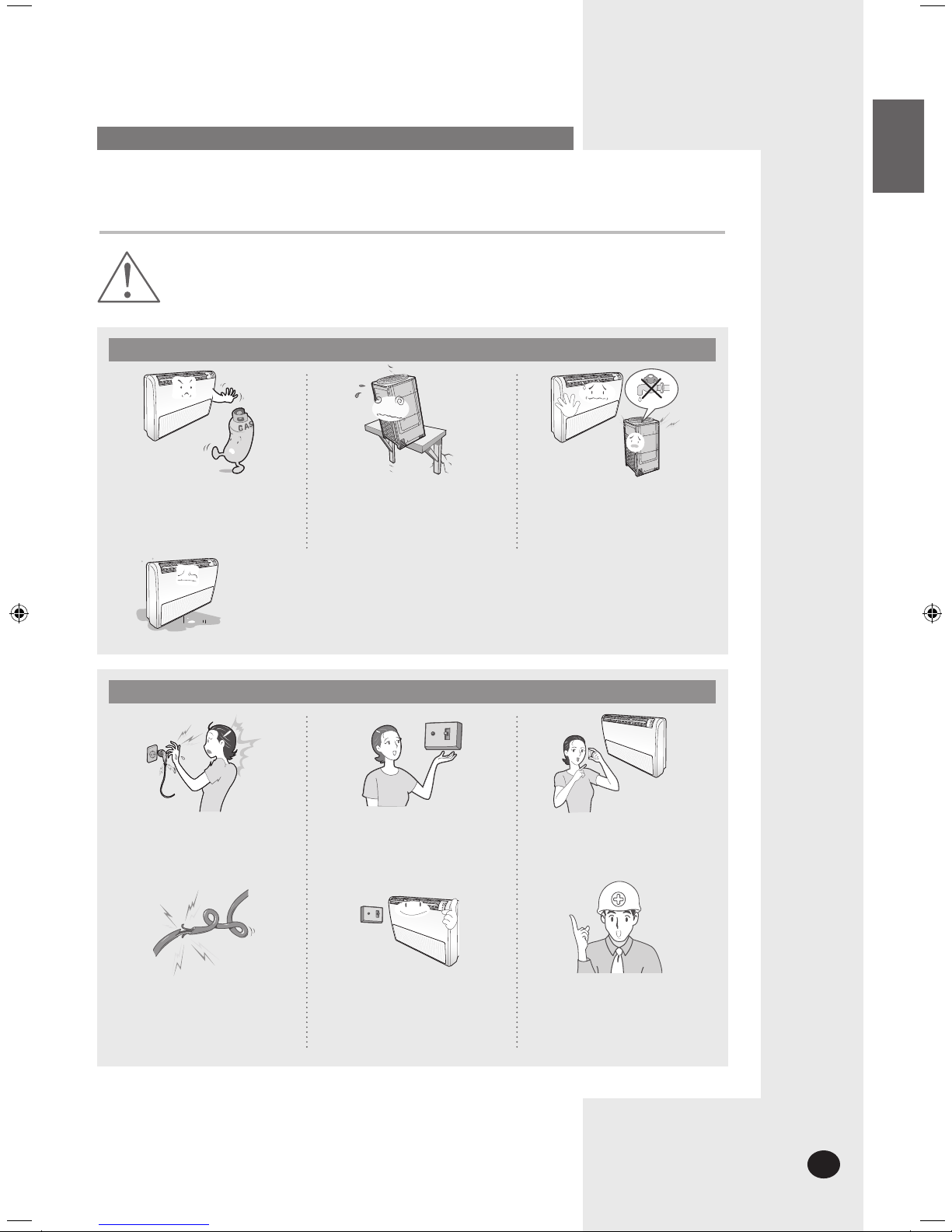

 Risk of electric shock can cause injury or death.  Disconnect all remote

electric power supplies before servicing, installing or cleaning.  Installation

must be done by the manufacturer or service agent or a similar qualified

person in order to avoid a hazard.

WARNING



Do not install the air

conditioner where there’s

combustible gas.



Do not install the outdoor

unit where there’s the risk of

dropping such as on high

outer wall or outside of the

terrace.



Earth the ground conductor

and do not connect it to the

gas pipe, water pipe or

telephone wire.

WHEN INSTALLING



Contact the service center if the air conditioner

is under water.

Safety Precautions

You should take the following safety precautions when using your air conditioner.



Do not pull the electric wire

or touch the power plug with

the wet hands.



Install the switch and circuit

breaker only for

air conditioner.



Use the rated current fuse.

REGARDING POWER SOURCE



Do not bend the electric wire

by force or weigh down the

air conditioner not to be out

of order.



Use the power source with

separate wiring only for air

conditioner.



If the power plug is

damaged, replace it by the

manufacturer or qualified

personal to avoid the risk.

AVXTF_IB_E_27522-1.indd 3 2007-3-3 15:18:31

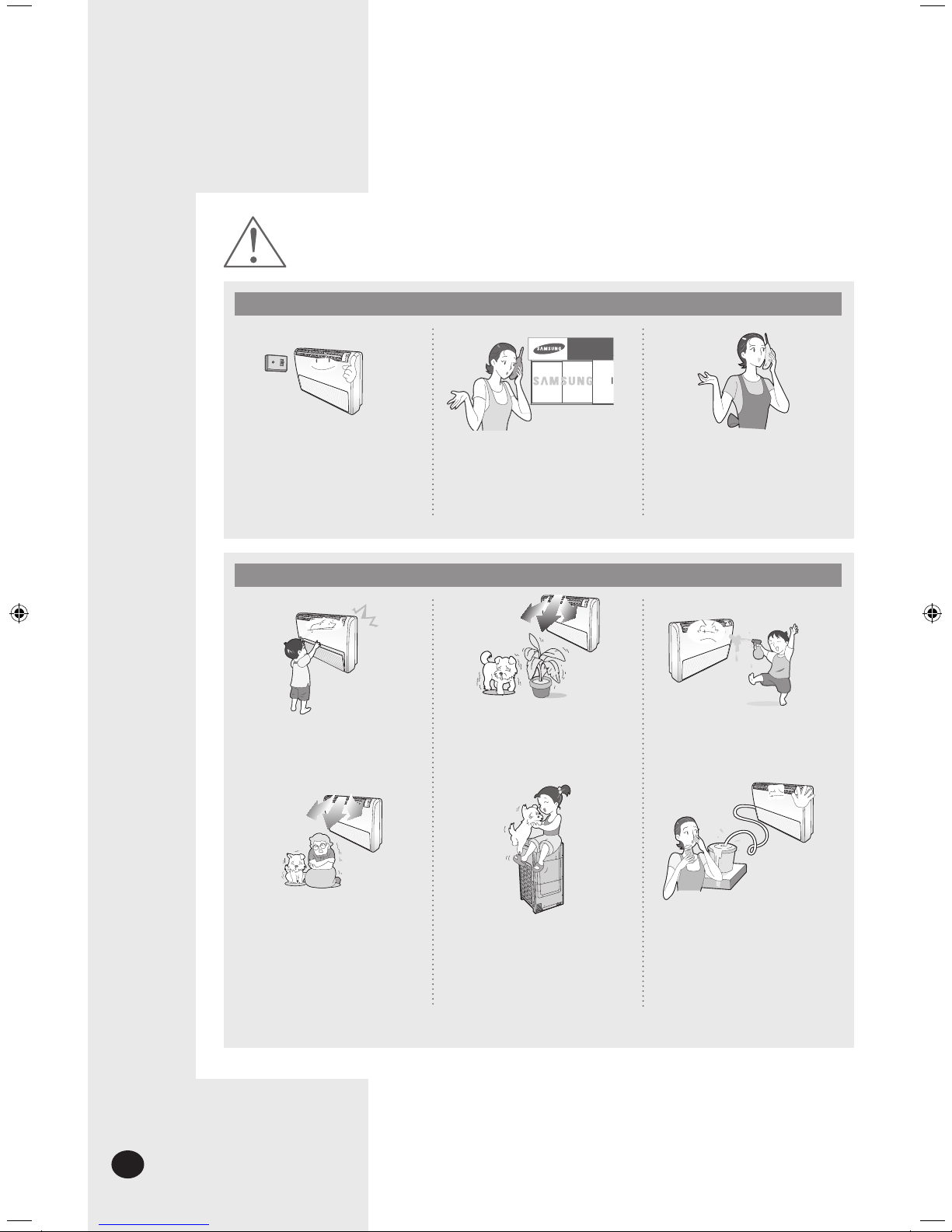

E-4

WARNING



Users of this product are

cautioned not to attempt

repair of this product at their

own discretion. Instead, they

are requested to directly

contact a designated service

center or the outlet at which

the product was purchased.



Never spill any kind of liquid

into the unit. Should this

happen, unplug or main

switch off the unit and

contact an authorized

service center.



Do not insert anything

between the air outlet

blades because the inner fan

may be damaged and could

cause injury. Keep children

away from the unit.

DURING OPERATION



Do not place any obstacles in

front of the unit.

Make sure that the unit is

correctly ventilated at all

times: Do not place clothing

or other materials over it.



If the wireless remote

control is not used for

a long time, remove the

batteries. (If applicable)



When using a wireless

remote control, the distance

should not be more than

7 meters from the air

conditioner. (If applicable)



Do not place any materials

so that children cannot step

on it.



Do not connect the electric

heater to the air conditioner

or repair it with your

discretion.

AVXTF_IB_E_27522-1.indd 4 2007-3-3 15:18:35

E-5

ENGLISH



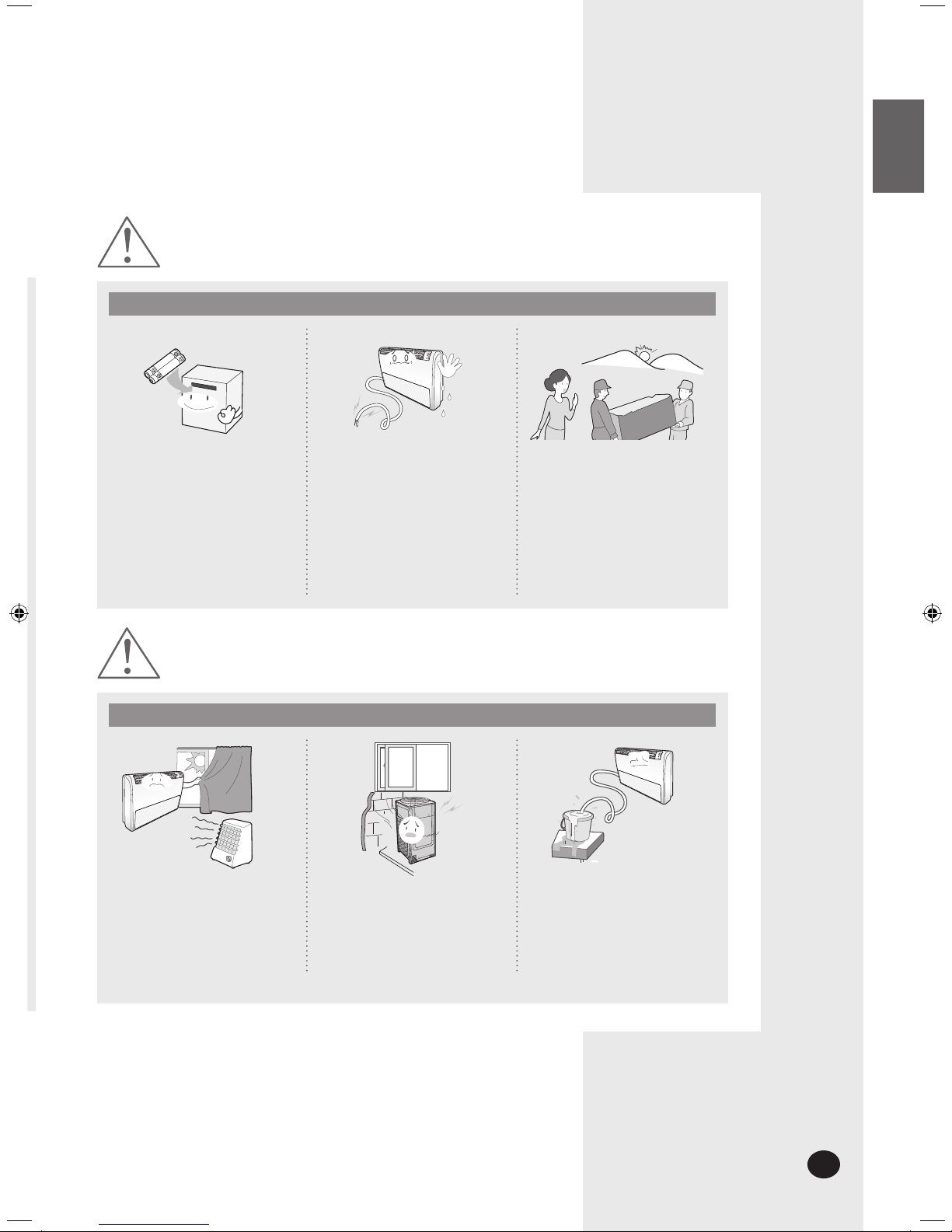

Before throwing out the

device, it is necessary to pull

back the battery cells and get

rid of them safely for recycling

reasons.



When you need to dispose of

the unit, consult your dealer.

If pipes are removed

incorrectly, refrigerant may

blow out and come into

contact with your skin, causing

injury. Releasing refrigerant

into the atmosphere also

damages the environments.



Please recycle or dispose

of the packaging material for

this product in an

environmentally responsible

manner.

DISPOSING THE UNIT

WARNING



Install the air conditioner

avoiding direct sunlight or

heater, especially water.



Install the outdoor unit so as

to let the discharged air out

properly. Avoid a place that

may disturb your neighbor by

noise.



Install the drain hose to let

the water run safely and

correctly.

WHEN INSTALLING

CAUTION

AVXTF_IB_E_27522-1.indd 5 2007-3-3 15:18:37

E-6



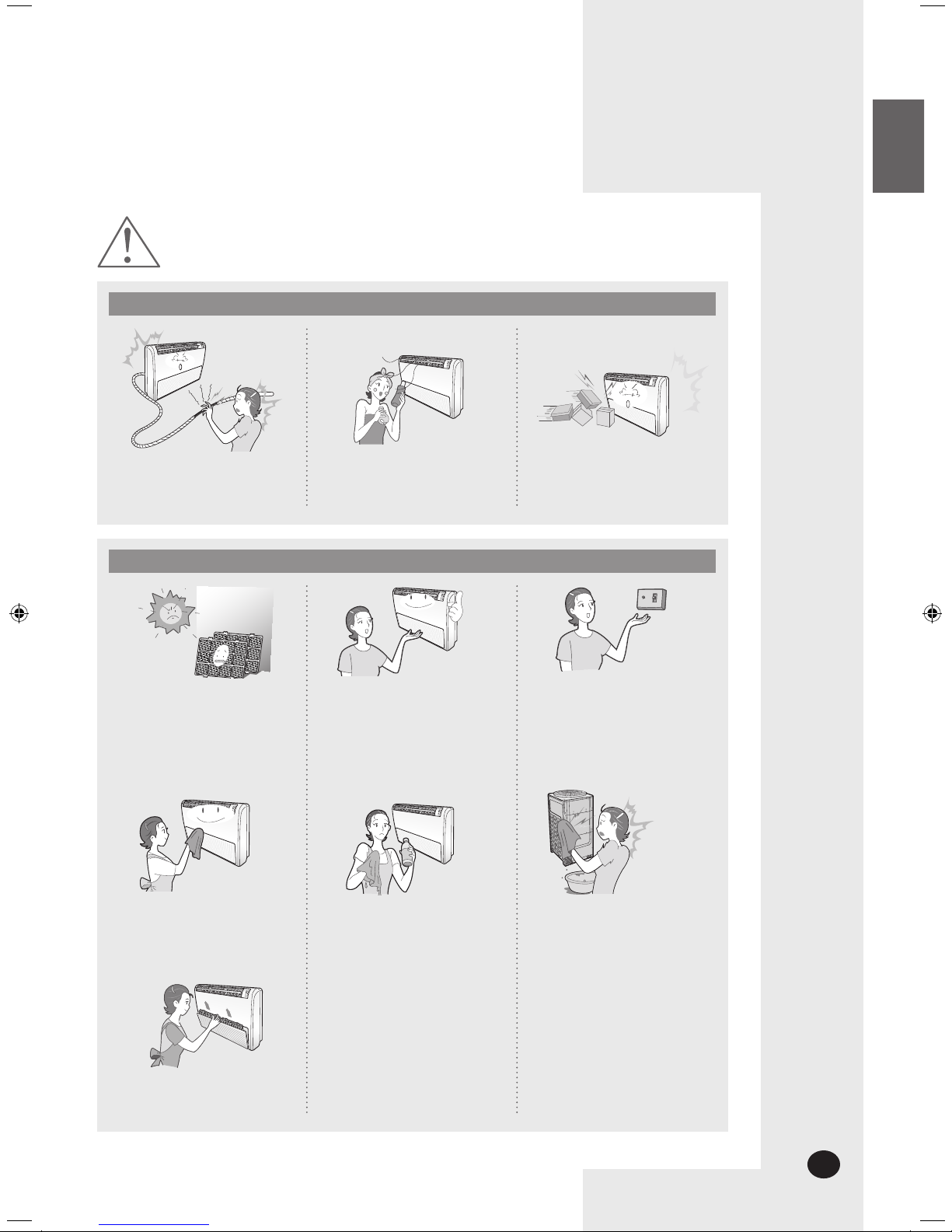

Disconnect the circuit breaker

when you don’t use the

air conditioner for a long time

to save energy.



Contact the service center or

manufacturer if you want to

repair the air conditioner.



Contact the service center

after turning off the air

conditioner if strange noise

is heard, burning smell or

smoke blow.

REGARDING POWER SOURCE



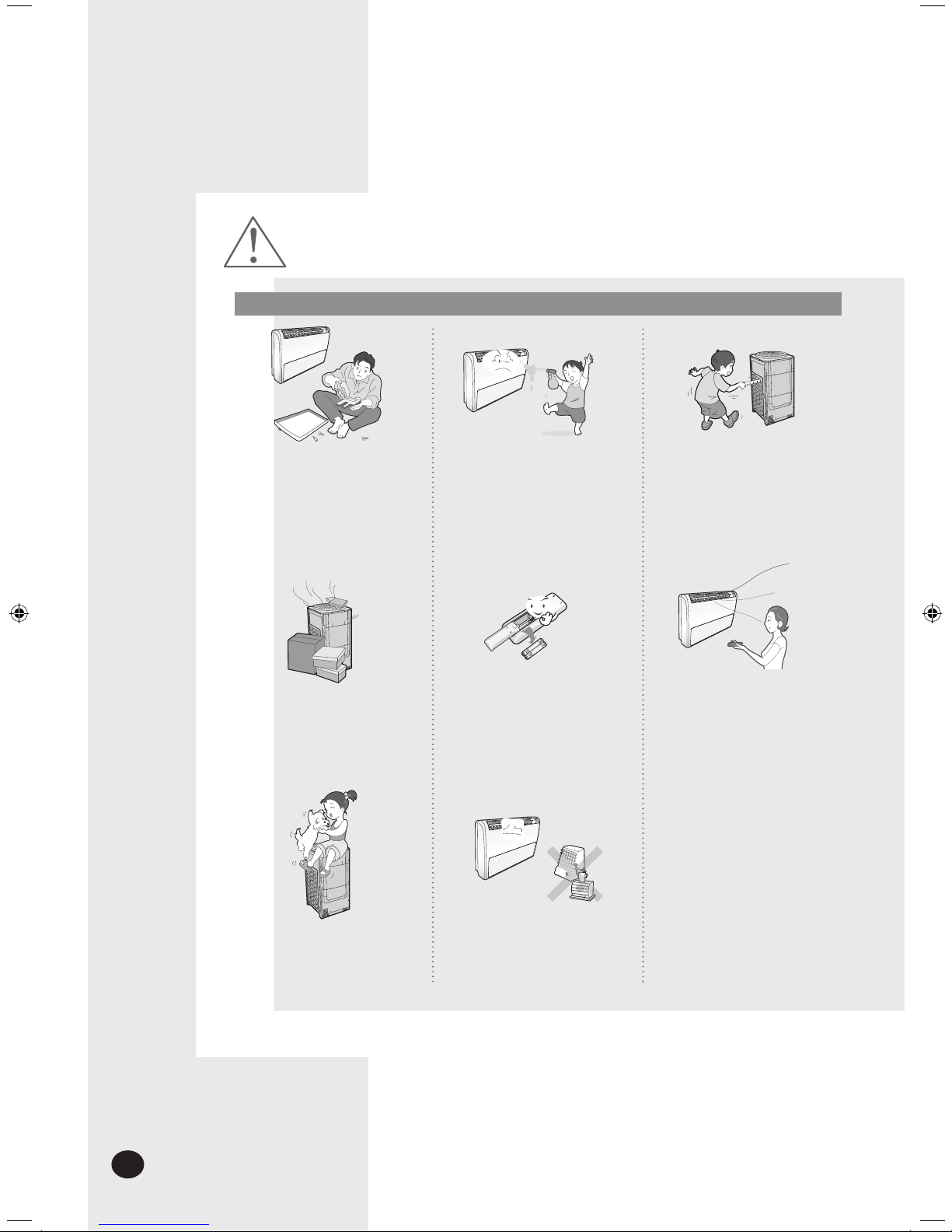

Do not open the front grille

during operation.



Avoid cold and hot air

reaching to person, pet or a

plant directly for a long time.



Avoid the water from

getting into the

air conditioner.

DURING OPERATION



Do not use the air conditioner

for a long time in a closed room

or in a place where there’s a

baby or an old person.



Do not step on the air

conditioner or put heavy

object on it.



Do not drink the water from

the air conditioner.

CAUTION

AVXTF_IB_E_27522-1.indd 6 2007-3-3 15:18:38

E-7

ENGLISH



Do not touch the pipes

connected to the air

conditioner.



Do not use the air conditioner

to maintain the machine, food,

pet, plant or cosmetics.



Do not give excessive shock

to the air conditioner.

DURING OPERATION



The appliance is not intended

for use by young children or

infirm persons without

supervision: Young children

should be supervised to

ensure that they do not play

with the appliance.



Max current is measured

according to IEC standard for

safety and current is measured

according to ISO standard for

energy efficiency.

OTHERS



Be sure that the air filter not to

be exposed to direct sunlight.



Do not clean the air

conditioner by spraying water

directly or with benzene,

thinner or alcohol.



The surface of the heat

exchanger is sharp, so be

careful of it when cleaning.



Turn off the air conditioner

and if the fan stops to operate,

clean the air conditioner.



Be sure to insert the air filter.

CAUTION

AVXTF_IB_E_27522-1.indd 7 2007-3-3 15:18:41

E-8

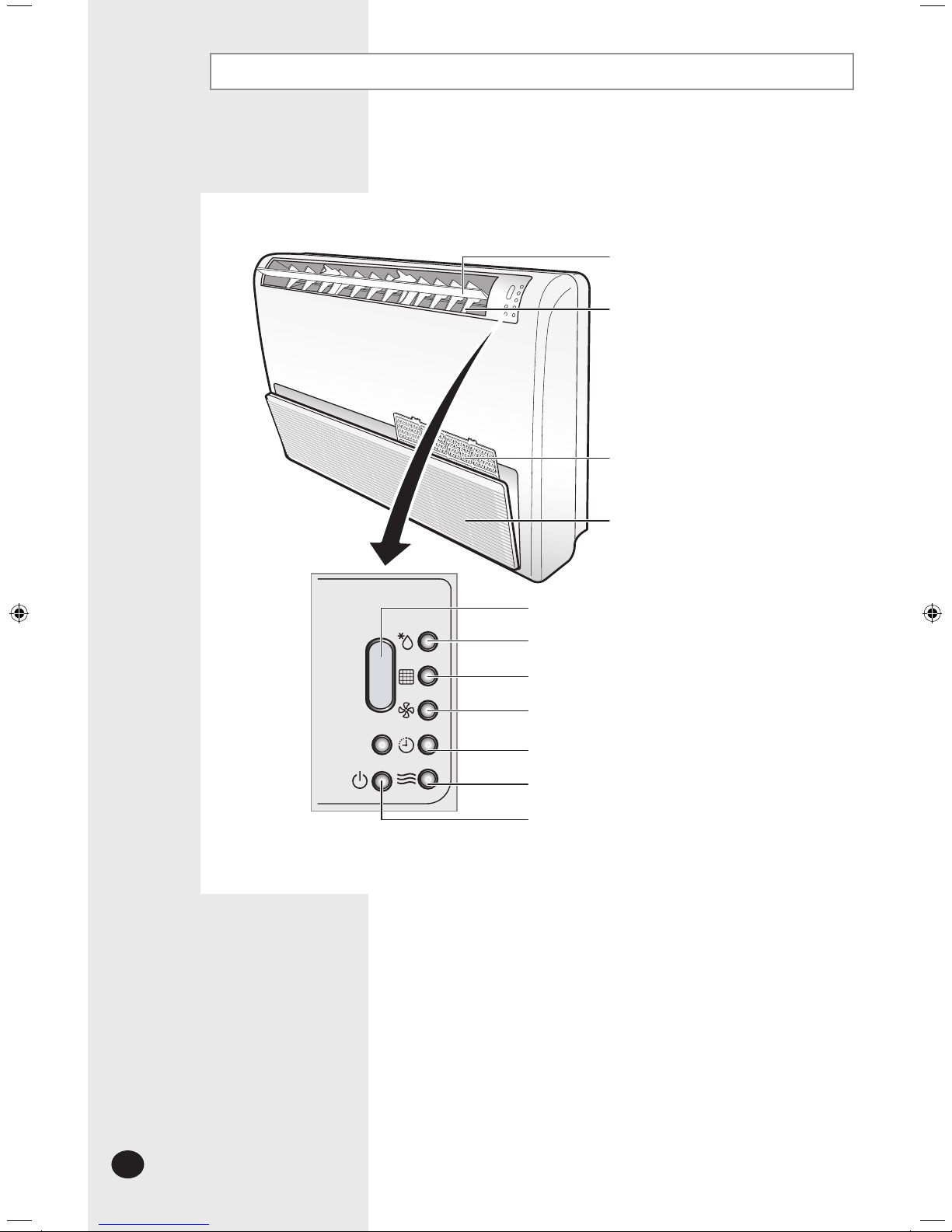

View of the Indoor Unit

The design and shape are subject to change according to the model.

Air flow blade(up/down)

Air flow blade(right/left)

Air filter

Front grille

Remote control sensor

Filter sign indicator

Defrosting indicator (Except Cooling Only Models)

Fan indicator

Timer indicator

Operation indicator

On/Off button

AVXTF_IB_E_27522-1.indd 8 2007-3-3 15:18:42

E-9

ENGLISH

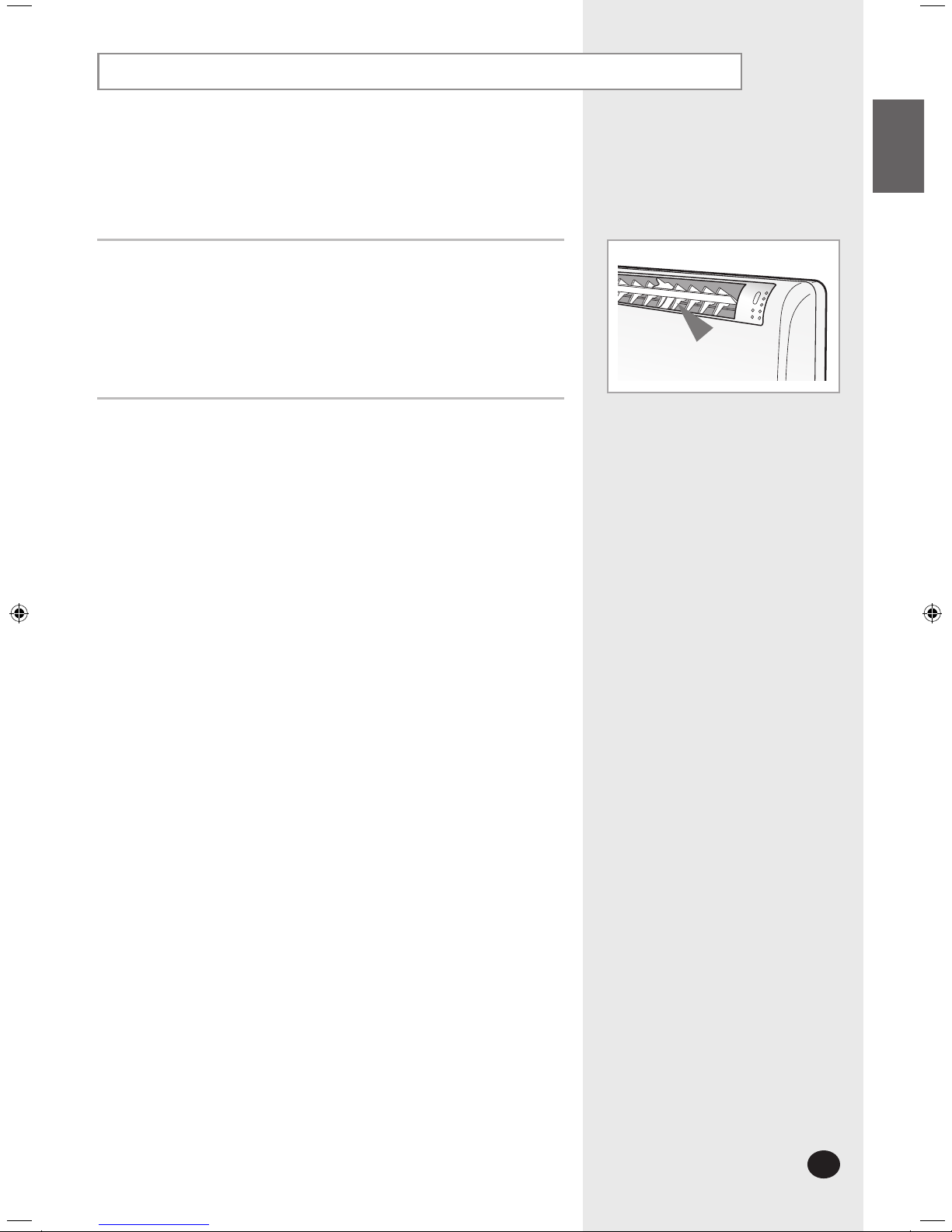

Adjusting the Air Flow Direction

There are two sets of inner air flow blades. Just as the outer air flow blade can

be adjusted vertically, the inner blades can be adjusted horizontally.

Adjust each set of inner blades to the required position, by pushing or pulling

them sideways.

AVXTF_IB_E_27522-1.indd 9 2007-3-3 15:18:42

E-10

Operating Recommendations

Here are a few recommendations that you should follow when operating your

air conditioner.

Topic Recommendation

Heating performances The heat pump function of the air conditioner

absorbs heat from outside air and brings it

indoors. As the temperature of the outside

air drops, the heating performance of

air conditioner will decrease.

If you find that the room is not warm enough,

using an additional heating appliance is

recommended.

Frost & Defrost When outside temperature is low but humidity

is high, frost may form on the outdoor unit at

HEAT mode.

If this happens:

 The heating operation stops.

 The defrost mode will be triggered

automatically for about 10 minutes.

 The steam produced on the outdoor unit in

the defrost mode is safe.

No intervention is required ;

after about 10 minutes, the air conditioner

operates again normally.

High indoor and outdoor

temperatures

If both indoor and outdoor temperatures are high

and the air conditioner is running at HEAT mode,

the outdoor unit’s fan and compressor may stop

at times.

This is normal ; simply wait until the

air conditioner switches on again.

Power failure If a power failure occurs while the air conditioner

is operating, the unit will be switched off.

When the power returns,

the air conditioner starts up again automatically.

AVXTF_IB_E_27522-1.indd 10 2007-3-3 15:18:42

E-11

ENGLISH

Temperature and Humidity Ranges

The following table indicates the temperature and humidity ranges,

within which the air conditioner can be used.

If the air conditioner is used at... Then...

High temperature The automatic protection feature may be

triggered and the air conditioner stopped.

Low temperature A water leakage or some other

malfunction may happen if the heat

exchanger freezes.

High humidity levels Water may condense on and drip from the

surface of the indoor unit if it is used for a

long periods.

Mode Outdoor Temperature Indoor Temperature Indoor Humidity

Heating -20°C to 24°C approx. 27°C or less -

Cooling -5°C to 43°C approx. 21°C to 32°C approx. 80% or less

Drying -5°C to 43°C approx. 21°C to 32°C approx. -

 The standardized temperature for heating is 7°C. If the outdoor

temperature drops to 0°C or below, the heating capacity can be

reduced depending on the temperature condition.

If the cooling operation is used at over 32°C(indoor temperature),

it does not cool at its full capacity.

AVXTF_IB_E_27522-1.indd 11 2007-3-3 15:18:42

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung MH026FJEA Manuel utilisateur

Samsung

Samsung DVM PLUS III Manuel d'instructions

Samsung

Samsung AM0 SERIES Manuel utilisateur

Samsung

Samsung AC035MNLDKH Manuel utilisateur

Samsung

Samsung SH09BWHA Series Manuel utilisateur

Samsung

Samsung AM FNHDEH Series Manuel utilisateur

Samsung

Samsung AS07S2GE Manuel utilisateur

Samsung

Samsung AR36BSHUMGMX Manuel utilisateur

Samsung

Samsung MH026FNCA Manuel utilisateur

Samsung

Samsung AWT18QBHDGD Manuel utilisateur

Samsung

Samsung AWT12FBDDBKXTL Manuel utilisateur

Samsung

Samsung AQ09WHWE/XCH Manuel utilisateur

Samsung

Samsung AC160JNHFKH Manuel utilisateur

Samsung

Samsung EHS AE050RXYDEG/EU Manuel utilisateur

Samsung

Samsung DC60FTSA(X) Manuel utilisateur

Samsung

Samsung MXD-K025AN Manuel utilisateur

Samsung

Samsung AHU Series Manuel utilisateur

Samsung

Samsung AZ09F1KE Manuel utilisateur

Samsung

Samsung AM080FXWANR Manuel d'instructions

Samsung

Samsung AXM260VE Manuel utilisateur

Samsung

Samsung AQV18UGAX Manuel utilisateur

Samsung

Samsung AHT181MB Manuel utilisateur

Samsung

Samsung AVXDSH020CE Manuel utilisateur

Samsung

Samsung AQV09AWANSER Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
